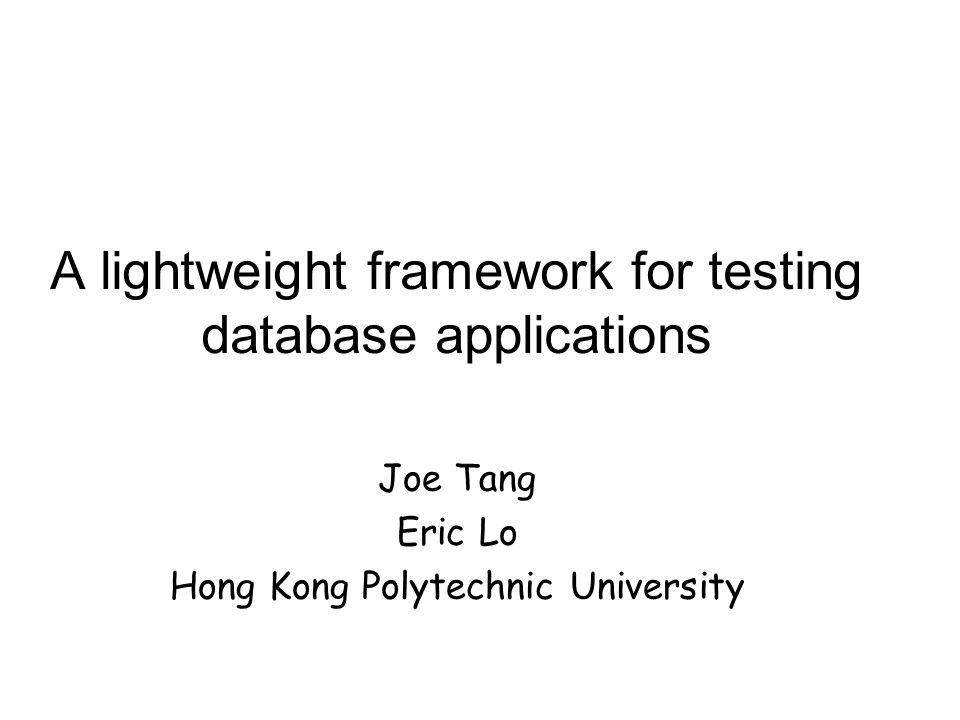

1 A lightweight framework for testing database applications Joe Tang Eric Lo Hong Kong Polytechnic University

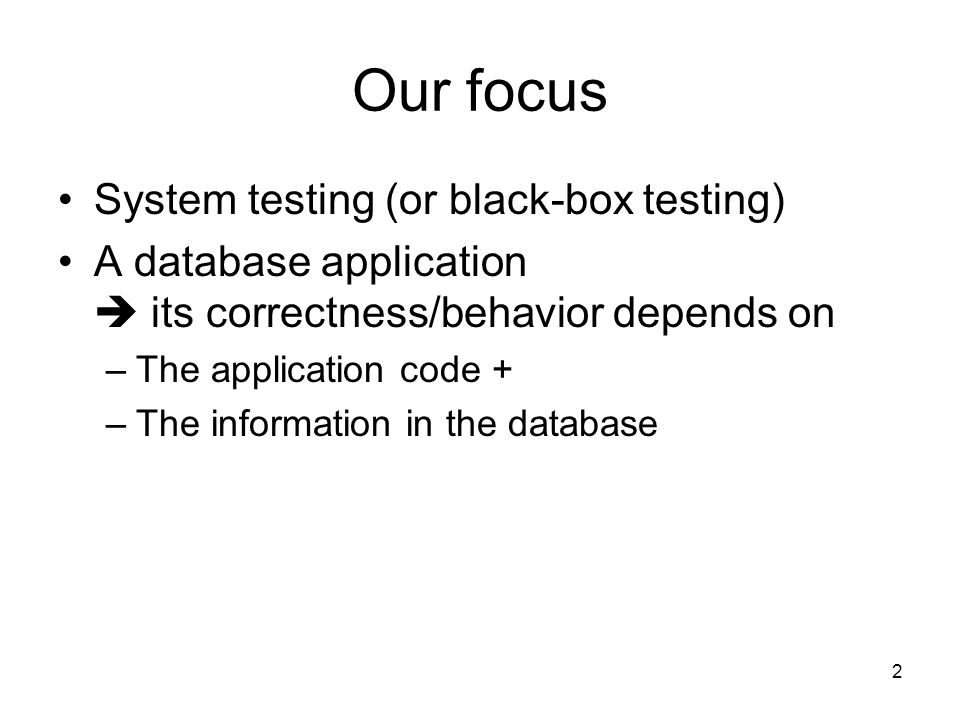

2 Our focus System testing (or black-box testing) A database application  its correctness/behavior depends on –The application code + –The information in the database 2

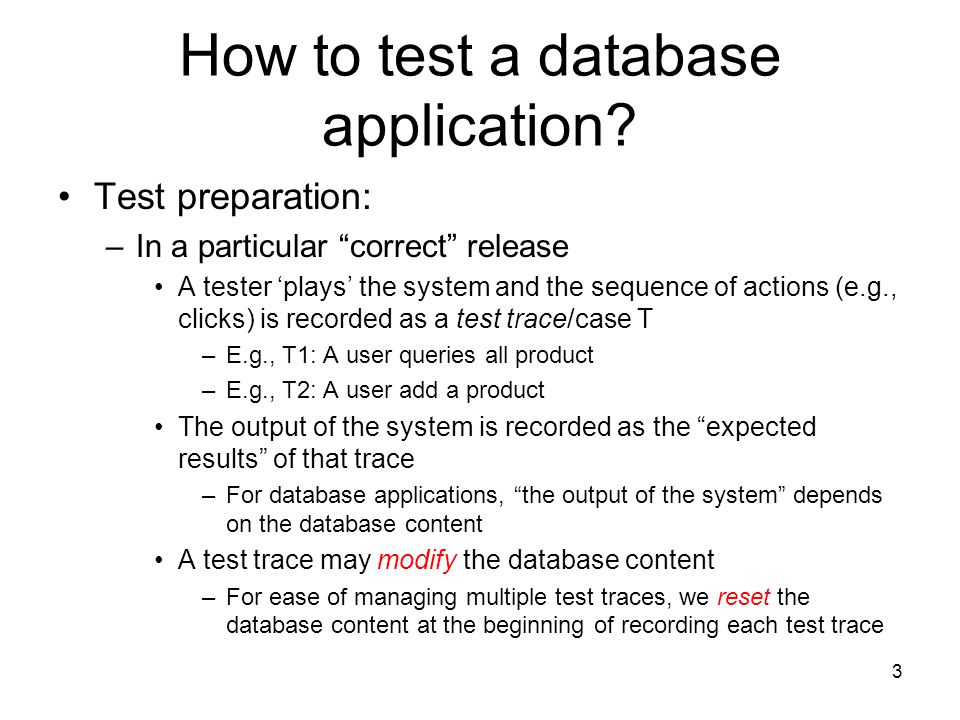

3 How to test a database application? Test preparation: –In a particular “correct” release A tester ‘plays’ the system and the sequence of actions (e.g., clicks) is recorded as a test trace/case T –E.g., T1: A user queries all product –E.g., T2: A user add a product The output of the system is recorded as the “expected results” of that trace –For database applications, “the output of the system” depends on the database content A test trace may modify the database content –For ease of managing multiple test traces, we reset the database content at the beginning of recording each test trace 3

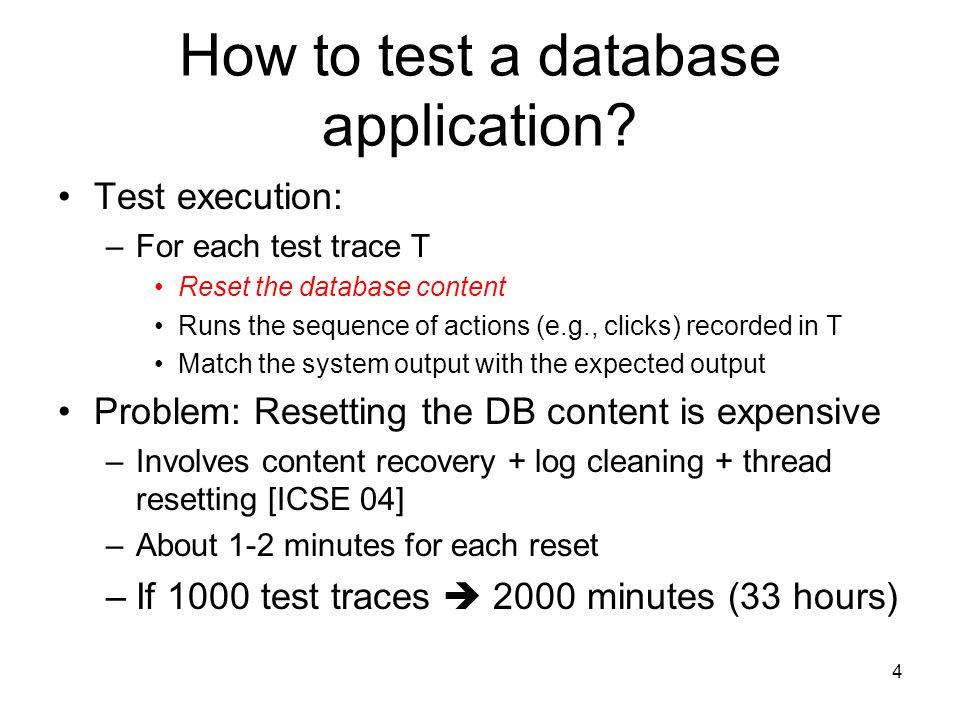

4 How to test a database application? Test execution: –For each test trace T Reset the database content Runs the sequence of actions (e.g., clicks) recorded in T Match the system output with the expected output Problem: Resetting the DB content is expensive –Involves content recovery + log cleaning + thread resetting [ICSE 04] –About 1-2 minutes for each reset –If 1000 test traces  2000 minutes (33 hours) 4

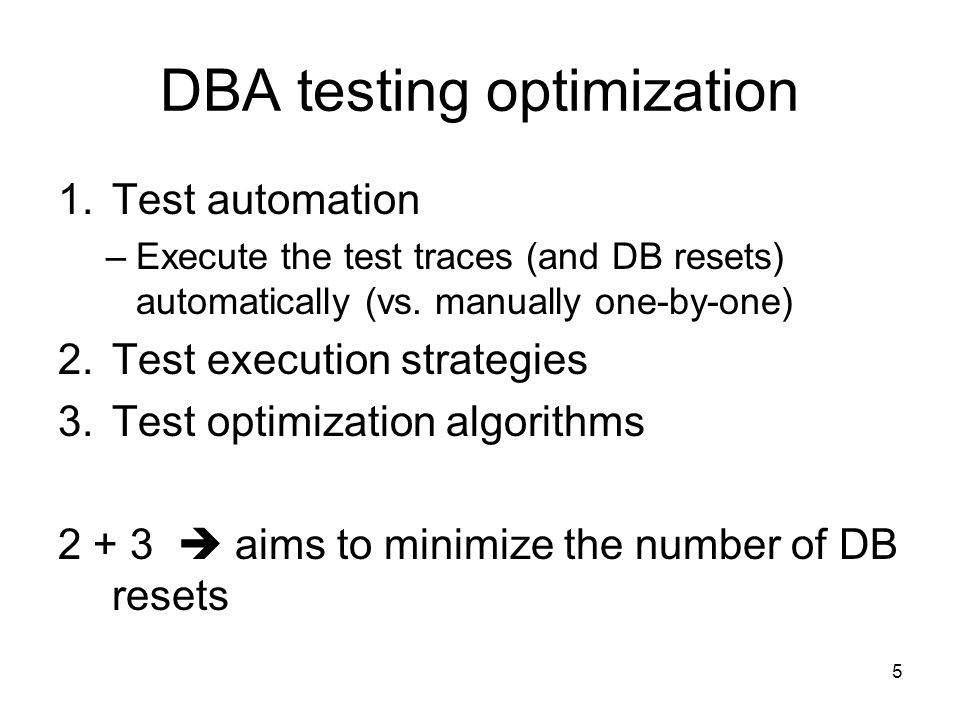

5 DBA testing optimization 1.Test automation –Execute the test traces (and DB resets) automatically (vs. manually one-by-one) 2.Test execution strategies 3.Test optimization algorithms  aims to minimize the number of DB resets 5

6 Related work 2. Test execution strategies Optimistic [vldbj]: Execute reset lazily –T1 T2 T3 R T3 3. Test optimization algorithms SLICE Algorithm [vldbj]: –If T1 T2 R this time –Next time we try T2 T1 … 6

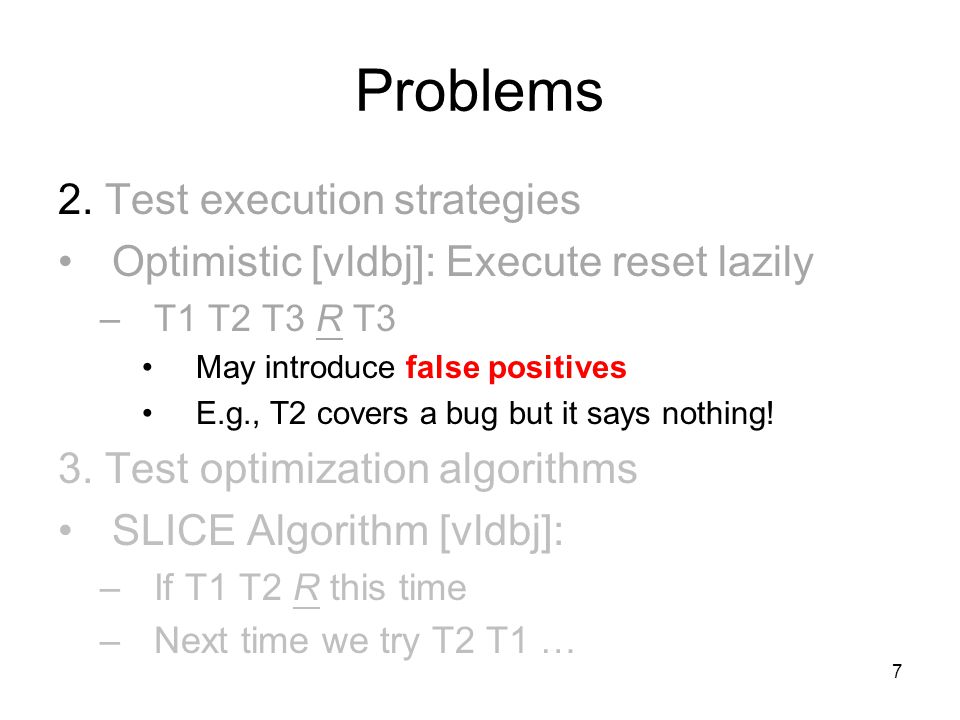

7 Problems 2. Test execution strategies Optimistic [vldbj]: Execute reset lazily –T1 T2 T3 R T3 May introduce false positives E.g., T2 covers a bug but it says nothing! 3. Test optimization algorithms SLICE Algorithm [vldbj]: –If T1 T2 R this time –Next time we try T2 T1 … 7

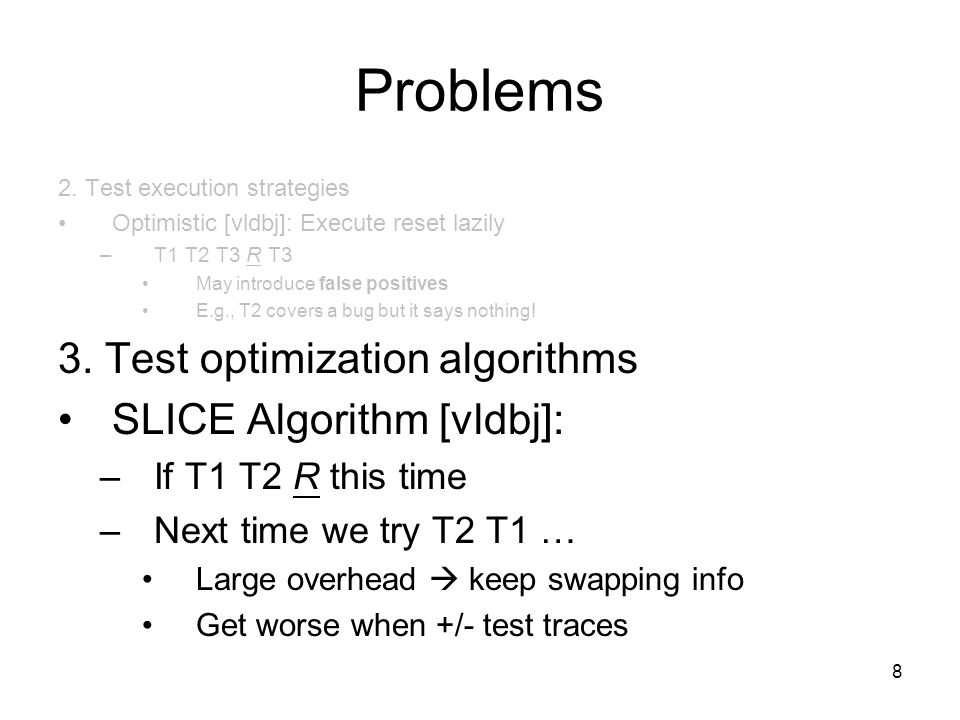

8 Problems 2. Test execution strategies Optimistic [vldbj]: Execute reset lazily –T1 T2 T3 R T3 May introduce false positives E.g., T2 covers a bug but it says nothing! 3. Test optimization algorithms SLICE Algorithm [vldbj]: –If T1 T2 R this time –Next time we try T2 T1 … Large overhead  keep swapping info Get worse when +/- test traces 8

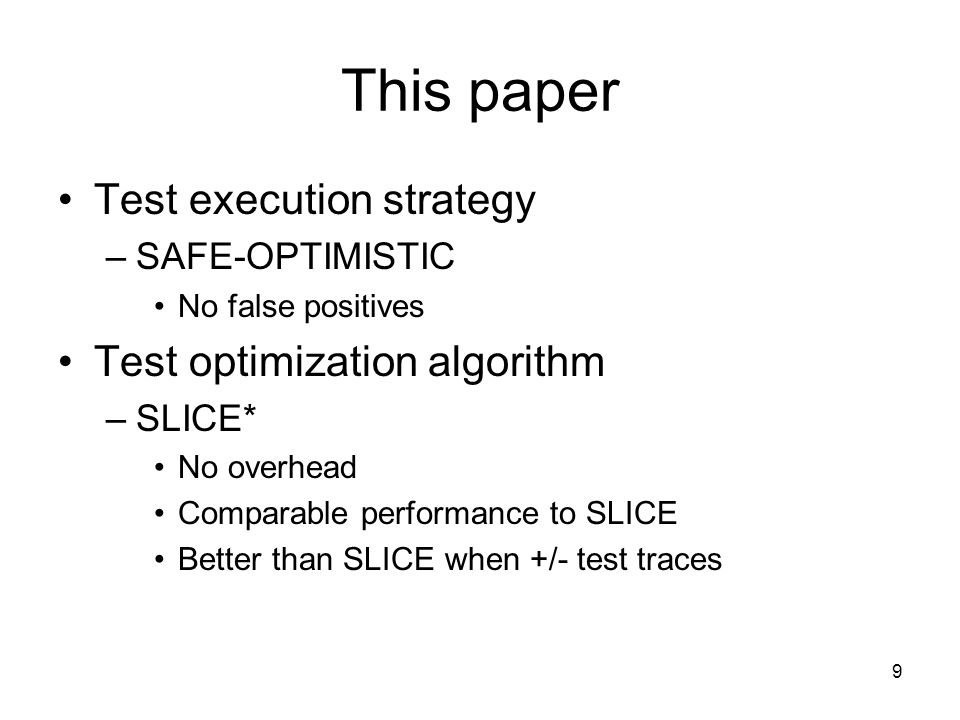

9 This paper Test execution strategy –SAFE-OPTIMISTIC No false positives Test optimization algorithm –SLICE* No overhead Comparable performance to SLICE Better than SLICE when +/- test traces 9

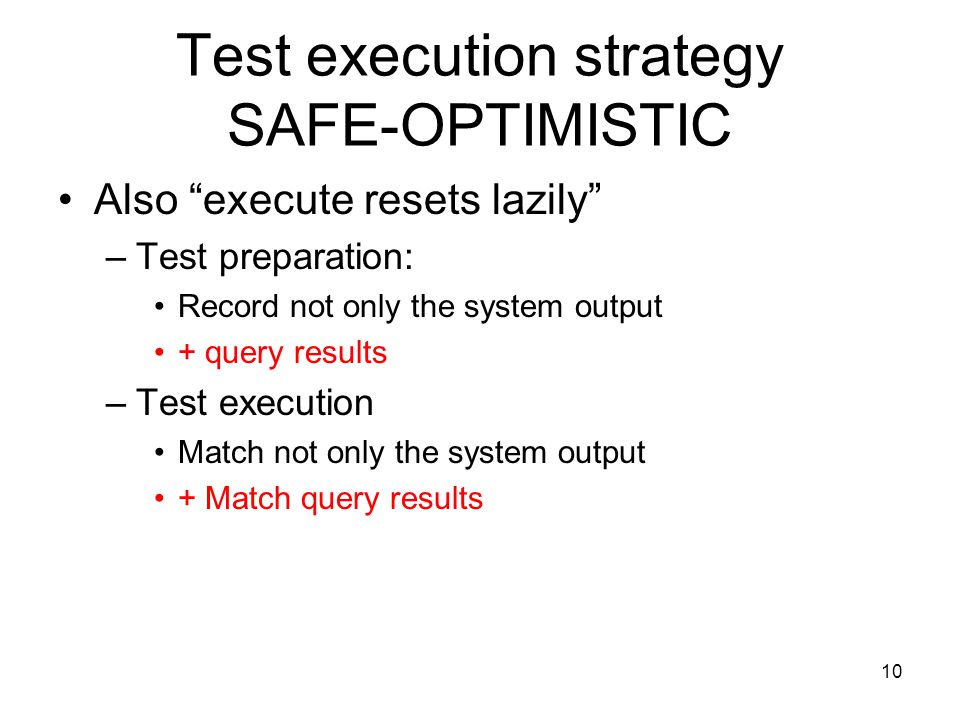

10 Test execution strategy SAFE-OPTIMISTIC Also “execute resets lazily” –Test preparation: Record not only the system output + query results –Test execution Match not only the system output + Match query results 10

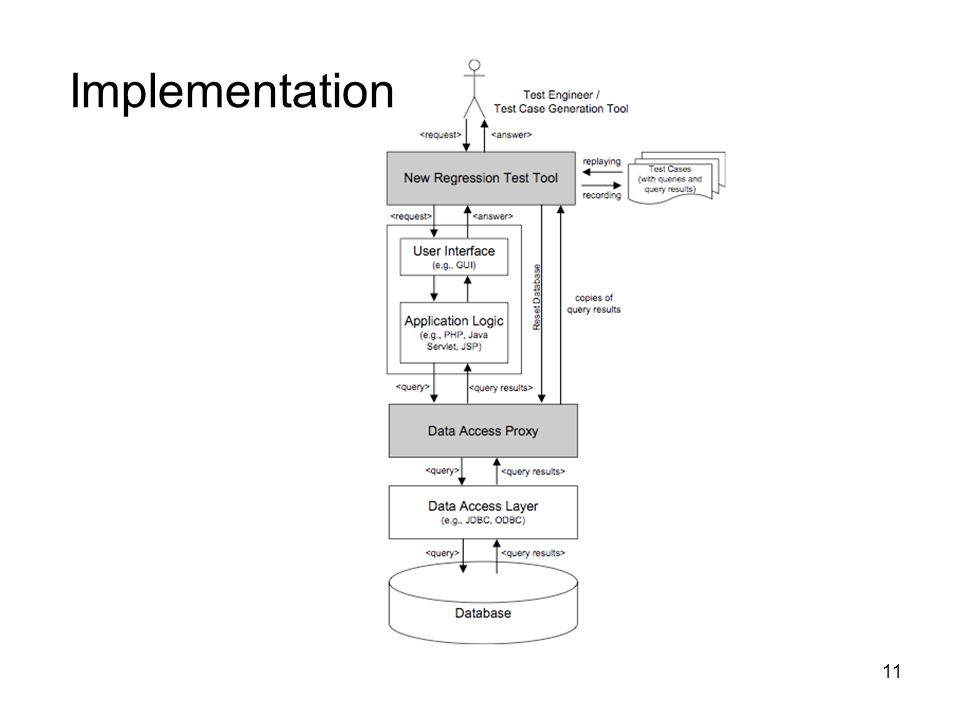

11 Implementation 11

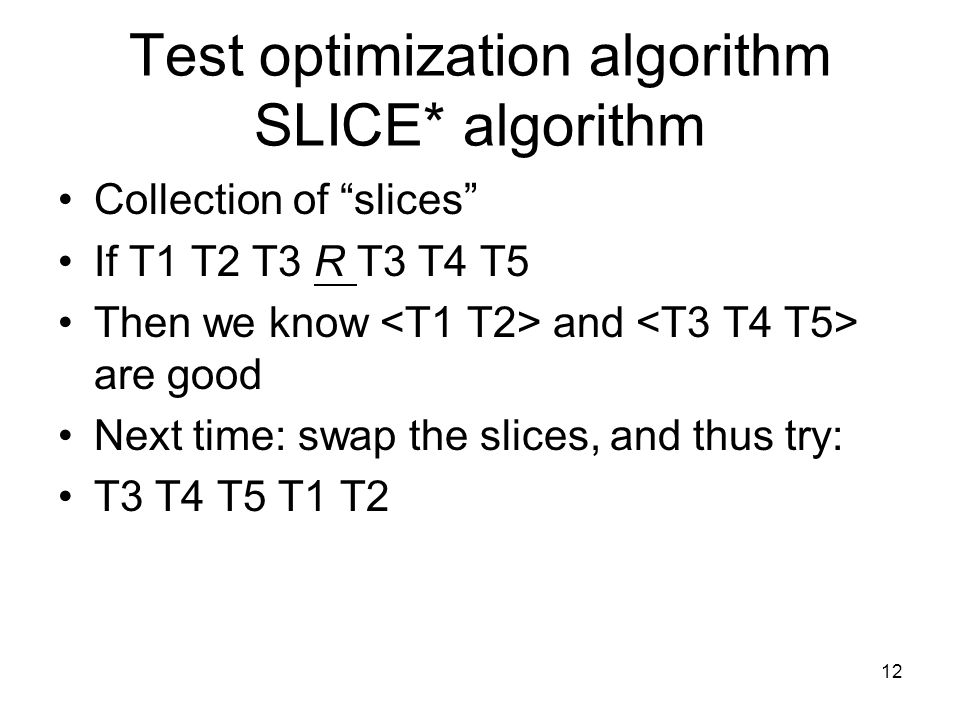

12 Test optimization algorithm SLICE* algorithm Collection of “slices” If T1 T2 T3 R T3 T4 T5 Then we know and are good Next time: swap the slices, and thus try: T3 T4 T5 T1 T2 12

13 Evaluation A real world case study –An on-line procurement system –Test database  1.5GB –A database reset 1.9 min Synthetic experiments –Vary the number of test cases –Vary the degree of “conflicts” between test cases –Vary % of update in the test suite 13

14 Real case study 14

15 1000 test traces, 100K conflicts 15

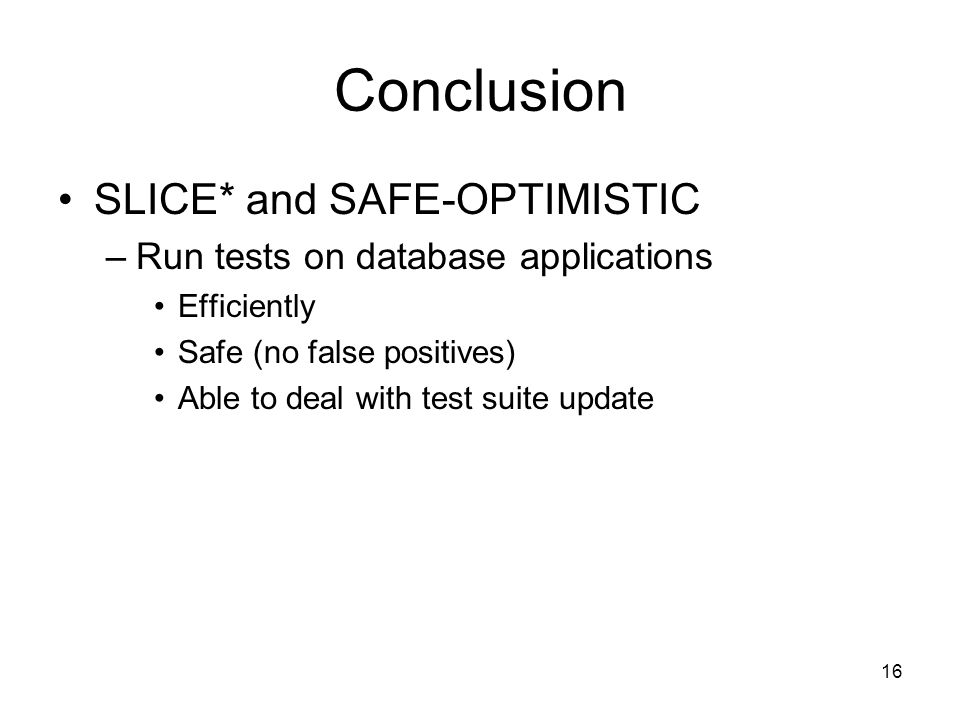

16 Conclusion SLICE* and SAFE-OPTIMISTIC –Run tests on database applications Efficiently Safe (no false positives) Able to deal with test suite update 16

17 References [vldbj]Florian Haftmann, Donald Kossmann, Eric Lo: A framework for efficient regression tests on database applications. VLDB J. 16(1): (2007) [ICSE04] R. Chatterjee, G. Arun, S. Agarwal, B. Speckhard, and R. Vasudevan. Using data versioning in database application development. ICSE
