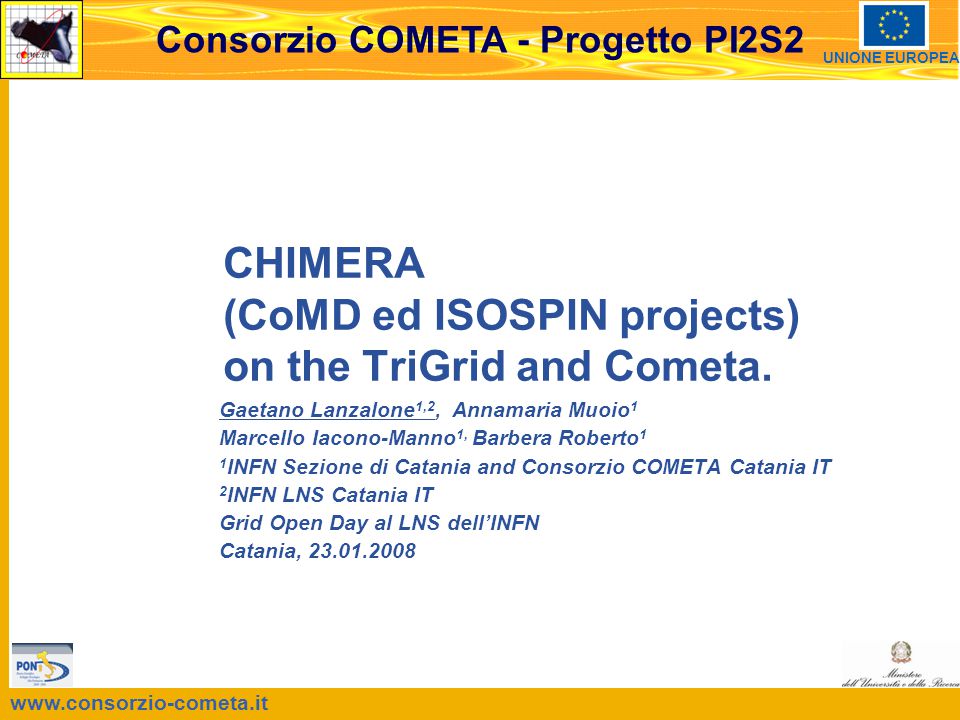

2 Consorzio COMETA - Progetto PI2S2 UNIONE EUROPEA CHIMERA (CoMD ed ISOSPIN projects) on the TriGrid and Cometa. Gaetano Lanzalone 1,2, Annamaria Muoio 1 Marcello Iacono-Manno 1, Barbera Roberto 1 1 INFN Sezione di Catania and Consorzio COMETA Catania IT 2 INFN LNS Catania IT Grid Open Day al LNS dell’INFN Catania,

3 Catania, Grid Open Day al LNS dell’INFN, Outline 1 Introduction 2 Problem Solution by GENIUS 3 Results and Conclusions

4 Catania, Grid Open Day al LNS dell’INFN, Partners INFN – sez. CT –Massimo Papa –Enrico De Filippo ( ) [ISOSPIN] INFN – sez. CT & LNS –Annamaria Muoio –Gaetano Lanzalone Porting “command line” –Marcello Iacono-Manno

5 Catania, Grid Open Day al LNS dell’INFN, Introduction

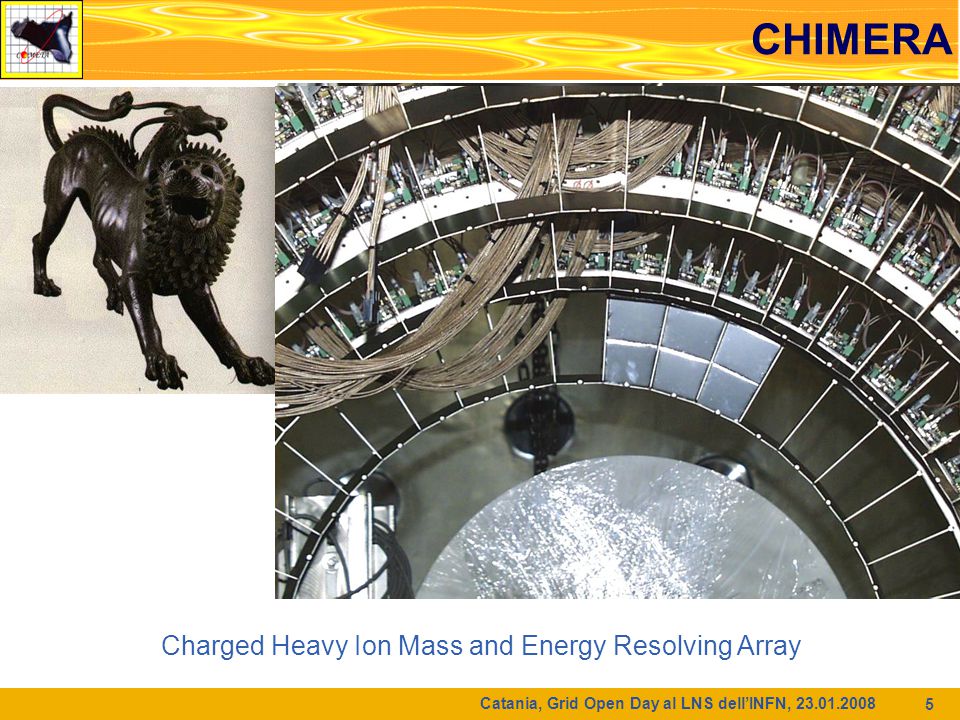

6 Catania, Grid Open Day al LNS dell’INFN, CHIMERA Charged Heavy Ion Mass and Energy Resolving Array

7 Catania, Grid Open Day al LNS dell’INFN, m 1° 30° Fascio ° 504 CHIMERA 1m 1° 30° ° 504 CHIMERA

8 Catania, Grid Open Day al LNS dell’INFN, CHIMERA

9 Catania, Grid Open Day al LNS dell’INFN, PD Si CsI  V  E V t V t  V   E Z=6 Charge Identification

10 Catania, Grid Open Day al LNS dell’INFN, Kolcata (India) ROCHESTER (NY) Michigan State University Caen Orsay Milano Bologna Firenze Napoli Varsavia Cracovia Katowice Bucarest CHIMERA Collaboration “Distribution” CT-Me-LNS USA Zagreb Main server of CHIMERA data is located on cluster Linux at Sezione INFN di Catania (mirror al LNS-Catania).

11 Catania, Grid Open Day al LNS dell’INFN, ISOSPIN Program ISOSPIN analysis program is a data-analysis tool developed for the 4π multi-detector CHIMERA. The main goal is to provide a tool containing all the algorithms for the particle identification (i.e. determining particle’s charge and mass) and particle calibration (i.e. determining Energy, rapidity, TOF and other physical observables) starting from raw data produced by the data acquisition system. 1200*2 (ΔE-E) (ΔE-Time)+ …………. + >1200*8 (calib Ener) + >1200*8 (calib Time) = _________________ >30000 (spectrum+matrix)/Reactions + other …

12 Catania, Grid Open Day al LNS dell’INFN, DATA Analysis with multidetector CHIMERA. C (low level routines) “ISOSPIN program” :software tool  analysis of physical data. Fortran 95 shell Particles Identification Calibrations: Energy, rapidity, TOF, charge, mass,..... CHIMERA database: parameters, pedestal, “offset”, “cuts”… Interface to operative system. read and compact data. Input parameter lists : manage macro-language for data input and analysis. Event control, assignment parameters, delete, search, sort, … etc. Only “public methods “ available in the “shell” to operate on DATA. No information how work the low level C routines. Output: CERNLIB (mono-bi- dimensional spectrums, nuple(paw- formatt). Output: C++ on Root “Root trees” to record physiscal DATA.

13 Catania, Grid Open Day al LNS dell’INFN, Constrained molecular dynamics (CoMD[*]) is a model applied to the N-body problem in nuclear physics. The heavy computational taskes related to quantum effects, to the presence of the "hard core" repulsive interaction have been worked out by defining a set of transformations based on the concept of impulsive forces. In particular in the implemented version II of the Constrained Molecular Dynamics model the problem related to the non conservation of the total angular momentum has been solved. This problem can affect others semiclassical microscopic approaches as due to the "hard core" repulsive interaction or to the use of stochastic forces.. [*] M.Papa et al., Physical Review C72, (2005) Fission of heavy participant 124 Sn+ 64 NiMultifragmentation of light participant 124 Sn+ 64 Ni The CoMD-II model ( Constrained Molecular Dynamics )

14 Catania, Grid Open Day al LNS dell’INFN, General overview of algorithms. Cluster  Grid 

15 Catania, Grid Open Day al LNS dell’INFN, Problem Solution by GENIUS

16 Catania, Grid Open Day al LNS dell’INFN, CLI vs GUI Command line interface Expert User  long time before start … Web interface Dummy User  immediate start … We need: Friendly User Interface  ENGINFRAME (GENIUS)

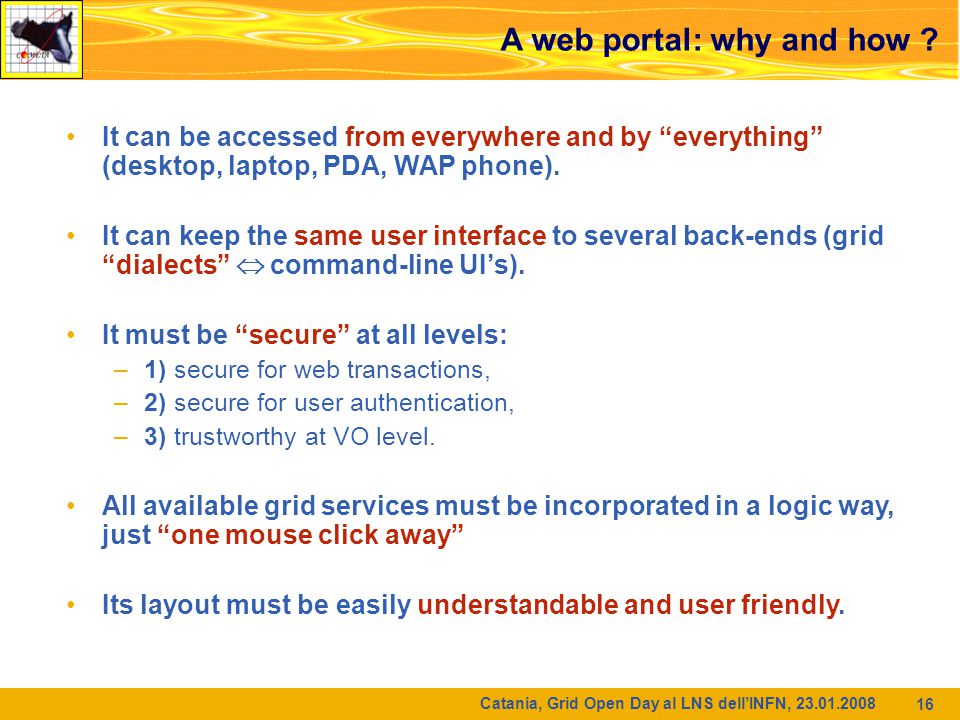

17 Catania, Grid Open Day al LNS dell’INFN, A web portal: why and how ? It can be accessed from everywhere and by “everything” (desktop, laptop, PDA, WAP phone). It can keep the same user interface to several back-ends (grid “dialects”  command-line UI’s). It must be “secure” at all levels: –1) secure for web transactions, –2) secure for user authentication, –3) trustworthy at VO level. All available grid services must be incorporated in a logic way, just “one mouse click away” Its layout must be easily understandable and user friendly.

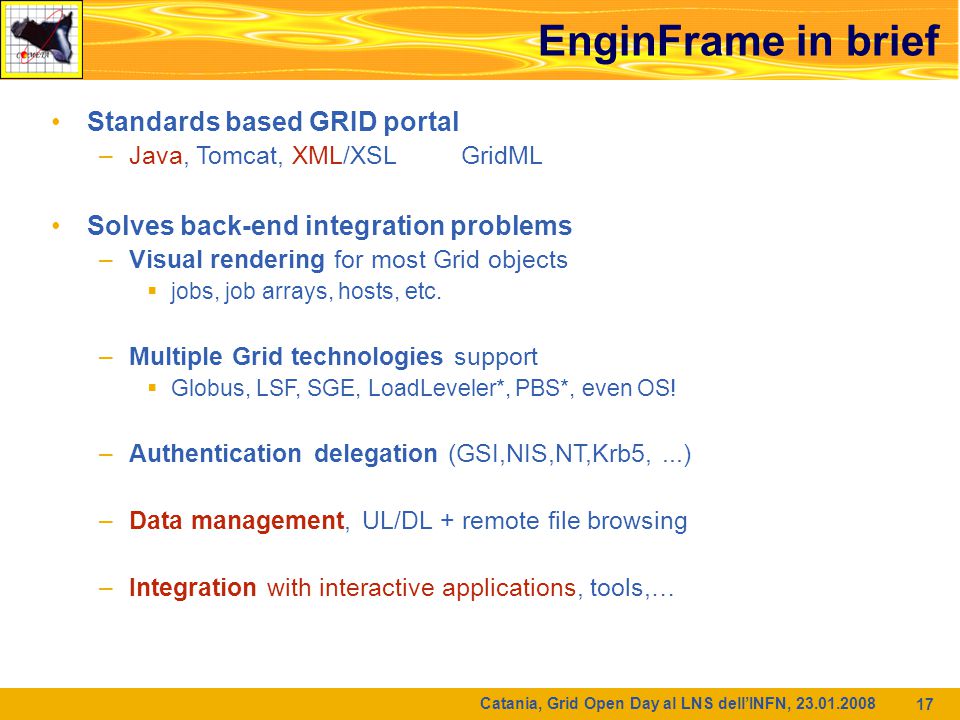

18 Catania, Grid Open Day al LNS dell’INFN, EnginFrame in brief Standards based GRID portal –Java, Tomcat, XML/XSL GridML Solves back-end integration problems –Visual rendering for most Grid objects  jobs, job arrays, hosts, etc. –Multiple Grid technologies support  Globus, LSF, SGE, LoadLeveler*, PBS*, even OS! –Authentication delegation (GSI,NIS,NT,Krb5,...) –Data management, UL/DL + remote file browsing –Integration with interactive applications, tools,…

19 Catania, Grid Open Day al LNS dell’INFN, Application Servers Application Servers Grid / Compute Farm Web ServerClients Standard Web Browser Interactive applications Interactive applications EnginFrame Server Browsing request HTML Rendering XML Output Service request EnginFrame Agents EnginFrame workflow

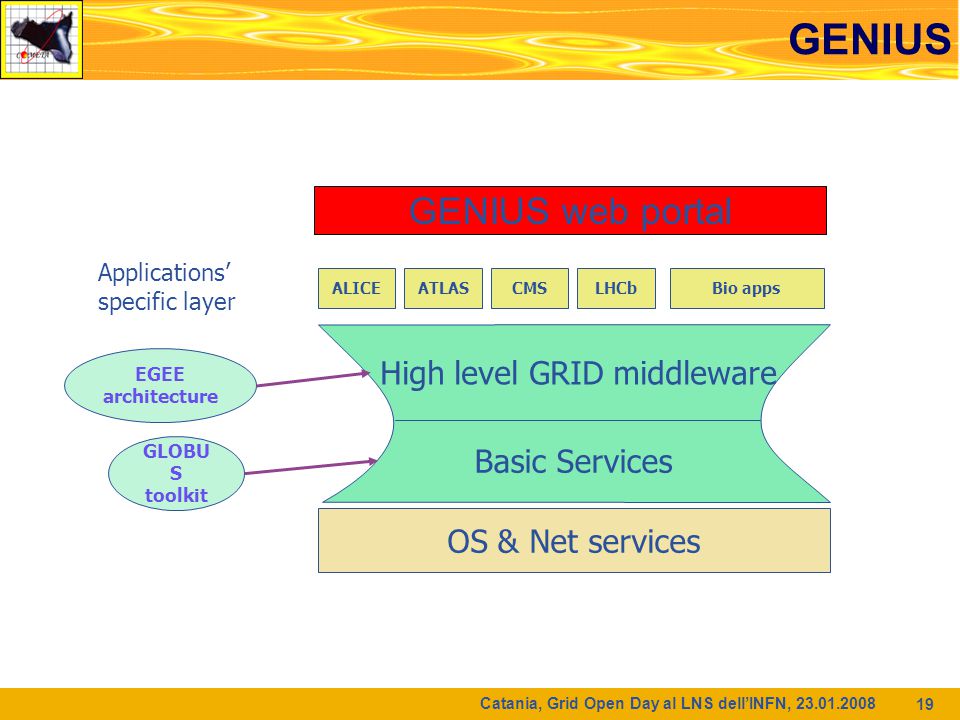

20 Catania, Grid Open Day al LNS dell’INFN, GENIUS OS & Net services Basic Services High level GRID middleware ALICEATLASCMSLHCb Applications’ specific layer Bio apps GLOBU S toolkit EGEE architecture GENIUS web portal

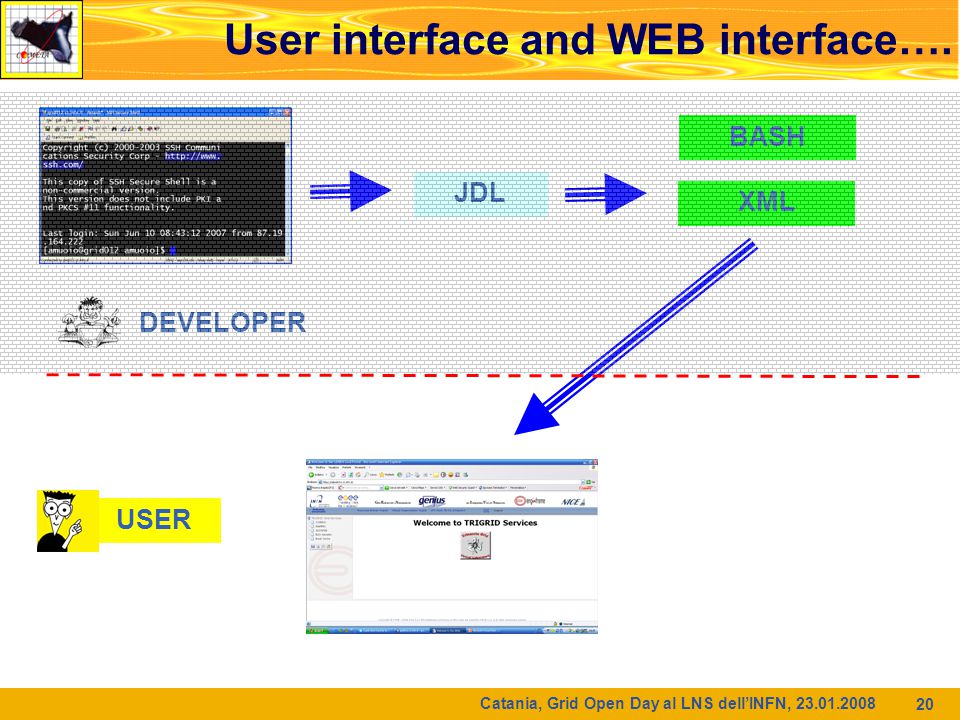

21 Catania, Grid Open Day al LNS dell’INFN, User interface and WEB interface…. XML JDL USER DEVELOPER BASH

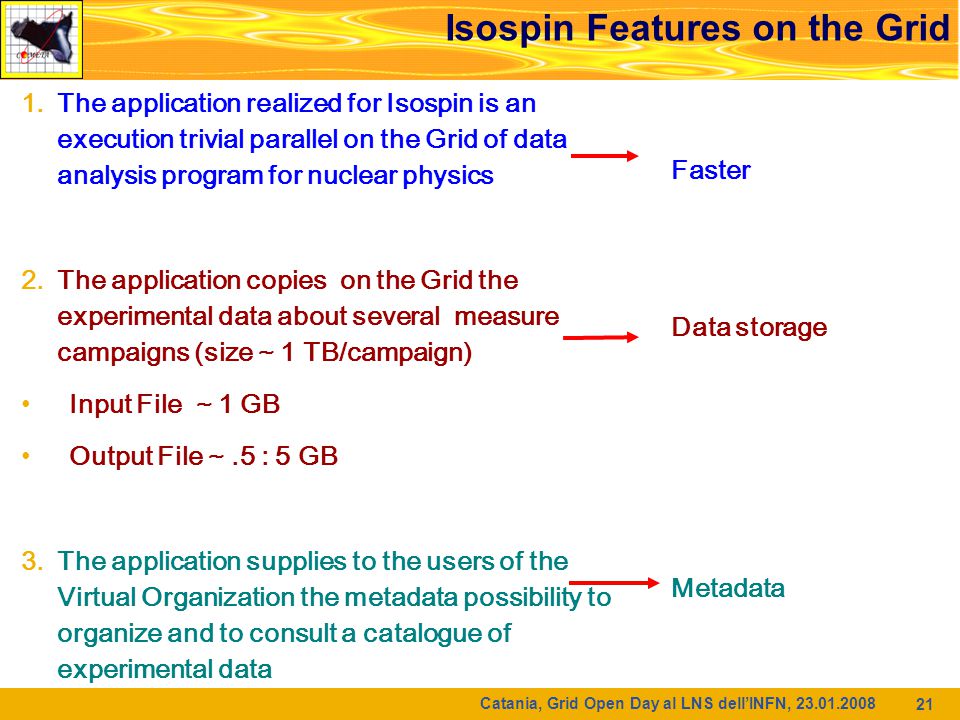

22 Catania, Grid Open Day al LNS dell’INFN, Isospin Features on the Grid 1.The application realized for Isospin is an execution trivial parallel on the Grid of data analysis program for nuclear physics 2.The application copies on the Grid the experimental data about several measure campaigns (size ~ 1 TB/campaign) Input File ~ 1 GB Output File ~.5 : 5 GB 3.The application supplies to the users of the Virtual Organization the metadata possibility to organize and to consult a catalogue of experimental data Faster Data storage Metadata

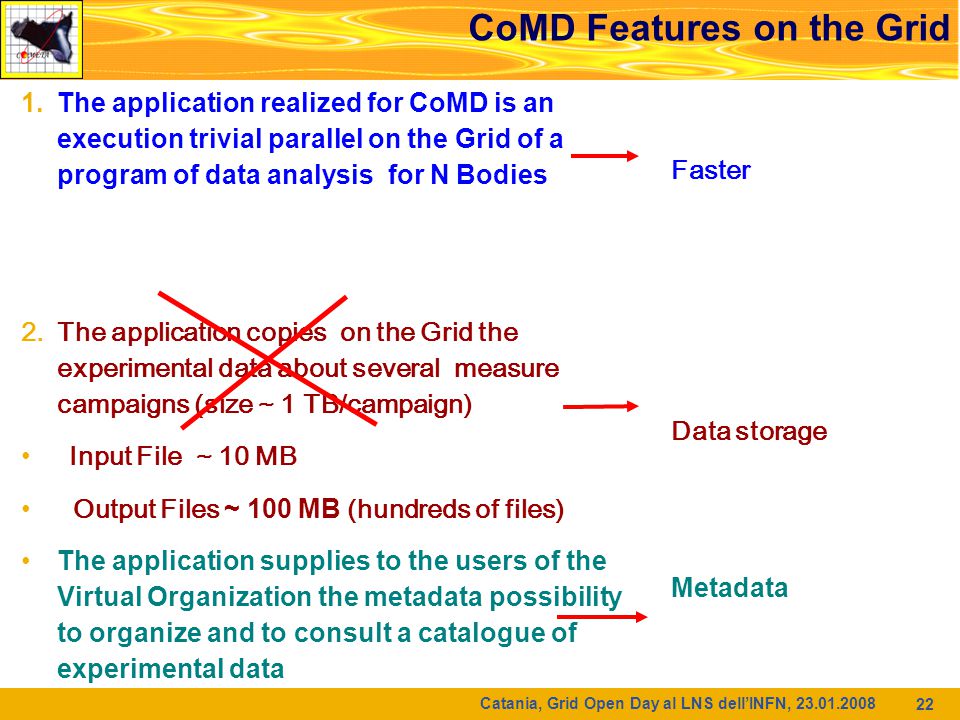

23 Catania, Grid Open Day al LNS dell’INFN, CoMD Features on the Grid 1.The application realized for CoMD is an execution trivial parallel on the Grid of a program of data analysis for N Bodies 2.The application copies on the Grid the experimental data about several measure campaigns (size ~ 1 TB/campaign) Input File ~ 10 MB Output Files ~ 100 MB (hundreds of files) The application supplies to the users of the Virtual Organization the metadata possibility to organize and to consult a catalogue of experimental data Faster Data storage Metadata

24 Catania, Grid Open Day al LNS dell’INFN, Let’s Go ! … connecting !

25 Catania, Grid Open Day al LNS dell’INFN, GENIUS

26 Catania, Grid Open Day al LNS dell’INFN, GENIUS-login

27 Catania, Grid Open Day al LNS dell’INFN, Inzializer PROXY- step 1

28 Catania, Grid Open Day al LNS dell’INFN, Inzializer PROXY - step 2

29 Catania, Grid Open Day al LNS dell’INFN, Inzializer PROXY - step 3

30 Catania, Grid Open Day al LNS dell’INFN, Inzializer PROXY - step 4

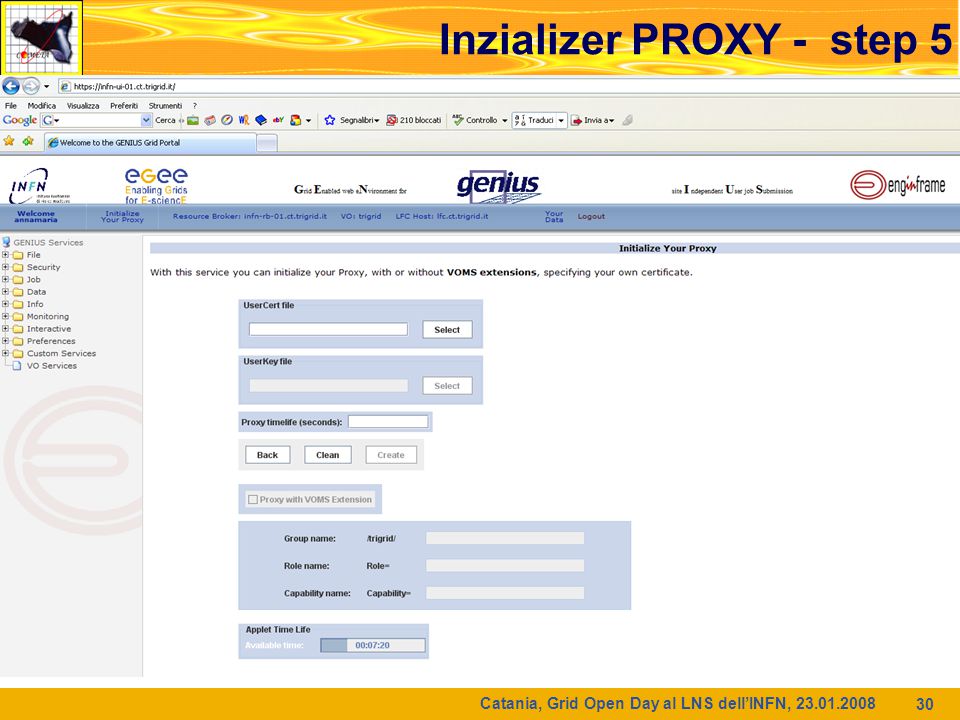

31 Catania, Grid Open Day al LNS dell’INFN, Inzializer PROXY - step 5

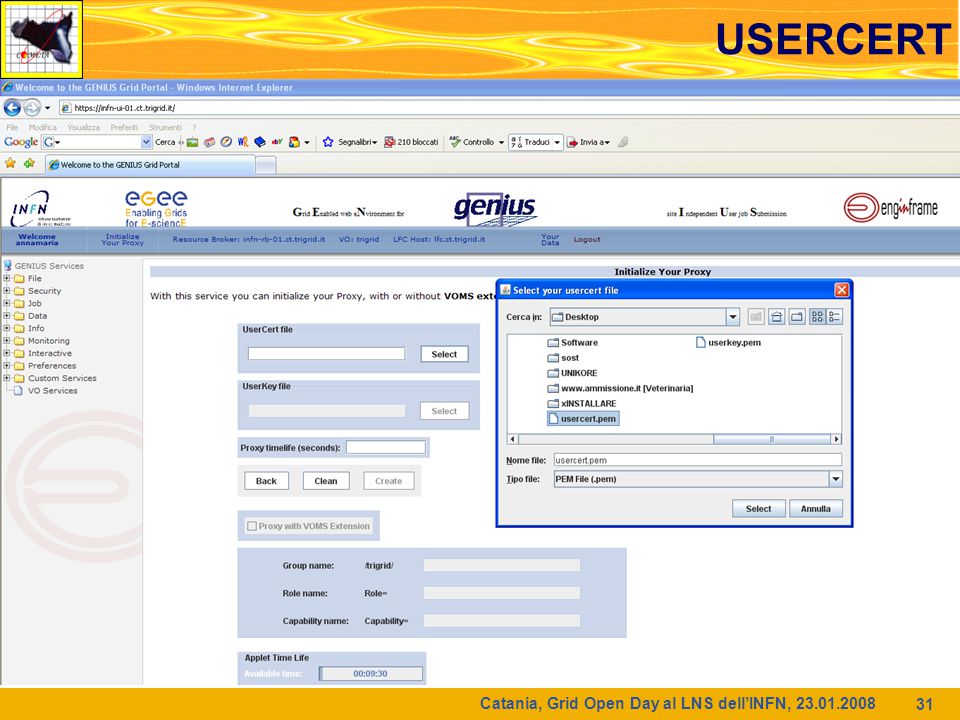

32 Catania, Grid Open Day al LNS dell’INFN, USERCERT

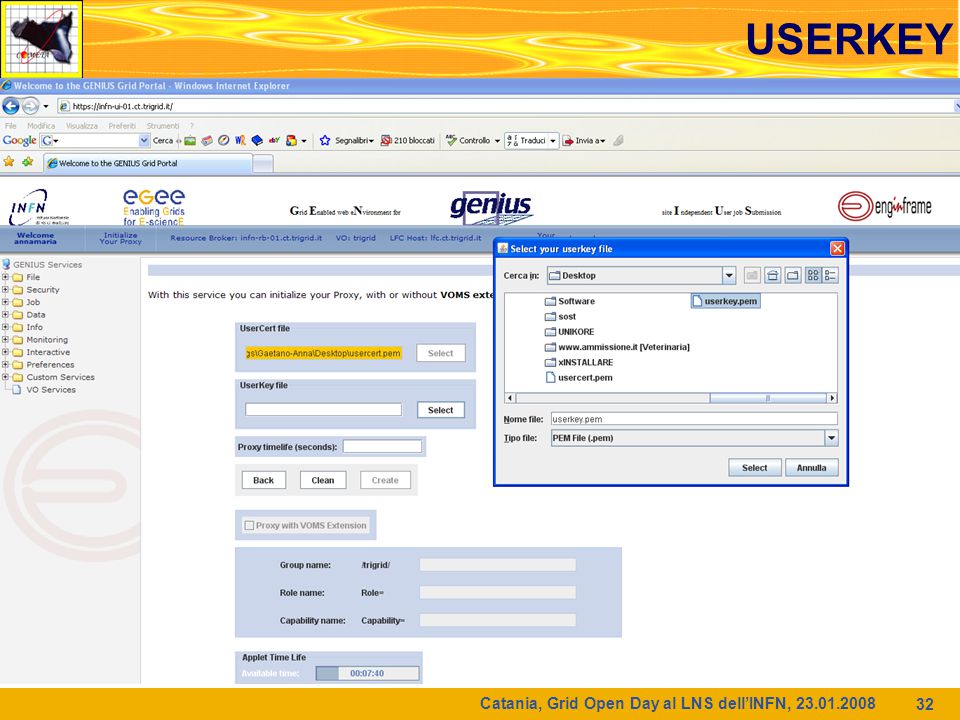

33 Catania, Grid Open Day al LNS dell’INFN, USERKEY

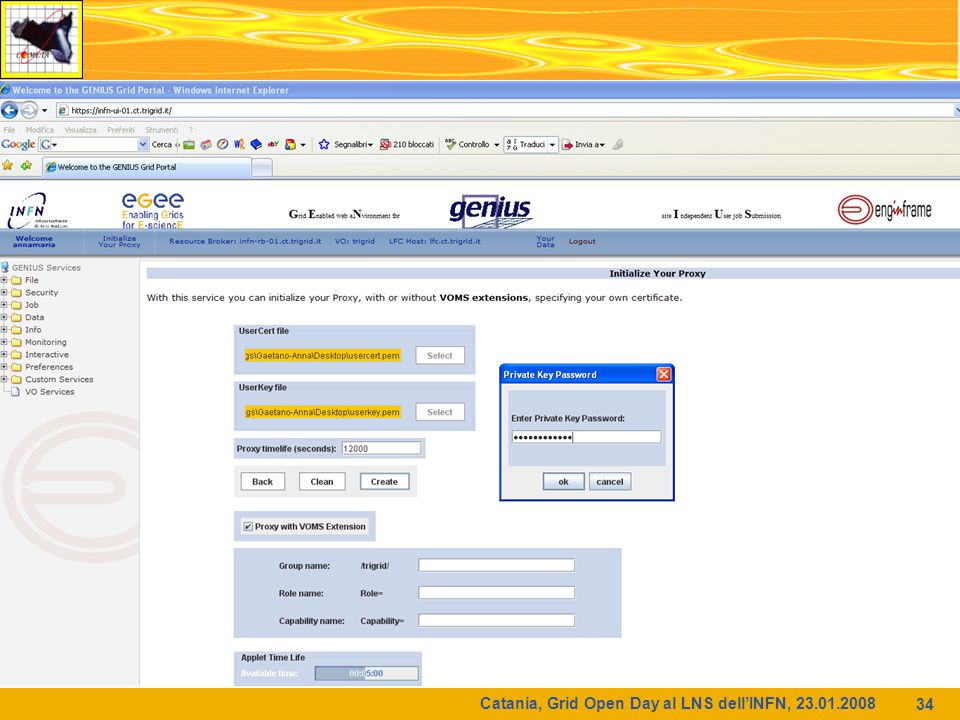

34 Catania, Grid Open Day al LNS dell’INFN,

35 Catania, Grid Open Day al LNS dell’INFN,

36 Consorzio COMETA - Progetto PI2S2 UNIONE EUROPEA

37 Consorzio COMETA - Progetto PI2S2 UNIONE EUROPEA

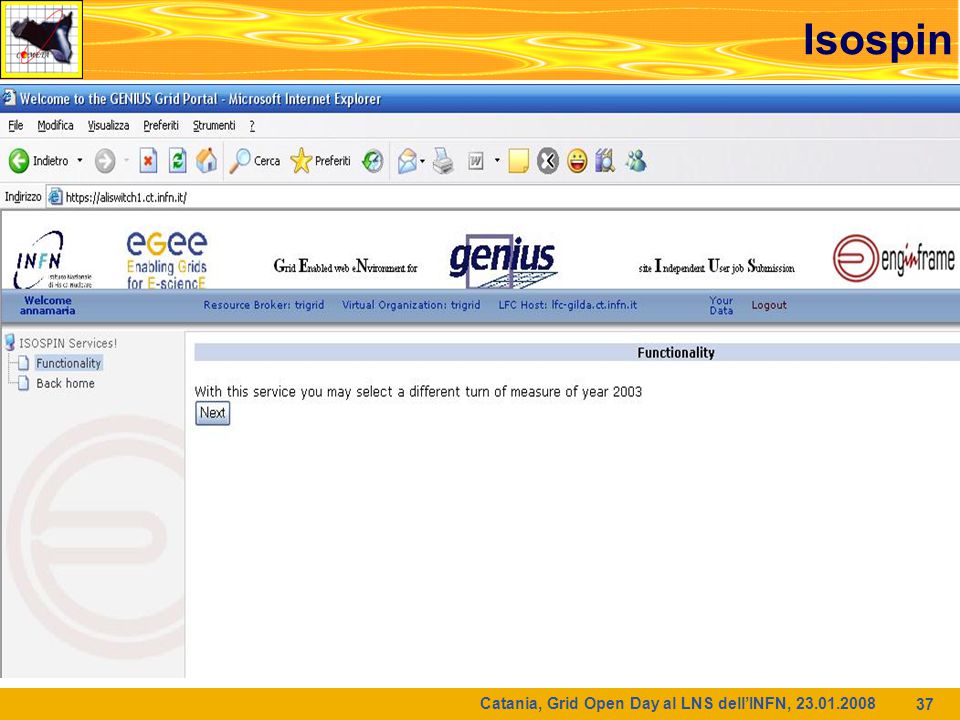

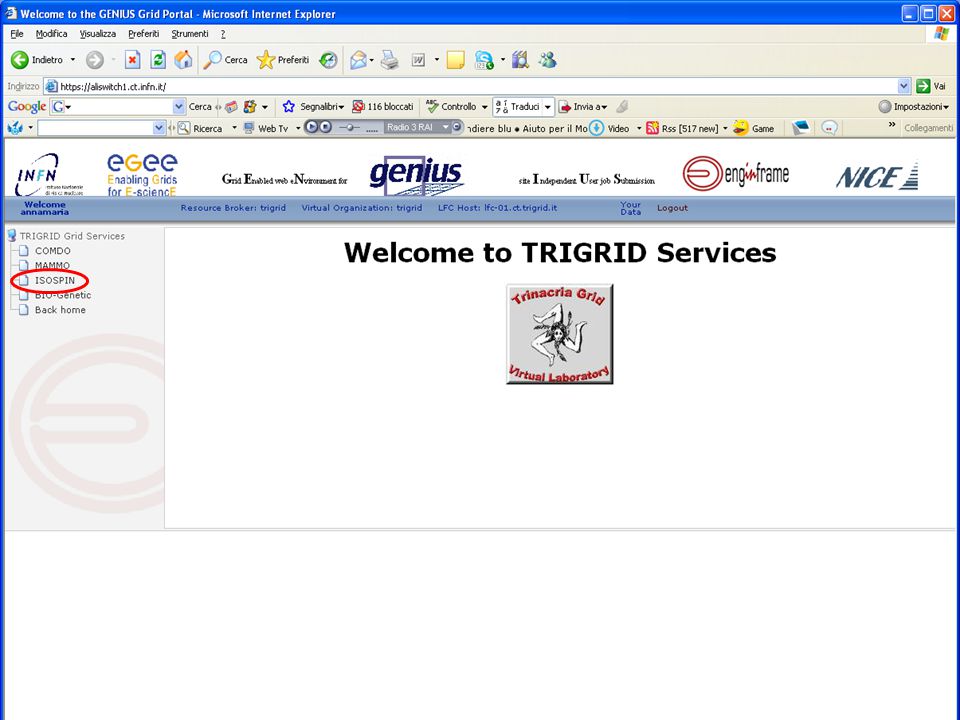

38 Catania, Grid Open Day al LNS dell’INFN, Isospin

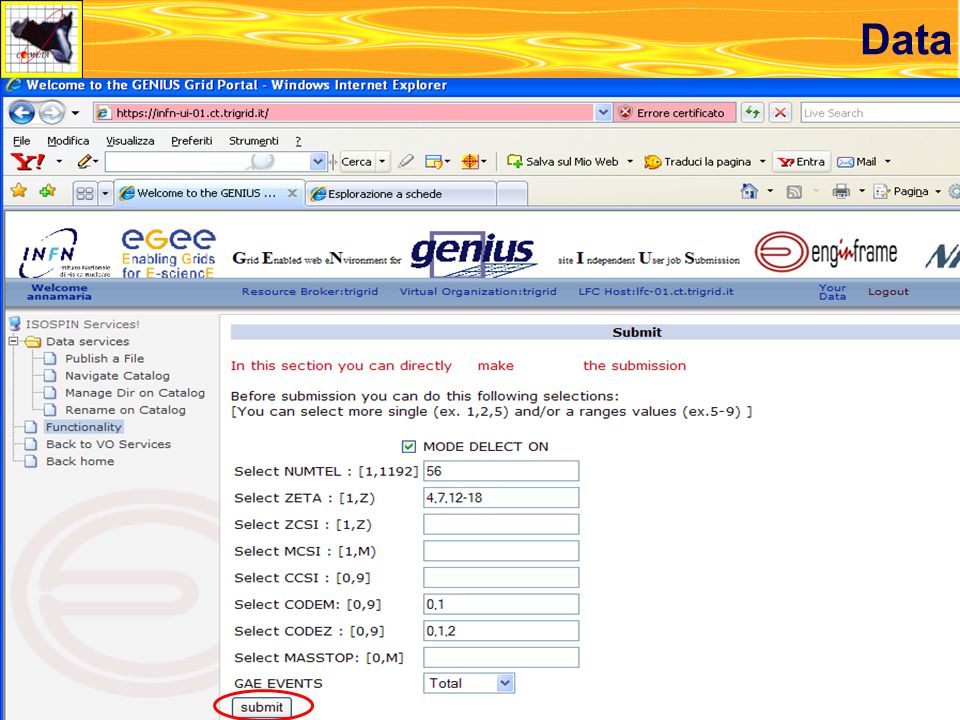

39 Catania, Grid Open Day al LNS dell’INFN, Data

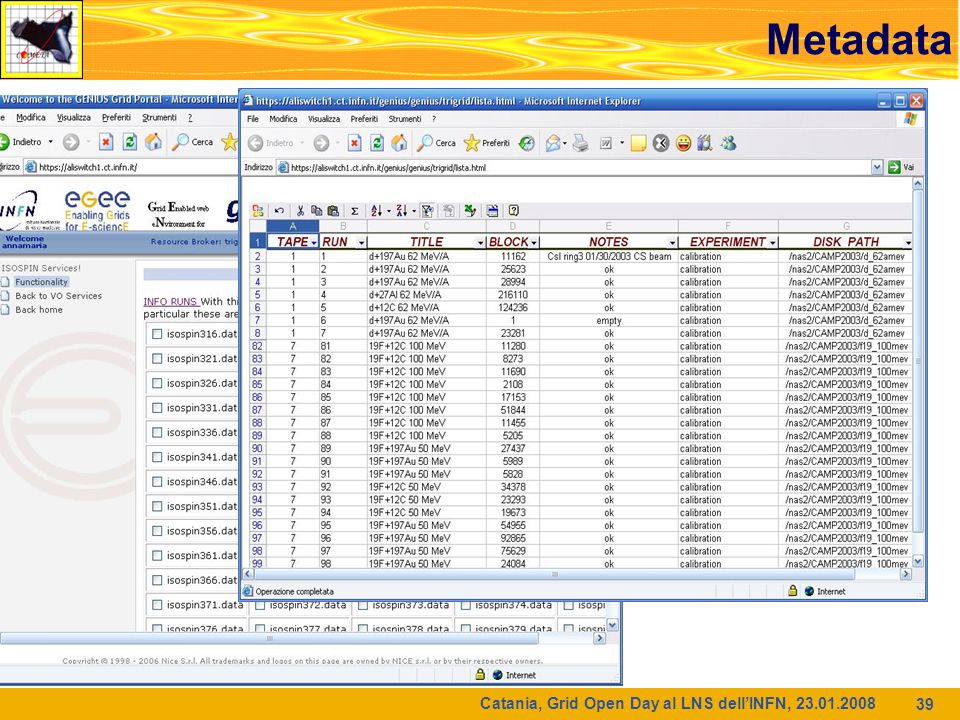

40 Catania, Grid Open Day al LNS dell’INFN, Metadata

41 Catania, Grid Open Day al LNS dell’INFN, Data

42 Catania, Grid Open Day al LNS dell’INFN, Analysis of jobs on the Grid

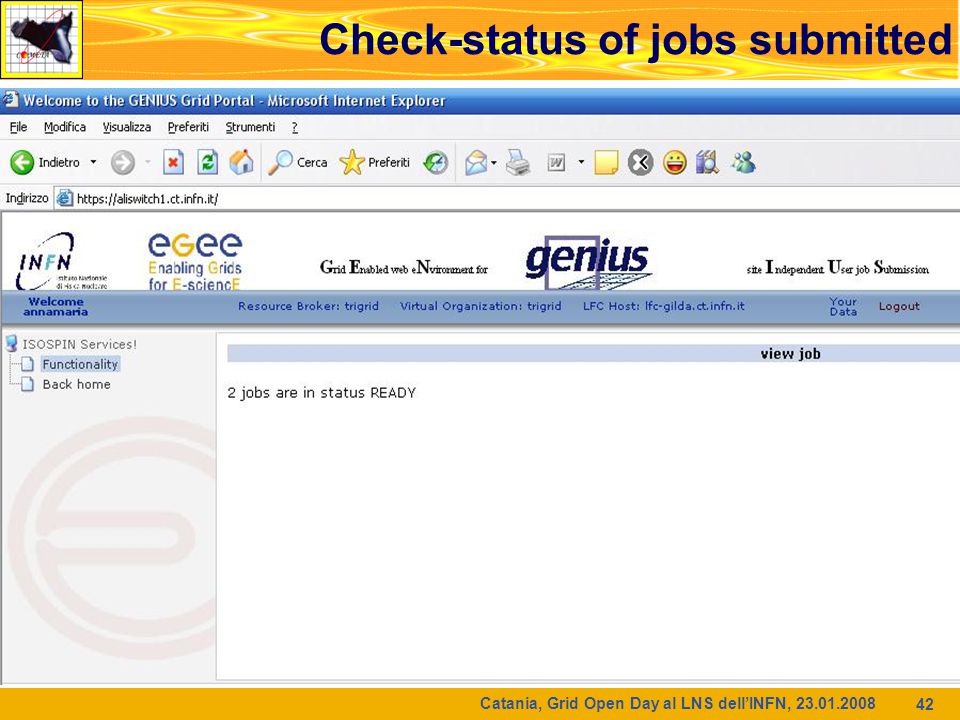

43 Catania, Grid Open Day al LNS dell’INFN, Check-status of jobs submitted

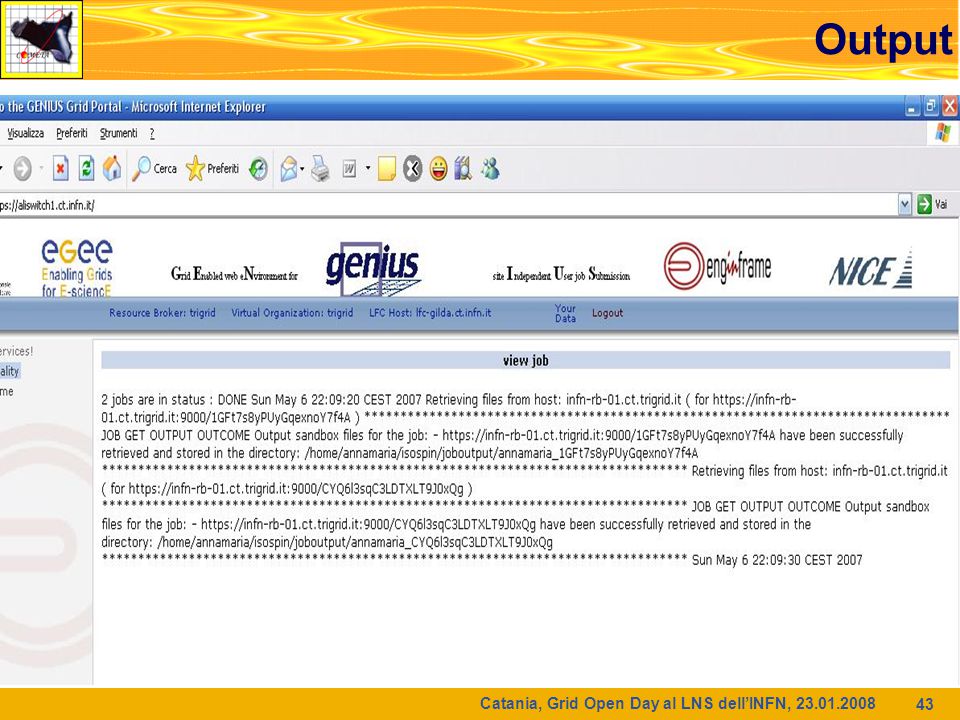

44 Catania, Grid Open Day al LNS dell’INFN, Output

45 Consorzio COMETA - Progetto PI2S2 UNIONE EUROPEA

46 Catania, Grid Open Day al LNS dell’INFN, CoMD

47 Catania, Grid Open Day al LNS dell’INFN, Data-catalog

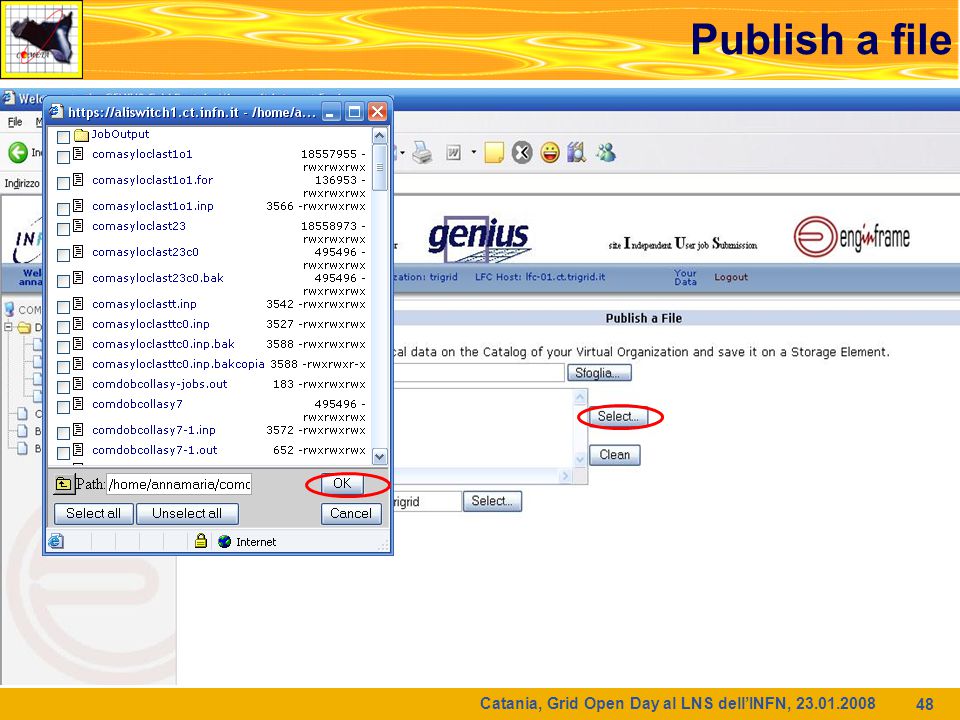

48 Catania, Grid Open Day al LNS dell’INFN, Publish a file

49 Catania, Grid Open Day al LNS dell’INFN, Publish a file

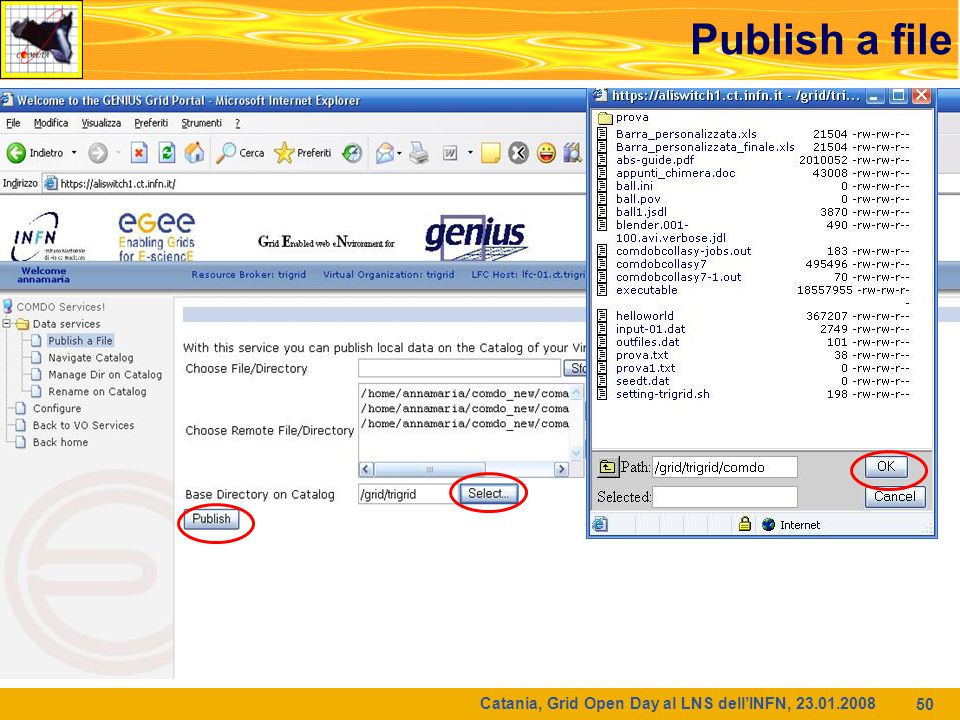

50 Catania, Grid Open Day al LNS dell’INFN, Publish a file

51 Catania, Grid Open Day al LNS dell’INFN, Publish a file

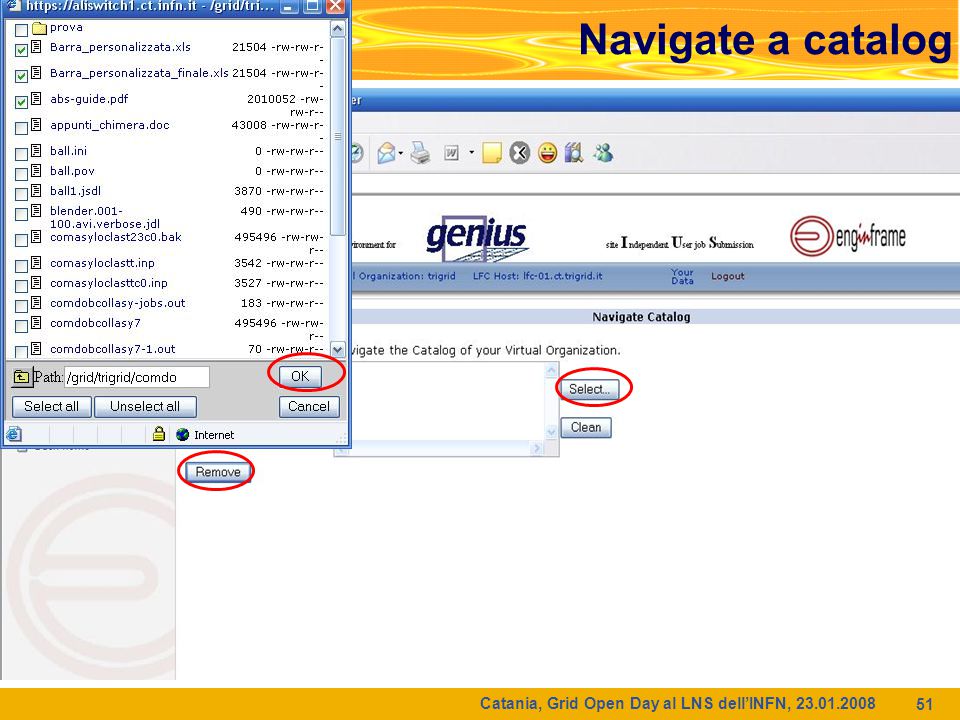

52 Catania, Grid Open Day al LNS dell’INFN, Navigate a catalog

53 Catania, Grid Open Day al LNS dell’INFN, CoMD

54 Catania, Grid Open Day al LNS dell’INFN, CoMD

55 Catania, Grid Open Day al LNS dell’INFN, CoMD

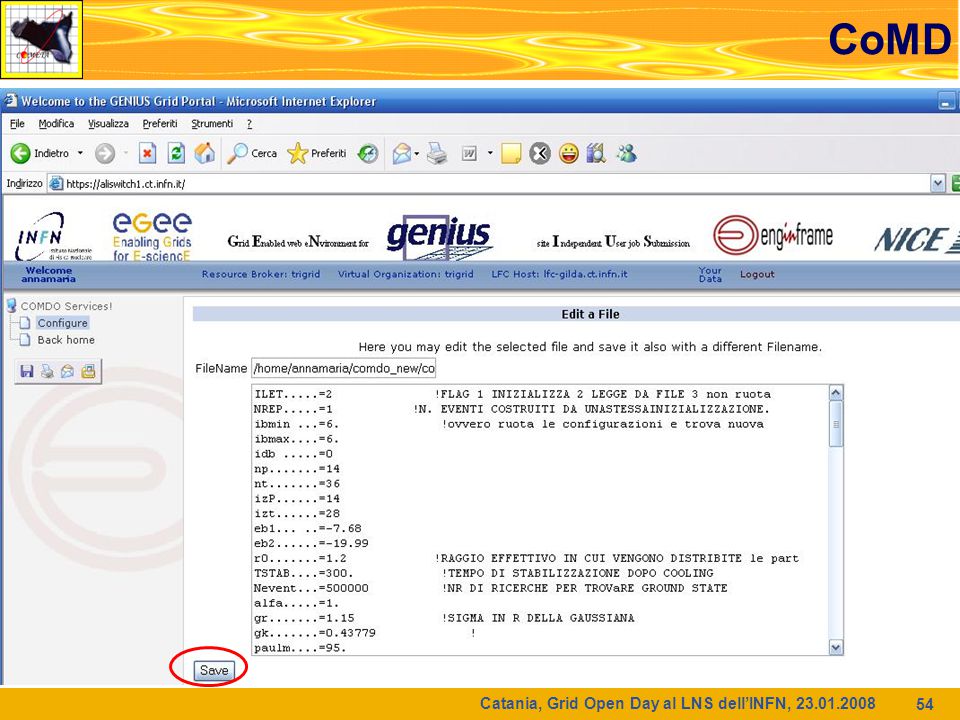

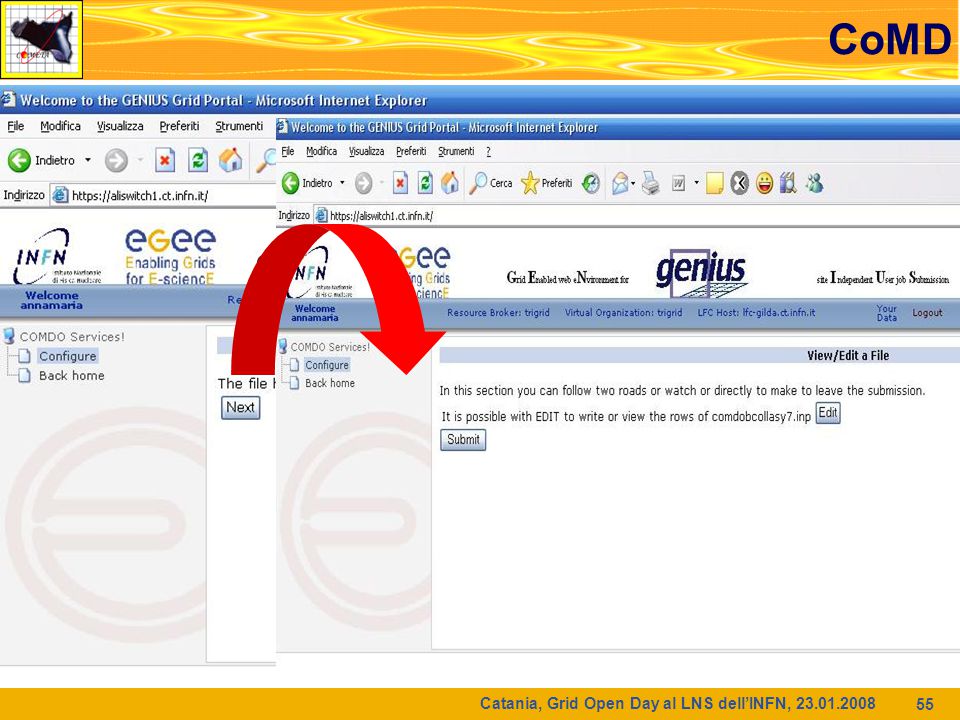

56 Catania, Grid Open Day al LNS dell’INFN, CoMD

57 Catania, Grid Open Day al LNS dell’INFN, Results and Conclusions

58 Catania, Grid Open Day al LNS dell’INFN, Difference Parallel Serial

59 Catania, Grid Open Day al LNS dell’INFN, GRIGLIA CLUSTER

60 Catania, Grid Open Day al LNS dell’INFN, GRIGLIA CLUSTER

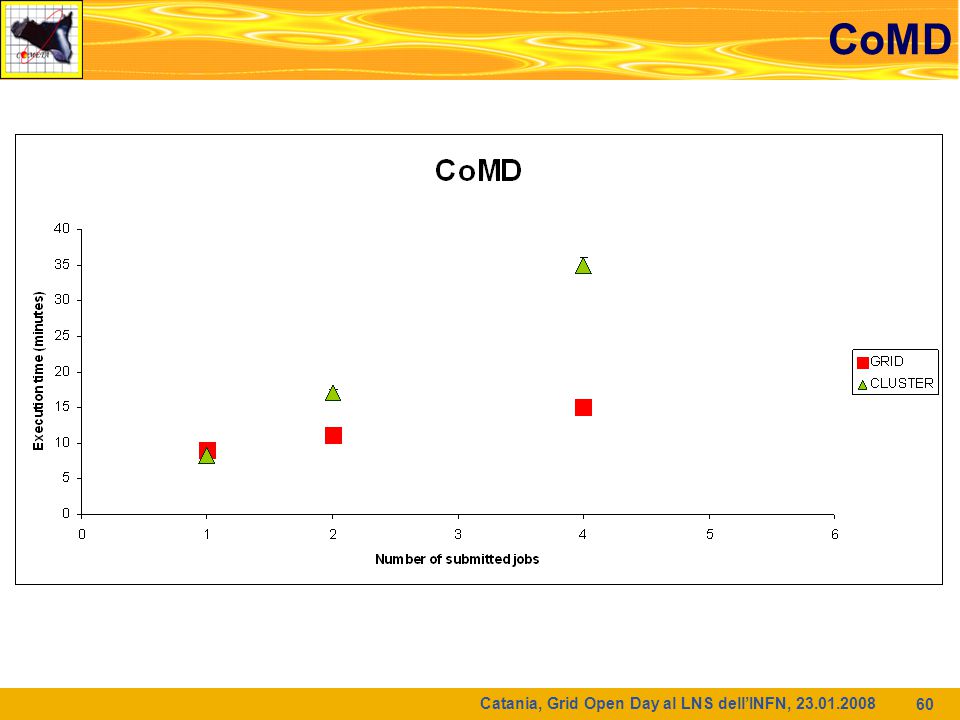

61 Catania, Grid Open Day al LNS dell’INFN, CoMD

62 Catania, Grid Open Day al LNS dell’INFN, Conclusions… Friendly User Interface (dummy). Faster, Data storage, Metadata Web SLAVE ! Cheap

63 Catania, Grid Open Day al LNS dell’INFN, Any Questions ? Thank you very much for your kind attention!
