1 APRS is a registered trademark Bob Bruninga, WB4APR Copyright © 2003 – Jerry Karlovich, KD5OM All Rights Reserved 1 Building and Configuring the TinyTrak3

2 APRS is a registered trademark Bob Bruninga, WB4APR Copyright © 2003 – Jerry Karlovich, KD5OM All Rights Reserved 2 What is a TinyTrak3? TinyTrak3 is a GPS position encoder which, when connected to a GPS and a radio, will transmit its location at an adjustable rate. TinyTrak3 is a construction project providing an inexpensive way to build a mobile tracker without the need for a full TNC. It is configured by connecting to a computer's serial port, and running a simple configuration tool which allows setting of all user options. After ordering a kit or a chip, be sure to download the configuration software and documentation. Download TINYTRAK3.ZIP Download TINYTRAK3.ZIP

3 APRS is a registered trademark Bob Bruninga, WB4APR Copyright © 2003 – Jerry Karlovich, KD5OM All Rights Reserved 3 What is TinyTrak3 NOT? TinyTrak3 is not a TNC (Terminal Node Controller). TinyTrak3 can only transmit data beacons it receives from a GPS receiver (NMEA 0183). You can not receive data or messages or transmit a 2 way packet QSO with a TinyTrak3. The connection to the radio’s audio output deliver audio energy to the PIC controller to prevent the TinyTrak3 from transmitting while another packet station is transmitting. It is not decoding the packets. It is just detecting audio energy at the speaker terminals.

4 APRS is a registered trademark Bob Bruninga, WB4APR Copyright © 2003 – Jerry Karlovich, KD5OM All Rights Reserved 4 Where to get a TinyTrak3. Orders can be placed by sending a check or money order to: Byon Garrabrant 8378 Granite Mountain Lane Las Vegas, NV Web Site: TinyTrak3 Kit - $32 TinyTrak3 Built and Tested - $62 TinyTrak3 Case - $8 TinyTrak3 Chip - $18 TinyTrak3 Female To Female Gender Changer / Null Modem Kit - $4 First Class Postage - $3 Upgrade Shipping via Priority Mail - $3 Byon accepts PayPal orders via his web site.

5 APRS is a registered trademark Bob Bruninga, WB4APR Copyright © 2003 – Jerry Karlovich, KD5OM All Rights Reserved 5 Do this First Download and print out the TinyTrak3 Owner’s Manual from In this WINZIP file is the Owner’s Manual in PDF format and the necessary configuration software called, “tinytrak3config.exe”. Also are the files for using the TinyTrak3 with a Palm handheld computer.www.byonics.com/tinytrak/tinytrak3.zip

6 APRS is a registered trademark Bob Bruninga, WB4APR Copyright © 2003 – Jerry Karlovich, KD5OM All Rights Reserved 6 Let’s get started building a TinyTrak3

7 APRS is a registered trademark Bob Bruninga, WB4APR Copyright © 2003 – Jerry Karlovich, KD5OM All Rights Reserved 7 What tools do we need to build a TinyTrak3?

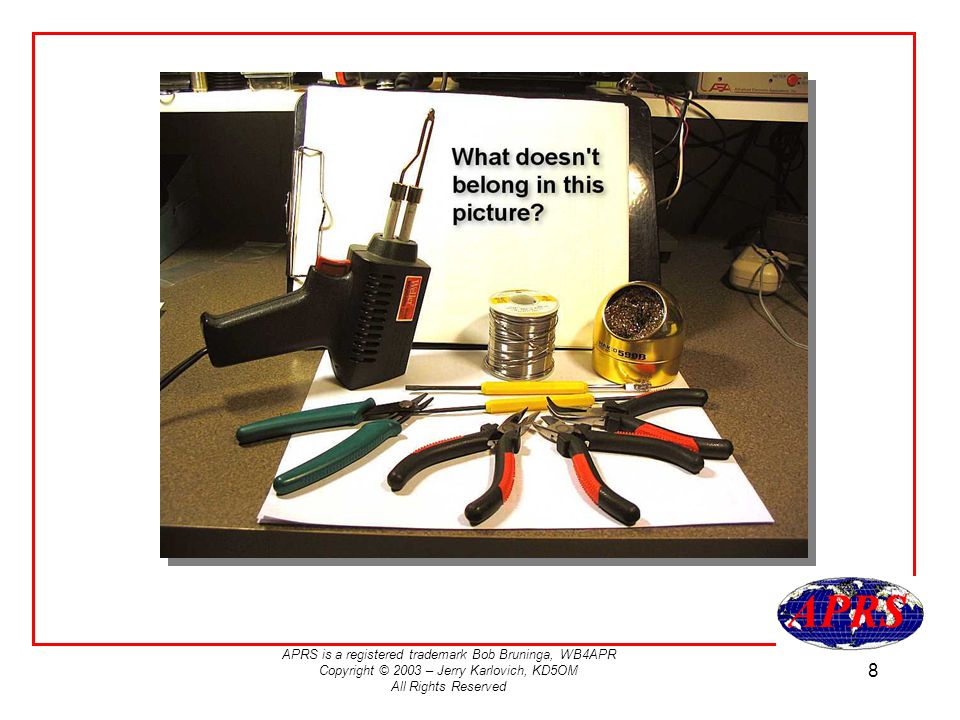

8 APRS is a registered trademark Bob Bruninga, WB4APR Copyright © 2003 – Jerry Karlovich, KD5OM All Rights Reserved 8

9 APRS is a registered trademark Bob Bruninga, WB4APR Copyright © 2003 – Jerry Karlovich, KD5OM All Rights Reserved 9

10 APRS is a registered trademark Bob Bruninga, WB4APR Copyright © 2003 – Jerry Karlovich, KD5OM All Rights Reserved 10

11 APRS is a registered trademark Bob Bruninga, WB4APR Copyright © 2003 – Jerry Karlovich, KD5OM All Rights Reserved 11 This is the TinyTrak3 kit for $36.00 from Byonics.

12 APRS is a registered trademark Bob Bruninga, WB4APR Copyright © 2003 – Jerry Karlovich, KD5OM All Rights Reserved 12

13 APRS is a registered trademark Bob Bruninga, WB4APR Copyright © 2003 – Jerry Karlovich, KD5OM All Rights Reserved 13

14 APRS is a registered trademark Bob Bruninga, WB4APR Copyright © 2003 – Jerry Karlovich, KD5OM All Rights Reserved 14 Familiarize yourself with the Printed Circuit Board. Notice the Correct position of U1, U2, Q1, the 4 LEDs and the 3 Diodes.

15 APRS is a registered trademark Bob Bruninga, WB4APR Copyright © 2003 – Jerry Karlovich, KD5OM All Rights Reserved 15 Consider where and how you are going to mount your TinyTrak3 before soldering any parts. This may determine weather or not you will need to put it in a case or attach the DB9 connector to the radio end.

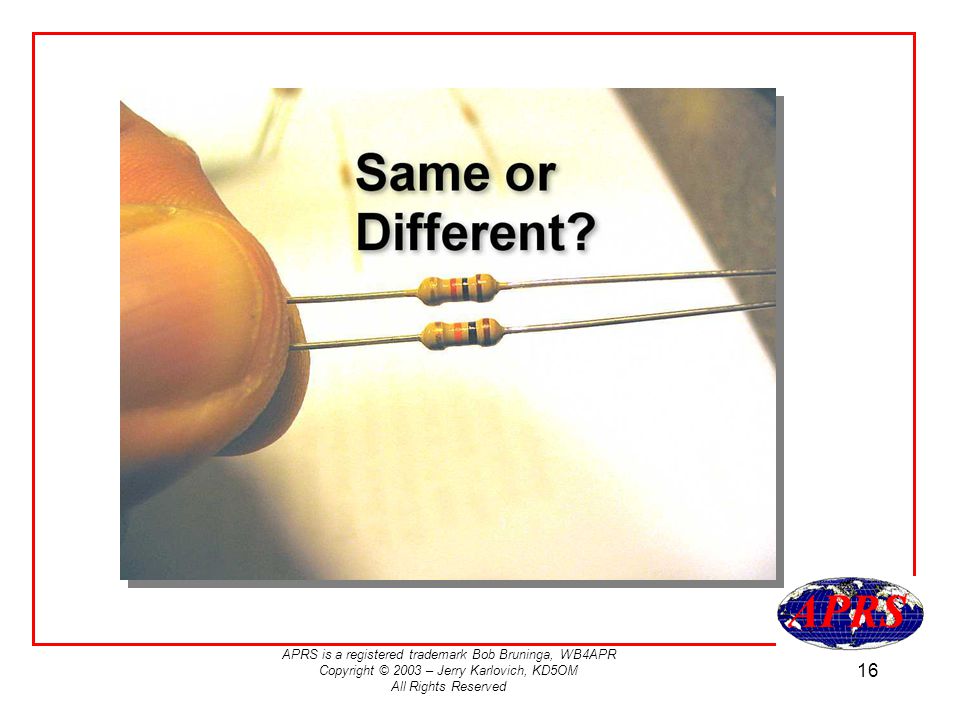

16 APRS is a registered trademark Bob Bruninga, WB4APR Copyright © 2003 – Jerry Karlovich, KD5OM All Rights Reserved 16

17 APRS is a registered trademark Bob Bruninga, WB4APR Copyright © 2003 – Jerry Karlovich, KD5OM All Rights Reserved 17 Bend the leads slightly to keep the parts from falling out while soldering.

18 APRS is a registered trademark Bob Bruninga, WB4APR Copyright © 2003 – Jerry Karlovich, KD5OM All Rights Reserved 18 Cut the excess lead with a flush cutter or diagonal wire cutter.

19 APRS is a registered trademark Bob Bruninga, WB4APR Copyright © 2003 – Jerry Karlovich, KD5OM All Rights Reserved 19 Make sure the DIP socket is flush before soldering all 18 points. Begin by soldering only two diagonal opposite points first. Check to see that it is flush then solder the rest.

20 APRS is a registered trademark Bob Bruninga, WB4APR Copyright © 2003 – Jerry Karlovich, KD5OM All Rights Reserved 20 Notice that the resistor bodies are inline with the circles on the PCB. The other bent lead goes into the corresponding hole.

21 APRS is a registered trademark Bob Bruninga, WB4APR Copyright © 2003 – Jerry Karlovich, KD5OM All Rights Reserved 21 Another view of the resistors mounted on the PCB. The 10MHz resonator can go in either direction. It has no polarity.

22 APRS is a registered trademark Bob Bruninga, WB4APR Copyright © 2003 – Jerry Karlovich, KD5OM All Rights Reserved 22 To apply power to pin 4 on the GPS DB-9 connector if needed.

23 APRS is a registered trademark Bob Bruninga, WB4APR Copyright © 2003 – Jerry Karlovich, KD5OM All Rights Reserved 23 To apply power to pin 4 on the GPS DB-9 connector if needed.

24 APRS is a registered trademark Bob Bruninga, WB4APR Copyright © 2003 – Jerry Karlovich, KD5OM All Rights Reserved 24 Jumper 4 - Controls the LEDs (N.C.). Jumper 5 - Primary or Secondary configuration. Jumper 6 - Remote power switch.

25 APRS is a registered trademark Bob Bruninga, WB4APR Copyright © 2003 – Jerry Karlovich, KD5OM All Rights Reserved 25 Finish soldering all of the remaining components to the PCB. Be extremely cautious while handling the PIC. Use a grounded wrist strap or touch a metal object before handling it. Take notice of the position of the notched end of the PIC.

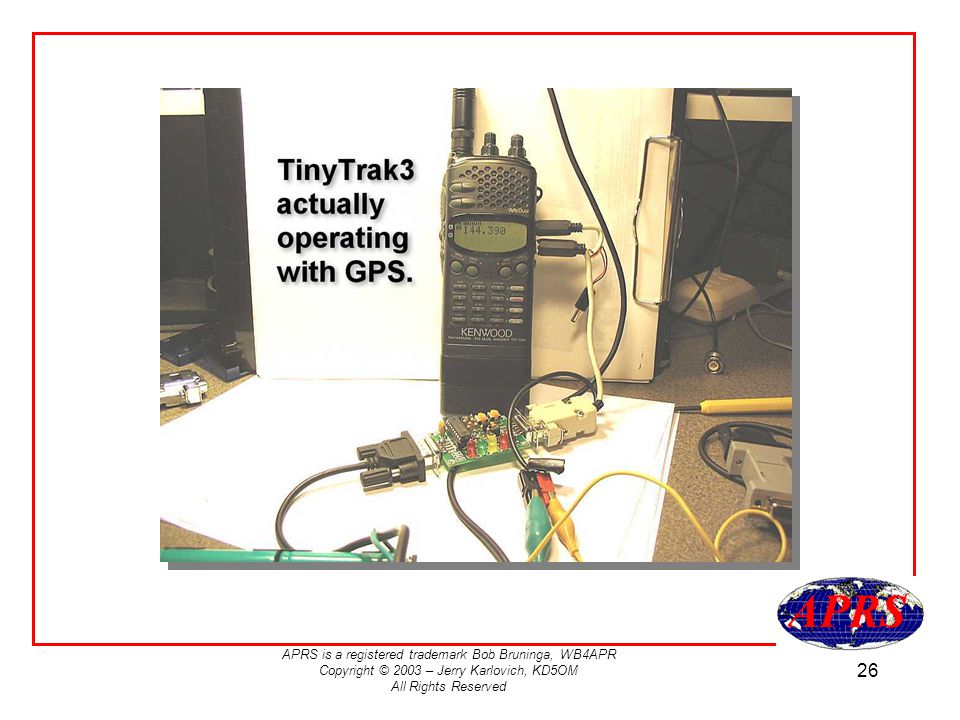

26 APRS is a registered trademark Bob Bruninga, WB4APR Copyright © 2003 – Jerry Karlovich, KD5OM All Rights Reserved 26

27 APRS is a registered trademark Bob Bruninga, WB4APR Copyright © 2003 – Jerry Karlovich, KD5OM All Rights Reserved 27 Configuring the TinyTrak3

28 APRS is a registered trademark Bob Bruninga, WB4APR Copyright © 2003 – Jerry Karlovich, KD5OM All Rights Reserved 28 The configuration cable, alias “Gender Changer/Null Modem” is easily made from 2 female DB-9 connectors and three pieces of wire. Cross-over pins 2 & 3 and straight through on pin 5.

29 APRS is a registered trademark Bob Bruninga, WB4APR Copyright © 2003 – Jerry Karlovich, KD5OM All Rights Reserved 29

30 APRS is a registered trademark Bob Bruninga, WB4APR Copyright © 2003 – Jerry Karlovich, KD5OM All Rights Reserved 30 The Configuration Software

31 APRS is a registered trademark Bob Bruninga, WB4APR Copyright © 2003 – Jerry Karlovich, KD5OM All Rights Reserved 31 Setting the TinyTrak3 for SmartBeaconing.

32 APRS is a registered trademark Bob Bruninga, WB4APR Copyright © 2003 – Jerry Karlovich, KD5OM All Rights Reserved 32 Six of the commonly used Icons.

33 APRS is a registered trademark Bob Bruninga, WB4APR Copyright © 2003 – Jerry Karlovich, KD5OM All Rights Reserved 33 Monday, September 1, 2003 at about 3:15pm, I found John Beadles N5OOM, returning home on Interstate 20 near Birmingham, AL.

34 APRS is a registered trademark Bob Bruninga, WB4APR Copyright © 2003 – Jerry Karlovich, KD5OM All Rights Reserved 34 Some installations of the TinyTrak3.

35 APRS is a registered trademark Bob Bruninga, WB4APR Copyright © 2003 – Jerry Karlovich, KD5OM All Rights Reserved 35

36 APRS is a registered trademark Bob Bruninga, WB4APR Copyright © 2003 – Jerry Karlovich, KD5OM All Rights Reserved 36

37 APRS is a registered trademark Bob Bruninga, WB4APR Copyright © 2003 – Jerry Karlovich, KD5OM All Rights Reserved 37

38 APRS is a registered trademark Bob Bruninga, WB4APR Copyright © 2003 – Jerry Karlovich, KD5OM All Rights Reserved 38 Inside a modified DeLorme Tripmate GPS receiver. Just add a radio.

39 APRS is a registered trademark Bob Bruninga, WB4APR Copyright © 2003 – Jerry Karlovich, KD5OM All Rights Reserved 39 I bent the LED’s leads in a 90 degree fashion. Then drilled holes in alignment so the LEDs can protrude through the holes.

40 APRS is a registered trademark Bob Bruninga, WB4APR Copyright © 2003 – Jerry Karlovich, KD5OM All Rights Reserved 40 This is KD5OM-2 mobile TinyTrak3. The TT3 is in the upper left hand corner. The transceiver is a Kenwood TH21at ($20.00 find at a ham fest). What’s in the Altoids tin?

41 APRS is a registered trademark Bob Bruninga, WB4APR Copyright © 2003 – Jerry Karlovich, KD5OM All Rights Reserved 41 A ten watt 2 meter amplifier. The Altoids tin gave excellent RF shielding. TinyTrak3s are sensitive to high RF environments.

42 APRS is a registered trademark Bob Bruninga, WB4APR Copyright © 2003 – Jerry Karlovich, KD5OM All Rights Reserved 42 Here is a close-up of the TinyTrak3 inside my mobile tracker. Notice the jumper on J5.

43 APRS is a registered trademark Bob Bruninga, WB4APR Copyright © 2003 – Jerry Karlovich, KD5OM All Rights Reserved 43 What other options are there available for the GPS receiver? Here is a Garmin etrex receiver that cost around $ in many stores. A data cable is also available for it that will connect directly to the TinyTrak3.

44 APRS is a registered trademark Bob Bruninga, WB4APR Copyright © 2003 – Jerry Karlovich, KD5OM All Rights Reserved 44 You can receive a lot of help from the TinyTrak discussion group on Yahoo.

45 APRS is a registered trademark Bob Bruninga, WB4APR Copyright © 2003 – Jerry Karlovich, KD5OM All Rights Reserved 45 Wiring the TinyTrak3 to your 2 meter radio is the same cable as the KANTRONICS KPC-3 uses.

46 APRS is a registered trademark Bob Bruninga, WB4APR Copyright © 2003 – Jerry Karlovich, KD5OM All Rights Reserved 46 You can find wiring harness information at:
