1

2 The Big Picture Scientific disciplines have developed a computational branch Models without closed form solutions solved numerically This has lead to an explosion of data Simulation and analysis workloads are data-intensive Producing\scanning large amounts of data Management of these data represents a significant challenge Storage\archiving Query processing Visualization

3 Remote Immersive Analysis Formerly, analysis performed during the computation No data stored for subsequent examination Data-intensive computing breakthroughs have allowed for new interaction with scientific numerical simulations Turbulence Database Cluster Stores entire space-time evolution of the simulation Provides public access to world-class simulations Implements “immersive turbulence * ” approach Introduces new challenges * E. Perlman, R. Burns, Y. Li, and C. Meneveau. Data exploration of turbulence simulations using a database cluster. In Supercomputing, 2007.

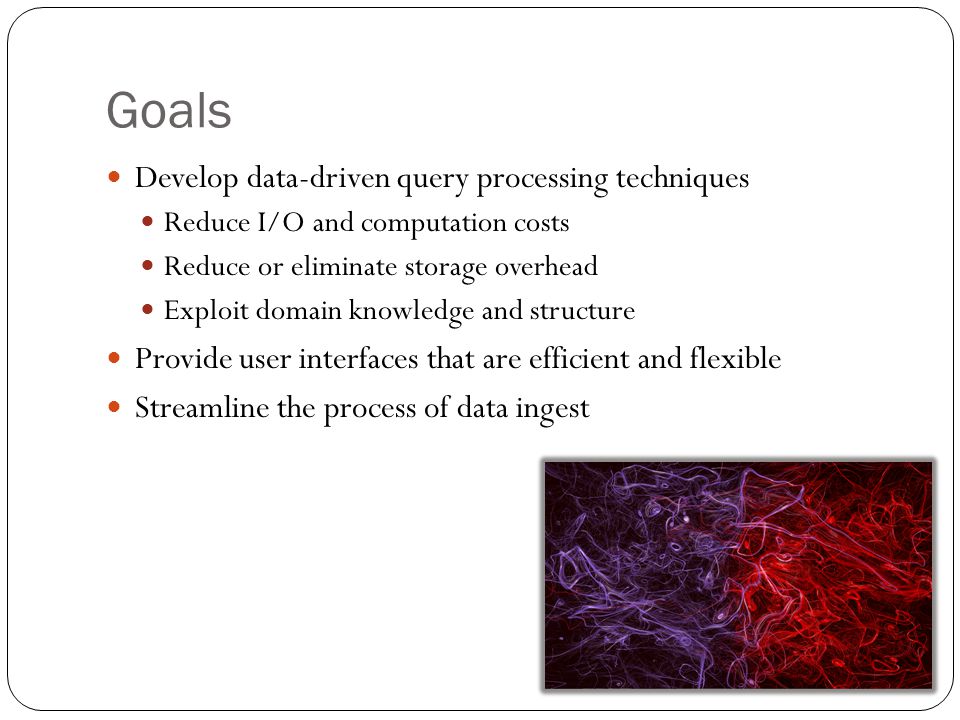

4 Goals Develop data-driven query processing techniques Reduce I/O and computation costs Reduce or eliminate storage overhead Exploit domain knowledge and structure Provide user interfaces that are efficient and flexible Streamline the process of data ingest

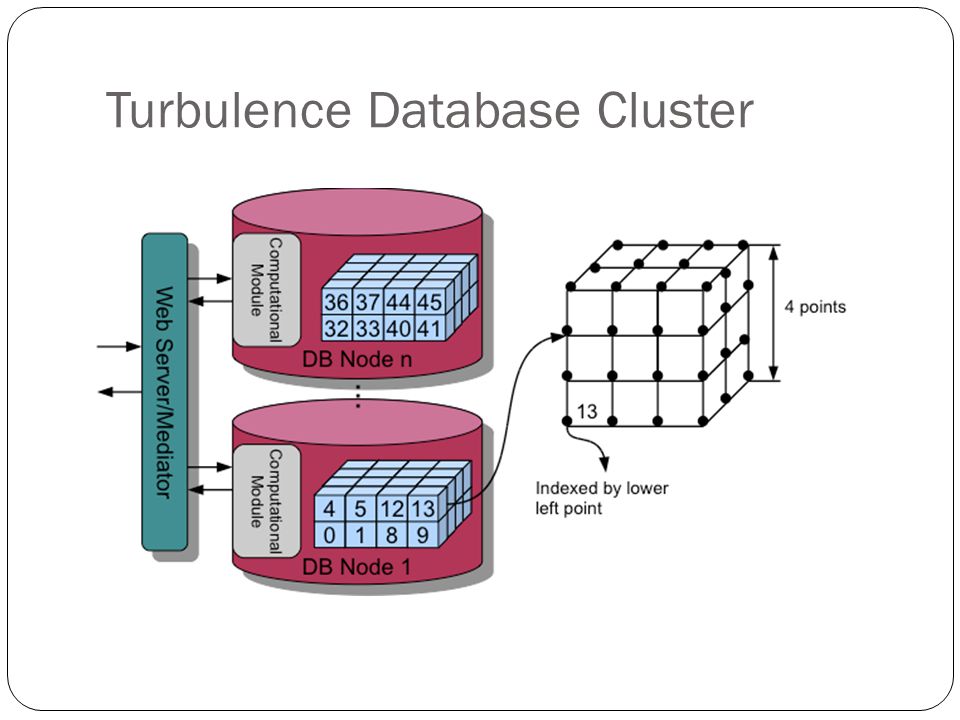

5 Turbulence Database Cluster

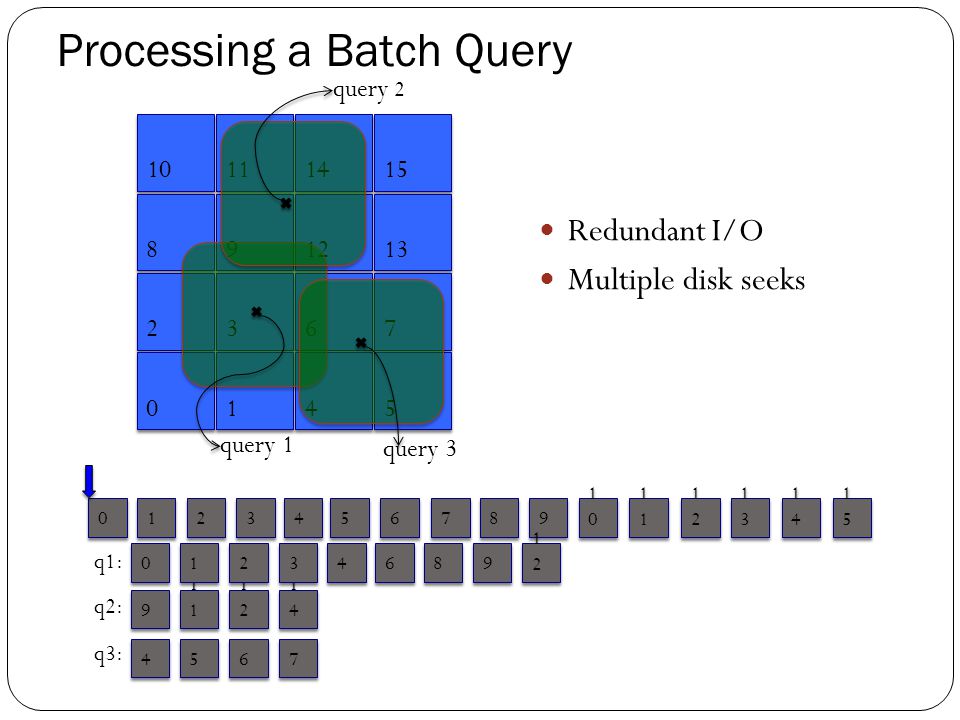

6 Processing a Batch Query query 1 query 3 query 2 q1: q2: q3: Redundant I/O Multiple disk seeks

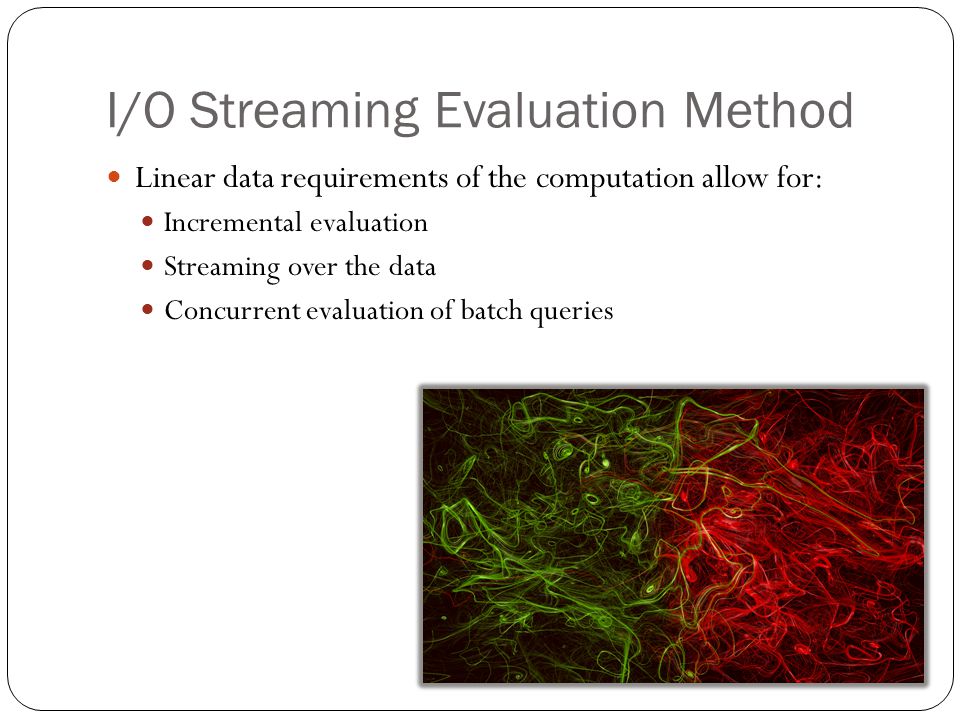

7 I/O Streaming Evaluation Method Linear data requirements of the computation allow for: Incremental evaluation Streaming over the data Concurrent evaluation of batch queries

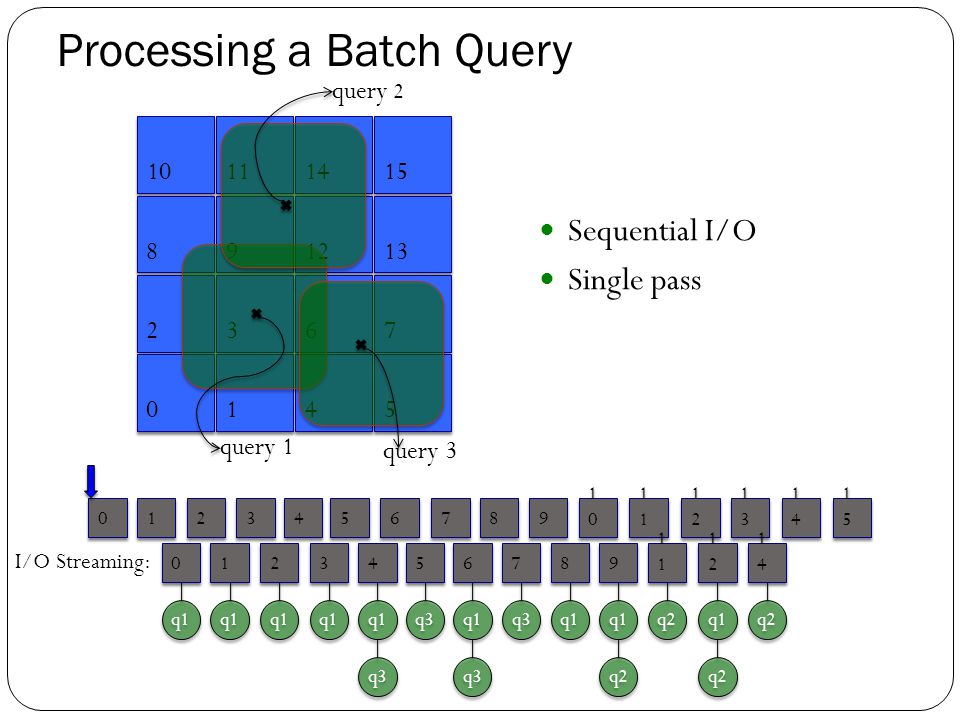

8 Processing a Batch Query query 1 query 3 query q1 q3 q1 q3 q1 q2 q1 q2 I/O Streaming: Sequential I/O Single pass

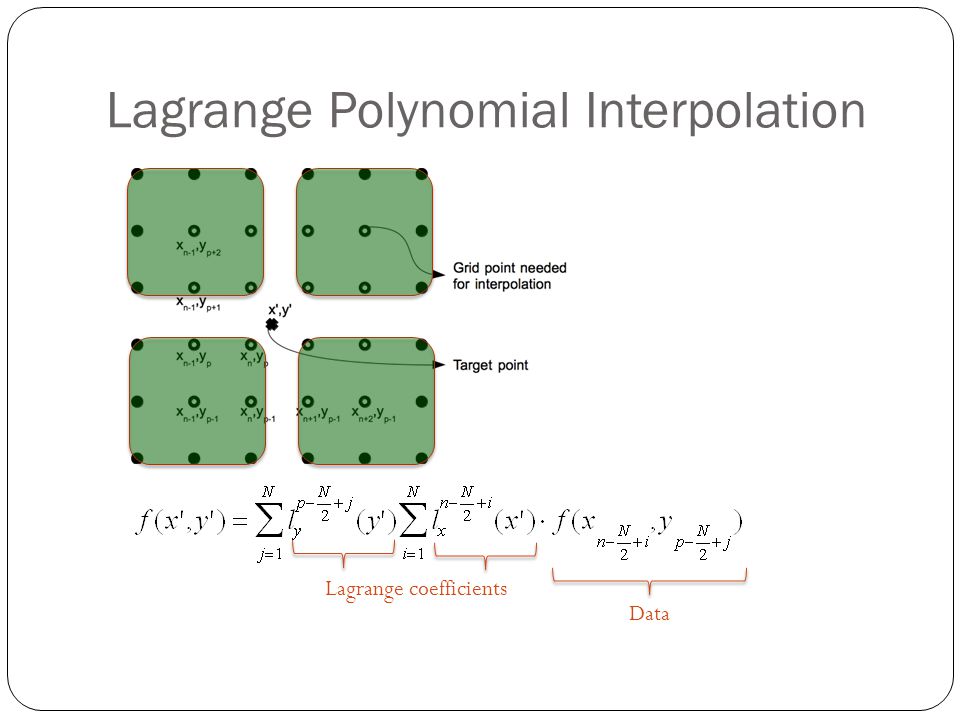

9 Lagrange Polynomial Interpolation Lagrange coefficients Data

10 Spatial Differentiation

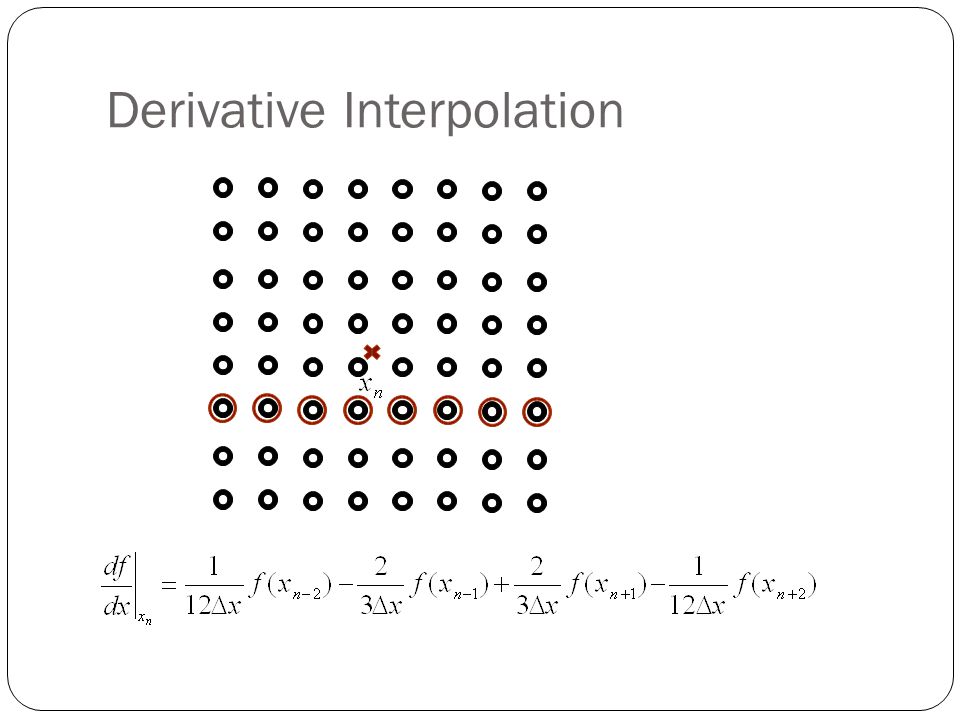

11 Derivative Interpolation

12 128 Workload Over an order of magnitude improvement Sorting leads to a more sequential acces Join/Order By executes entire batch as a join I/O Streaming Each atom is read only once Effective cache usage

13 I/O Streaming alleviates I/O bottleneck Computation emerges as the more costly operation

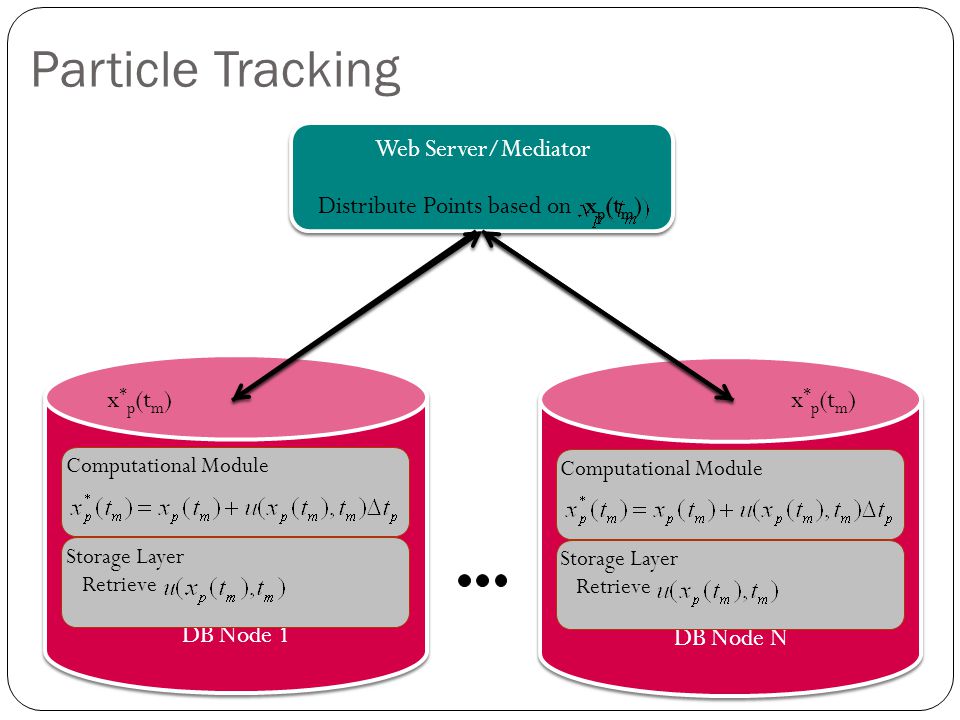

14 Particle Tracking Web Server/Mediator DB Node 1 Distribute Points based on Computational Module Storage Layer Retrieve DB Node N Computational Module Storage Layer Retrieve x p (t m ) x * p (t m )

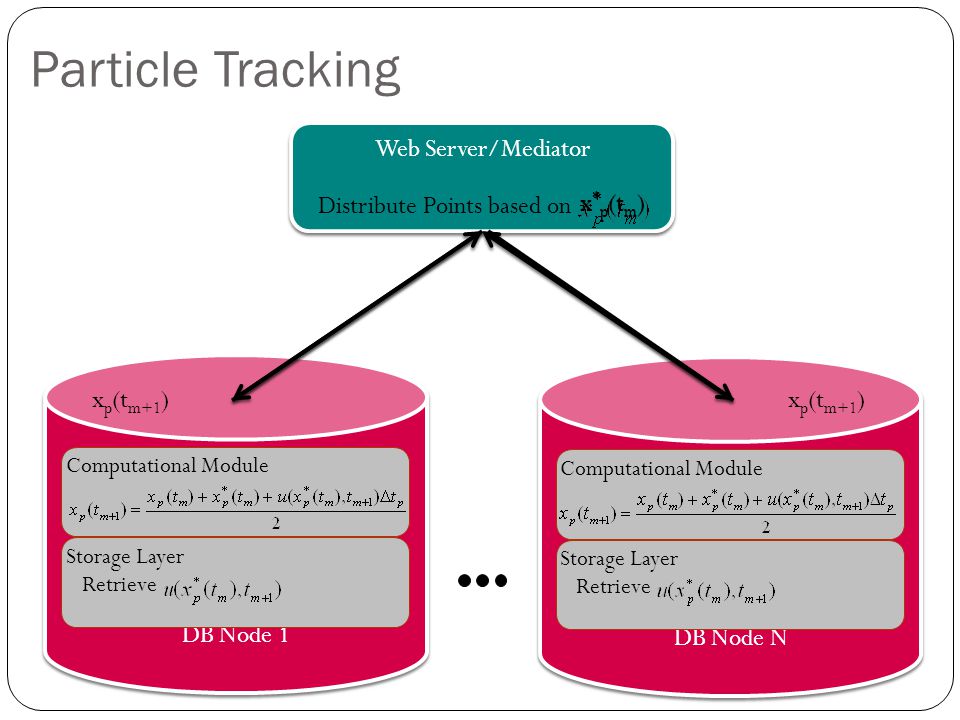

15 Particle Tracking Web Server/Mediator DB Node 1 Distribute Points based on Computational Module Storage Layer Retrieve DB Node N Computational Module Storage Layer Retrieve x * p (t m ) x p (t m+1 )

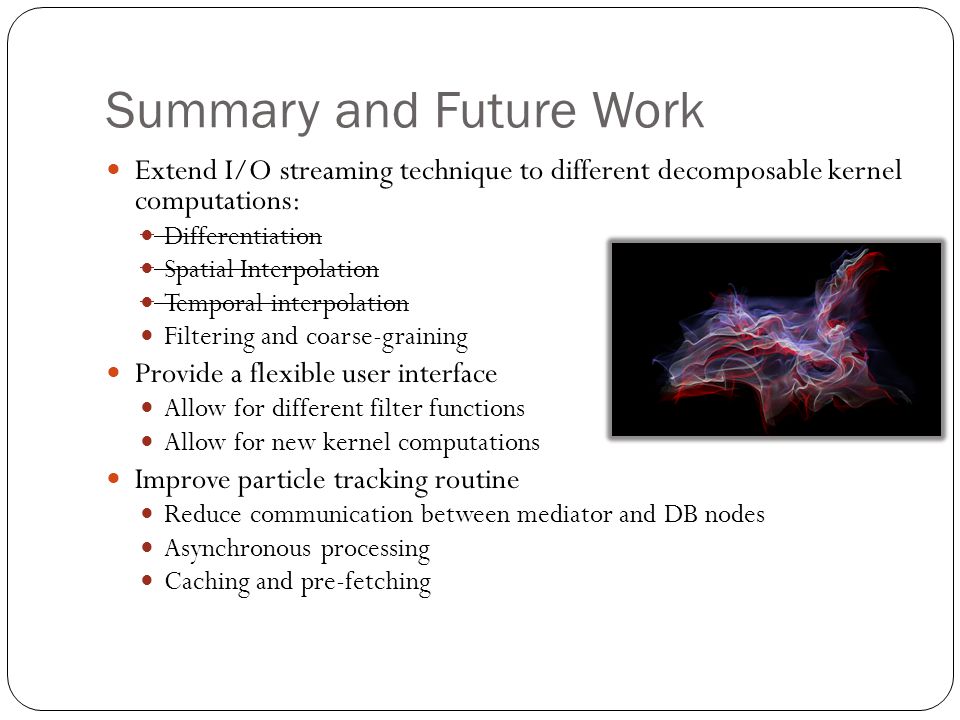

16 Summary and Future Work Extend I/O streaming technique to different decomposable kernel computations: Differentiation Spatial Interpolation Temporal interpolation Filtering and coarse-graining Provide a flexible user interface Allow for different filter functions Allow for new kernel computations Improve particle tracking routine Reduce communication between mediator and DB nodes Asynchronous processing Caching and pre-fetching

17 Questions Images courtesy of Kai Buerger
