1 e-navigation, and IHO’s role IHO, Monaco, October 2014 John Erik Hagen, Regional Director NCA Coordinator of the completed IMO Correspondence Group on e-navigation

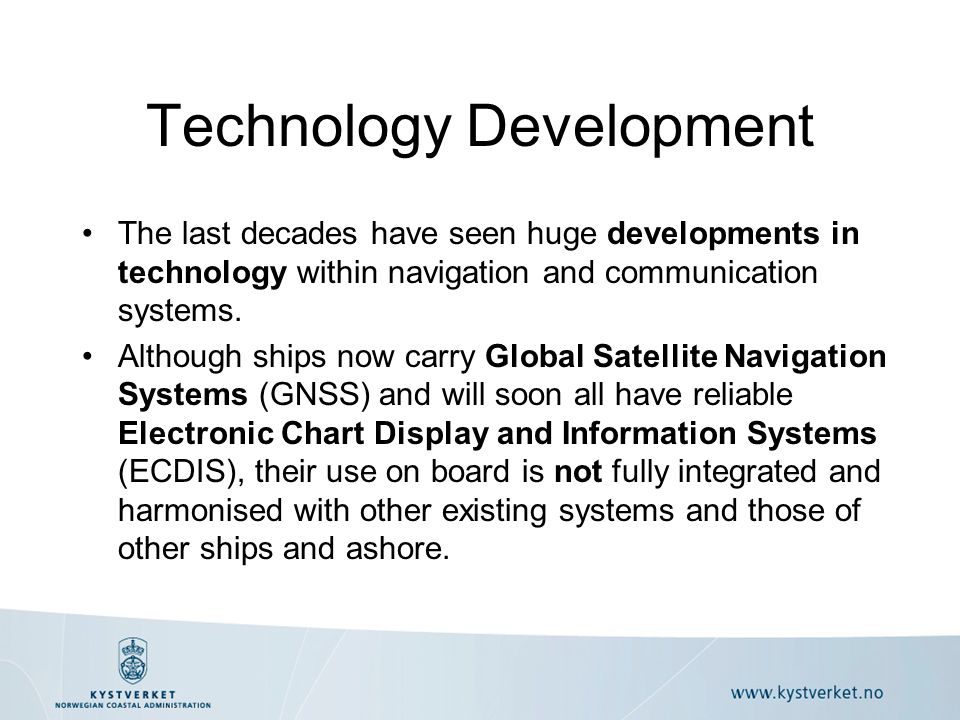

2 Technology Development The last decades have seen huge developments in technology within navigation and communication systems. Although ships now carry Global Satellite Navigation Systems (GNSS) and will soon all have reliable Electronic Chart Display and Information Systems (ECDIS), their use on board is not fully integrated and harmonised with other existing systems and those of other ships and ashore.

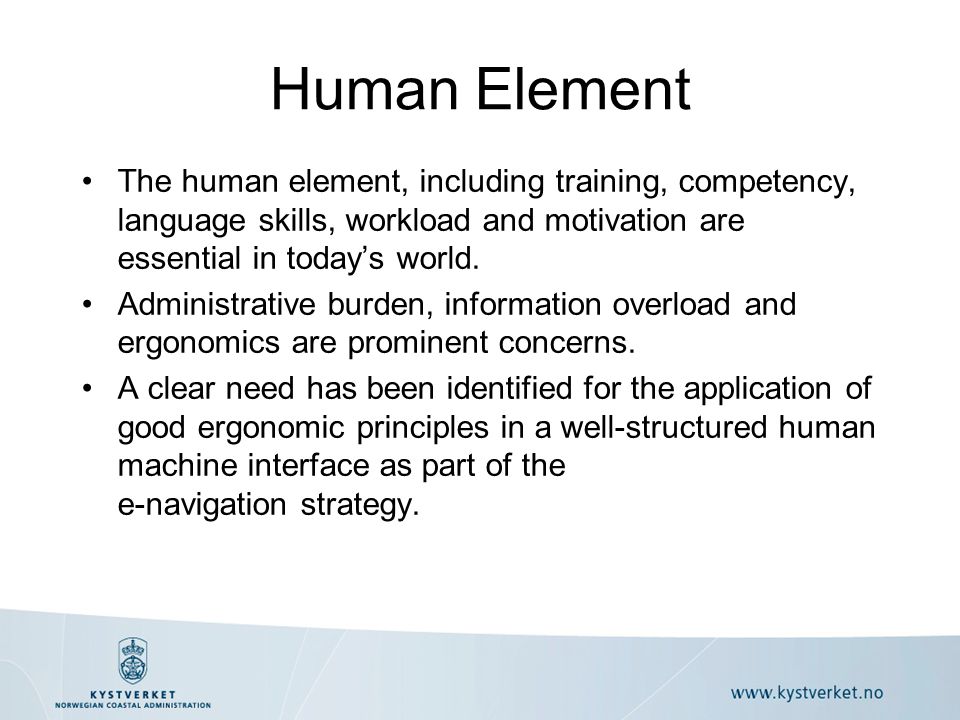

3 Human Element The human element, including training, competency, language skills, workload and motivation are essential in today’s world. Administrative burden, information overload and ergonomics are prominent concerns. A clear need has been identified for the application of good ergonomic principles in a well-structured human machine interface as part of the e-navigation strategy.

4 Improve electronic information exchange to: –Enhance berth-to-berth navigation; –Provide simplification to improve safety, security and environment and; –Facilitate and increase efficiency of maritime trade and transport. The purpose of e-navigation

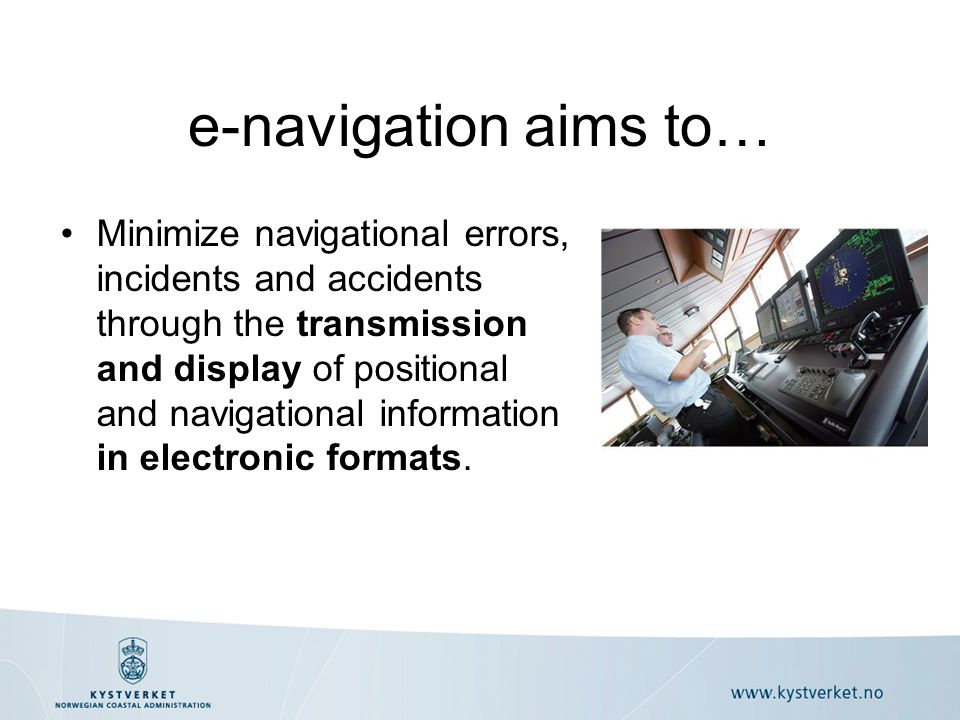

5 Minimize navigational errors, incidents and accidents through the transmission and display of positional and navigational information in electronic formats. e-navigation aims to…

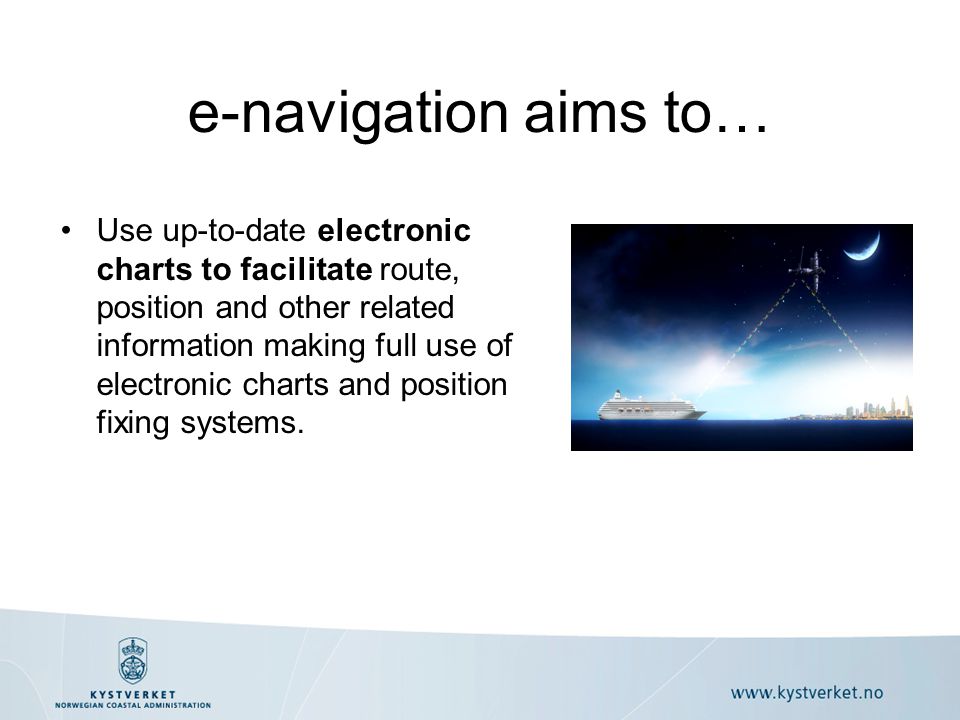

6 Use up-to-date electronic charts to facilitate route, position and other related information making full use of electronic charts and position fixing systems. e-navigation aims to…

7 Navigation systems on board –Integration –Standard user interface –Preventing distraction and overburdening Management of vessel traffic information ashore –Coordination –Exchange of comprehensive harmonized data Communications infrastructure –Seamless harmonized information transfer IMO’s vision of e-navigation The vision of e-navigation was defined in MSC 85/26 annex 20 paragraph 4

8 Key Components of e-Navigation

9 1. Improved, harmonized and user-friendly bridge design; 2. Means for standardized and automated reporting; 3.Improved reliability, resilience and integrity of bridge equipment and navigation information; 4.Integration and presentation of available information in graphical displays received via communication equipment; and 5.Improved Communication of VTS Service Portfolio. Relevant items for future involvement by IHO Five agreed solutions

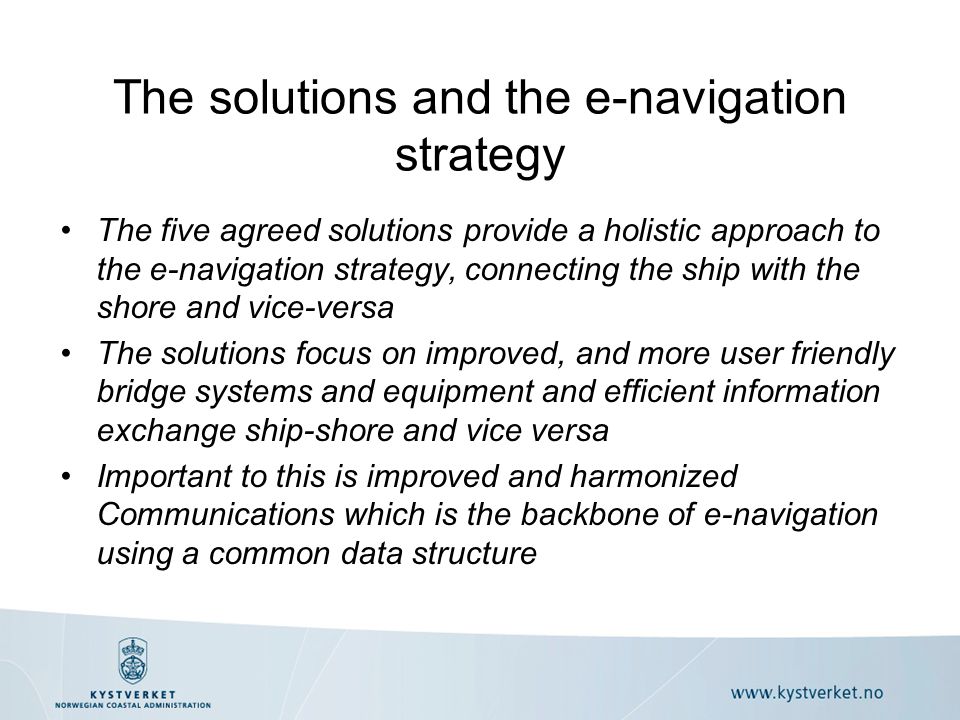

10 The five agreed solutions provide a holistic approach to the e-navigation strategy, connecting the ship with the shore and vice-versa The solutions focus on improved, and more user friendly bridge systems and equipment and efficient information exchange ship-shore and vice versa Important to this is improved and harmonized Communications which is the backbone of e-navigation using a common data structure The solutions and the e-navigation strategy

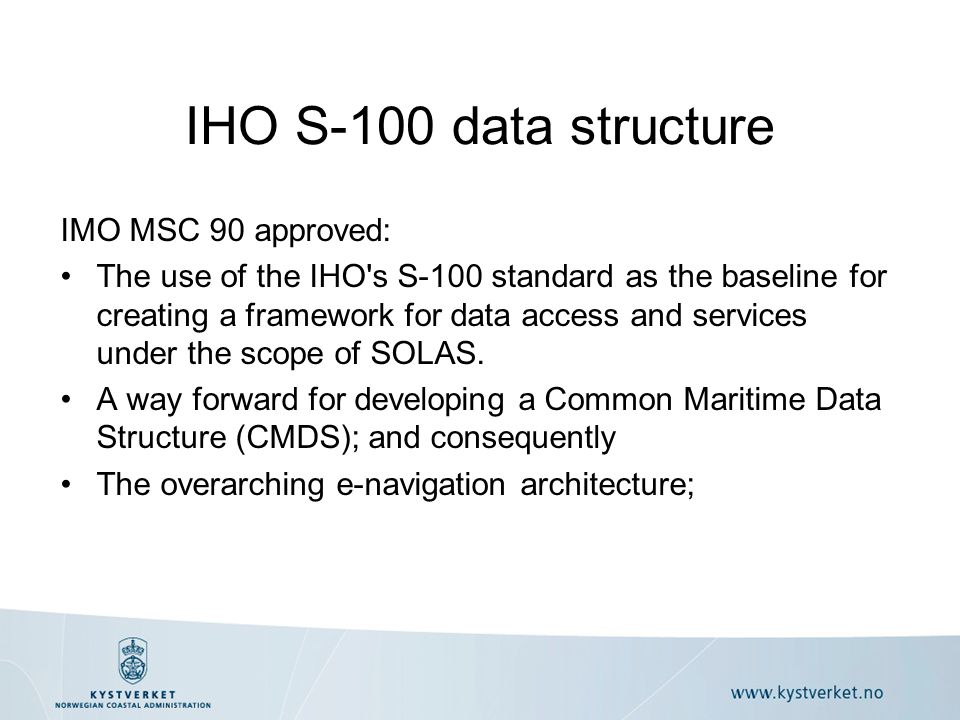

11 IMO MSC 90 approved: The use of the IHO's S-100 standard as the baseline for creating a framework for data access and services under the scope of SOLAS. A way forward for developing a Common Maritime Data Structure (CMDS); and consequently The overarching e-navigation architecture; IHO S-100 data structure

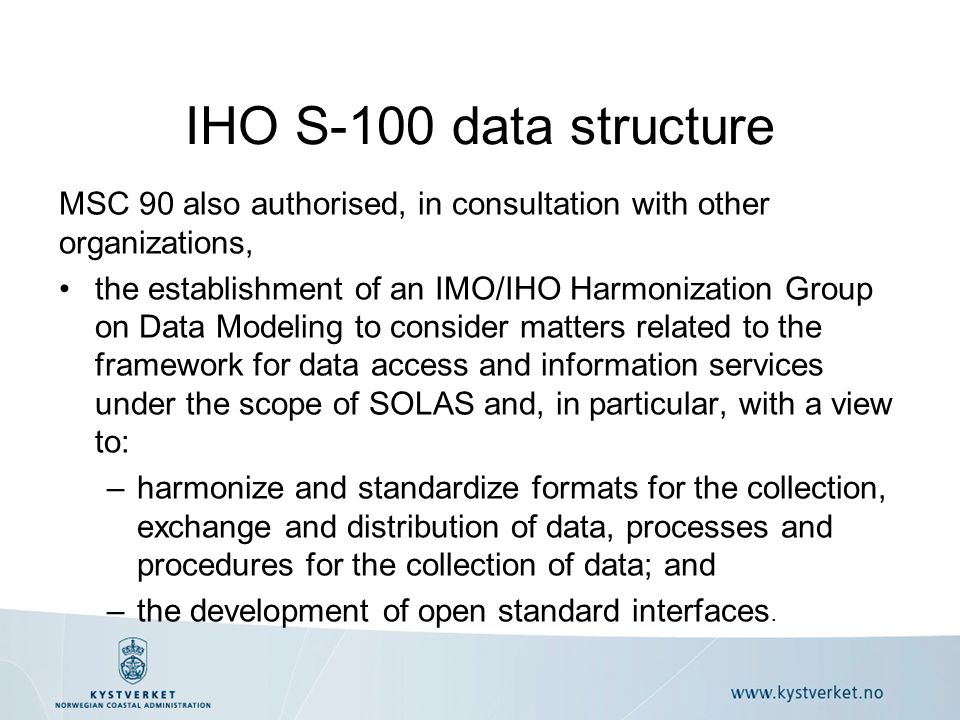

12 MSC 90 also authorised, in consultation with other organizations, the establishment of an IMO/IHO Harmonization Group on Data Modeling to consider matters related to the framework for data access and information services under the scope of SOLAS and, in particular, with a view to: –harmonize and standardize formats for the collection, exchange and distribution of data, processes and procedures for the collection of data; and –the development of open standard interfaces. IHO S-100 data structure

13 NCA, in co-operation with MPA, held a workshop in Singapore to demonstrate the use of the S-100 framework data standard and to consider potential synergies between e-navigation and the Marine Electronic Highway (MEH) project in the Straits of Malacca and Singapore. The results showed the suitability of the IHO S-100 data structure for e-navigation information Test bed on IHO S-100

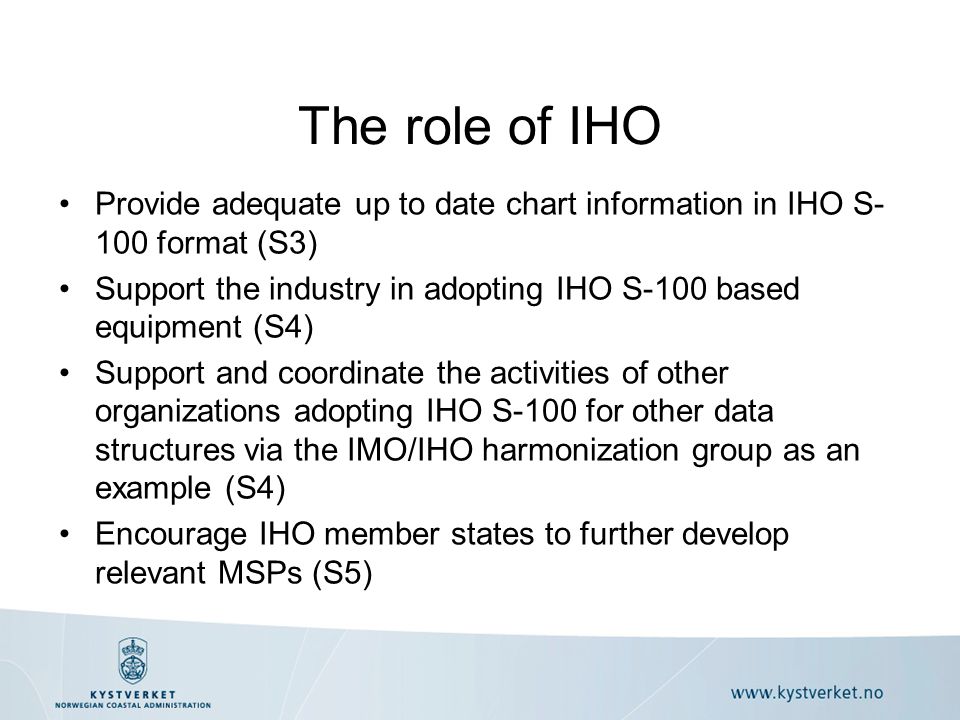

14 Provide adequate up to date chart information in IHO S- 100 format (S3) Support the industry in adopting IHO S-100 based equipment (S4) Support and coordinate the activities of other organizations adopting IHO S-100 for other data structures via the IMO/IHO harmonization group as an example (S4) Encourage IHO member states to further develop relevant MSPs (S5) The role of IHO

15 Maritime Service Portfolios There are many different types of shore based services in most given situations or locations such as ports, coastal and high seas. There is a need to identify these shore based functions and services in a globally standardised way. Harmonising and standardising these services results in the Maritime Service Portfolios (MSPs).

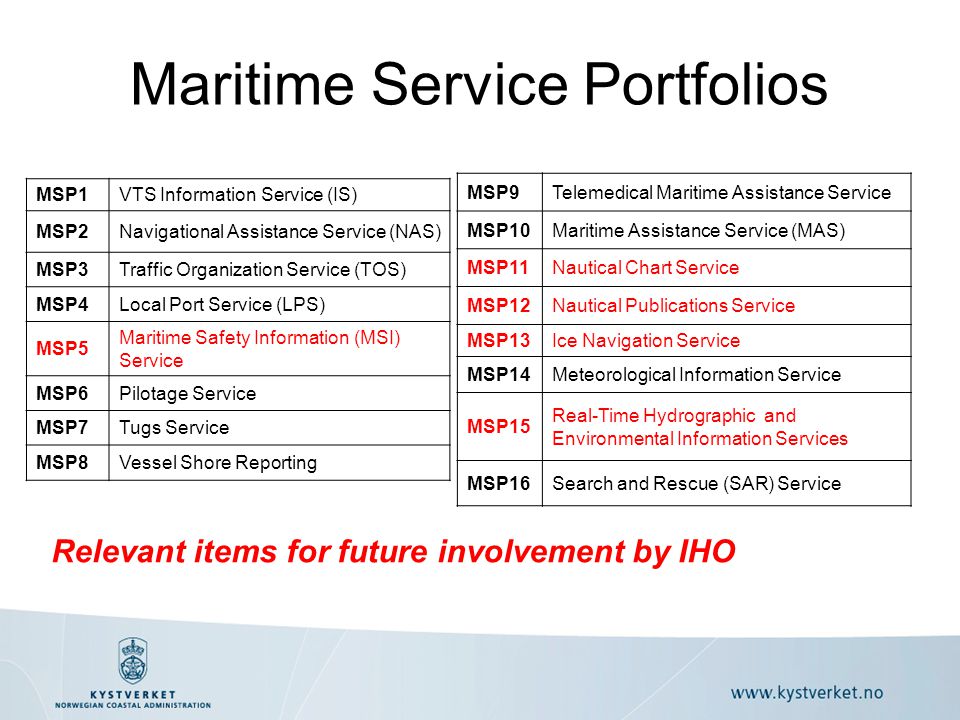

16 Maritime Service Portfolios MSP1VTS Information Service (IS) MSP2Navigational Assistance Service (NAS) MSP3Traffic Organization Service (TOS) MSP4Local Port Service (LPS) MSP5 Maritime Safety Information (MSI) Service MSP6Pilotage Service MSP7Tugs Service MSP8Vessel Shore Reporting MSP9Telemedical Maritime Assistance Service MSP10Maritime Assistance Service (MAS) MSP11Nautical Chart Service MSP12Nautical Publications Service MSP13Ice Navigation Service MSP14Meteorological Information Service MSP15 Real-Time Hydrographic and Environmental Information Services MSP16Search and Rescue (SAR) Service Relevant items for future involvement by IHO

17 Key enablers for Global Implementation Being developed: The guidelines on HCD, SQA and Usability (S1) Global standard for data exchange (IHO S-100) (S2) Maritime service portfolios (S5) To be further developed: Harmonised equipment standards on-board (S1) Resilient navigation on board (PNT) (S3) On-board interconnectivity and integration (S4) VTS and Coastal state infrastructure (S5)

18 Tasks for implementation A number of tasks have been identified to complete the implementation of e-navigation by 2019 IMO Member states are encouraged to lead this work Involvement by industry and other organisations is also essential to complete the tasks Contribution and co-operation with IHO, IEC, IALA, CIRM, ICS, BIMCO and others is important

19 It could: 1.bring about increased safety and security of navigation; 2.bring increased transport efficiency and better protection of the environment; 3.promote better data exchange and communication between ships and the ship and shore; and 4.bring well-designed more user centred and integrated equipment on ships. e-navigation is a Strategy developed by the IMO

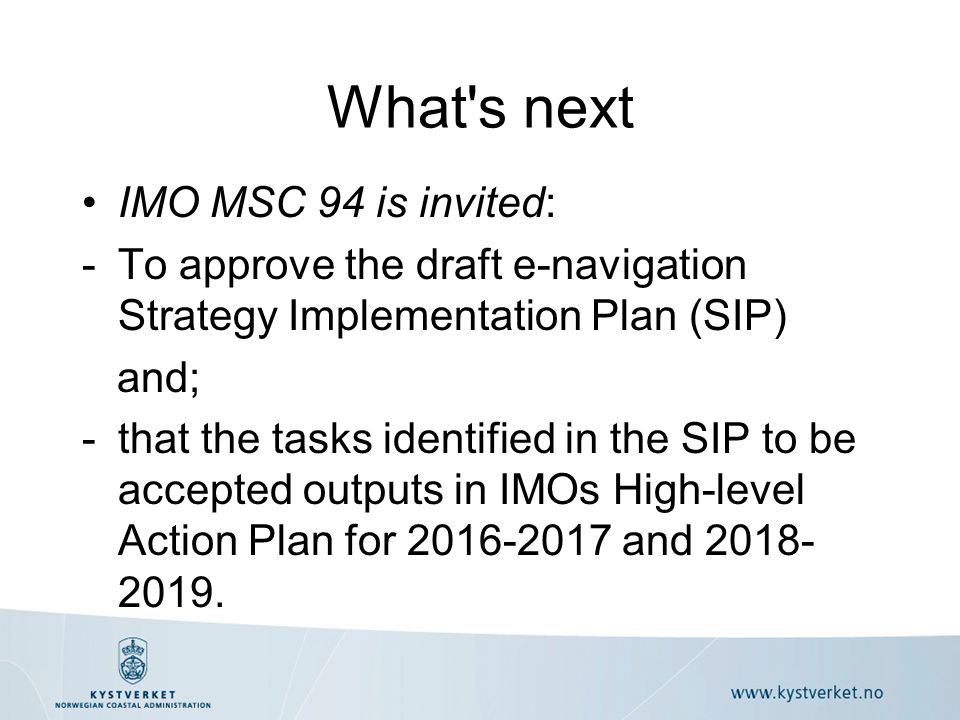

20 What's next IMO MSC 94 is invited: -To approve the draft e-navigation Strategy Implementation Plan (SIP) and; -that the tasks identified in the SIP to be accepted outputs in IMOs High-level Action Plan for 2016-2017 and 2018- 2019.

21 Thank you for your attention!
