From the Calculus to the Structured Query Language Zachary G. Ives University of Pennsylvania CIS 550 – Database & Information Systems September 22, 2005 Some slide content courtesy of Susan Davidson & Raghu Ramakrishnan

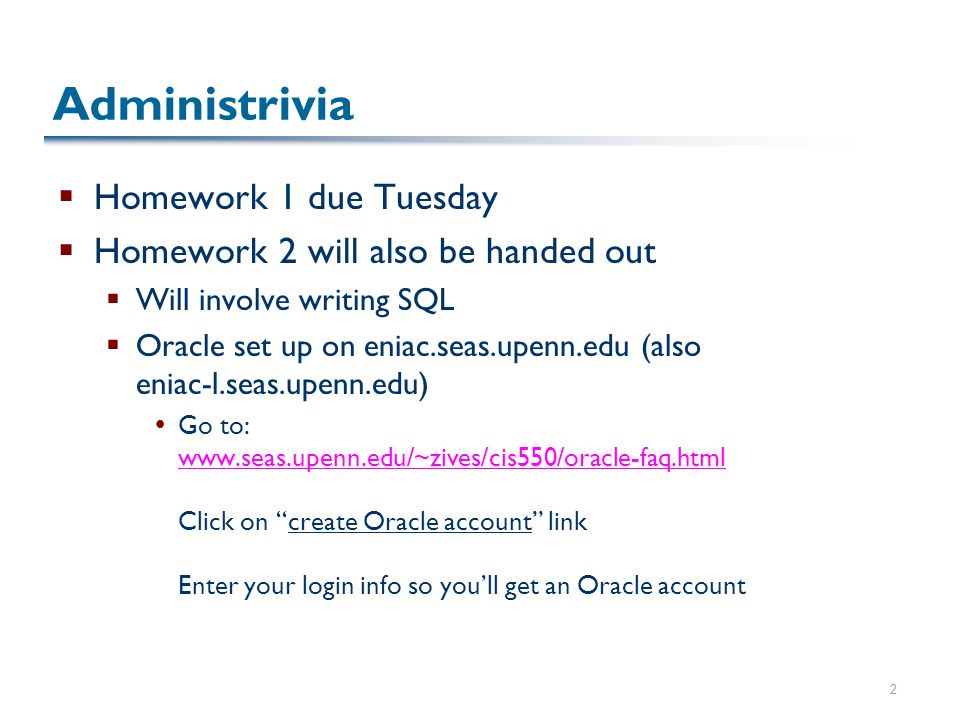

2 Administrivia  Homework 1 due Tuesday  Homework 2 will also be handed out  Will involve writing SQL  Oracle set up on eniac.seas.upenn.edu (also eniac-l.seas.upenn.edu)  Go to: www.seas.upenn.edu/~zives/cis550/oracle-faq.html Click on “create Oracle account” link Enter your login info so you’ll get an Oracle account www.seas.upenn.edu/~zives/cis550/oracle-faq.html

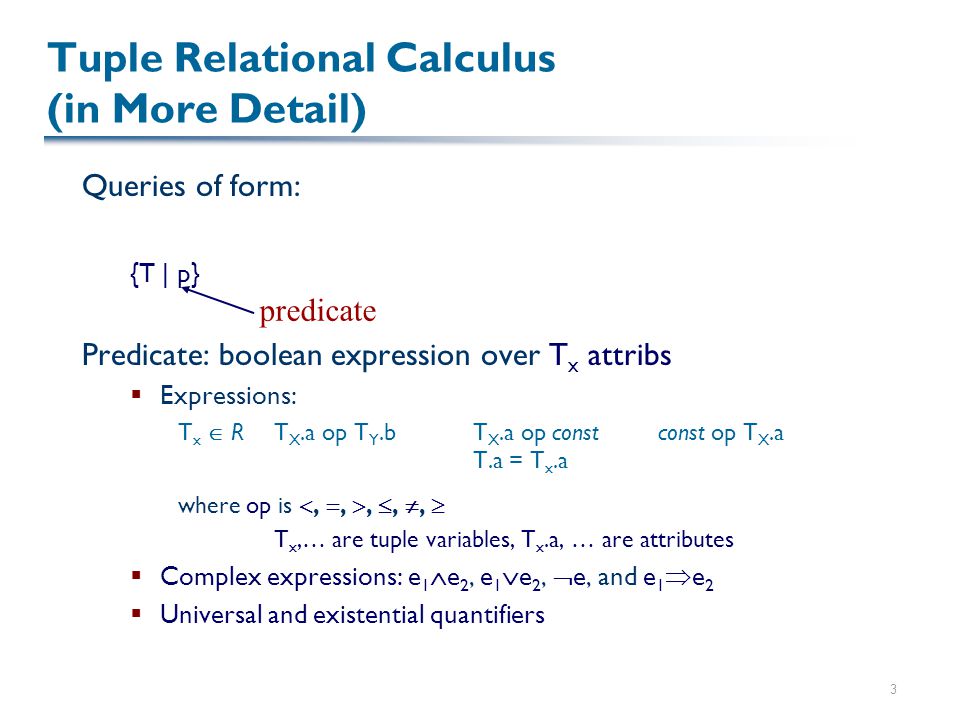

3 Tuple Relational Calculus (in More Detail) Queries of form: {T | p} Predicate: boolean expression over T x attribs  Expressions: T x  RT X.a op T Y.b T X.a op constconst op T X.a T.a = T x.a where op is , , , , ,  T x,… are tuple variables, T x.a, … are attributes  Complex expressions: e 1  e 2, e 1  e 2,  e, and e 1  e 2  Universal and existential quantifiers predicate

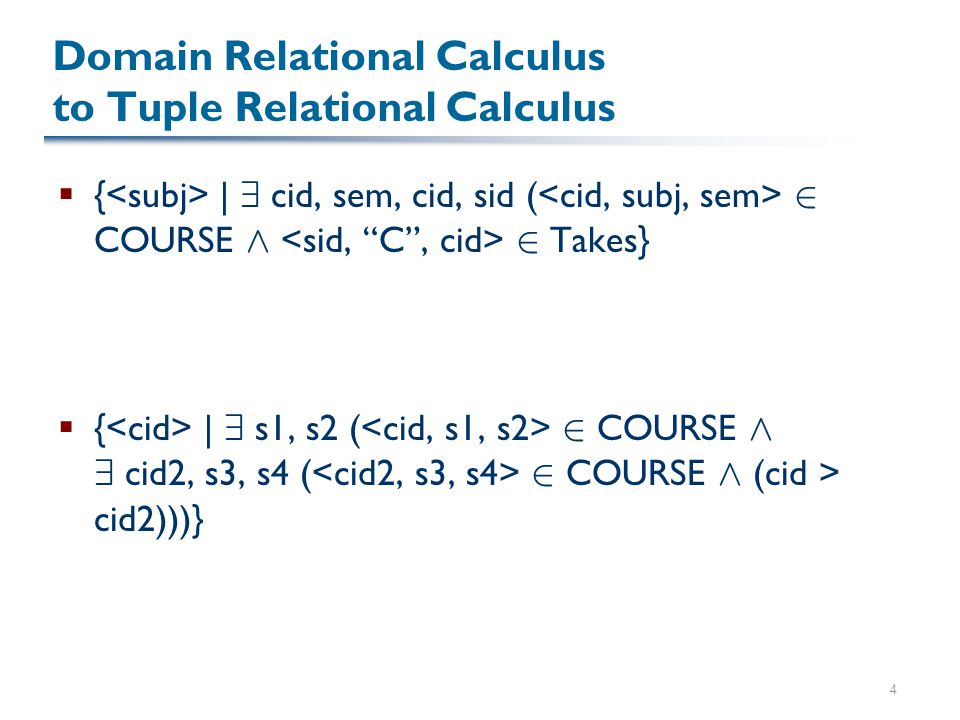

4 Domain Relational Calculus to Tuple Relational Calculus  { | 9 cid, sem, cid, sid ( 2 COURSE Æ 2 Takes}  { | 9 s1, s2 ( 2 COURSE Æ 9 cid2, s3, s4 ( 2 COURSE Æ (cid > cid2)))}

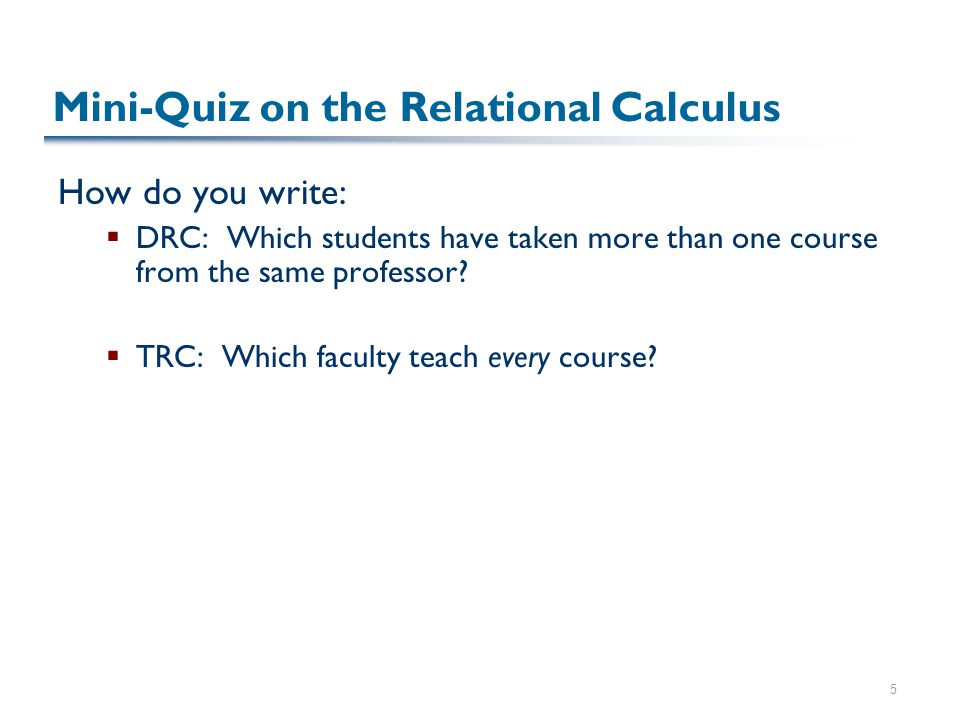

5 Mini-Quiz on the Relational Calculus How do you write:  DRC: Which students have taken more than one course from the same professor?  TRC: Which faculty teach every course?

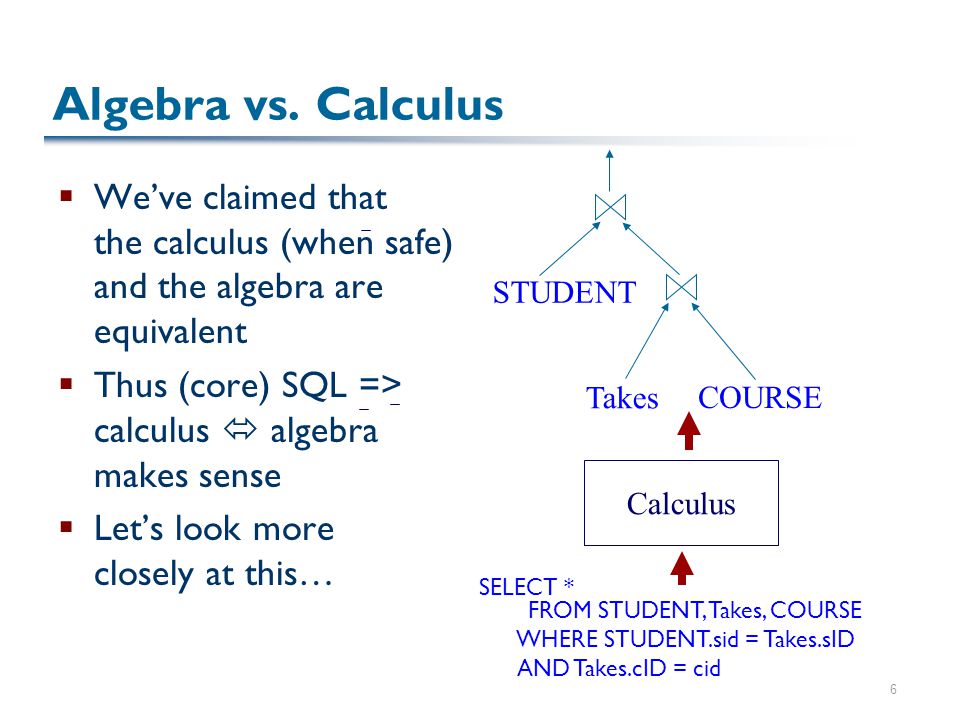

6 Algebra vs. Calculus  We’ve claimed that the calculus (when safe) and the algebra are equivalent  Thus (core) SQL => calculus  algebra makes sense  Let’s look more closely at this… SELECT * FROM STUDENT, Takes, COURSE WHERE STUDENT.sid = Takes.sID AND Takes.cID = cid STUDENT Takes COURSE Calculus

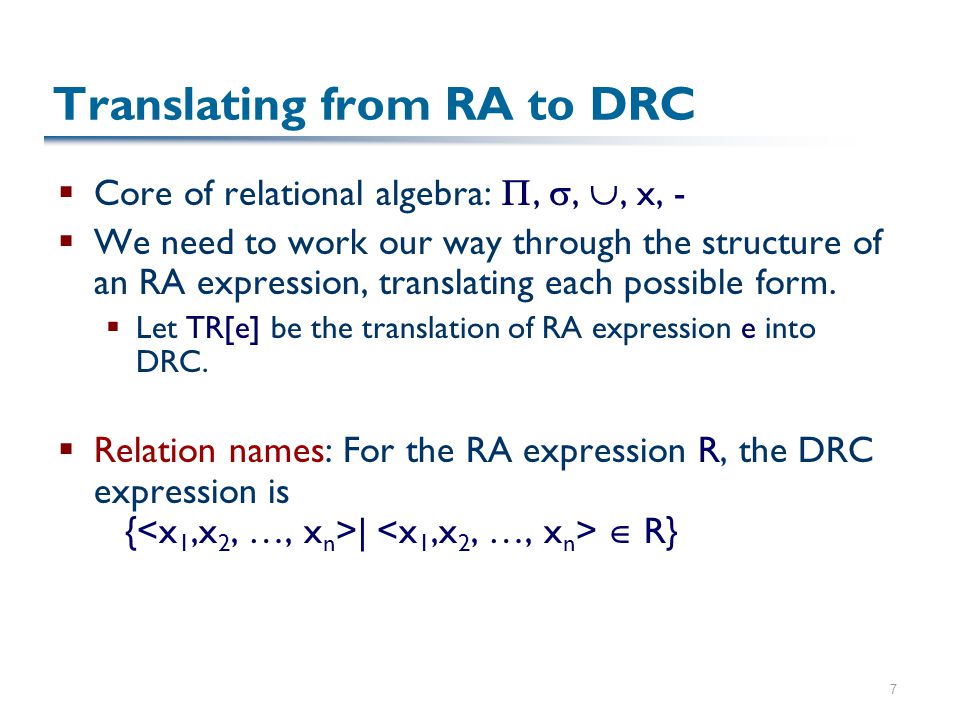

7 Translating from RA to DRC  Core of relational algebra: , , , x, -  We need to work our way through the structure of an RA expression, translating each possible form.  Let TR[e] be the translation of RA expression e into DRC.  Relation names: For the RA expression R, the DRC expression is { |  R}

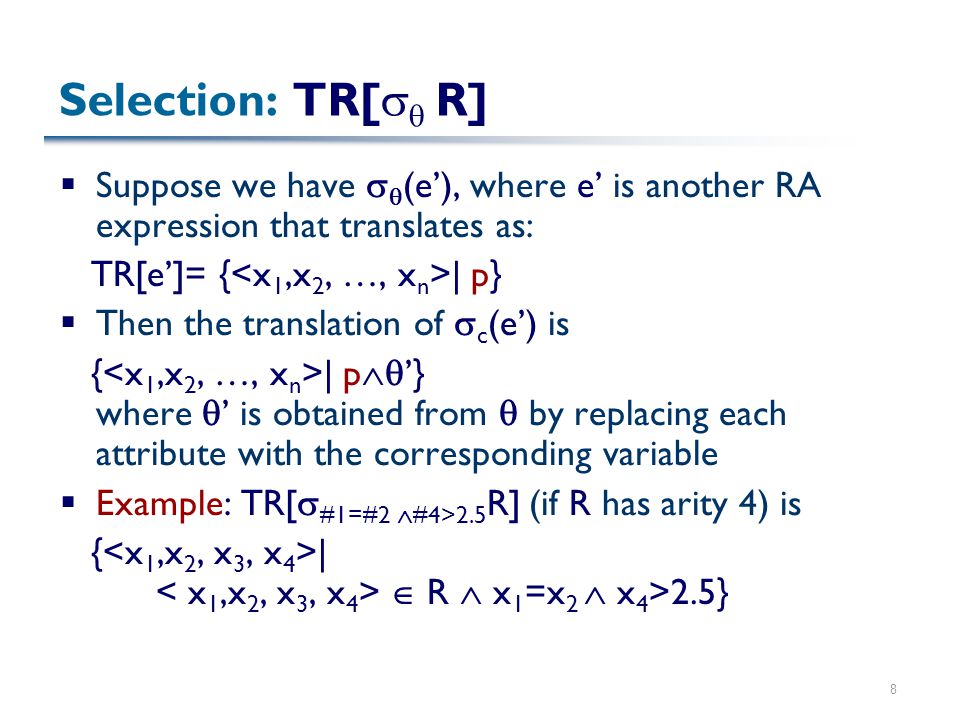

8 Selection: TR[   R]  Suppose we have   (e’), where e’ is another RA expression that translates as: TR[e’]= { | p}  Then the translation of  c (e’) is { | p  ’} where  ’ is obtained from  by replacing each attribute with the corresponding variable  Example: TR[  #1=#2  #4>2.5 R] (if R has arity 4) is { |  R  x 1 =x 2  x 4 >2.5}

9 Projection: TR[  i 1,…,i m (e)]  If TR[e]= { | p} then TR[  i 1,i 2,…,i m (e)]= { |  x j 1,x j 2, …, x j k.p}, where x j 1,x j 2, …, x j k are variables in x 1,x 2, …, x n that are not in x i 1,x i 2, …, x i m  Example: With R as before,  #1,#3 (R)={ |  x 2,x 4.  R}

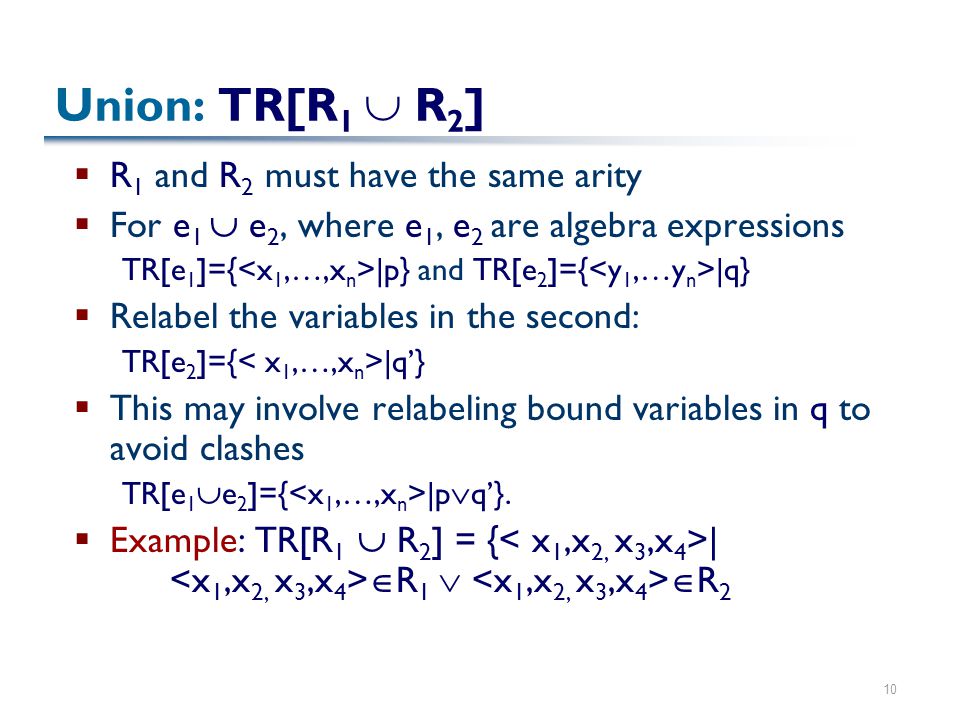

10 Union: TR[R 1  R 2 ]  R 1 and R 2 must have the same arity  For e 1  e 2, where e 1, e 2 are algebra expressions TR[e 1 ]={ |p} and TR[e 2 ]={ |q}  Relabel the variables in the second: TR[e 2 ]={ |q’}  This may involve relabeling bound variables in q to avoid clashes TR[e 1  e 2 ]={ |p  q’}.  Example: TR[R 1  R 2 ] = { |  R 1   R 2

11 Other Binary Operators  Difference: The same conditions hold as for union If TR[e 1 ]={ |p} and TR[e 2 ]={ |q} Then TR[e 1 - e 2 ]= { |p  q}  Product: If TR[e 1 ]={ |p} and TR[e 2 ]={ |q} Then TR[e 1  e 2 ]= { | p  q}  Example: TR[R  S]= { |  R   S }

12 Relational Algebra vs. Calculus  Can translate relational algebra into relational calculus  Given syntactic restrictions that guarantee safety of calculus query, can translate back to relational algebra  These are the principles behind initial development of relational databases  SQL is close to calculus; query plan is close to algebra  But SQL can do other things (recursion, aggregation that RA/RC can’t)  Great example of theory leading to practice!

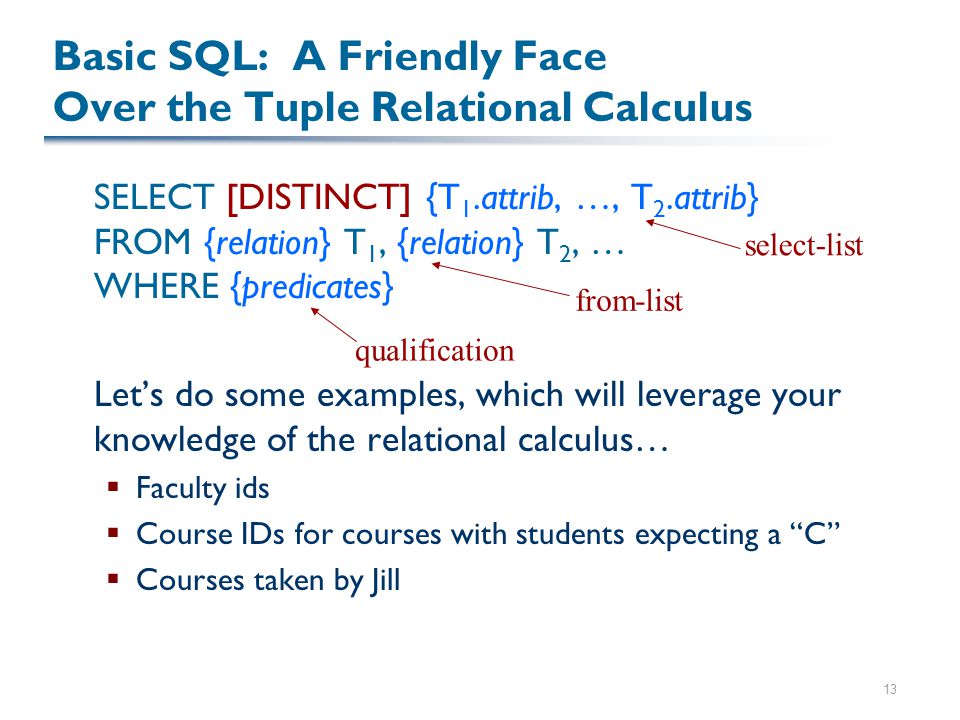

13 Basic SQL: A Friendly Face Over the Tuple Relational Calculus SELECT [DISTINCT] {T 1.attrib, …, T 2.attrib} FROM {relation} T 1, {relation} T 2, … WHERE {predicates} Let’s do some examples, which will leverage your knowledge of the relational calculus…  Faculty ids  Course IDs for courses with students expecting a “C”  Courses taken by Jill select-list from-list qualification

14 Our Example Data Instance sidname 1Jill 2Qun 3Nitin fidname 1Ives 2Saul 8Martin sidexp-gradecid 1A550-0105 1A700-1005 3C501-0105 cidsubjsem 550-0105DBF05 700-1005AIS05 501-0105ArchF05 fidcid 1550-0105 2700-1005 8501-0105 STUDENT Takes COURSE PROFESSOR Teaches

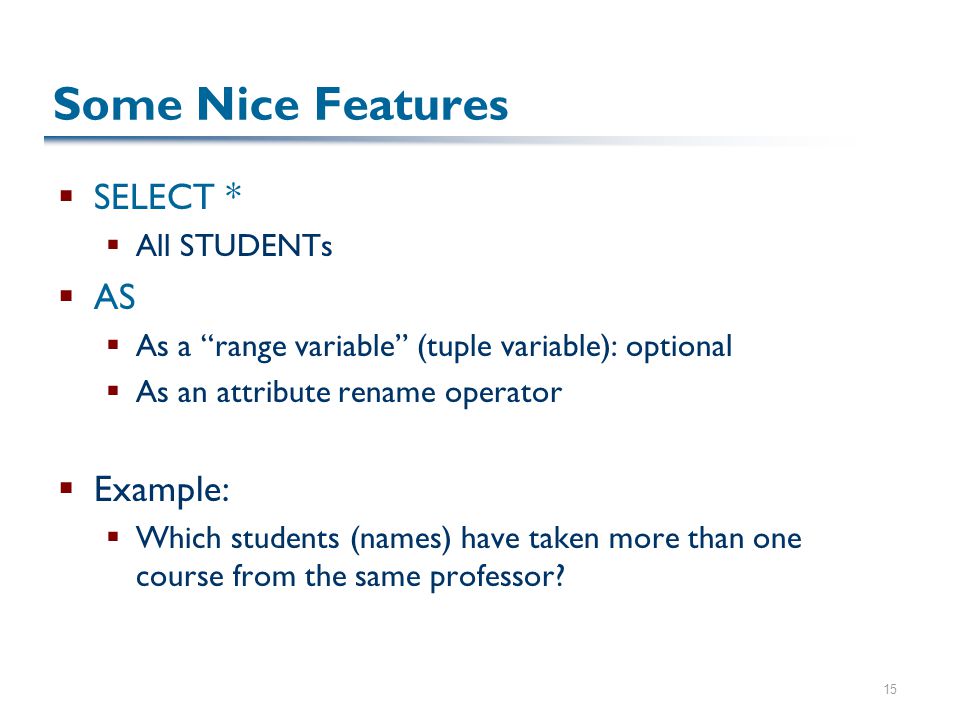

15 Some Nice Features  SELECT *  All STUDENTs  AS  As a “range variable” (tuple variable): optional  As an attribute rename operator  Example:  Which students (names) have taken more than one course from the same professor?

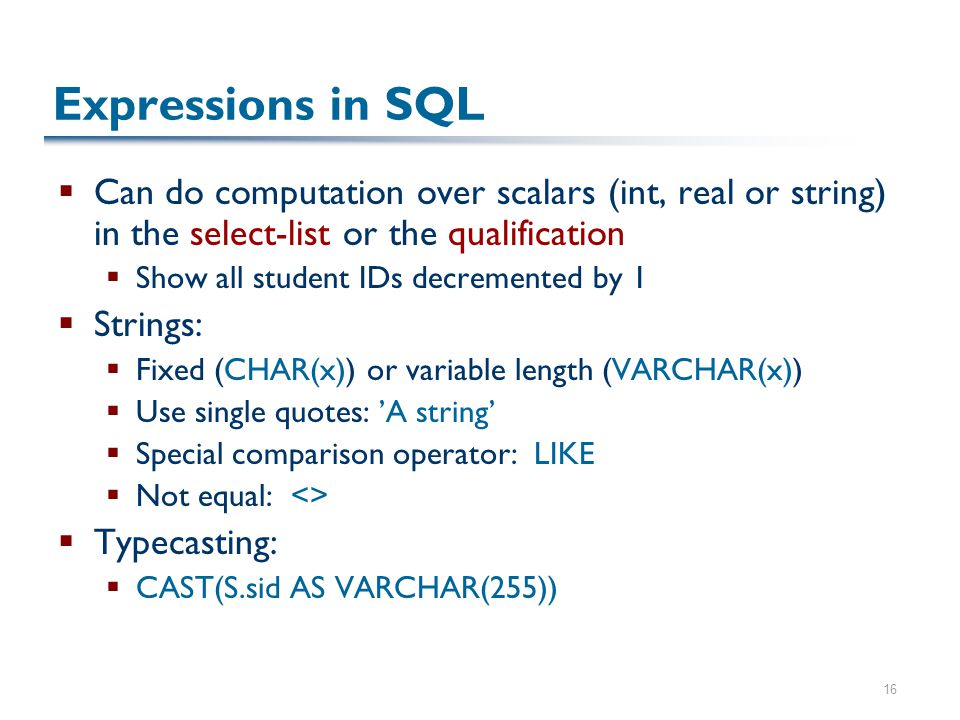

16 Expressions in SQL  Can do computation over scalars (int, real or string) in the select-list or the qualification  Show all student IDs decremented by 1  Strings:  Fixed (CHAR(x)) or variable length (VARCHAR(x))  Use single quotes: ’A string’  Special comparison operator: LIKE  Not equal: <>  Typecasting:  CAST(S.sid AS VARCHAR(255))

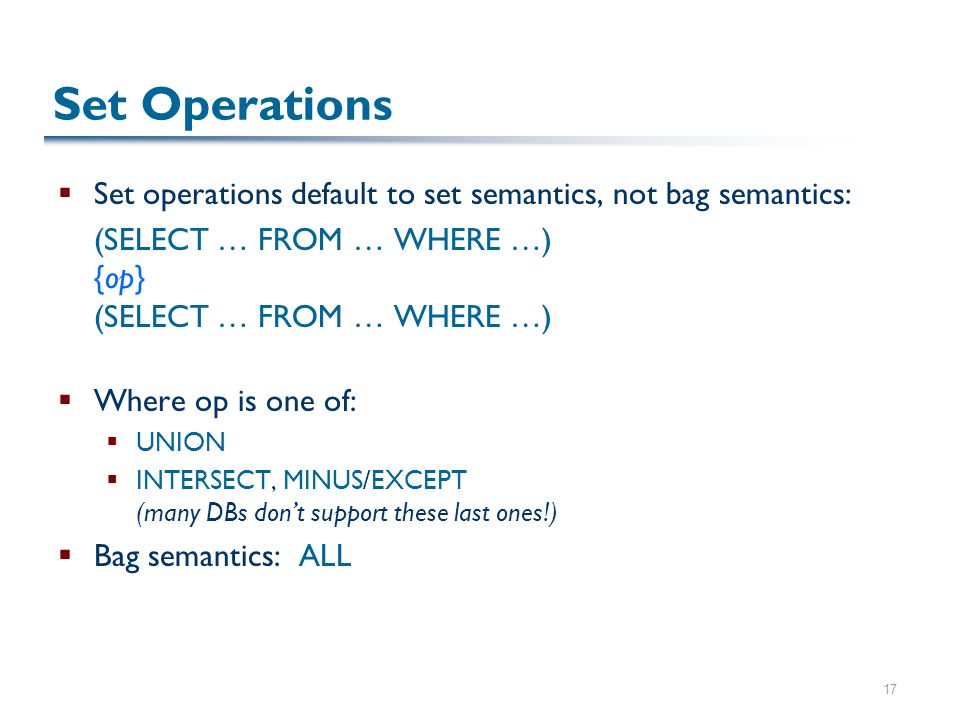

17 Set Operations  Set operations default to set semantics, not bag semantics: (SELECT … FROM … WHERE …) {op} (SELECT … FROM … WHERE …)  Where op is one of:  UNION  INTERSECT, MINUS/EXCEPT (many DBs don’t support these last ones!)  Bag semantics: ALL

18 Exercise  Find all students who have taken DB but not AI  Hint: use EXCEPT

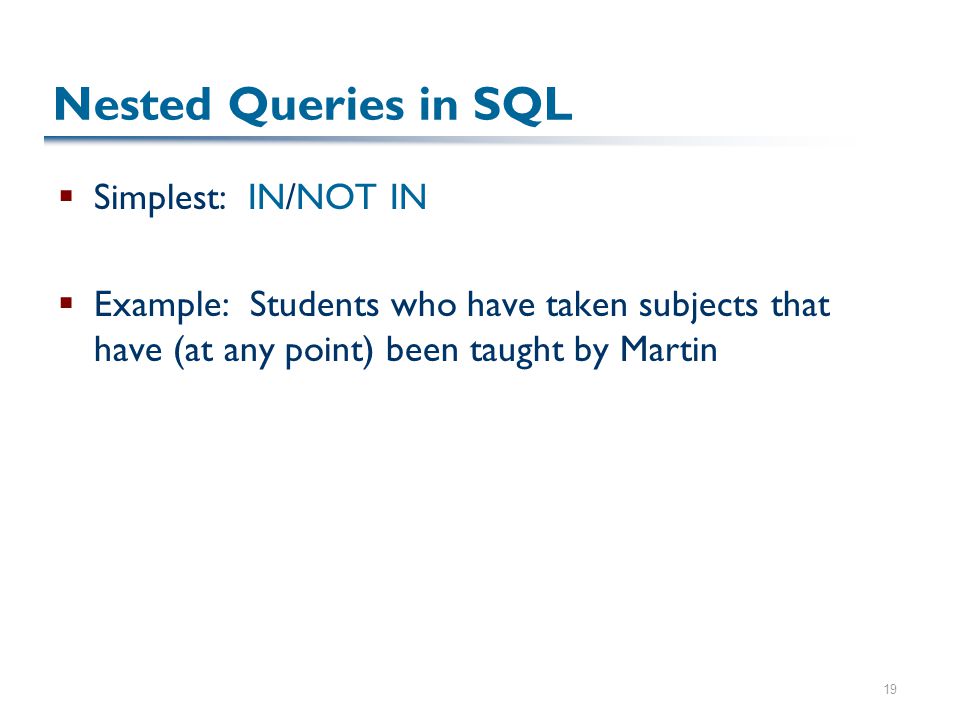

19 Nested Queries in SQL  Simplest: IN/NOT IN  Example: Students who have taken subjects that have (at any point) been taught by Martin

20 Correlated Subqueries  Most common: EXISTS/NOT EXISTS  Find all students who have taken DB but not AI

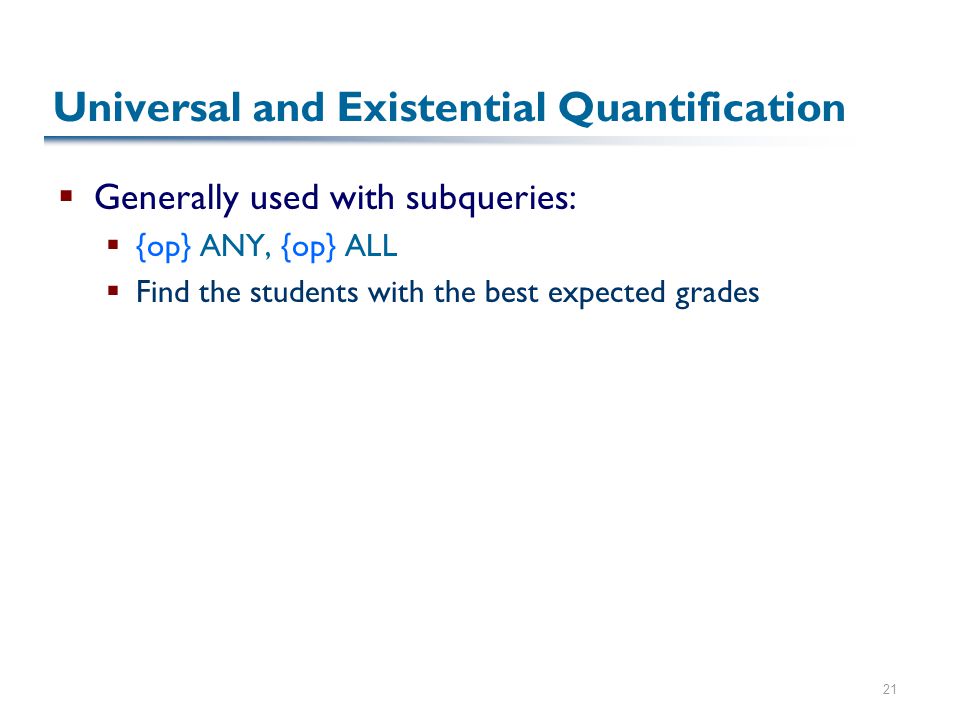

21 Universal and Existential Quantification  Generally used with subqueries:  {op} ANY, {op} ALL  Find the students with the best expected grades

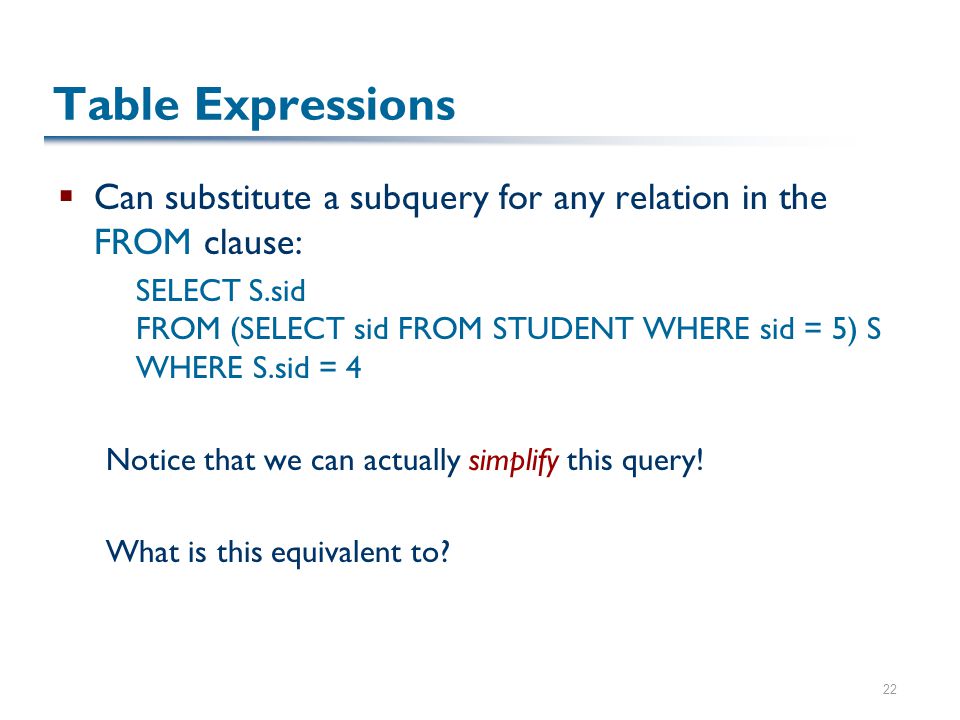

22 Table Expressions  Can substitute a subquery for any relation in the FROM clause: SELECT S.sid FROM (SELECT sid FROM STUDENT WHERE sid = 5) S WHERE S.sid = 4 Notice that we can actually simplify this query! What is this equivalent to?

23 Aggregation  GROUP BY SELECT {group-attribs}, {aggregate-operator}(attrib) FROM {relation} T 1, {relation} T 2, … WHERE {predicates} GROUP BY {group-list}  Aggregate operators  AVG, COUNT, SUM, MAX, MIN  DISTINCT keyword for AVG, COUNT, SUM

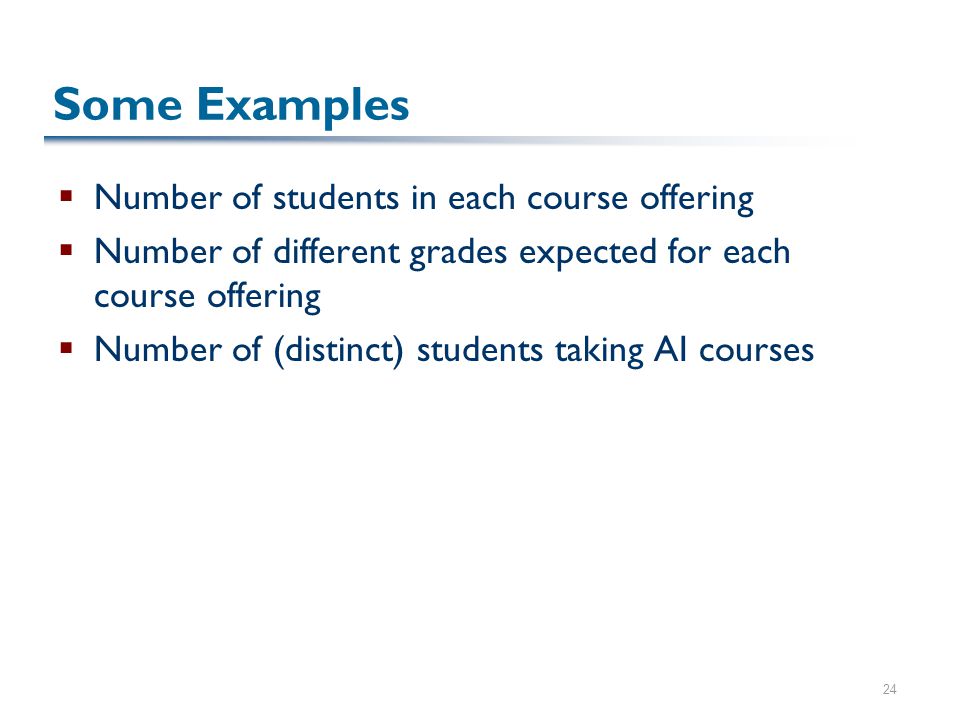

24 Some Examples  Number of students in each course offering  Number of different grades expected for each course offering  Number of (distinct) students taking AI courses

25 What If You Want to Only Show Some Groups?  The HAVING clause lets you do a selection based on an aggregate (there must be 1 value per group): SELECT C.subj, COUNT(S.sid) FROM STUDENT S, Takes T, COURSE C WHERE S.sid = T.sid AND T.cid = C.cid GROUP BY subj HAVING COUNT(S.sid) > 5  Exercise: For each subject taught by at least two professors, list the minimum expected grade

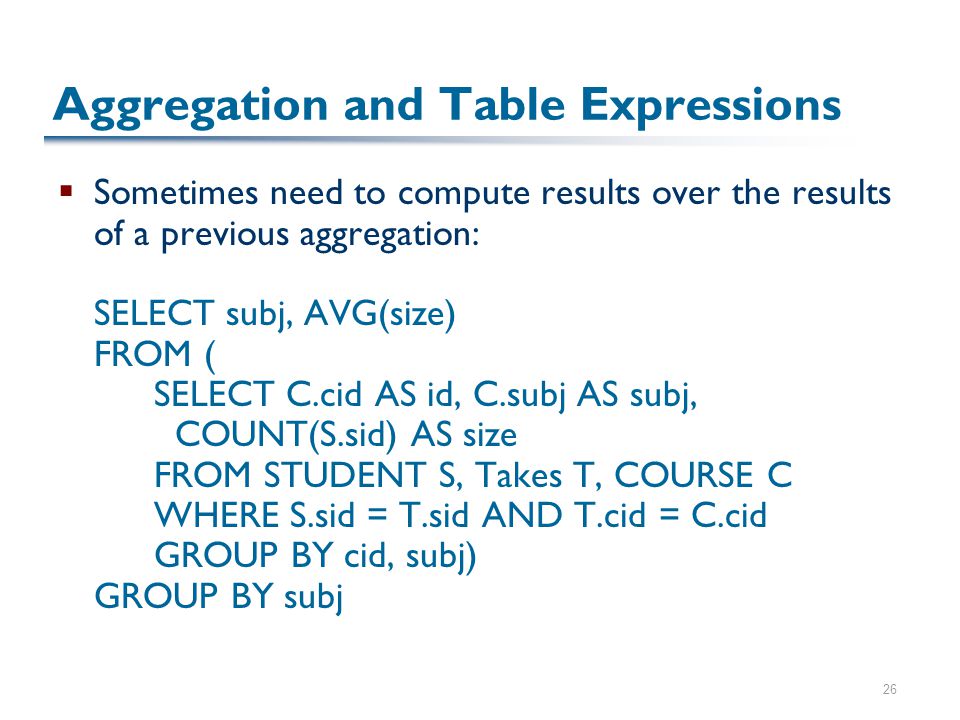

26 Aggregation and Table Expressions  Sometimes need to compute results over the results of a previous aggregation: SELECT subj, AVG(size) FROM ( SELECT C.cid AS id, C.subj AS subj, COUNT(S.sid) AS size FROM STUDENT S, Takes T, COURSE C WHERE S.sid = T.sid AND T.cid = C.cid GROUP BY cid, subj) GROUP BY subj

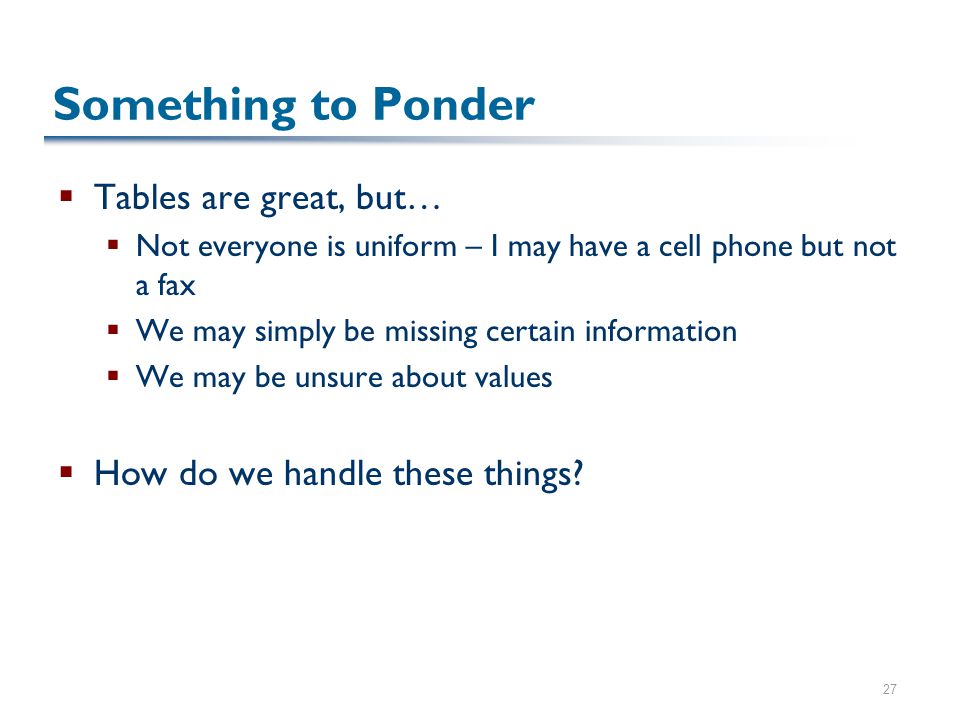

27 Something to Ponder  Tables are great, but…  Not everyone is uniform – I may have a cell phone but not a fax  We may simply be missing certain information  We may be unsure about values  How do we handle these things?
