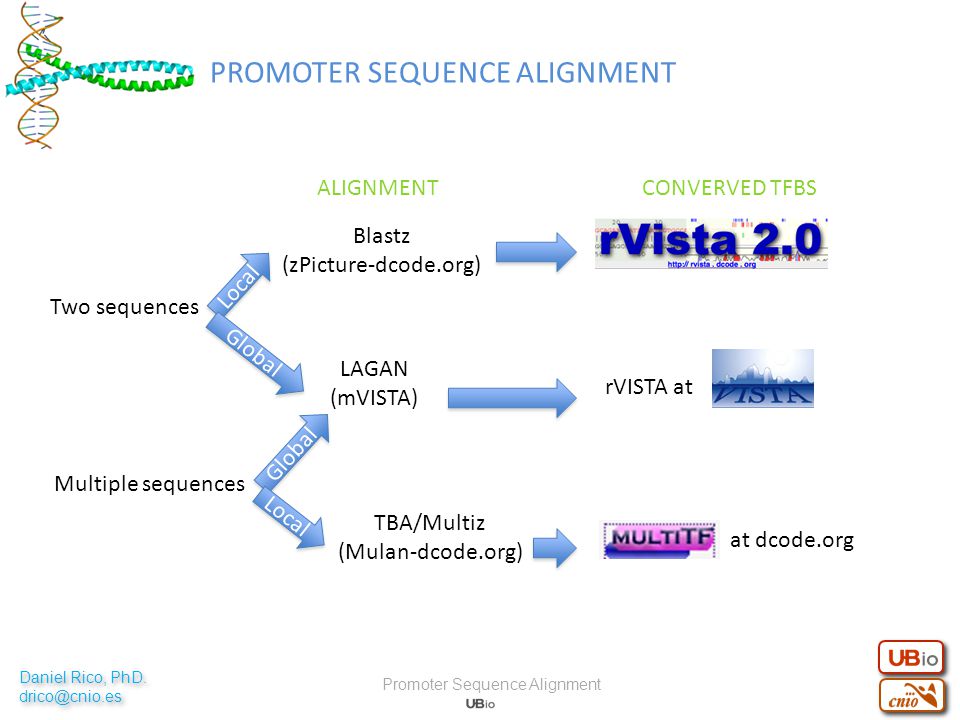

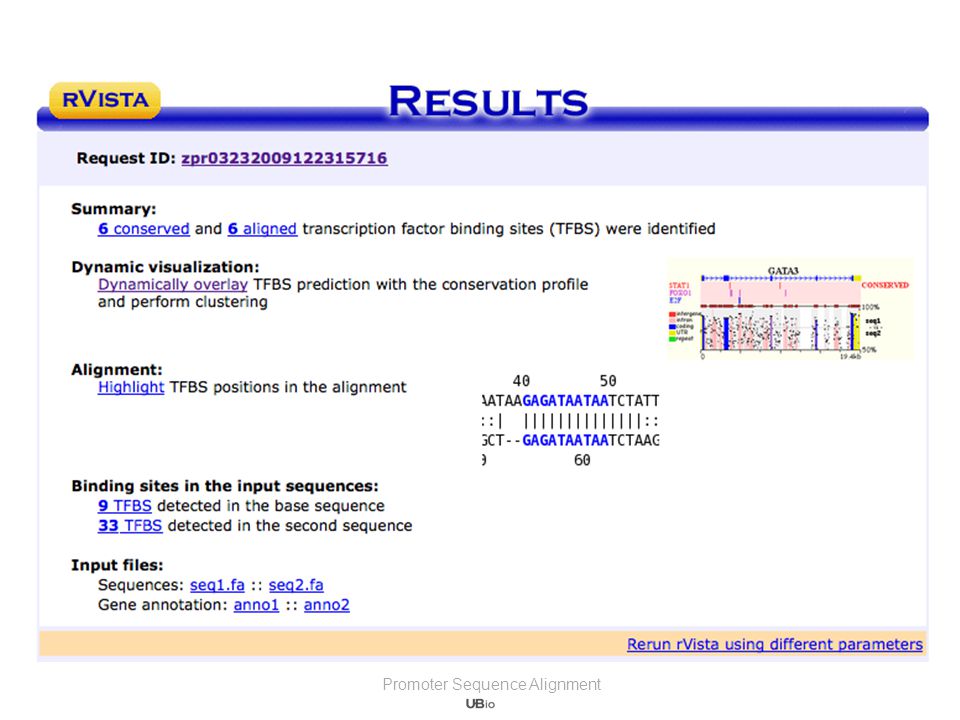

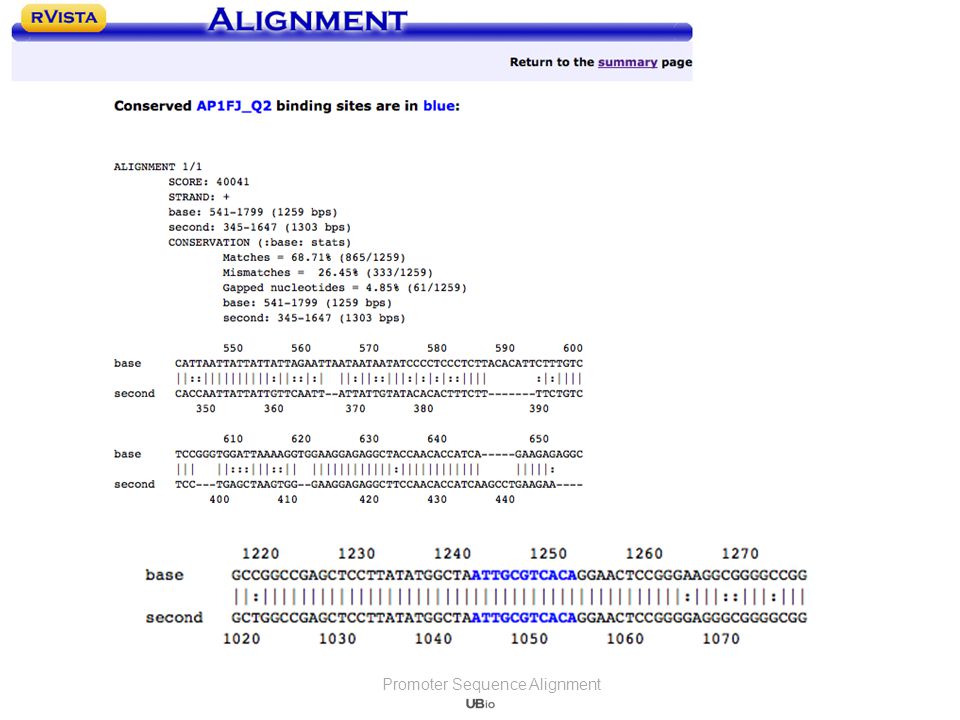

1 Two sequences Multiple sequences Local Blastz (zPicture-dcode.org) ALIGNMENTCONVERVED TFBS LAGAN (mVISTA) Global TBA/Multiz (Mulan-dcode.org) Local rVISTA at at dcode.org PROMOTER SEQUENCE ALIGNMENT Promoter Sequence Alignment Daniel Rico, PhD. Daniel Rico, PhD.

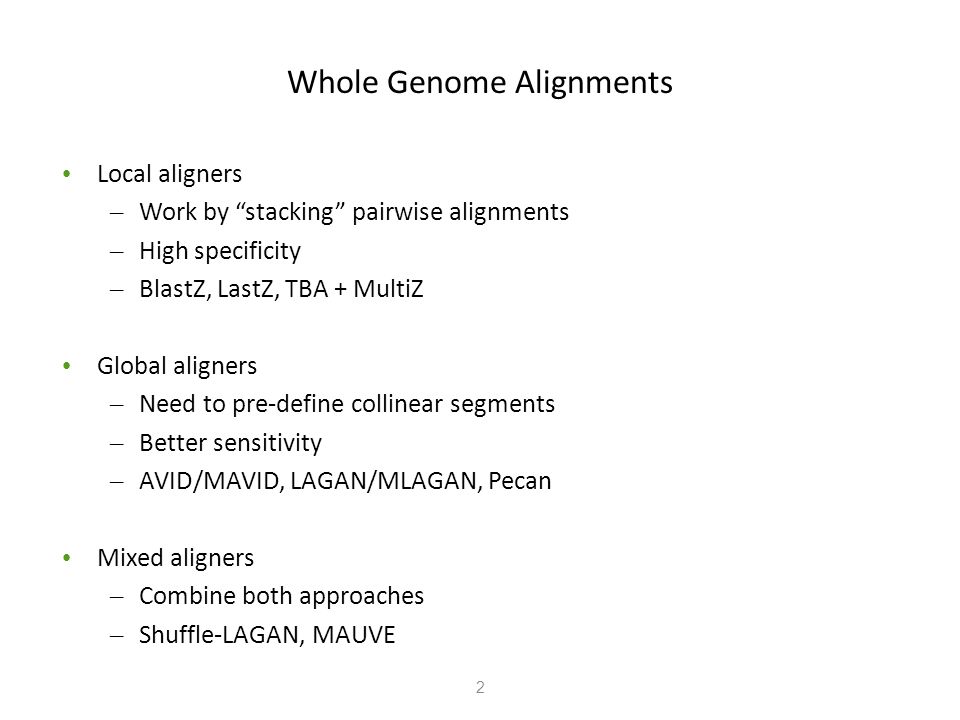

2 Whole Genome Alignments Local aligners – Work by “stacking” pairwise alignments – High specificity – BlastZ, LastZ, TBA + MultiZ Global aligners – Need to pre-define collinear segments – Better sensitivity – AVID/MAVID, LAGAN/MLAGAN, Pecan Mixed aligners – Combine both approaches – Shuffle-LAGAN, MAUVE 2

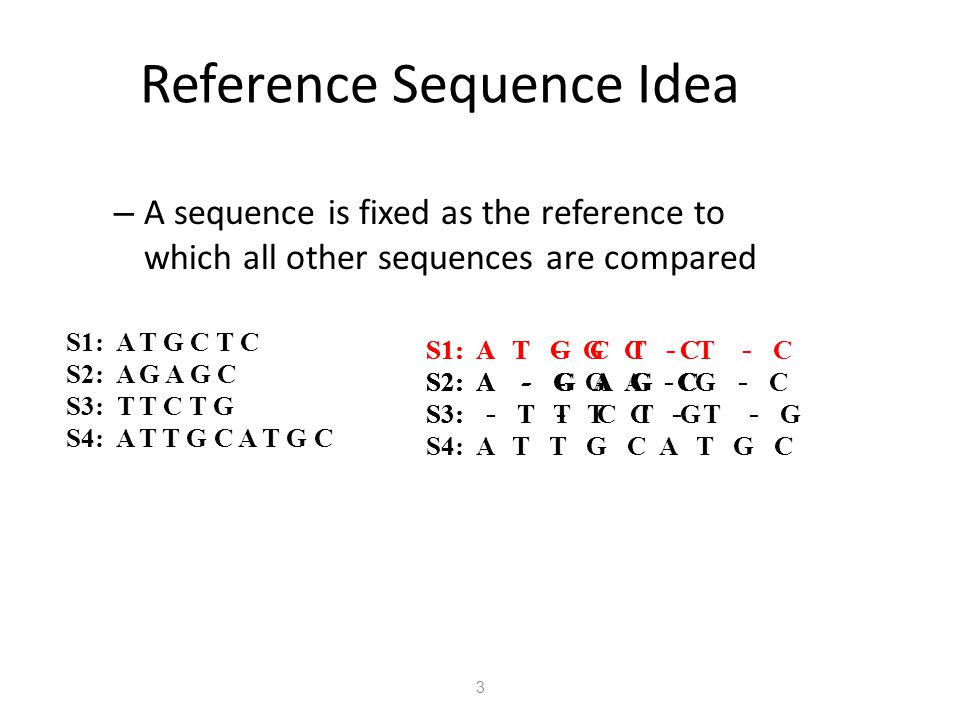

3 Reference Sequence Idea – A sequence is fixed as the reference to which all other sequences are compared S1: A T G C T C S2: A G A G C S3: T T C T G S4: A T T G C A T G C S1: A T - G C - T - C S2: A - - G A - G - C S3: - T - T C - T - G S4: A T T G C A T G C S1: A T G C T C S2: A - G A G C S1: A T G C T C S2: A - G A G C S3: - T T C T G 3

4 Benefit Simplicity Drawbacks Regions conserved in a subset of the species, but absent from the reference sequence, are not identified. Alignments generated with different reference sequences may be inconsistent. Inconsistent: Two positions that are aligned to each other using one reference sequence might be aligned to different positions when another reference sequence is chosen. S1: A T - G C - T - C S2: A - - G A - G - C S3: - T - T C - T - G S4: A T T G C A T G C S1: A T G C T C S2: A G A G C S3: T T C T G S4: A T T G C A T G C 4

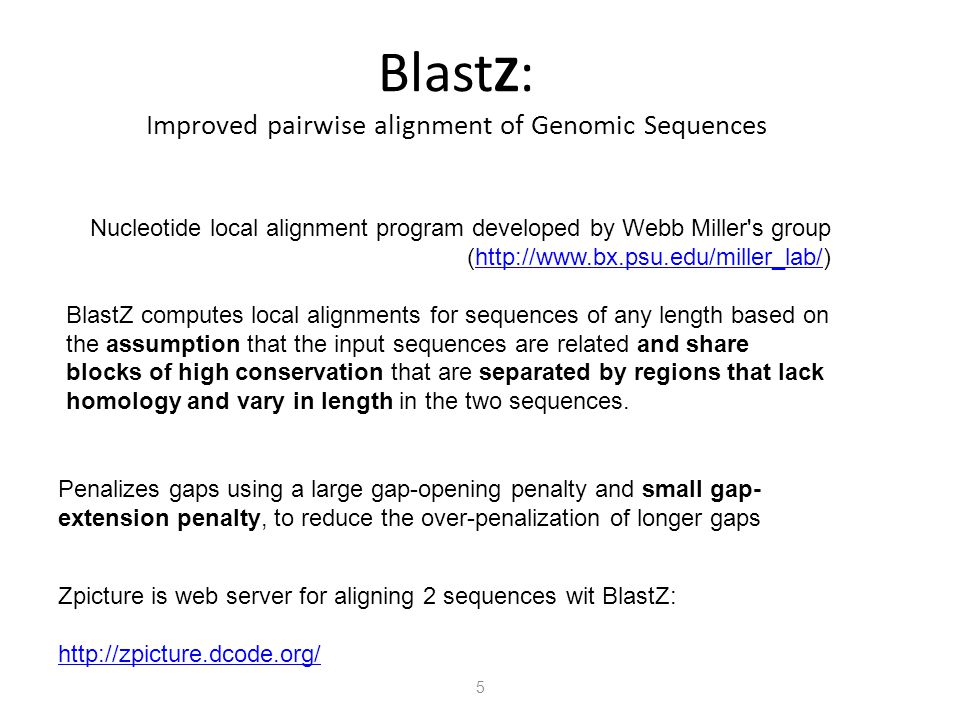

5 Blast Z : Improved pairwise alignment of Genomic Sequences Nucleotide local alignment program developed by Webb Miller's group (http://www.bx.psu.edu/miller_lab/)http://www.bx.psu.edu/miller_lab/ BlastZ computes local alignments for sequences of any length based on the assumption that the input sequences are related and share blocks of high conservation that are separated by regions that lack homology and vary in length in the two sequences. Penalizes gaps using a large gap-opening penalty and small gap- extension penalty, to reduce the over-penalization of longer gaps Zpicture is web server for aligning 2 sequences wit BlastZ: 5

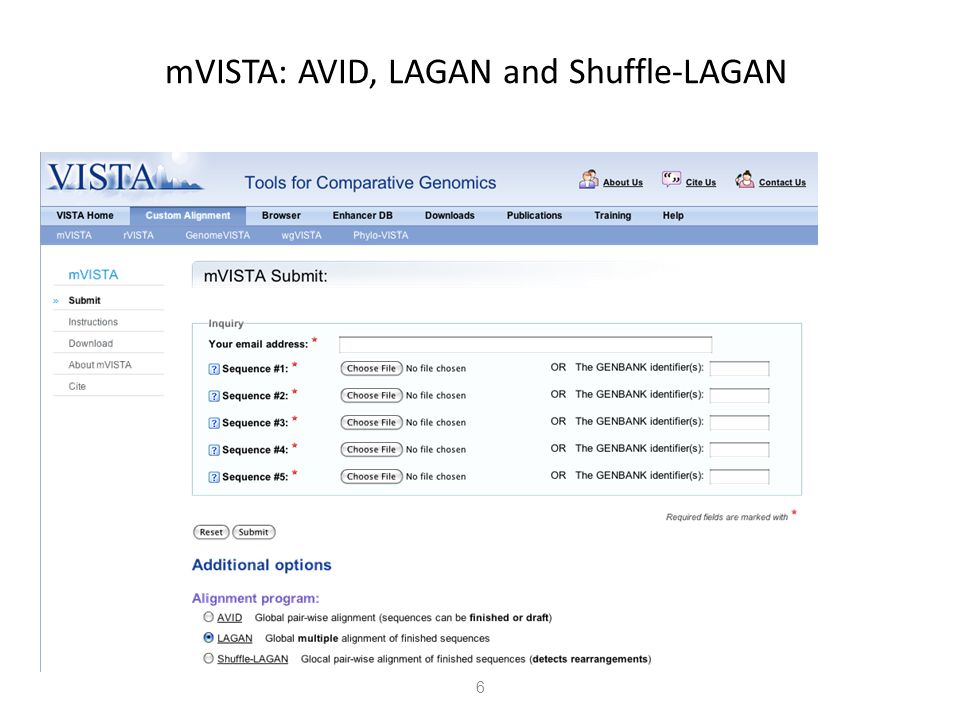

6 mVISTA: AVID, LAGAN and Shuffle-LAGAN 6

7 AVID, LAGAN AND MLAGAN ASSUME THAT ONE HAS ALREADY IDENTIFIED APPARENT ORTHOLOGOUS REGIONS BETWEEN TWO SPECIES, AND THAT THERE ARE NO GENOMIC REARRANGEMENTS 7

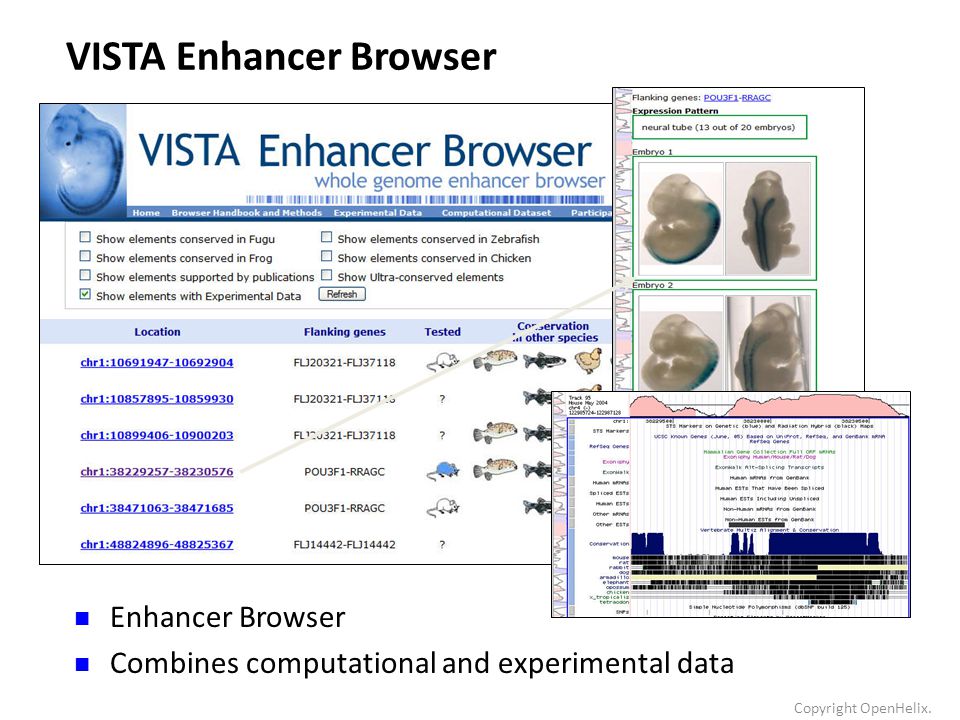

8 Copyright OpenHelix. VISTA Enhancer Browser Enhancer Browser Combines computational and experimental data

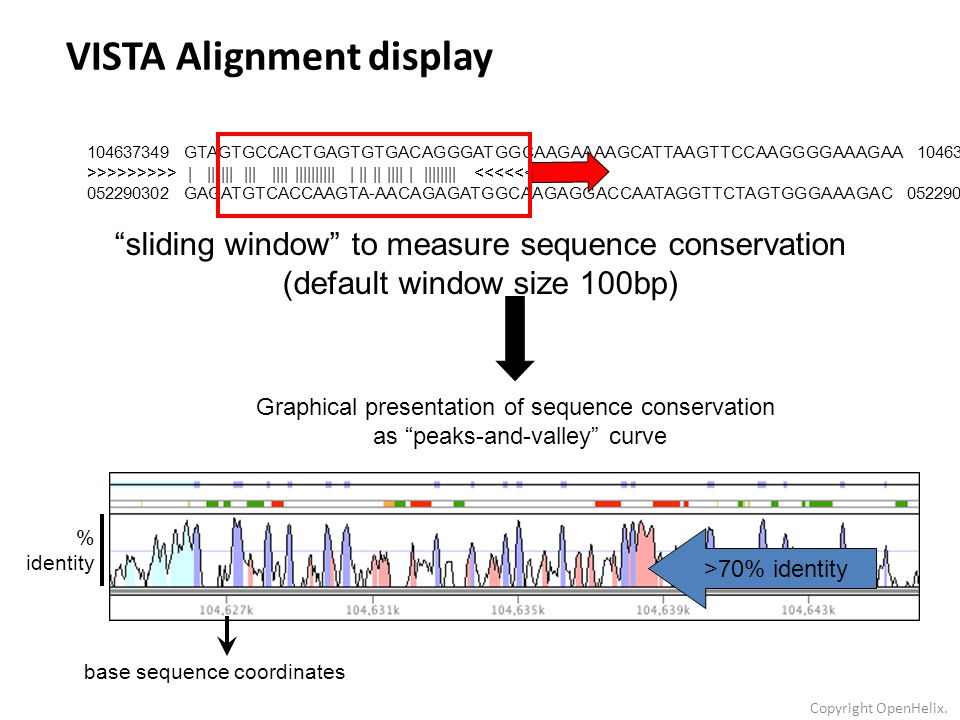

9 Copyright OpenHelix. VISTA Alignment display GTAGTGCCACTGAGTGTGACAGGGATGGCAAGAAAAGCATTAAGTTCCAAGGGGAAAGAA >>>>>>>>> | || ||| ||| |||| |||||||||| | || || |||| | |||||||| <<<<<<<<< GAGATGTCACCAAGTA-AACAGAGATGGCAAGAGGACCAATAGGTTCTAGTGGGAAAGAC “sliding window” to measure sequence conservation (default window size 100bp) Graphical presentation of sequence conservation as “peaks-and-valley” curve >70% identity base sequence coordinates % identity

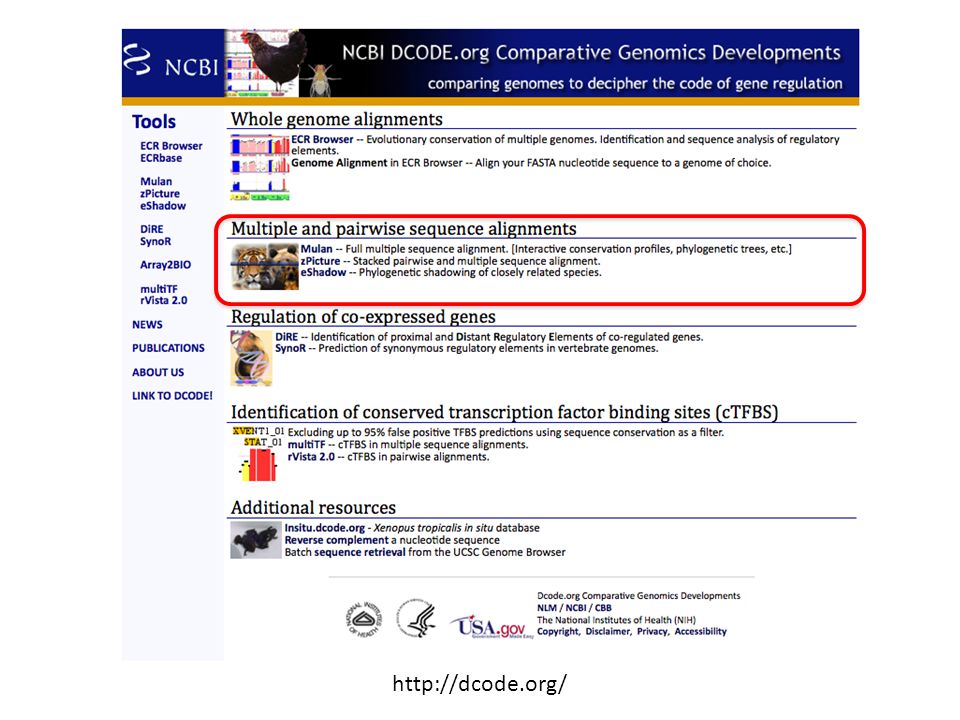

10

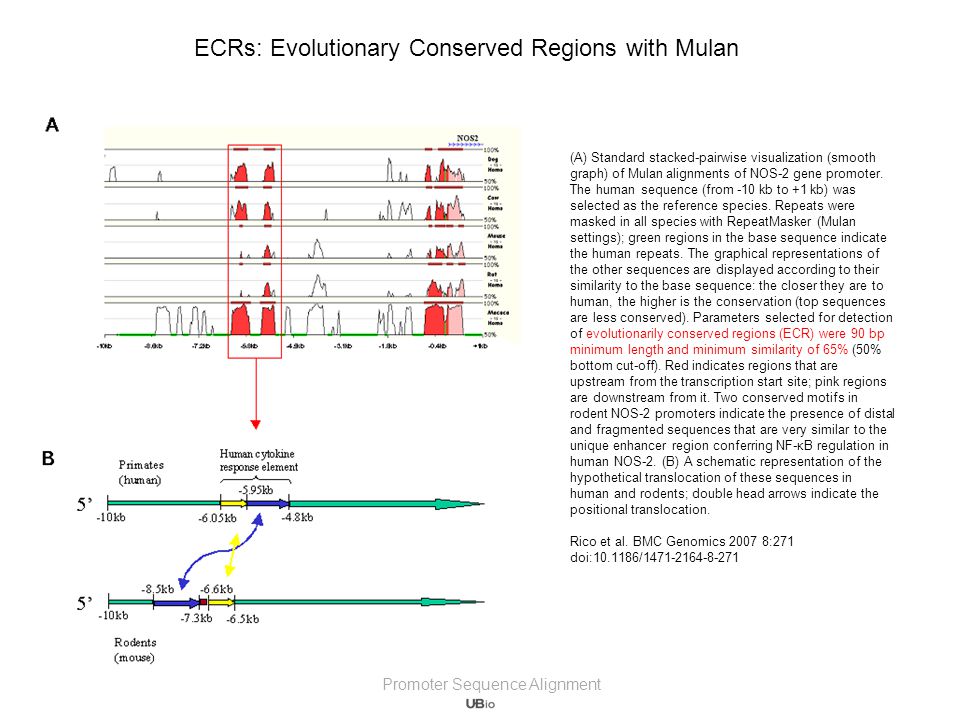

11 (A) Standard stacked-pairwise visualization (smooth graph) of Mulan alignments of NOS-2 gene promoter. The human sequence (from -10 kb to +1 kb) was selected as the reference species. Repeats were masked in all species with RepeatMasker (Mulan settings); green regions in the base sequence indicate the human repeats. The graphical representations of the other sequences are displayed according to their similarity to the base sequence: the closer they are to human, the higher is the conservation (top sequences are less conserved). Parameters selected for detection of evolutionarily conserved regions (ECR) were 90 bp minimum length and minimum similarity of 65% (50% bottom cut-off). Red indicates regions that are upstream from the transcription start site; pink regions are downstream from it. Two conserved motifs in rodent NOS-2 promoters indicate the presence of distal and fragmented sequences that are very similar to the unique enhancer region conferring NF-κB regulation in human NOS-2. (B) A schematic representation of the hypothetical translocation of these sequences in human and rodents; double head arrows indicate the positional translocation. Rico et al. BMC Genomics :271 doi: / ECRs: Evolutionary Conserved Regions with Mulan Promoter Sequence Alignment
