1 Revisiting Co-Processing for Hash Joins on the Coupled CPU- GPU Architecture School of Computer Engineering Nanyang Technological University 27 th Aug 2013 Jiong He, Mian Lu, Bingsheng He

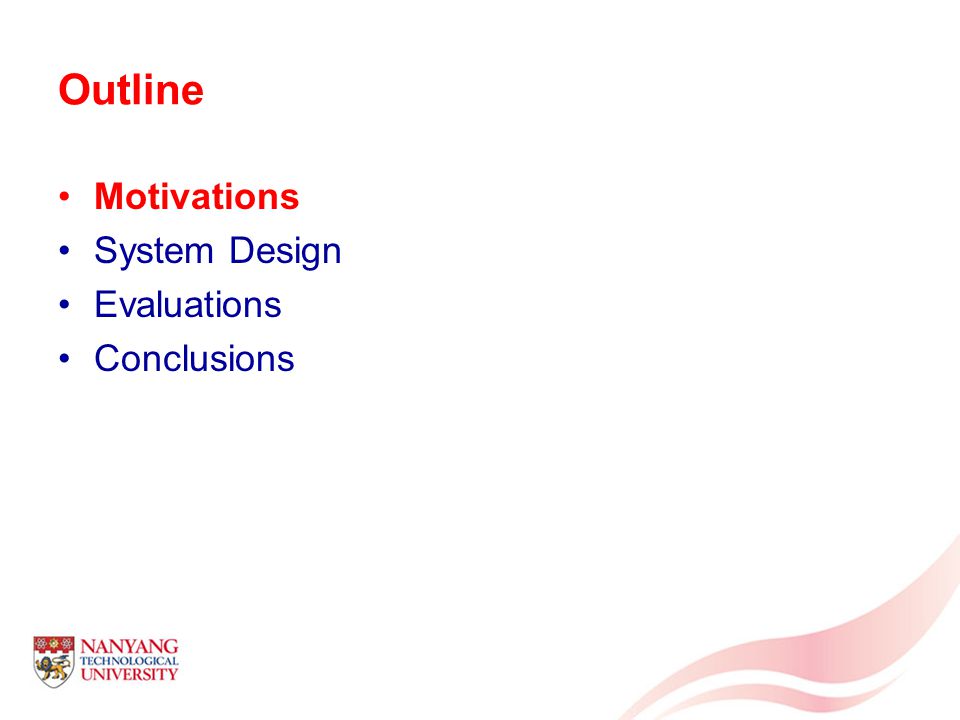

2 Outline Motivations System Design Evaluations Conclusions

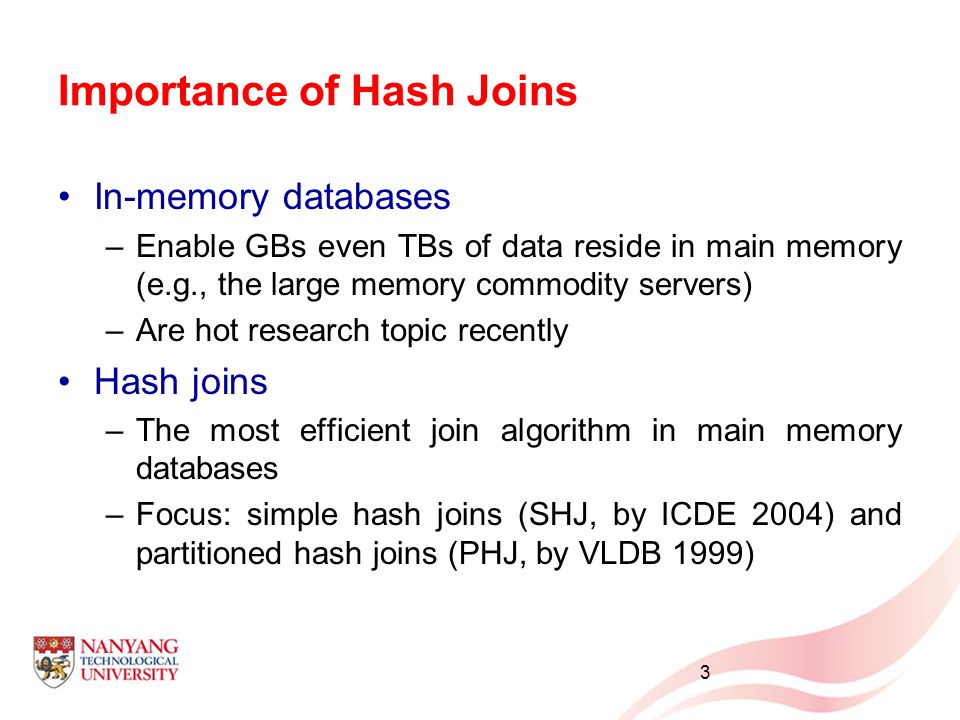

3 Importance of Hash Joins In-memory databases –Enable GBs even TBs of data reside in main memory (e.g., the large memory commodity servers) –Are hot research topic recently Hash joins –The most efficient join algorithm in main memory databases –Focus: simple hash joins (SHJ, by ICDE 2004) and partitioned hash joins (PHJ, by VLDB 1999) 3

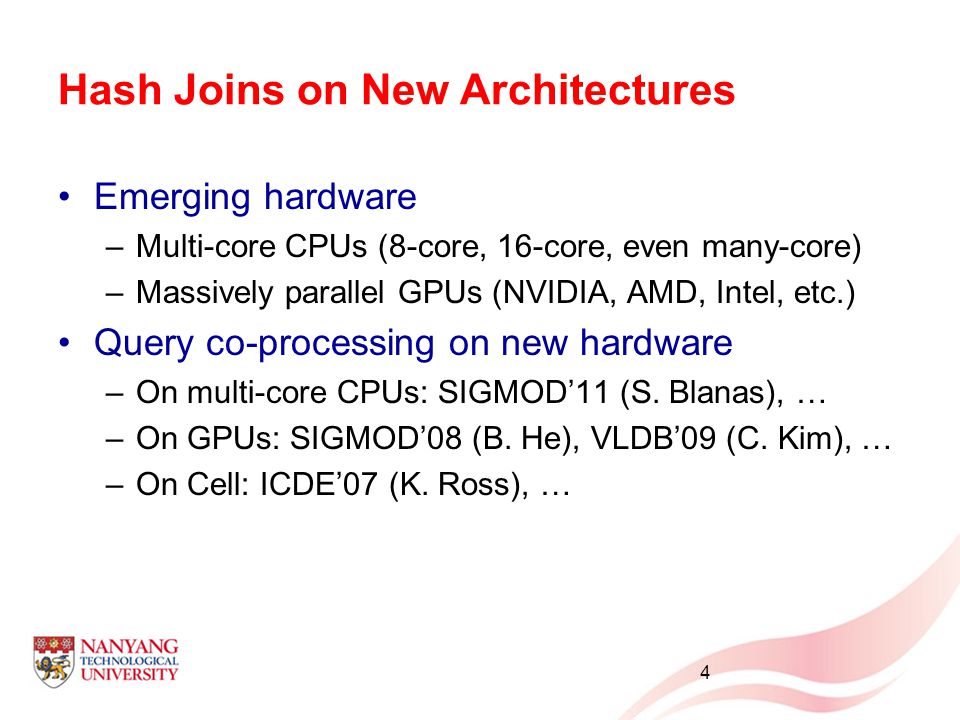

4 Hash Joins on New Architectures Emerging hardware –Multi-core CPUs (8-core, 16-core, even many-core) –Massively parallel GPUs (NVIDIA, AMD, Intel, etc.) Query co-processing on new hardware –On multi-core CPUs: SIGMOD’11 (S. Blanas), … –On GPUs: SIGMOD’08 (B. He), VLDB’09 (C. Kim), … –On Cell: ICDE’07 (K. Ross), … 4

5 Bottlenecks Conventional query co-processing is inefficient –Data transfer overhead via PCI-e –Imbalanced workload distribution 5 CPU Cache GPU Cache Main MemoryDevice Memory PCI-e Light-weight workload: Create context, Send and receive data, Launch GPU program, Post-processing. Heavy-weight workload: All real computations. CPU GPU

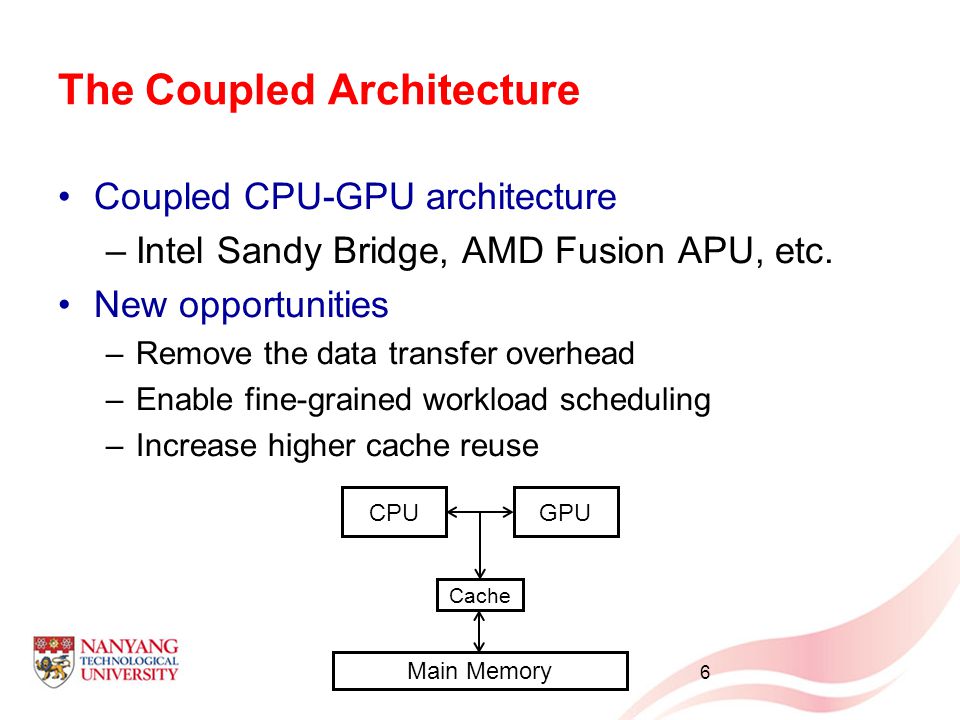

6 The Coupled Architecture CPUGPU Cache Main Memory Coupled CPU-GPU architecture –Intel Sandy Bridge, AMD Fusion APU, etc. New opportunities –Remove the data transfer overhead –Enable fine-grained workload scheduling –Increase higher cache reuse 6

7 Challenges Come with Opportunities Efficient data sharing –Share main memory –Share Last-level cache (LLC) Keep both processors busy –The GPU cannot dominate the performance –Assign suitable tasks for maximum speedup

8 Outline Motivations System Design Evaluations Conclusions

9 Fine-Grained Definition of Steps for Co- Processing Hash join consists of three stages (partition, build and probe) Each stage consists of multiple steps (take build as example) –b 1 : compute # hash bucket –b 2 : access hash bucket header –b 3 : search the key list –b 4 : insert the tuple 9

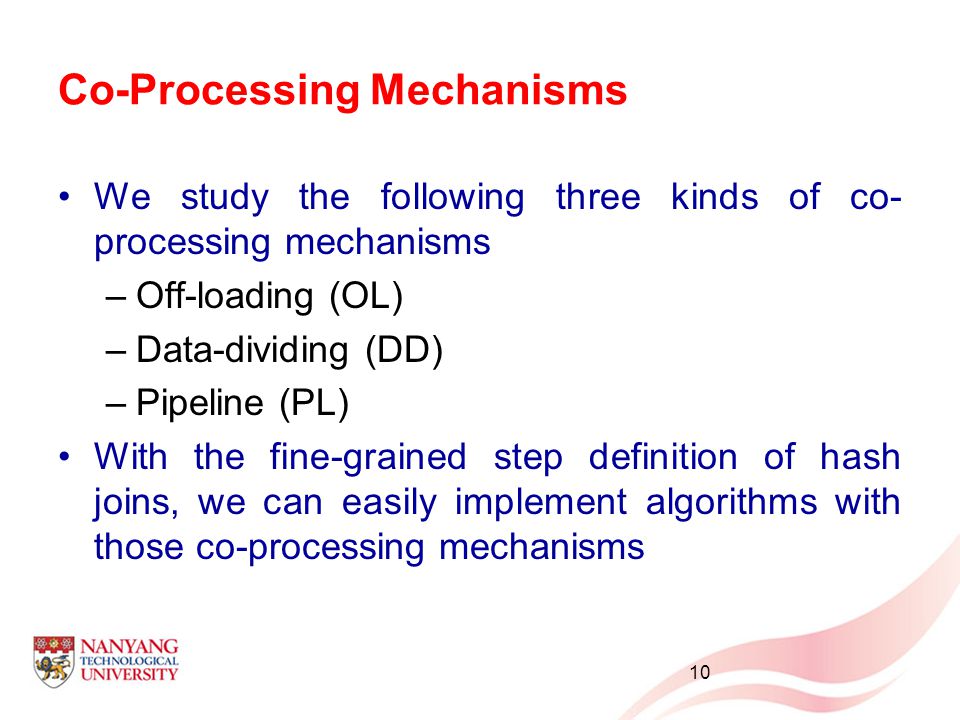

10 Co-Processing Mechanisms We study the following three kinds of co- processing mechanisms –Off-loading (OL) –Data-dividing (DD) –Pipeline (PL) With the fine-grained step definition of hash joins, we can easily implement algorithms with those co-processing mechanisms 10

11 Off-loading (OL) Method: Offload the whole step to one device Advantage: Easy to schedule Disadvantage: Imbalance 11 CPUGPU

12 Data-dividing (DD) Method: Partition the input at stage level Advantage: Easy to schedule, no imbalance Disadvantage: Devices are underutilized 12 CPUGPU

13 Pipeline (PL) Method: Partition the input at step level Advantage: Balanced, devices are fully utilized Disadvantage: Hard to schedule 13 CPUGPU

14 Determining Suitable Ratios for PL is Challenging Workload preferences of CPU & GPU vary Different computation type & amount of memory access across steps Delay across steps should be minimized to achieve global optimization

15 Cost Model Abstract model for CPU/GPU Estimate data transfer costs, memory access costs and execution costs With the cost model, we can –Estimate the elapsed time –Choose the optimal workload ratios 15 More details can be found in our paper.

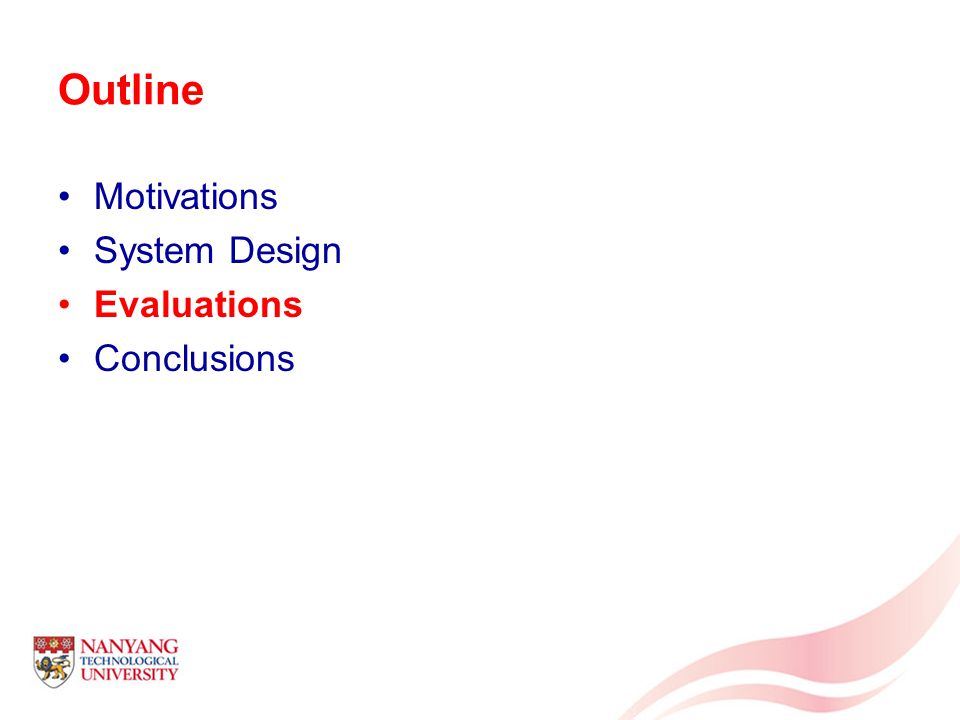

16 Outline Motivations System Design Evaluations Conclusions

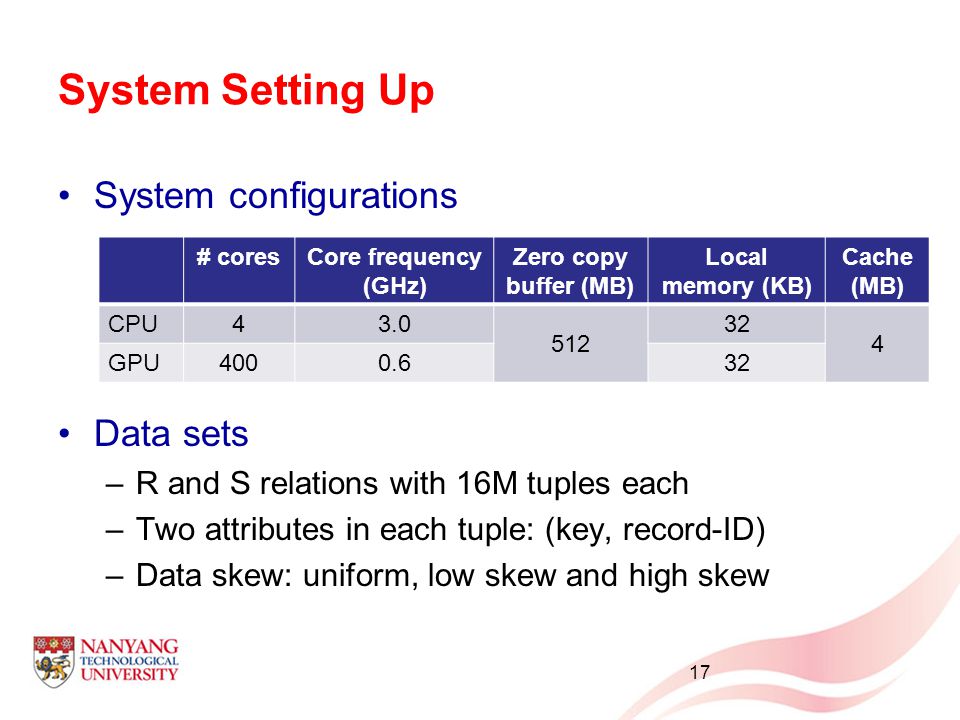

17 System Setting Up System configurations Data sets –R and S relations with 16M tuples each –Two attributes in each tuple: (key, record-ID) –Data skew: uniform, low skew and high skew 17 # coresCore frequency (GHz) Zero copy buffer (MB) Local memory (KB) Cache (MB) CPU GPU

18 Discrete vs. Coupled Architecture In discrete architecture: –data transfer takes 4%~10% –merge takes 14%~18% The coupled architecture outperforms the discrete by 5%~21% among all variants 15.3% 5.1% 21.5% 6.2%

19 Fine-grained vs. Coarse-grained For SHJ, PL outperforms OL & DD by 38% and 27% For PHJ, PL outperforms OL & DD by 39% and 23% 19 23% 39% 27% 38%

20 Unit Costs in Different Steps Unit cost represents the average processing time of one tuple for one device in one step Costs vary heavily across different steps on two devices 20 Partition BuildProbe

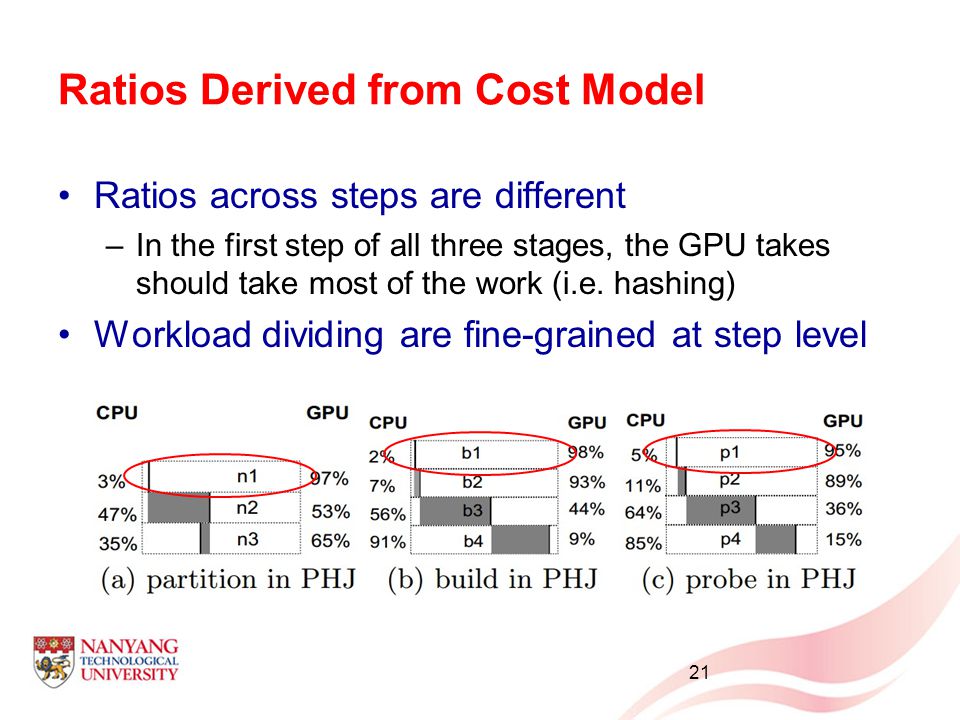

21 Ratios Derived from Cost Model Ratios across steps are different –In the first step of all three stages, the GPU takes should take most of the work (i.e. hashing) Workload dividing are fine-grained at step level 21

22 Other Findings Results on skewed data Results on input with varying size Evaluations on some design tradeoffs, etc. More details can be found in our paper.

23 Outline Motivations System Design Evaluations Conclusions

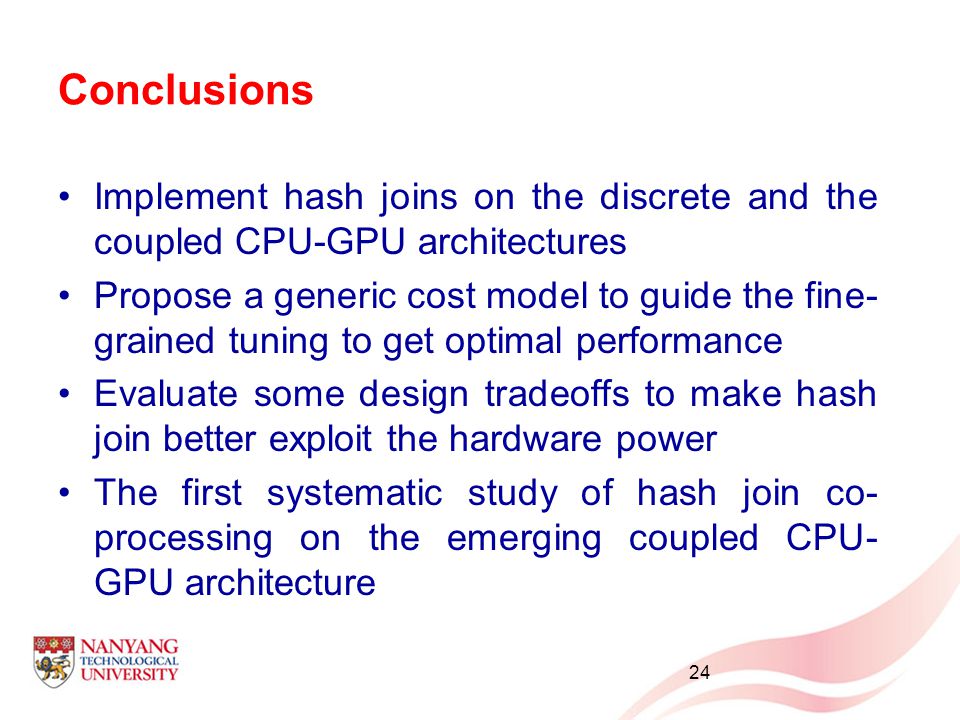

24 Implement hash joins on the discrete and the coupled CPU-GPU architectures Propose a generic cost model to guide the fine- grained tuning to get optimal performance Evaluate some design tradeoffs to make hash join better exploit the hardware power The first systematic study of hash join co- processing on the emerging coupled CPU- GPU architecture 24

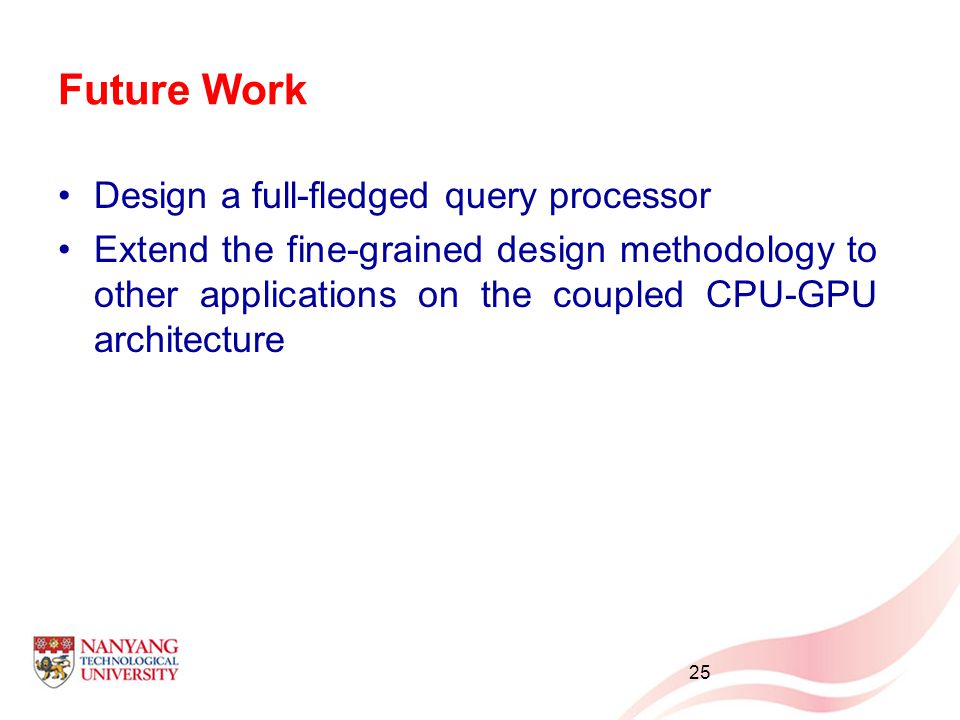

25 Future Work Design a full-fledged query processor Extend the fine-grained design methodology to other applications on the coupled CPU-GPU architecture 25

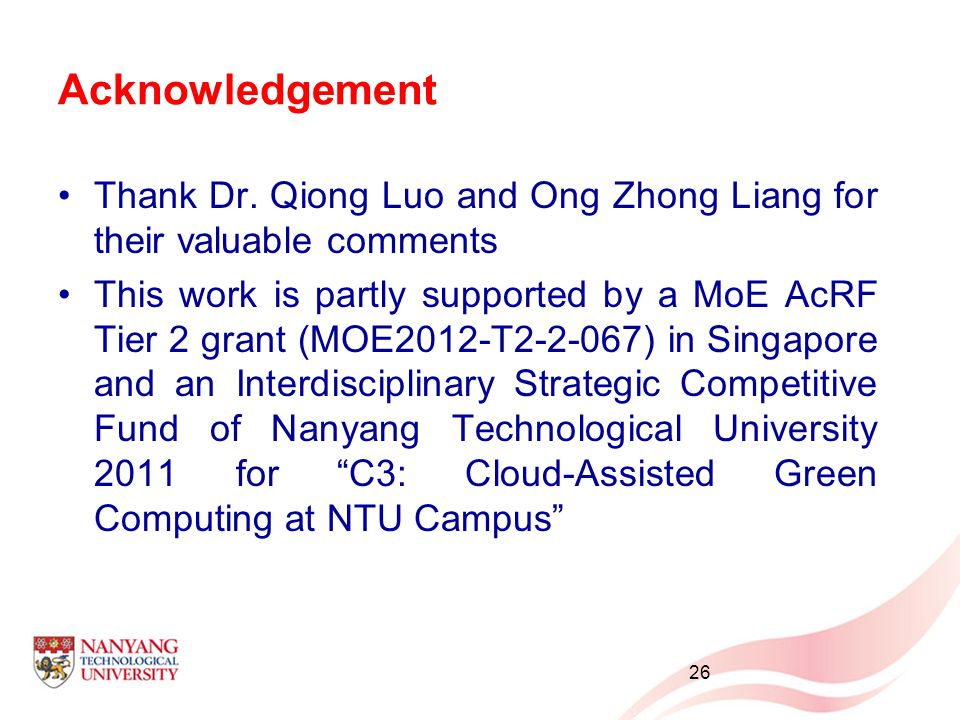

26 Acknowledgement Thank Dr. Qiong Luo and Ong Zhong Liang for their valuable comments This work is partly supported by a MoE AcRF Tier 2 grant (MOE2012-T ) in Singapore and an Interdisciplinary Strategic Competitive Fund of Nanyang Technological University 2011 for “C3: Cloud-Assisted Green Computing at NTU Campus” 26

27 Questions? 27

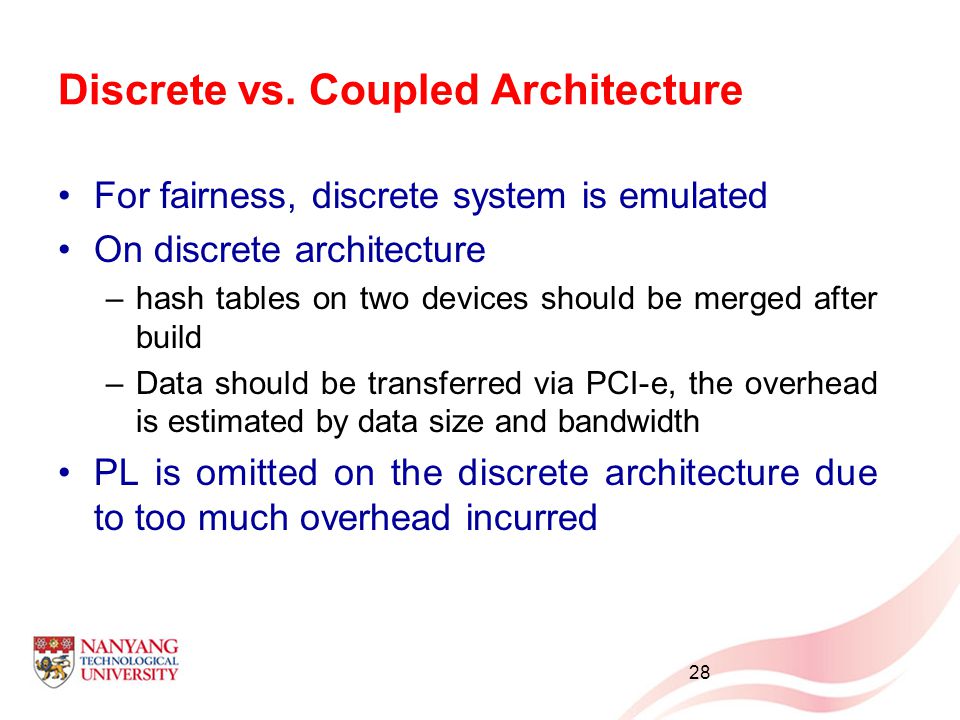

28 Discrete vs. Coupled Architecture For fairness, discrete system is emulated On discrete architecture –hash tables on two devices should be merged after build –Data should be transferred via PCI-e, the overhead is estimated by data size and bandwidth PL is omitted on the discrete architecture due to too much overhead incurred 28

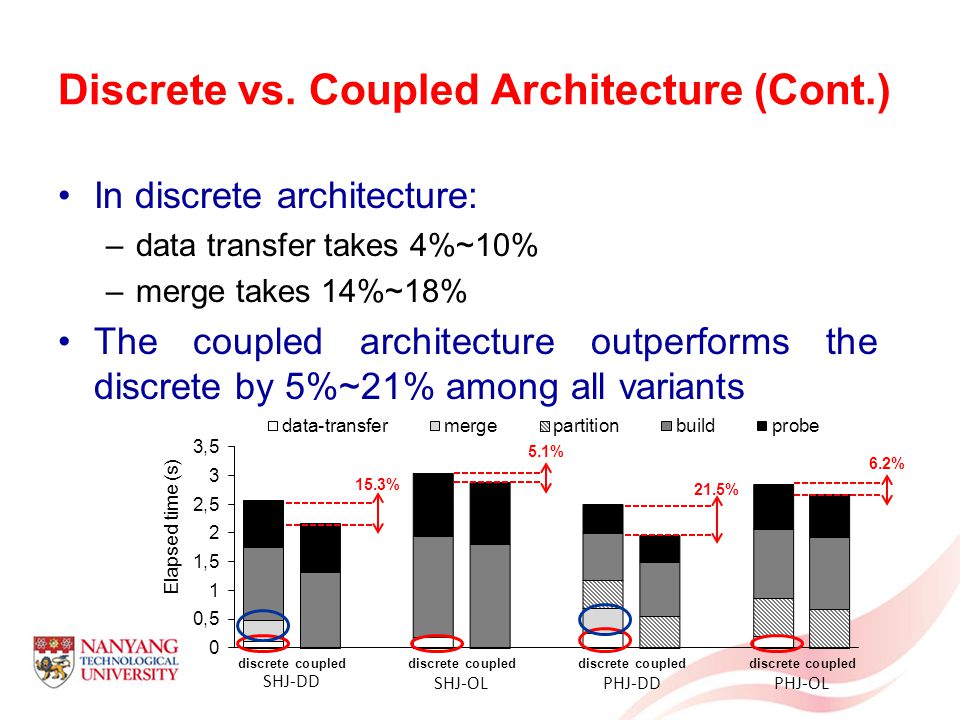

29 Discrete vs. Coupled Architecture (Cont.) In discrete architecture: –data transfer takes 4%~10% –merge takes 14%~18% The coupled architecture outperforms the discrete by 5%~21% among all variants 15.3% 5.1% 21.5% 6.2%

30 Cost Model Accuracy 1000 different configurations –The time of estimated ratio settings is very close to the really optimal one 30
