Every edge is in a red ellipse (the bags). The bags are connected in a tree. The bags an original vertex is part of are connected.
Directed Weighted w3 w1 w2 w5 w9 w11 w8 w10 w7 w6 w4
Recursively build paths: O(n k ) Can there be algorithms with runtimes on the form f(k)n O(1) ? … and if so, how small can f(k) be?

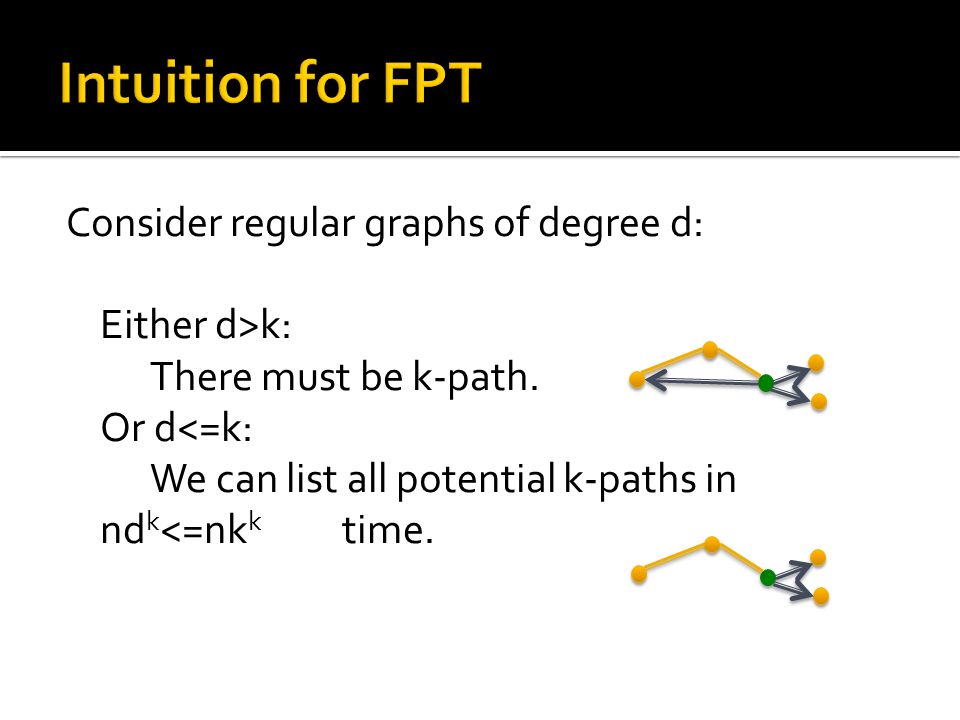

Consider regular graphs of degree d: Either d>k: There must be k-path. Or d<=k: We can list all potential k-paths in nd k <=nk k time.

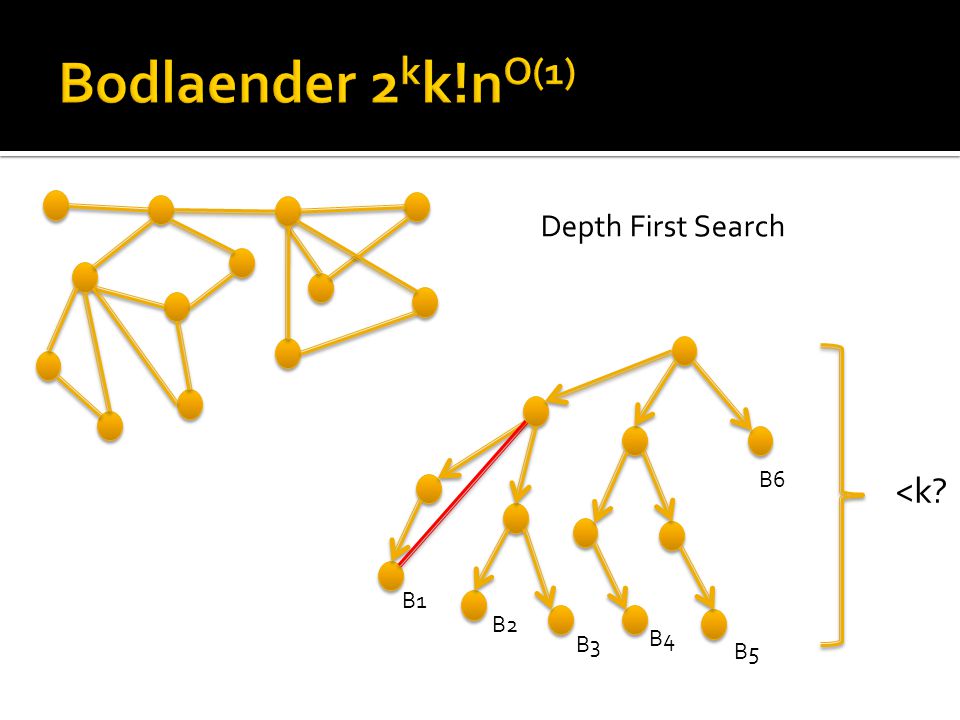

B1B2B3 B4 B5 B6

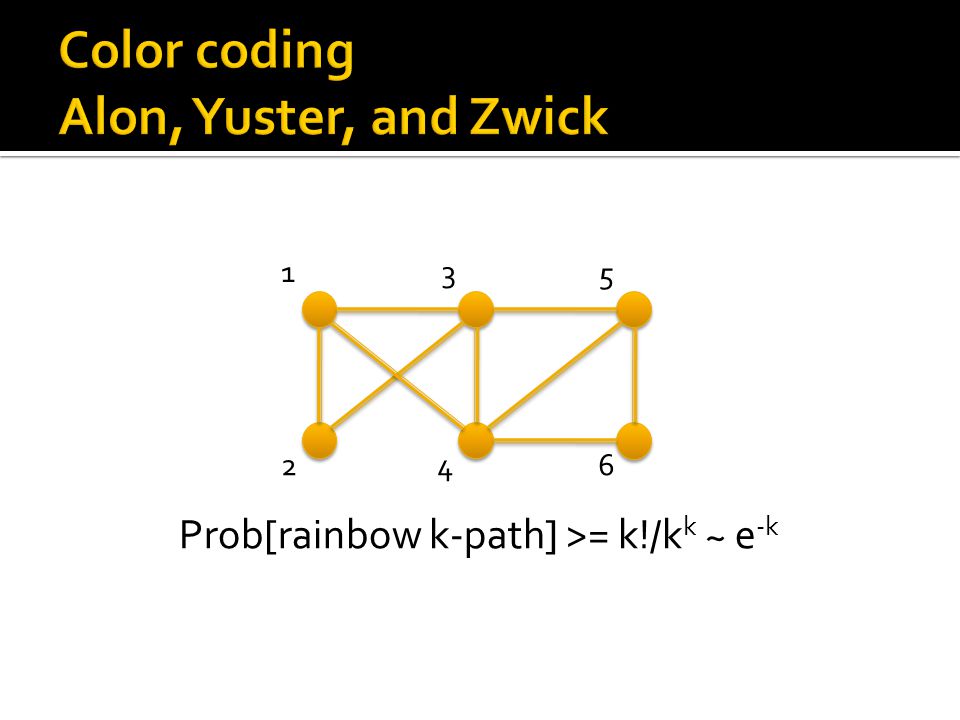

Prob[rainbow k-path] >= k!/k k ~ e -k

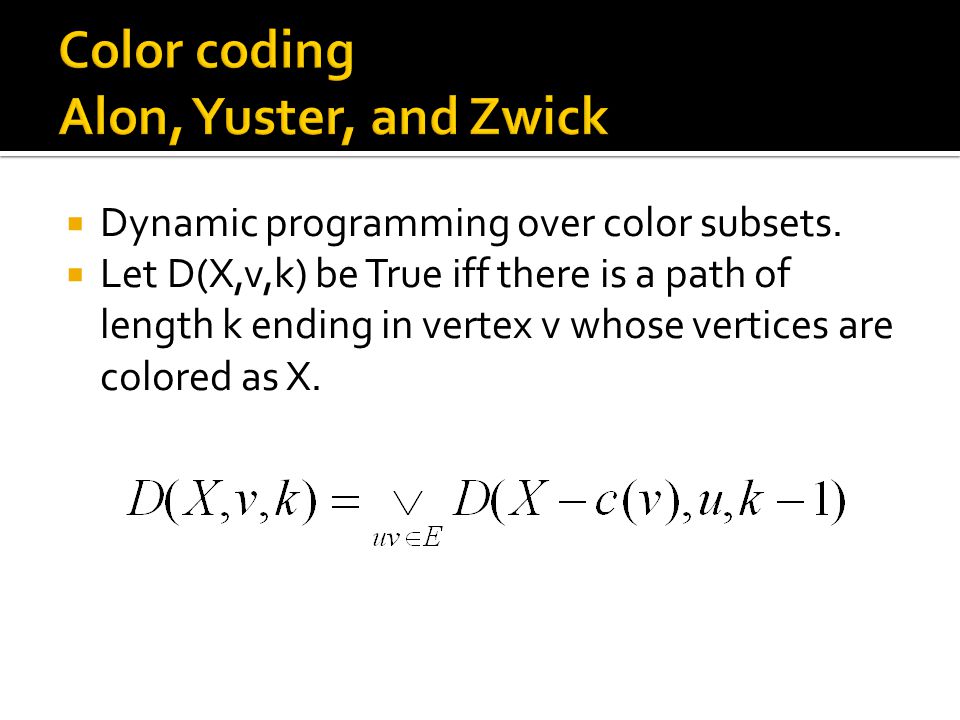

Dynamic programming over color subsets. Let D(X,v,k) be True iff there is a path of length k ending in vertex v whose vertices are colored as X.
