1 Tree service 1 The Tree Service Solution Epsilon’s superior engineering delivers the most effective combination of power, performance, speed, and quality.

Similar presentations


Presentation on theme: "1 Tree service 1 The Tree Service Solution Epsilon’s superior engineering delivers the most effective combination of power, performance, speed, and quality."— Presentation transcript:

1 1 Tree service 1 The Tree Service Solution Epsilon’s superior engineering delivers the most effective combination of power, performance, speed, and quality. Designed for constant use in the harshest environments - The main lift cylinder is protected by a heavy-duty steel guard, the EPSCOPE extension system provides unmatched protection with components internally routed - Every hose, pipe and cylinder are either internally routed or protected from the elements. The double rack slewing system provides an industry leading net slewing torque, and the linkage system gives the operator up to 60% more lifting power creating constant main boom speed and power throughout the lift. With models ranging from 7tm to 26tm Epsilon loaders are built with the application and operator in mind! What’s your rating? Epsilon loaders are H1-B4 Rated – meaning, they are designed to withstand over 630,000 load cycles in a 5-period! Traditional “knuckle-boom” cranes are only rated to withstand between 100, ,000…over the lifetime of the loader this results in less downtown and significant cost savings!

2 22 Loader Typeboom system L - Boom fixed boom single telescope double telescope maximum outreach M110L 71 23' 4" M110L 80 26' 2" M110L 97 31' 9" Q150L 71 23' 2" Q150L 80 26' 1" Q150L 86 28' 5" Q150L 97 31' 8" Z - Boom fixed boom single telescope double telescope maximum outreach C70Z 73 23' 9" C80Z 89 29' 3" M110Z 78 25' 6" TIPPER Z M110 Z84 TI 27' 8" Q150Z 84 TI 27' 8" TREE SERVICE – 12 Models to choose from!

3 3

4 4

5

6 1. Pre-treatment: By blasting the metal with wire shot, the layers of scale present on hot-rolled sheet and plate and the impurities caused by welding are completely removed. Degreasing the parts Zinc phosphate 2. KTL primer coating: KTL primer coating process, the part is completely immersed in the paint. The paint is baked on at a temperature of 160°C for 1 ½ hours. 3. Powder coating: Powder coating Best quality through hardening at 200°C Quality in every color High resale value via long-lived surface protection

7 7 Solid protection cover Hoses running inside maximum protection 4-eye knuckle set robust Rotator With 4-eye suspension device

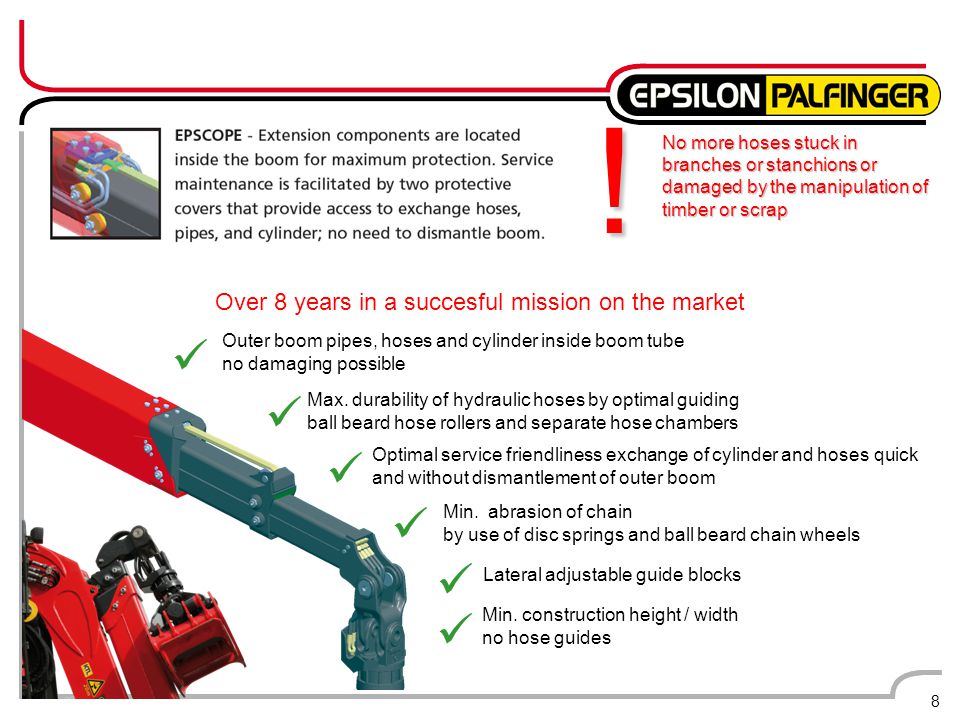

8 8 No more hoses stuck in branches or stanchions or damaged by the manipulation of timber or scrap ! Outer boom pipes, hoses and cylinder inside boom tube no damaging possible Max. durability of hydraulic hoses by optimal guiding ball beard hose rollers and separate hose chambers Optimal service friendliness exchange of cylinder and hoses quick and without dismantlement of outer boom Min. abrasion of chain by use of disc springs and ball beard chain wheels Min. construction height / width no hose guides Lateral adjustable guide blocks Over 8 years in a succesful mission on the market

9 9

10

11 11 LINKAGE SYSTEM – Epsilon-Palfinger linkage system provides Up to 60% more lifting power in the upper working area creating Constant main boom speed and power throughout the lift! POWERFUL SLEWING – Starting at 19,910 ft-lbs. of net slewing torque derived via A solid double rack slewing system running in an oil bath with a self-aligning roller bearing. End of stroke damping for precision control, smooth operation and increased life of components!
