1 OpenStack for VMware administrators in the context of a fictional use case Bridging the Gap

2 #rackstackatl Presenters Kenneth Hui Technology Evangelist Rackspace Twitter: @hui_kenneth Scott Lowe Engineering Architect VMware, Inc. Twitter: @scott_lowe

3 #rackstackatl Agenda

4 #rackstackatl Agenda Up first: A tale of two workloads Fictitious customer use case: how we’ll structure our discussion Proposed solution: looking at OpenStack and VMware together Q&A

5 #rackstackatl A tale of two workloads

6 #rackstackatl Workload dictates architecture

7 #rackstackatl Traditional design principles Monolithic architecture Stateful Services Operator focused

8 #rackstackatl Design goal: Resilient infrastructures

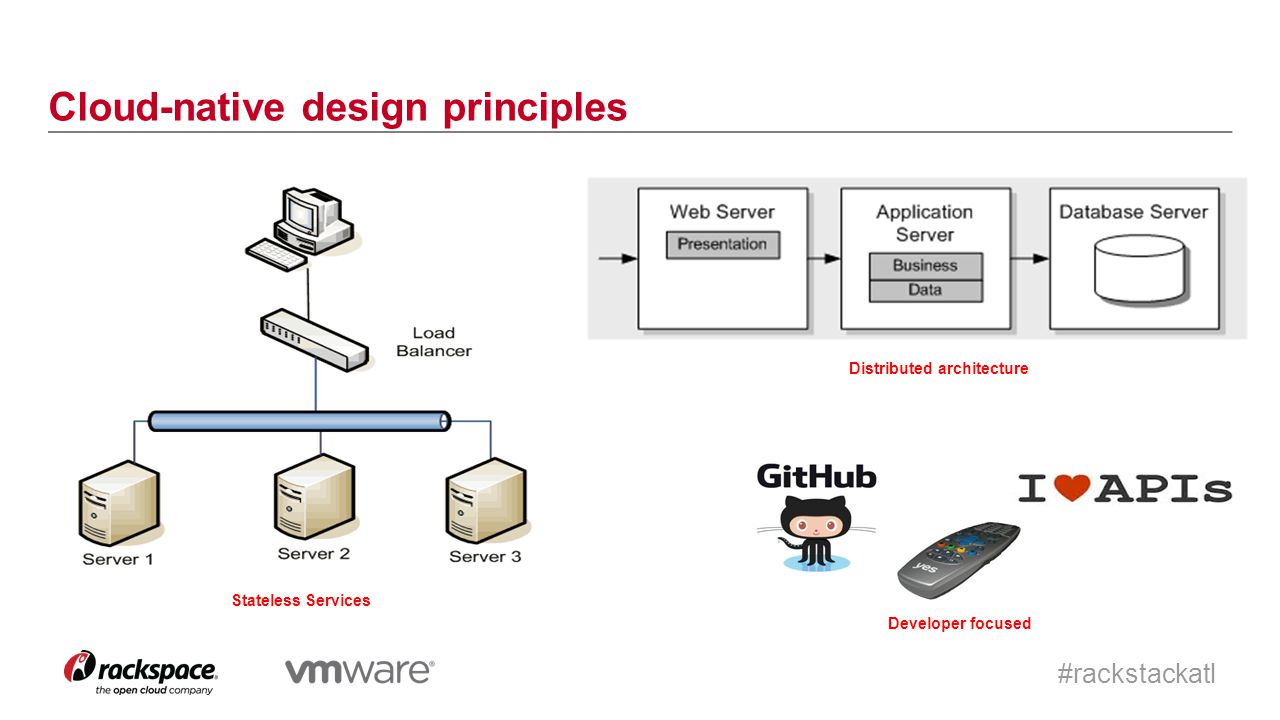

9 #rackstackatl Cloud-native design principles Distributed architecture Developer focused Stateless Services

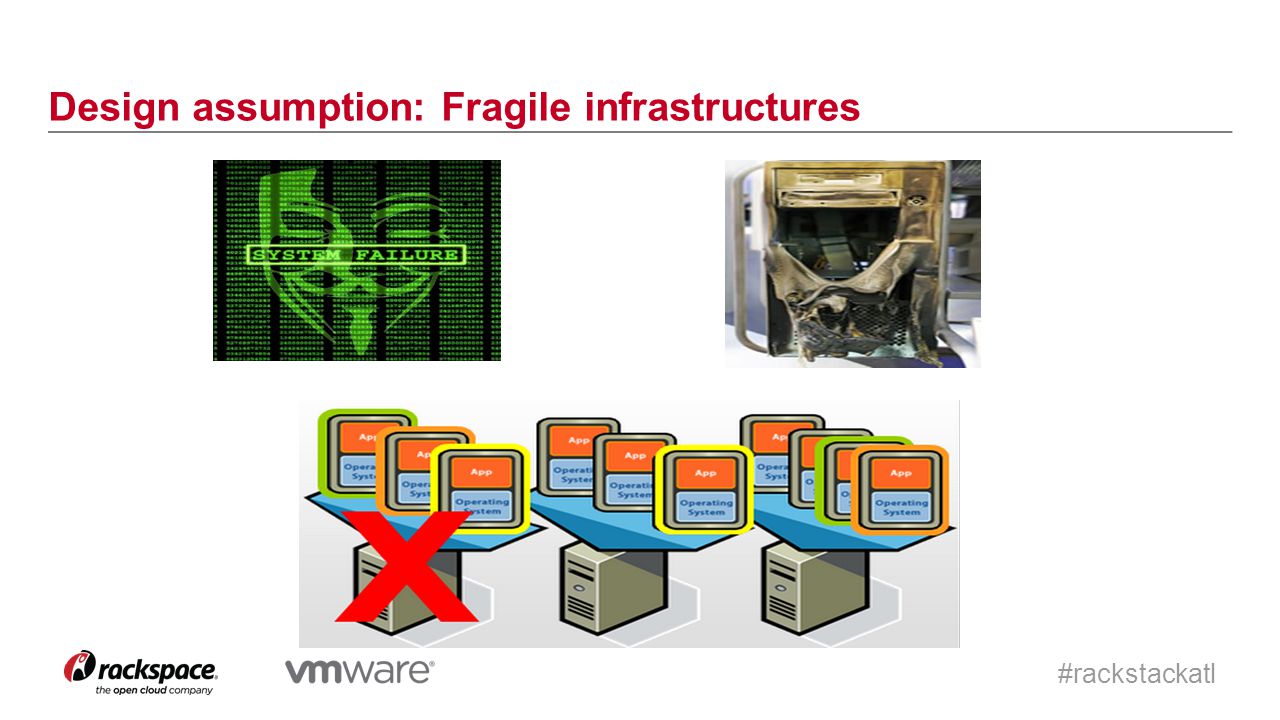

10 #rackstackatl Design assumption: Fragile infrastructures

11 #rackstackatl We architect clouds for rapid scale 11

12 #rackstackatl Chaos and failures are inevitable at scale 12

13 #rackstackatl So design for failure 13

14 #rackstackatl Let the application handle its own resiliency Build loosely-coupled distributed systems Use the scale out approach instead of the scale-up approach (scale horizontally not vertically) Choose cattle over pets This translates into certain design guidelines

15 #rackstackatl Fictitious customer use case

16 #rackstackatl Our customer is Acme Corporation Wile E. Coyote is a huge customer, and business is booming (no pun intended) Acme runs most of their apps on vSphere, including some Oracle DBs IT recently tasked with building out environment for new mobile applications –Been using AWS for prototyping –Want to bring that in-house but maintain “AWS-like” experience –Plan to leverage cloud-native application architectures

17 #rackstackatl Proposed solution

18 #rackstackatl 18 Multi-hypervisor OpenStack architecture

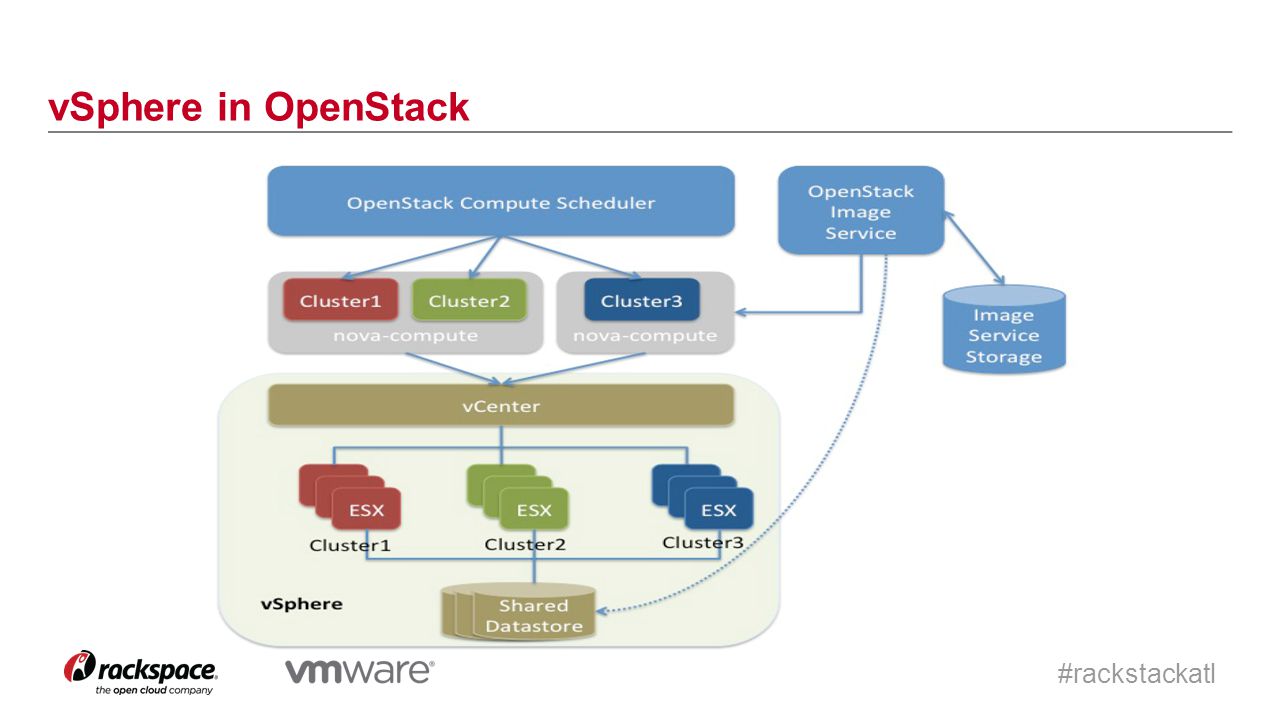

19 #rackstackatl vSphere in OpenStack

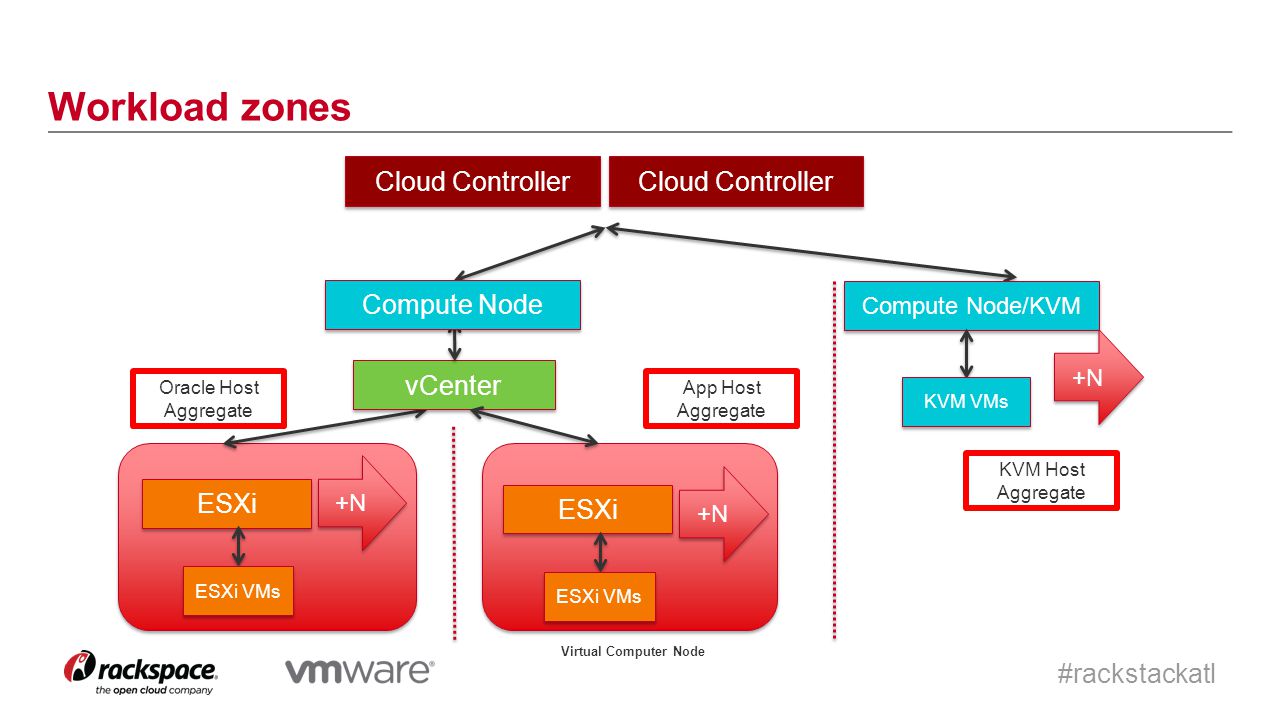

20 #rackstackatl Workload zones Cloud Controller ESXi ESXi VMs +N Oracle Host Aggregate vCenter ESXi ESXi VMs Compute Node +N Compute Node/KVM KVM VMs App Host Aggregate +N KVM Host Aggregate Virtual Computer Node

21 #rackstackatl Leverage VMware NSX with OpenStack Neutron for cross-hypervisor networking services Acme developers can spin up their own isolated logical networks for development and prototyping Production workloads can leverage existing IP address space for seamless integration into the rest of the network yet remain isolated from each other Networking Physical Network (131.107.x.x/16) Logical Network (131.107.1.x/24) Logical Network (131.107.2.x/24) Logical Network (192.168.1.x/24)

22 #rackstackatl vSphere storage in OpenStack vCenter ESXi ESXI VMs ESXi ESXI VMs Compute Node Virtual Computer Node Cloud Controller Cinder Node

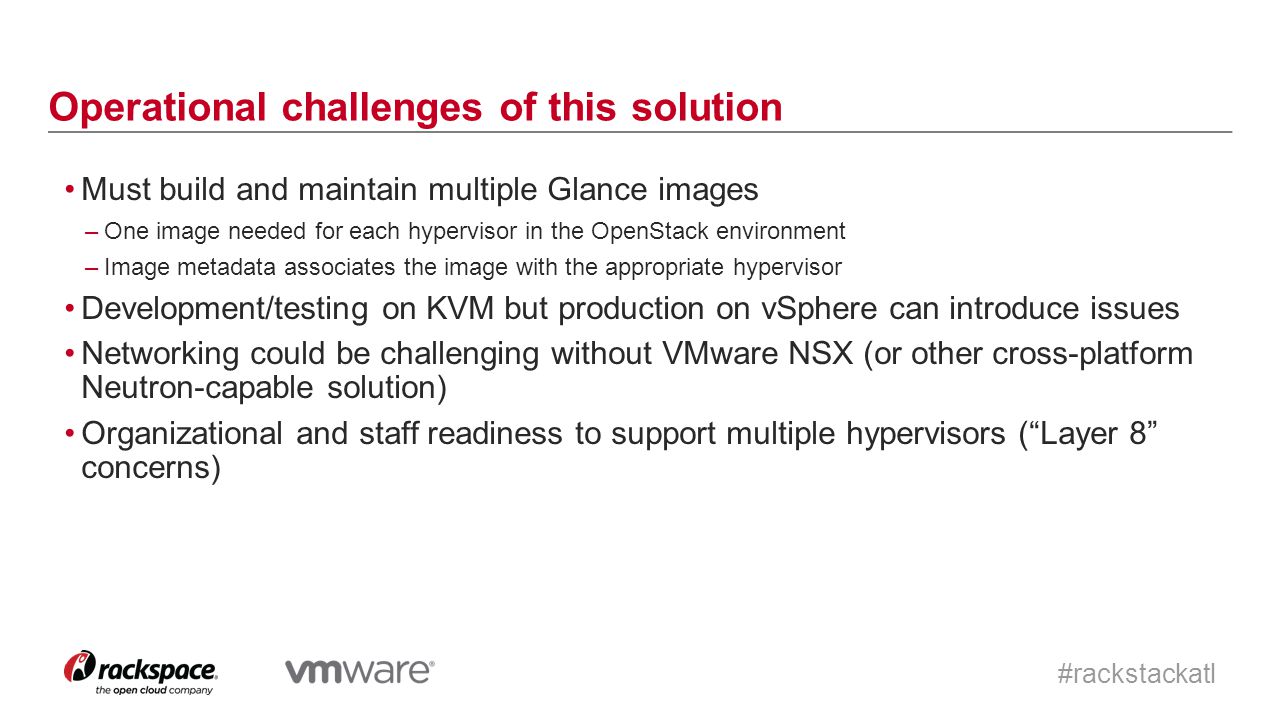

23 #rackstackatl Must build and maintain multiple Glance images –One image needed for each hypervisor in the OpenStack environment –Image metadata associates the image with the appropriate hypervisor Development/testing on KVM but production on vSphere can introduce issues Networking could be challenging without VMware NSX (or other cross-platform Neutron-capable solution) Organizational and staff readiness to support multiple hypervisors (“Layer 8” concerns) Operational challenges of this solution

24 #rackstackatl Summary

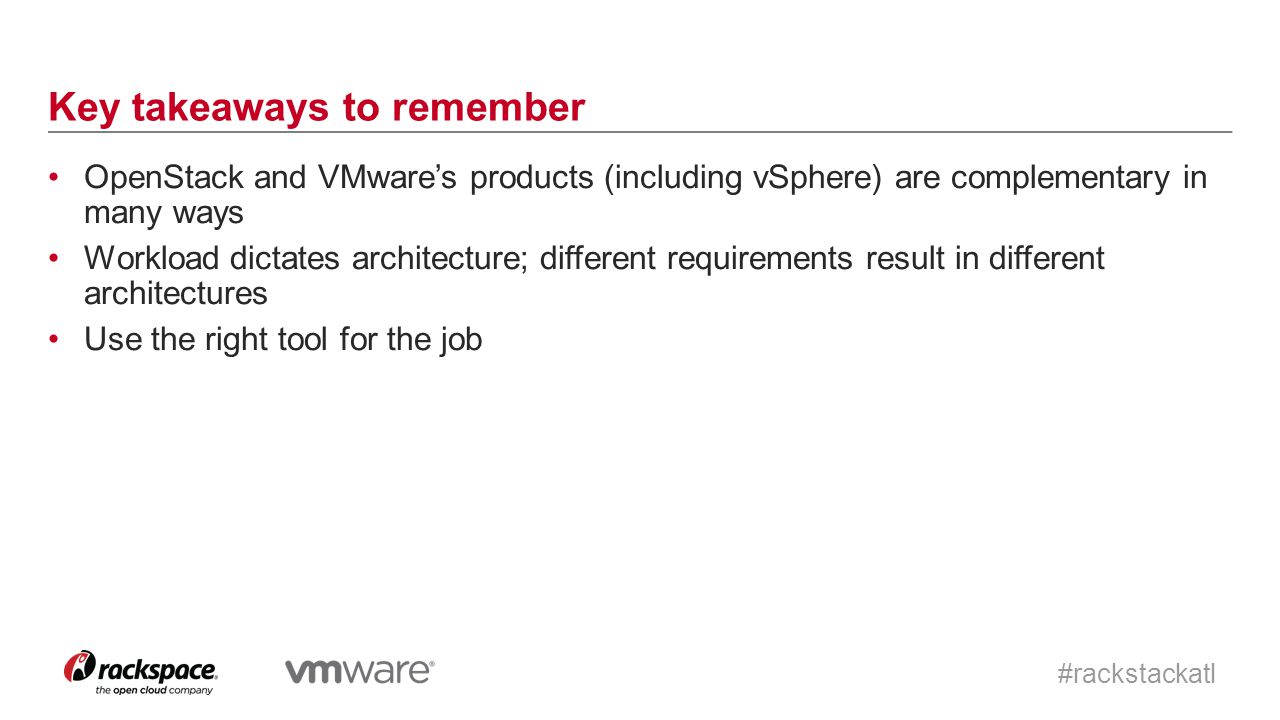

25 #rackstackatl Key takeaways to remember OpenStack and VMware’s products (including vSphere) are complementary in many ways Workload dictates architecture; different requirements result in different architectures Use the right tool for the job

26 #rackstackatl Questions?

27 #rackstackatl THANK YOU! Ken Hui Scott Lowe
