Presentation on theme: "Activity List Constraint Assumption Resource Req’d Resource Capability Historical Info. Expert Judgement Analoques Estimating Simulation Activity Duration."— Presentation transcript:

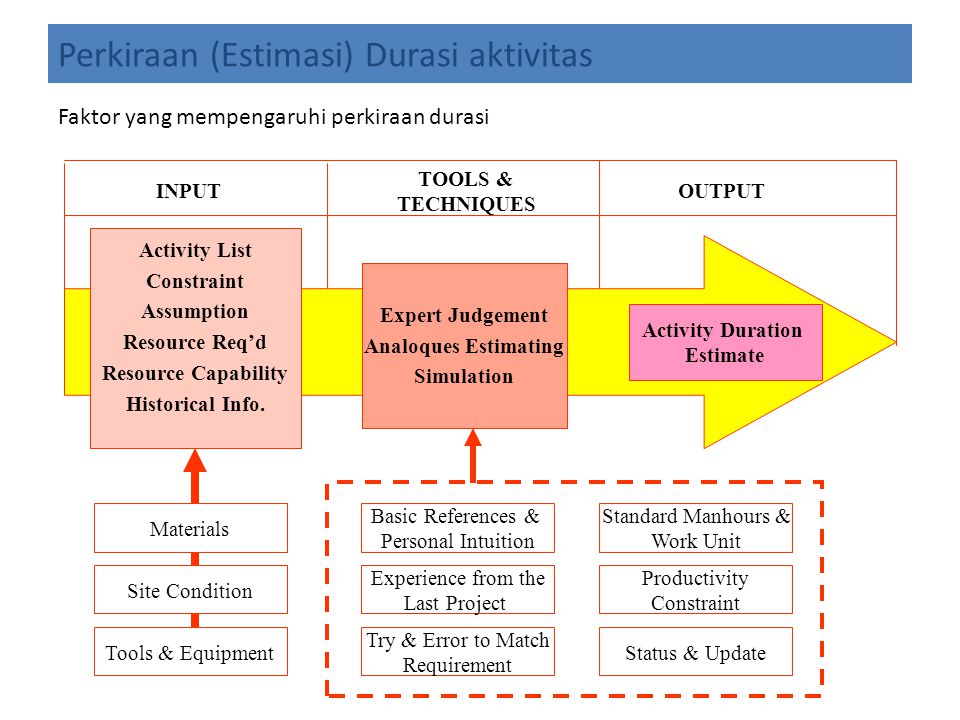

1 Activity List Constraint Assumption Resource Req’d Resource Capability Historical Info. Expert Judgement Analoques Estimating Simulation Activity Duration Estimate Materials Site Condition Tools & Equipment Basic References & Personal Intuition Experience from the Last Project Try & Error to Match Requirement Standard Manhours & Work Unit Productivity Constraint Status & Update INPUT TOOLS & TECHNIQUES OUTPUT Faktor yang mempengaruhi perkiraan durasi Perkiraan (Estimasi) Durasi aktivitas

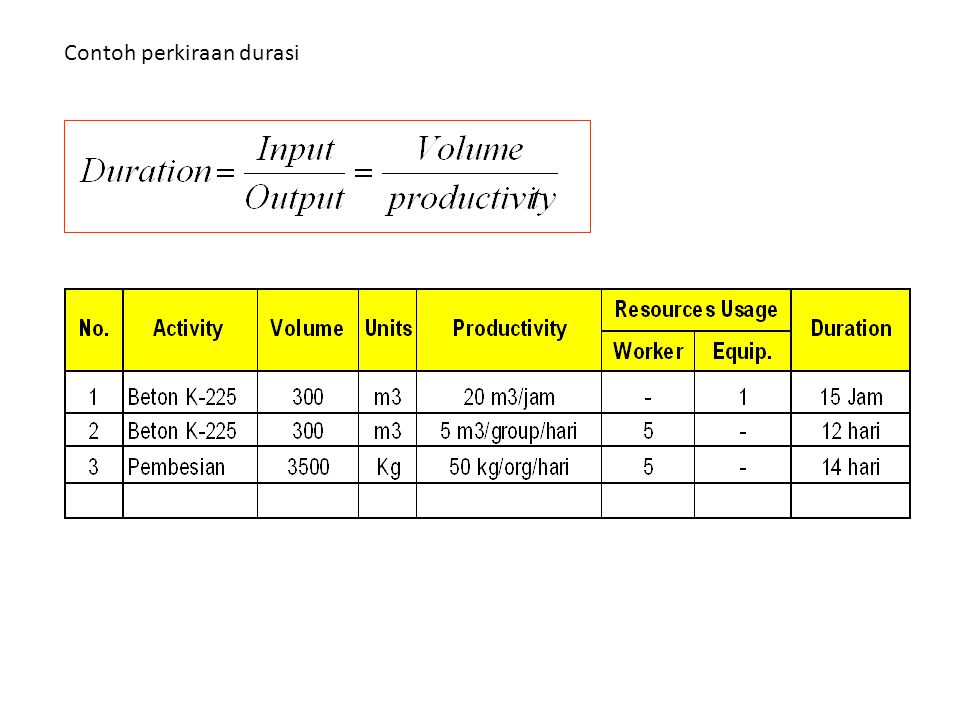

2 Contoh perkiraan durasi

3 Aplikasi MS Project untuk input Durasi You can manualy enter task duration, or Double Clik the cell to display Task Information If you're a visually oriented person, dragging task bars to change durations might be the best method for you. Hold down and select date from Calender, if you want to start or finish on spesific date by default, Project uses estimated durations for tasks when you type the duration into the Gantt table. You should have seen a question mark next to each duration. 1. Prosedur memasukkan durasi (deterministik) 2 1 3

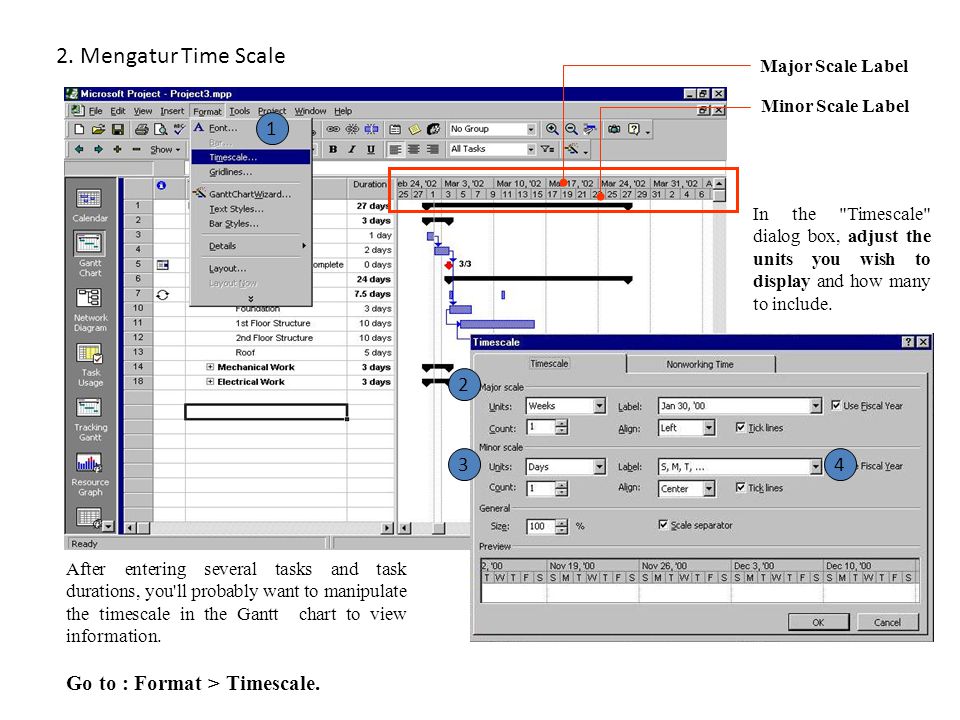

4 2. Mengatur Time Scale After entering several tasks and task durations, you'll probably want to manipulate the timescale in the Gantt chart to view information. Go to : Format > Timescale. In the "Timescale" dialog box, adjust the units you wish to display and how many to include. Major Scale Label Minor Scale Label

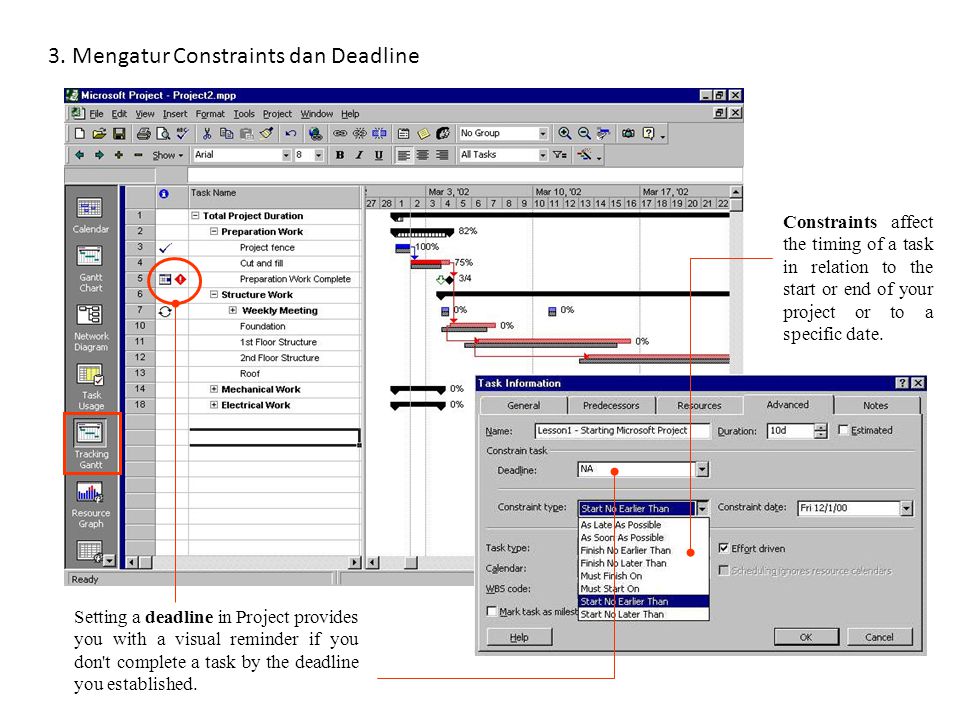

5 3. Mengatur Constraints dan Deadline Setting a deadline in Project provides you with a visual reminder if you don't complete a task by the deadline you established. Constraints affect the timing of a task in relation to the start or end of your project or to a specific date.

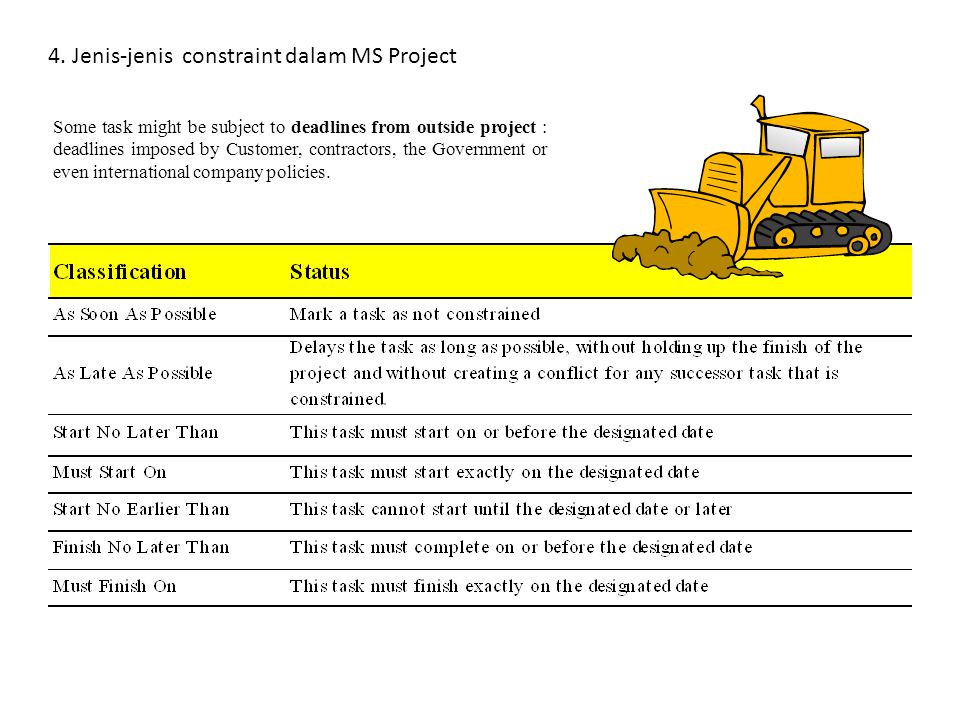

6 4. Jenis-jenis constraint dalam MS Project Some task might be subject to deadlines from outside project : deadlines imposed by Customer, contractors, the Government or even international company policies.

7 Go to the Next Lesson 30%
