Presentation on theme: "PowerEdge T20 Customer Presentation. Product overview Customer benefits Use cases Summary PowerEdge T20 Overview 2 PowerEdge T20 mini tower server."— Presentation transcript:

1 PowerEdge T20 Customer Presentation

2 Product overview Customer benefits Use cases Summary PowerEdge T20 Overview 2 PowerEdge T20 mini tower server

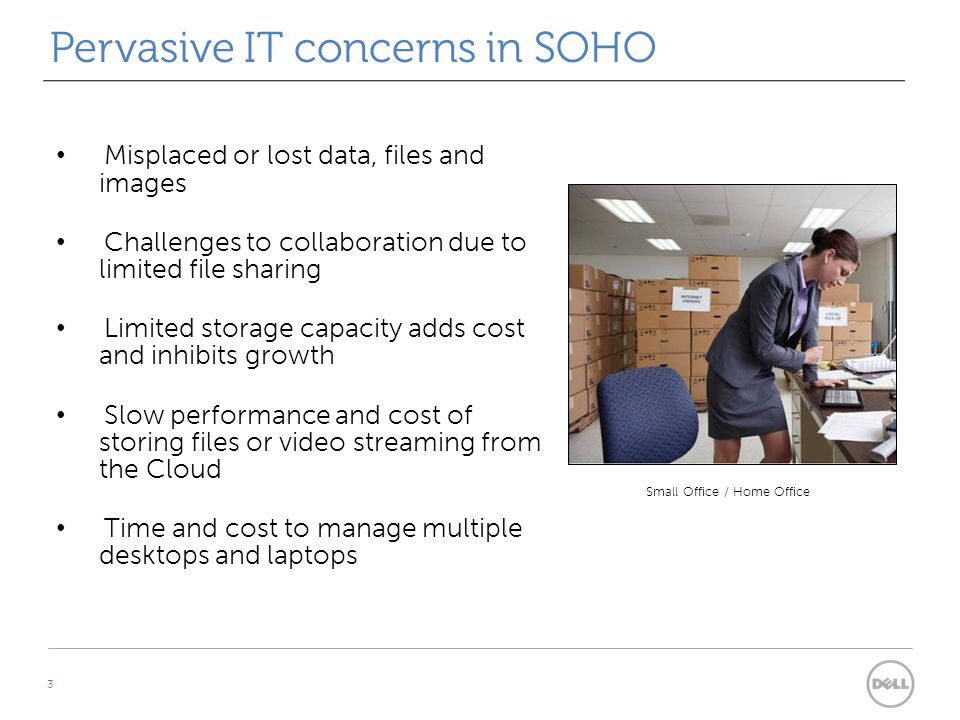

3 Pervasive IT concerns in SOHO 3 Misplaced or lost data, files and images Challenges to collaboration due to limited file sharing Limited storage capacity adds cost and inhibits growth Slow performance and cost of storing files or video streaming from the Cloud Time and cost to manage multiple desktops and laptops Small Office / Home Office

4 PowerEdge T20 – customer inspired design 4 Consolidate data and media files with six internal hard drive bays supporting large storage capacity Drive applications and media faster with powerful, multicore Intel processors Experience faster application response times with four DIMM slots supporting large memory capacity Gain more I/O expansion and flexibility with four PCI/PCIe slots allowing you to grow at your own pace Quickly attach more devices with 12 USB ports, four of which are USB 3.0 PowerEdge T20 mini tower server

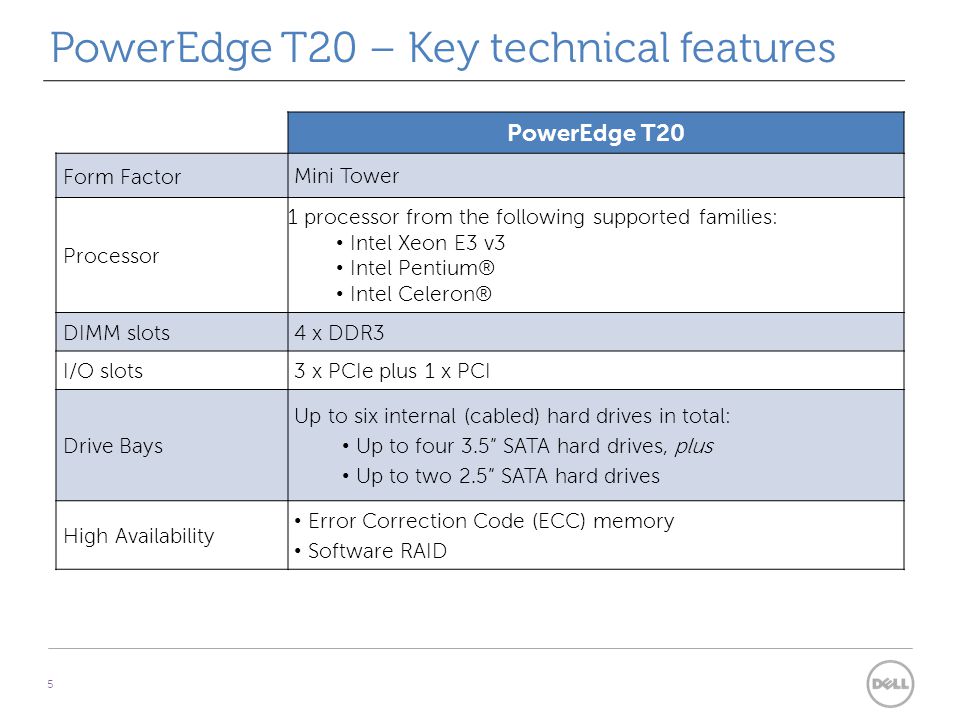

5 PowerEdge T20 – Key technical features 5 PowerEdge T20 Form Factor Mini Tower Processor 1 processor from the following supported families: Intel Xeon E3 v3 Intel Pentium® Intel Celeron® DIMM slots 4 x DDR3 I/O slots 3 x PCIe plus 1 x PCI Drive Bays Up to six internal (cabled) hard drives in total: Up to four 3.5” SATA hard drives, plus Up to two 2.5” SATA hard drives High Availability Error Correction Code (ECC) memory Software RAID

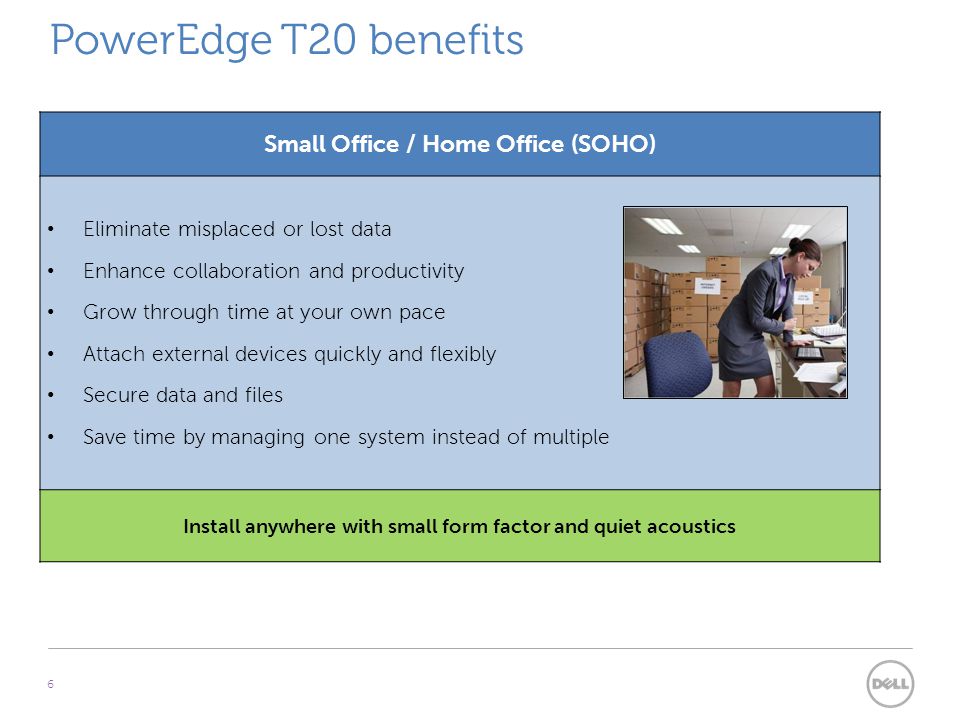

6 PowerEdge T20 benefits 6 Small Office / Home Office (SOHO) Eliminate misplaced or lost data Enhance collaboration and productivity Grow through time at your own pace Attach external devices quickly and flexibly Secure data and files Save time by managing one system instead of multiple Install anywhere with small form factor and quiet acoustics

7 Global Marketing PowerEdge 1-socket tower servers 7 PowerEdge T20 is the newest member of the PowerEdge server portfolio Complements the T110 II and T320 Exceptional features and value compared to competitive uni-processor towers Capacity and performance T320 T110 II T20 New!

8 PowerEdge T20 base fixed configurations 8 ConfigurationDescription 1 1x CPU Celeron or Pentium 1x 4GB DIMM No hard drive No optical drive 2 1x CPU Celeron or Pentium 1x 4GB DIMM 1 x 500G hard drive No optical drive 3 1x CPU Xeon E3 v3 1x 4GB DIMM 1x 1TB hard drive No optical drive Options 2 nd – 4 th DIMM 2 nd – 6 th hard drive Optical drive (DVD) Operating System

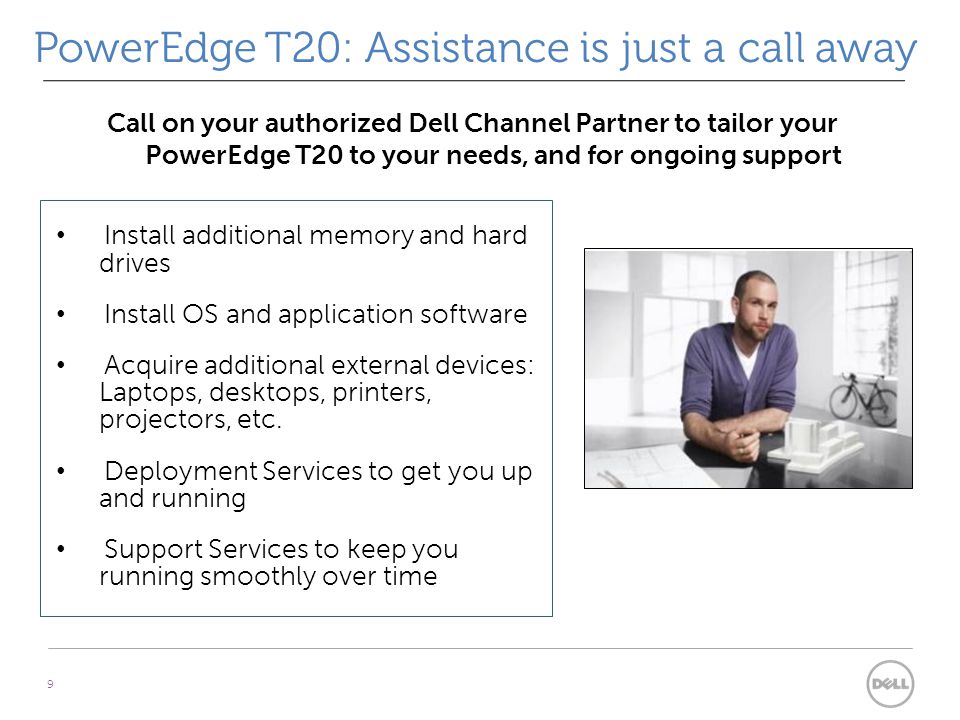

9 Install additional memory and hard drives Install OS and application software Acquire additional external devices: Laptops, desktops, printers, projectors, etc. Deployment Services to get you up and running Support Services to keep you running smoothly over time PowerEdge T20: Assistance is just a call away 9 Call on your authorized Dell Channel Partner to tailor your PowerEdge T20 to your needs, and for ongoing support

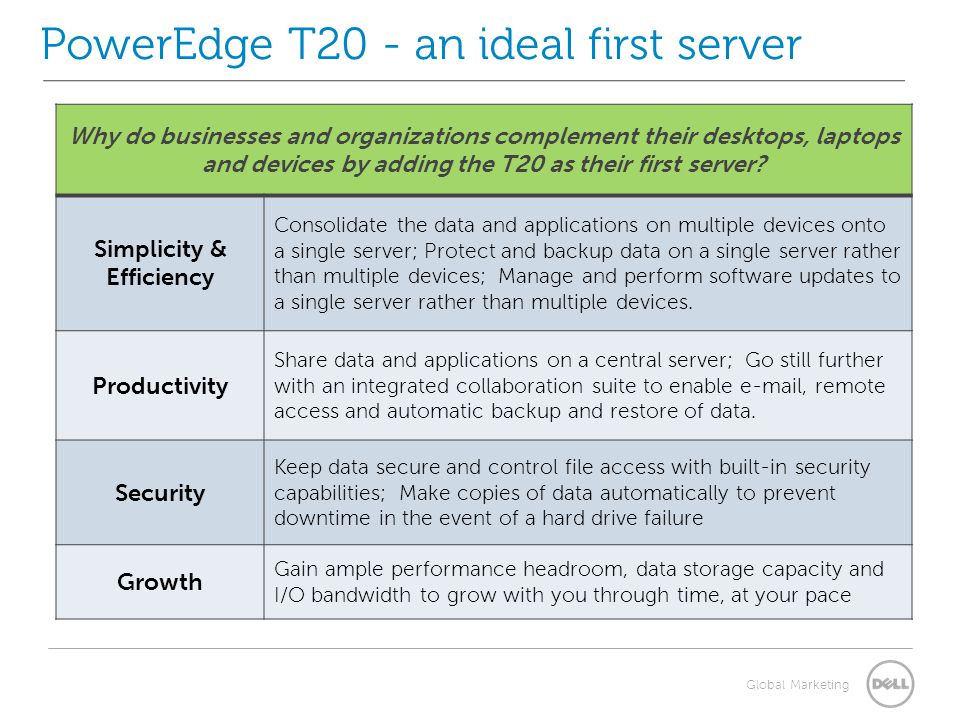

10 Global Marketing PowerEdge T20 - an ideal first server Why do businesses and organizations complement their desktops, laptops and devices by adding the T20 as their first server? Simplicity & Efficiency Consolidate the data and applications on multiple devices onto a single server; Protect and backup data on a single server rather than multiple devices; Manage and perform software updates to a single server rather than multiple devices. Productivity Share data and applications on a central server; Go still further with an integrated collaboration suite to enable , remote access and automatic backup and restore of data. Security Keep data secure and control file access with built-in security capabilities; Make copies of data automatically to prevent downtime in the event of a hard drive failure Growth Gain ample performance headroom, data storage capacity and I/O bandwidth to grow with you through time, at your pace

11 Global Marketing The PowerEdge T20 is a general-purpose single processor server, ideal as a first server for small offices and home offices (SOHO) PowerEdge T20 mini tower server PowerEdge T20 - Summary Get organized Eliminate the complexity of business information stored on multiple devices Reap the benefits Collaborate, share information and files, and become more productive Take it to the next level Move your business to the next level with built-in expandability and data security

12 Thank You

13 13 PowerEdge T20 hardware specification Processors – Intel Xeon E V3 – Intel Pentium – Intel Celeron Memory – 1600 Mhz DDR3 ECC – 4 DIMM slots, support up to 32GB I/O slots – 1 x PCIe X16 Gen 3 – 1 x PCIe x16 Gen 2 (x4 speed) – 1 x PCIe x1 Gen 2 – PCE 32/33 Slot RAID Controller – Intel Rapid Storage Controller 12.0 supporting SATA 6Gb/s (2 ports-SATA0, SATA1) – SATA 3Gb/s (2 ports+ SATA2, SATA3) – 4x SATA connectors (for Hard Drives and Optical) Drive Bays – 5.25-inch Slim Optical Bay – Support 4x SATA Hard Drive ( 4x 2.5”/ 3.5”) – Support Max 6 Hard Drive (2 x 2.5” + 4 x 2.5/3.5’ ) with optional controller card Embedded LOM/NIC – Intel Gigabit Ethernet LAN 10/100 Form Factor – Mini Tower (14.17” x 6.89” x 17.12” )

14 Global Marketing

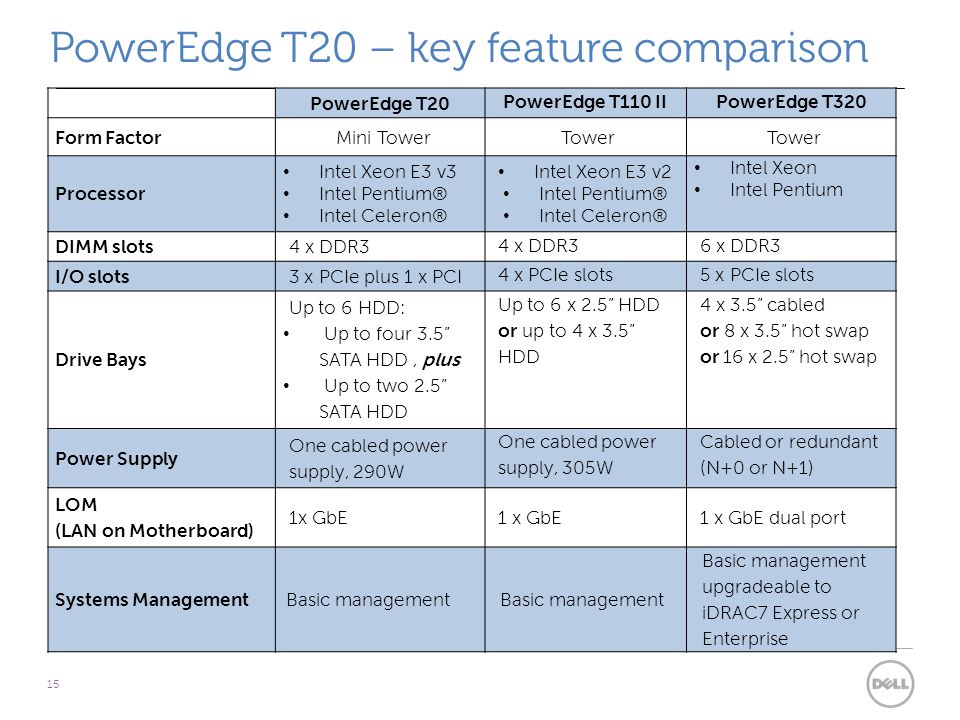

15 PowerEdge T20 – key feature comparison 15 PowerEdge T20 PowerEdge T110 IIPowerEdge T320 Form FactorMini TowerTower Processor Intel Xeon E3 v3 Intel Pentium® Intel Celeron® Intel Xeon E3 v2 Intel Pentium® Intel Celeron® Intel Xeon Intel Pentium DIMM slots4 x DDR3 6 x DDR3 I/O slots3 x PCIe plus 1 x PCI 4 x PCIe slots5 x PCIe slots Drive Bays Up to 6 HDD: Up to four 3.5” SATA HDD, plus Up to two 2.5” SATA HDD Up to 6 x 2.5” HDD or up to 4 x 3.5” HDD 4 x 3.5” cabled or 8 x 3.5” hot swap or 16 x 2.5” hot swap Power Supply One cabled power supply, 290W One cabled power supply, 305W Cabled or redundant (N+0 or N+1) LOM (LAN on Motherboard) 1x GbE 1 x GbE dual port Systems ManagementBasic management Basic management upgradeable to iDRAC7 Express or Enterprise

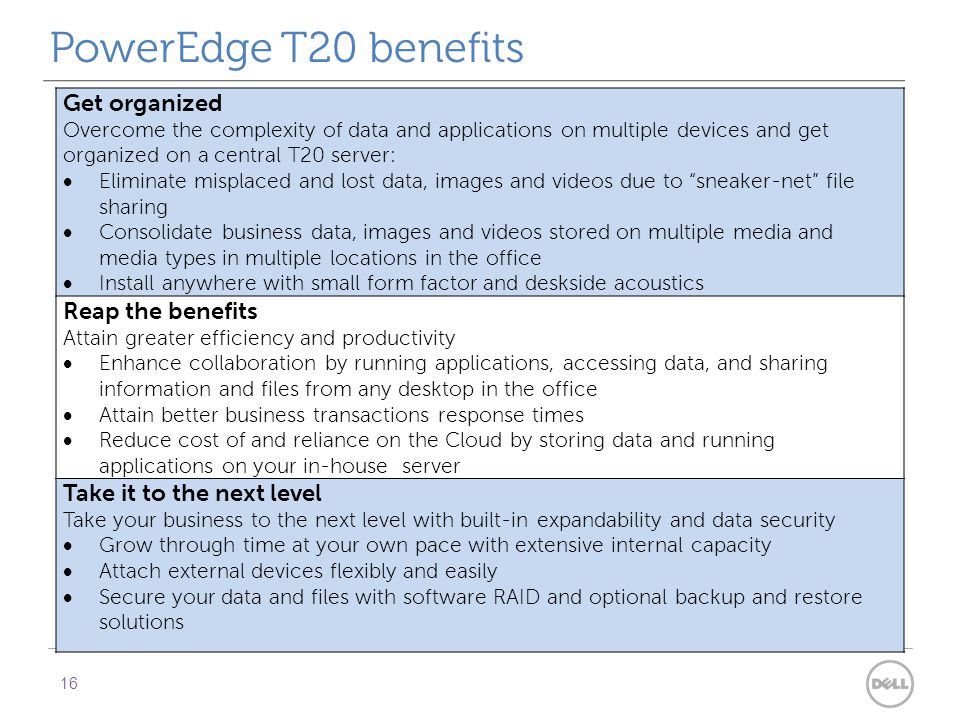

16 PowerEdge T20 benefits 16 Get organized Overcome the complexity of data and applications on multiple devices and get organized on a central T20 server:  Eliminate misplaced and lost data, images and videos due to “sneaker-net” file sharing  Consolidate business data, images and videos stored on multiple media and media types in multiple locations in the office  Install anywhere with small form factor and deskside acoustics Reap the benefits Attain greater efficiency and productivity  Enhance collaboration by running applications, accessing data, and sharing information and files from any desktop in the office  Attain better business transactions response times  Reduce cost of and reliance on the Cloud by storing data and running applications on your in-house server Take it to the next level Take your business to the next level with built-in expandability and data security  Grow through time at your own pace with extensive internal capacity  Attach external devices flexibly and easily  Secure your data and files with software RAID and optional backup and restore solutions
