1 MP IP Strategy public Stateye Training (Getting Started) Please enable author’s notes for a textual description of the slides. A audio file will be also made available with the same text for easy following. Manfred Dolag Alexander Weimann confidential Munich, December 14th, 2005

2 MP IP Strategy public Introduction Thanks to Dave Stauffer for his support & organisation of the development of the Stateye v4.0 by Edotronik Stateye v4 is currently available from and it is highly recommended that for 1 st time users this training be followed as Stateye is still an expert tool This training is aimed at beginner users of 1 st release of the Stateye v4.0 statistical channel compliance tool It is expected and planned that further releases of Stateye v4 based on alpha users feedback and final feature integration before a final release to the OIF and open source developers forum is donewww.stateye.org As of the 14 th December 2005, support and bug reporting can be done via and up to date information concerning reported bugs/fixes will be made Stateye v4 is a complete rewrite of the original Stateye, and now offers a flexible XML interface and object orientated structure for further development, with many parts in c++ for improved performance

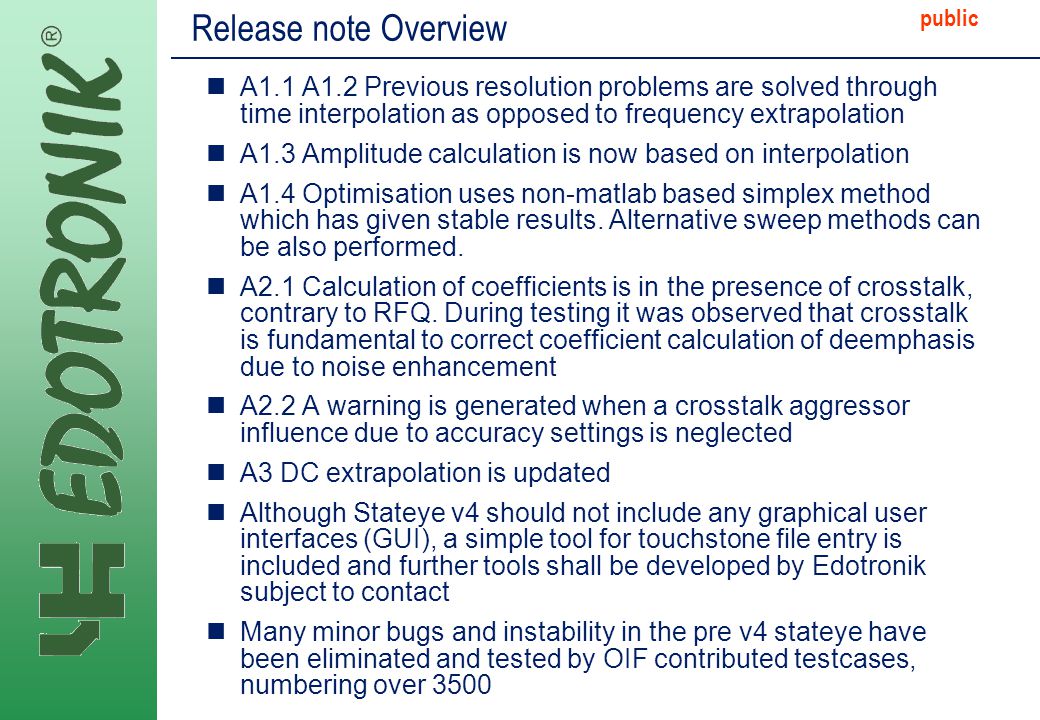

3 MP IP Strategy public Release note Overview A1.1 A1.2 Previous resolution problems are solved through time interpolation as opposed to frequency extrapolation A1.3 Amplitude calculation is now based on interpolation A1.4 Optimisation uses non-matlab based simplex method which has given stable results. Alternative sweep methods can be also performed. A2.1 Calculation of coefficients is in the presence of crosstalk, contrary to RFQ. During testing it was observed that crosstalk is fundamental to correct coefficient calculation of deemphasis due to noise enhancement A2.2 A warning is generated when a crosstalk aggressor influence due to accuracy settings is neglected A3 DC extrapolation is updated Although Stateye v4 should not include any graphical user interfaces (GUI), a simple tool for touchstone file entry is included and further tools shall be developed by Edotronik subject to contact Many minor bugs and instability in the pre v4 stateye have been eliminated and tested by OIF contributed testcases, numbering over 3500

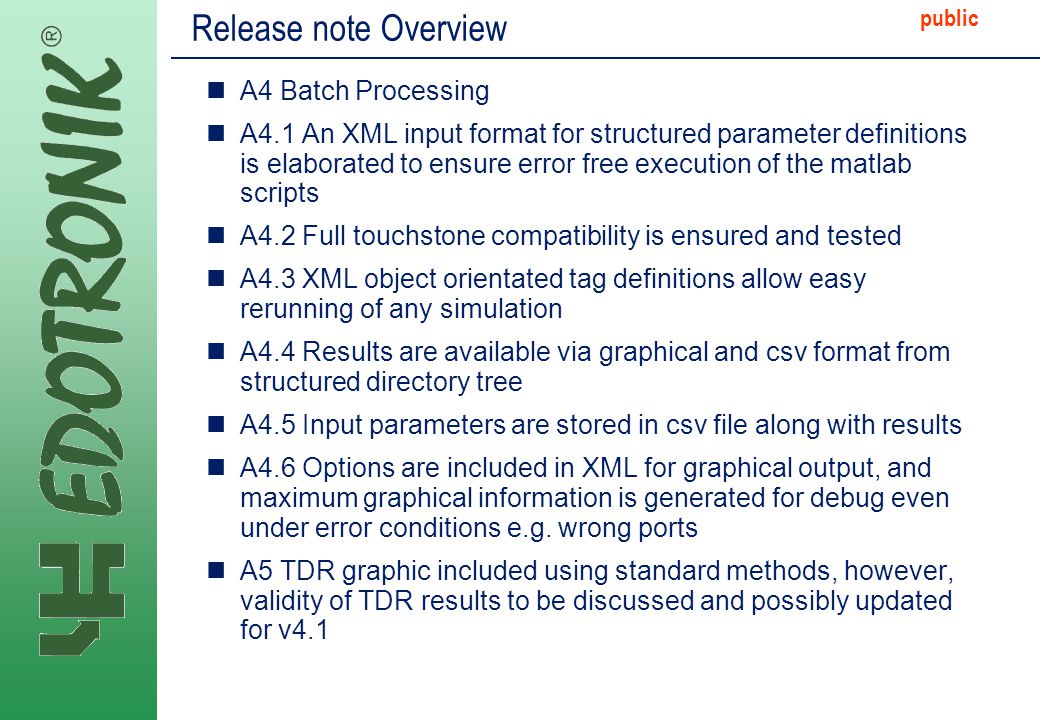

4 MP IP Strategy public Release note Overview A4 Batch Processing A4.1 An XML input format for structured parameter definitions is elaborated to ensure error free execution of the matlab scripts A4.2 Full touchstone compatibility is ensured and tested A4.3 XML object orientated tag definitions allow easy rerunning of any simulation A4.4 Results are available via graphical and csv format from structured directory tree A4.5 Input parameters are stored in csv file along with results A4.6 Options are included in XML for graphical output, and maximum graphical information is generated for debug even under error conditions e.g. wrong ports A5 TDR graphic included using standard methods, however, validity of TDR results to be discussed and possibly updated for v4.1

5 MP IP Strategy public Release note Overview A6 Continuous Linear Equaliser functionality integrated as filter. Automatic adaption of filter based on channel response disabled for v4.0, but will be enabled for v4.1 B3 Cascade functionality agreed for v4.1, included in v4.0 V4.1 release will include –extension to DC extrapolation for crosstalk agressor –warning for insufficient s-parameter data –Work around for MATLAB bug in handling invisible figures

6 MP IP Strategy public Stateye Objects

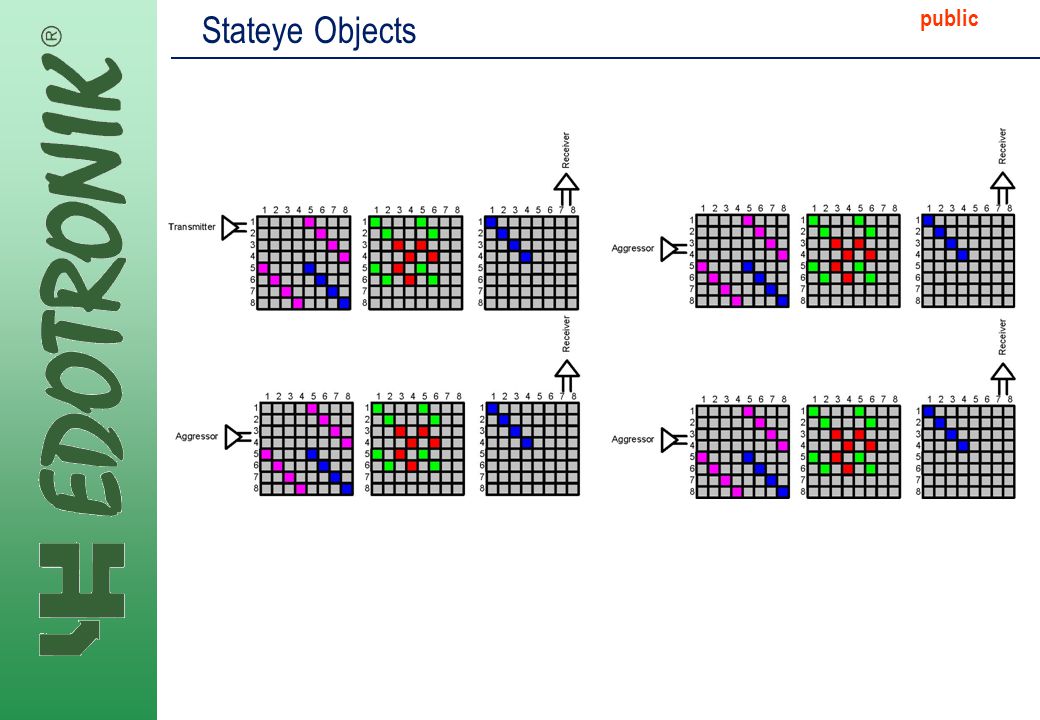

7 MP IP Strategy public Stateye Objects

8 MP IP Strategy public Start

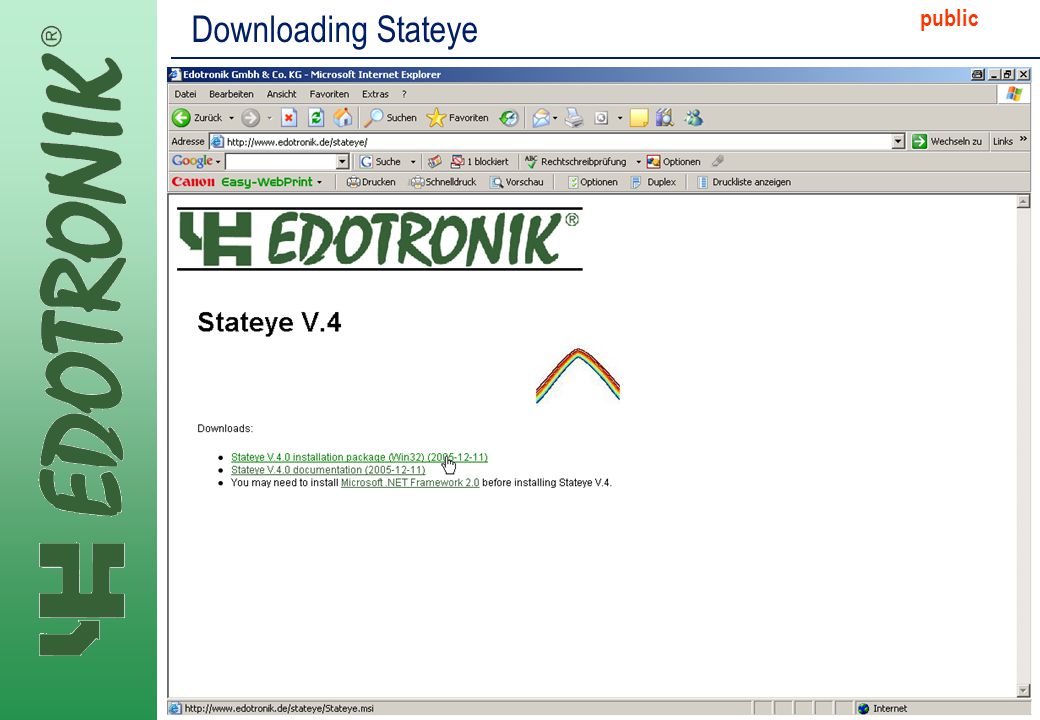

9 MP IP Strategy public Downloading Stateye

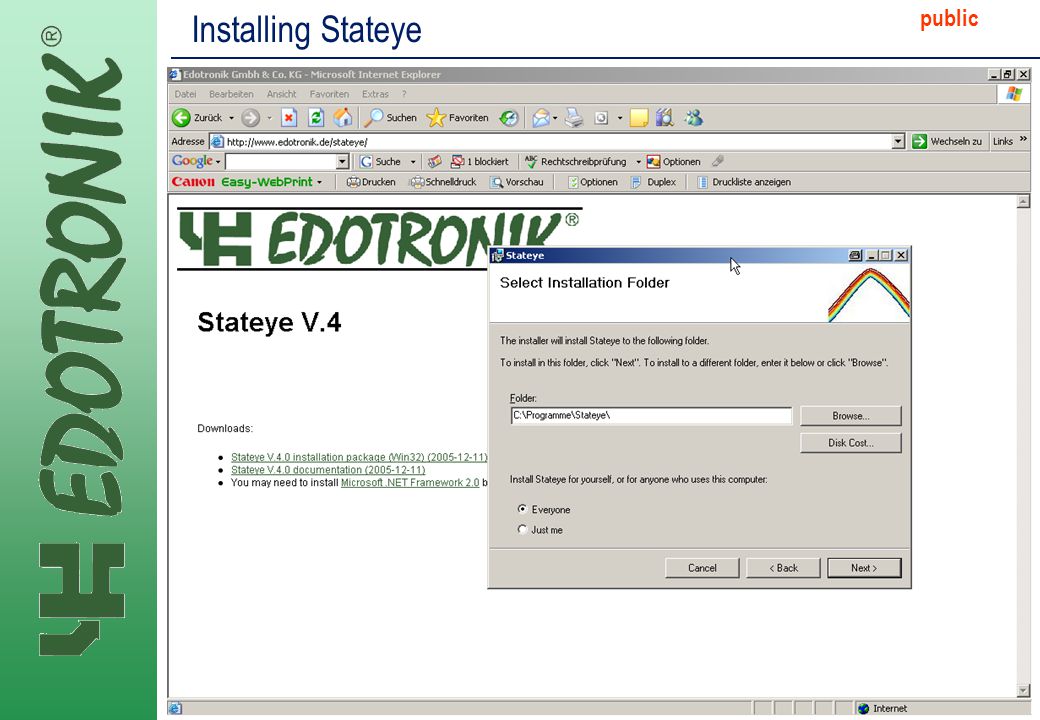

10 MP IP Strategy public Installing Stateye

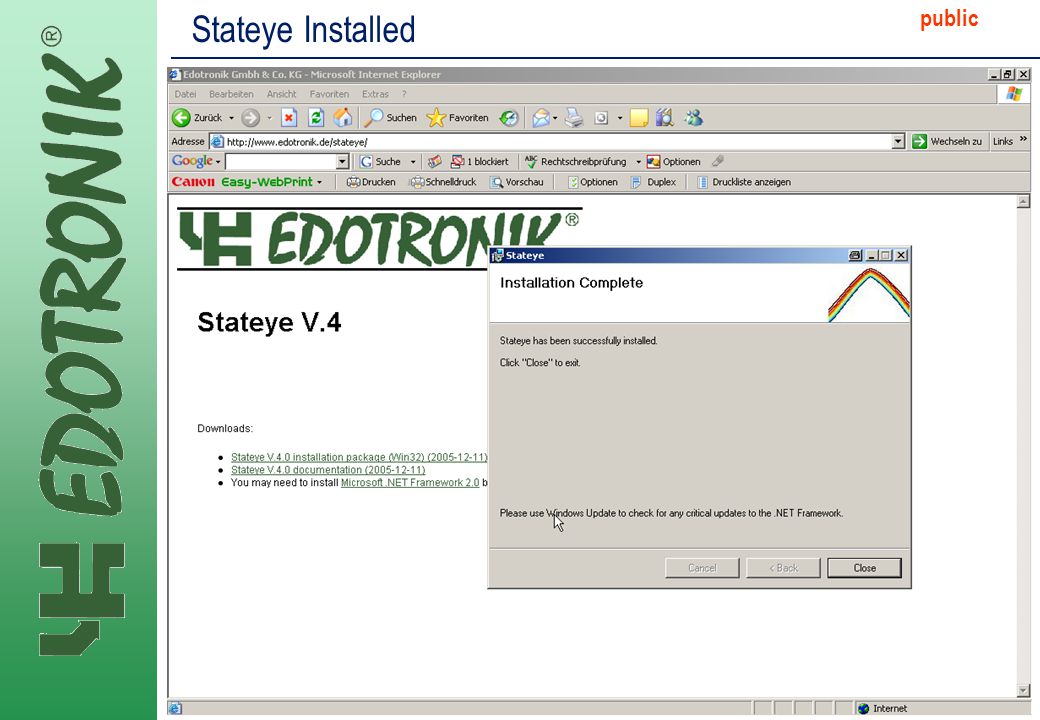

11 MP IP Strategy public Stateye Installed

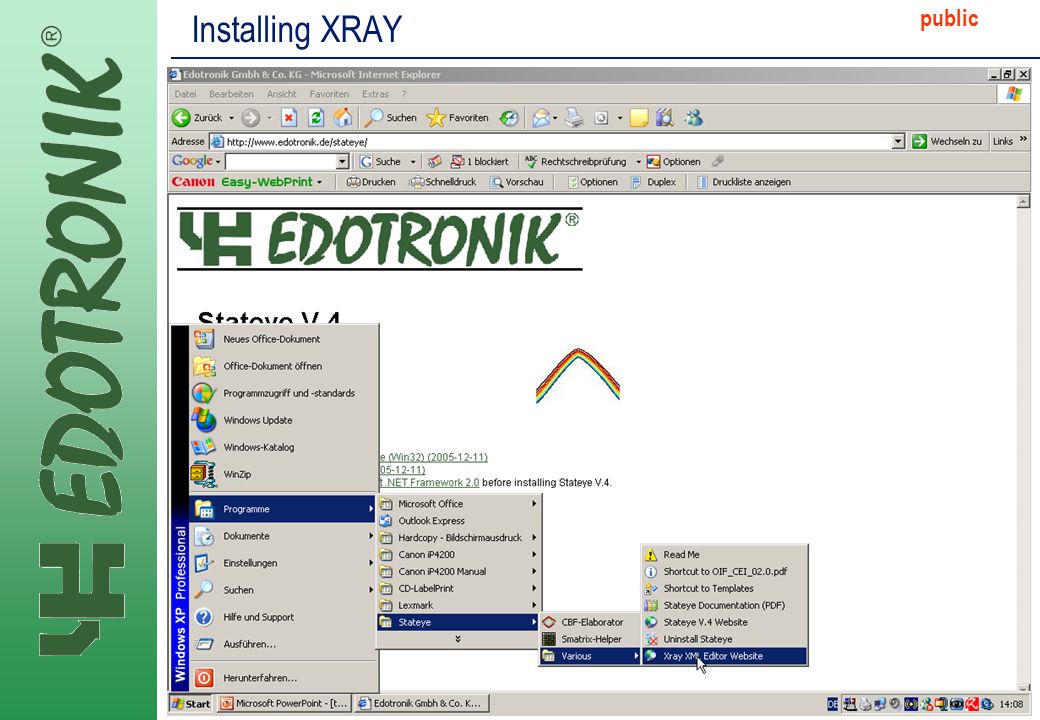

12 MP IP Strategy public Installing XRAY

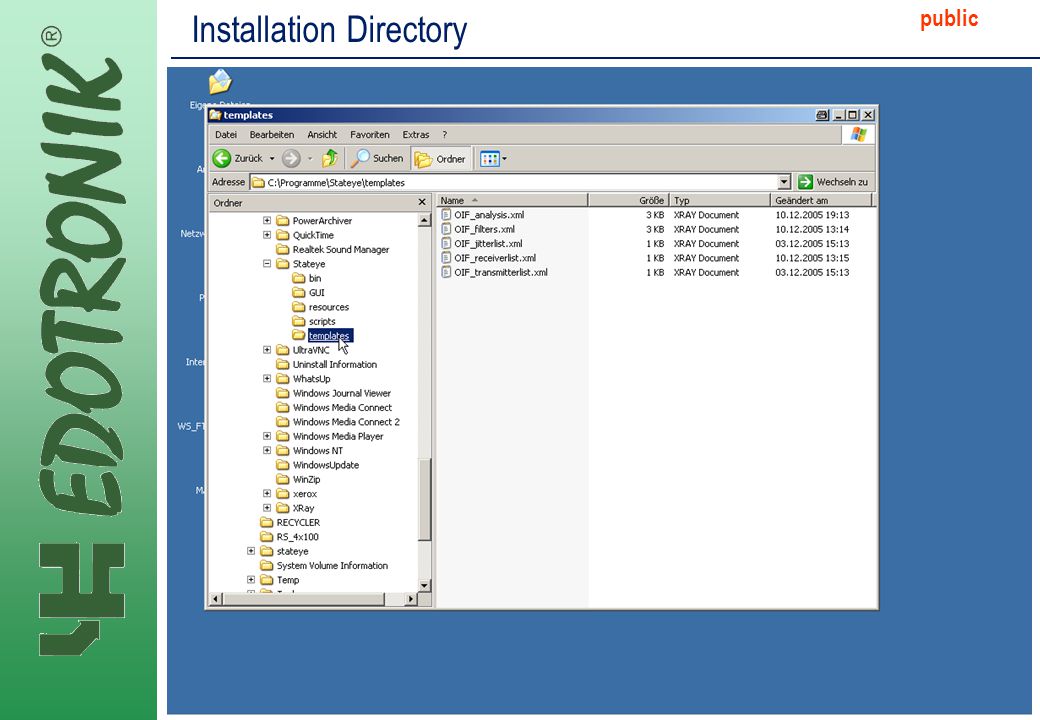

13 MP IP Strategy public Installation Directory

14 MP IP Strategy public Example Touchstone File

15 MP IP Strategy public Starting SmatrixHelper

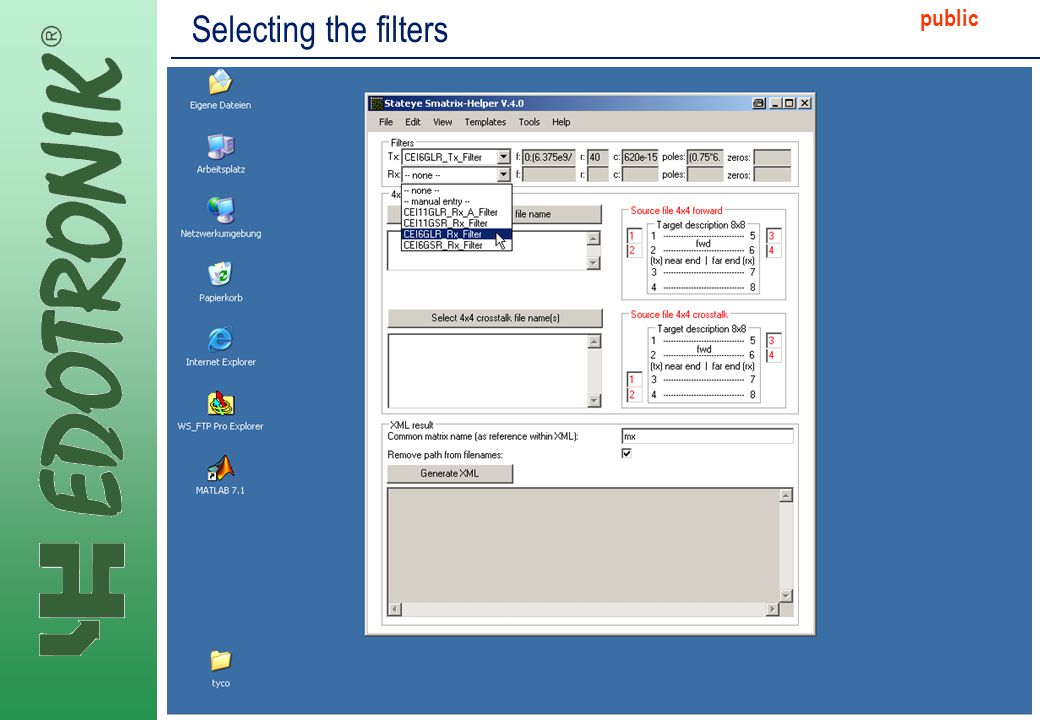

16 MP IP Strategy public Selecting the filters

17 MP IP Strategy public Selecting the Files

18 MP IP Strategy public Selecting the Forward File

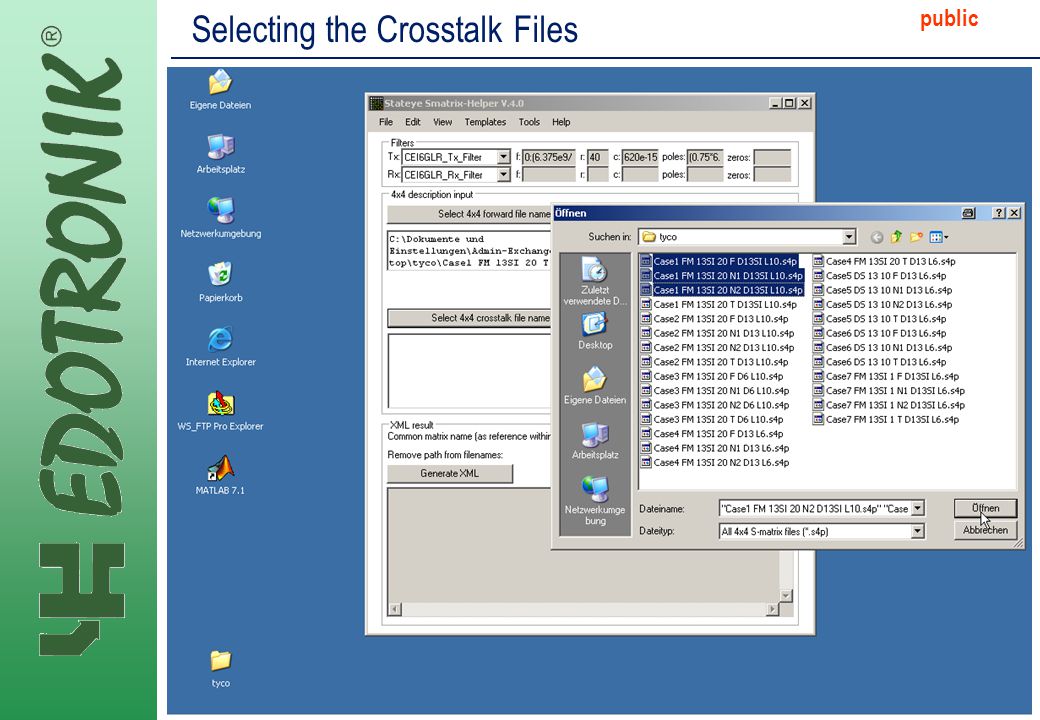

19 MP IP Strategy public Selecting the Crosstalk Files

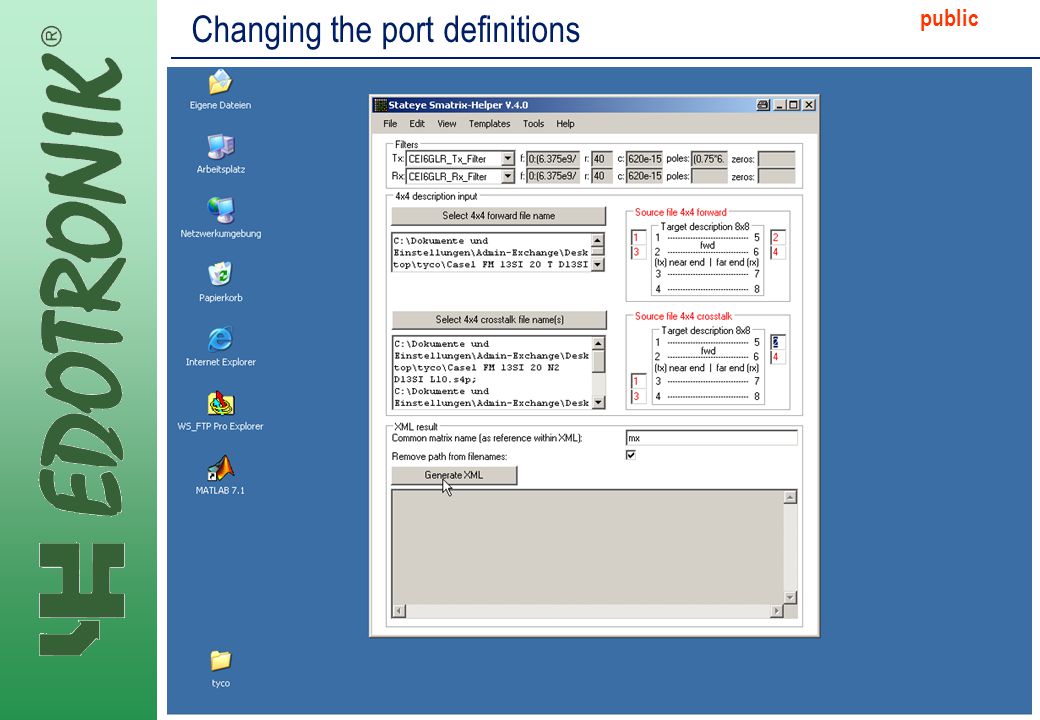

20 MP IP Strategy public Changing the port definitions

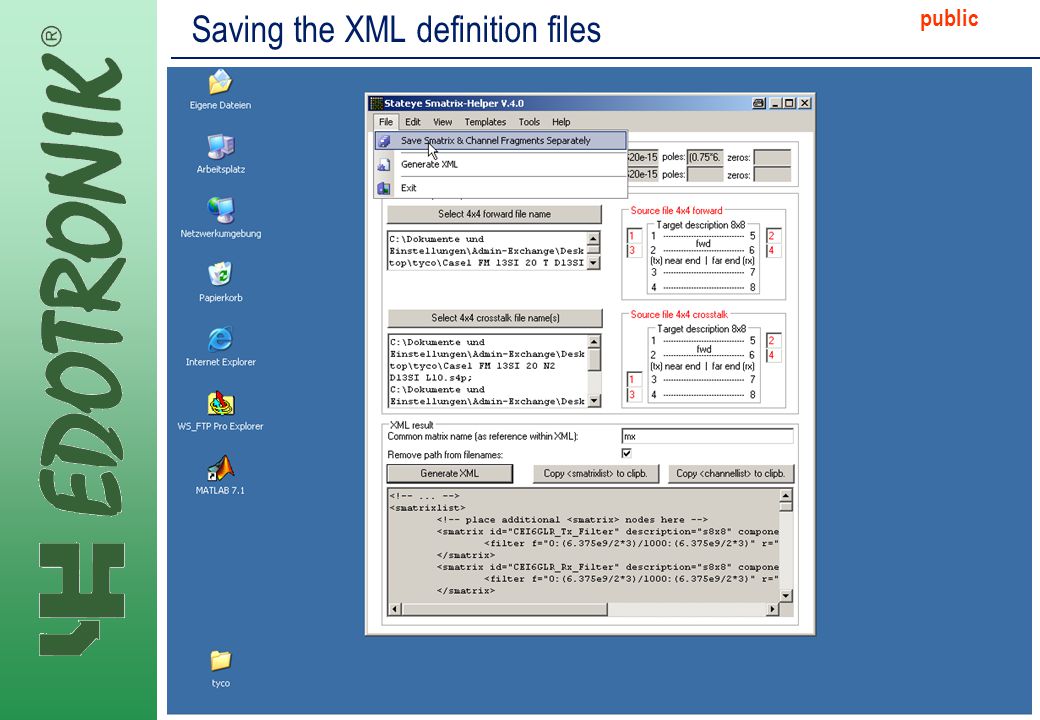

21 MP IP Strategy public Saving the XML definition files

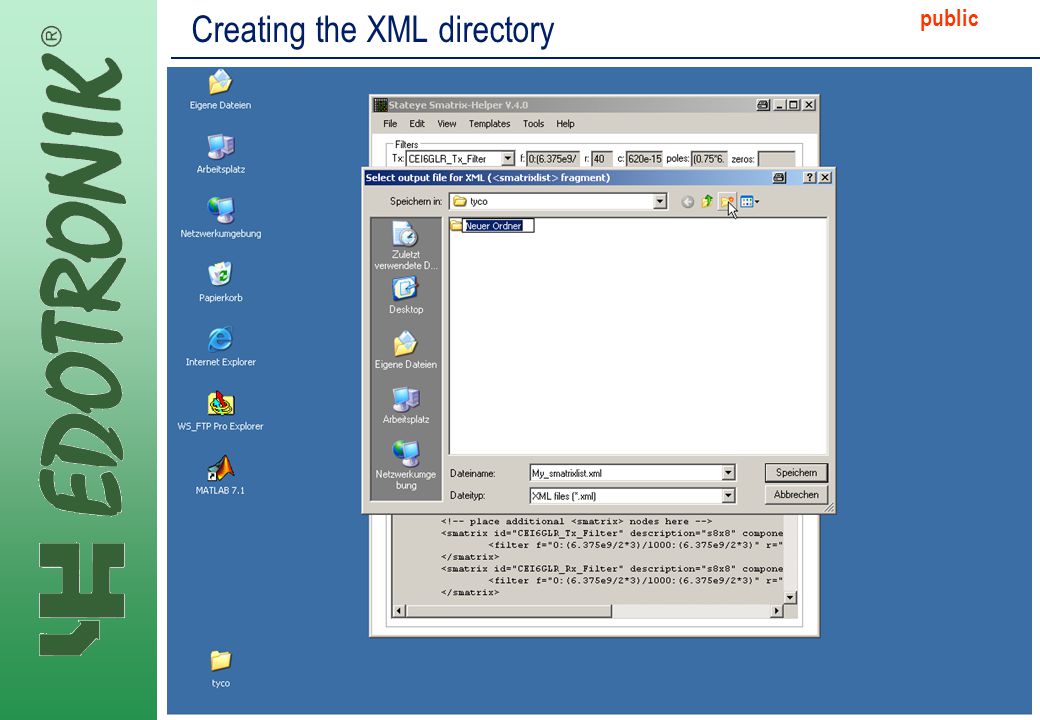

22 MP IP Strategy public Creating the XML directory

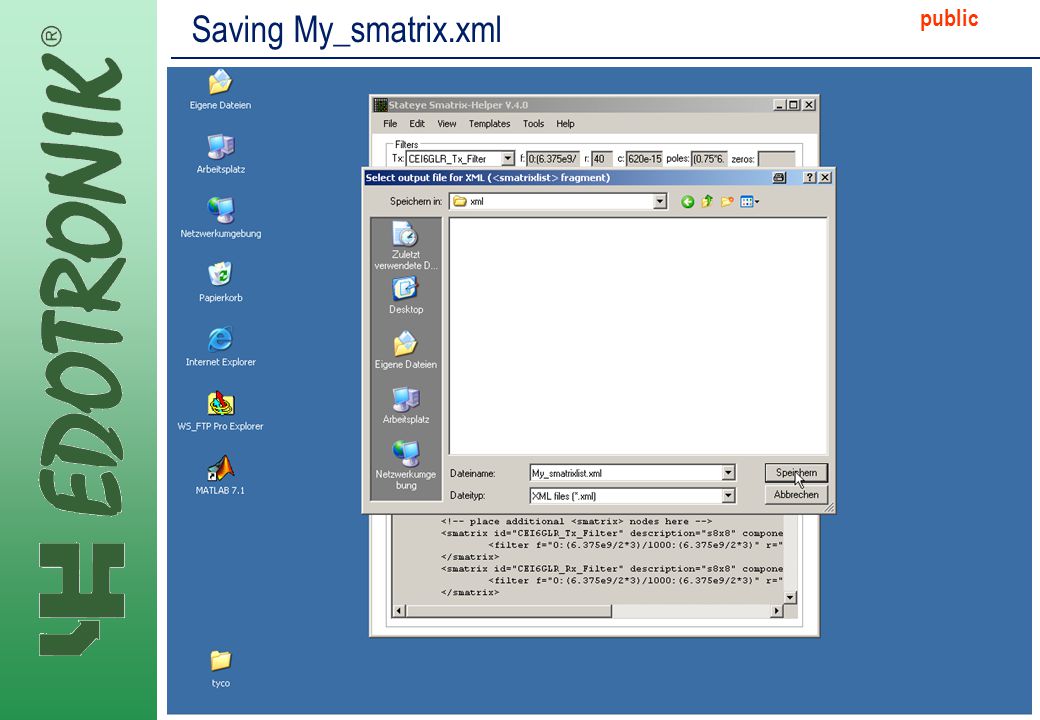

23 MP IP Strategy public Saving My_smatrix.xml

24 MP IP Strategy public Copying the Templates

25 MP IP Strategy public Opening the Analysis definitions

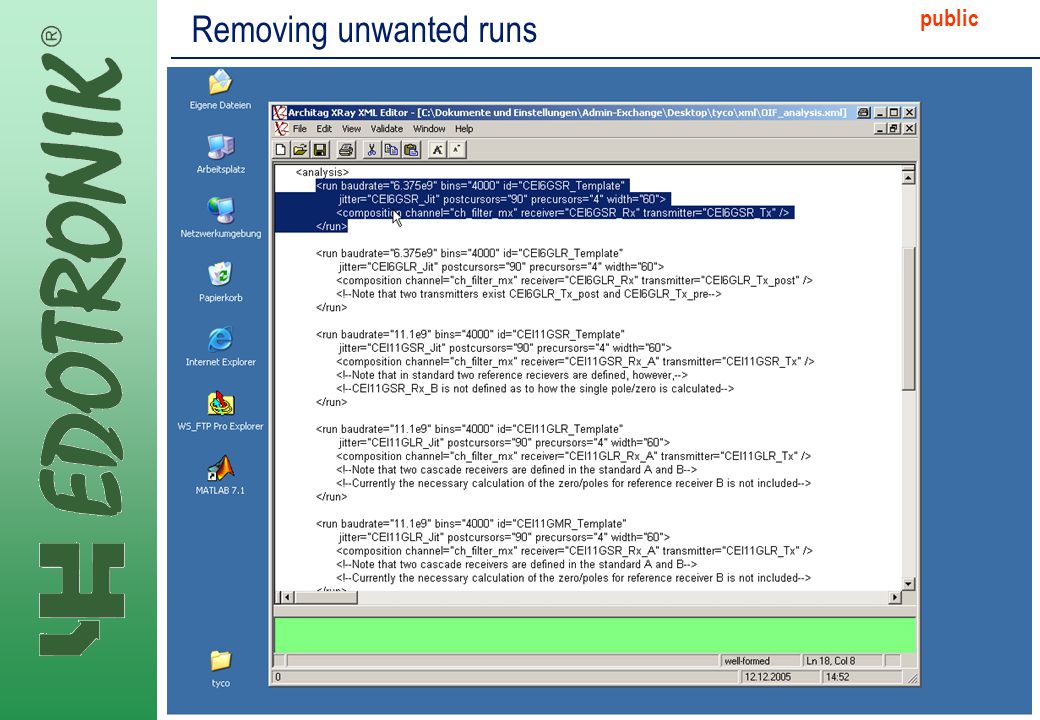

26 MP IP Strategy public Removing unwanted runs

27 MP IP Strategy public Removing more unwanted runs

28 MP IP Strategy public Making a mistake in XML

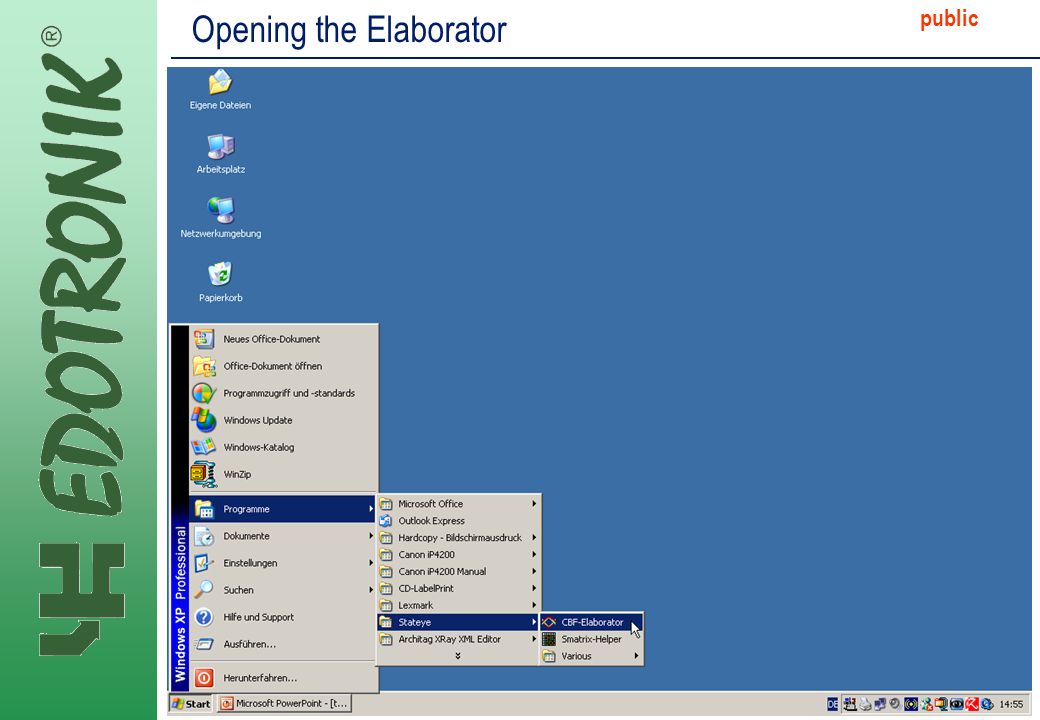

29 MP IP Strategy public Opening the Elaborator

30 MP IP Strategy public Selecting My_analysis.xml

31 MP IP Strategy public Saving the matlab script

32 MP IP Strategy public Changing matlab directory

33 MP IP Strategy public Running the script

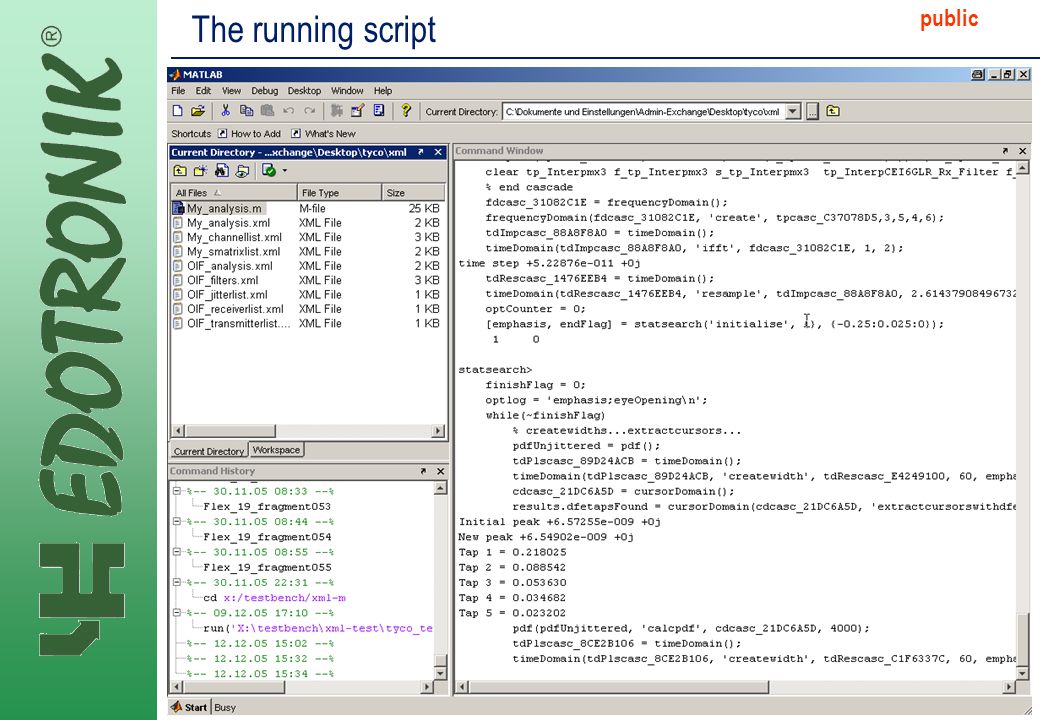

34 MP IP Strategy public The running script

35 MP IP Strategy public The output directory

36 MP IP Strategy public Opening a fig file

37 MP IP Strategy public Available fig files

38 MP IP Strategy public Opening the results file

39 MP IP Strategy public In the results file

40 MP IP Strategy public Adding a new channel

41 MP IP Strategy public Generating a new channel

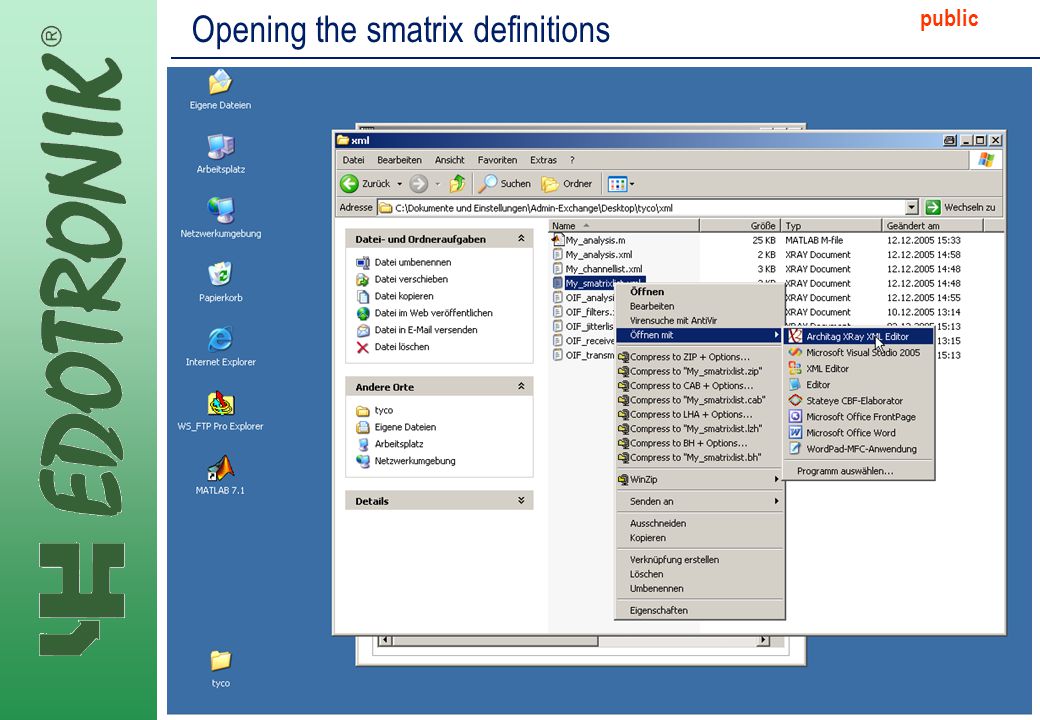

42 MP IP Strategy public Opening the smatrix definitions

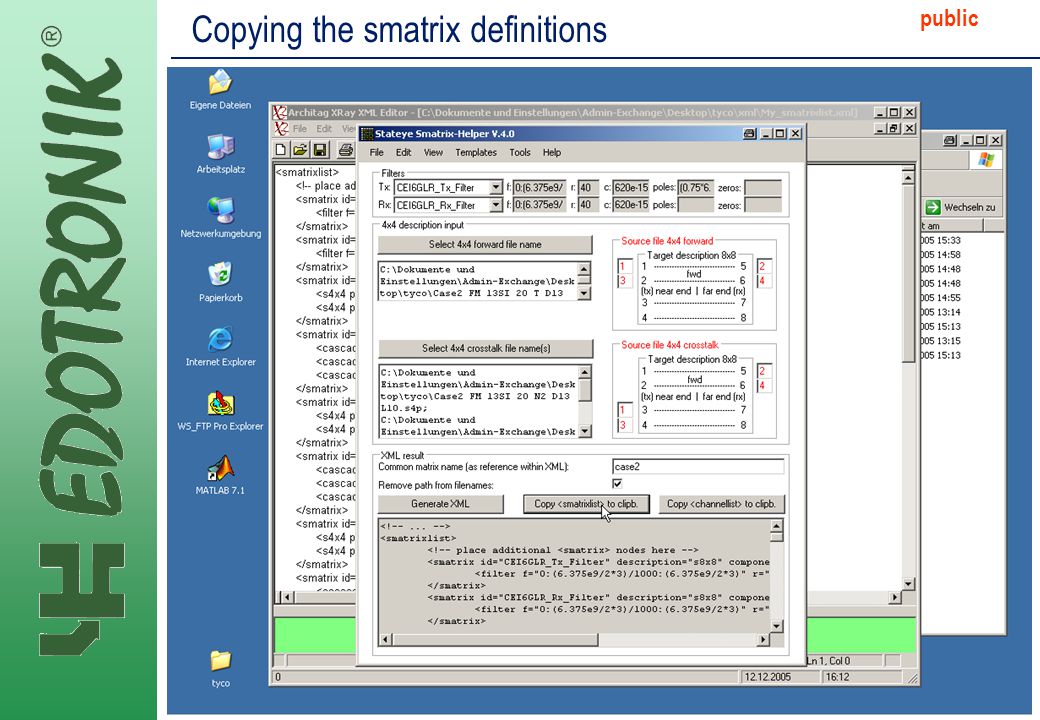

43 MP IP Strategy public Copying the smatrix definitions

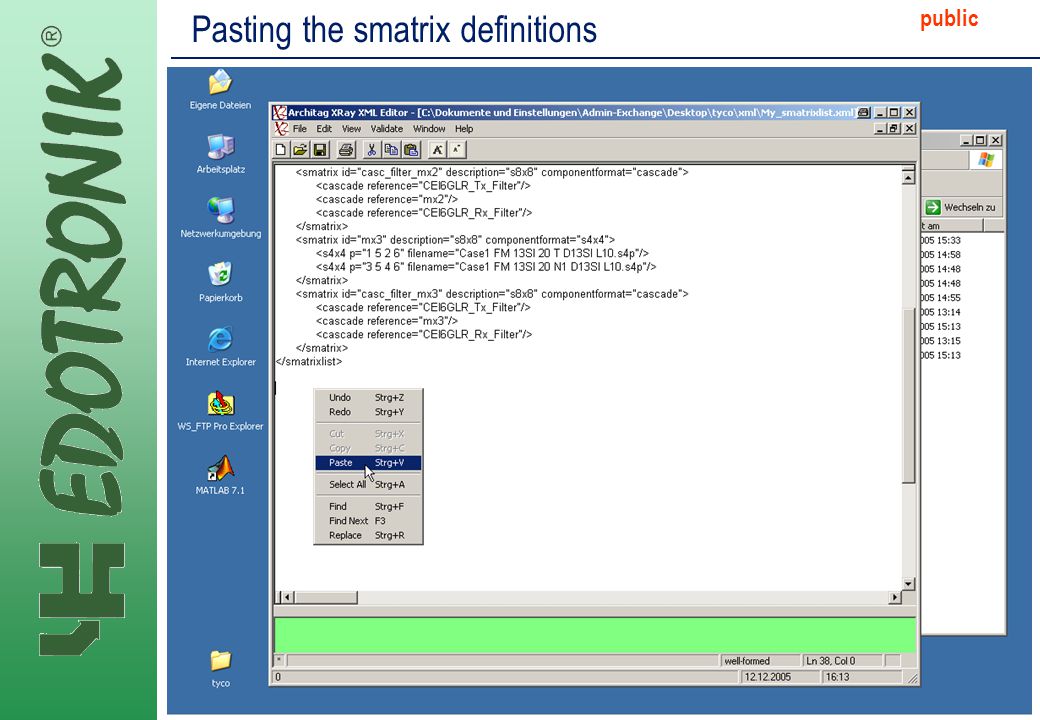

44 MP IP Strategy public Pasting the smatrix definitions

45 MP IP Strategy public Removing unwanted XML

46 MP IP Strategy public Pasting the channellist

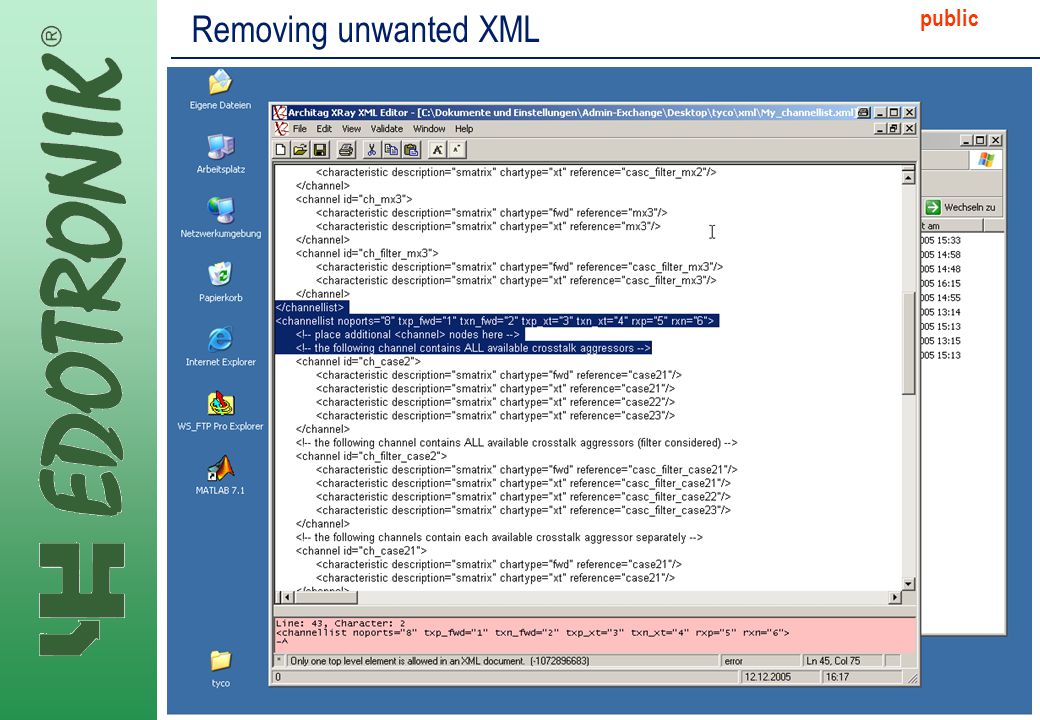

47 MP IP Strategy public Removing unwanted XML

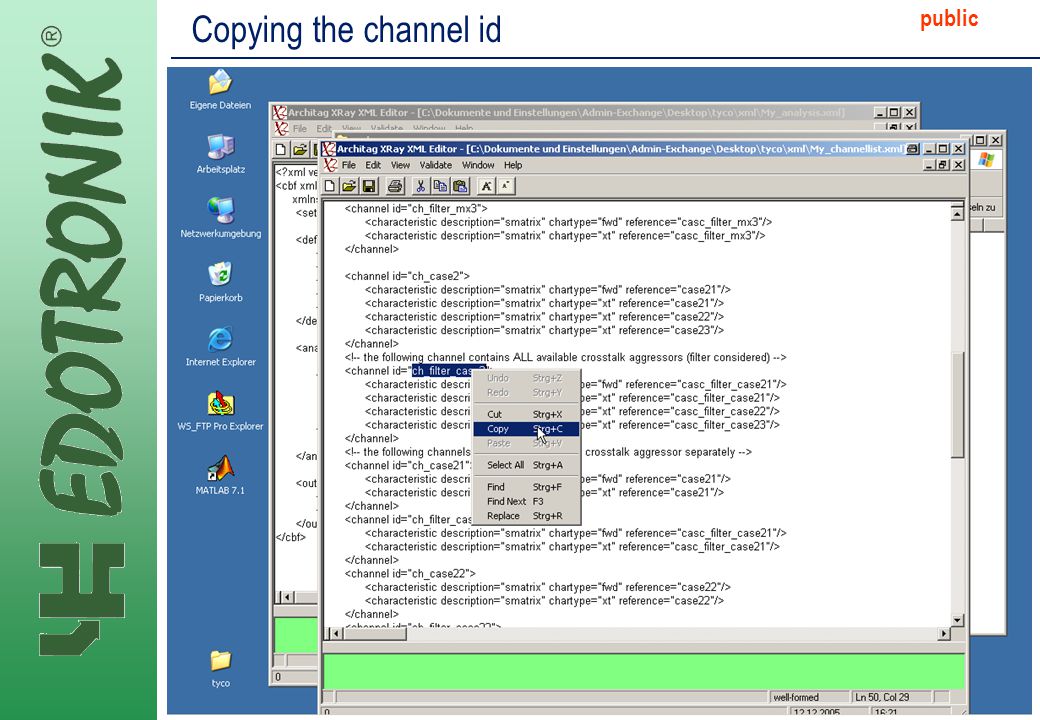

48 MP IP Strategy public Copying the channel id

49 MP IP Strategy public Pasting the chanel id

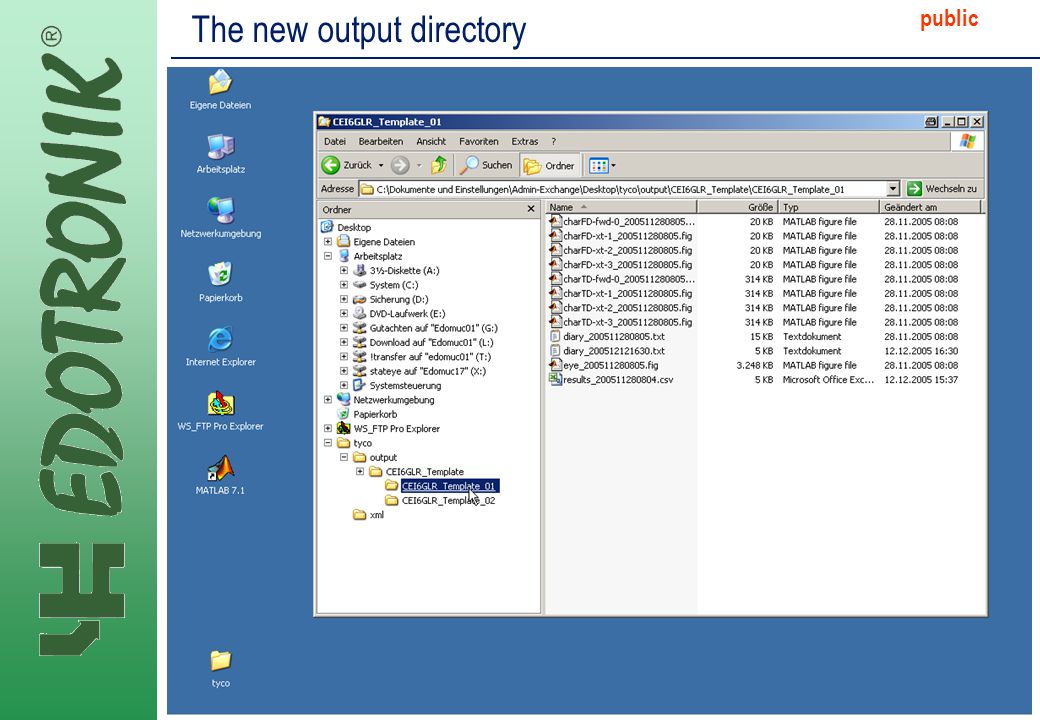

50 MP IP Strategy public The new output directory

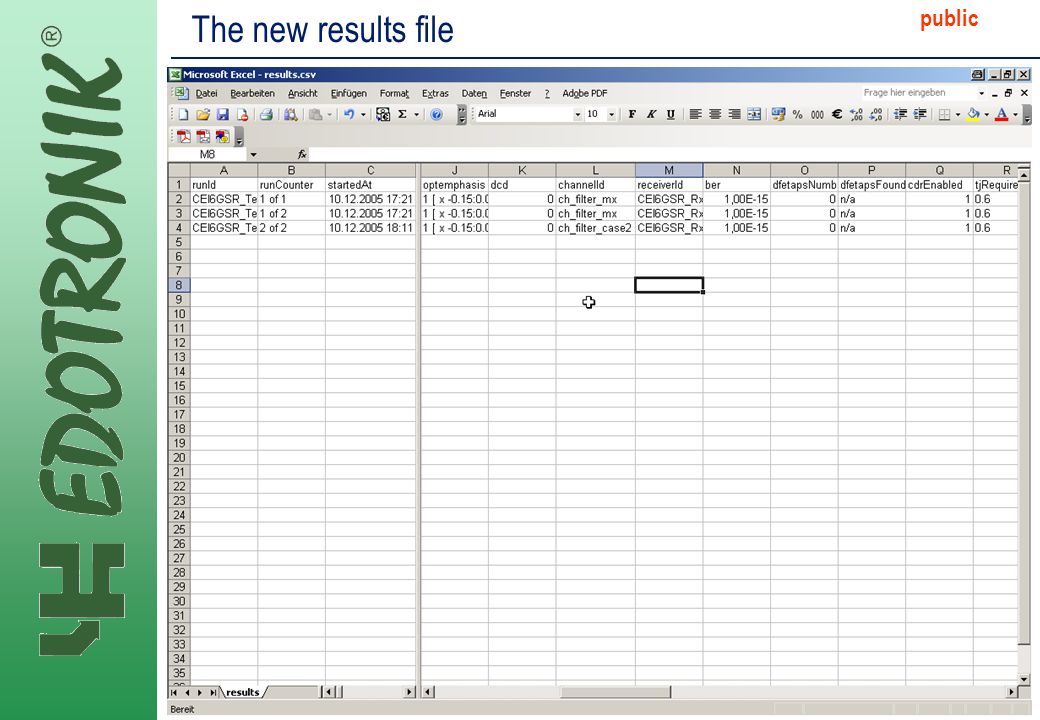

51 MP IP Strategy public The new results file

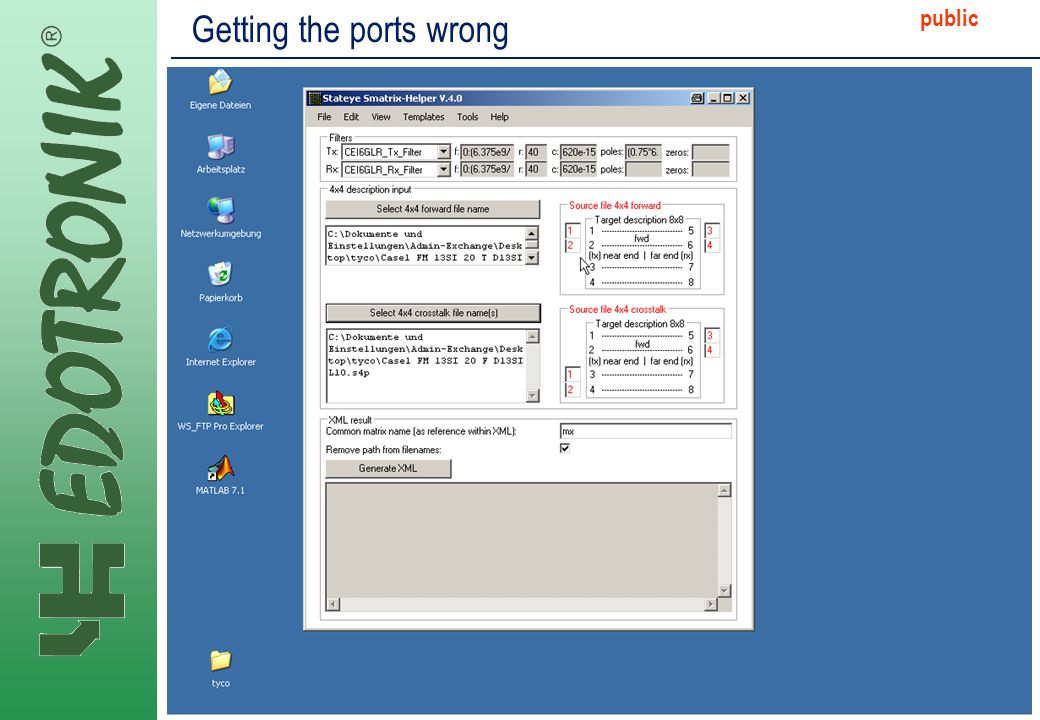

52 MP IP Strategy public Getting the ports wrong

53 MP IP Strategy public All looks fine

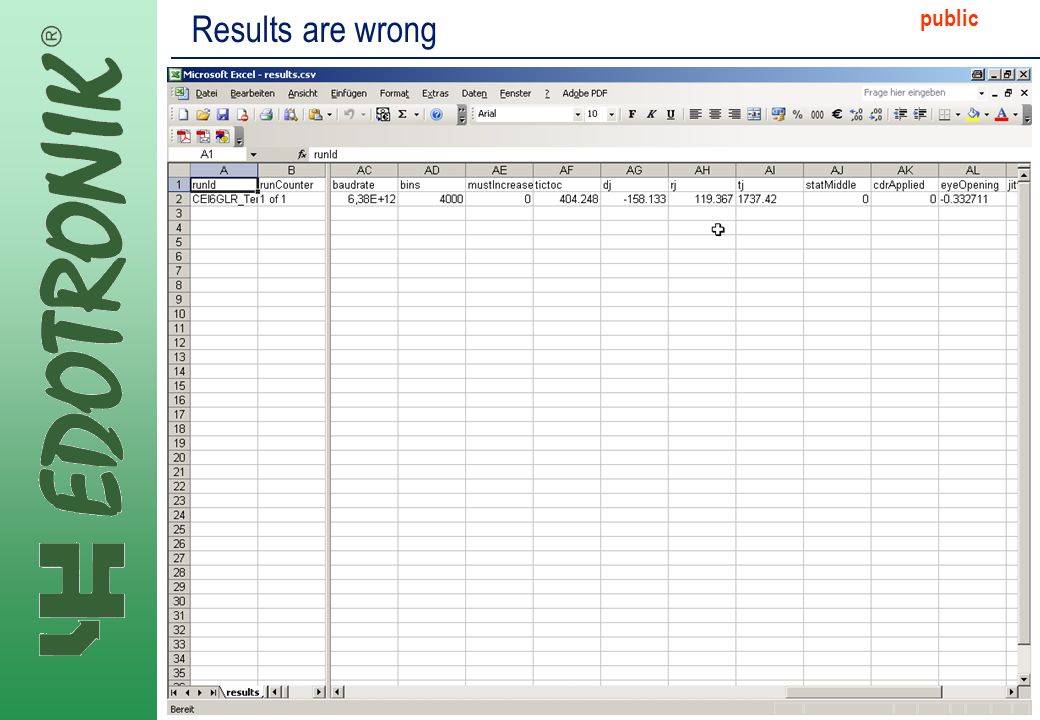

54 MP IP Strategy public Results are wrong

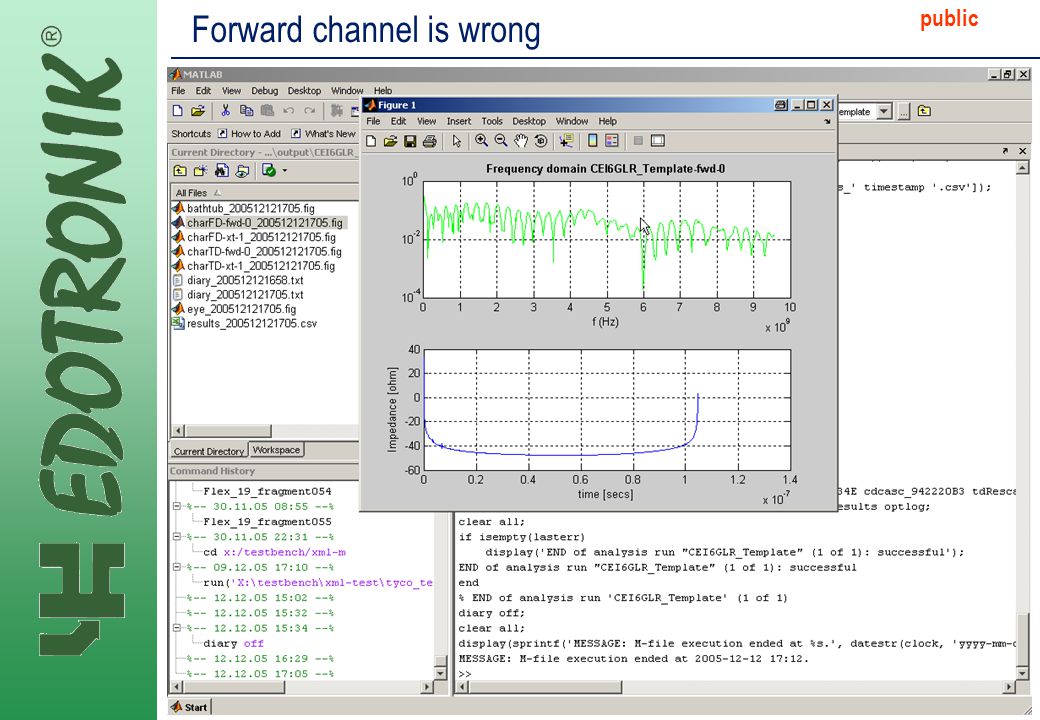

55 MP IP Strategy public Forward channel is wrong

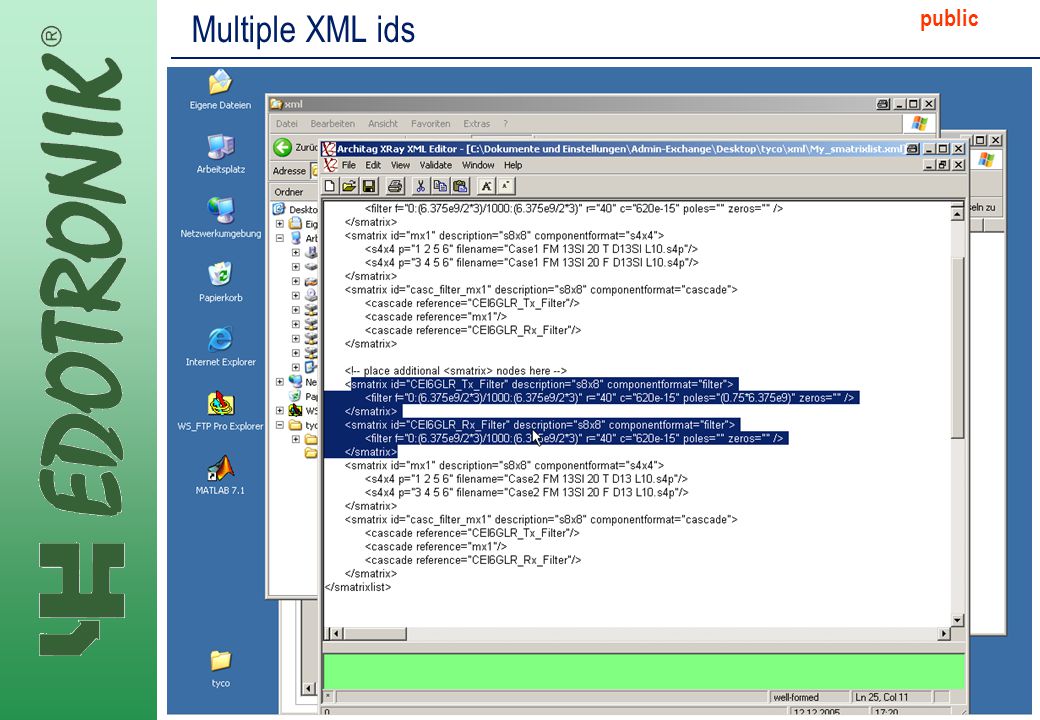

56 MP IP Strategy public Multiple XML ids

57 MP IP Strategy public Errors generated

58 MP IP Strategy public Summary Many to thanks to Birgit for the audio training file Further training for expert use of stateye can be made available after the new year In the meantime, support is available via Many thanks for your attention
