Reliable and Efficient Programming Abstractions for Sensor Networks Nupur Kothari, Ramki Gummadi (USC), Todd Millstein (UCLA) and Ramesh Govindan (USC)

Similar presentations


Presentation on theme: "Reliable and Efficient Programming Abstractions for Sensor Networks Nupur Kothari, Ramki Gummadi (USC), Todd Millstein (UCLA) and Ramesh Govindan (USC)"— Presentation transcript:

1 Reliable and Efficient Programming Abstractions for Sensor Networks Nupur Kothari, Ramki Gummadi (USC), Todd Millstein (UCLA) and Ramesh Govindan (USC)

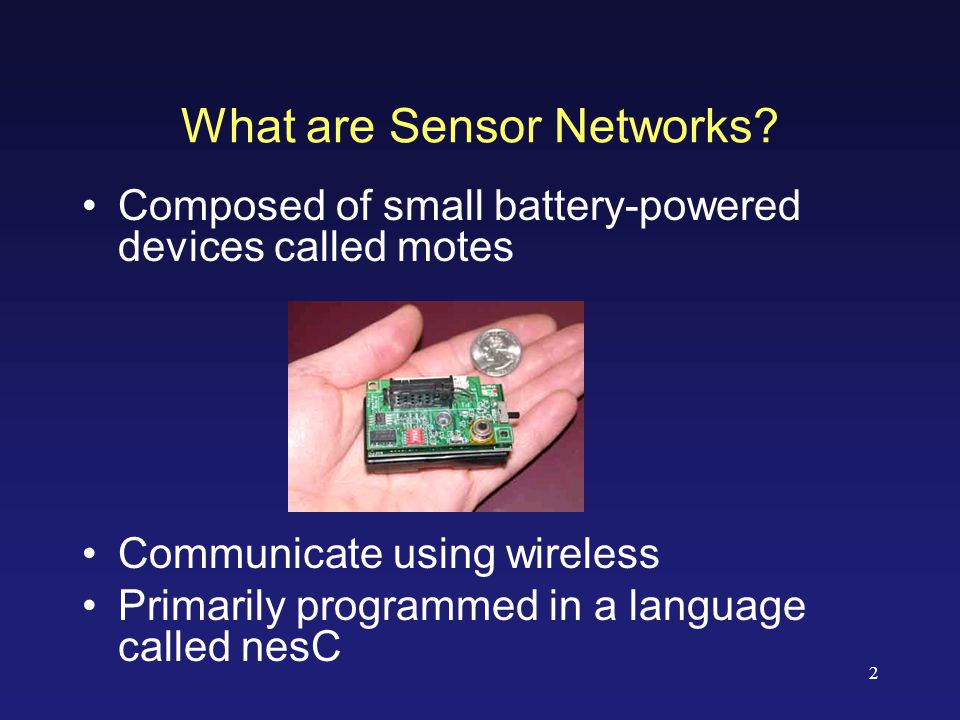

2 2 What are Sensor Networks? Composed of small battery-powered devices called motes Communicate using wireless Primarily programmed in a language called nesC

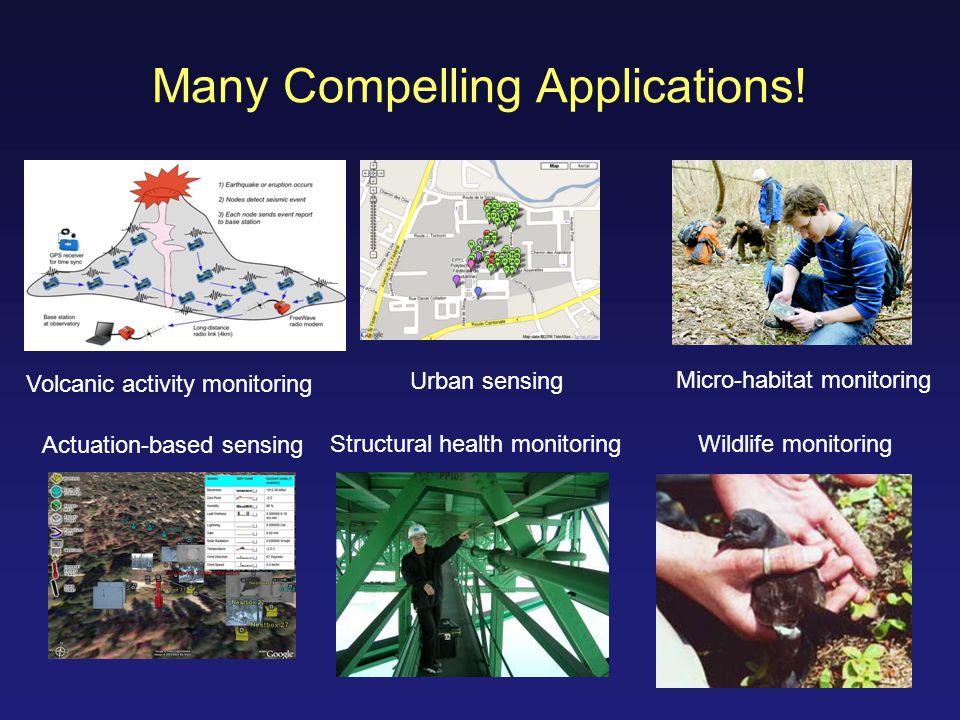

3 3 Many Compelling Applications! Volcanic activity monitoring Urban sensing Micro-habitat monitoring Actuation-based sensing Structural health monitoringWildlife monitoring

4 4 Domain-Specific Challenges Need to deal with several application-level concerns –Time-critical sensing –Hardware resource constraints –Energy-efficient communication –Concurrency and application logic –Failures –Distributed data consistency Simultaneously achieving efficiency and reliability while providing readability is hard Efficiency Reliability

5 5 Programming Today Node-level program written in nesC Compiled to mote binary Tradeoff: High efficiency, but readability and reliability suffer because achieving global results and maintaining invariants through a local approach is tedious and error-prone

6 6 Our Approach: Centralized Programming Central program that specifies application behavior Node-level nesC programs Compiled to mote binary Compiler Runtime + Simplifies programming by offloading concurrency, reliability, and energy efficiency to the compiler and runtime

7 7 Our Contributions The Pleaides programming language –Centralized as opposed to node-level Automatic program partitioning and control- flow migration –Minimizes energy by optimizing data movement Easy-to-use and reliable concurrency primitive –Ensures consistency under concurrent execution Mote-based implementation –Evaluated several realistic applications

8 8 Pleiades Constructs by Example int temp LOCAL; void main() { nodelist all = (); nodelist all = get_available_nodes(); int max = 0; int max = 0; (node n = get_first(all); n!=NULL; n = get_next(all)) { if n > max) max = n; } Node-local variable Central variable List of nodes in network Network Node Access node-local variables declaratively for Concurrent-for loop cfor Central variables needn’t be synchronized

9 9 Two Main Challenges The Pleiades Compiler and Runtime ConcurrencyPartitioning How to compile and efficiently execute a centralized program How to achieve serializability under concurrency

10 10 void main() { ……… ……… = a; n3 = = b; = c; ……… } Program Execution Control-flow migration as well as data movement Control-flow migration Access node-local variables from nearby nodes = a; n3 = = b; = c; Nodecut n1 n2 n3 n4 How does the compiler partition code into nodecuts? How does the runtime know where to execute each nodecut? Sequential Program

11 11 Our Contributions The Pleaides programming language –Centralized as opposed to node-level Automatic program partitioning and control- flow migration –Minimizes energy Easy-to-use and reliable concurrency primitive –Ensures consistency under concurrent execution Mote-based implementation –Evaluated several realistic applications

12 12 start end all = get_available_nodes() max = 0 n = get_first(all) False True False True max = > max) if(n!=NULL) n = get_next(all) Partitioning Code into Nodecuts Control-flow graph for max example Property: The location of variables accessed within a nodecut are known before its execution Nodecuts generated by the Pleiades compiler

13 13 Control-flow Migration Algorithm Runtime attempts to find lowest communication cost node to execute nodecut

14 14 Our Contributions The Pleaides programming language –Centralized as opposed to node-level Automatic program partitioning and control- flow migration –Minimizes energy Easy-to-use and reliable concurrency primitive –Ensures consistency under concurrent execution Mote-based implementation –Evaluated several realistic applications

15 15 On completion, cfor iterations send DONE message to originating node Cfor execution Nodecut encountering a cfor forks a thread for each iteration Challenge: To ensure serializability during concurrent execution Approach: Distributed locking, with multiple reader/single writer locks

16 Distributed Locking cfor (node n = 1; n < 5; n++) { if > max) max = } max Technique generalizes to nested cfor loops using hierarchical locking Only the write operation to max is serialized. Deadlocks possible, but dealt with using a simple deadlock detection and recovery scheme

17 17 Our Contributions The Pleaides programming language –Centralized as opposed to node-level Automatic program partitioning and control- flow migration –Minimizes energy Easy-to-use and reliable concurrency primitive –Ensures consistency under concurrent execution Mote-based implementation –Evaluated several realistic applications

18 18 Compiler built as an extension to the CIL infrastructure for C analysis and transformation Pleiades compiler generates nesC code Pleiades evaluated on TelosB motes Experience with several applications: pursuit-evasion, car parking, etc. Compiler built as an extension to the CIL infrastructure for C analysis and transformation Pleiades compiler generates nesC code Pleiades evaluated on TelosB motes Experience with several applications: pursuit-evasion, car parking, etc. Implementation and Evaluation

19 19 Pursuit-Evasion in Pleiades

20 20 Related Work Embedded and Sensor networks languages Concurrent Systems (e.g.,Transactional Memory) Parallel Processing Languages (e.g., Split-C, Linda)

21 21 Related Work SpatialViews (Ni et. al., PLDI’05) –Achieve concurrency and reliability by restricting the programming model Kairos (Gummadi et. al., DCOSS’05) –Does not provide automatic code migration or serializability; support for automatic recovery mechanisms Regiment (Newton et. al., IPSN’07) –Purely functional language; Cannot update node-local state COSMOS (Awan et. al., EuroSys’07) –Dataflow programming model; Designed for heterogeneous networks TinyDB (Madden et. al., TODS’05) –Declarative interface for centrally manipulating data; not Turing complete

22 22 The centralized programming model in Pleiades simplifies programming Compiler and runtime deal with concurrency, reliability, and efficiency details Implemented on TelosB motes Future Work: –Declarative failure recovery for Pleiades –User-defined/relaxed consistency models to improve concurrency Conclusions and Future work

23 Thanks! More info at:
