1 Verifying the Composite Pattern using Separation Logic Bart Jacobs Jan Smans Frank Piessens Katholieke Universiteit Leuven, Belgium

2 Bart Jacobs, Jan Smans, Frank Piessens - Verifying the Composite Pattern using Separation Logic Overview  General Idea  Example: Binary Tree Interface Client Specification Client Proof Implementation and Implementation Proof Non-contiguous Focus Changes  Demonstration  Conclusion

3 Bart Jacobs, Jan Smans, Frank Piessens - Verifying the Composite Pattern using Separation Logic General Idea ModuleClient Invariant

4 Bart Jacobs, Jan Smans, Frank Piessens - Verifying the Composite Pattern using Separation Logic Example: Binary Tree Interface

5 Bart Jacobs, Jan Smans, Frank Piessens - Verifying the Composite Pattern using Separation Logic Example: Binary Tree Client

6 Bart Jacobs, Jan Smans, Frank Piessens - Verifying the Composite Pattern using Separation Logic Example: Binary Tree Specification

7 Bart Jacobs, Jan Smans, Frank Piessens - Verifying the Composite Pattern using Separation Logic Example: Binary Tree Specification: Datatype tree n0 n1 n2n3 tree(n0, tree(n1, tree(n2, nil, nil), tree(n3, nil, nil)), nil)

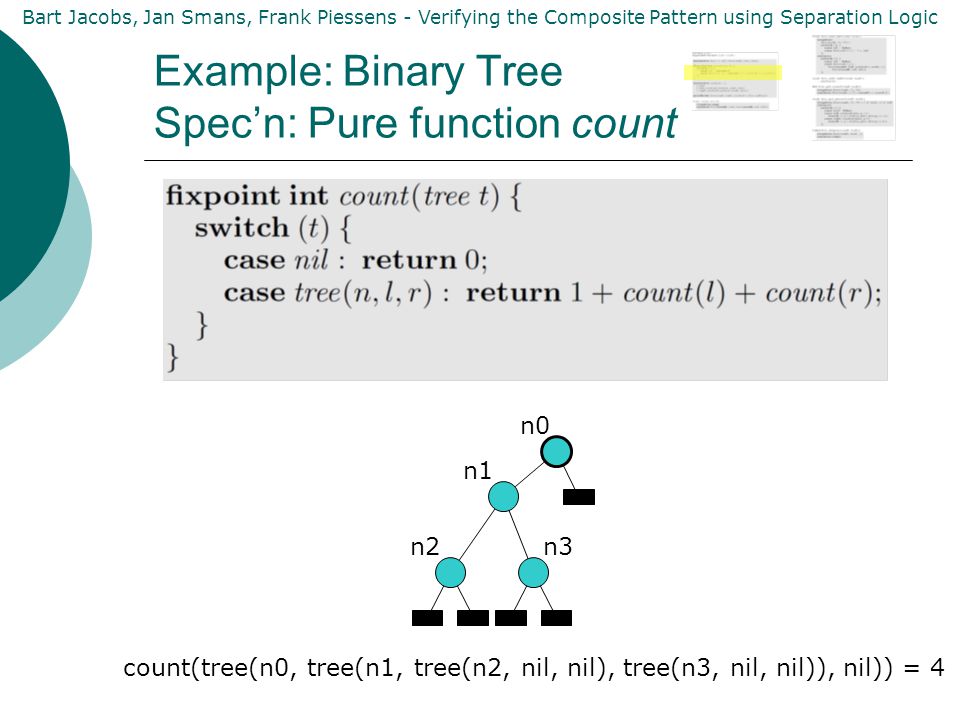

8 Bart Jacobs, Jan Smans, Frank Piessens - Verifying the Composite Pattern using Separation Logic Example: Binary Tree Spec’n: Pure function count count(tree(n0, tree(n1, tree(n2, nil, nil), tree(n3, nil, nil)), nil)) = 4 n0 n1 n2n3

9 Bart Jacobs, Jan Smans, Frank Piessens - Verifying the Composite Pattern using Separation Logic Example: Binary Tree Spec’n: Datatype context root n0 left_context(root, n0, nil) n0 n1 n2 right_context(left_context(root, n0, nil), n1, tree(n2, nil, nil))

10 Bart Jacobs, Jan Smans, Frank Piessens - Verifying the Composite Pattern using Separation Logic Example: Binary Tree Spec’n: Predicate tree n0 n1 n2 n3 memory region tree(n0, root, tree(n0, tree(n1, tree(n2, nil, nil), tree(n3, nil, nil)), nil)) focus node

11 Bart Jacobs, Jan Smans, Frank Piessens - Verifying the Composite Pattern using Separation Logic Example: Binary Tree Spec’n: Predicate tree n0 n1 n2 n3 memory region tree(n1, left_context(root, n0, nil), tree(n1, tree(n2, nil, nil), tree(n3, nil, nil))) focus node

12 Bart Jacobs, Jan Smans, Frank Piessens - Verifying the Composite Pattern using Separation Logic Example: Binary Tree Spec’n: Predicate tree n0 n1 n2 n3 memory region tree(n3, right_context( left_context(root, n0, nil), n1, tree(n2, nil, nil)), tree(n3, nil, nil)) focus node

13 Bart Jacobs, Jan Smans, Frank Piessens - Verifying the Composite Pattern using Separation Logic Example: Binary Tree Spec’n: Function create_tree result focus node

14 Bart Jacobs, Jan Smans, Frank Piessens - Verifying the Composite Pattern using Separation Logic c Example: Binary Tree Spec’n: Function tree_add_left node r focus node c node r result focus node

15 Bart Jacobs, Jan Smans, Frank Piessens - Verifying the Composite Pattern using Separation Logic c Example: Binary Tree Spec’n: Function tree_get_count node t focus node c node t focus node

16 Bart Jacobs, Jan Smans, Frank Piessens - Verifying the Composite Pattern using Separation Logic Example: Binary Tree Spec’n: Function tree_get_parent node t focus node pns r p node t pns r p focus node (case left_context)

17 Bart Jacobs, Jan Smans, Frank Piessens - Verifying the Composite Pattern using Separation Logic Example: Binary Tree Spec’n: Function tree_dispose node focus node

18 Bart Jacobs, Jan Smans, Frank Piessens - Verifying the Composite Pattern using Separation Logic Example: Binary Tree Client Proof

19 Bart Jacobs, Jan Smans, Frank Piessens - Verifying the Composite Pattern using Separation Logic Example: Binary Tree Implementation: struct node

20 Bart Jacobs, Jan Smans, Frank Piessens - Verifying the Composite Pattern using Separation Logic Example: Binary Tree Implementation: predicate tree c node subtree focus node c node subtree context(node, parent, count(subtree), c) subtree(node, parent, subtree)

21 Bart Jacobs, Jan Smans, Frank Piessens - Verifying the Composite Pattern using Separation Logic Example: Binary Tree Implementation: predicate subtree left left- Nodes right- Nodes node right node->left |-> left node->right |-> right node->parent |-> parent node->count |-> count(t) malloc_block_node(node) left left- Nodes right right- Nodes

22 Bart Jacobs, Jan Smans, Frank Piessens - Verifying the Composite Pattern using Separation Logic Example: Binary Tree Implementation: predicate context n pns r p right p->left |-> n p->right |-> right p->parent |-> gp p->count |-> pcount malloc_block_node(p) right r pns p

23 Bart Jacobs, Jan Smans, Frank Piessens - Verifying the Composite Pattern using Separation Logic Example: Binary Tree Implementation: function create_tree

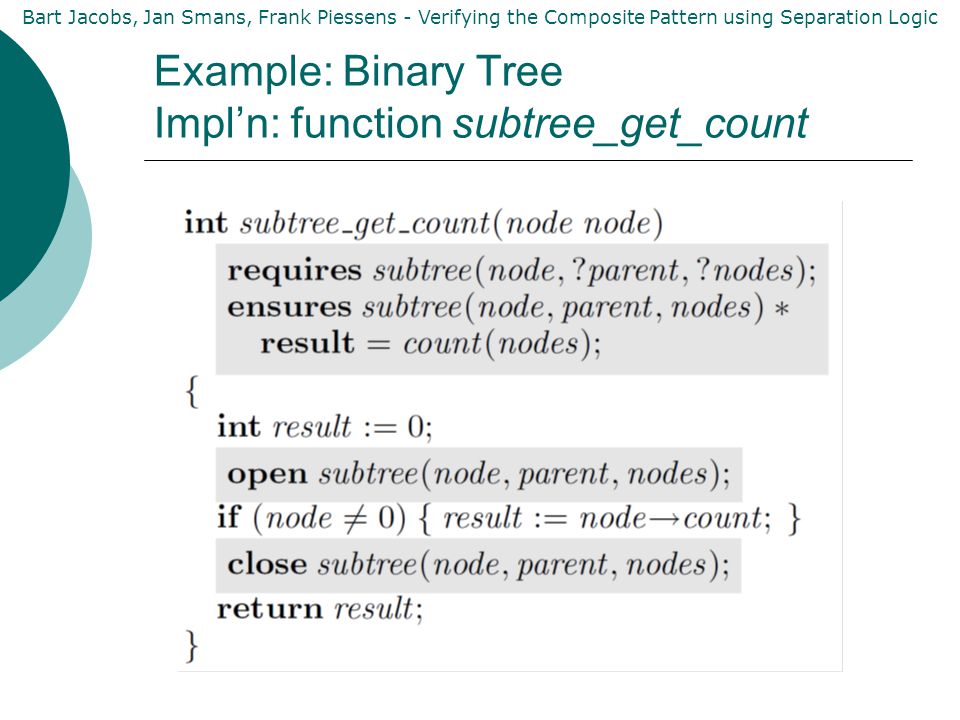

24 Bart Jacobs, Jan Smans, Frank Piessens - Verifying the Composite Pattern using Separation Logic Example: Binary Tree Impl’n: function subtree_get_count

25 Bart Jacobs, Jan Smans, Frank Piessens - Verifying the Composite Pattern using Separation Logic Example: Binary Tree Impl’n: function fixup_ancestors

26 Bart Jacobs, Jan Smans, Frank Piessens - Verifying the Composite Pattern using Separation Logic Example: Binary Tree Impl’n: function tree_add_left

27 Bart Jacobs, Jan Smans, Frank Piessens - Verifying the Composite Pattern using Separation Logic Example: Binary Tree Impl’n: function tree_get_count

28 Bart Jacobs, Jan Smans, Frank Piessens - Verifying the Composite Pattern using Separation Logic Example: Binary Tree Impl’n: function tree_get_parent

29 Bart Jacobs, Jan Smans, Frank Piessens - Verifying the Composite Pattern using Separation Logic Overview  General Idea  Example: Binary Tree Interface Client Specification Client Proof Implementation and Implementation Proof Non-contiguous Focus Changes  Demonstration  Conclusion

30 Bart Jacobs, Jan Smans, Frank Piessens - Verifying the Composite Pattern using Separation Logic Non-contiguous Focus Changes Example Client Program

31 Bart Jacobs, Jan Smans, Frank Piessens - Verifying the Composite Pattern using Separation Logic Non-contiguous Focus Changes Additional Specification Elements

32 Bart Jacobs, Jan Smans, Frank Piessens - Verifying the Composite Pattern using Separation Logic Non-contiguous Focus Changes Proof of Example Client Program

33 Bart Jacobs, Jan Smans, Frank Piessens - Verifying the Composite Pattern using Separation Logic Non-contiguous Focus Changes Proof of lemma change_focus

34 Bart Jacobs, Jan Smans, Frank Piessens - Verifying the Composite Pattern using Separation Logic Overview  General Idea  Example: Binary Tree Interface Client Specification Client Proof Implementation and Implementation Proof Non-contiguous Focus Changes  Demonstration  Conclusion

35 Bart Jacobs, Jan Smans, Frank Piessens - Verifying the Composite Pattern using Separation Logic Overview  General Idea  Example: Binary Tree Interface Client Specification Client Proof Implementation and Implementation Proof Non-contiguous Focus Changes  Demonstration  Conclusion

36 Bart Jacobs, Jan Smans, Frank Piessens - Verifying the Composite Pattern using Separation Logic Conclusion  Approach: Structure = 1 seplogic predicate In proof: Separate out focus node In client: Change focus node using lemma  VeriFast:
