1 Created by the Community for the Community HL7 Revisited

2 Created by the Community for the Community Mark Brimble Systems Consultant - Connected Business Systems Datacom Systems Limited, New Zealand BizTalk Light and Easy Webcast Series

3 Created by the Community for the Community What we are going to cover and disclaimer Why HL7 messages and relevance to Health systems How can BizTalk help? Quick tour of HL7 accelerator – Demo BizTalk 2009 A quick look at Elizabeth Reddings HL7 v2.x to HL7 v3 example – Demo BizTalk 2009 Summary and References

4 Created by the Community for the Community You have been asked to implement a system that uses HL7 messaging and BizTalk Server. This talk will try walk you through the voyage that you might take as you discover all the features of the HL7 accelerator.

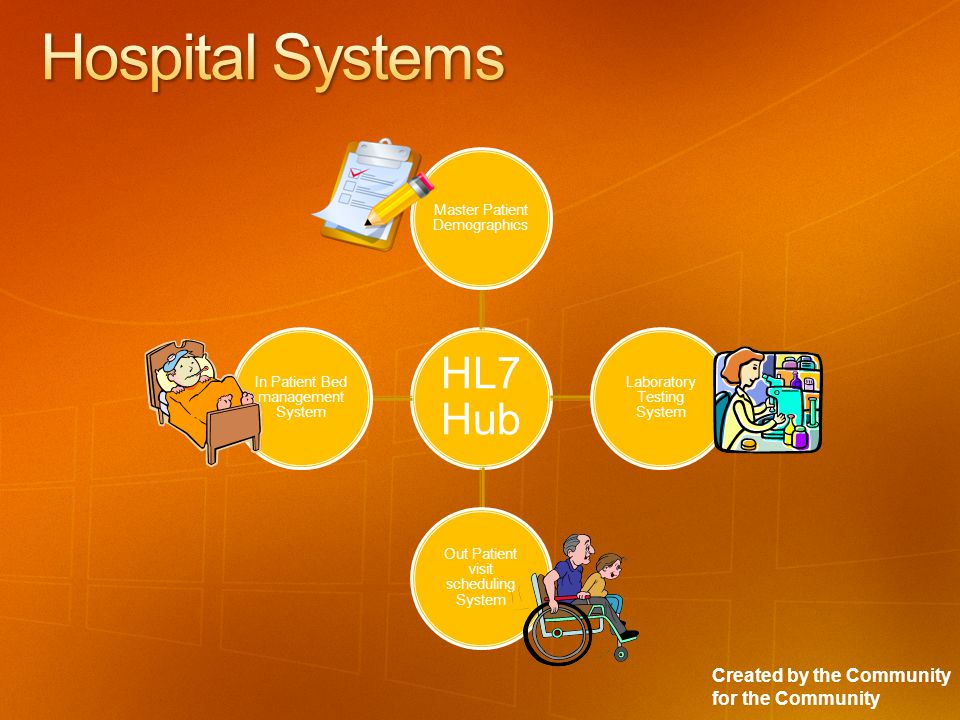

5 Created by the Community for the Community HL7 Hub Master Patient Demographics Laboratory Testing System Out Patient visit scheduling System In Patient Bed management System

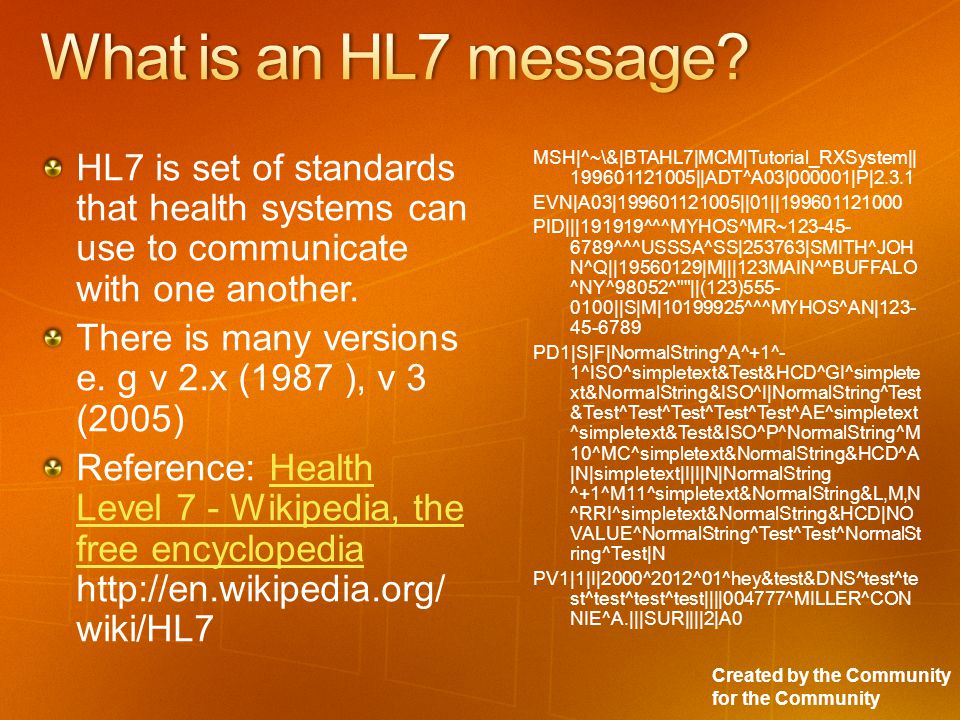

6 Created by the Community for the Community HL7 is set of standards that health systems can use to communicate with one another. There is many versions e. g v 2.x (1987 ), v 3 (2005) Reference: Health Level 7 - Wikipedia, the free encyclopedia wiki/HL7Health Level 7 - Wikipedia, the free encyclopedia MSH|^~\&|BTAHL7|MCM|Tutorial_RXSystem|| ||ADT^A03|000001|P|2.3.1 EVN|A03| ||01|| PID|||191919^^^MYHOS^MR~ ^^^USSSA^SS|253763|SMITH^JOH N^Q|| |M|||123MAIN^^BUFFALO ^NY^98052^""||(123) ||S|M| ^^^MYHOS^AN| PD1|S|F|NormalString^A^+1^- 1^ISO^simpletext&Test&HCD^GI^simplete xt&NormalString&ISO^I|NormalString^Test &Test^Test^Test^Test^Test^AE^simpletext ^simpletext&Test&ISO^P^NormalString^M 10^MC^simpletext&NormalString&HCD^A |N|simpletext|I|I|N|NormalString ^+1^M11^simpletext&NormalString&L,M,N ^RRI^simpletext&NormalString&HCD|NO VALUE^NormalString^Test^Test^NormalSt ring^Test|N PV1|1|I|2000^2012^01^hey&test&DNS^test^te st^test^test^test||||004777^MILLER^CON NIE^A.|||SUR||||2|A0

7 Created by the Community for the Community Most messaging uses Minimum Low Layer protocol (MLLP) Traditional file transfer or Via a TCP/IP socket Can be both a real-time and batched fashion.

8 Created by the Community for the Community Microsoft BizTalk Server Accelerator for HL7 Microsoft BizTalk Server Accelerator for HL7 m/biztalk/en/us/acceler ator-hl7.aspx

9 Created by the Community for the Community What do you get after installing the HL7 accelerator Quick run through End to End solution

10 Created by the Community for the Community Eric's BizTalk & HL7 blogEric's BizTalk & HL7 blog info.com/http://blog.hl7- info.com/ Designing Healthcare Solutions with Microsoft BizTalk Server 2004 by Jim Casey and Elizabeth ReddingJim CaseyElizabeth Redding

11 Created by the Community for the Community © 2008 Microsoft Corporation. All rights reserved. Microsoft, Windows, Windows Vista and other product names are or may be registered trademarks and/or trademarks in the U.S. and/or other countries. The information herein is for informational purposes only and represents the current view of Microsoft Corporation as of the date of this presentation. Because Microsoft must respond to changing market conditions, it should not be interpreted to be a commitment on the part of Microsoft, and Microsoft cannot guarantee the accuracy of any information provided after the date of this presentation. MICROSOFT MAKES NO WARRANTIES, EXPRESS, IMPLIED OR STATUTORY, AS TO THE INFORMATION IN THIS PRESENTATION. BizTalk Light and Easy Webcast Series Created by the Community for the Community Meet the team….
