SI/EECS 767 Yang Liu Apr 2, 2010

2
A minimum cut is the smallest cut that will disconnect a graph into two disjoint subsets. Application: Graph partitioning Data clustering Graph-based machine learning

3

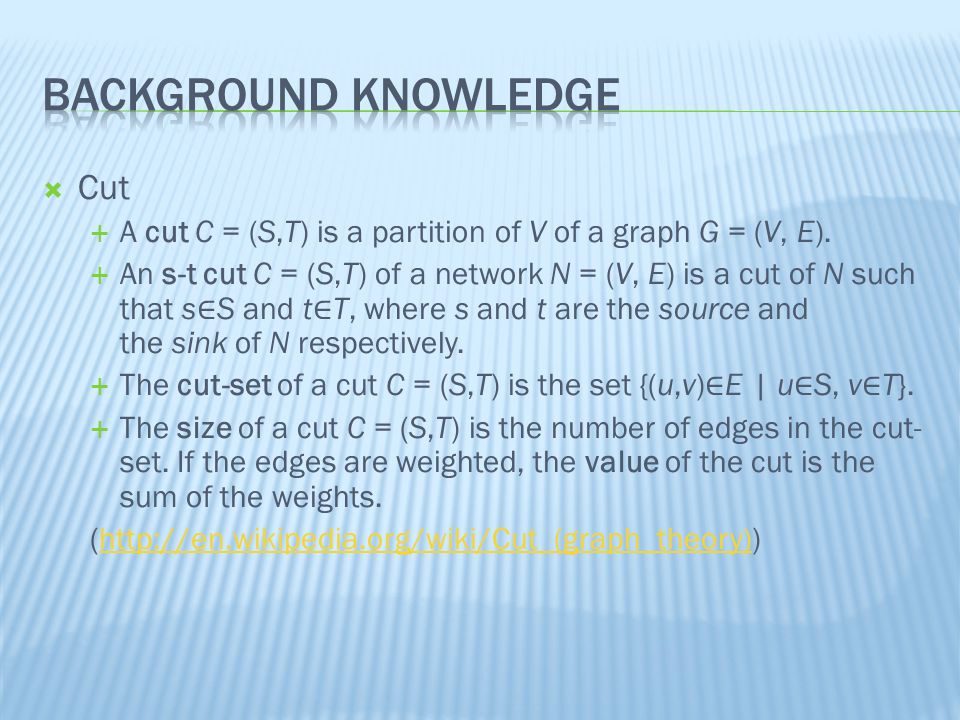

Cut A cut C = (S,T) is a partition of V of a graph G = (V, E). An s-t cut C = (S,T) of a network N = (V, E) is a cut of N such that s ∈ S and t ∈ T, where s and t are the source and the sink of N respectively. The cut-set of a cut C = (S,T) is the set {(u,v) ∈ E | u ∈ S, v ∈ T}. The size of a cut C = (S,T) is the number of edges in the cut- set. If the edges are weighted, the value of the cut is the sum of the weights. (http://en.wikipedia.org/wiki/Cut_(graph_theory))http://en.wikipedia.org/wiki/Cut_(graph_theory)

4

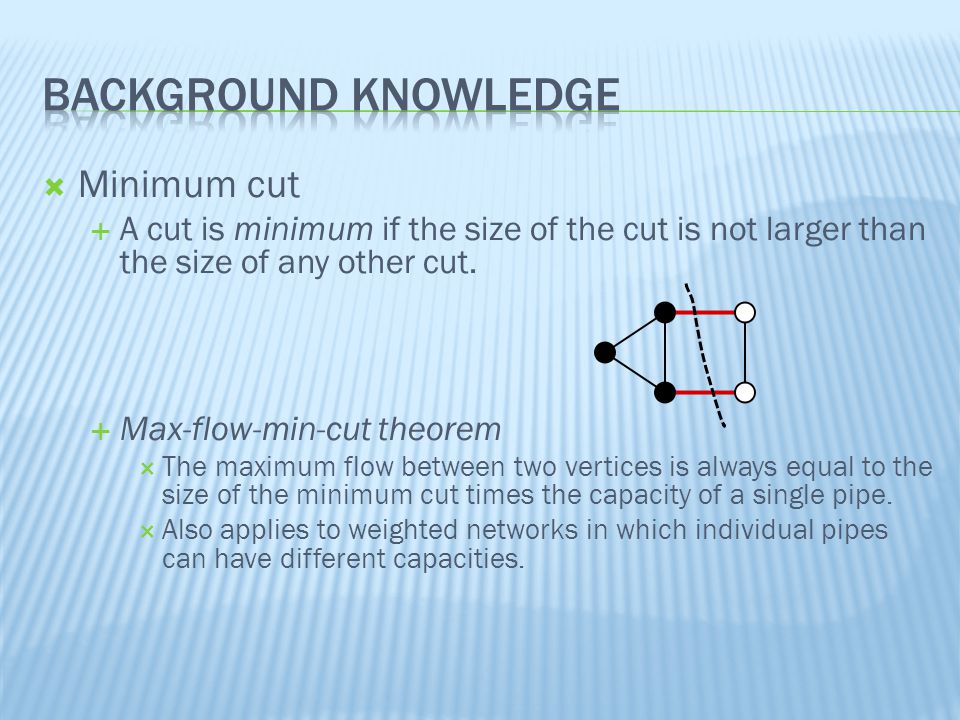

Minimum cut A cut is minimum if the size of the cut is not larger than the size of any other cut. Max-flow-min-cut theorem The maximum flow between two vertices is always equal to the size of the minimum cut times the capacity of a single pipe. Also applies to weighted networks in which individual pipes can have different capacities.

5

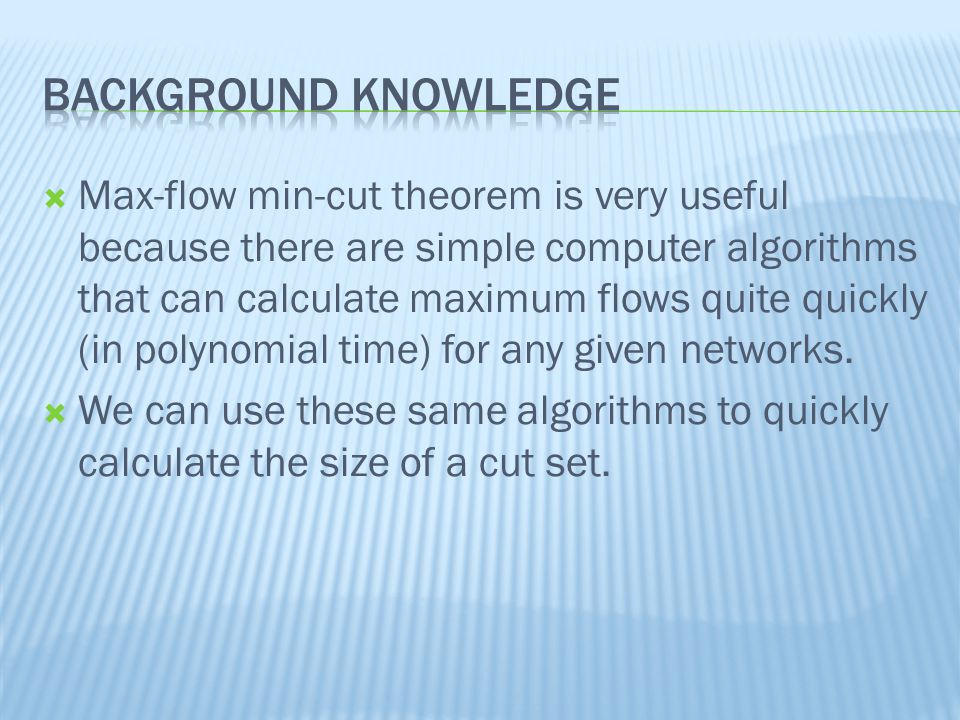

Max-flow min-cut theorem is very useful because there are simple computer algorithms that can calculate maximum flows quite quickly (in polynomial time) for any given networks. We can use these same algorithms to quickly calculate the size of a cut set.

6
Basic idea: First find a path from source s to sink t using the breadth-first search; Then find another path from s to t among the remaining edges and repeat this procedure until no more paths can be found. st

7

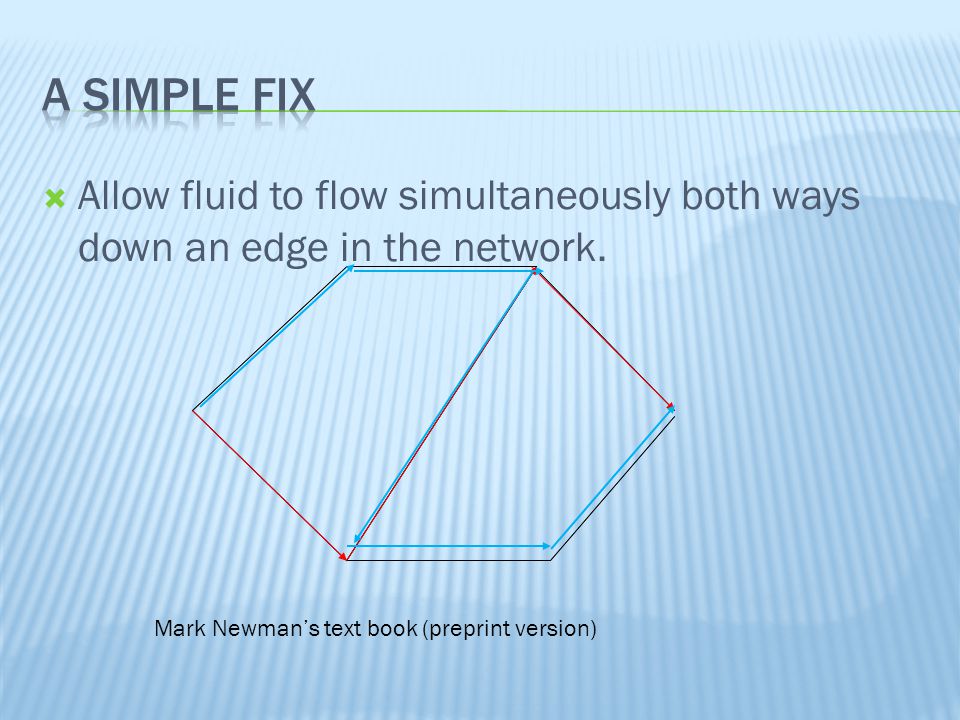

Allow fluid to flow simultaneously both ways down an edge in the network. Mark Newman’s text book (preprint version)

8
Graph Clustering and Minimum Cut Tress (Flake et al 2004)

9

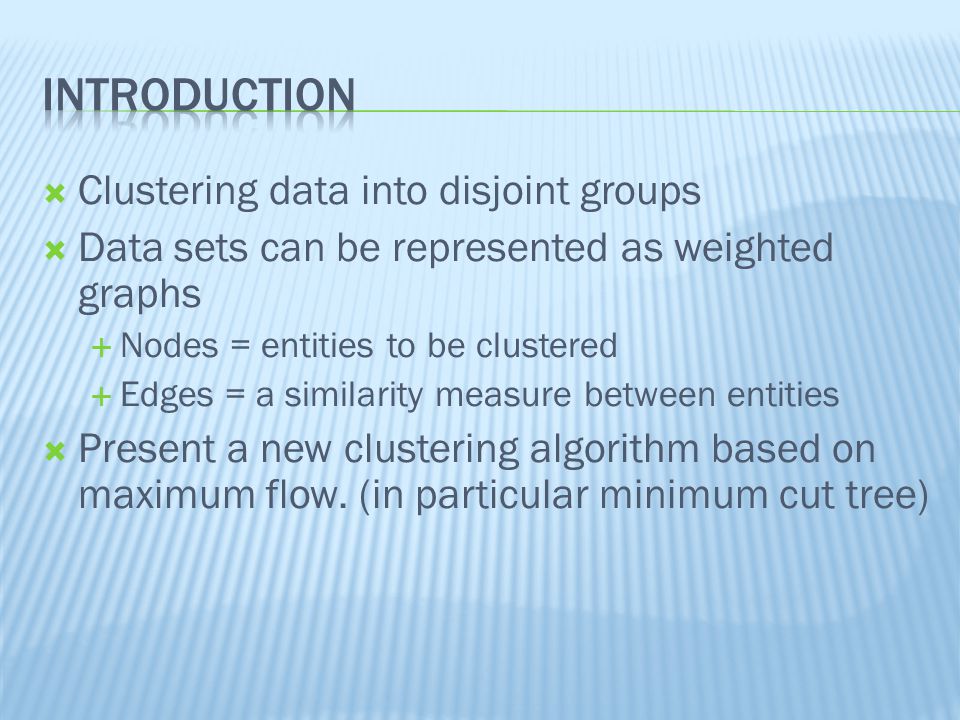

Clustering data into disjoint groups Data sets can be represented as weighted graphs Nodes = entities to be clustered Edges = a similarity measure between entities Present a new clustering algorithm based on maximum flow. (in particular minimum cut tree)

10
Also known as Gomory–Hu tree A weighted tree that consists of edges representing all pairs minimum s-t cut in the graph For every undirected graph, there always exists a min-cut tree. See [Gomory and Hu 61] for detail and the algorithm for calculating min-cut trees.

12

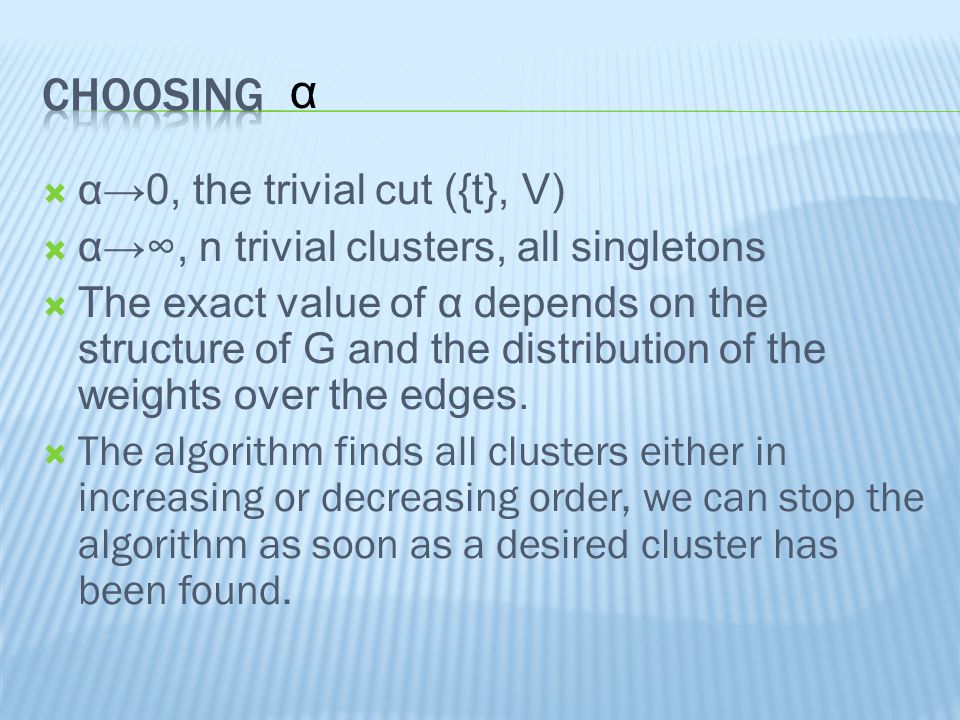

α→0, the trivial cut ({t}, V) α→∞, n trivial clusters, all singletons The exact value of α depends on the structure of G and the distribution of the weights over the edges. The algorithm finds all clusters either in increasing or decreasing order, we can stop the algorithm as soon as a desired cluster has been found. α

13

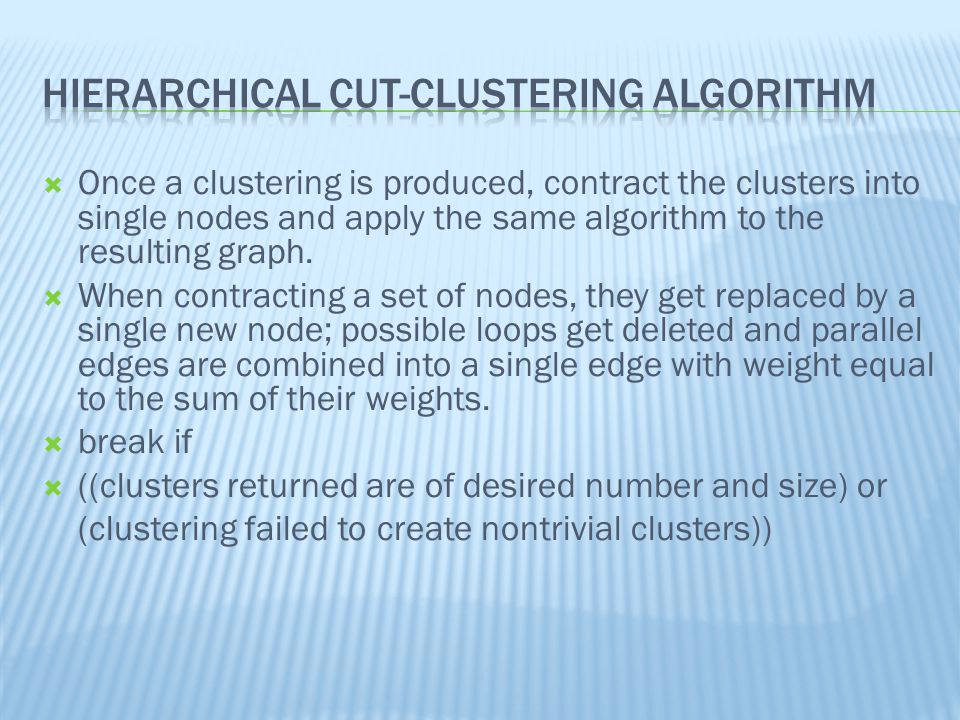

Once a clustering is produced, contract the clusters into single nodes and apply the same algorithm to the resulting graph. When contracting a set of nodes, they get replaced by a single new node; possible loops get deleted and parallel edges are combined into a single edge with weight equal to the sum of their weights. break if ((clusters returned are of desired number and size) or (clustering failed to create nontrivial clusters))

15

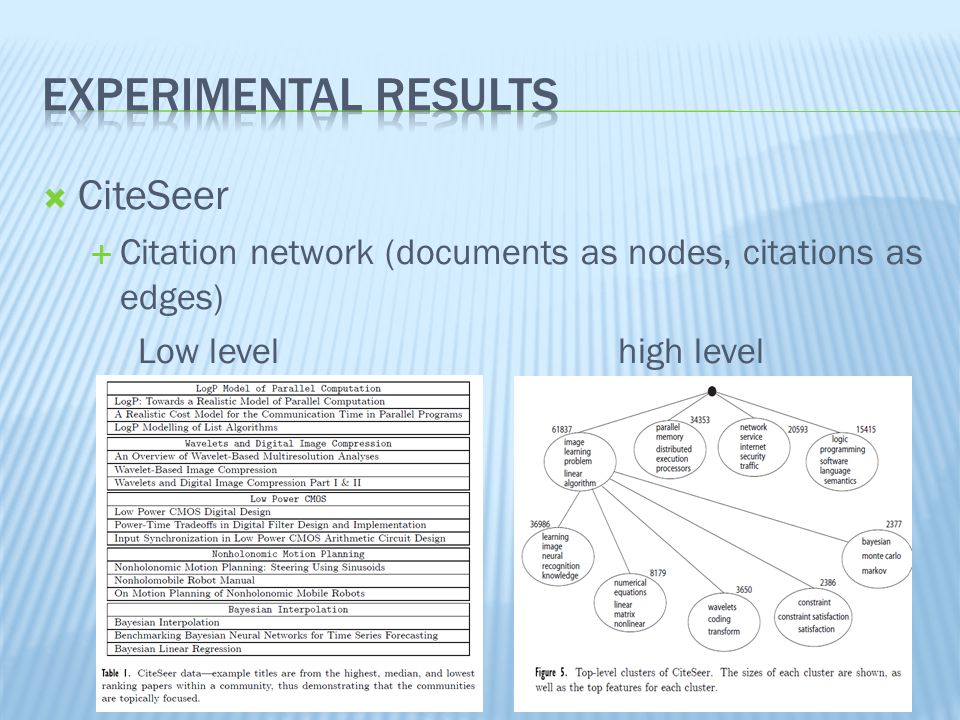

CiteSeer Citation network (documents as nodes, citations as edges) Low levelhigh level

16

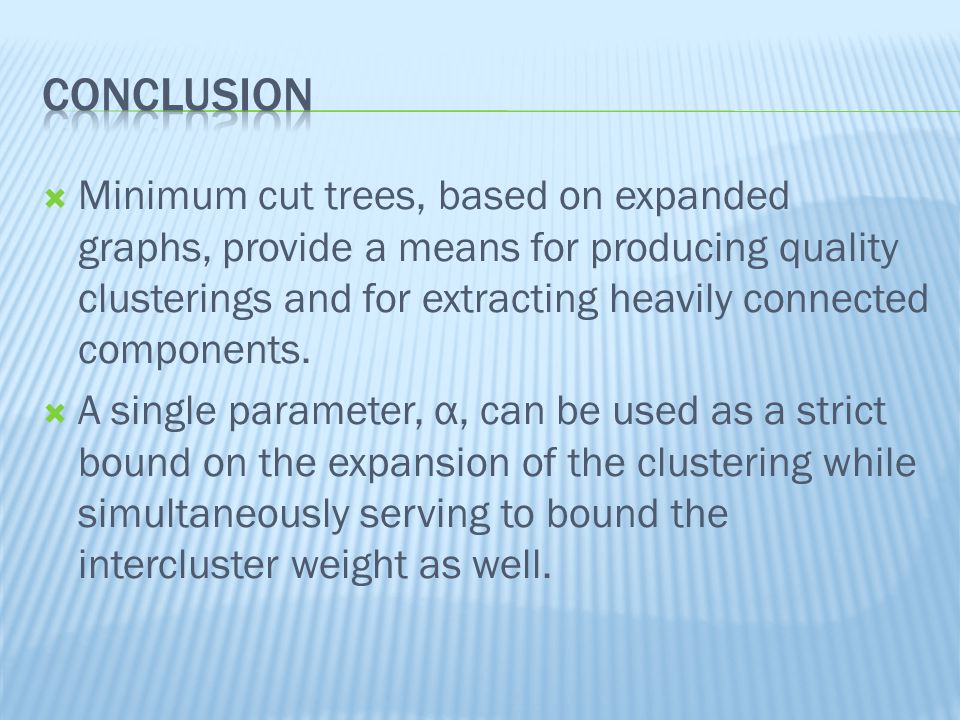

Minimum cut trees, based on expanded graphs, provide a means for producing quality clusterings and for extracting heavily connected components. A single parameter, α, can be used as a strict bound on the expansion of the clustering while simultaneously serving to bound the intercluster weight as well.

17
Bipartite Graph Partitioning and Data Clustering (Zha et al 2001)

18
Bipartite graph Two kinds of vertices One representing the original vertices and the other representing the groups to which they belong Examples: terms and documents, authors and authors of an article Adapt undirected graphs criteria for bipartite graph partitioning and therefore solve the bi- clustering problem.

19

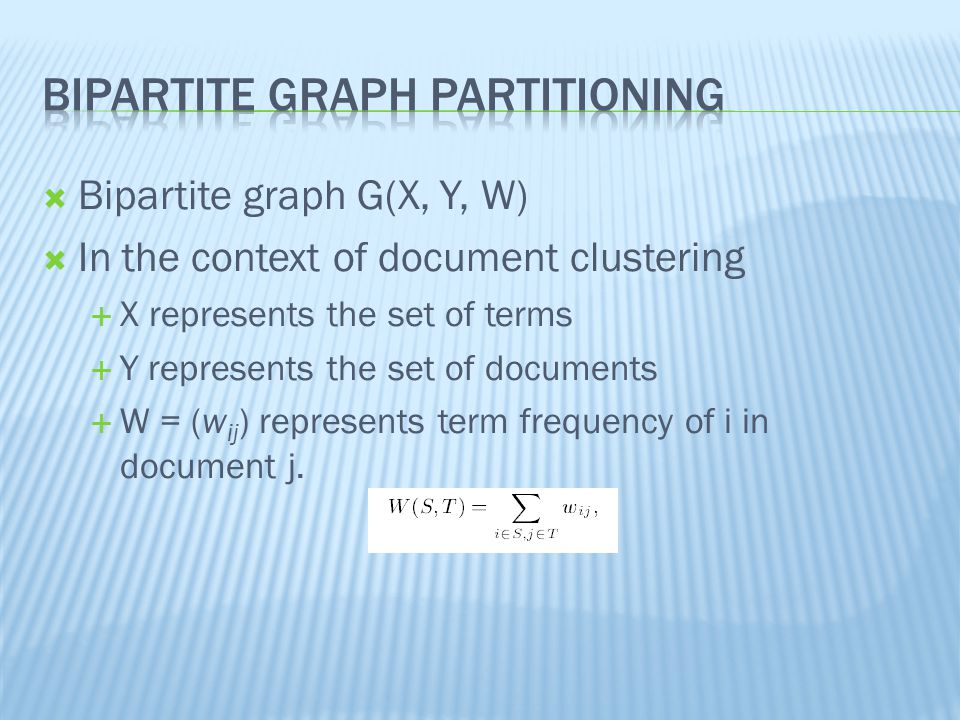

Bipartite graph G(X, Y, W) In the context of document clustering X represents the set of terms Y represents the set of documents W = (w ij ) represents term frequency of i in document j.

20

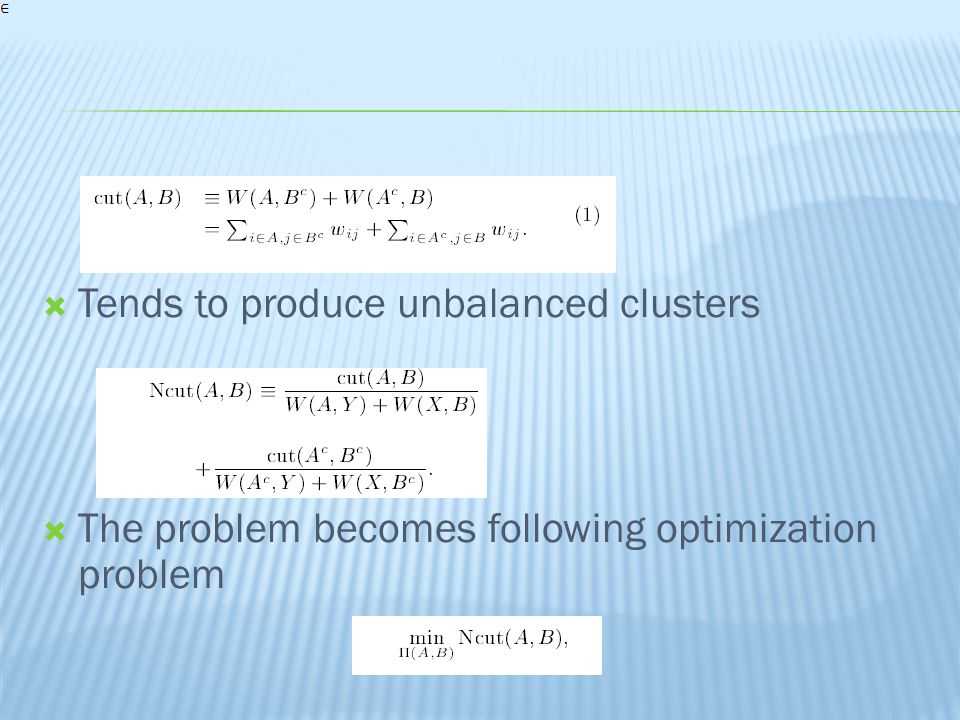

Tends to produce unbalanced clusters The problem becomes following optimization problem

21

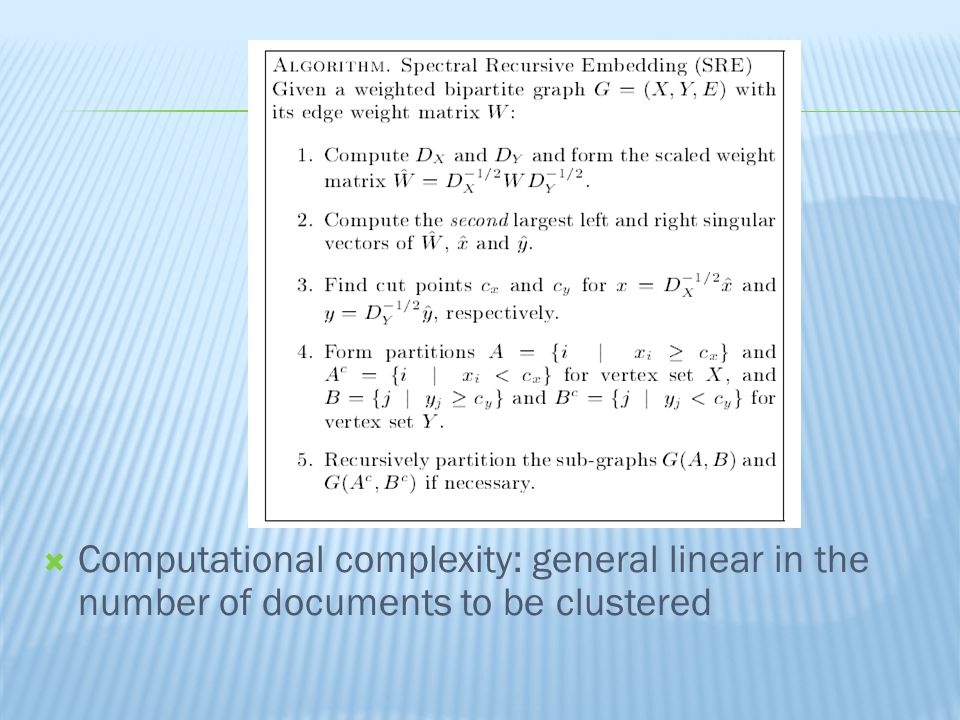

Computational complexity: general linear in the number of documents to be clustered

22
20 news groups

23

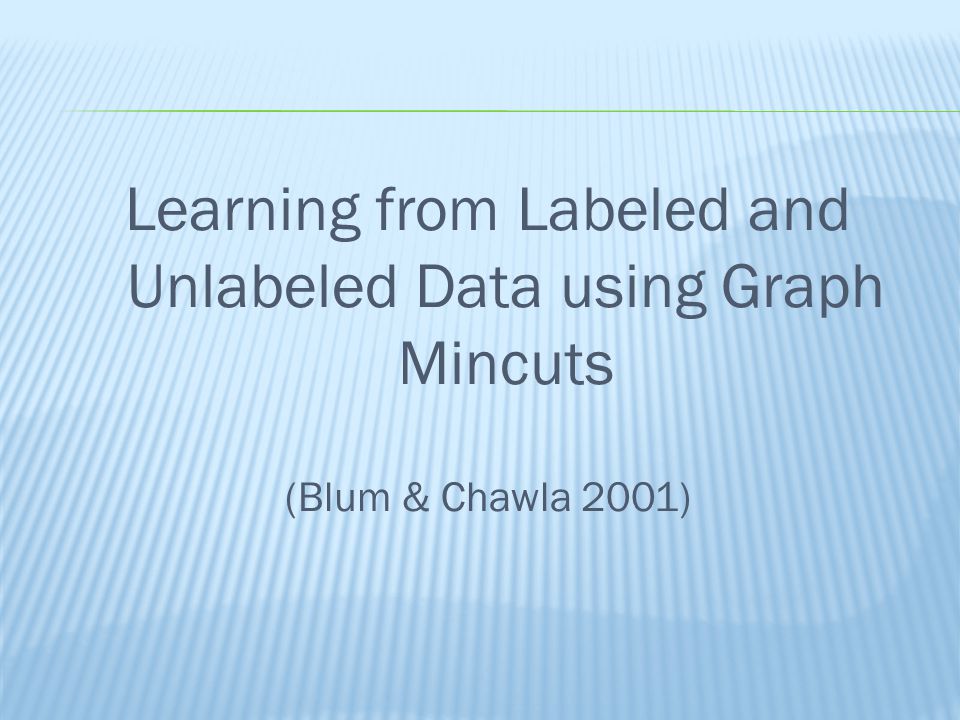

Learning from Labeled and Unlabeled Data using Graph Mincuts (Blum & Chawla 2001)

24
Many application domains suffer from not having enough labeled training data for learning. Large amounts of unlabeled examples How unlabeled data can be used to aid classification

25

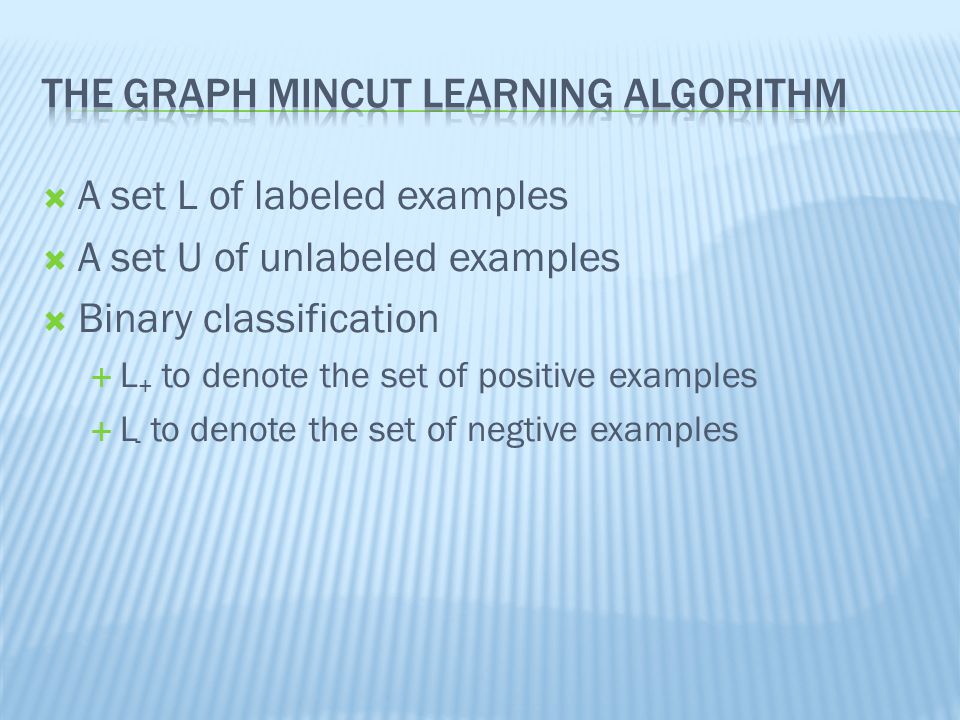

A set L of labeled examples A set U of unlabeled examples Binary classification L + to denote the set of positive examples L - to denote the set of negtive examples

26

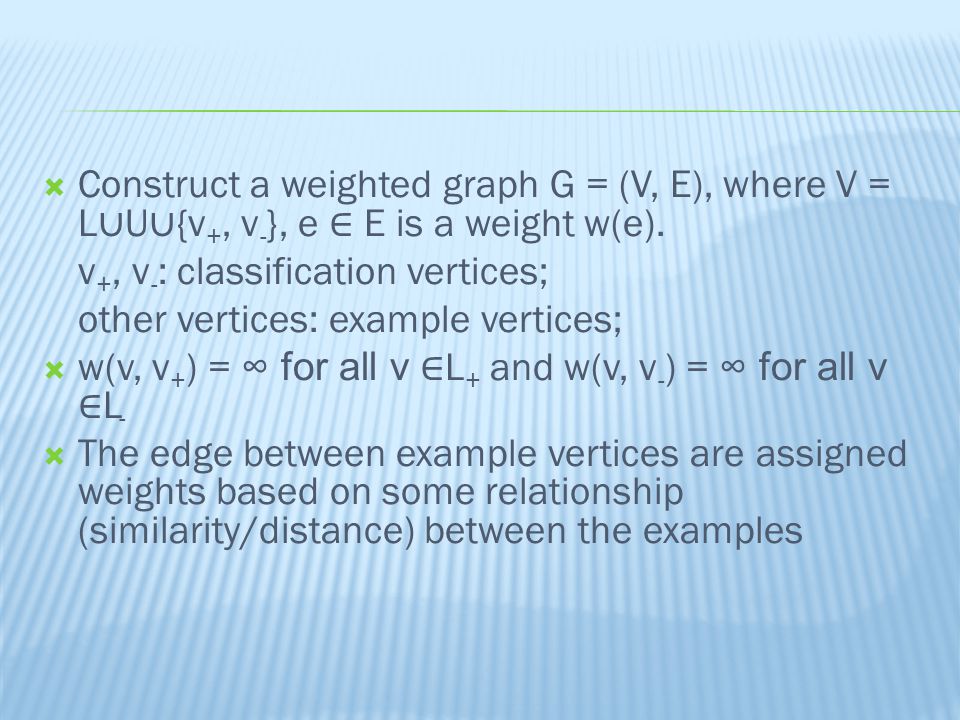

Construct a weighted graph G = (V, E), where V = L ∪ U ∪ {v +, v - }, e ∈ E is a weight w(e). v +, v - : classification vertices; other vertices: example vertices; w(v, v + ) = ∞ for all v ∈ L + and w(v, v - ) = ∞ for all v ∈ L - The edge between example vertices are assigned weights based on some relationship (similarity/distance) between the examples

27

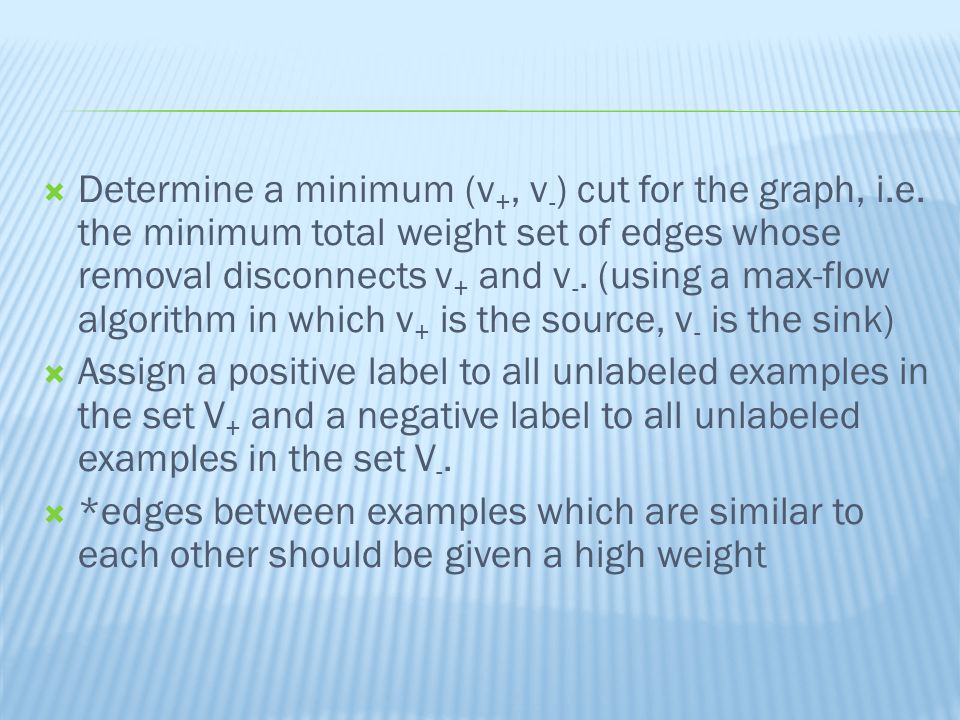

Determine a minimum (v +, v - ) cut for the graph, i.e. the minimum total weight set of edges whose removal disconnects v + and v -. (using a max-flow algorithm in which v + is the source, v - is the sink) Assign a positive label to all unlabeled examples in the set V + and a negative label to all unlabeled examples in the set V -. *edges between examples which are similar to each other should be given a high weight

28

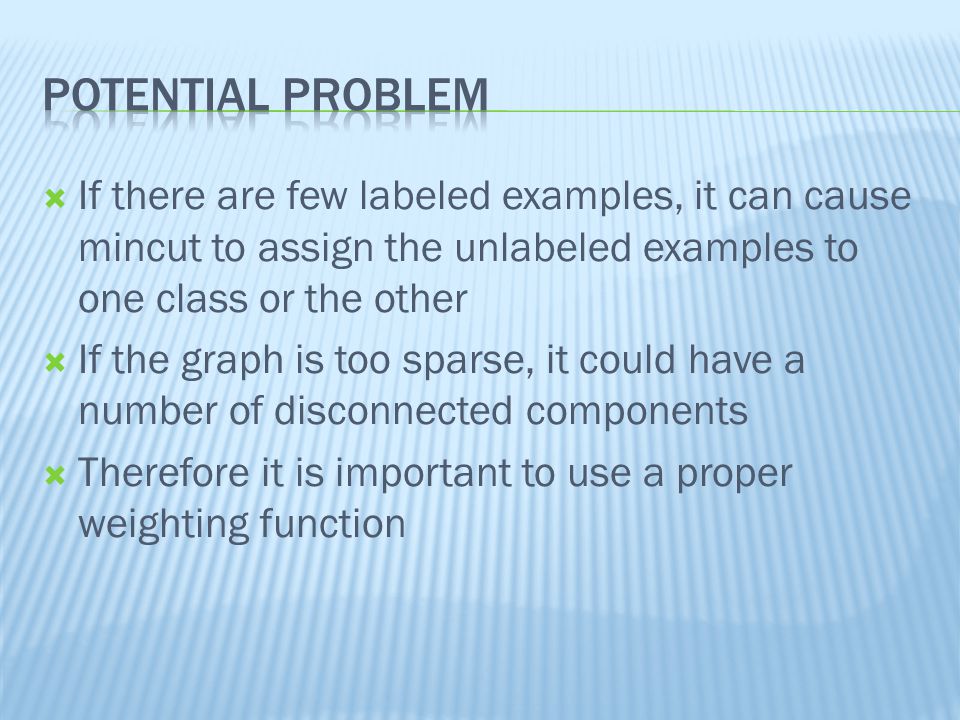

If there are few labeled examples, it can cause mincut to assign the unlabeled examples to one class or the other If the graph is too sparse, it could have a number of disconnected components Therefore it is important to use a proper weighting function

29

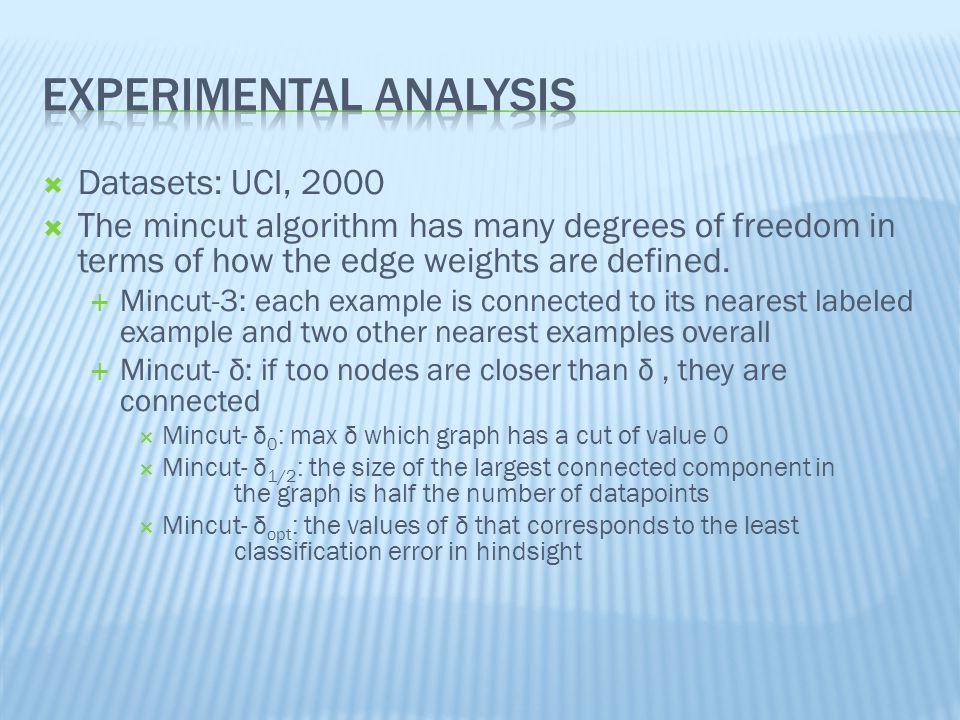

Datasets: UCI, 2000 The mincut algorithm has many degrees of freedom in terms of how the edge weights are defined. Mincut-3: each example is connected to its nearest labeled example and two other nearest examples overall Mincut- δ: if too nodes are closer than δ, they are connected Mincut- δ 0 : max δ which graph has a cut of value 0 Mincut- δ 1/2 : the size of the largest connected component in the graph is half the number of datapoints Mincut- δ opt : the values of δ that corresponds to the least classification error in hindsight

31

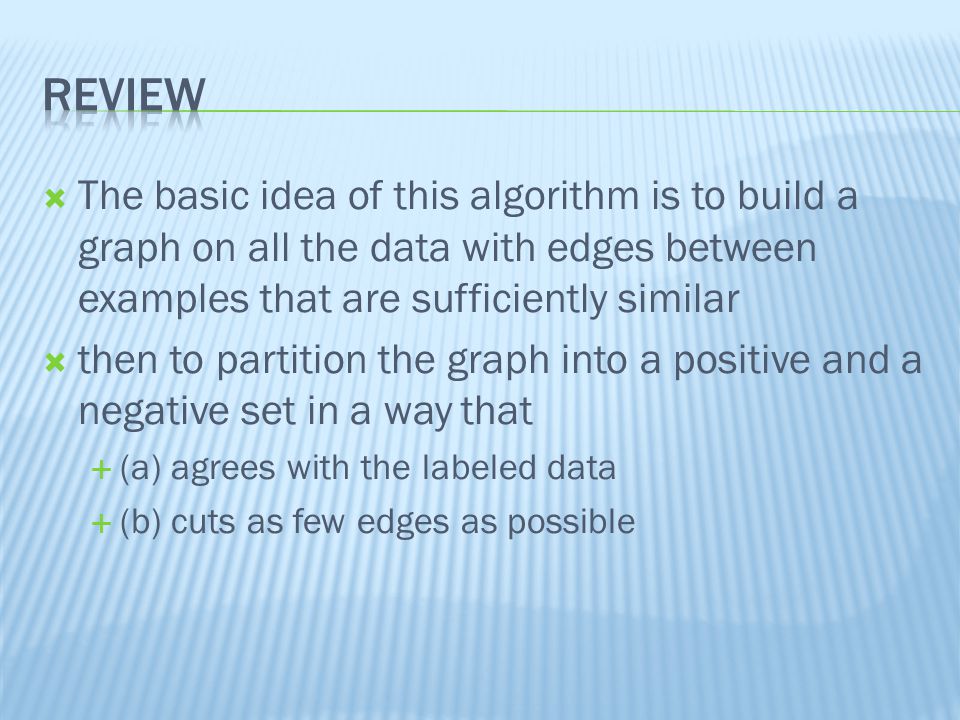

The basic idea of this algorithm is to build a graph on all the data with edges between examples that are sufficiently similar then to partition the graph into a positive and a negative set in a way that (a) agrees with the labeled data (b) cuts as few edges as possible

32

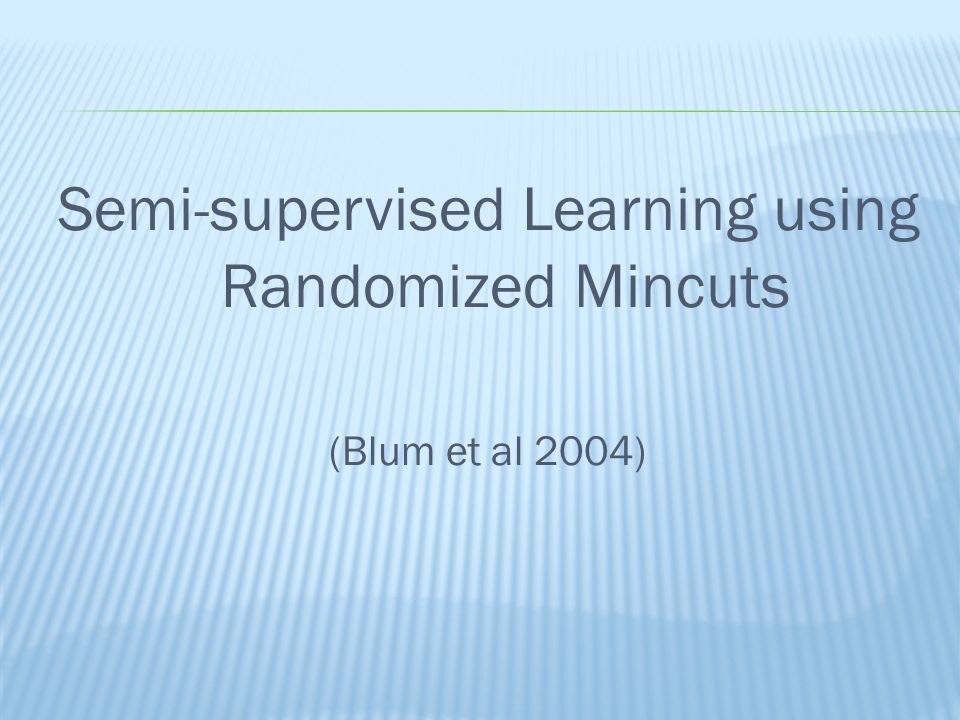

Semi-supervised Learning using Randomized Mincuts (Blum et al 2004)

33

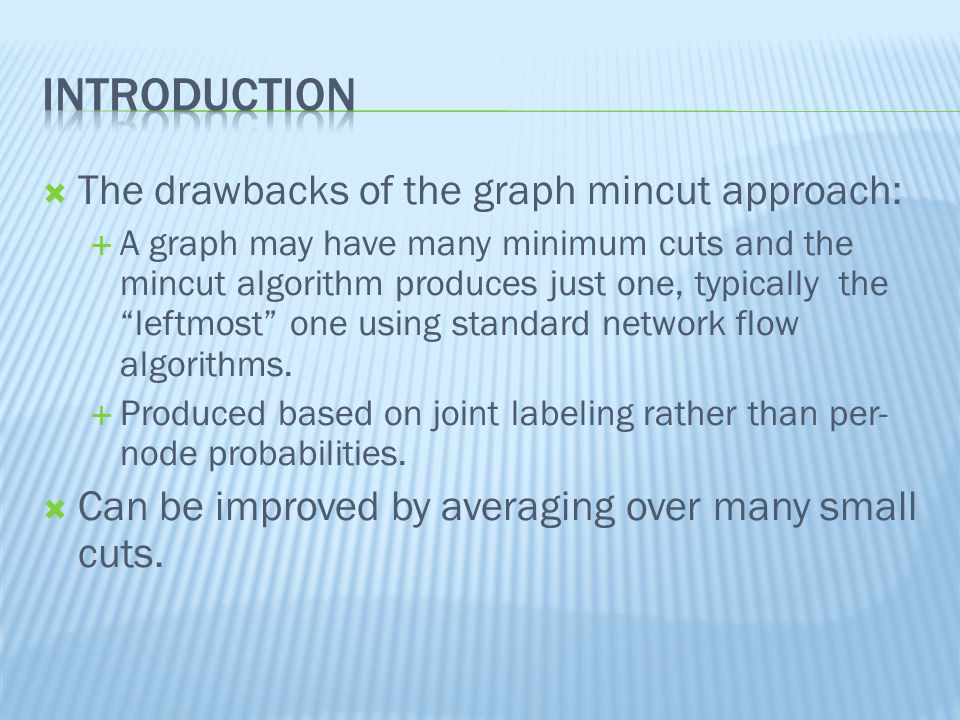

The drawbacks of the graph mincut approach: A graph may have many minimum cuts and the mincut algorithm produces just one, typically the “leftmost” one using standard network flow algorithms. Produced based on joint labeling rather than per- node probabilities. Can be improved by averaging over many small cuts.

34

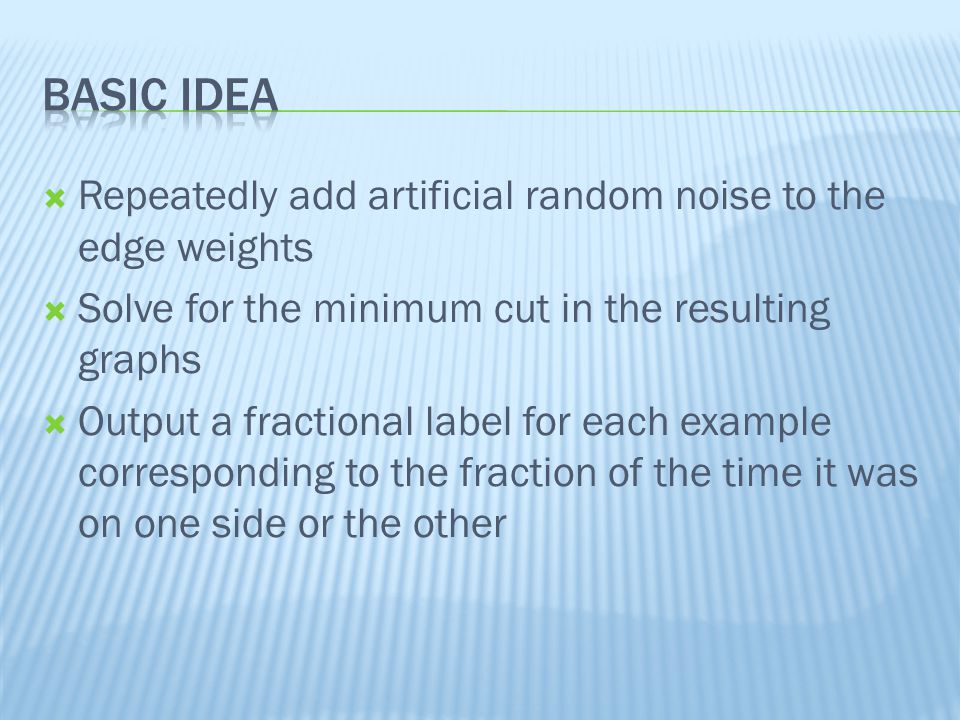

Repeatedly add artificial random noise to the edge weights Solve for the minimum cut in the resulting graphs Output a fractional label for each example corresponding to the fraction of the time it was on one side or the other

35
Given a graph G, produce a collection of cuts by repeatedly adding random noise to the edge weights and then solving for the minimum cut in the perturbed graph. Sanity check: remove those that are highly unbalanced (any cut with less than 5% of the vertices on one side in this paper) Predict based on a majority vote

36

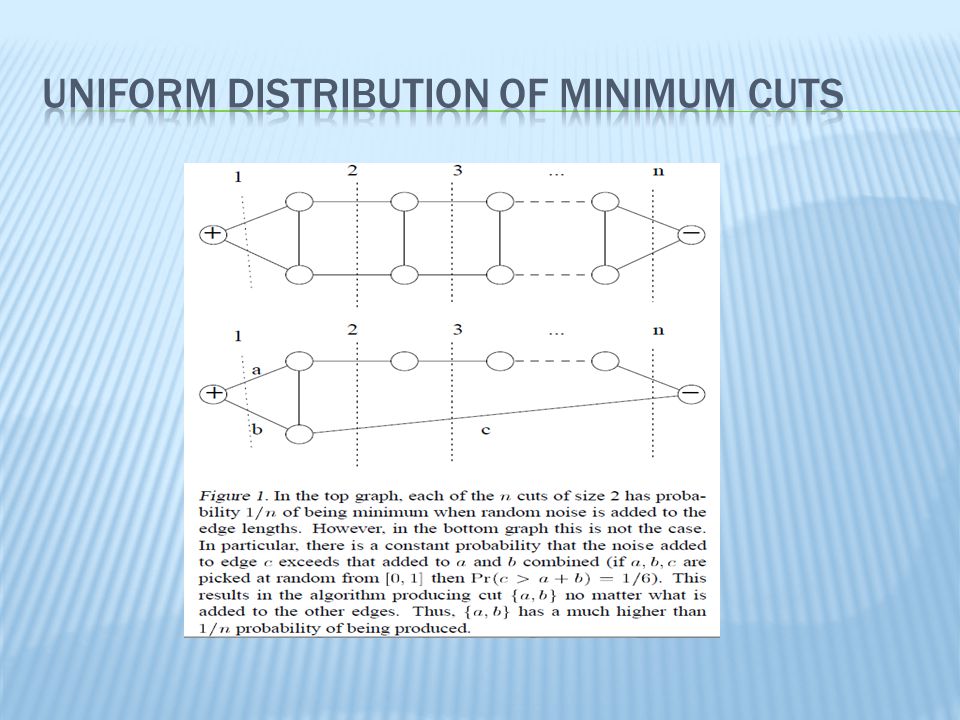

Overcome some of the limitations of the plain mincut algorithm. Consider a graph which simply consists of a line with a positively labeled node at one end and a negatively labeled node at the other end with the rest being unlabeled. Plain mincut: the cut will be the leftmost or right most one Randomized mincut: end up using the middle of the line with confidence that increases linearly out to the endpoints

38
The graph should be either be connected or at least have the property that a small number of connected components cover nearly all the examples. Good to create a graph that at least has some small balanced cuts.

39
MST: simply construct a minimum spanning tree on the entire dataset δ-MST: connect two points with an edge if they are within a radius δ. Then veiw the components produced as super nodes and connect them via an MST.

40

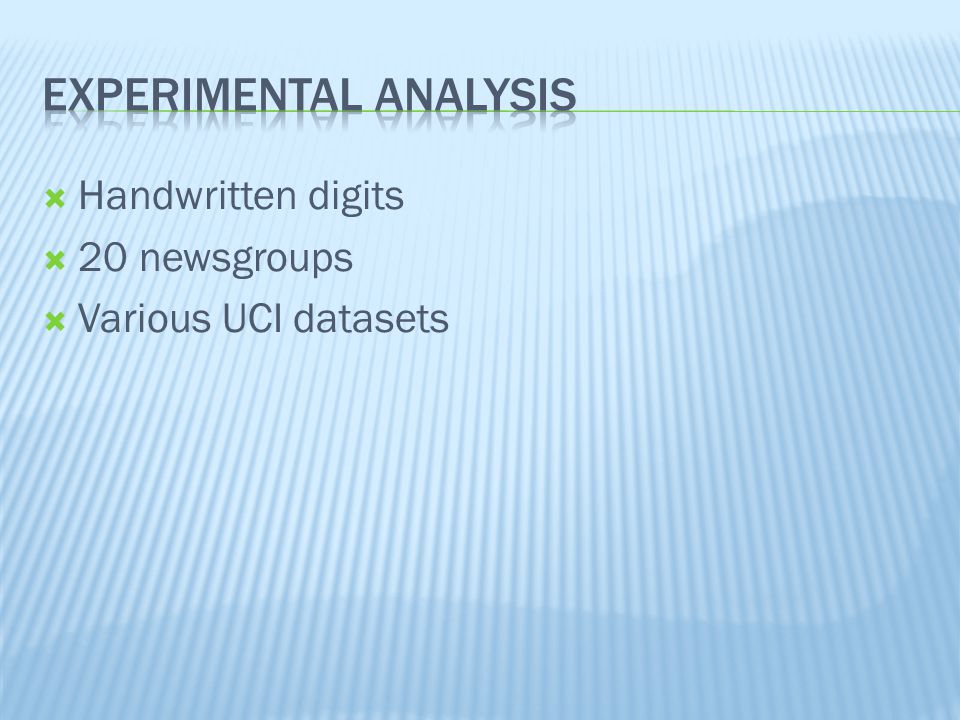

Handwritten digits 20 newsgroups Various UCI datasets

42
Improve performance when the number of labeled examples is small Providing a confidence score for accuracy- coverage curves.

43
A Sentimental Education: Sentiment Analysis using Subjectivity Summarization based on Minimum Cuts (Pang & Lee 2004)

44
machine-learning method that applies text- categorization techniques to determine the sentiment polarity—positive (“thumbs up”) or negative (“thumbs down”)

45
Previous approaches focused on selecting indicative lexical features Their approach: Label the sentences as either subjective or objective Apply a standard machine-learning classifier to the resulting extract.

47
n items x 1,..., x n to divide into two classes C 1 and C 2 Individual scores ind j (x i ): non-negative estimates of each x i ’s preference for being in C j based on just the features of x i alone; Association scores assoc(x i, x k ): non-negative estimates of how important it is that x i and x k be in the same class. Minimize the partition cost :

48

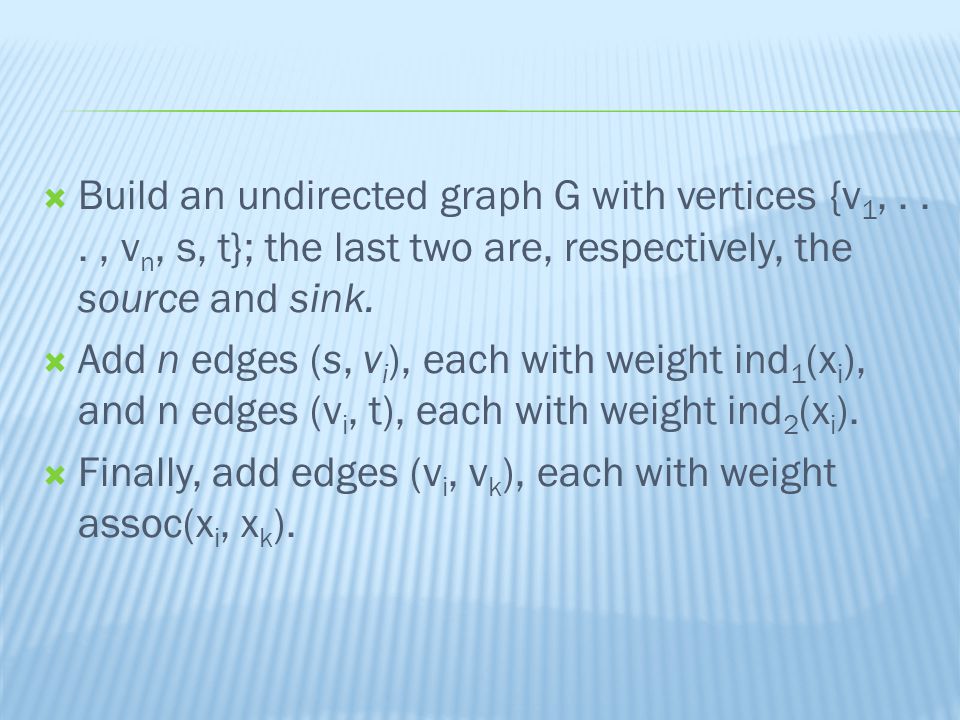

Build an undirected graph G with vertices {v 1,..., v n, s, t}; the last two are, respectively, the source and sink. Add n edges (s, v i ), each with weight ind 1 (x i ), and n edges (v i, t), each with weight ind 2 (x i ). Finally, add edges (v i, v k ), each with weight assoc(x i, x k ).

50
Classifying movie reviews as either positive and negative The correct label can be extracted automatically from rating information (number of stars)

51

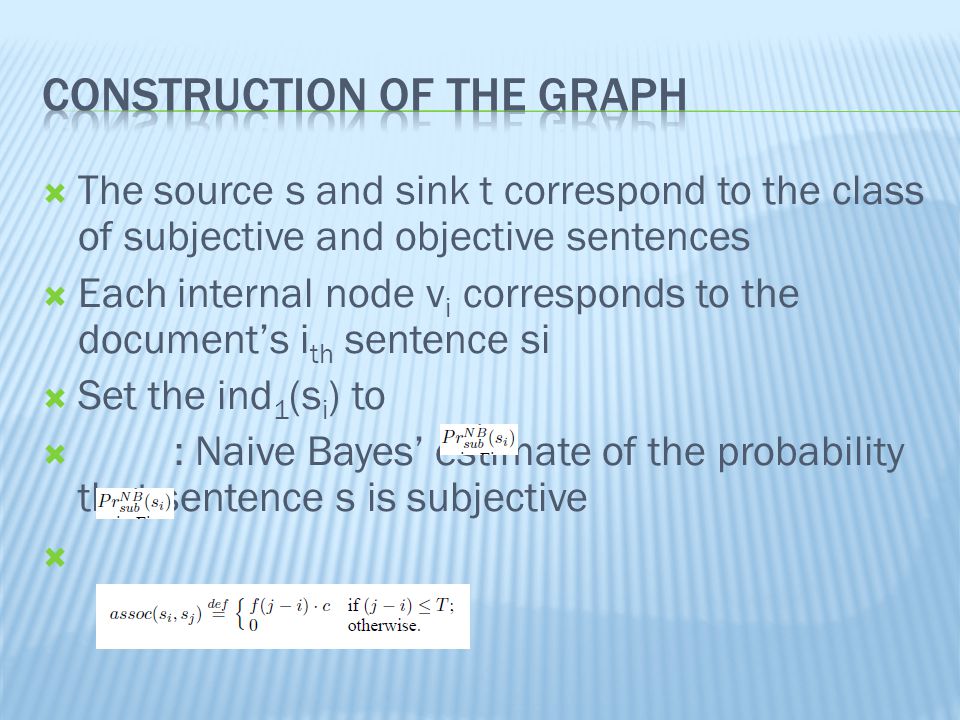

The source s and sink t correspond to the class of subjective and objective sentences Each internal node v i corresponds to the document’s i th sentence si Set the ind 1 (s i ) to : Naive Bayes’ estimate of the probability that sentence s is subjective

52
NB as a subjectivity detector in conjunction with a NB document-level polarity 86.4% accuracy VS 82.8% without extraction SVM: 87.15% VS 86.4% Sentences labeled as objective as input: 71% for NB and 67% for SVMs Taking just the N most subjective sentences: 5 most subjective sentences is almost as informative as the Full review while containing only about 22% of the source words.

53
Subjectivity detection can compress reviews into shorter extracts still retain polarity information Minimum-cut frame work results in the development of efficient algorithm for sentiment analysis

54
Questions?
