OPENING THE BLACK BOX Boaz Barak Institute for Advanced Study Princeton, NJ New Techniques in Cryptography

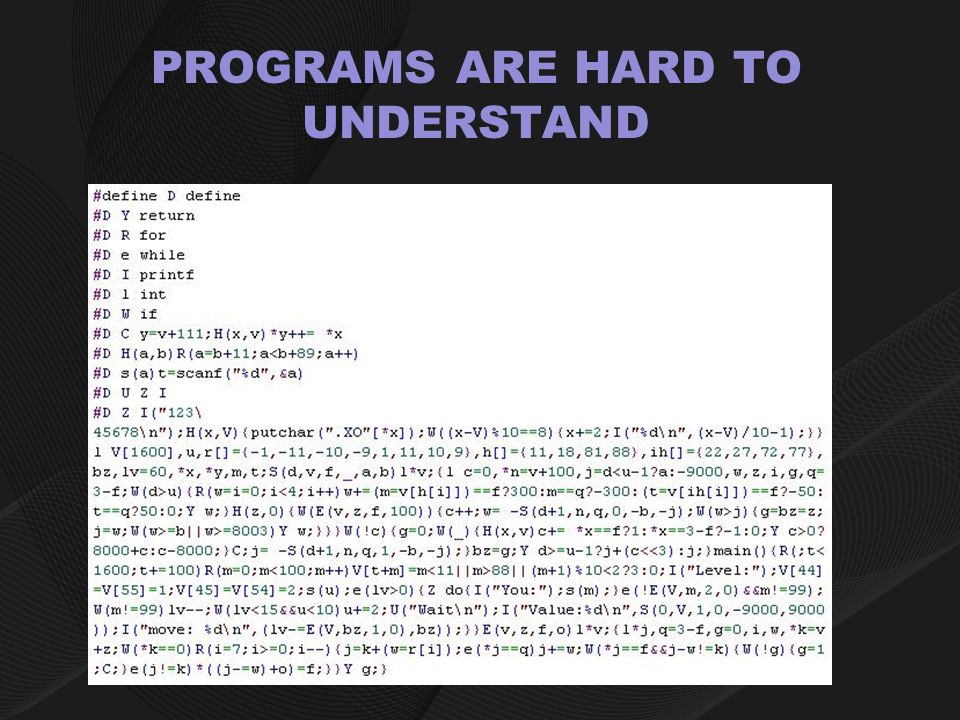

PROGRAMS ARE HARD TO UNDERSTAND Can’t eliminate bugs Understanding compiled progs even harder “Natural state is complete unreadability” HALTING undecidable SAT probably hard Can’t prove lower bounds

PROGRAMS AS BLACK BOXES Programming langs – function calls Algorithms – subroutines, recursion Complexity – reductions Ignore actual code – only care about function Very common: Input Output (i.e., input/output relation)

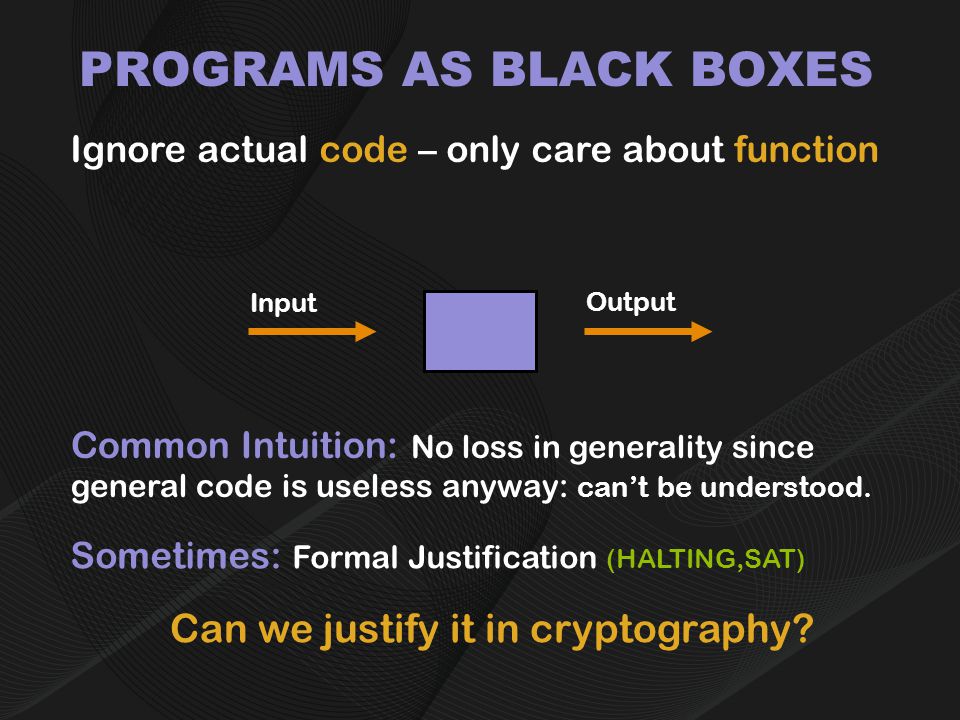

PROGRAMS AS BLACK BOXES Ignore actual code – only care about function Common Intuition: No loss in generality since general code is useless anyway: can’t be understood. Sometimes: Formal Justification (HALTING,SAT) Can we justify it in cryptography? Input Output

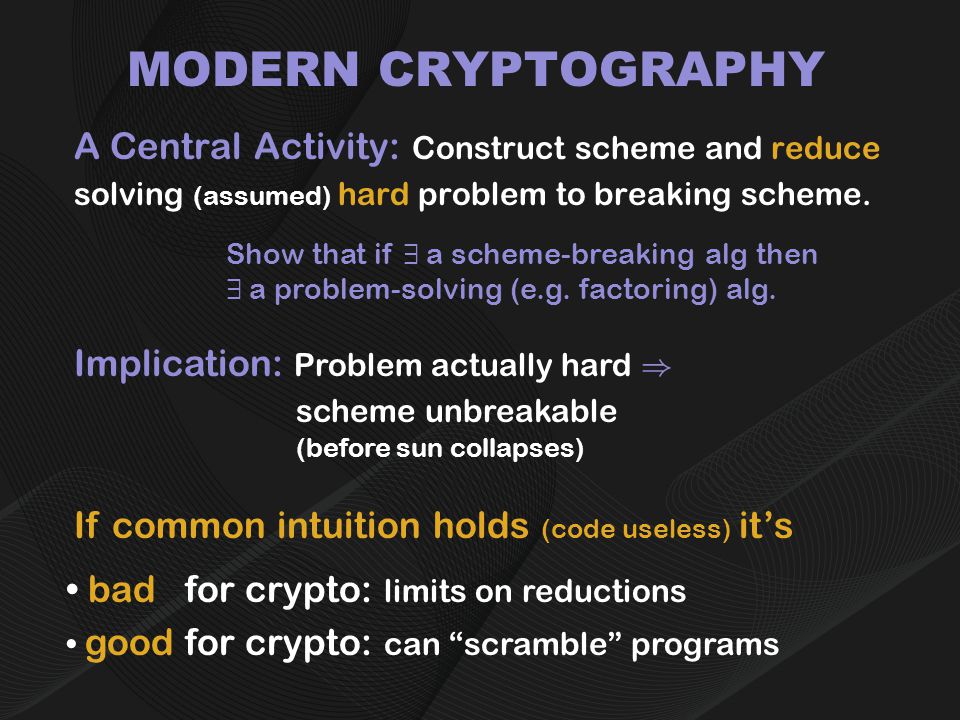

MODERN CRYPTOGRAPHY A Central Activity: Construct scheme and reduce solving (assumed) hard problem to breaking scheme. Implication: Problem actually hard ) scheme unbreakable (before sun collapses) If common intuition holds (code useless) it’s bad for crypto: limits on reductions good for crypto: can “scramble” programs Show that if 9 a scheme-breaking alg then 9 a problem-solving (e.g. factoring) alg.

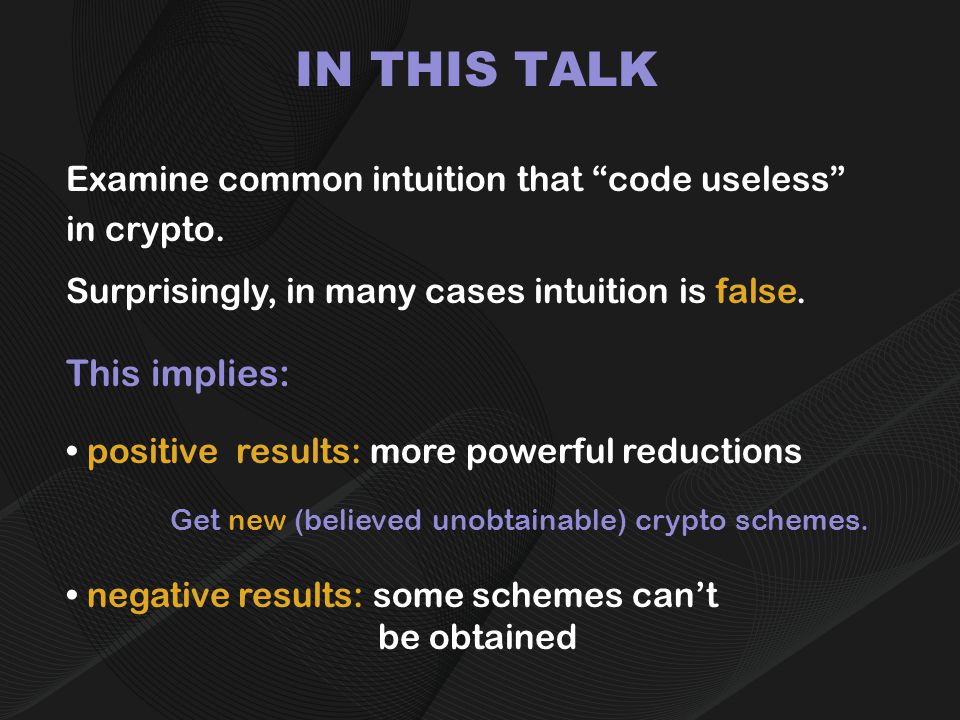

IN THIS TALK Examine common intuition that “code useless” in crypto. This implies: positive results: more powerful reductions Surprisingly, in many cases intuition is false. Get new (believed unobtainable) crypto schemes. negative results: some schemes can’t be obtained

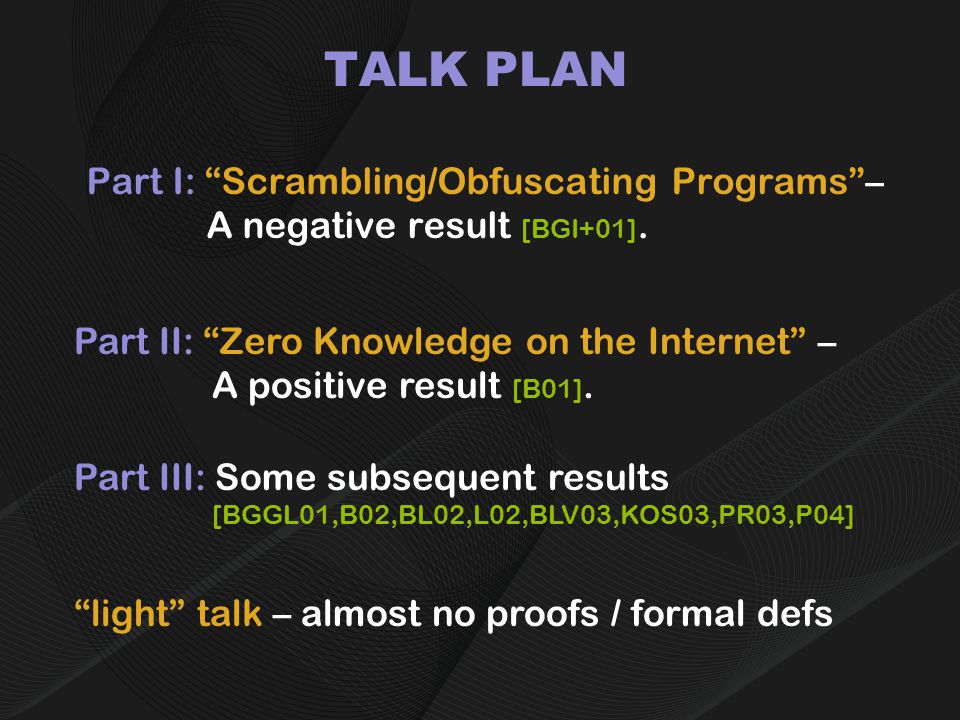

TALK PLAN Part I: “Scrambling/Obfuscating Programs”– A negative result [BGI+01]. Part II: “Zero Knowledge on the Internet” – A positive result [B01]. “light” talk – almost no proofs / formal defs Part III: Some subsequent results [BGGL01,B02,BL02,L02,BLV03,KOS03,PR03,P04]

PART I: OBFUSCATION Idea: Directly use “code useless” intuition for crypto: Q: Can we take arbitrary prog P and convert to P’ s.t. 1. P’ has same function as P 2. P’ is not much slower/bigger than P 3. P’ is “completely unintelligible” Procedure to convert P  P’ is called “obfuscator”.

WHY MIGHT OBFs EXIST? Because progs are hard to understand (bugs,HALTING,…) Maybe compiler is already obfuscator? (e.g., “closed source” considered unreadable) Because in crypto we can do anything :) Some commercial candidates. Diffie&Hellman (76): Maybe can obtain public key enc. by “obfuscating” a private key enc. scheme?

WHY SHOULD WE CARE? Interesting in its own right. Constructing OWF-based PK crypto [DH76] ( Arguably central problem of crypto.) Software protection. Digital rights management (DRM) …

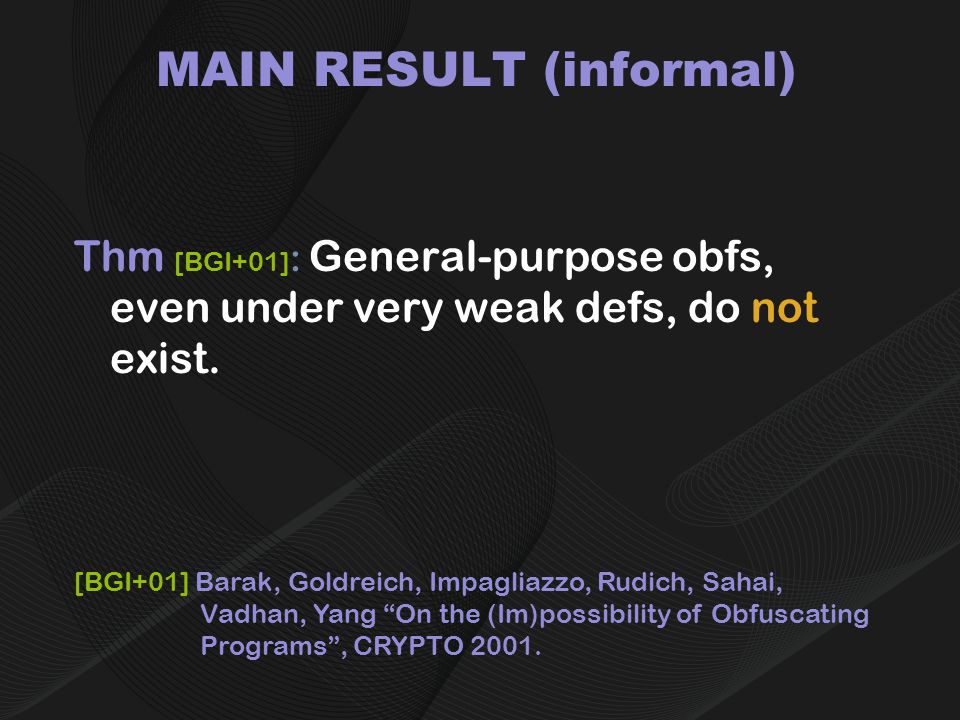

MAIN RESULT (informal) Thm [BGI+01] : General-purpose obfs, even under very weak defs, do not exist. [BGI+01] Barak, Goldreich, Impagliazzo, Rudich, Sahai, Vadhan, Yang “On the (Im)possibility of Obfuscating Programs”, CRYPTO 2001.

DEFINING OBFs Def: O : P  P “totally fails” on P if 1. P can be efficiently recovered from O (P) (i.e., complete recovery of source code) 2. P is hard to learn (i.e., can’t recover P using BB access to its function) Thm [BGI+01] : 8 O 9 P s.t. O totally fails on P. (assuming OWF exist) * “TASTE” OF PROOF

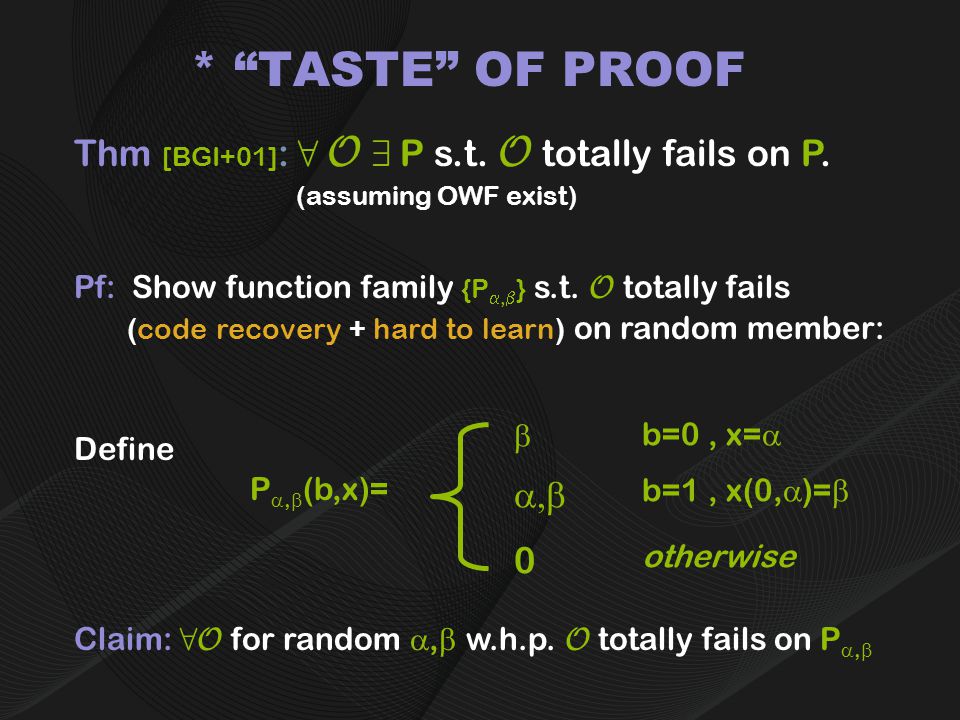

Pf: Show function family {P ,  } s.t. O totally fails (code recovery + hard to learn) on random member: Thm [BGI+01] : 8 O 9 P s.t. O totally fails on P. (assuming OWF exist) Define P ,  (b,x)=  b=0, x=   b=1, x(0,  )=  0 otherwise Claim: 8O for random ,  w.h.p. O totally fails on P , 

Define P ,  (b,x)=  b=0, x=   b=1, x(0,  )=  0 otherwise Claim: 8O for random ,  w.h.p. O totally fails on P ,  * “TASTE” OF PROOF Thm [BGI+01] : 8 O 9 P s.t. O totally fails on P. (assuming OWF exist) Pf: Show function family {P ,  } s.t. O totally fails (code recovery + hard to learn) on random member:

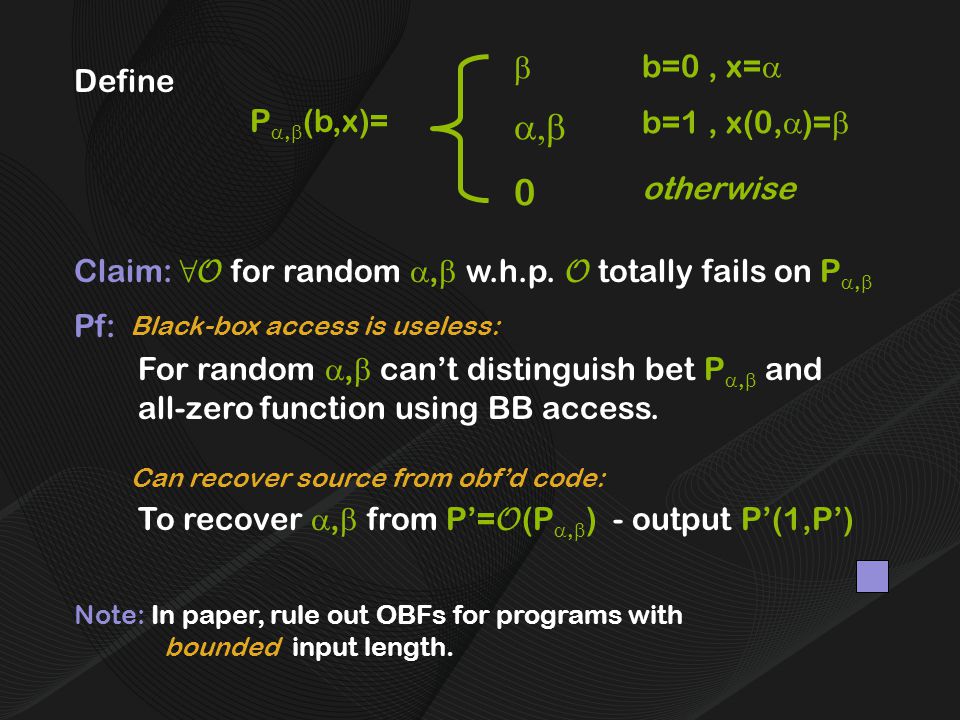

Pf: To recover ,  from P’= O (P ,  ) - output P’(1,P’) For random ,  can’t distinguish bet P ,  and all-zero function using BB access. Define P ,  (b,x)=  b=0, x=   b=1, x(0,  )=  0 otherwise Claim: 8O for random ,  w.h.p. O totally fails on P ,  Note: In paper, rule out OBFs for programs with bounded input length. Black-box access is useless: Can recover source from obf’d code:

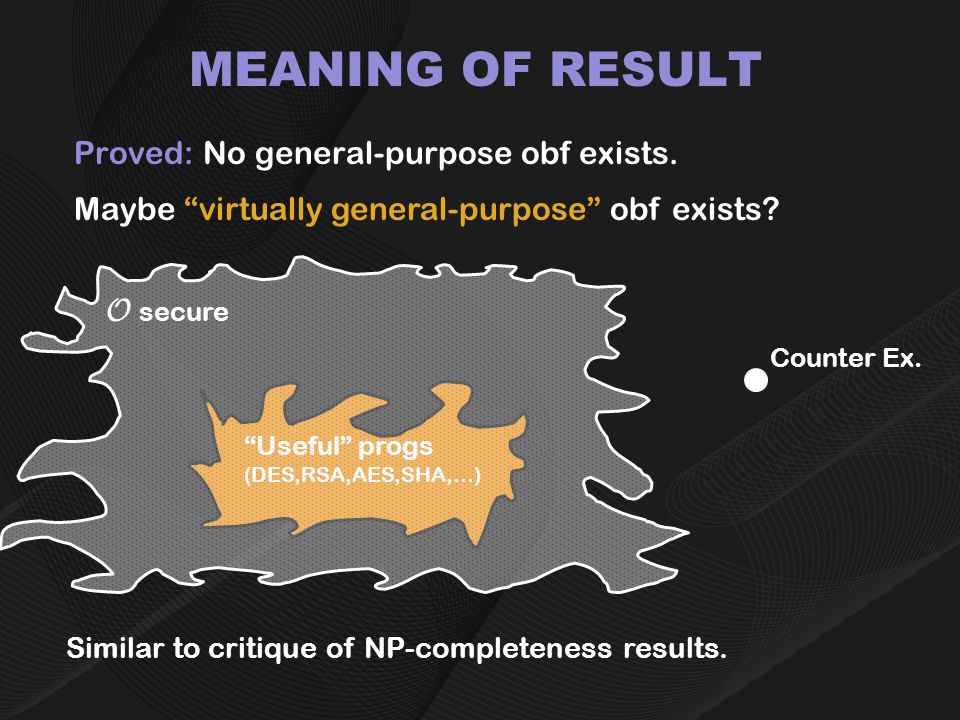

MEANING OF RESULT Proved: No general-purpose obf exists. Maybe “virtually general-purpose” obf exists? Counter Ex. “Useful” progs (DES,RSA,AES,SHA,…) Similar to critique of NP-completeness results. O secure

MEANING OF RESULT Proved: No general-purpose obf exists. Maybe “virtually general-purpose” obf exists? Similar to critique of NP-completeness results. PROBLEM W/ THIS ARGUMENT “Useful” progs (DES,RSA,AES,SHA,…) Counter Ex. O secure

PROBLEM W/ THIS ARGUMENT “Useful” progs (DES,RSA,AES,SHA,…) O secure Q: If Alice writes new prog P, how can she know O is secure on P? “assured” progs A: Maker should provide well-defined set of “assured secure” progs. Problem: in many metrics, counter ex. close to “useful”. Counter Ex.

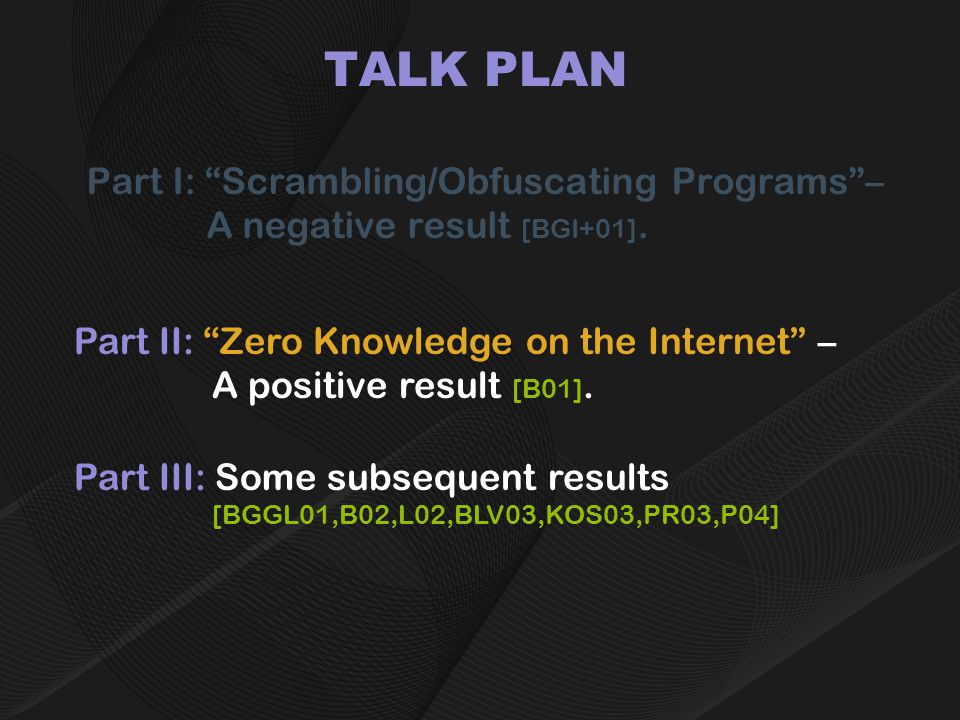

TALK PLAN Part I: “Scrambling/Obfuscating Programs”– A negative result [BGI+01]. Part II: “Zero Knowledge on the Internet” – A positive result [B01]. Part III: Some subsequent results [BGGL01,B02,L02,BLV03,KOS03,PR03,P04]

PART II: ZERO KNOWLEDGE Recall: Central crypto activity – Construct scheme S s.t. 9 alg A breaks S ) 9 alg B factors integers Standard Pf: B uses A as BB subroutine Q: Can B gain anything by using A’s code? Intuition: NO – don’t know anything about adversary. [B01]: Intuition is false – obtain results previously proven impossible to obtain w/ black-box pf.

ZERO-KNOWLEDGE [GMR85] Roughly: Proof with “no added value”: Alice proves X true (e.g., G 3-colorable) to Bob. Bob learns only that X is true Motivation: Interesting in own right. Identification protocols (prove I know password/secret w/o giving any info [FS86] ) General Protocols – voting/auctions/poker (prove I acted properly w/o compromising my secrets) Ex: Alice knows witness (3-coloring) to X=“G is 3col”, wants to convince Bob is true w/o leaking info about witness.

ZERO-KNOWLEDGE [GMR85] Roughly: Proof with “no added value”: A central crypto thm of 80’s [GMW86,FS89,BCY89,GK96] : Anything can be proven in zero knowledge. A central question of 90’s [DNS98] : Is knowledge leaked in a concurrent execution? CONCURRENT ZK Alice proves X true (e.g., G 3-colorable) to Bob. Bob learns only that X is true (a.k.a. “zero-knowledge on the internet”) (using only O(1) communication rounds).

CONCURRENT ZK A central question of 90’s [DNS98] : Is knowledge leaked in a concurrent execution? Alice Bob 1 Bob 2 Bob 3 … Bob n Known: Coordinated “Bob” may learn something.

CONCURRENT ZK A central question of 90’s [DNS98] : Is knowledge leaked in a concurrent execution? Thm [RK99] : Anything can be proven in concurrent ZK # rounds: O ~ (log n) [KPR00,PRS02] Thm [CKPR01] : Protocols w/ black-box proofs require  ~ (log n) rounds. Thm [B01] : Anything can be proven in O(1)-round concurrent ZK. Uses (inherently) non-BB proof * “TASTE” OF PROOF skip (concurrent = bounded concurrent)

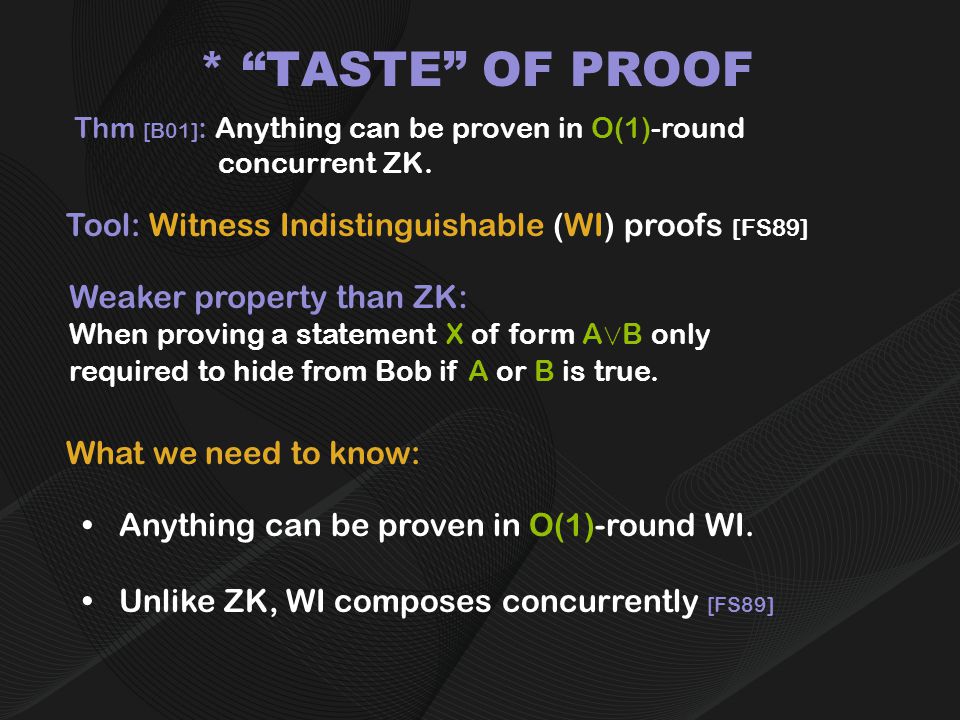

* “TASTE” OF PROOF Tool: Witness Indistinguishable (WI) proofs [FS89] Weaker property than ZK: When proving a statement X of form A Ç B only required to hide from Bob if A or B is true. What we need to know: Anything can be proven in O(1)-round WI. Unlike ZK, WI composes concurrently [FS89] Thm [B01] : Anything can be proven in O(1)-round concurrent ZK.

* “TASTE” OF PROOF AliceBob WIP X true or KC(r)<5n Our Proof System: To prove statement X do: KC(r) = length of min-sized TM M s.t. M()=r ( KC(r)<5n=|r|/2 means r is “compressible” ) r 2 R {0,1} 10n Thm [B01] : Anything can be proven in O(1)-round concurrent ZK. A random r is “incompressible” w.h.p. and so protocol is sound. Next: show no info leaked in 2 executions… skip

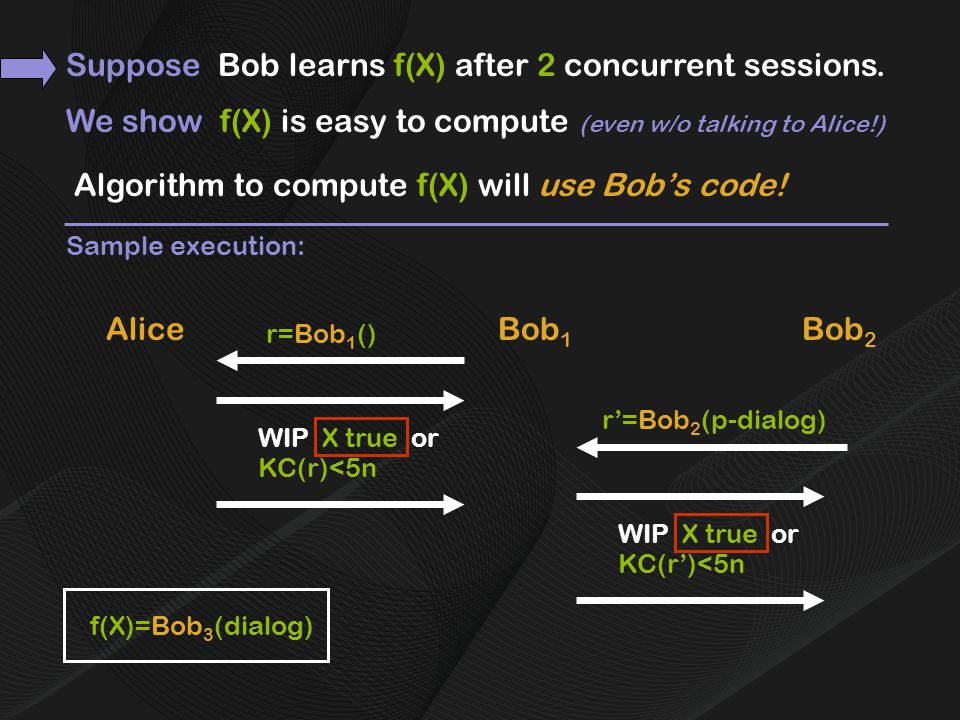

Suppose Bob learns f(X) after 2 concurrent sessions. We show f(X) is easy to compute (even w/o talking to Alice!) Algorithm to compute f(X) will use Bob’s code! AliceBob 1 r=Bob 1 () Bob 2 r’=Bob 2 (p-dialog) f(X)=Bob 3 (dialog) Sample execution: WIP X true or KC(r)<5n WIP X true or KC(r’)<5n

Suppose Bob learns f(X) after 2 concurrent sessions. Algorithm to compute f(X) will use Bob’s code! AliceBob 1 r=Bob 1 () Bob 2 r’=Bob 2 (p-dialog) f(X)=Bob 3 (dialog) Sample execution: WIP X true or KC(r)<5n WIP X true or KC(r’)<5n We show f(X) is easy to compute (even w/o talking to Alice!)

Compute (w/o Alice!) string monolog indisting from dialog. AliceBob 1 r=Bob 1 () Bob 2 r’=Bob 2 (p-dialog) f(X)=Bob 3 (dialog) Sample execution: Thus Bob 3 (monolog)=Bob 3 (dialog)=f(X) =Bob 3 (monolog) Look ma, no Alice! ? ? X WIP X true or KC(r’)<5n WIP X true or KC(r)<5n

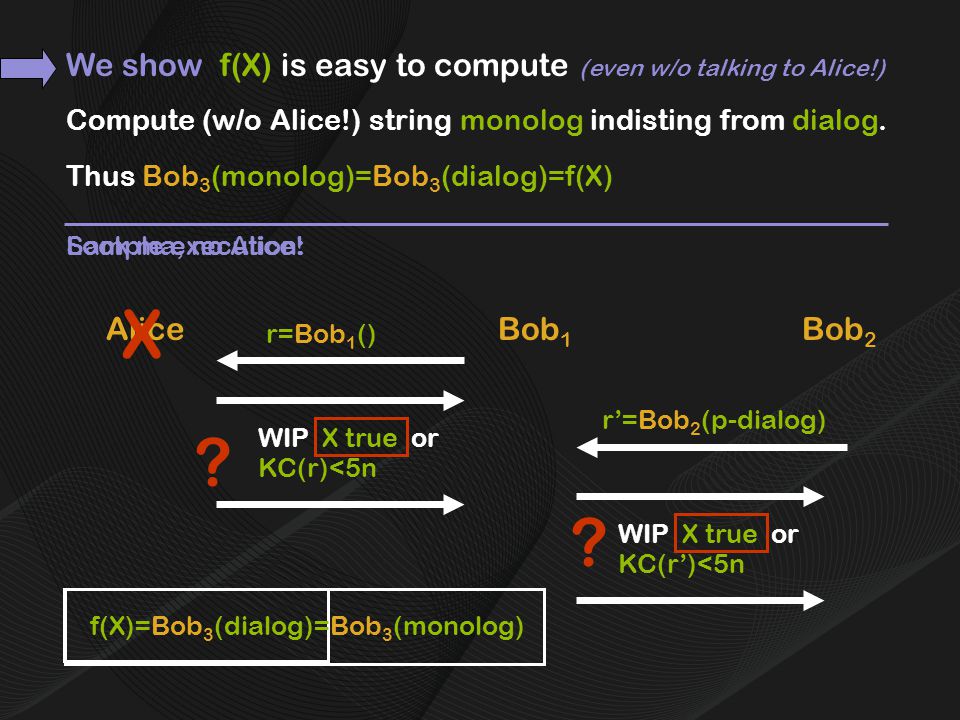

We show f(X) is easy to compute (even w/o talking to Alice!) AliceBob 1 r=Bob 1 () Bob 2 r’=Bob 2 (p-dialog) f(X)=Bob 3 (dialog) Thus Bob 3 (monolog)=Bob 3 (dialog)=f(X) =Bob 3 (monolog) Look ma, no Alice! ? ? X WIP X true or KC(r’)<5n WIP X true or KC(r)<5n Compute (w/o Alice!) string monolog indisting from dialog.

AliceBob 1 r=Bob 1 () Bob 2 r’=Bob 2 (p-dialog) f(X)=Bob 3 (dialog) Using some tools (pseudorandom gens, PCP thm), can ensure |Bob 1 |,|Bob 2 |,|p-dialog| { "@context": "http://schema.org", "@type": "ImageObject", "contentUrl": "http://images.slideplayer.com/11/3173147/slides/slide_31.jpg", "name": "AliceBob 1 r=Bob 1 () Bob 2 r’=Bob 2 (p-dialog) f(X)=Bob 3 (dialog) Using some tools (pseudorandom gens, PCP thm), can ensure |Bob 1 |,|Bob 2 |,|p-dialog|

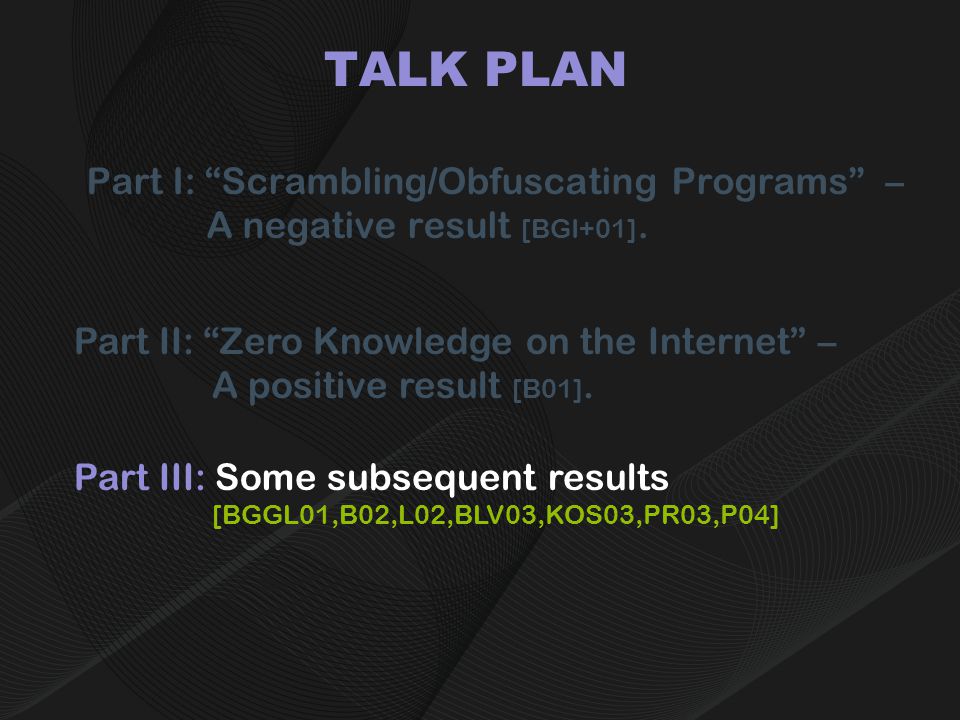

TALK PLAN Part I: “Scrambling/Obfuscating Programs” – A negative result [BGI+01]. Part II: “Zero Knowledge on the Internet” – A positive result [B01]. Part III: Some subsequent results [BGGL01,B02,L02,BLV03,KOS03,PR03,P04]

PART III: OTHER RESULTS Positive results using our non-BB techniques: Non-Malleable Commitments (MIM attack) [B02] Resettable model (e.g., smartcards) [BGGL01] Strict poly-time extraction [BL02] General bounded-concurrent computation [L03,PR03,P04] Constant-round multi-party computation [KOS03,P04] Password-based authentication prots [P04] Other directions: Limits on non-BB techniques [BLV03] More separations bet BB and non-BB [BGGL01,BL02,L03]

OPEN QUESTIONS Can we construct public key encryption based on one-way functions? Understand power of non-black-box techniques in other contexts in crypto and complexity. (impossible using black-box proofs [IR94]) Prove more negative results for non-black-box techniques. ( Interesting connections to other areas [DNRS00,BLV03])

THANK YOU!
