Absolute Value Functions and Graphs Lesson 2-5

2

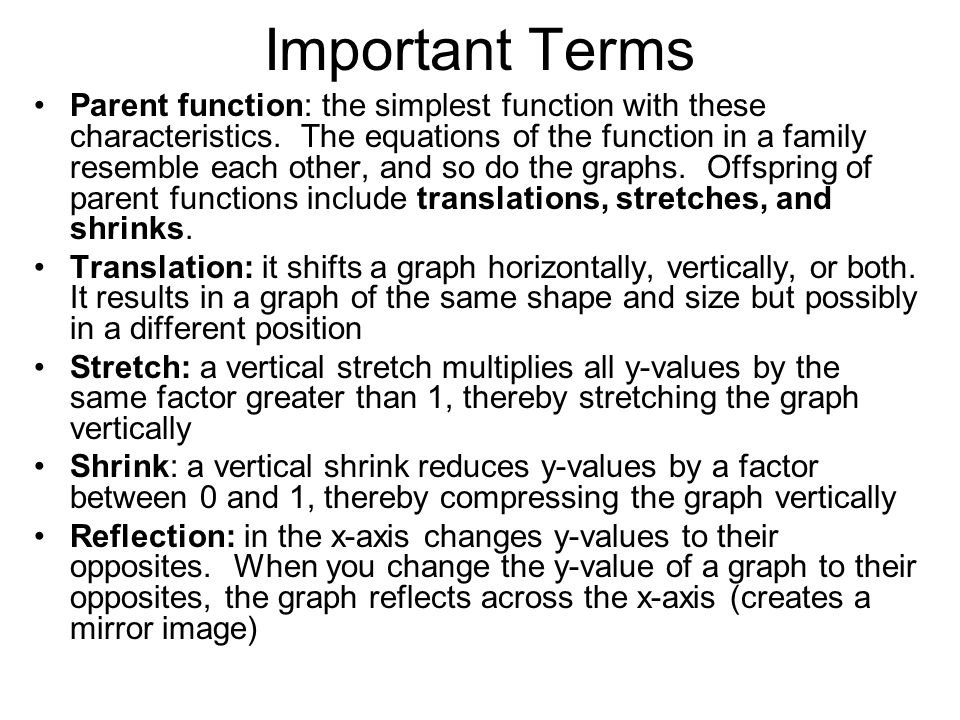

Important Terms Parent function: the simplest function with these characteristics. The equations of the function in a family resemble each other, and so do the graphs. Offspring of parent functions include translations, stretches, and shrinks. Translation: it shifts a graph horizontally, vertically, or both. It results in a graph of the same shape and size but possibly in a different position Stretch: a vertical stretch multiplies all y-values by the same factor greater than 1, thereby stretching the graph vertically Shrink: a vertical shrink reduces y-values by a factor between 0 and 1, thereby compressing the graph vertically Reflection: in the x-axis changes y-values to their opposites. When you change the y-value of a graph to their opposites, the graph reflects across the x-axis (creates a mirror image)

3
The Family of Absolute Value Functions Vertical Translation Parent functionY=|x|Y=f(x) Translation up k units, k>0Y=|x|+kY=f(x)+k Translation down k units, k<0Y=|x|-kY=f(x)-k Horizontal Translation Parent FunctionY=|x|Y=f(x) Translation right h units, h>0Y=|x-h|Y=f(x-h) Translation left h units, h<0Y=|x+h|Y=f(x+k) Combined Translation (right h units, up k units)Y=|x-h|+kY=f(x-h)+k

4

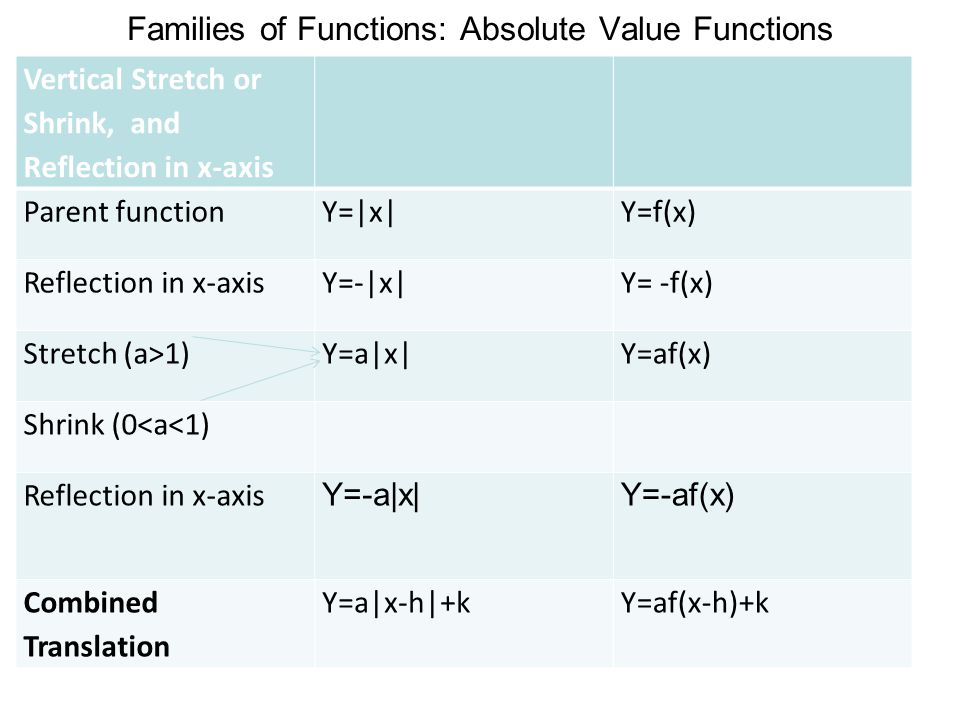

Families of Functions: Absolute Value Functions Vertical Stretch or Shrink, and Reflection in x-axis Parent functionY=|x|Y=f(x) Reflection in x-axisY=-|x|Y= -f(x) Stretch (a>1)Y=a|x|Y=af(x) Shrink (0
{
"@context": "http://schema.org",
"@type": "ImageObject",
"contentUrl": "http://images.slideplayer.com/11/3170741/slides/slide_4.jpg",
"name": "Families of Functions: Absolute Value Functions Vertical Stretch or Shrink, and Reflection in x-axis Parent functionY=|x|Y=f(x) Reflection in x-axisY=-|x|Y= -f(x) Stretch (a>1)Y=a|x|Y=af(x) Shrink (01)Y=a|x|Y=af(x) Shrink (0

5

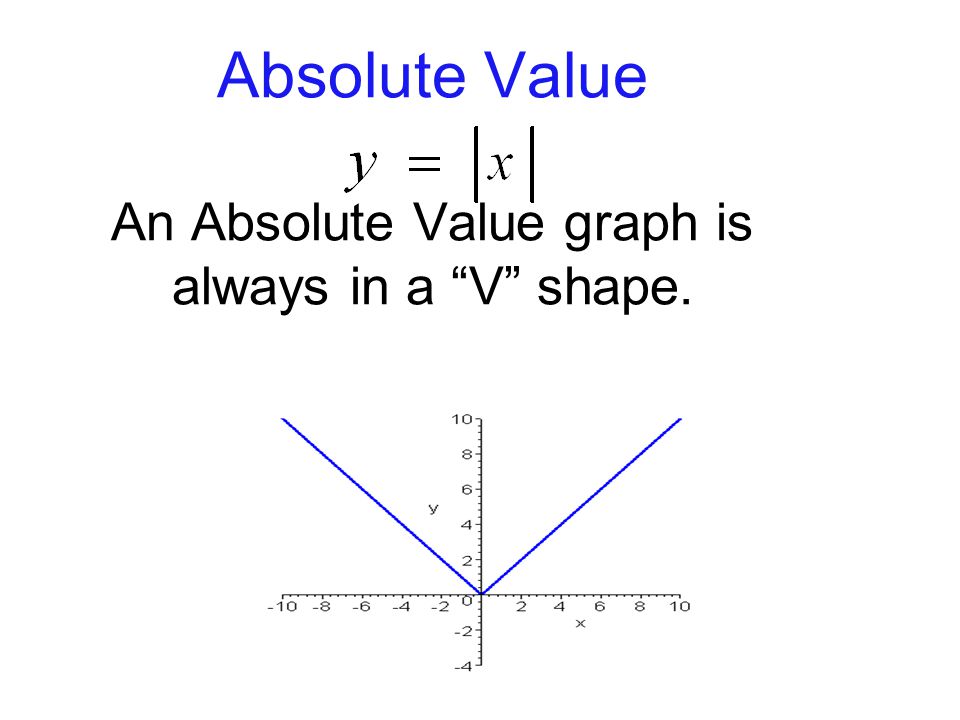

Absolute Value An Absolute Value graph is always in a “V” shape.

6
Given the following function, If: a > 0, then shift the graph “a” units up If: a < 0, then shift the graph “a” units down

7
Given the following function, Since a > 0, then shift the graph “3” units up

8

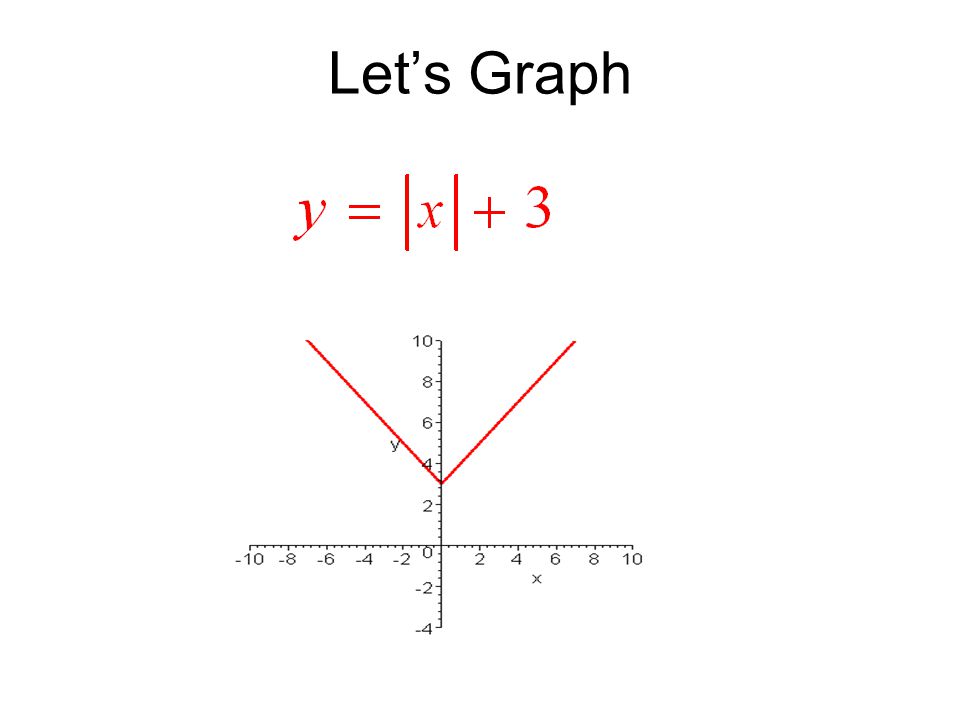

Let’s Graph

9
How will the graph look?

10
Let’s Graph

11
How will the graph look?

12
Let’s Graph

13
How will the graph look?

14
Let’s Graph

15
Given the following function, We get the expression (x - b) and equal it to zero x - b = 0 x = b If: b > 0, then shift the graph “b” units to the right If: b < 0, then shift the graph “b” units to the left

16
Given the following function, x – 1 = 0 x = 1 Since 1 > 0, then shift the graph “1” unit right

17
Let’s Graph

18
How will the graph look?

19
Let’s Graph

20
How will the graph look?

21
Let’s Graph

22
How will the graph look?

23
Let’s Graph

24

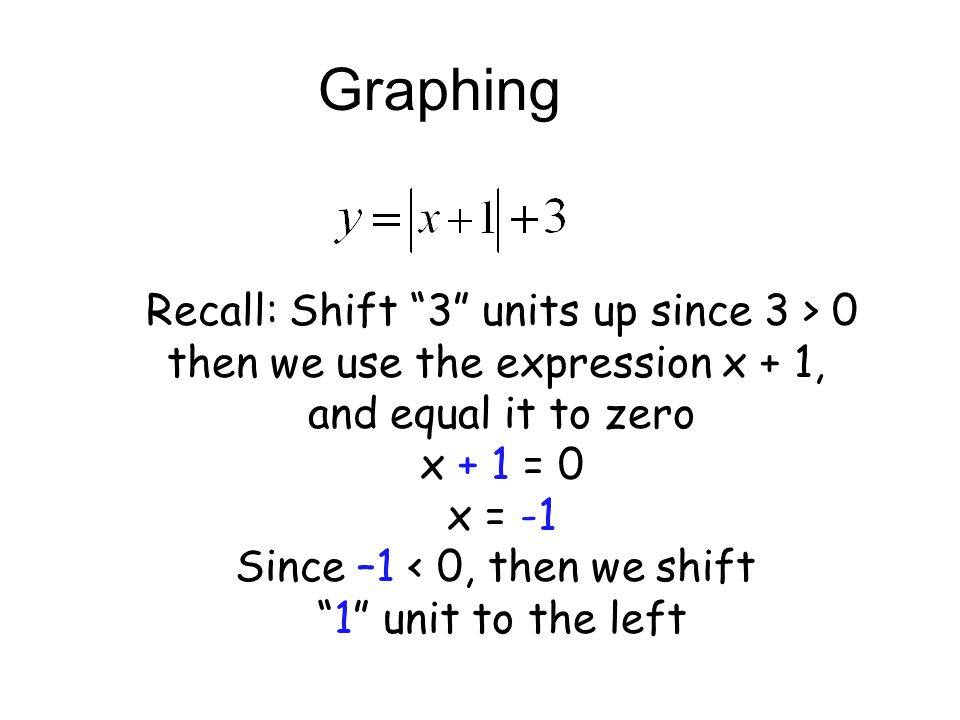

Graphing Recall: Shift “3” units up since 3 > 0 then we use the expression x + 1, and equal it to zero x + 1 = 0 x = -1 Since –1 < 0, then we shift “1” unit to the left

25
Let’s Graph

26
How will the graph look?

27
Let’s Graph

28
How will the graph look?

29
Let’s Graph

30
How will the graph look?

31
Let’s Graph

32
Given the following function, For this equation, c determines how wide or thin it will be. if: |c|>1, then the graph is closer to the y-axis if: |c|=1, then the graph remains the same if: 0<|c|<1, then the graph is further from the y-axis if c is a negative number, then the graph will reflect on the x-axis

33
Given the following function, Since |5| > 0, then the graph is closer to the y-axis

34
Let’s Graph

35
How will the graph look?

36
Let’s Graph

37
How will the graph look?

38
Let’s Graph

39
How will the graph look?

40
Let’s Graph

41
How will the graph look?

42
Let’s Graph

43
Given the following function, Since 4 > 0, shift the graph “4” units up x – 1 = 0 x = 1 Since 1 > 0, then shift the graph “1” unit to the right Since |5| > 0 shift the graph closer to the y-axis.

44
Let’s Graph

45
How will the graph look?

46
Let’s Graph

47
How will the graph look?

48
Let’s Graph

49
How will the graph look?

50
Let’s Graph

51
How will the graph look?

52
Let’s Graph

53
How will the graph look?

54
Let’s Graph

55
How will the graph look?

56
Let’s Graph

57
How will the graph look?

58
Let’s Graph

59
Congratulations!! You just completed the transformation of
