**Pumping Lemma Problem: Solution:**

Let B be the language of all palindromes over {0,1} containing an equal number of 0s and 1s. Show that B is not CFL Solution: We assume that B is a CFL and obtain a contradiction. Let p be the pumping constant of B that is guaranteed to exist by the pumping lemma. Select the string s = 0p1p1p0p . Clearly s is a member of B and of length at least p . We can show that no matter how we divide s into uvxyz, one of the conditions of the lemma is violated. Pumping lemma, | vxy |<= p , we can only place vxy in the following ways:

3
**vxy completely falls in the first 0p vxy falls between 0p and 1p**

If we pump v and y , then the new string is no longer a palindrome, and the number of 0s will be greater than the number of 1s, which is a contradiction. vxy falls between 0p and 1p In this case, v will only contain 0s while y will only contain 1s. So if we pump s , the new string is no longer palindrome, which is a contradiction. vxy completely falls in the first 1p Similar to (1), after pumping s , the number of 1s will be greater than the number of 0s, which is a contradiction. vxy falls between 1p and 1p After pumping s , the number of 1s will be greater than the number of 0s, which is a contradiction. vxy completely falls in the second 1p This case is same with (3). vxy falls between 1p and 0p Similar to (2), v will only contain 1s while y will only contain 0s. So if we pump s , the new string is no longer palindrome, which is a contradiction. vxy completely falls in the second 0p This case is same with (1). Hence, B is not context free.

4
Let L = {w {0; 1}* : w = wR}. (a) Show that L is context-free by giving a context-free grammar for L. (b) Show that L is context-free by giving a pushdown automaton for L. (c) Show that L is not regular.

5
CFG L is a symmetric language. Consider a context-free grammar for L : (V, Σ, R, S) , where i. V = {S} ii. Σ = {0,1} iii. Rules: S 0S0 |1S1| 0 |1|ε iv. S = S V

6
PDA

7
Pumping Lemma Assume that L regular. Let p be the pumping constant given by the pumping lemma. Let s be the string 1p-1101p. s can be split into three pieces, s = xyz , where for any i >= 0 the string xyiz is in L . According to the pumping lemma condition, we must have | xy |<= p . If this is the case, then y must consist only of 1’s, so xyyz L . Therefore s cannot be pumped. This is a contradiction.

9
**Pushdown Automaton -- PDA**

Input String Stack States

10
**Initial Stack Symbol Stack Stack stack head top bottom special symbol**

Appears at time 0

11
The States Pop symbol Input symbol Push symbol

12
input stack top Replace

13
input stack top Push

14
input stack top Pop

15
input stack top No Change

16
Empty Stack input stack empty Pop top The automaton HALTS No possible transition after

17
A Possible Transition input stack Pop top

18
**Non-Determinism Allowed non-deterministic transitions**

PDAs are non-deterministic Allowed non-deterministic transitions

19
Example PDA PDA

20

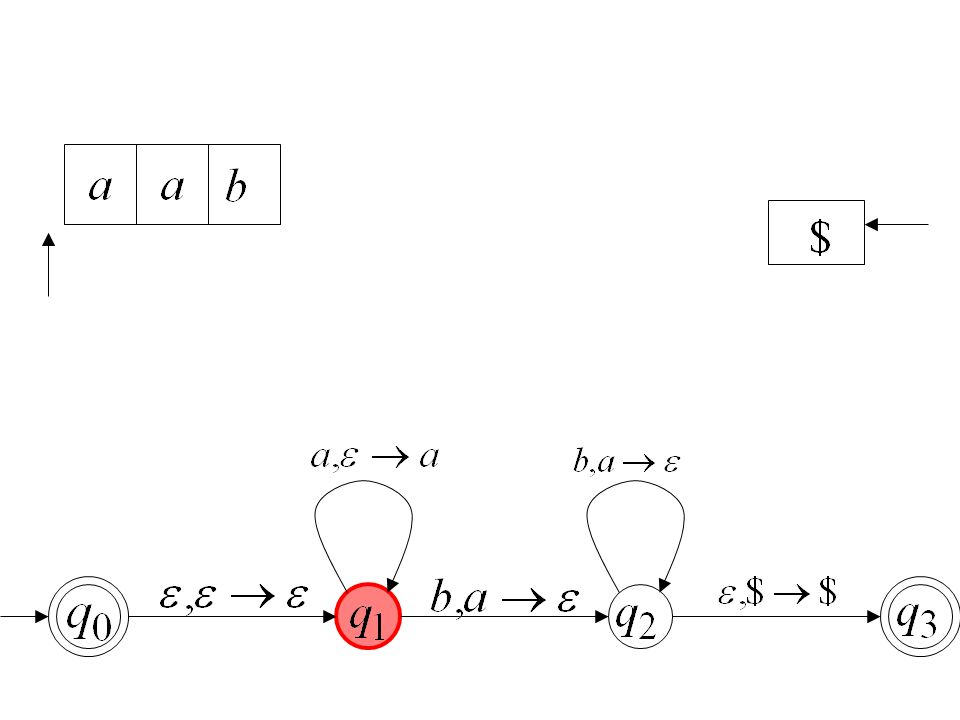

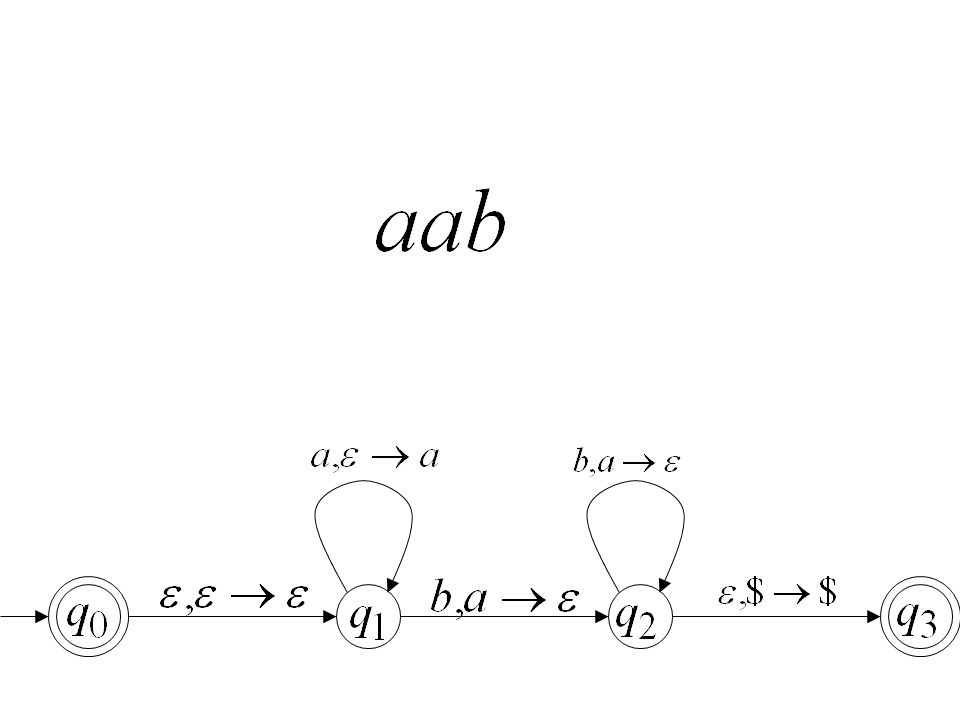

Basic Idea: Push the a’s on the stack 2. Match the b’s on input with a’s on stack 3. Match found

21
Input Stack

22
Input Stack

23
Input Stack

24
Input Stack

25
Input Stack

26
Input Stack

27
Input Stack

28
Input Stack

29
Input Stack accept

30
**A string is accepted if there is a computation such that:**

All the input is consumed The last state is an accepting state At the end of the computation, we do not care about the stack contents (the stack can be empty at the last state)

31
**is the language accepted by the PDA:**

38
reject

39
Another PDA example

40

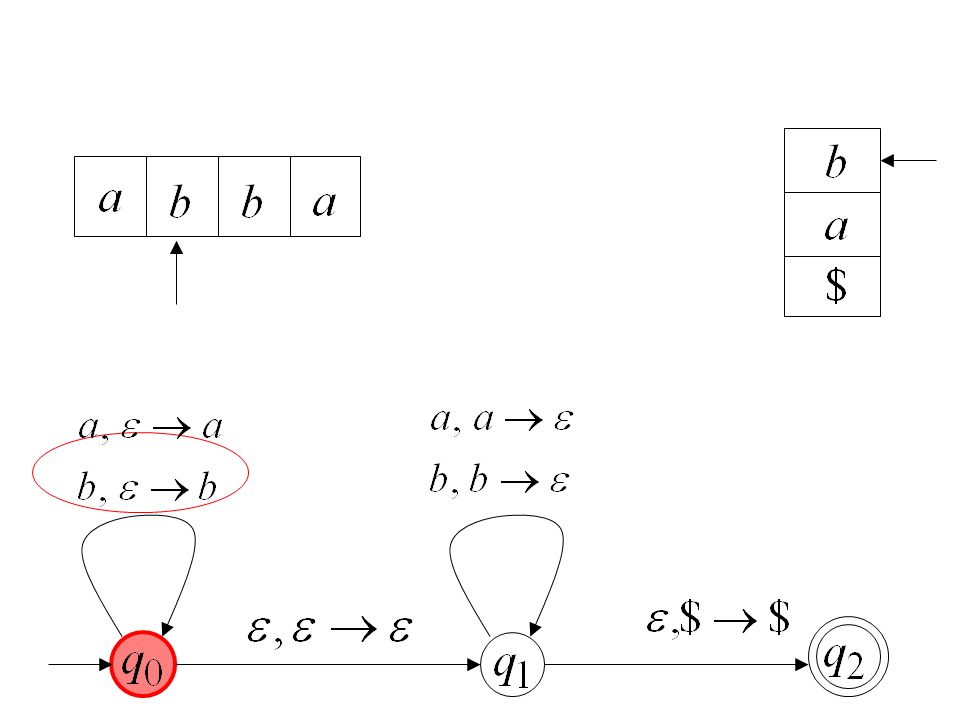

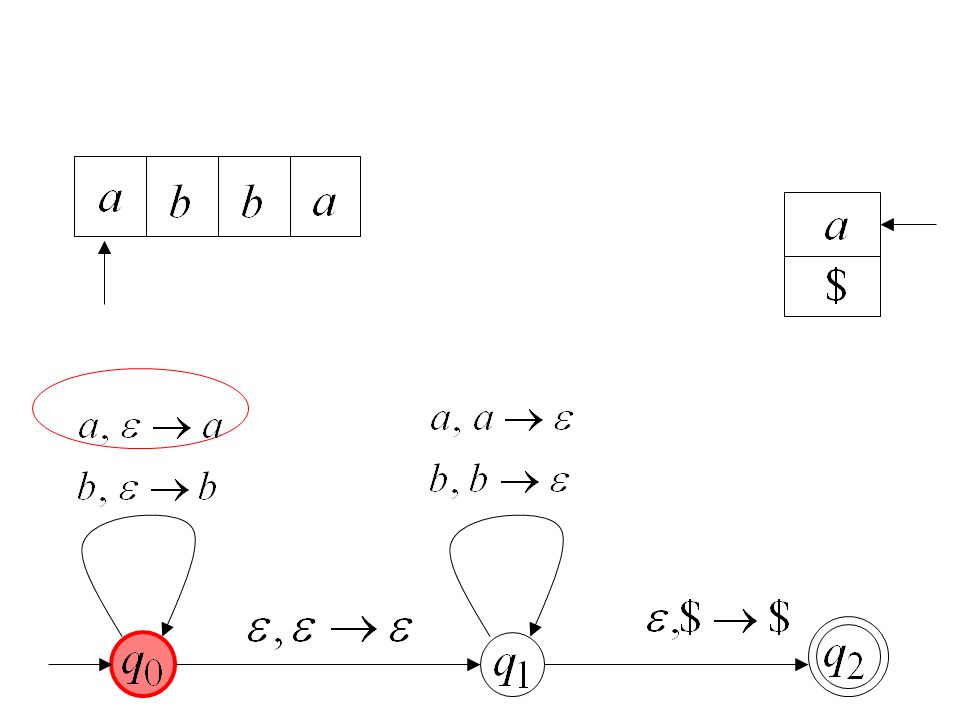

Push v on stack 3. Match vR on input with v on stack 2. Guess middle of input 4. Match found

44
Guess the middle of string

47
accept

48
Rejection Example: Input

51
Guess the middle of string

53
**There is no possible transition.**

Input is not consumed

54
**Another computation on same string:**

59
final state is not reached

61

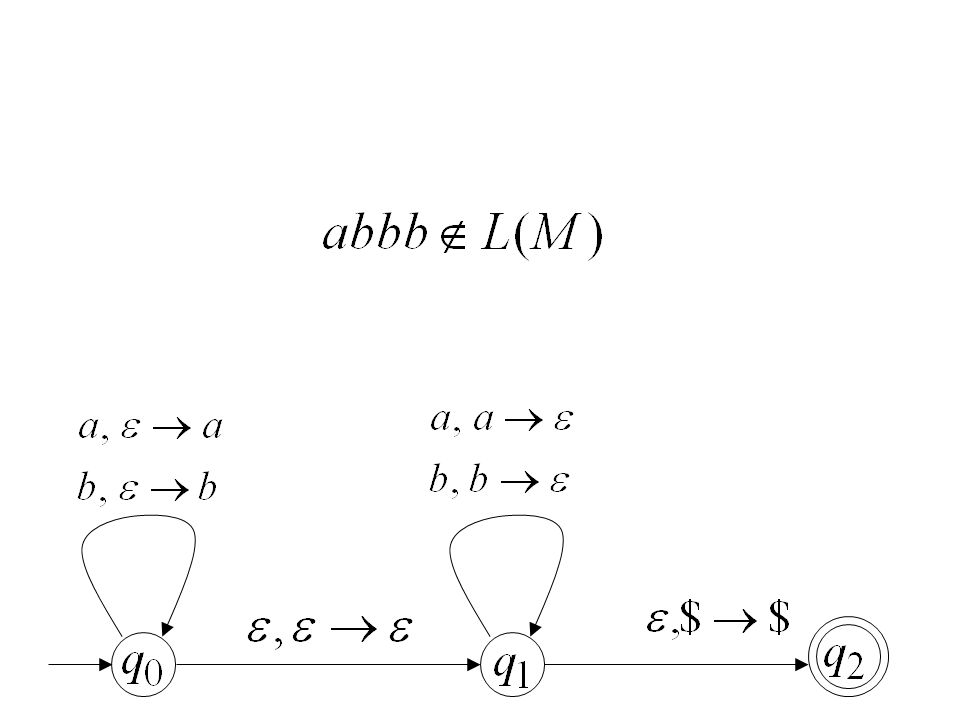

Another PDA example aab abbb (r)

62
Pushing Strings Pop symbol Input symbol Push string

63
Example: pushed string top Push

64
Another PDA example abbbaa
