1 1 Hypochromic Microcytic Anaemias in Children Mariane de Montalembert, MD Service de Pédiatrie Hospital Necker Paris, France Adlette C. Inati, MD Head Division of Pediatric Hematology-Oncology Medical Director Children's Center for Cancer and Blood Diseases Rafik Hariri University Hospital Beirut, Lebanon

2 2 Diagnosis and Causes of Hypochromic Microcytic Anaemias in Children Mariane de Montalembert, MD Service de Pédiatrie Hospital Necker Paris, France

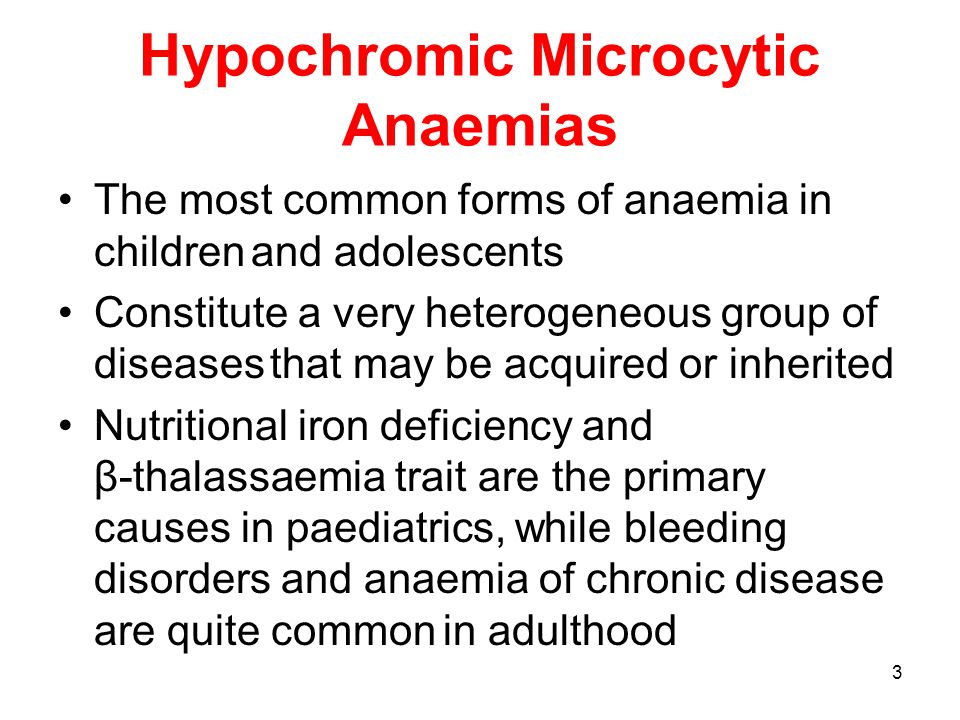

3 3 Hypochromic Microcytic Anaemias The most common forms of anaemia in children and adolescents Constitute a very heterogeneous group of diseases that may be acquired or inherited Nutritional iron deficiency and β-thalassaemia trait are the primary causes in paediatrics, while bleeding disorders and anaemia of chronic disease are quite common in adulthood

4 4 Causes of Hypochromic Microcytic Anaemias Inadequate intake Enterocyte Erythroid precursor Blood losses Malabsorption Defects in heme synthesis or iron acquisition Breastfeeding with inadequate supplementary food Preterm, low birth weight Growth spurt Inadequate calorie intake Vegetarian diet Celiac disease Helicobacter pylori gastritis Autoimmune atrophic gastritis IRIDA (TMPRSS6 mutation) Chronic inflammation Haemoglobinopathies Sideroblastic anaemia Erythropoietic porphyria DMT1 mutations Ferroportin disease Hereditary atransferrinaemia Hereditary aceruloplasminaemia Polymenorrhea Parasitic infestations Peptic ulcer Inflammatory bowel disease Meckel diverticulum Graphic courtesy of Dr. Mariane de Montalembert.

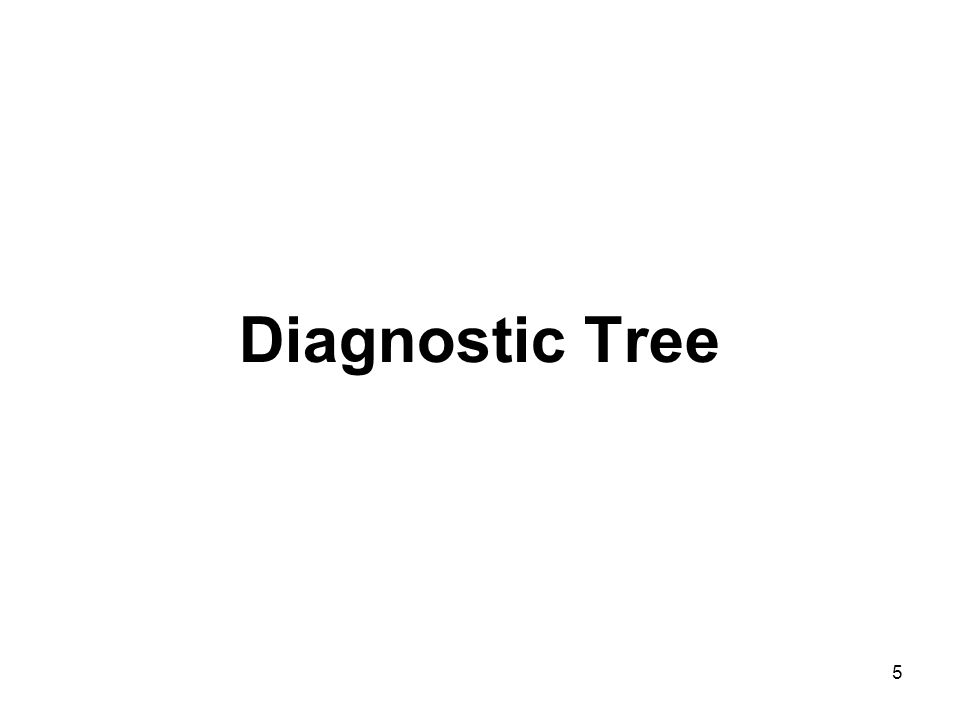

5 5 Diagnostic Tree

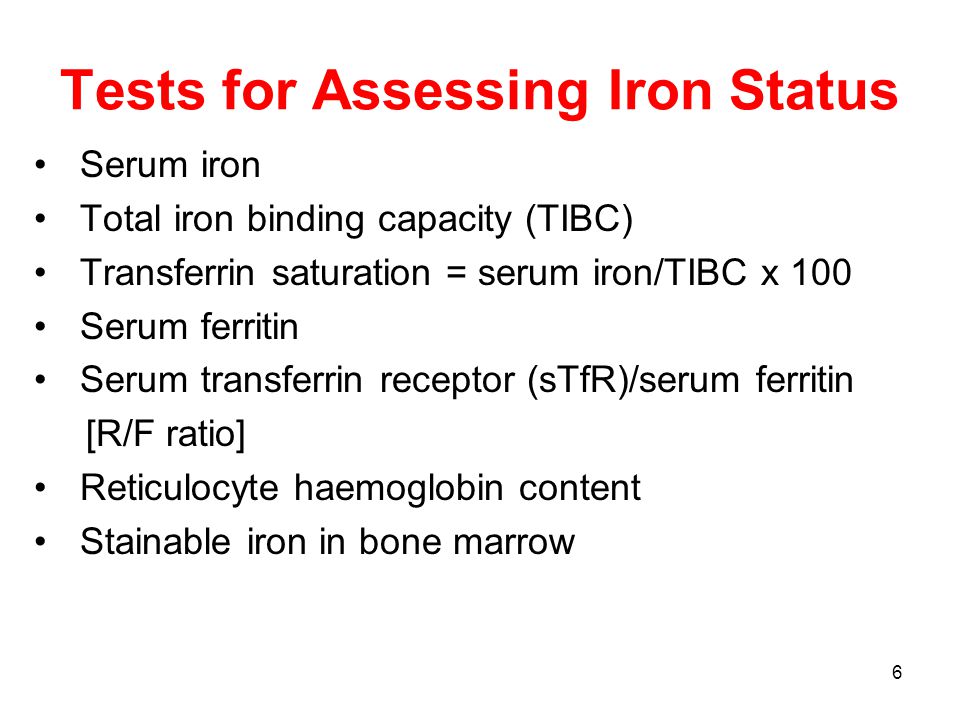

6 6 Tests for Assessing Iron Status Serum iron Total iron binding capacity (TIBC) Transferrin saturation = serum iron/TIBC x 100 Serum ferritin Serum transferrin receptor (sTfR)/serum ferritin [R/F ratio] Reticulocyte haemoglobin content Stainable iron in bone marrow

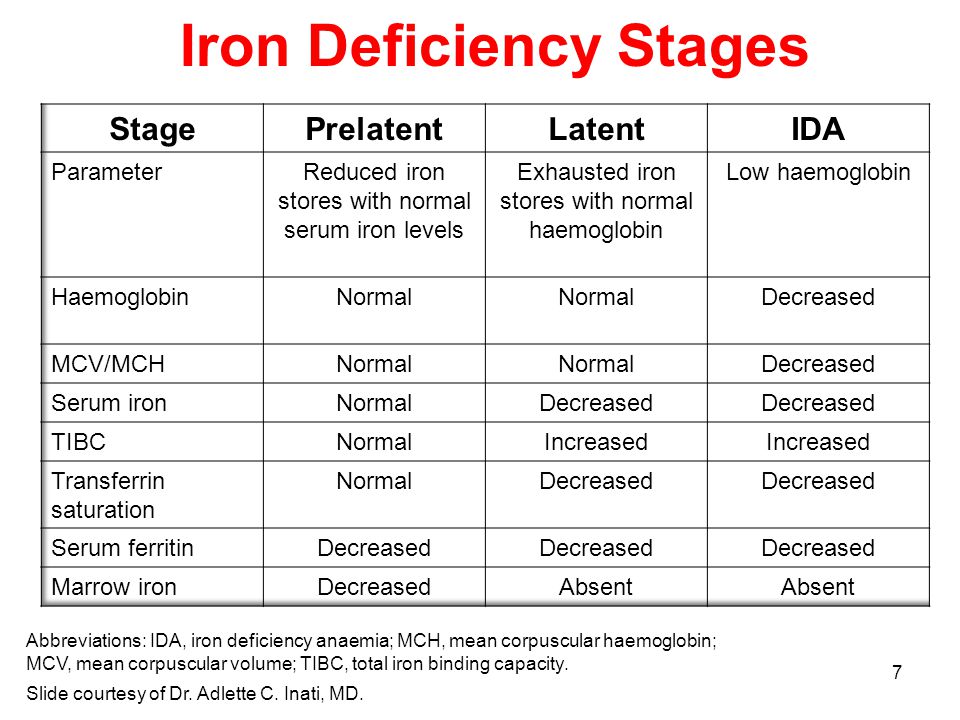

7 7 Iron Deficiency Stages Slide courtesy of Dr. Adlette C. Inati, MD. Abbreviations: IDA, iron deficiency anaemia; MCH, mean corpuscular haemoglobin; MCV, mean corpuscular volume; TIBC, total iron binding capacity.

8 8 Laboratory Indicators of Iron Deficiency There is a significant overlap between iron-sufficient and iron-deficient segments of a population, making the diagnosis of iron deficiency unclear Thus, it is necessary to combine several laboratory indicators

9 9 Serum Ferritin Levels Serum ferritin is raised during acute infection and inflammation and liver disease, irrespective of the iron stores, but iron deficiency is the only cause of a low concentration A normal serum ferritin level doesn’t exclude an iron deficiency, but a low serum ferritin level necessarily means iron deficiency

10 10 Iron Deficiency Diagnosis Centers for Disease Control and Prevention Proper anaemia screening requires not only sound laboratory methods and procedures but also appropriate haemoglobin and haematocrit cut-off values to define anaemia ≥2 of the following tests are abnormal: –Free erythrocyte protoporphyrin (≥1.24 μmol/L red blood cells) –Transferrin saturation (<14% for 12- to 15-year- olds or <15% for 16- to 39-year-olds) –Serum ferritin (<12 μg/L)

11 11 Cut-Off Values for Iron Status by Age and Gender NHANES Survey in the United States Transferrin saturation (%) –1 – 2 y: 9 –3 – 5 y: 13 –6 – 15 y: 14 Serum ferritin (μg/L) –1 – 5 y: 10 –6 – 15 y: 12 Mean corpuscular volume (fl) –1 – 2 y: 77 –3 – 5 y: 79 –6 – 11 y: 80 –12 – 15 y, male: 82 –12 – 15 y, female: 85 Reference haemoglobin values (g/dL): Mean – 2DS –1 – 2 y: 10.7 –3 – 5 y: 10.9 –6 – 11 y: 11.5 –12 – 15 y, male: 12 –12 – 15 y, female: 11.5 Dallman PR. In: Iron Nutrition in Health and Disease. John Libbey & Company; 1996: Looker AC, et al. JAMA. 1997;277: Cogswell ME, et al. Am J Clin Nutr. 2009;89: Slide courtesy of Dr. Mariane de Montalembert

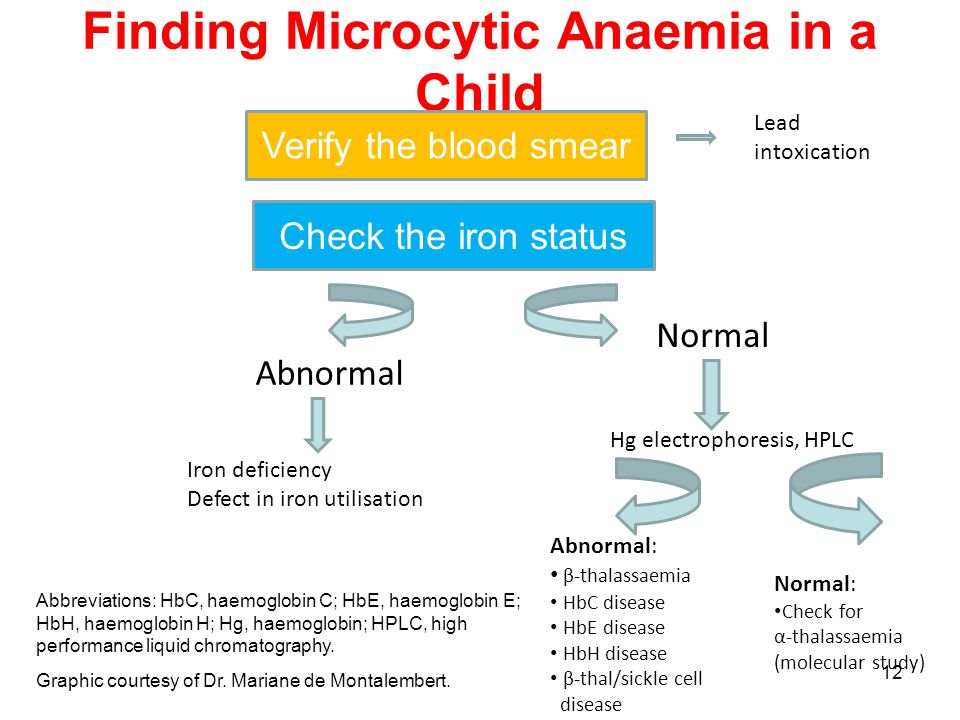

12 12 Finding Microcytic Anaemia in a Child Check the iron status Normal Hg electrophoresis, HPLC Abnormal: β-thalassaemia HbC disease HbE disease HbH disease β-thal/sickle cell disease Normal: Check for α-thalassaemia (molecular study) Abnormal Iron deficiency Defect in iron utilisation Graphic courtesy of Dr. Mariane de Montalembert. Verify the blood smear Lead intoxication Abbreviations: HbC, haemoglobin C; HbE, haemoglobin E; HbH, haemoglobin H; Hg, haemoglobin; HPLC, high performance liquid chromatography.

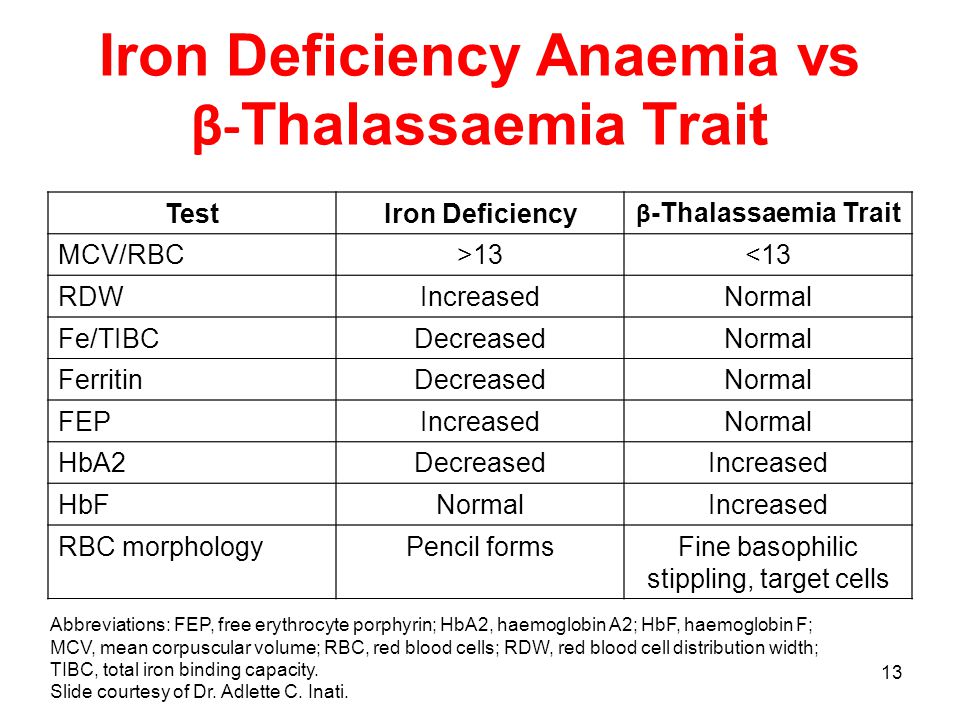

13 13 Iron Deficiency Anaemia vs β- Thalassaemia Trait Abbreviations: FEP, free erythrocyte porphyrin; HbA2, haemoglobin A2; HbF, haemoglobin F; MCV, mean corpuscular volume; RBC, red blood cells; RDW, red blood cell distribution width; TIBC, total iron binding capacity. Slide courtesy of Dr. Adlette C. Inati.

14 14 Hypochromic Microcytic Anaemias in Children Iron DeficiencyDefects in Iron Utilisation 1 ThalassaemiaLead Intoxication Chronic Disease Blood smear Microcytosis, anisocytosis, Poikilocytosis, elliptocytosis, hypochromia HypochromiaMicrocytosis, target cells, helmets, dacryocytes Coarse basophilic stippling Microcytosis, hypochromia Serum ironNormal or Transferrin saturation Serum transferrin receptor Normal Serum ferritin Normal Other diagnostic tools Bone marrow: ringed sideroblasts High-performance liquid chromatography Blood lead levelErythrocyte sedimentation rate C-reactive protein Iolascon A, et al. Haematologica. 2009;94: Graphic of blood smears courtesy of Dr. C. Brouzes.

15 15 Inadequate Iron Intake

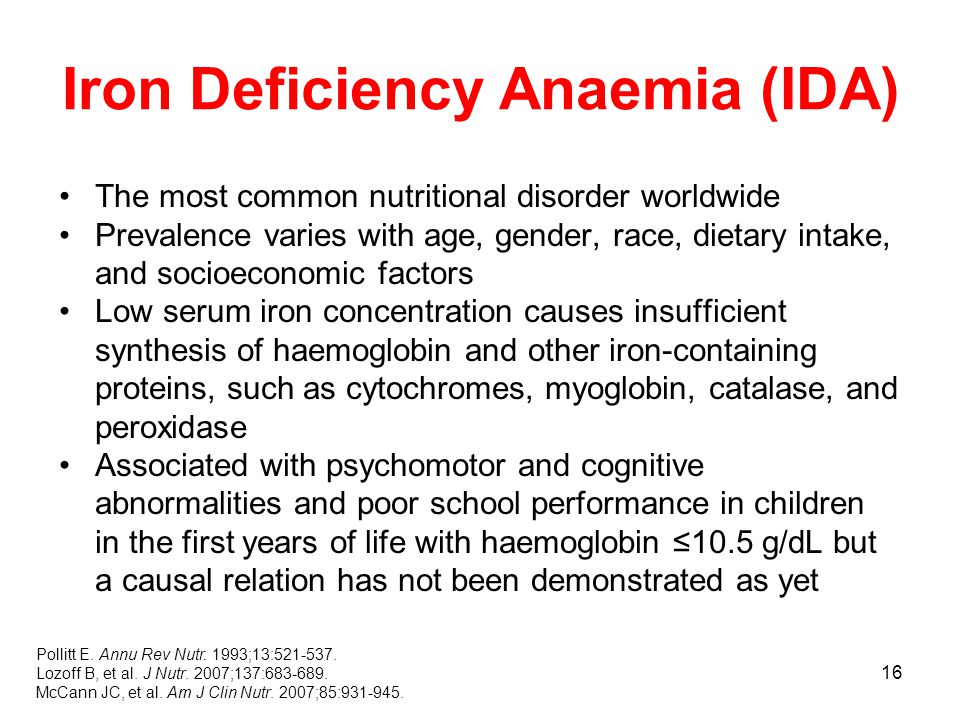

16 16 Iron Deficiency Anaemia (IDA) The most common nutritional disorder worldwide Prevalence varies with age, gender, race, dietary intake, and socioeconomic factors Low serum iron concentration causes insufficient synthesis of haemoglobin and other iron-containing proteins, such as cytochromes, myoglobin, catalase, and peroxidase Associated with psychomotor and cognitive abnormalities and poor school performance in children in the first years of life with haemoglobin ≤10.5 g/dL but a causal relation has not been demonstrated as yet Pollitt E. Annu Rev Nutr. 1993;13: Lozoff B, et al. J Nutr. 2007;137: McCann JC, et al. Am J Clin Nutr. 2007;85:

17 17 Risk Factors for IDA Children <5 years old Preterm/low birth weight babies Children of immigrants >6 months of age: exclusively breast-fed and/or non – iron- fortified formulas with no iron supplement Introduction of cow’s milk <1 year of age Parasitic infestation (developing countries): hookworm Poverty Adolescents History of heavy menstrual blood loss (>80 mL/mo) Significant physical activity Vegetarian diet Strict fad dieting, especially in females Malnutrition Parasitic infestation (developing countries): hookworm

18 18 Increasing Prevalence of Iron Deficiency Among Adolescent Females High iron needs Tendency of girls to eat less high iron-containing foods (such as meat) Many adolescents are asymptomatic and present with only anaemia

19 19 Decreased Iron Absorption

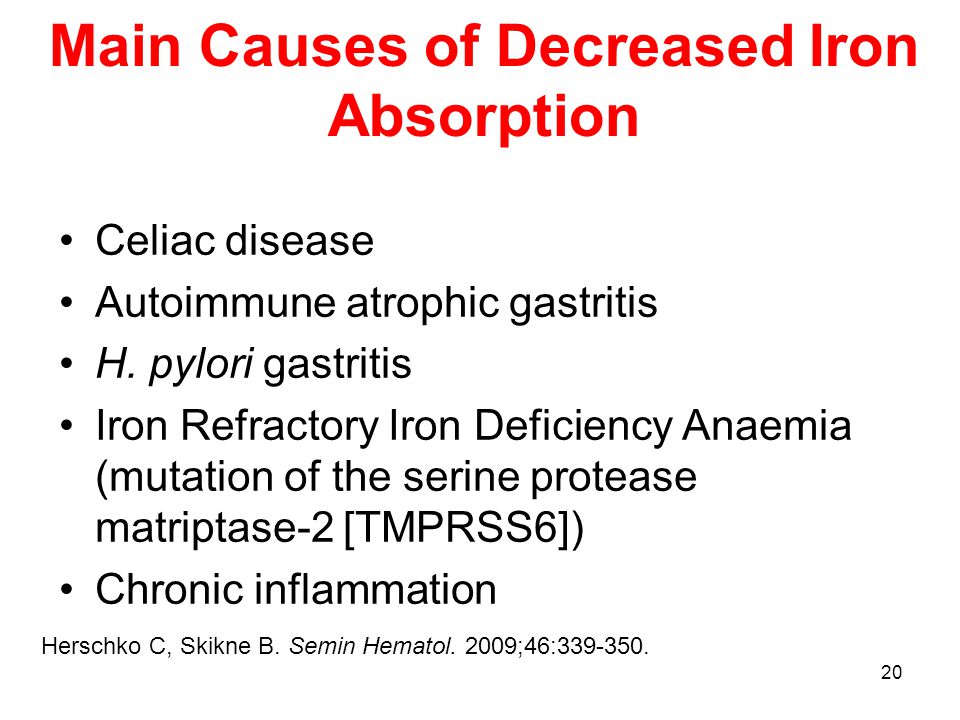

20 20 Main Causes of Decreased Iron Absorption Celiac disease Autoimmune atrophic gastritis H. pylori gastritis Iron Refractory Iron Deficiency Anaemia (mutation of the serine protease matriptase-2 [TMPRSS6]) Chronic inflammation Herschko C, Skikne B. Semin Hematol. 2009;46:

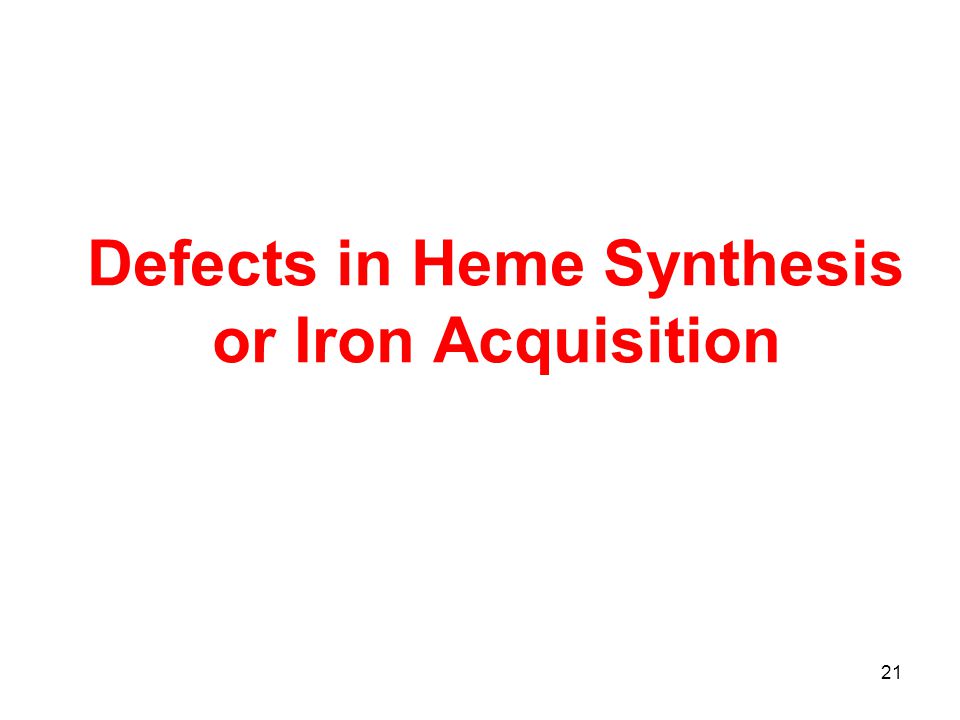

21 21 Defects in Heme Synthesis or Iron Acquisition

22 22 Decisional Tree for the Identification of Candidate Genes in Microcytic Hypochromatic Anaemia Biologic assays –Iron and haematologic status, including serum transferrin receptor Diagnostics to be ruled out –Iron deficiency (nutritional, Pica, lead intoxification) –Haemoglobinopathies –Spherocytosis, elliptocytosis –Other haemolytic anaemias (red blood cells enzyme defect…) (complementary investigations: haptoglobin and birilubin assay) –Atransferrinaemia, aceruloplasminaemia Iolascon A, et al. Haematologica. 2009;94:

23 23 Decisional Tree for the Identification of Candidate Genes in Microcytic Hypochromatic Anaemia With permission from Iolascon A, et al. Haematologica. 2009;94:

24 24 Blood Loss

25 25 Main Causes for Blood Loss Polymenorrhea (>80 mL/mo) Parasitic infestations (hookworm) in developing countries Peptic ulcer Inflammatory bowel disease Meckel’s diverticulum

26 26 Epidemiology, Prevention, and Treatment of Iron Deficiency and Iron Deficiency Anaemia Adlette C. Inati, MD Head Division of Pediatric Hematology-Oncology Medical Director Children's Center for Cancer and Blood Diseases Rafik Hariri University Hospital Beirut, Lebanon

27 27 Epidemiology of Iron Deficiency and Iron Deficiency Anaemia

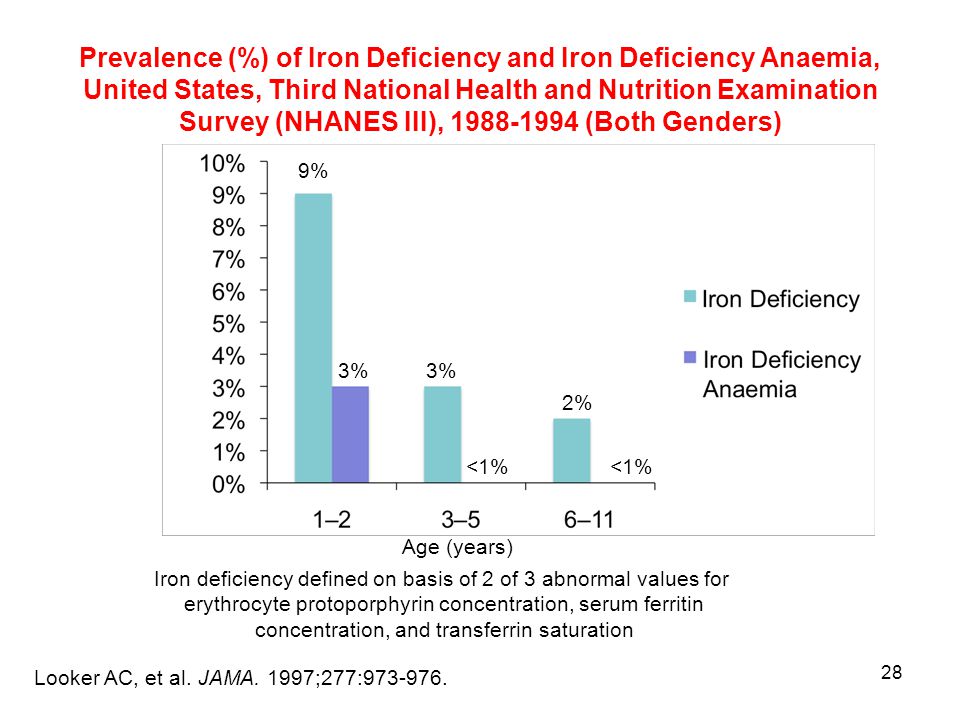

28 28 Prevalence (%) of Iron Deficiency and Iron Deficiency Anaemia, United States, Third National Health and Nutrition Examination Survey (NHANES III), (Both Genders) Looker AC, et al. JAMA. 1997;277: % 3% <1% 2% Age (years) Iron deficiency defined on basis of 2 of 3 abnormal values for erythrocyte protoporphyrin concentration, serum ferritin concentration, and transferrin saturation

29 29 Prospective Survey of Prevalence of Anaemia and Iron Deficiency Anaemia in Healthy 1-Year-Old Lebanese Children (N = 3052) ID defined as: MCV <70 μg/mL, SF <12 ng/mL IDA defined as Hg ≤11 g/dL plus ID Abbreviations: Hg, haemoglobin; ID, iron deficiency; IDA, iron deficiency anaemia; MCV, mean corpuscular volume. Dr. Adlette C. Inati. Unpublished data, Graphic courtesy of Dr. Adlette C. Inati.

30 30 Dr. Adlette C. Inati. Unpublished data, Graphic courtesy of Dr. Adlette C. Inati. Prospective Survey of Prevalence of Anaemia and Iron Deficiency Anaemia in Healthy 1-Year-Old Lebanese Children No. of children 3052 No. of males 1654 No. of females 1398

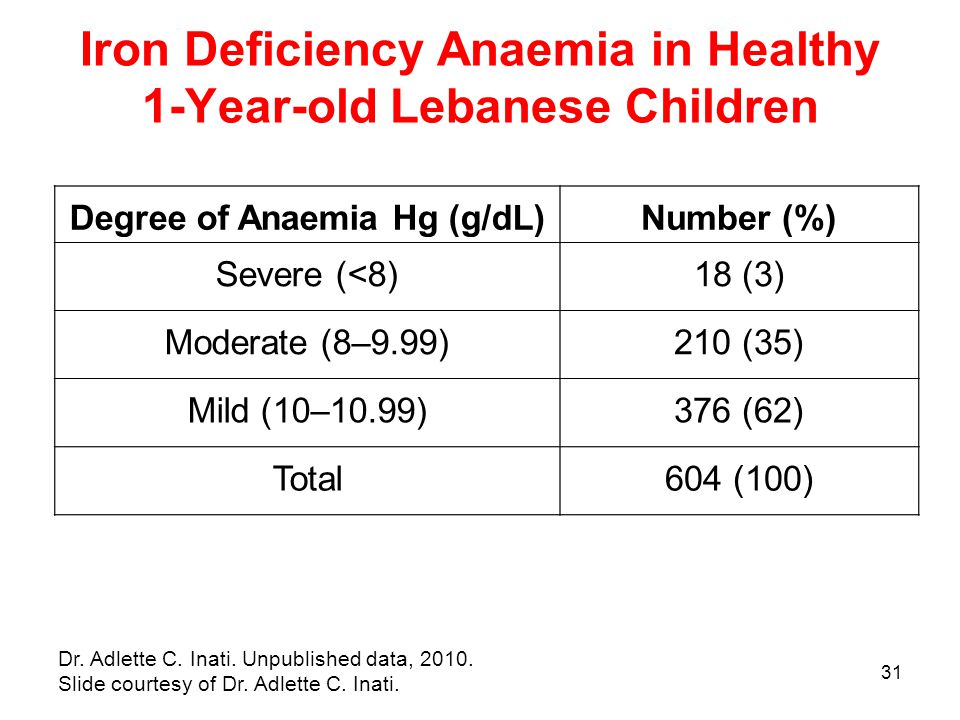

31 31 Iron Deficiency Anaemia in Healthy 1-Year-old Lebanese Children Dr. Adlette C. Inati. Unpublished data, Slide courtesy of Dr. Adlette C. Inati.

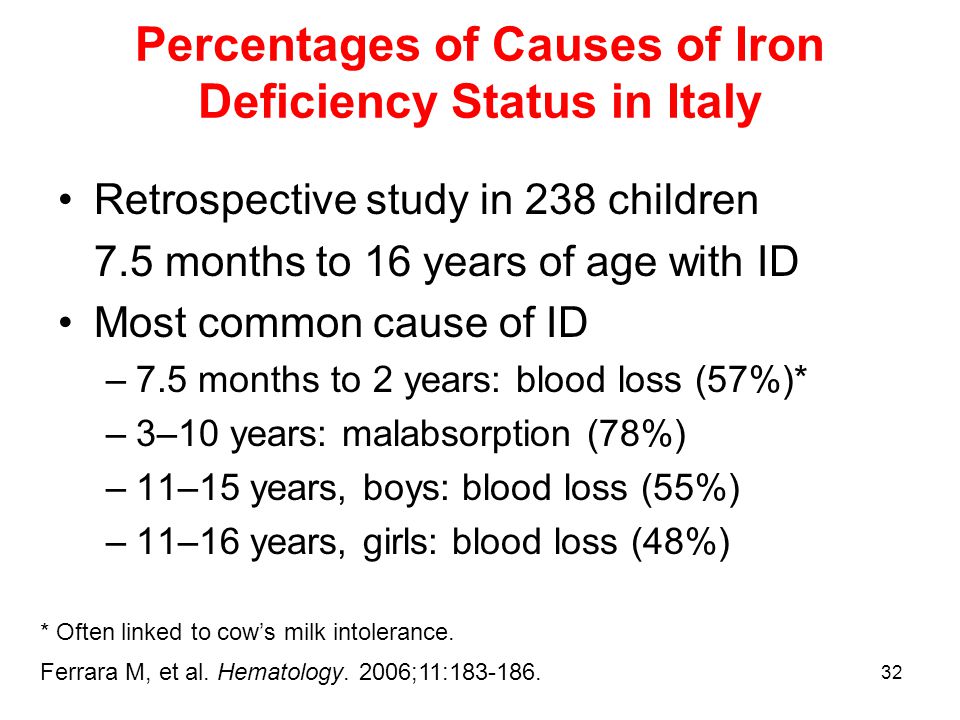

32 32 Percentages of Causes of Iron Deficiency Status in Italy Retrospective study in 238 children 7.5 months to 16 years of age with ID Most common cause of ID –7.5 months to 2 years: blood loss (57%)* –3–10 years: malabsorption (78%) –11–15 years, boys: blood loss (55%) –11–16 years, girls: blood loss (48%) Ferrara M, et al. Hematology. 2006;11: * Often linked to cow’s milk intolerance.

33 33 Causes for Iron Deficiency and Iron Deficiency Anaemia in Children in Taiwan Retrospective study in 116 children, age <18 years, diagnosed with ID, 100 of whom had IDA Peak incidence of childhood ID occurred in children <2 years old and 10 – 18 years old Most common cause of ID –<2 years (n = 45): inadequate intake (55.6%) –2 – 10 years (n = 13): blood loss (46.1%) –>10 years, male (n = 18): inadequate intake (38.9%) –>10 years, female (n = 40): blood loss (37.5%) Huang SH, et al. J Pediatr Hematol Oncol. 2010;32:

34 34 Adverse Effects of Iron Deficiency and Iron Deficiency Anaemia

35 35 Adverse Effects of Iron Deficiency and Iron Deficiency Anaemia Data equivocal due to many confounding factors and difficulties in obtaining relevant tests of infant development  Anaemic schoolchildren have decreased motor activity, social inattention, and decreased school performance 1  Delayed maturation of auditory brain system responses in 6-month-old Chilean infants 2 1. Grantham-McGregor S, et al. J Nutr. 2001;131:666S-668S. 2. Roncagliolo M, et al. Am J Clin Nutr. 1998;68:

36 36 Difference in results of developmental tests at 5 years of age between children with moderate iron deficiency anaemia in infancy and control group adjusted for a comprehensive set of background factors With permission from Lozoff B, et al. N Engl J Med. 1991;325: Effect of IDA in Infancy on Developmental Tests at 5 Years of Age

37 37 Treatment of Iron Deficiency and Iron Deficiency Anaemia

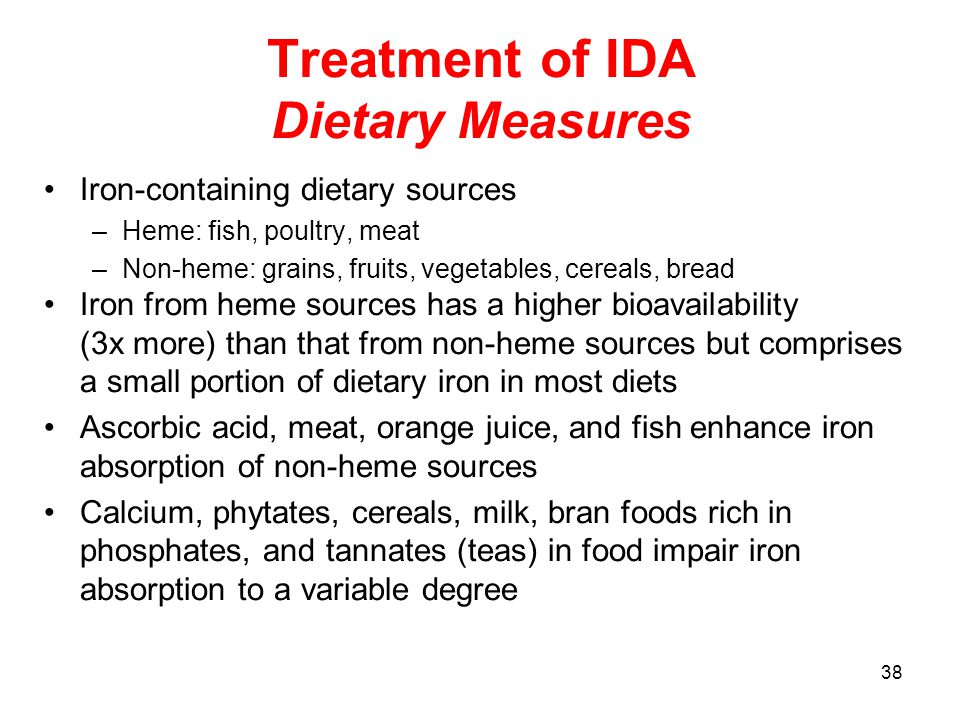

38 38 Treatment of IDA Dietary Measures Iron-containing dietary sources –Heme: fish, poultry, meat –Non-heme: grains, fruits, vegetables, cereals, bread Iron from heme sources has a higher bioavailability (3x more) than that from non-heme sources but comprises a small portion of dietary iron in most diets Ascorbic acid, meat, orange juice, and fish enhance iron absorption of non-heme sources Calcium, phytates, cereals, milk, bran foods rich in phosphates, and tannates (teas) in food impair iron absorption to a variable degree

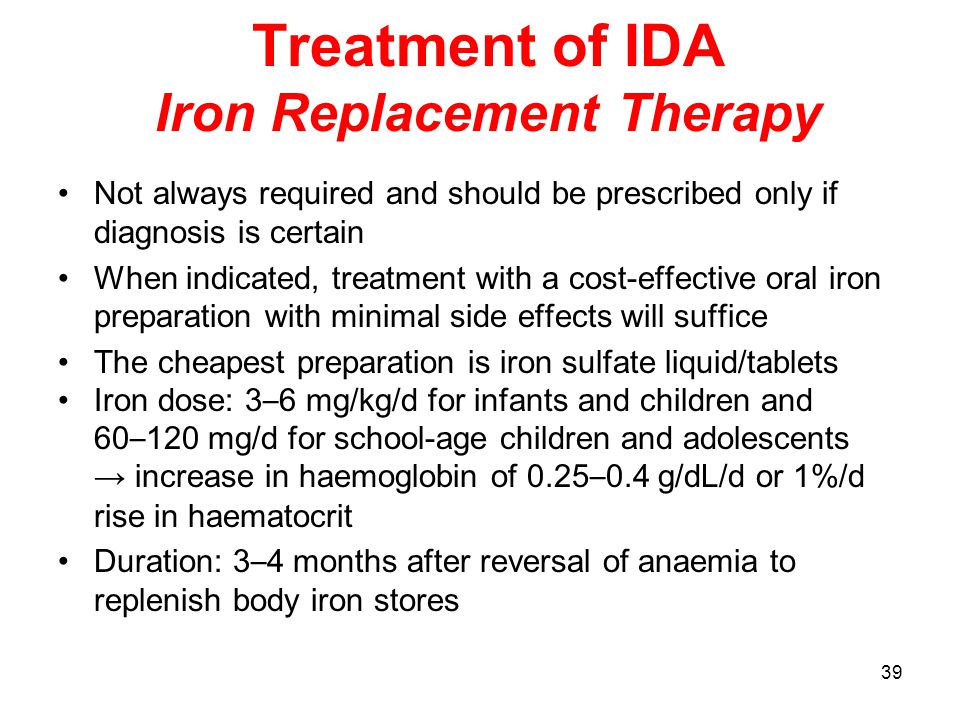

39 39 Treatment of IDA Iron Replacement Therapy Not always required and should be prescribed only if diagnosis is certain When indicated, treatment with a cost-effective oral iron preparation with minimal side effects will suffice The cheapest preparation is iron sulfate liquid/tablets Iron dose: 3 – 6 mg/kg/d for infants and children and 60 – 120 mg/d for school-age children and adolescents → increase in haemoglobin of 0.25 – 0.4 g/dL/d or 1%/d rise in haematocrit Duration: 3 – 4 months after reversal of anaemia to replenish body iron stores

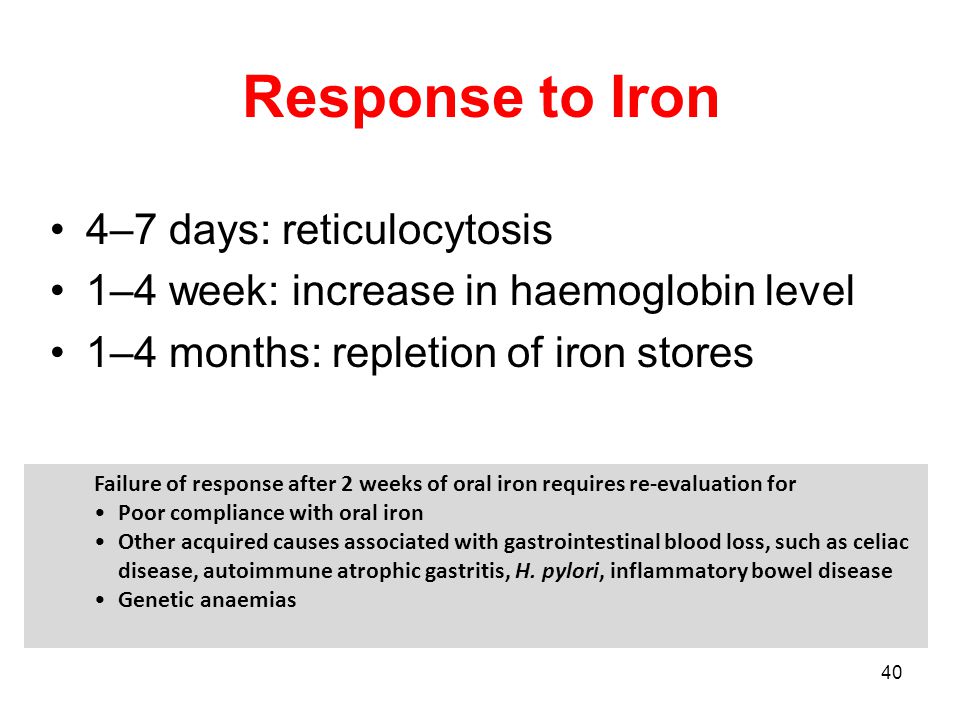

40 40 Response to Iron 4–7 days: reticulocytosis 1–4 week: increase in haemoglobin level 1–4 months: repletion of iron stores Failure of response after 2 weeks of oral iron requires re-evaluation for Poor compliance with oral iron Other acquired causes associated with gastrointestinal blood loss, such as celiac disease, autoimmune atrophic gastritis, H. pylori, inflammatory bowel disease Genetic anaemias

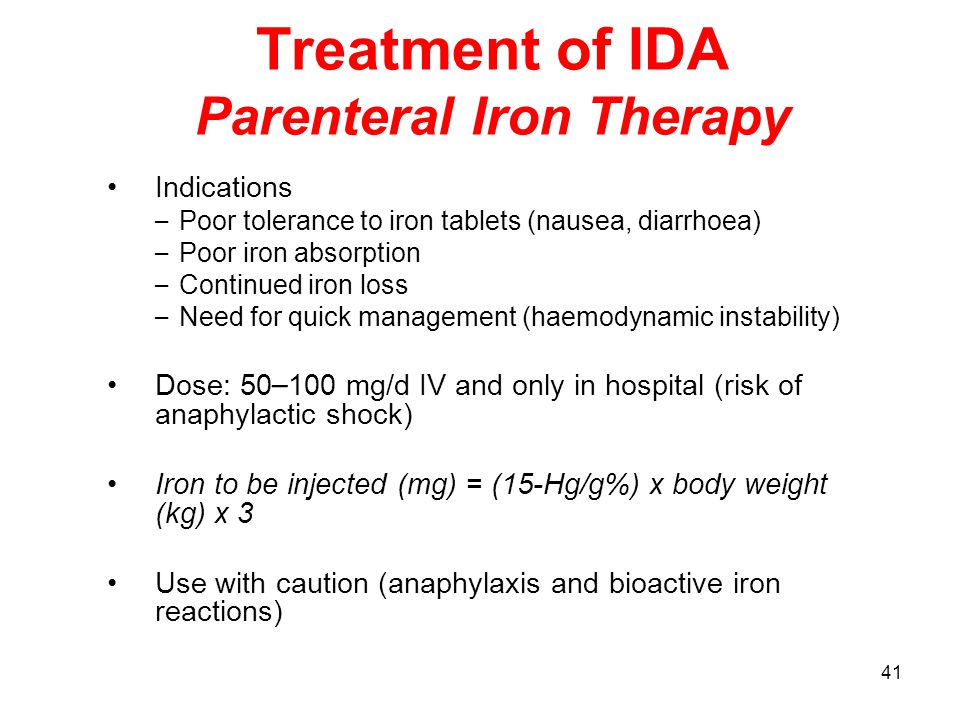

41 41 Treatment of IDA Parenteral Iron Therapy Indications – Poor tolerance to iron tablets (nausea, diarrhoea) – Poor iron absorption – Continued iron loss – Need for quick management (haemodynamic instability) Dose: 50 – 100 mg/d IV and only in hospital (risk of anaphylactic shock) Iron to be injected (mg) = (15-Hg/g%) x body weight (kg) x 3 Use with caution (anaphylaxis and bioactive iron reactions)

42 42 Treatment of IDA Blood Transfusion Rarely necessary even for severe IDA with haemoglobin concentrations of 4 – 5 gm/dL Should be reserved for patients in cardiorespiratory distress, lethargy, and very poor nutritional intake Needs to be given slowly to avoid heart failure

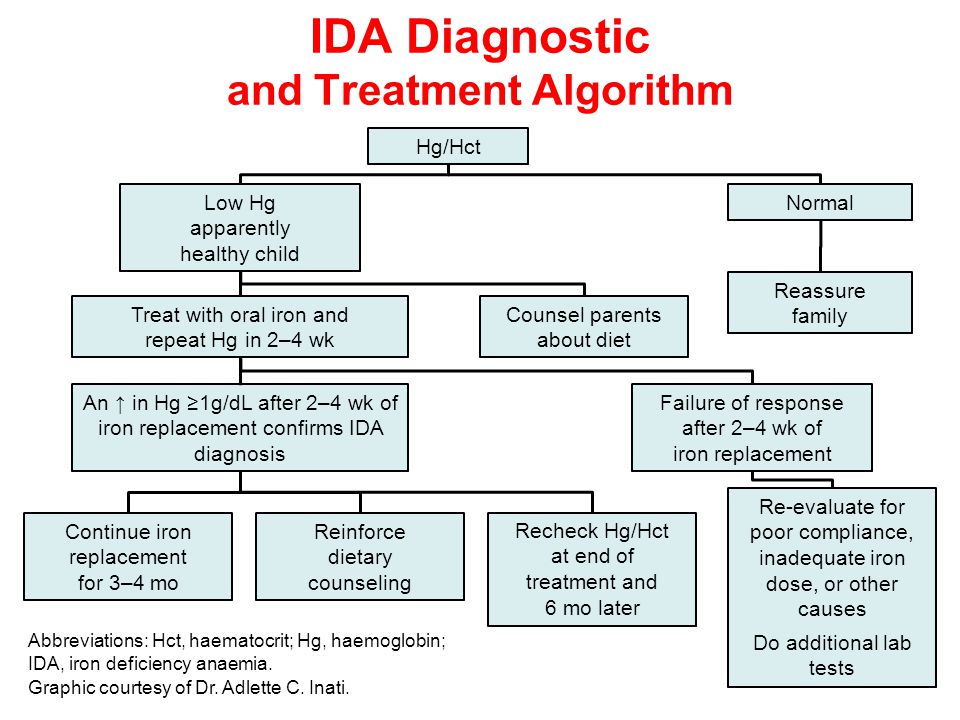

43 43 IDA Diagnostic and Treatment Algorithm Hg/Hct Low Hg apparently healthy child Normal Reassure family Treat with oral iron and repeat Hg in 2–4 wk Counsel parents about diet An ↑ in Hg ≥1g/dL after 2–4 wk of iron replacement confirms IDA diagnosis Failure of response after 2–4 wk of iron replacement Continue iron replacement for 3–4 mo Reinforce dietary counseling Recheck Hg/Hct at end of treatment and 6 mo later Re-evaluate for poor compliance, inadequate iron dose, or other causes Do additional lab tests Graphic courtesy of Dr. Adlette C. Inati. Abbreviations: Hct, haematocrit; Hg, haemoglobin; IDA, iron deficiency anaemia.

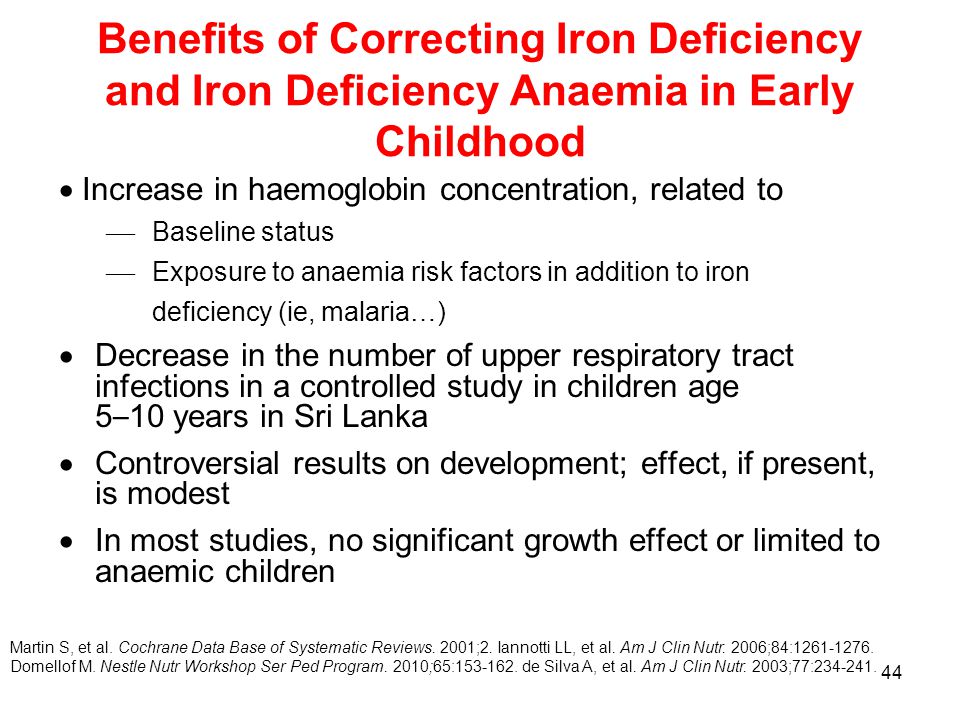

44 44 Benefits of Correcting Iron Deficiency and Iron Deficiency Anaemia in Early Childhood  Increase in haemoglobin concentration, related to  Baseline status  Exposure to anaemia risk factors in addition to iron deficiency (ie, malaria…)  Decrease in the number of upper respiratory tract infections in a controlled study in children age 5 – 10 years in Sri Lanka  Controversial results on development; effect, if present, is modest  In most studies, no significant growth effect or limited to anaemic children Martin S, et al. Cochrane Data Base of Systematic Reviews. 2001;2. Iannotti LL, et al. Am J Clin Nutr. 2006;84: Domellof M. Nestle Nutr Workshop Ser Ped Program. 2010;65: de Silva A, et al. Am J Clin Nutr. 2003;77:

45 45 Risks of Correcting Iron Deficiency and Iron Deficiency Anaemia in Early Childhood  Adverse growth effect in iron-replete children (inhibition of other growth-promoting nutrients?)  Increased risk for severe malaria infections in children who are iron sufficient Martin S, et al. Cochrane Data Base of Systematic Reviews 2001;2. Iannotti LL, et al. Am J Clin Nutr. 2006;84: Domellof M. Nestle Nutr Workshop Ser Ped Program 2010;65: de Silva A, et al. Am J Clin Nutr. 2003;77:

46 46 Prevention and Screening

47 47 Prevention The key to reducing the morbidity associated with iron deficiency includes prevention of iron deficiency and the identification and treatment of children who are iron deficient Primary prevention means ensuring an adequate intake of iron, which can meet an infant’s and child’s nutritional requirements for optimal growth and development Secondary prevention entails screening for, diagnosing, and treating iron deficiency anaemia

48 48 Primary Prevention American Academy of Pediatrics (AAP) Recommendations (2005) CDC Criteria for Anemia in Children and Childbearing-Aged Women Continuing breastfeeding for at least the first 4 – 6 months of life and beyond Introducing iron-rich solid foods at around 6 months of age Iron supplementation before 6 months of age for preterm and low birth weight infants and infants with haematologic disorders and/or inadequate iron stores at birth Giving iron-fortified infant formula, and not cow's milk, for infants weaned before 12 months of age Encouraging adolescent girls to eat iron-rich foods and foods that enhance iron absorption American Academy of Pediatrics. Pediatrics. 2005;115: Wall CR, et al. Arch Dis Child. 2005; 90: MMWR. 1993;47 (RR-3):1-29.

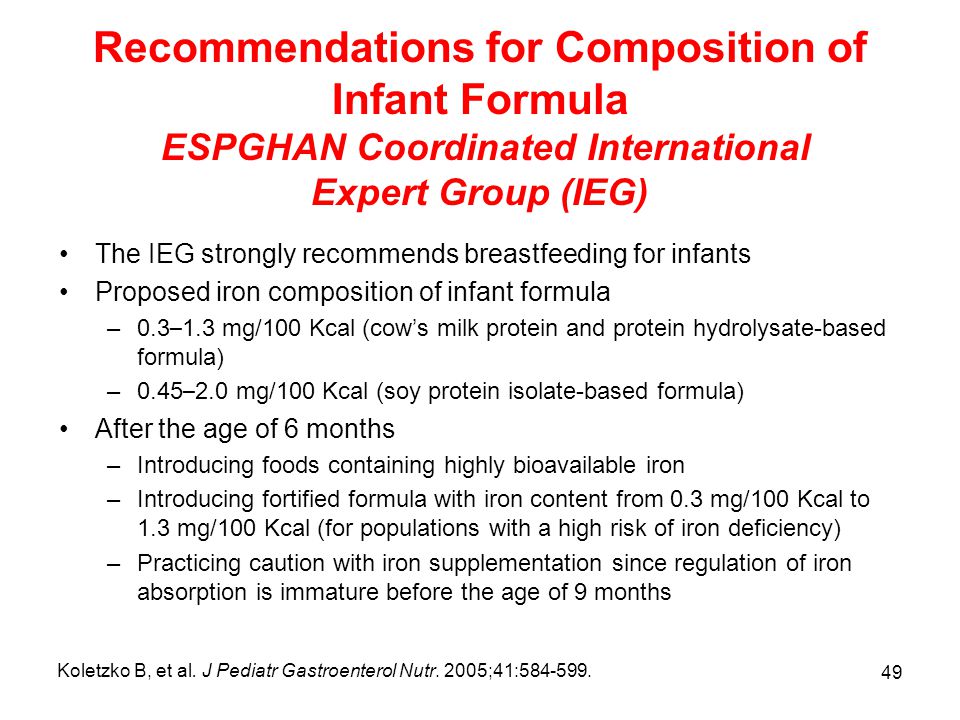

49 49 Recommendations for Composition of Infant Formula ESPGHAN Coordinated International Expert Group (IEG) The IEG strongly recommends breastfeeding for infants Proposed iron composition of infant formula –0.3 – 1.3 mg/100 Kcal (cow’s milk protein and protein hydrolysate-based formula) –0.45 – 2.0 mg/100 Kcal (soy protein isolate-based formula) After the age of 6 months –Introducing foods containing highly bioavailable iron –Introducing fortified formula with iron content from 0.3 mg/100 Kcal to 1.3 mg/100 Kcal (for populations with a high risk of iron deficiency) –Practicing caution with iron supplementation since regulation of iron absorption is immature before the age of 9 months Koletzko B, et al. J Pediatr Gastroenterol Nutr. 2005;41:

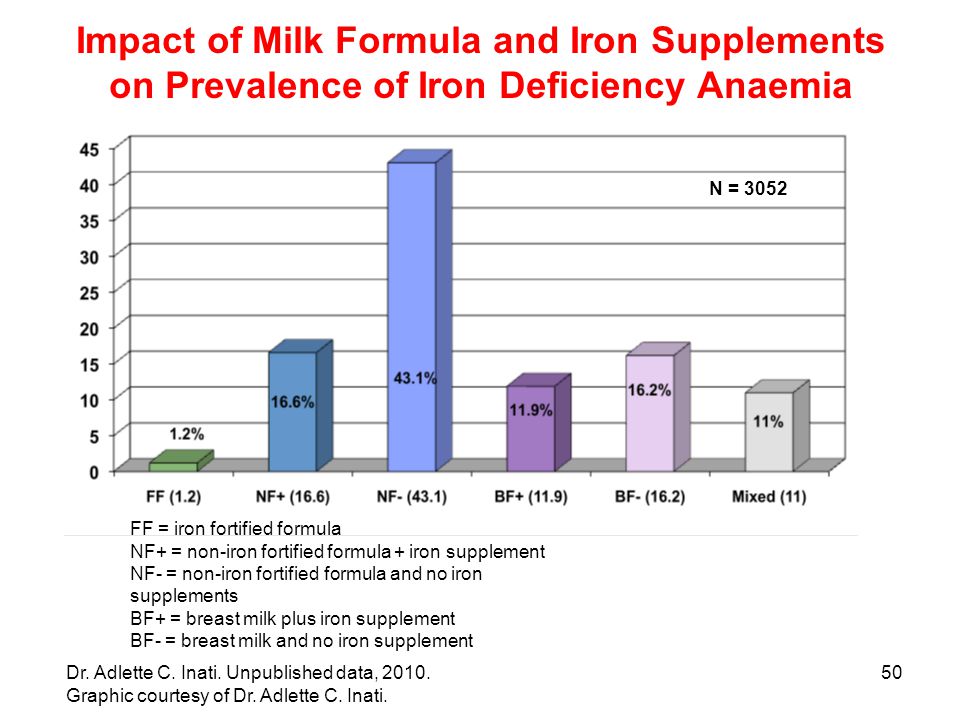

50 50 Dr. Adlette C. Inati. Unpublished data, Graphic courtesy of Dr. Adlette C. Inati. Impact of Milk Formula and Iron Supplements on Prevalence of Iron Deficiency Anaemia FF = iron fortified formula NF+ = non-iron fortified formula + iron supplement NF- = non-iron fortified formula and no iron supplements BF+ = breast milk plus iron supplement BF- = breast milk and no iron supplement N = 3052

51 51 Screening American Academy of Pediatrics Recommendations (2005) Screening haemoglobin or haematocrit between 9 and 12 months of age then 6 months later, and, for patients at high risk, once a year from age 2 – 5 years Screening haemoglobin and/or haematocrit in infants age 6-12 months who are living in poverty, or who are black, Native American, or Alaska Native, immigrants from developing countries, preterm and low birth weight infants, and infants whose principal dietary intake is unfortified cow's milk Annual screening of menstruating girls and screening boys once during the peak growth period by measuring haemoglobin concentration or haematocrit American Academy of Pediatrics. Pediatrics. 2005;115:

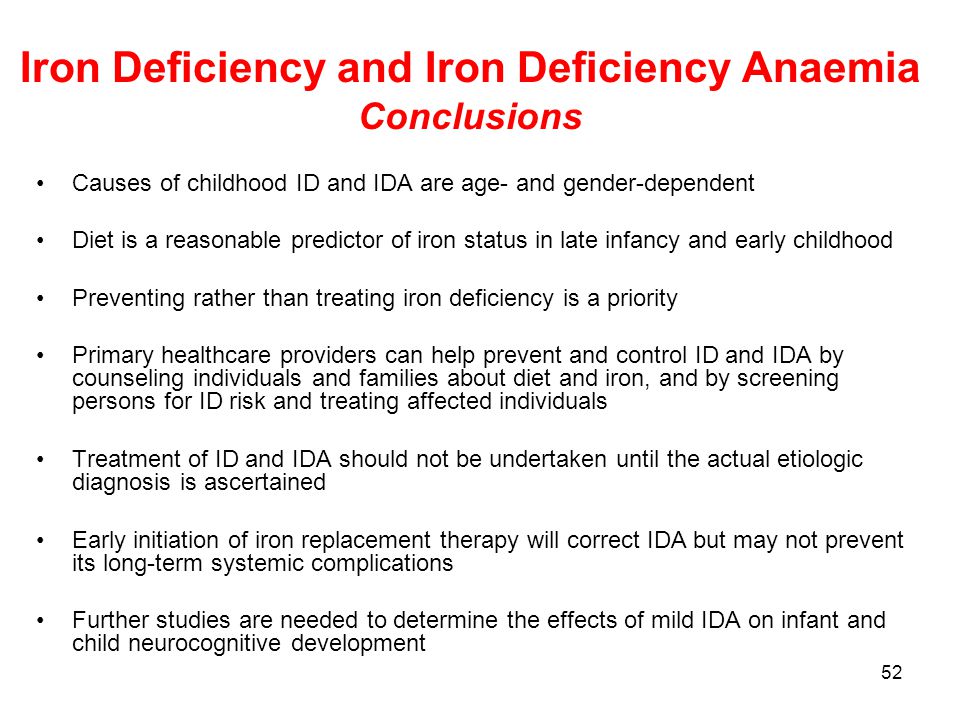

52 52 Iron Deficiency and Iron Deficiency Anaemia Conclusions Causes of childhood ID and IDA are age- and gender-dependent Diet is a reasonable predictor of iron status in late infancy and early childhood Preventing rather than treating iron deficiency is a priority Primary healthcare providers can help prevent and control ID and IDA by counseling individuals and families about diet and iron, and by screening persons for ID risk and treating affected individuals Treatment of ID and IDA should not be undertaken until the actual etiologic diagnosis is ascertained Early initiation of iron replacement therapy will correct IDA but may not prevent its long-term systemic complications Further studies are needed to determine the effects of mild IDA on infant and child neurocognitive development

53 53 Thank you for your participation in this webcast Please remember to take the posttest
