Year 8 Design Technology 2 Point Perspective

2

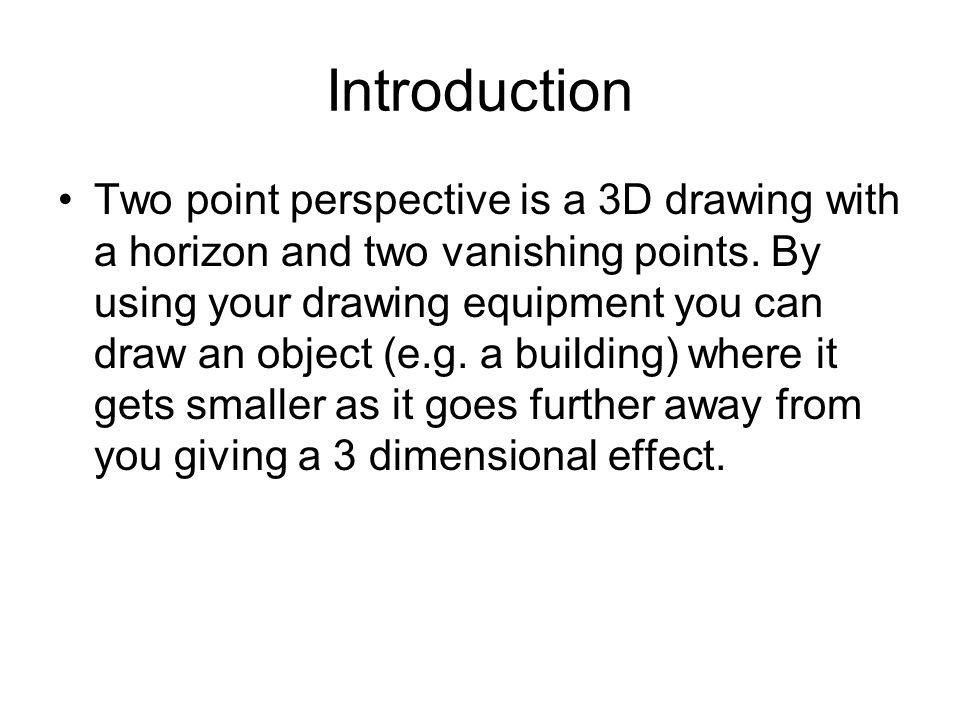

Introduction Two point perspective is a 3D drawing with a horizon and two vanishing points. By using your drawing equipment you can draw an object (e.g. a building) where it gets smaller as it goes further away from you giving a 3 dimensional effect.

3

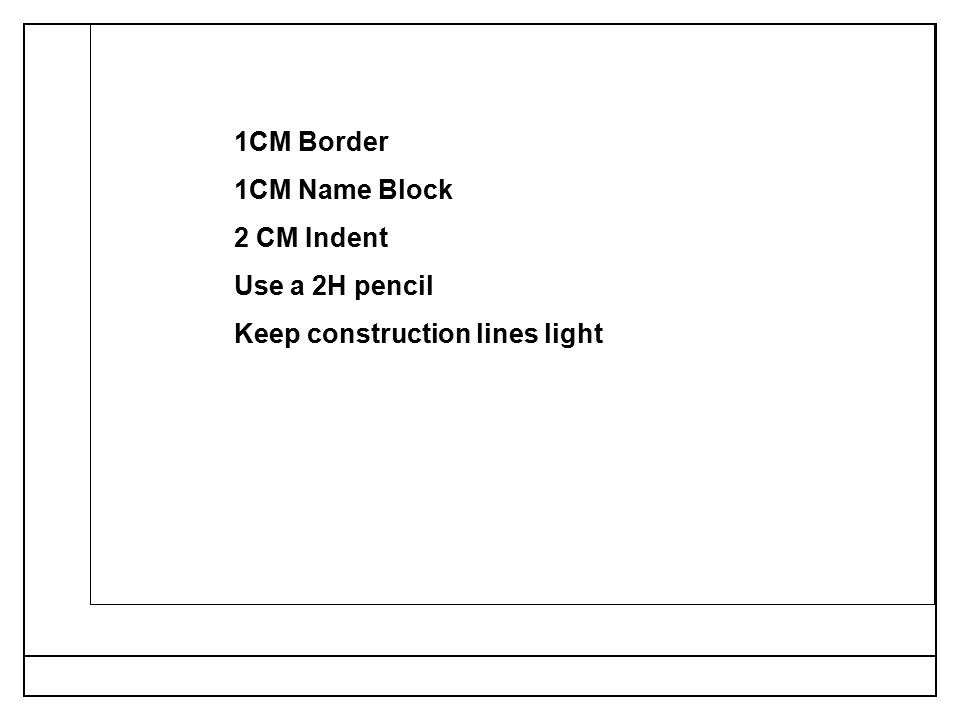

1CM Border 1CM Name Block 2 CM Indent Use a 2H pencil Keep construction lines light

4

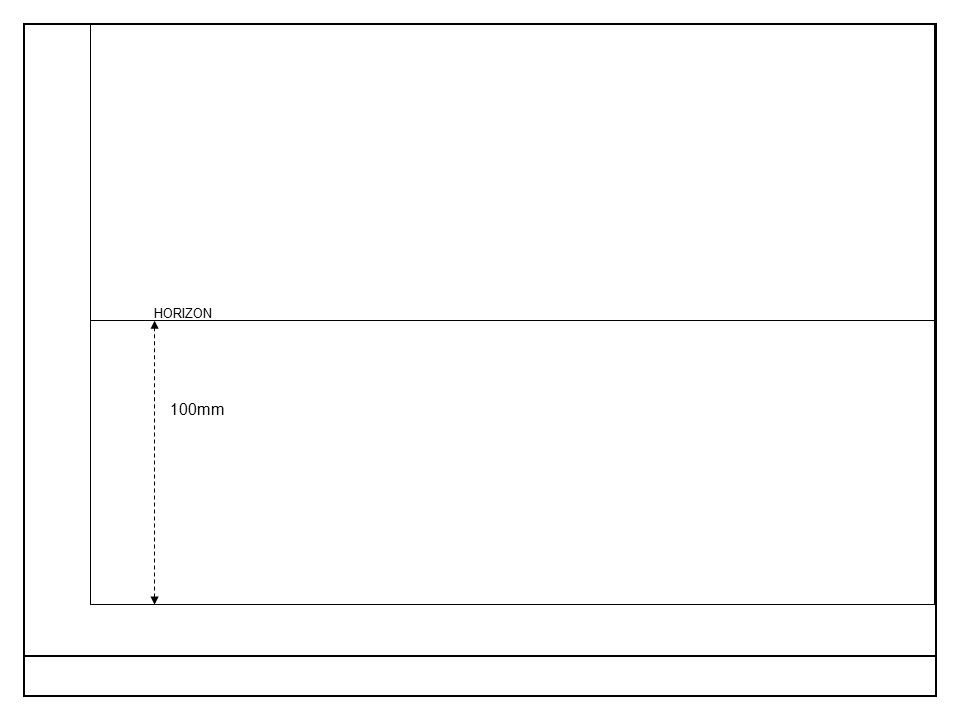

100mm HORIZON

5

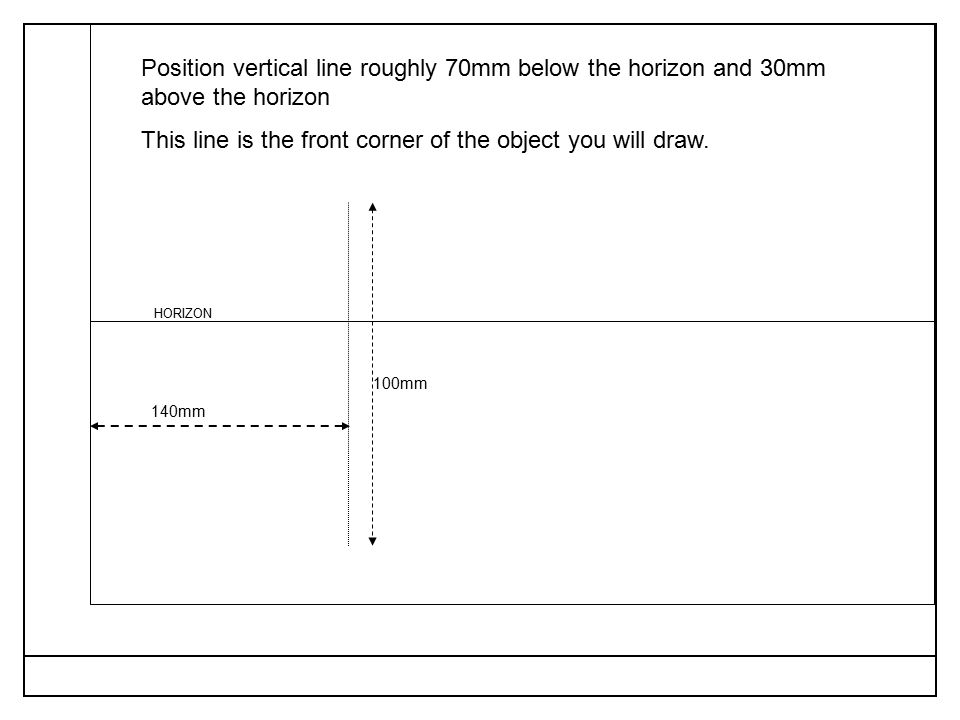

140mm 100mm Position vertical line roughly 70mm below the horizon and 30mm above the horizon This line is the front corner of the object you will draw. HORIZON

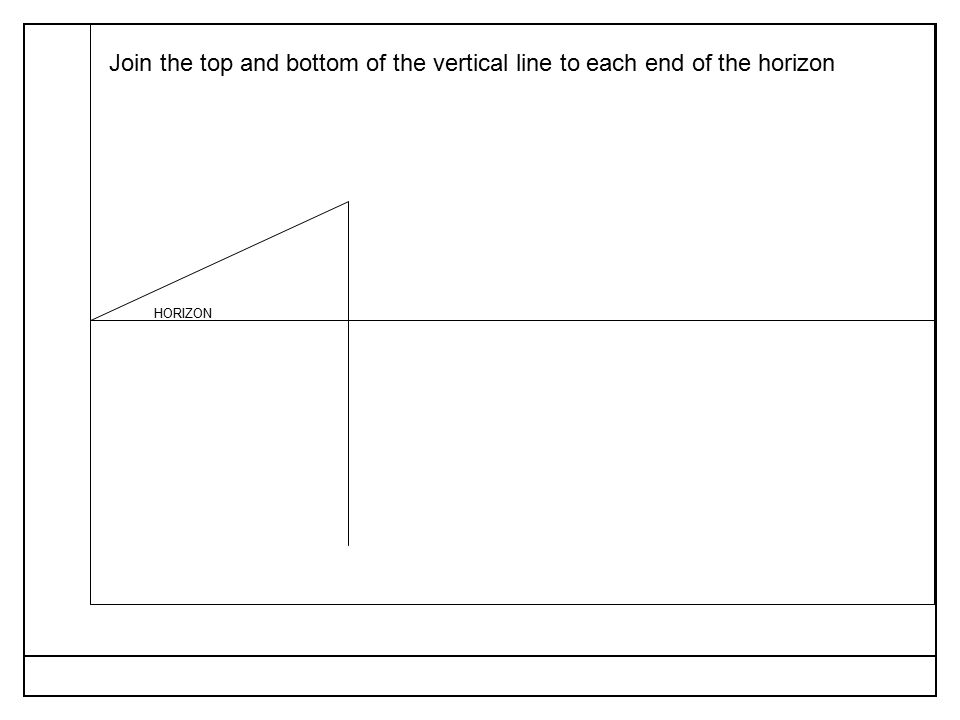

6

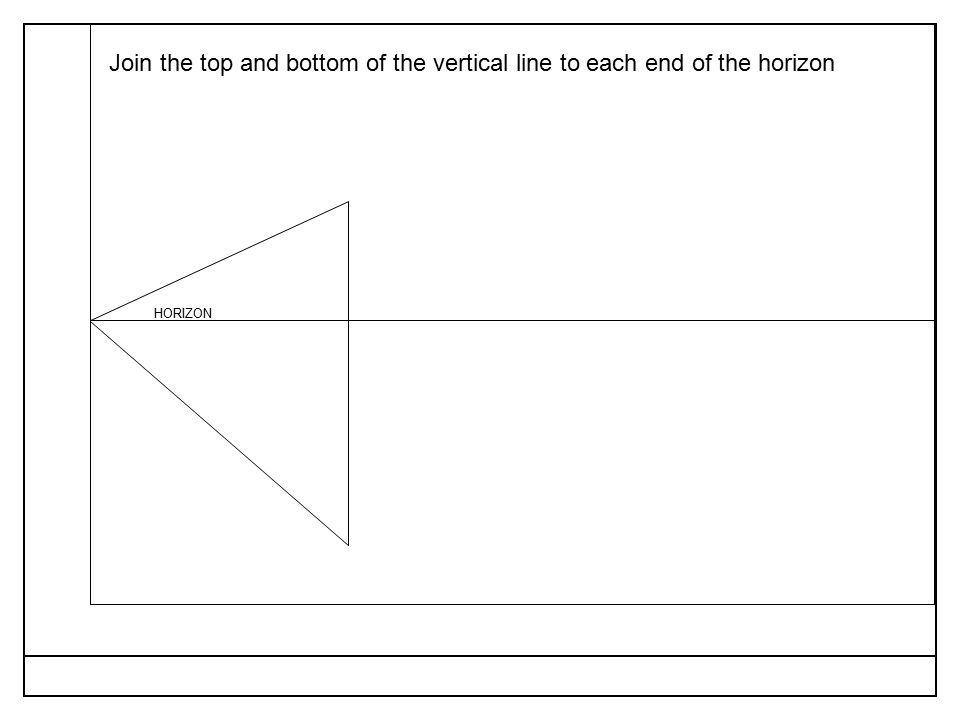

Join the top and bottom of the vertical line to each end of the horizon HORIZON

7

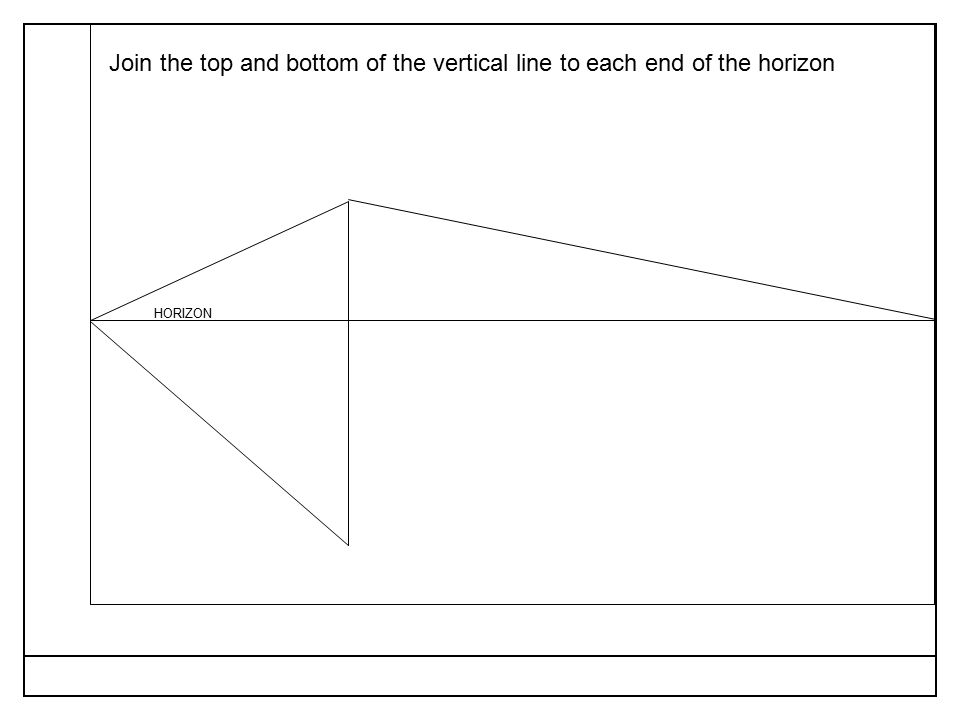

Join the top and bottom of the vertical line to each end of the horizon HORIZON

8

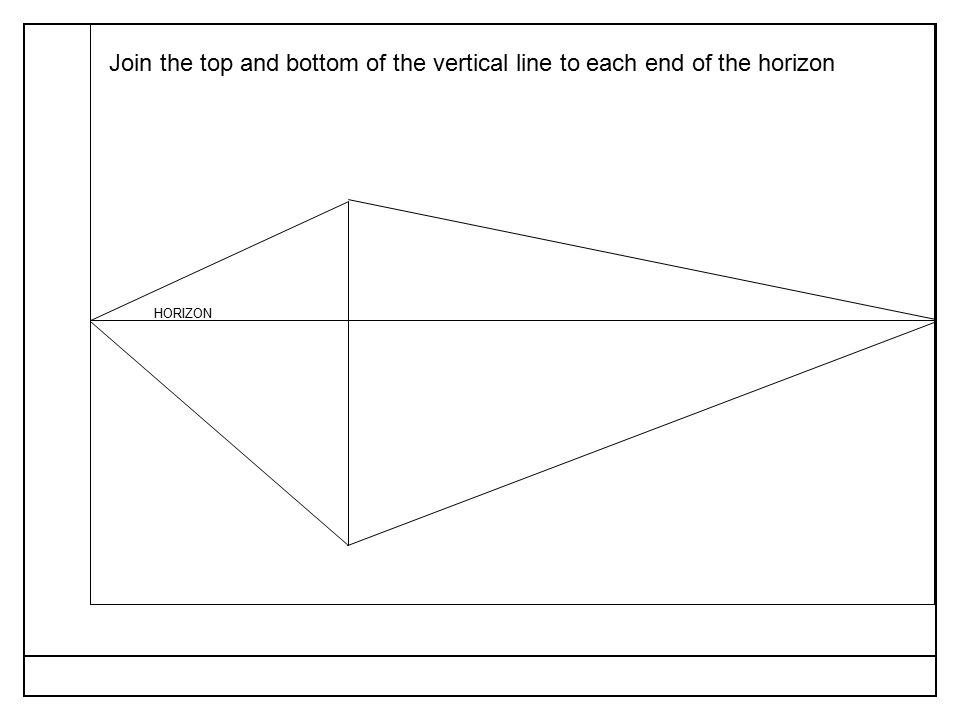

Join the top and bottom of the vertical line to each end of the horizon

9
HORIZON

10
VP 1 VP 2 Label the each end of the horizon as vanishing point 1 (VP 1) and VP 2 HORIZON

11

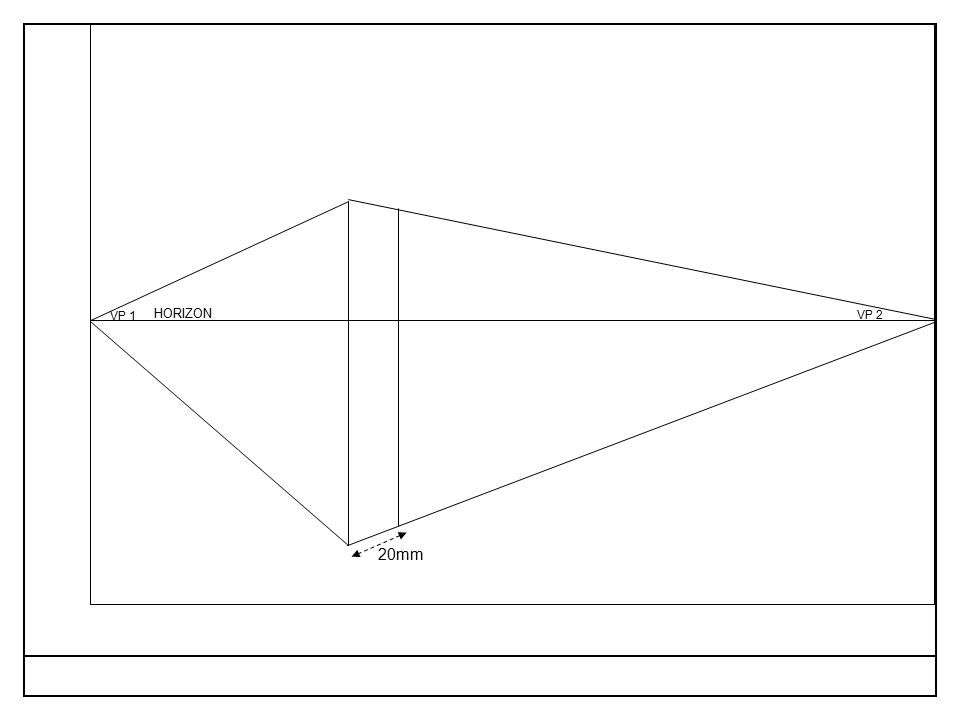

VP 1 VP 2 20mm HORIZON

12

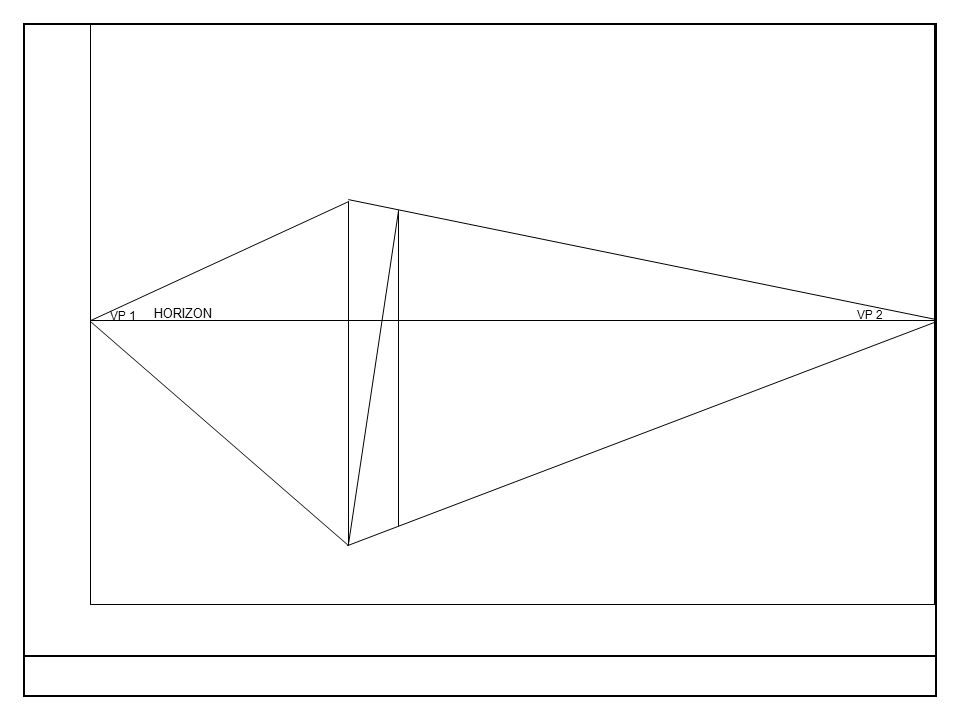

VP 1 VP 2 HORIZON

13

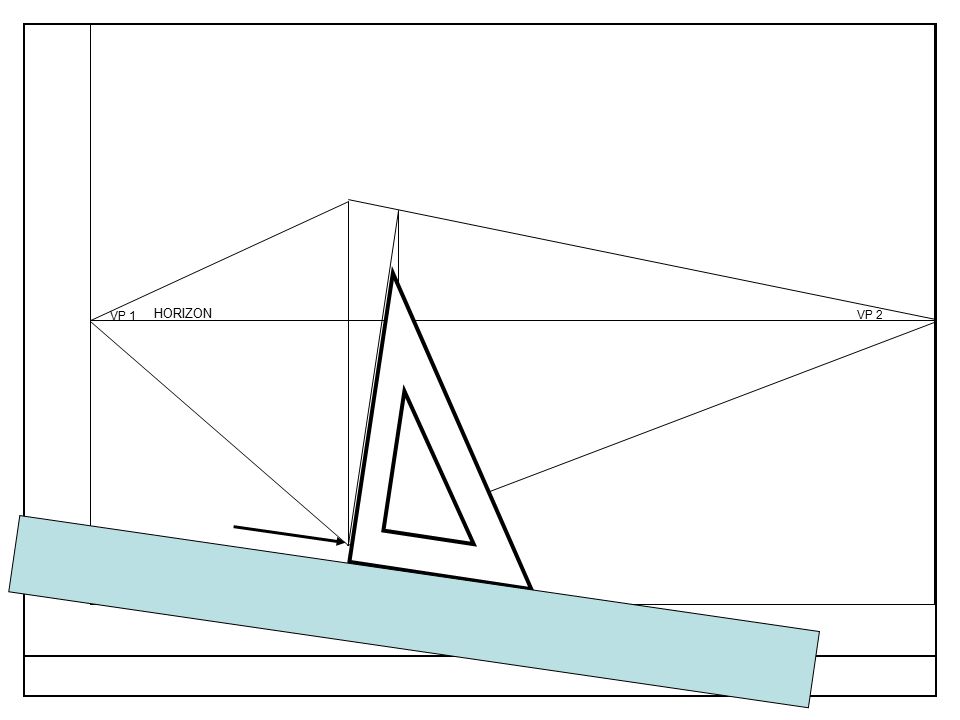

VP 1 VP 2 HORIZON

14
VP 1 VP 2 Each line is parallel to each other HORIZON

15
VP 1 VP 2 RULER Position ruler at an angle to position set square next to the angled line and slide along HORIZON

16

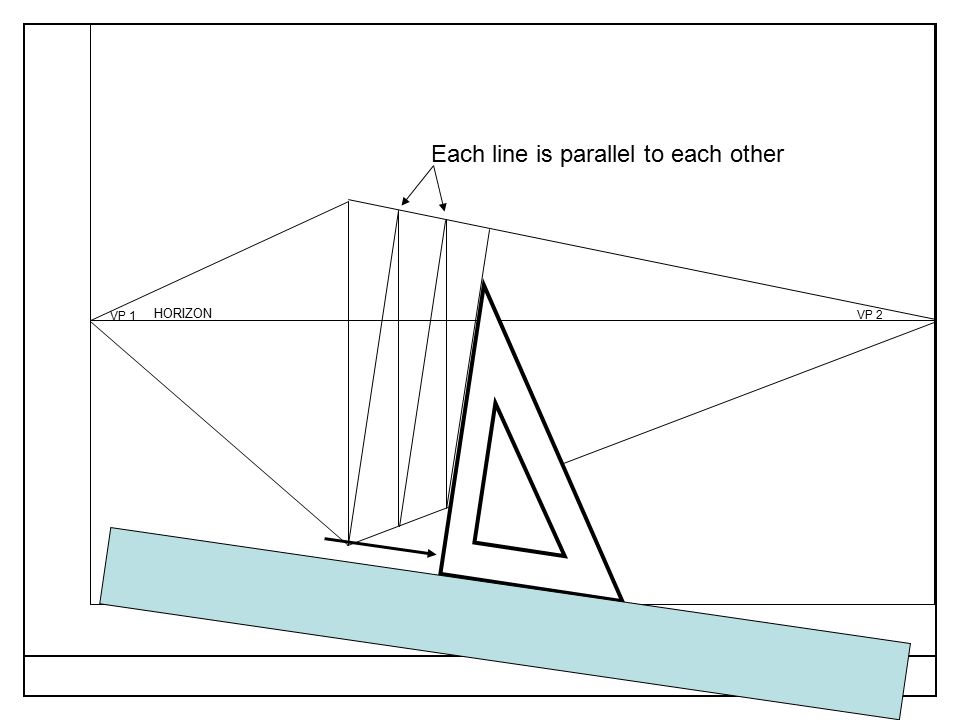

VP 1 VP 2 Each line is parallel to each other HORIZON

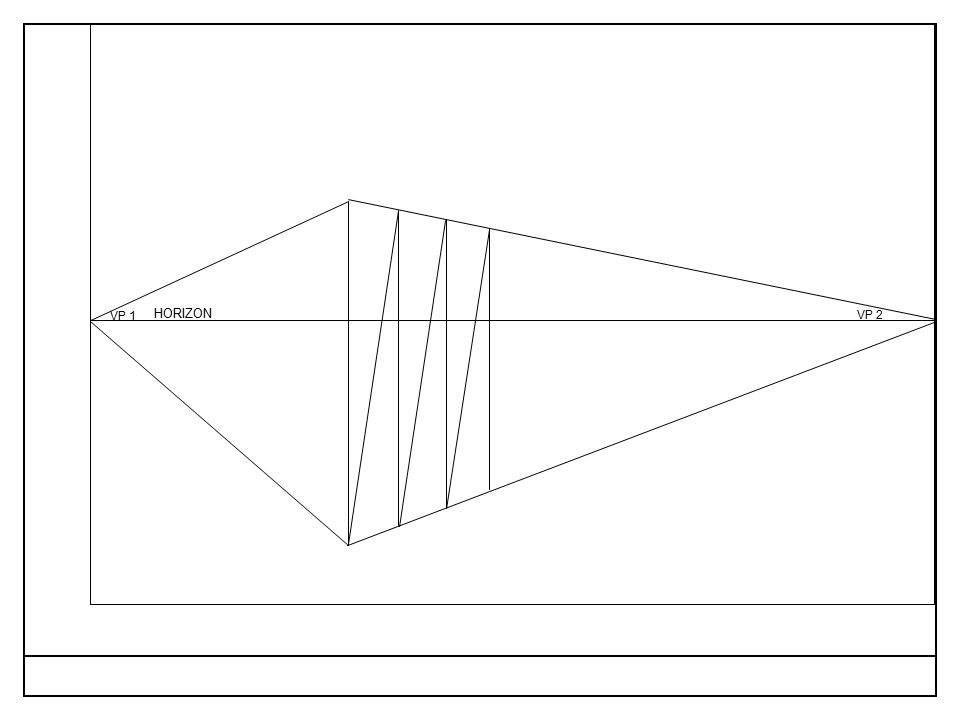

17
VP 1 VP 2 HORIZON

18
VP 1 VP 2 You will need to repeat this dividing process to get a total of 19 gaps. This method will give the impression of the gaps getting smaller as they go into the distance. Take care when using the ruler and set square to draw these lines. HORIZON

19

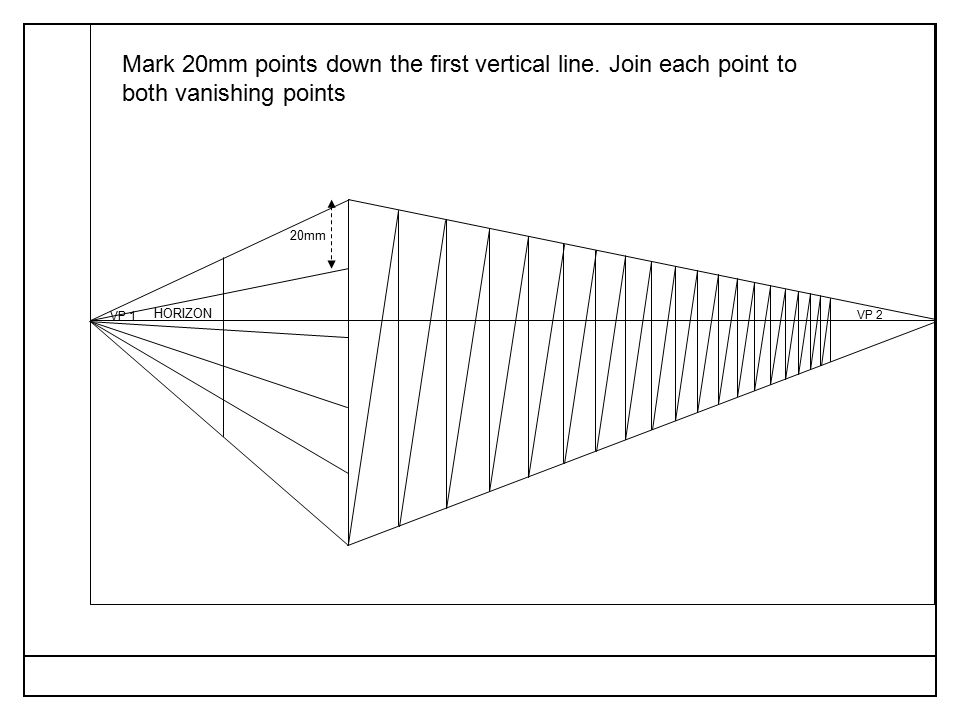

VP 1 VP 2 HORIZON 20mm Mark 20mm points down the first vertical line. Join each point to both vanishing points

20
VP 1 VP 2 HORIZON 20mm Mark 20mm points down the first vertical line. Join each point to both vanishing points

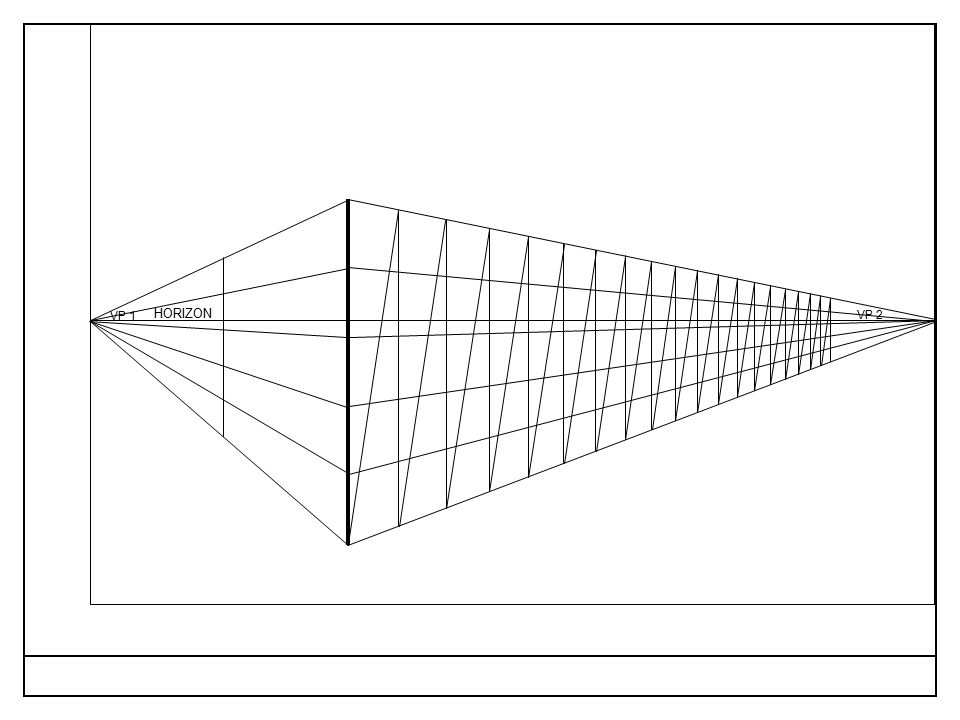

21
VP 1 VP 2 HORIZON

22
VP 1 VP 2 HORIZON

23
VP 1 VP 2 HORIZON

24
VP 1 VP 2 HORIZON

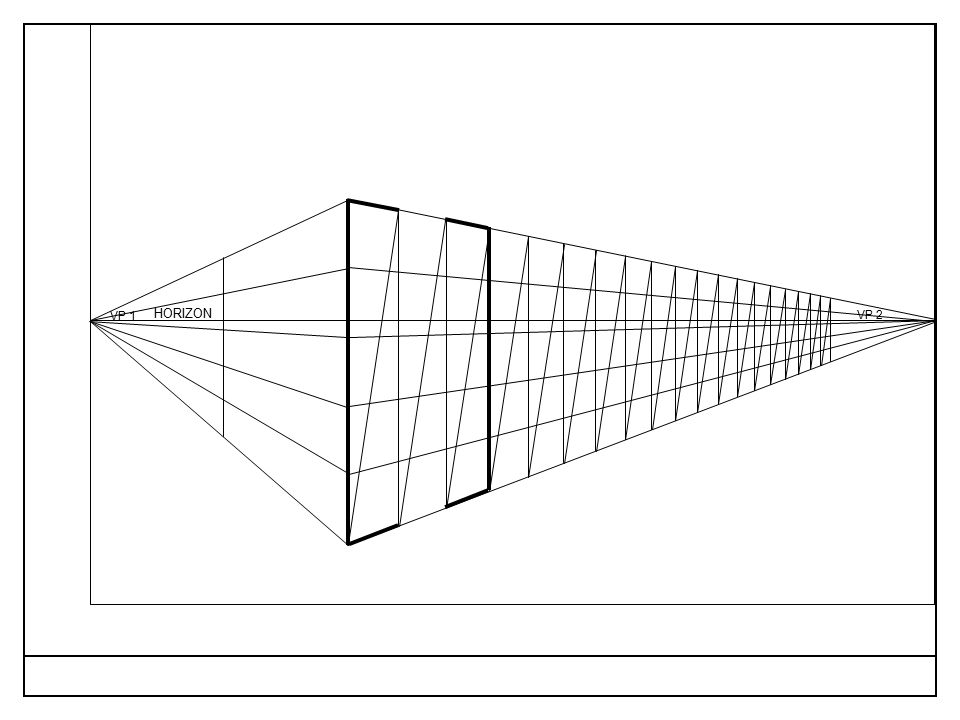

25
VP 1 VP 2 HORIZON

26

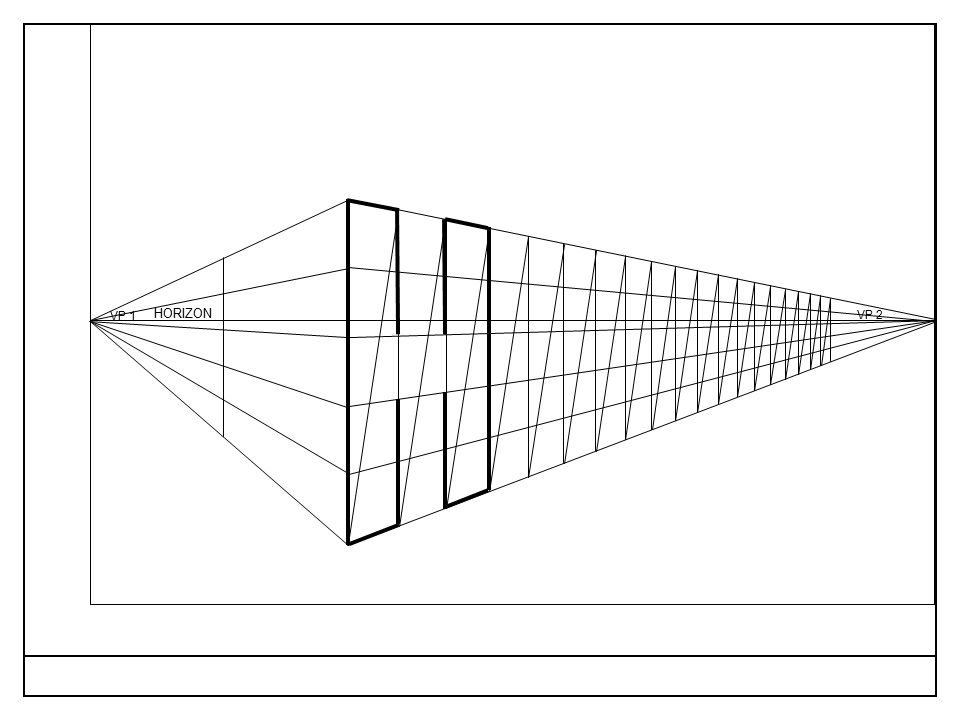

VP 1 VP 2 HORIZON

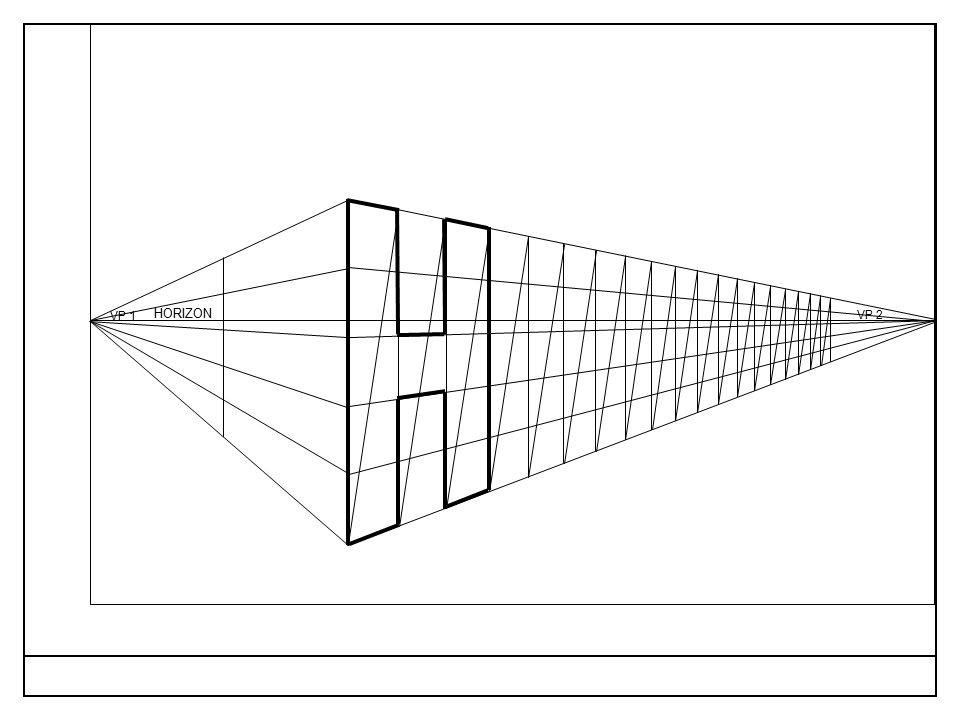

27
VP 1 VP 2 HORIZON

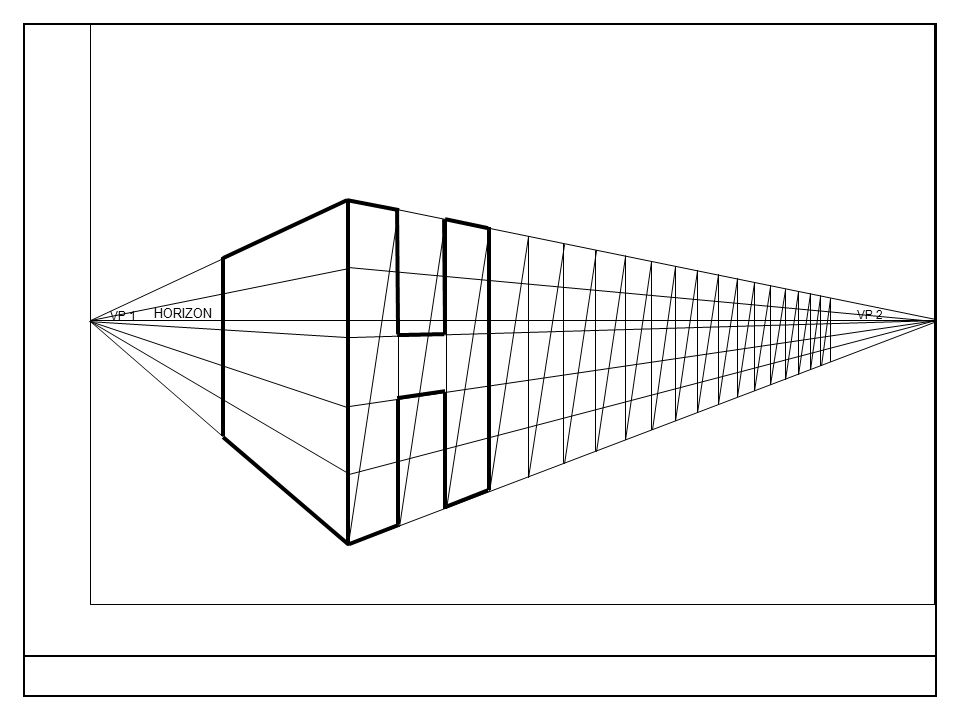

28
VP 1 VP 2 HORIZON

29

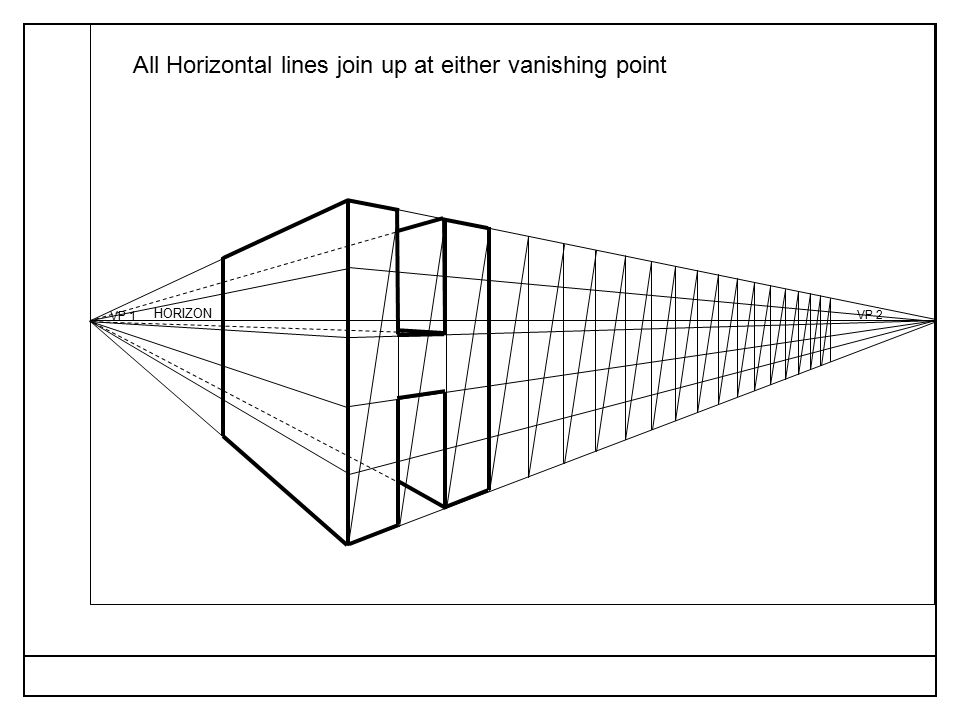

VP 1 VP 2 HORIZON All Horizontal lines join up at either vanishing point

30

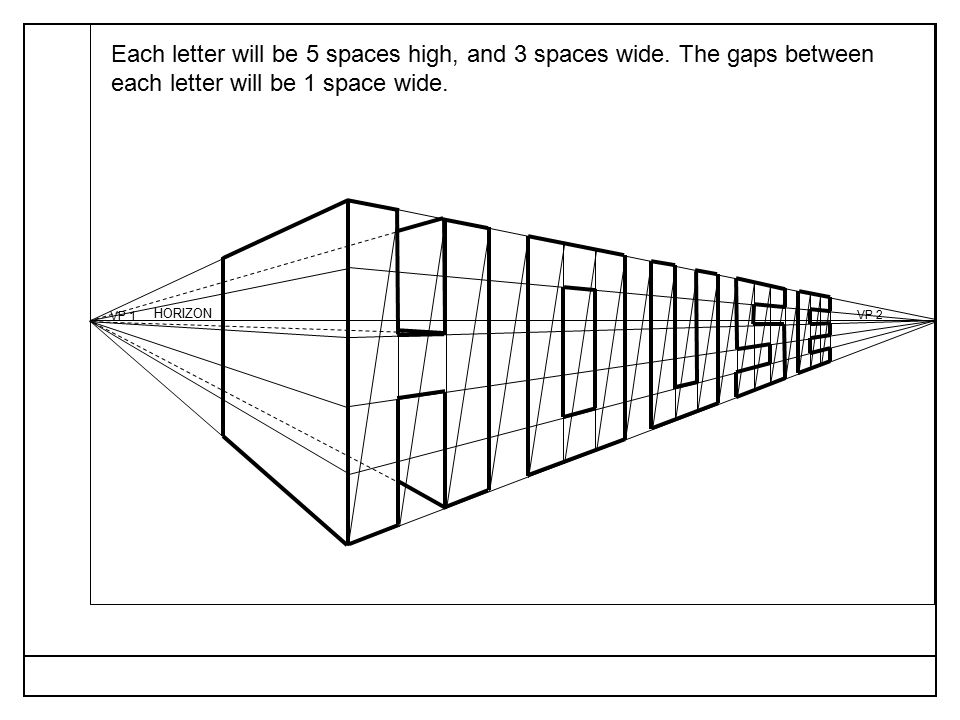

VP 1 VP 2 HORIZON Each letter will be 5 spaces high, and 3 spaces wide. The gaps between each letter will be 1 space wide.

31
VP 1 VP 2 HORIZON

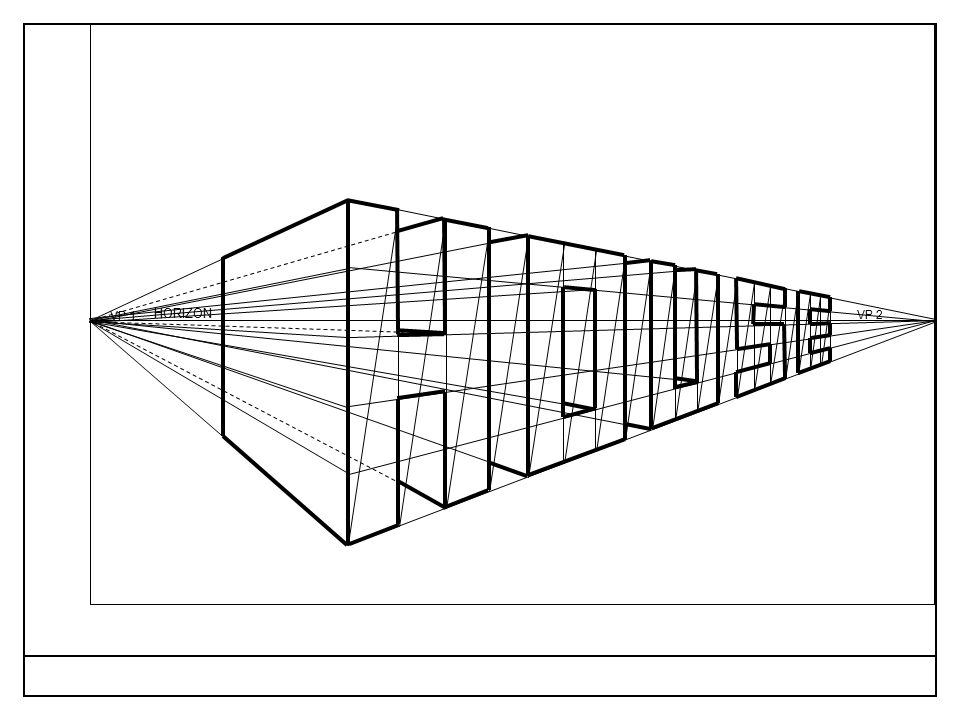

32
VP 1 VP 2 HORIZON

33
VP 1 VP 2 HORIZON

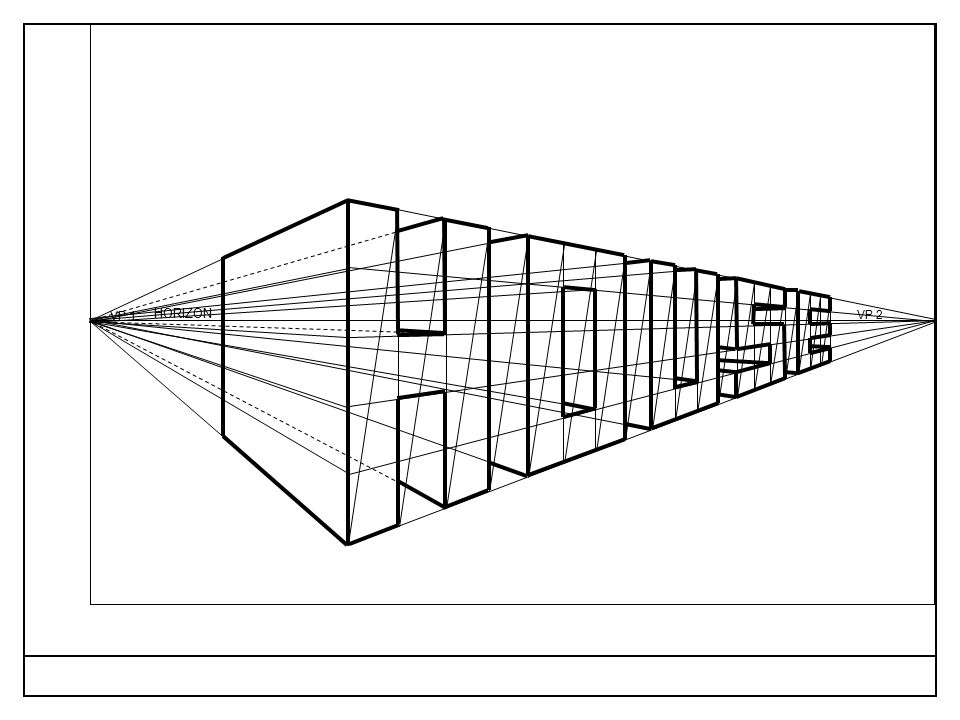

34
VP 1 VP 2 HORIZON
