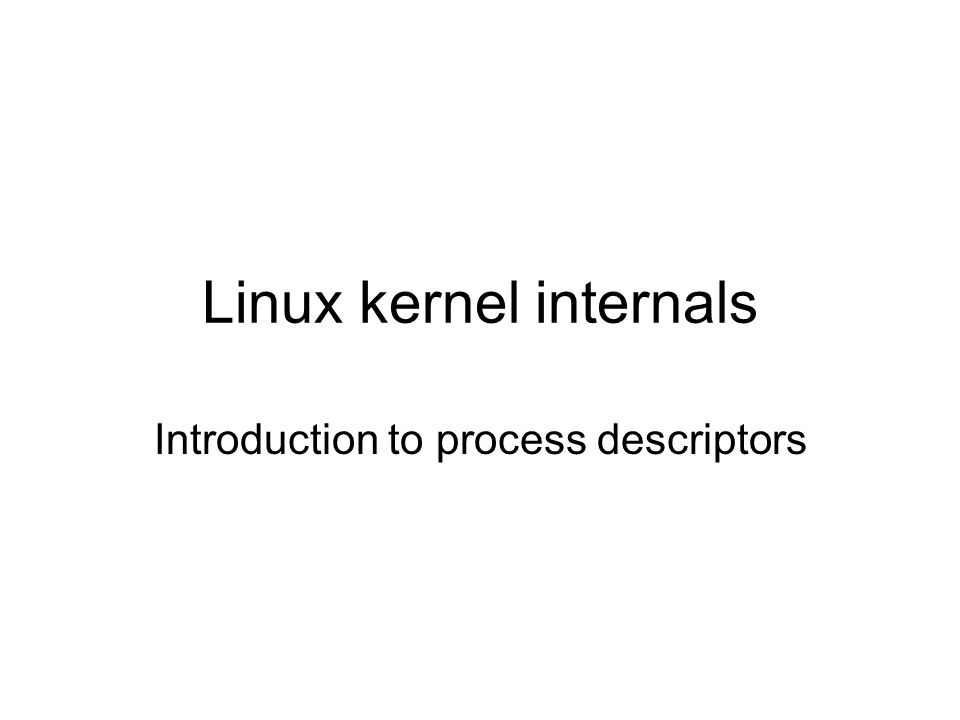

1. Linux kernel internals Introduction to process descriptors

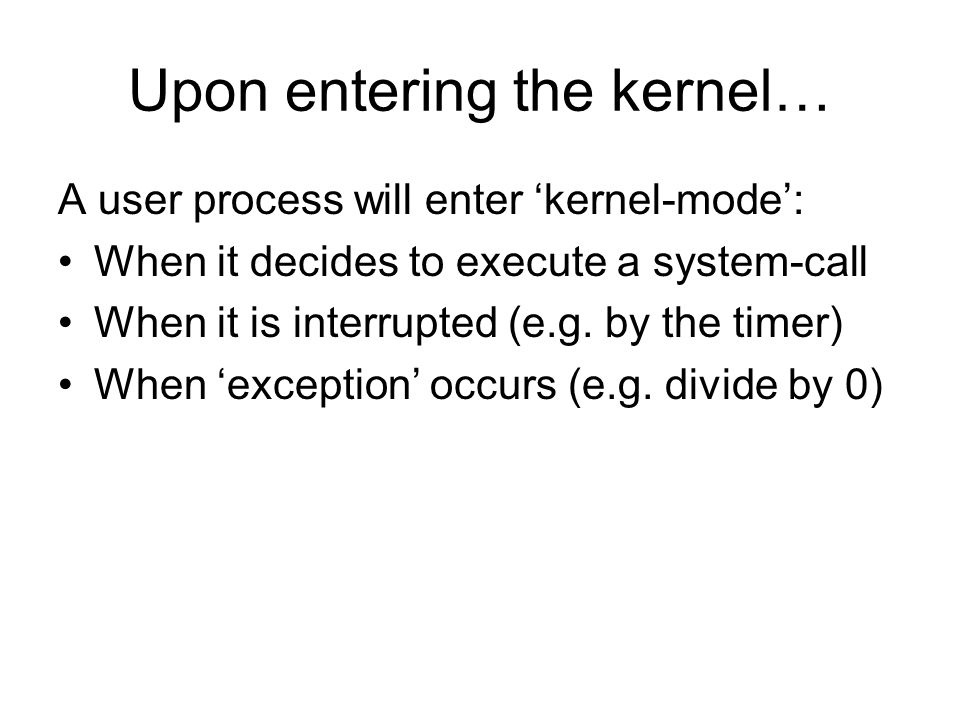

2. Upon entering the kernel… A user process will enter ‘kernel-mode’: When it decides to execute a system-call When it is interrupted (e.g. by the timer) When ‘exception’ occurs (e.g. divide by 0)

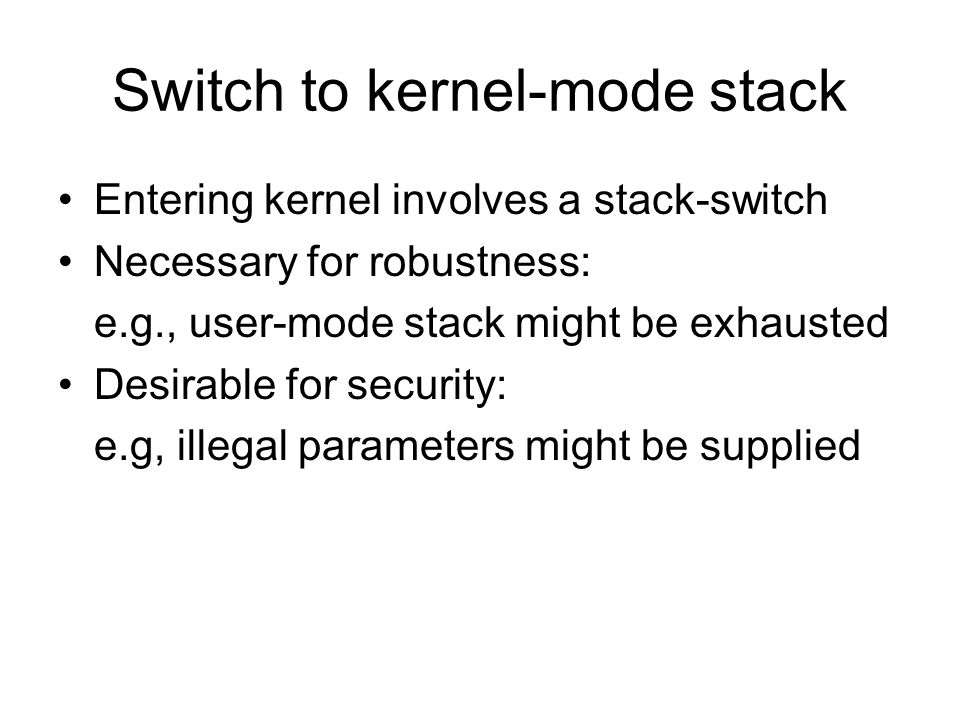

3. Switch to kernel-mode stack Entering kernel involves a stack-switch Necessary for robustness: e.g., user-mode stack might be exhausted Desirable for security: e.g, illegal parameters might be supplied

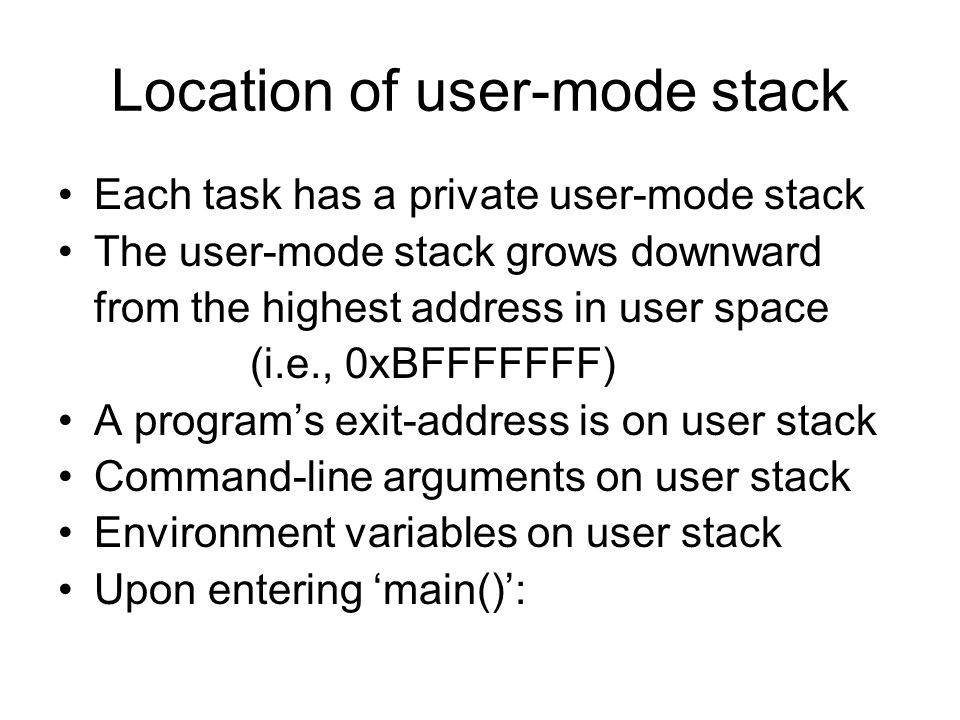

4. Location of user-mode stack Each task has a private user-mode stack The user-mode stack grows downward from the highest address in user space (i.e., 0xBFFFFFFF) A program’s exit-address is on user stack Command-line arguments on user stack Environment variables on user stack Upon entering ‘main()’:

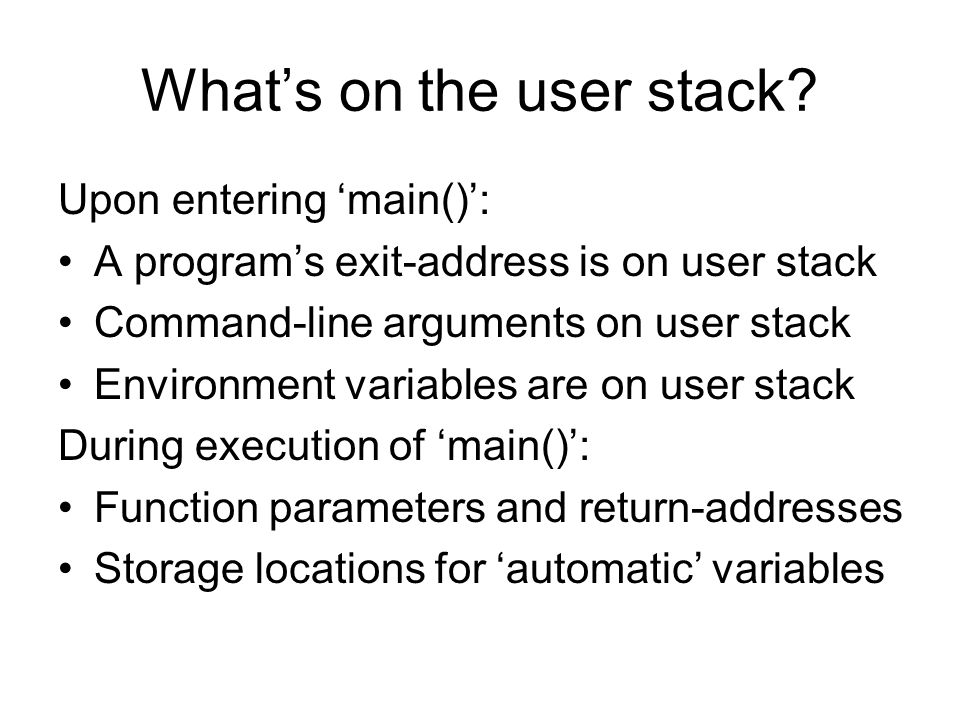

5. What’s on the user stack? Upon entering ‘main()’: A program’s exit-address is on user stack Command-line arguments on user stack Environment variables are on user stack During execution of ‘main()’: Function parameters and return-addresses Storage locations for ‘automatic’ variables

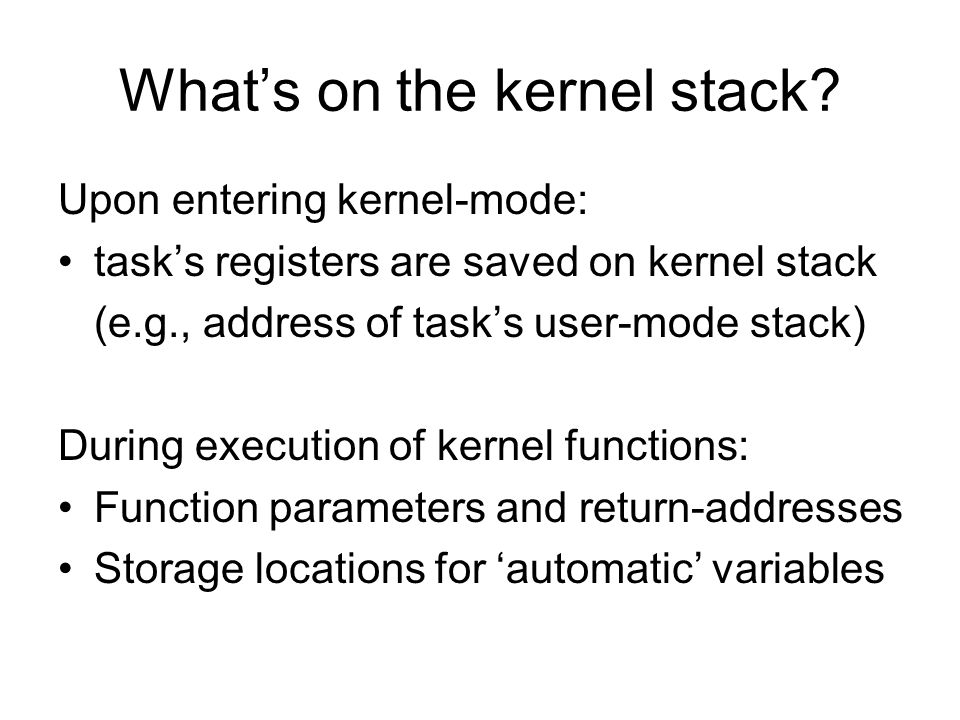

6. What’s on the kernel stack? Upon entering kernel-mode: task’s registers are saved on kernel stack (e.g., address of task’s user-mode stack) During execution of kernel functions: Function parameters and return-addresses Storage locations for ‘automatic’ variables

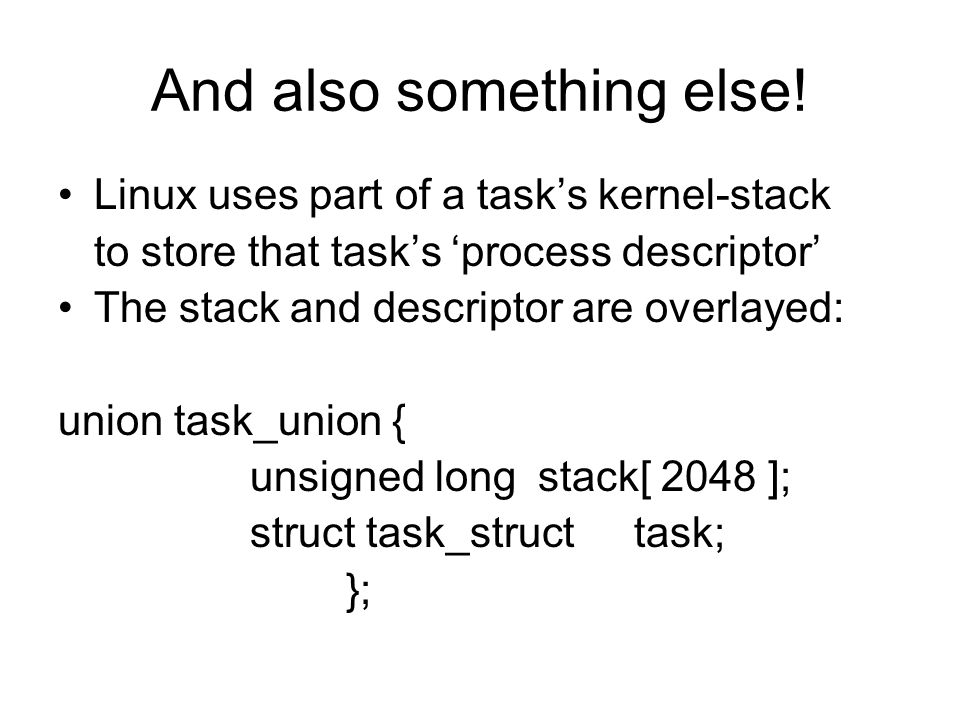

7. And also something else! Linux uses part of a task’s kernel-stack to store that task’s ‘process descriptor’ The stack and descriptor are overlayed: union task_union { unsigned longstack[ 2048 ]; struct task_structtask; };

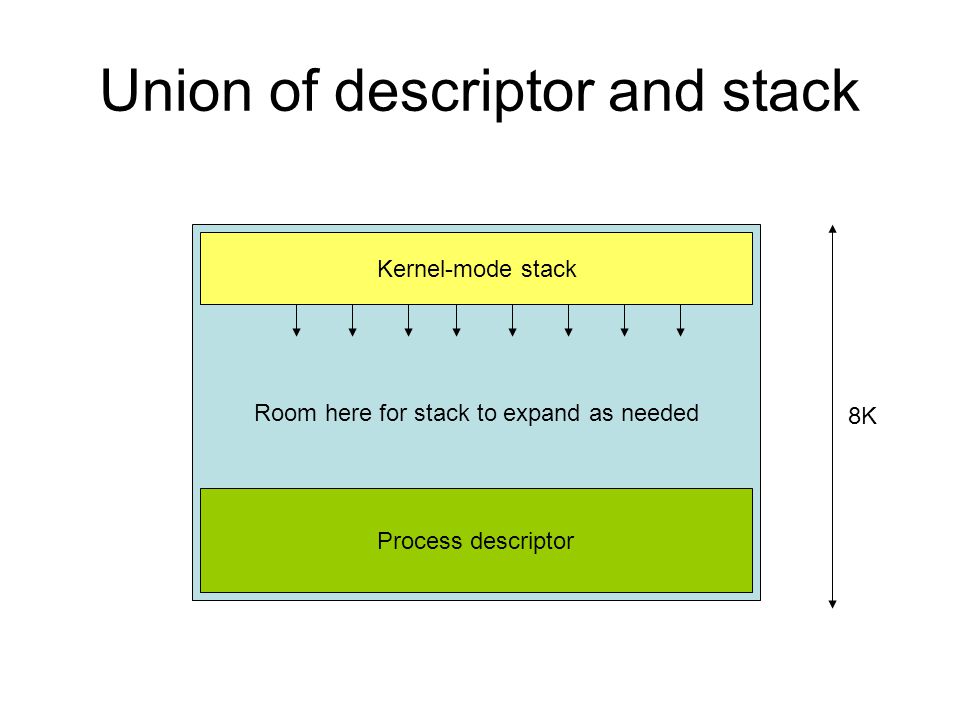

8. Union of descriptor and stack Room here for stack to expand as needed 8K Process descriptor Kernel-mode stack

9. The kernel is ‘task manager’ So each task has a ‘process descriptor’: struct task_struct { volatile longstate; unsigned longflags; intsigpending; mm_segment_taddr_limit; /* plus many other fields */ };

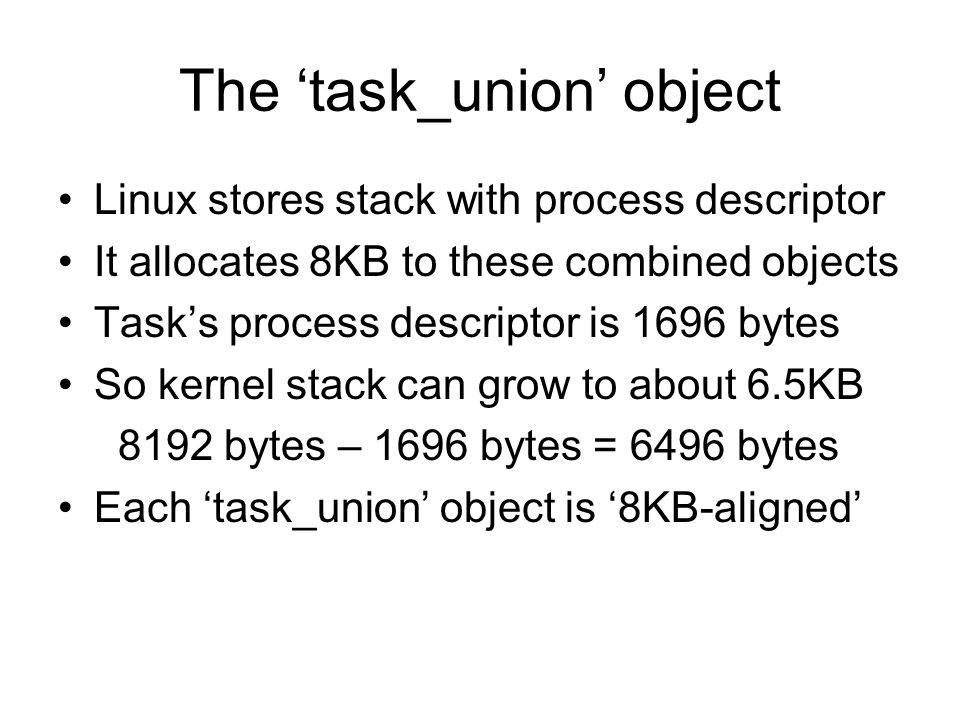

10. The ‘task_union’ object Linux stores stack with process descriptor It allocates 8KB to these combined objects Task’s process descriptor is 1696 bytes So kernel stack can grow to about 6.5KB 8192 bytes – 1696 bytes = 6496 bytes Each ‘task_union’ object is ‘8KB-aligned’

11. Finding the descriptor info During task-execution in kernel-mode: It’s quick for a process to find its descriptor by using two assembly-language instructions: movl%esp, %ebx andl$0xFFFFE000, %ebx (Now %ebx = descriptor’s base-address)

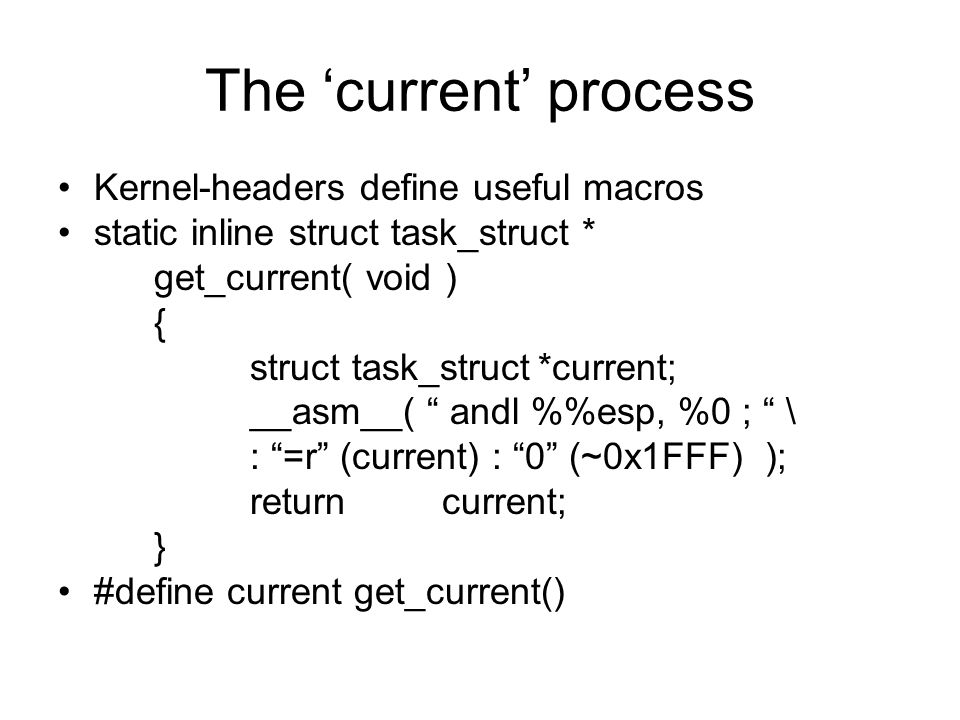

12. The ‘current’ process Kernel-headers define useful macros static inline struct task_struct * get_current( void ) { struct task_struct*current; __asm__( “ andl %esp, %0 ; “ \ : “=r” (current) : “0” (~0x1FFF) ); returncurrent; } #define current get_current()

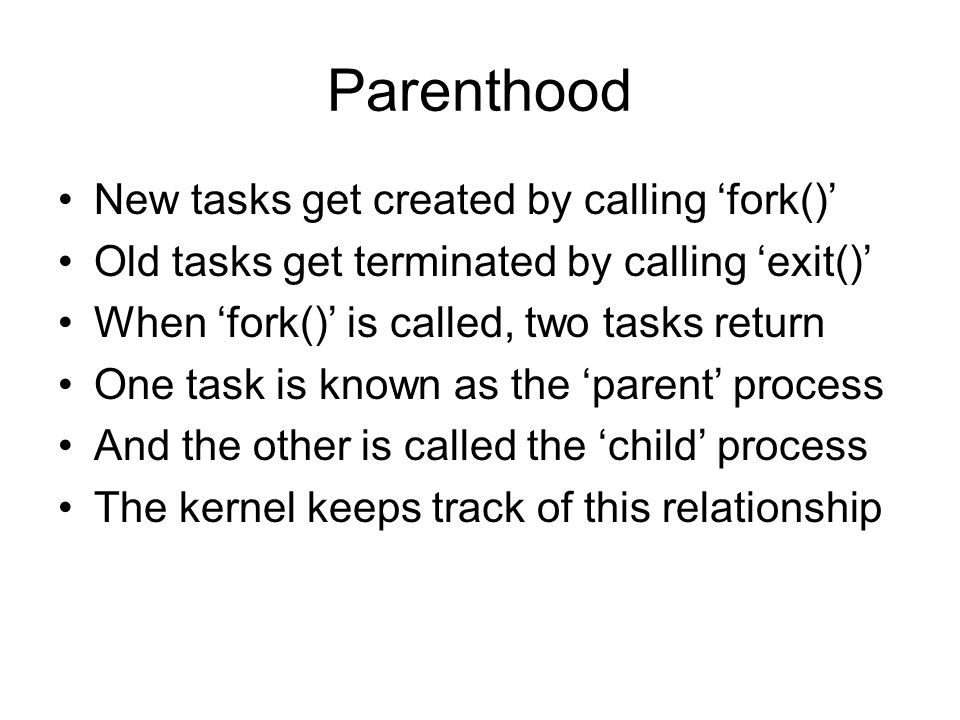

13. Parenthood New tasks get created by calling ‘fork()’ Old tasks get terminated by calling ‘exit()’ When ‘fork()’ is called, two tasks return One task is known as the ‘parent’ process And the other is called the ‘child’ process The kernel keeps track of this relationship

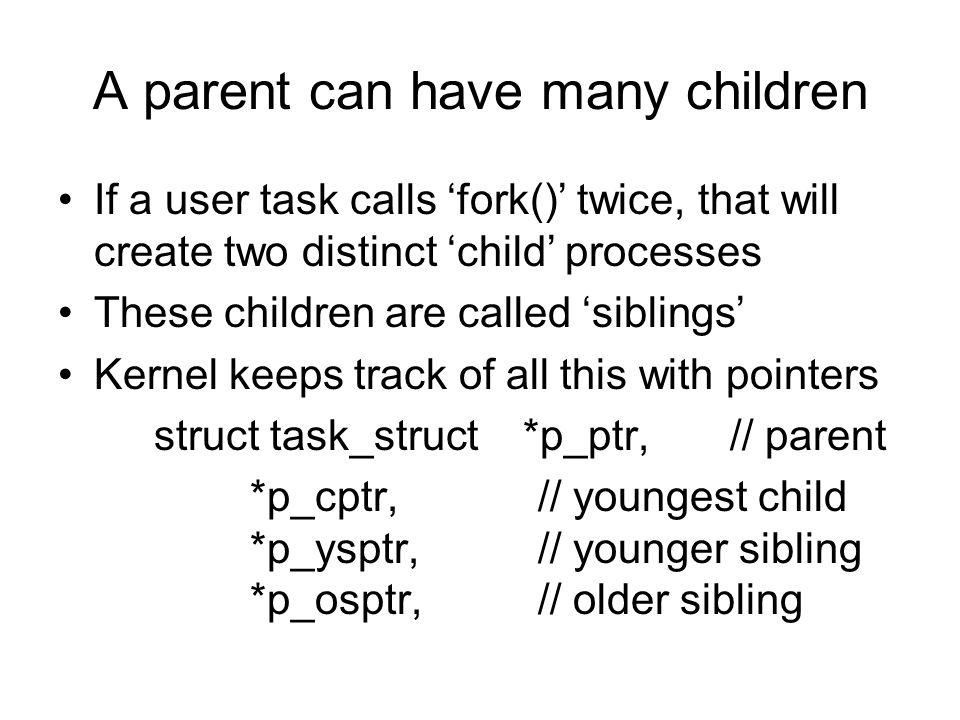

14. A parent can have many children If a user task calls ‘fork()’ twice, that will create two distinct ‘child’ processes These children are called ‘siblings’ Kernel keeps track of all this with pointers struct task_struct *p_ptr,// parent *p_cptr,// youngest child *p_ysptr,// younger sibling *p_osptr,// older sibling

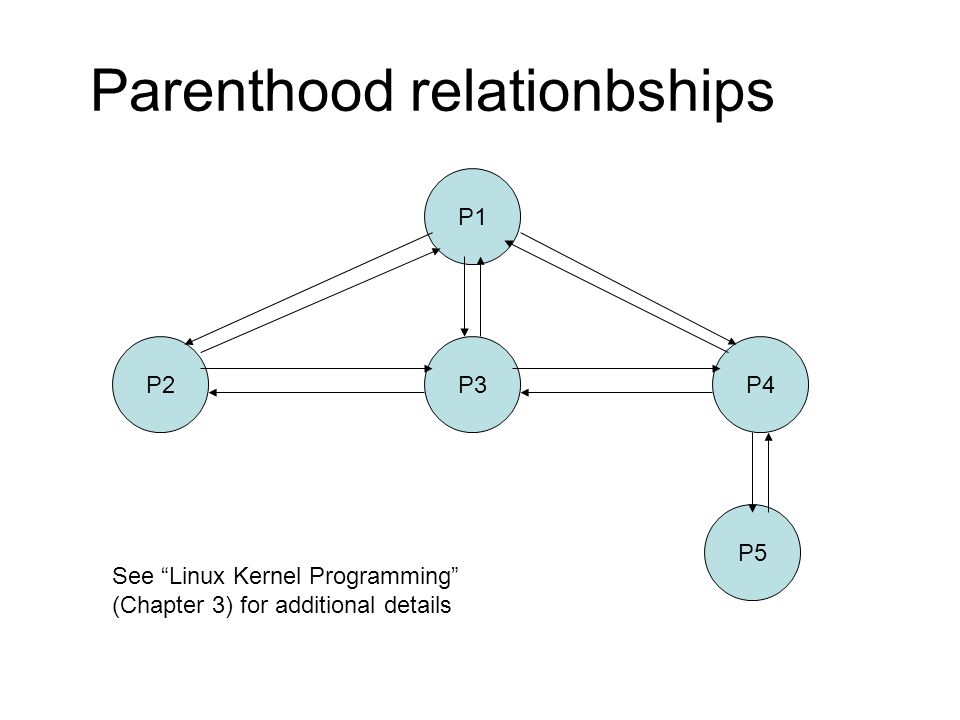

15. Parenthood relationbships P1 P2P3P4 P5 See “Linux Kernel Programming” (Chapter 3) for additional details

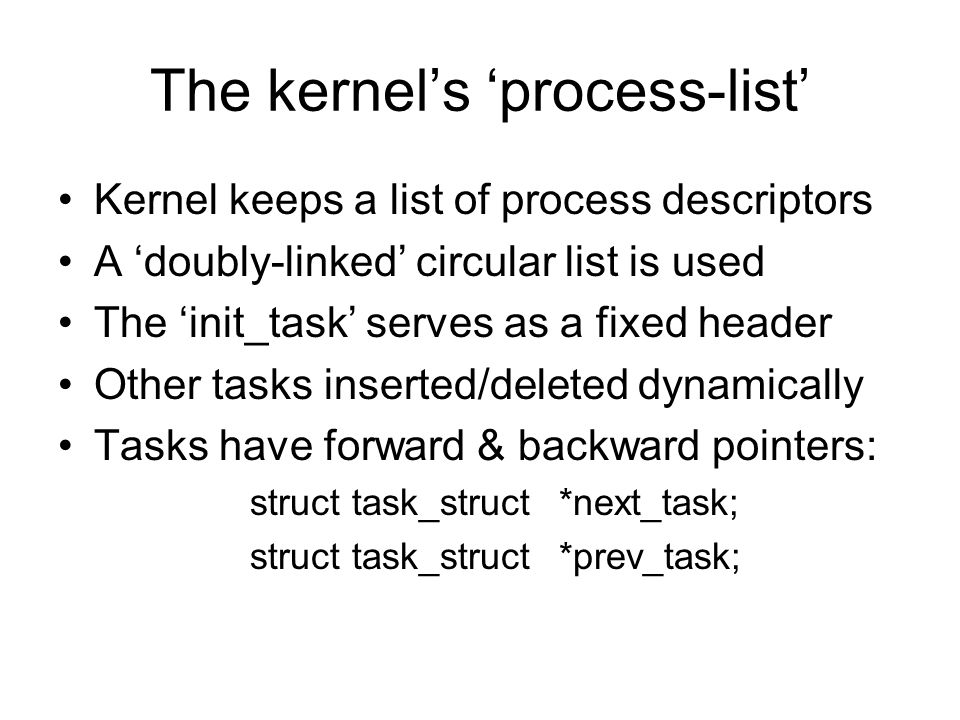

16. The kernel’s ‘process-list’ Kernel keeps a list of process descriptors A ‘doubly-linked’ circular list is used The ‘init_task’ serves as a fixed header Other tasks inserted/deleted dynamically Tasks have forward & backward pointers: struct task_struct *next_task; struct task_struct *prev_task;

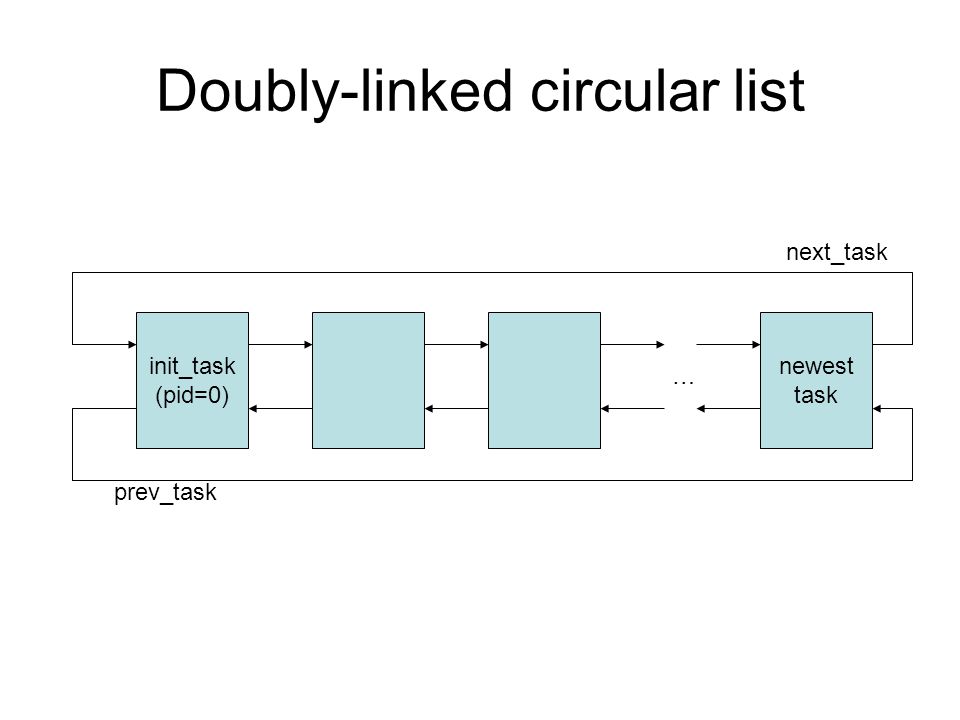

17. Doubly-linked circular list init_task (pid=0) newest task … next_task prev_task

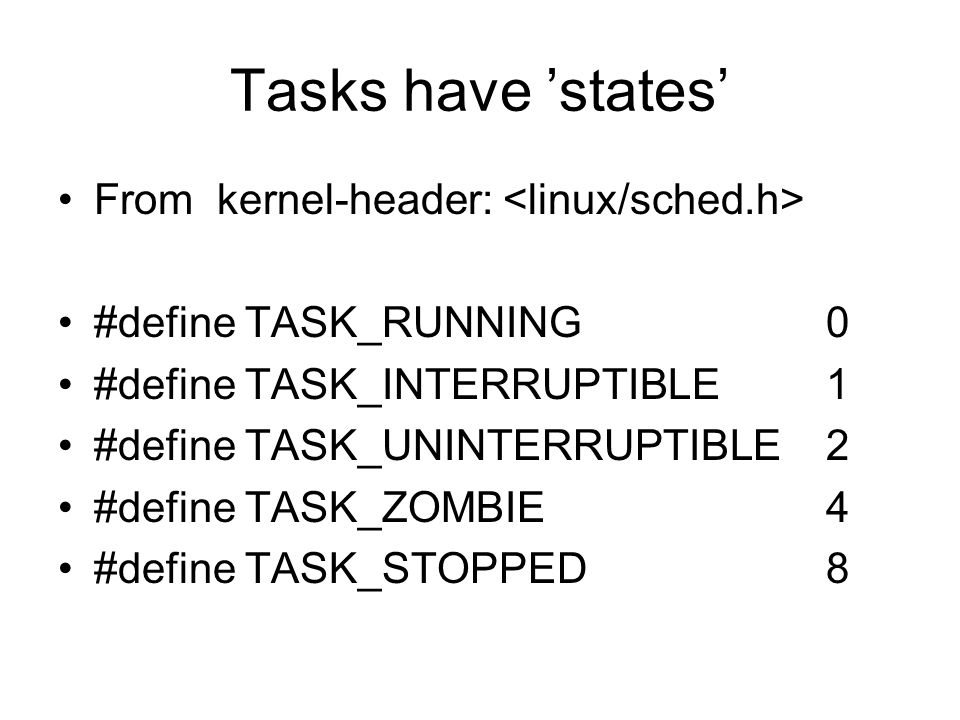

18. Tasks have ’states’ From kernel-header: #define TASK_RUNNING 0 #define TASK_INTERRUPTIBLE1 #define TASK_UNINTERRUPTIBLE2 #define TASK_ZOMBIE4 #define TASK_STOPPED8
