1
**Decimals and the Area Model**

2
**Decimals are fractions written in a different form**

Decimals are fractions written in a different form. They represent a part of the whole

3
**For example how do we shade a portion of the grid that represents 1 10 ?**

4
**How many of these long bars fit in our grid?**

10

5
**Since there are 10 of the long bars in the entire unit grid, each bar represents…**

or

6
**Your turn – Shade a part of the whole that is represented by the decimal .3**

How can we write this as a fraction?

7
.1 + .1 + .1 = .3 or = 𝟑 𝟏𝟎

8
**What fraction of the whole is shaded?**

How do we represent this as a decimal?

9
There are 10 columns

10
and there are 10 rows..

11
**So, in the entire grid, there are 10 x 10 = 100 medium squares.**

12
So, the fraction is … …and as a decimal …

13
**Your turn – shade a part of the whole that is represented by .25**

How do we write this as a fraction?

14
.2 + .05 = .𝟐𝟓

15
…and as a fraction – 25 100 Since 25 out of 100 boxes are shaded

16
**Is there another way to write the fraction 25 100 ?**

17
1 3 2 4 How many of these fit in the whole unit?

18
**…so we can write the fraction**

= 1 4 Therefore .25 = = 1 4

19
**There are many ways to write the portion of a whole with fractions…**

= 1 4 = But, only one way to write that portion as a decimal .25

20
**100 10 How many of these little bars fit across the top of our grid?**

How many of these little bars fit down the side of our grid? 10 So, in the entire grid, there are 10 x 100 = 1000 little bars.

21
**Since there are 1000 of the little bars in the entire unit grid, each bar represents…**

or

22
**Your turn – shade a portion of the whole that represents .004**

How can we write this as a fraction?

23
.001 + .001 + .001 + .001 = .004

24
**100 100 How many little squares fit across the top of our grid?**

How many little squares fit down the side of our grid? 100 So there are x 100 = little squares in the entire grid.

25
**Since there are 10000 of the little squares in the entire unit grid, each square represents…**

or

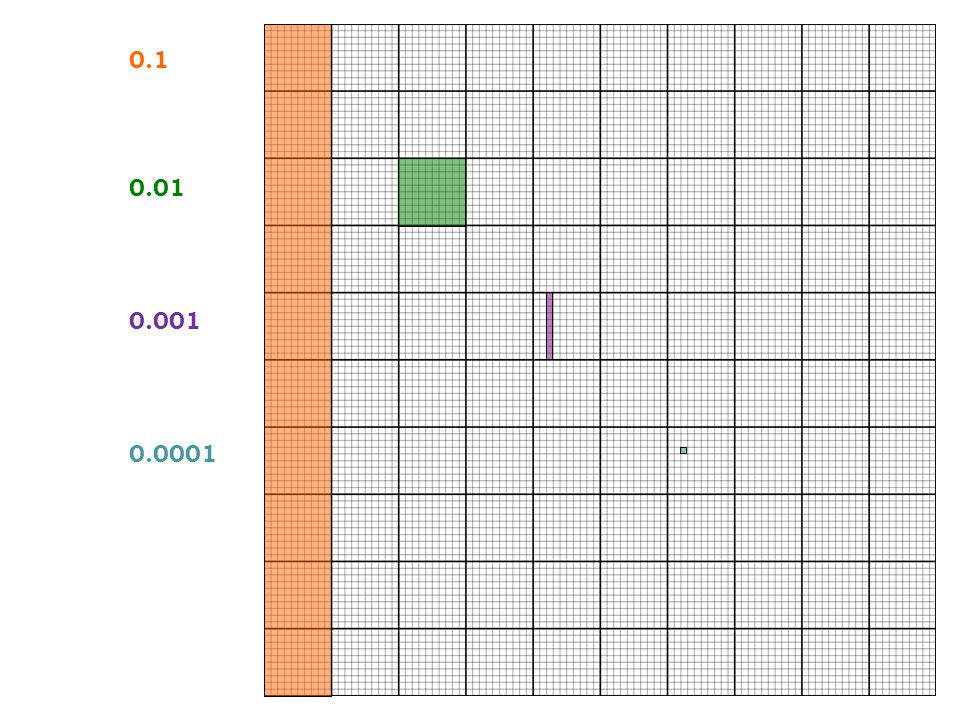

26
0.1 0.01 0.001 0.0001

27
**What decimal number is represented by the shaded area?**

0.1 0.02 + 0.005 0.125

28
**What decimal number is represented by the shaded area?**

0.2 0.05 0.007 + 0.0003 0.2573

29
**Let’s start with the fraction**

Now for the very cool application of the decimal grid to the conversion of fractions into decimal notation Let’s start with the fraction

30
**This can be read as 1 part out of every 4**

So, out of these 4 bars, we can shade 1 And out of these 4 bars, we can shade 1 Out of these 4 squares, we can shade 1 And so forth… Until we have used up all of the original unit

31
**Use the decimal grid to convert**

to decimal notation

32
**Use the decimal grid to convert**

to decimal notation

33
**Use a grid to convert the following fractions into decimal notation**

3 4 5 8 7 20
