**Liquid Scintillation Counting as multi-nuclide screening method**

Evgeny Taskaev

2
**Common approach – gross alpha/beta, gamma spectrometry:**

Screening for technogenic and natural radionuclides Common approach – gross alpha/beta, gamma spectrometry: Low counting efficiency - Limited knowledge on isotopic composition, including most toxic nuclides like 3-H, 90-Sr, Isotopes of Ra and Transuranics - High MDA - Radiochemical separation can be involved

3
**Screening for technogenic and natural radionuclides**

Liquid scintillation counting: - Counting efficiency for a ~ 100% , for beta (> 100 кeV) ~ 100% - Threshold for beta counting – less than 3 кeV - Comparatively short time for sample preparation and counting - Low background – c/s - Low MDA ~ mBq for beta and 5 mBq for alpha emitters (10 h counting with TRI-CARB 2550) - Possibility to estimate energy with resolution ~10 % for alpha emitters and - 5% ( кэВ) when using PERALS system

4
**Liquid scintillation counting**

Spectra are complicated, peaks are not resolved Counting efficiency depends on chemical composition of the sample

5

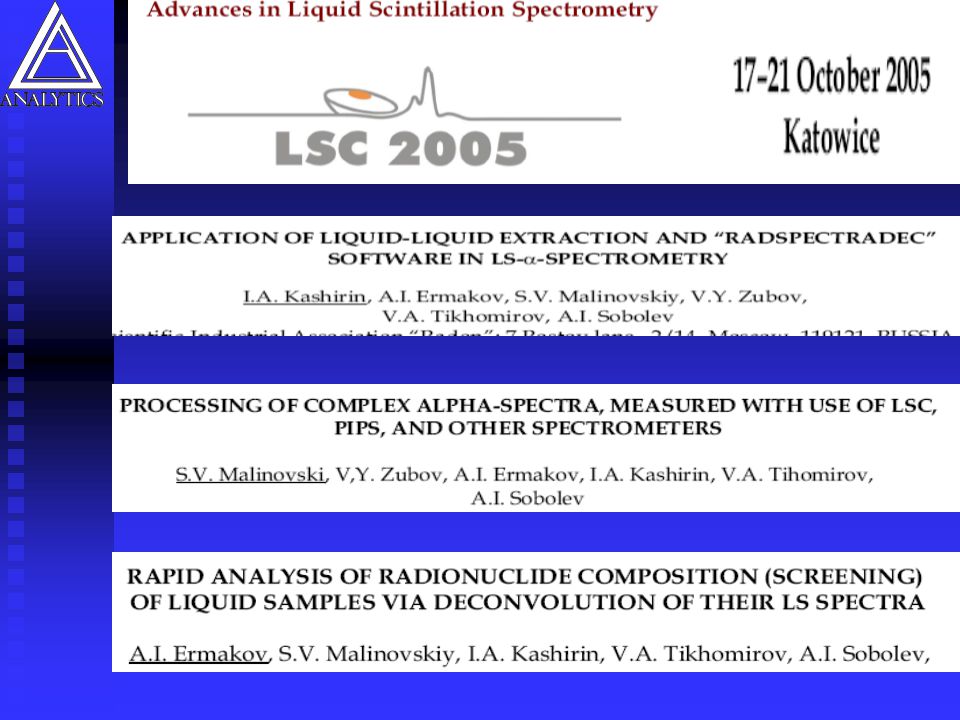

**S. Malinovsky, A. Ermakov, I. Kashirin, et all.**

Scientific-Industrial Association “Radon”, Moscow, Russia Poland

6
**Easy to use with minimal participation of operator**

SpectraDec(Beta) – software package for processing β and mixed α / β spectra from LS counters Software allows to determine activity of individual nuclides in a sample with several nuclides with overlapping spectra Mathematical modeling of real spectrum. Spectral data from counting of individual nuclides presented in sample are used to model real spectrum Modular structure makes software flexible for integration into another software and to addition of another modules if needed Easy to use with minimal participation of operator

8
Identification of radionuclides through modeling complex spectra using individual spectra data from nuclide library 3H 14C 137Cs 241Am 90Sr+90Y 4. 3.6 3.2 2.8 2.4 2. 1.6 1.2 0.8 0.4 0. 10 20 30 40 50 60 70 80 90

9
**Creating nuclide library**

Addition of radionuclide to the library Reference source Radiochemical separation Preparation of quench set Preparation of quench set Counting Counting Mathematical «purification» of spectra Transformation of spectra to software format

10
**Initial spectrum is transformed into groups**

For counters with linear ADC (TriCarb) – a quasi-arithmetic progression is used For counters with logarithmic ADC (Guardian) – linear combination Ra-226 and its progeny Initial spectrum Transformed spectrum

11
**Individual spectra of 226Ra and its decay products**

Pb-210 Bi-210 Po-210

12
**Set of quenched samples after transformation**

Tri-Carb 2550 Linear ADC Guardian 1440 Logarithmic ADC

13
**Determination of Sr-90 in water Sr-90 with Sr-85 tracer**

Volume, L Nuclide Activity, Bq/sample Bq/m3 Error ± % 8 89Sr ≤ 0.006 ≤ 1.8e-3 - 90Sr 0.021 6.6e-3 29

14
**A90Sr = 245 ± 90 Bq/kg A85Sr = 0.42 Bq in each sample, m soil = 10 g**

Determination of Sr-90 in soil using Sr-85 tracer 85Sr 90Sr 90Y 85Sr 90Sr 90Y A90Sr = 245 ± 90 Bq/kg A90Sr = 5.2 ± 2.2 Bq/kg A85Sr = 0.42 Bq in each sample, m soil = 10 g

15
**Sr-90 in particulate filter**

Activity, Bq/sample Error, ± % 89Sr 1.83 3 90Sr 0.16 11

16
**Blind sample spectrum send by Analytics**

NIST-NEI Pu Bq/g Pu Bq/g Am Bq/g Cm Bq/g Am-241 Pu-241 Cm-244 Pu-239

17
**Blind sample spectrum send by Analytics**

H-3 NIST-NEI 1743-7 Fe-55 C o u n t s Ni-63 H-3, Fe-55, Ni-63 G r o u p s

18
**Blind sample spectrum send by Analytics**

H-3, Tc-99 and Cs-137

19
**Blind sample spectrum send by Analytics**

H-3, Tc-99 and Cs-137

20
**Blind sample spectrum send by Analytics**

H-3, Tc-99 and Cs-137

21
**Blind sample spectrum send by Analytics**

Activity, Bq added found H-3 C o u n t s Tc-99 H-3 Cs-137 Tc-99 Cs-137 G r o u p s

22
**Conclusion SpectraDec(Beta)**

Enhances LSC capabilities for determination of individual nuclides in complex mixtures Allows to simplify sample prep procedures for many nuclides Combined with simple radiochemical separation and extractive cocktails makes LSC method excellent tool for screening

23
**Thank you for your attention**
