Beam Plan 2011 Stefano Colafranceschi on behalf of the CMS-MPGD team: Duccio Abbaneo, Stephane Bally, Hans Postema, Antonio Conde Garcia, Jean Paul Chatelain,

Similar presentations


Presentation on theme: "Beam Plan 2011 Stefano Colafranceschi on behalf of the CMS-MPGD team: Duccio Abbaneo, Stephane Bally, Hans Postema, Antonio Conde Garcia, Jean Paul Chatelain,"— Presentation transcript:

1 Beam Plan 2011 Stefano Colafranceschi on behalf of the CMS-MPGD team: Duccio Abbaneo, Stephane Bally, Hans Postema, Antonio Conde Garcia, Jean Paul Chatelain, Gerard Faber, Leszek Ropelewski, Serge Duarte Pinto, Marco Villa, Gabriel Croci, Matteo Alfonsi, Miranda Van Stenis, Sunil Kumar, Krishna P, Archana Sharma CERN Geneva Switzerland Stefano Bianco, Stefano Colafranceschi, Luigi Benussi, Franco Fabbri, Davide Piccolo, Giovanna Saviano LNF Frascati, Italy A. Colaleo, M. Maggi INFN Sezione di Bari M. Abbrescia, S. Nuzzo and S. Tupputi INFN Sezione di Bari and Universita' di Bari Nicola Turini, Eraldo Oliveri, Guido Magazzu Universita' Degli Studi di Siena INFN, Sezione di Pisa, Italy Andrey Marinov, Michael Tytgat, Nicolas Zaganidis Gent University, Gent, Belgium Marcus Hohlmann and Kondo Gnanve Dept. of Physics and Space Sciences Florida Institute of Technology Melbourne, FL USA Yong Ban, Haiyun Teng, Jiaxin Cai, Wen Bo, Bo Yu Peking University Beijing China

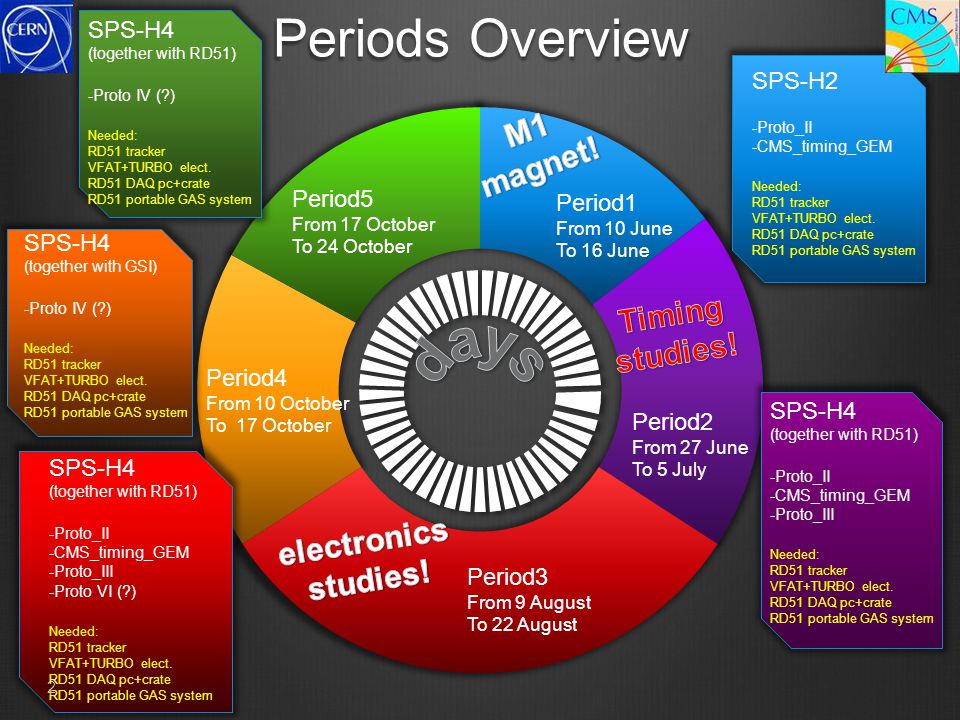

2 Periods Overview Period1 From 10 June To 16 June Period3 From 9 August To 22 August Period4 From 10 October To 17 October Period5 From 17 October To 24 October Period2 From 27 June To 5 July SPS-H2 -Proto_II -CMS_timing_GEM Needed: RD51 tracker VFAT+TURBO elect. RD51 DAQ pc+crate RD51 portable GAS system SPS-H4 (together with RD51) -Proto_II -CMS_timing_GEM -Proto_III Needed: RD51 tracker VFAT+TURBO elect. RD51 DAQ pc+crate RD51 portable GAS system SPS-H4 (together with RD51) -Proto_II -CMS_timing_GEM -Proto_III -Proto VI (?) Needed: RD51 tracker VFAT+TURBO elect. RD51 DAQ pc+crate RD51 portable GAS system SPS-H4 (together with GSI) -Proto IV (?) Needed: RD51 tracker VFAT+TURBO elect. RD51 DAQ pc+crate RD51 portable GAS system SPS-H4 (together with RD51) -Proto IV (?) Needed: RD51 tracker VFAT+TURBO elect. RD51 DAQ pc+crate RD51 portable GAS system 2

3 CMS_timing_GEM : Double mask 10x10cm 2 1D readout (3/2/2/2); 256 channels CMS_Proto_I : Single mask FULL_SIZE 1D readout (3/2/2/2); 1024 channels 1024 channels CMS_Proto_II : Single mask FULL_SIZE 1D readout (3/1/2/1); 8192channels CMS_Proto_III : Single Mask 10x10cm 2 [N2] (3/1/2/1); 256 channels 256 channels CMS_Proto_VI : Single Mask FULL_SIZE 1D [N2] (3/1/2/1) 8192 channels 3 Detector summary

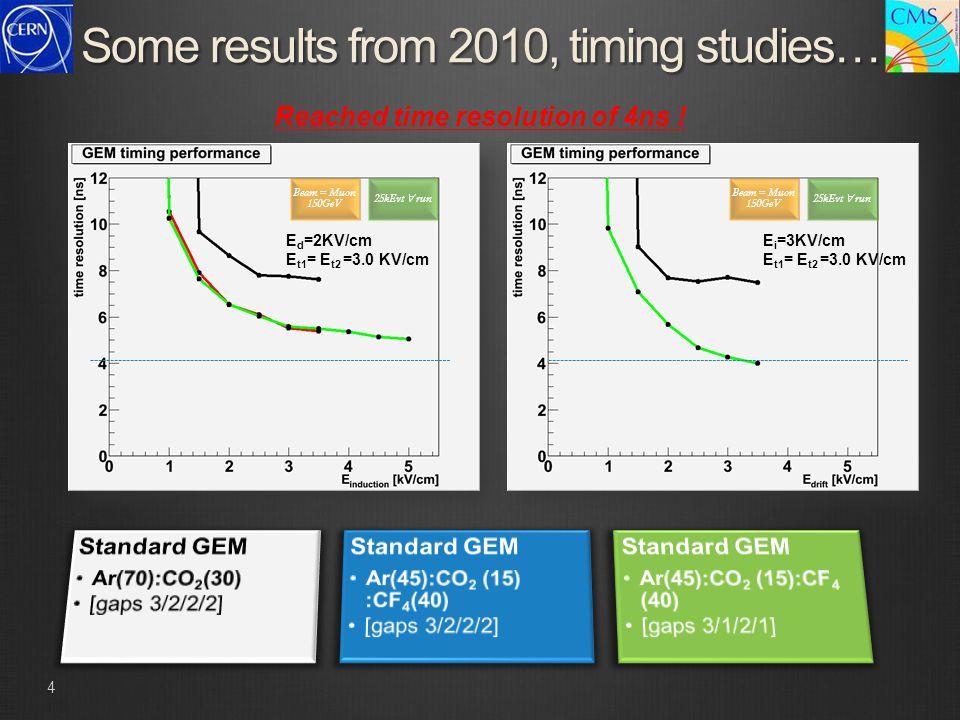

4 4 Some results from 2010, timing studies… Beam = Muon 150GeV 25kEvt  run Beam = Muon 150GeV 25kEvt  run Reached time resolution of 4ns ! E i =3KV/cm E t1 = E t2 =3.0 KV/cm E d =2KV/cm E t1 = E t2 =3.0 KV/cm

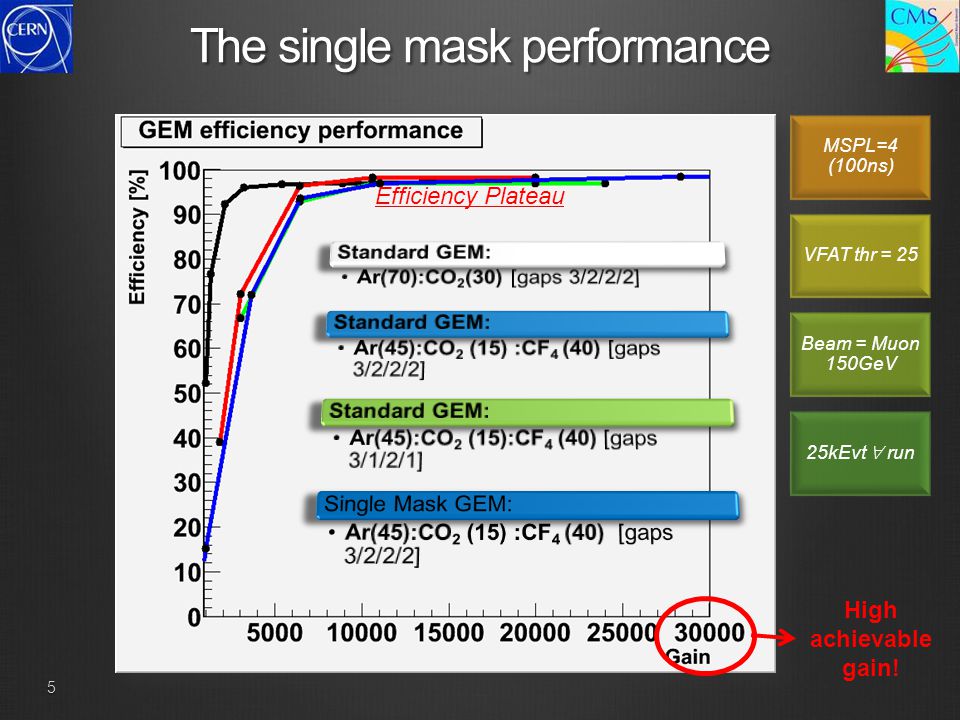

5 5 The single mask performance MSPL=4 (100ns) VFAT thr = 25 Beam = Muon 150GeV 25kEvt  run High achievable gain! Efficiency Plateau

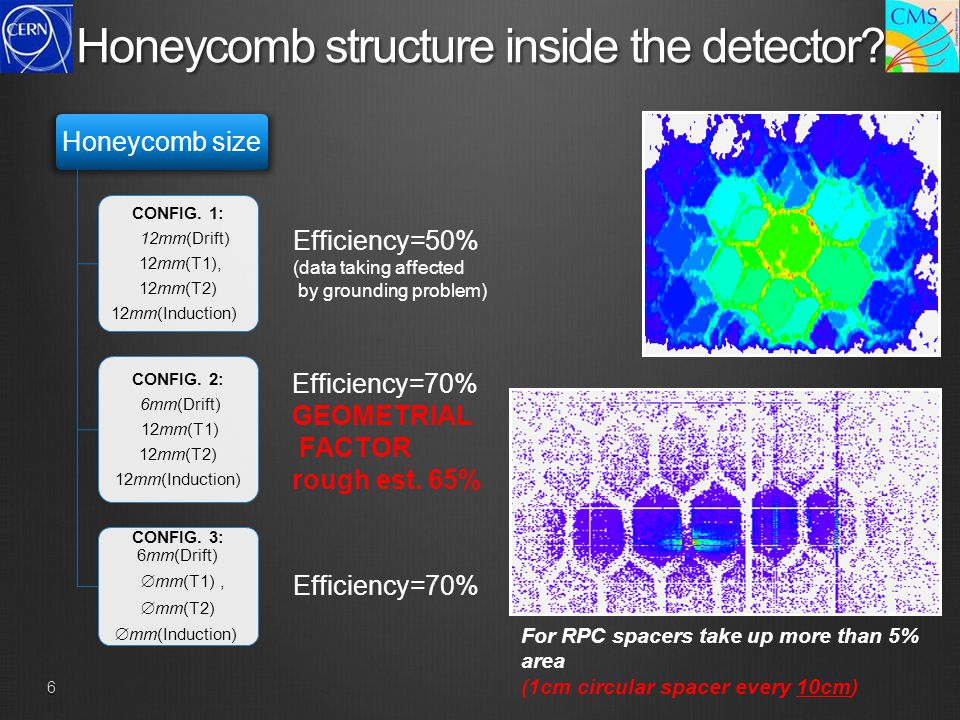

6 Honeycomb size CONFIG. 1: 12mm(Drift) 12mm(T1), 12mm(T2) 12mm(Induction) CONFIG. 2: 6mm(Drift) 12mm(T1) 12mm(T2) 12mm(Induction) CONFIG. 3: 6mm(Drift)  mm(T1),  mm(T2)  mm(Induction) Efficiency=50% (data taking affected by grounding problem) Efficiency=70% GEOMETRIAL FACTOR rough est. 65% Honeycomb structure inside the detector? Efficiency=70% For RPC spacers take up more than 5% area (1cm circular spacer every 10cm) 6

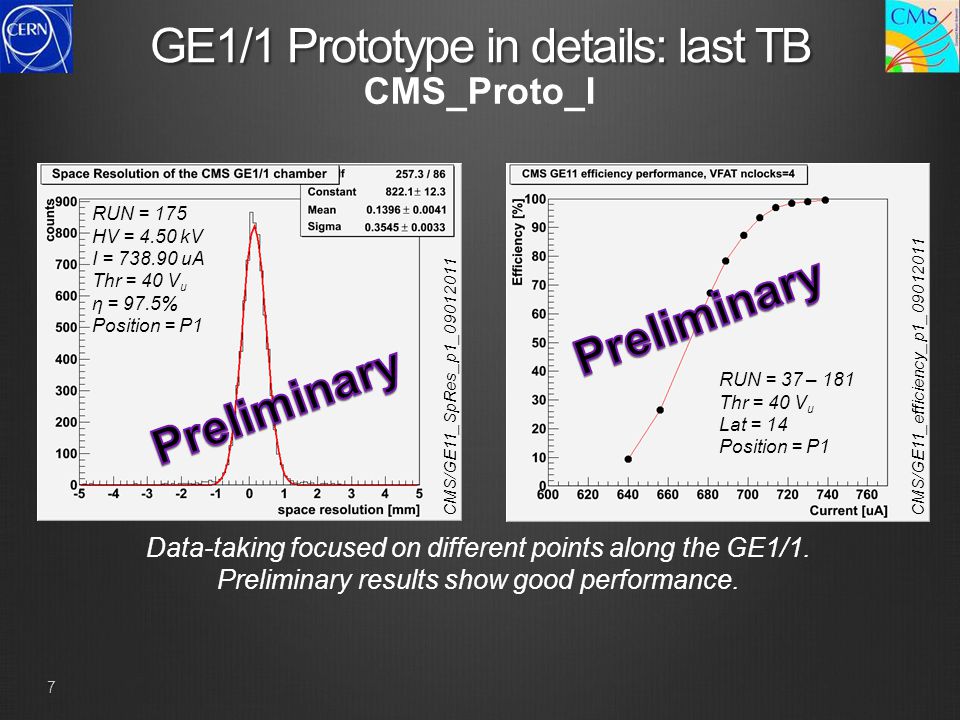

7 RUN = 175 HV = 4.50 kV I = uA Thr = 40 V u η = 97.5% Position = P1 RUN = 37 – 181 Thr = 40 V u Lat = 14 Position = P1 CMS/GE11_efficiency_p1_ CMS/GE11_SpRes_p1_ Data-taking focused on different points along the GE1/1. Preliminary results show good performance. GE1/1 Prototype in details: last TB 7 CMS_Proto_I

8 8 The software has been upgraded. New configuration utility New functions for efficiency and space resolution New geometry definition (for variable pitch and non parallel strips) New 3D-Event Displayer Run.root Run_reco.root Run_disp.root Event BuilderReco routineDisplay routine Efficiency along the chamber is > 98% Space resolution ≈ strip / sqrt(12) Some software development…

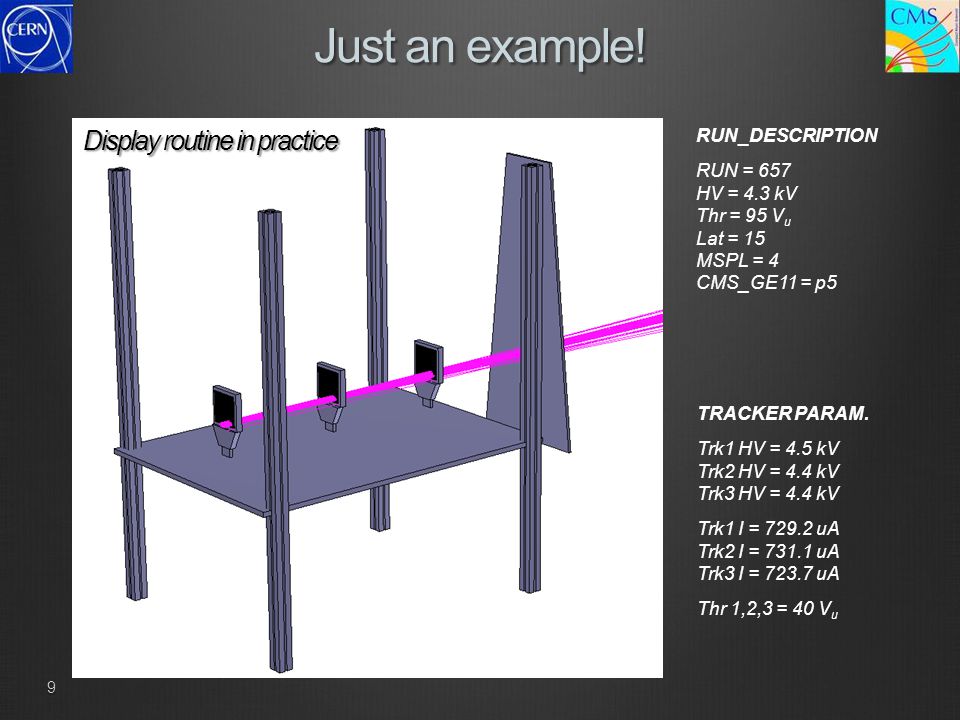

9 9 RUN_DESCRIPTION RUN = 657 HV = 4.3 kV Thr = 95 V u Lat = 15 MSPL = 4 CMS_GE11 = p5 TRACKER PARAM. Trk1 HV = 4.5 kV Trk2 HV = 4.4 kV Trk3 HV = 4.4 kV Trk1 I = uA Trk2 I = uA Trk3 I = uA Thr 1,2,3 = 40 V u Display routine in practice Just an example!

10 10 THANKS! …Looking forward for a lots of beam…
