1 Computer simulation of patient flow through an operating suite David E. Clark, MD FACS Department of Surgery, Maine Medical Center, Portland ME Stata Conference 2014

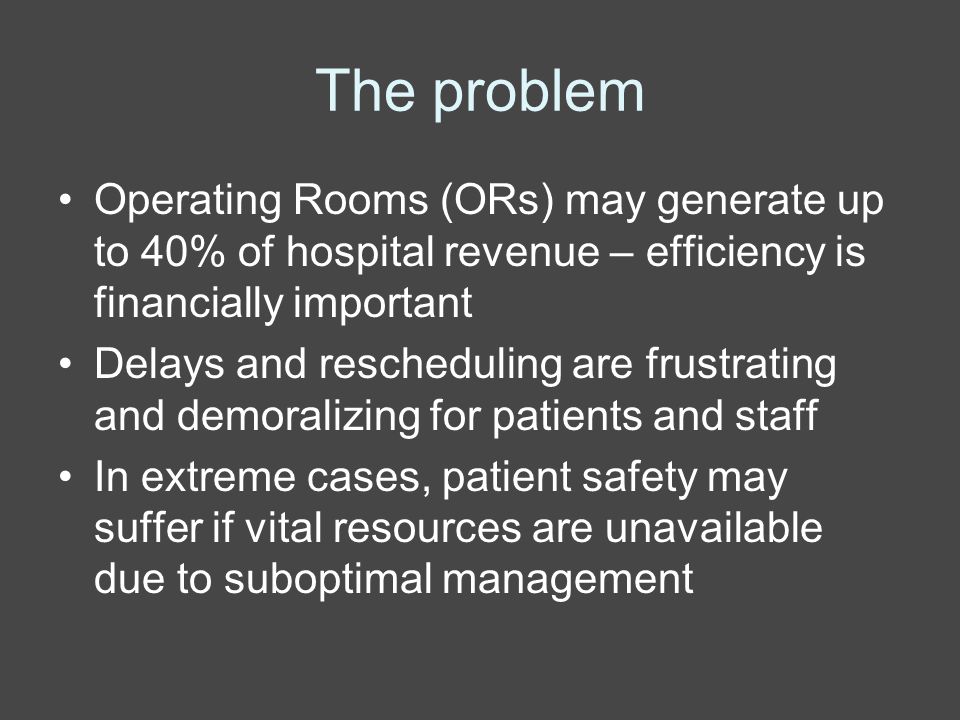

2 The problem Operating Rooms (ORs) may generate up to 40% of hospital revenue – efficiency is financially important Delays and rescheduling are frustrating and demoralizing for patients and staff In extreme cases, patient safety may suffer if vital resources are unavailable due to suboptimal management

3 Preop Model of an operating suite P2 P3 P4 P1 OR1 OR2 RR

4 Simulation Software Special-purpose simulation programs (e.g., Arena, Flexsim, Simulink) take care of “housekeeping” and displays, but may be expensive, restrict flexibility, and be more difficult to learn and debug General-purpose programming languages (including Stata) easily available, familiar, and flexible, but require the user to construct “housekeeping” and displays

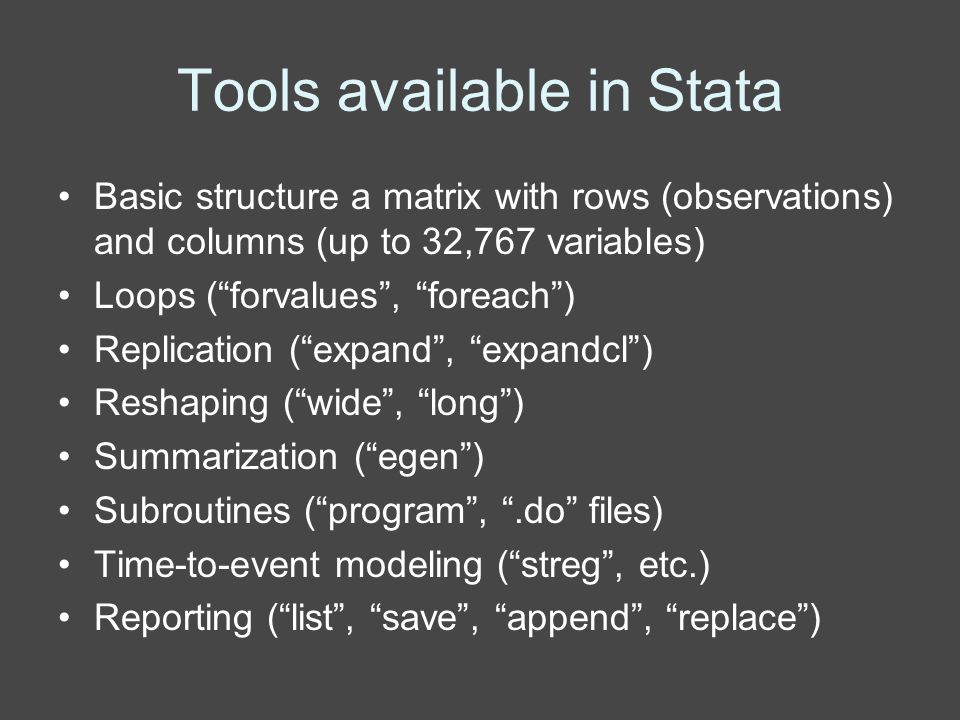

5 Tools available in Stata Basic structure a matrix with rows (observations) and columns (up to 32,767 variables) Loops (“forvalues”, “foreach”) Replication (“expand”, “expandcl”) Reshaping (“wide”, “long”) Summarization (“egen”) Subroutines (“program”, “.do” files) Time-to-event modeling (“streg”, etc.) Reporting (“list”, “save”, “append”, “replace”)

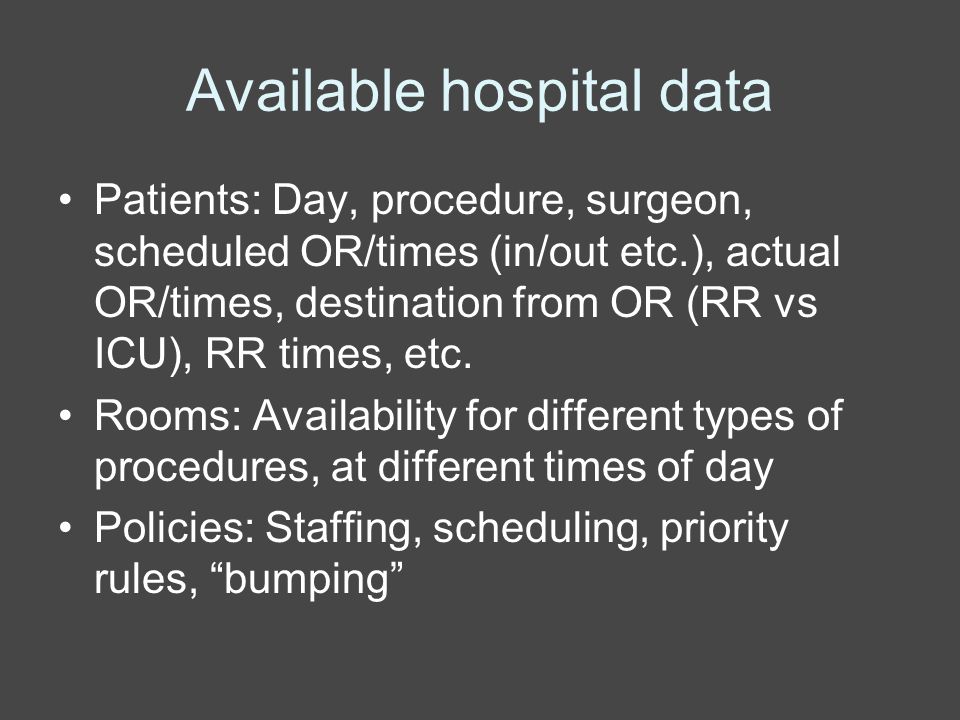

6 Available hospital data Patients: Day, procedure, surgeon, scheduled OR/times (in/out etc.), actual OR/times, destination from OR (RR vs ICU), RR times, etc. Rooms: Availability for different types of procedures, at different times of day Policies: Staffing, scheduling, priority rules, “bumping”

7 Data Structure Must allow for transfer of information between patients and rooms Must allow for change in status over time Must allow for replication with different random variables Must allow for visualization of status, reporting of summary statistics, and modification of structural assumptions

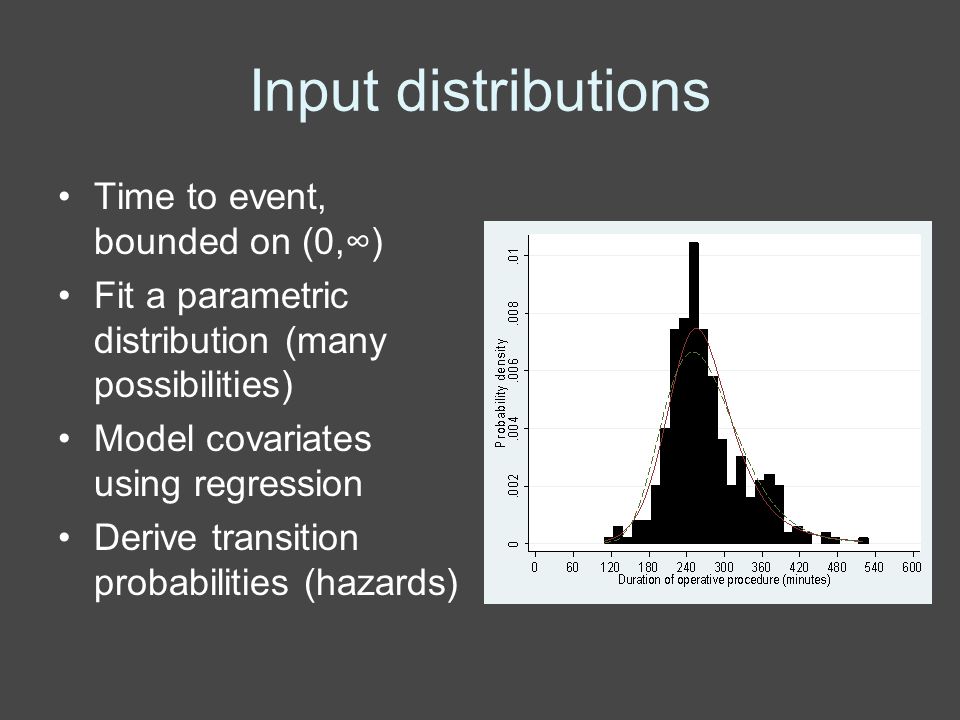

8 Input distributions Time to event, bounded on (0,∞) Fit a parametric distribution (many possibilities) Model covariates using regression Derive transition probabilities (hazards)

9 Methods: Derive distributions Patient data in normal (“long”) format Estimate two-parameter log-logistic distributions for procedure duration, recovery room duration, turnaround time Parametric time-to-event regression (“streg”) using predicted procedure duration, procedure type, surgeon, following self, first case, add-on case

10 Methods: Initialize patients/rooms For a given day, convert patient data to “wide” format – that is, all variables are in the same row Add room data on same row For example, at 0600… RepRsch _P1 Tin _P1 Tout _P1 Stat _P1 Rsch _P2 Tin _P2 Tout _P2 Stat _P2 Stat _R1 Trem _R Pre N/A

11 Methods: Use replicants to create output distributions After initialization, “expand” 30 to 3000 Run program and periodically “egen mvar = mean(var)” “egen sdvar = sd(var)” etc. to accumulate statistics of interest Display one realization of simulation

12 Methods: Step through entire day at 5-minute intervals Loop using “forvalues” Determine patient status at new time t, and whether status should change either deterministically (scheduled or actual) or probabilistically (simulated with random variables). Update room status depending on which patient is now in room and/or scheduled to be in room

13 Methods: Sequence of procedures at each time step Identify patients arriving in preop status Move next priority patient to OR when patient ready and room available Move OR patient to RR if procedure finished (random number exceeds hazard function at time t); restrict room for “turnaround time” Move RR patient out of RR if required time complete

14 RepRsch _P1 Tin _P1 Tout _P1 Stat _P1 Rsch _P2 Tin _P2 Tout _P2 Stat _P2 Stat _R1 Trem _R R P1105 Example: Patient/room data At 0745, 0845, 0945 RepRsch _P1 Tin _P1 Tout _P1 Stat _P1 Rsch _P2 Tin _P2 Tout _P2 Stat _P2 Stat _R1 Trem _R R PreP1 45 RepRsch _P1 Tin _P1 Tout _P1 Stat _P1 Rsch _P2 Tin _P2 Tout _P2 Stat _P2 Stat _R1 Trem _R RR PreTurn

15 Methods: Periodic adjustments Determine time remaining for current case in each room, total time remaining to complete all cases, free time remaining Reprioritize patients scheduled in each room, including new emergency cases Identify next case scheduled in room with greatest anticipated overtime, and reassign that case to room with greatest anticipated free time

16 Results: Output for a typical day R1R2R3R4R5R6R7R P1P P1P3P5P11P P1P3P5P8P11P18P P1P3P5P8TURNP15TURNP P1P3P5P8TURNP15TURNP P1P3TURNP8P12P15P19P P1P3TURNP8P12TURNP19TURN 0915P1TURN 0930TURN 0945TURNP4P6P9P13P16P20P24

17 Results Runtime about 10 minutes to simulate a 24-hour day with 300 replications – not affected much by number of replications Most time-consuming for computer (and most difficult to code) is reassignment of cases from overbooked rooms Limited by incomplete data on patient destination after Recovery Room

18 Validation: Cumulative statistics

19 Expand and modify Started small, now allow for patients in 24 rooms Summarize multiple days with same structure (day of week, block schedule) Add information about RR destinations Verify assumptions about OR staffing RR staffing, scheduling policies, etc. Predict effects of changing staffing/policies

20 Conclusions Stata has some useful features for simulation and enables a working model Stata would be even better if commands could reference variable names, e.g., replace st_R7=3 if st_P3=7 Plan to post improved version of this program on ideas.repec.org StataCorp and/or developers should take note of “SAS Simulation Studio”
