SolidWorks: Assembly Assembly
เนื้อหา การสร้างชิ้นส่วน spring ด้วยคำสั่ง sweep การประกอบชิ้นส่วน Assembly การแยกชิ้นส่วน Exploding
Practice 1: คำสั่ง swept สร้าง ชิ้นงานสปริง
Sketch on a circle on top plane (Unit: inches)
Insert Curve Helix/spiral exit sketch (p=0.13, H=0.5)
Insert reference geometry plane (normal to curve)

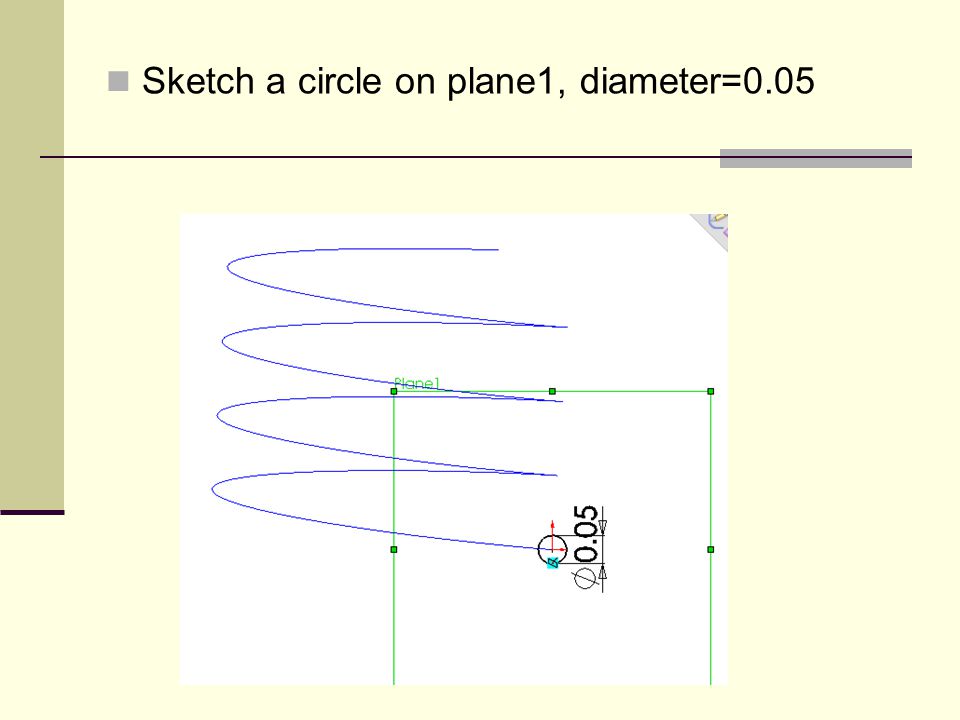

Sketch a circle on plane1, diameter=0.05

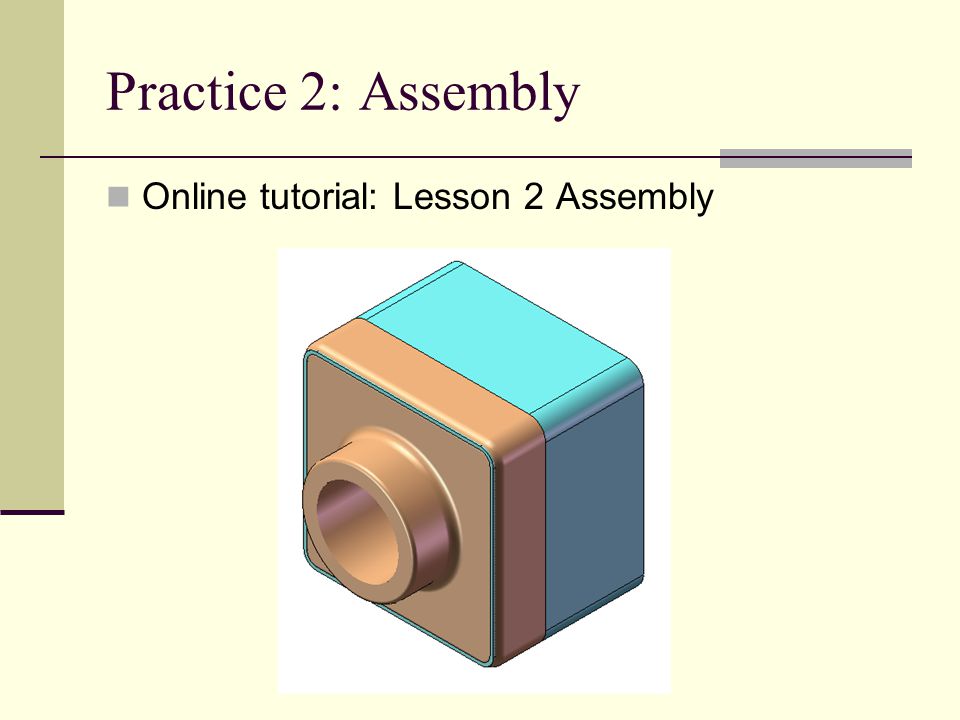

Practice 2: Assembly Online tutorial: Lesson 2 Assembly

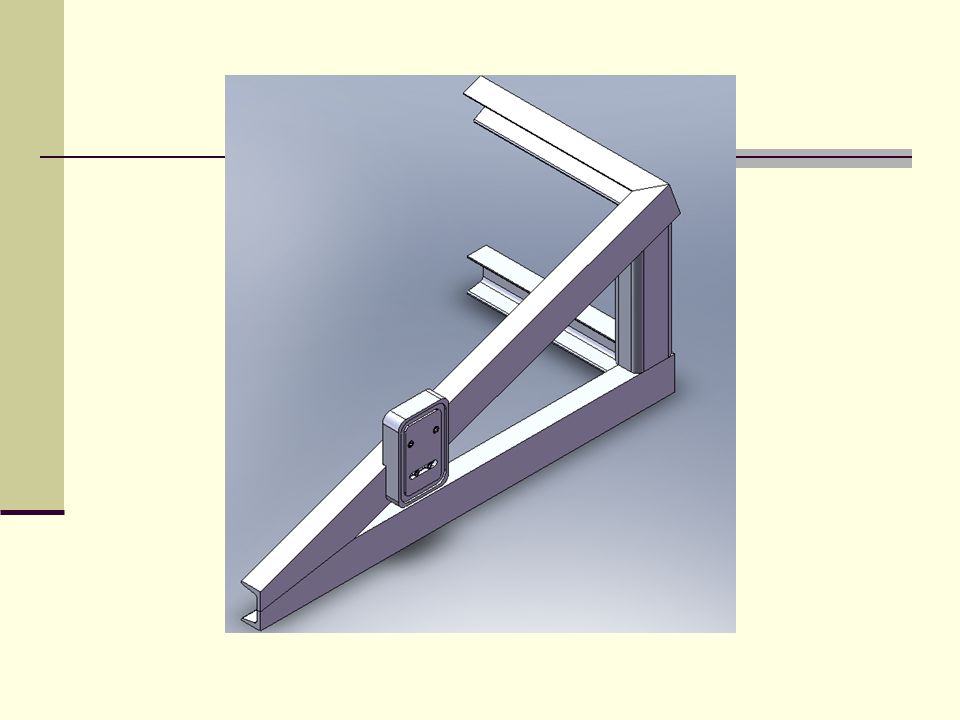

Download Chapter5SimpleMachinedPart.SLDPRT AND Chapter5Frame.SLDPRT open this file Then Click OK To insert At Origin
(f) Means part is fixed Click on Origin to see anchor point Then Open Part Chapter5SimpleMachinedPart. SLDPRT
(-) means part is underdefined you can R-click on an (f) part in tree to Float it, i.e. (-)

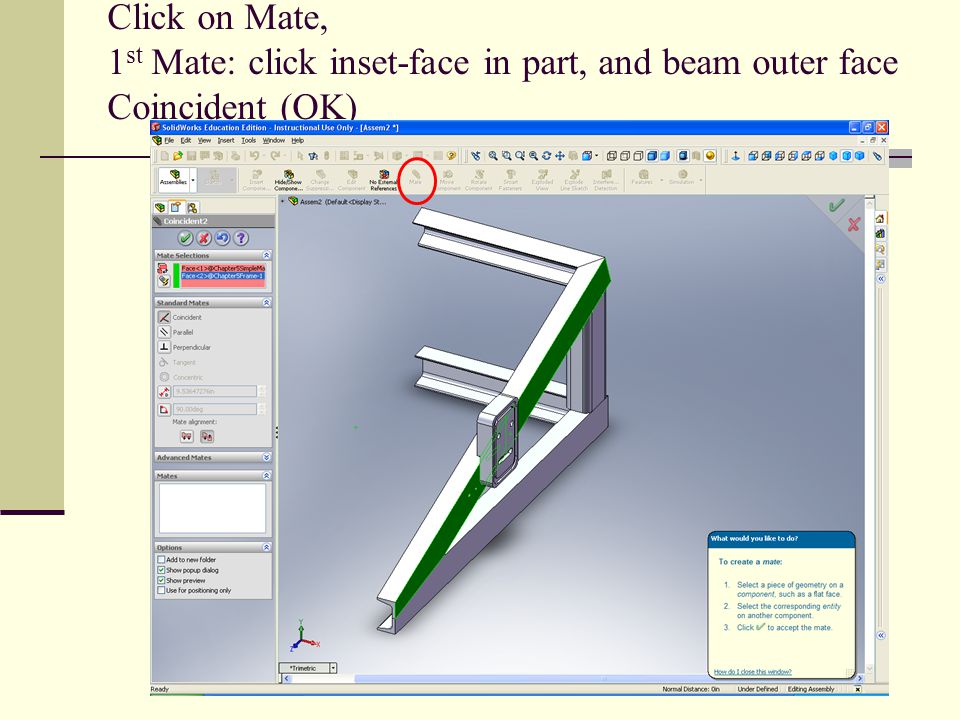

Click on Mate, 1 st Mate: click inset-face in part, and beam outer face Coincident (OK)
2 nd Mate: First click here

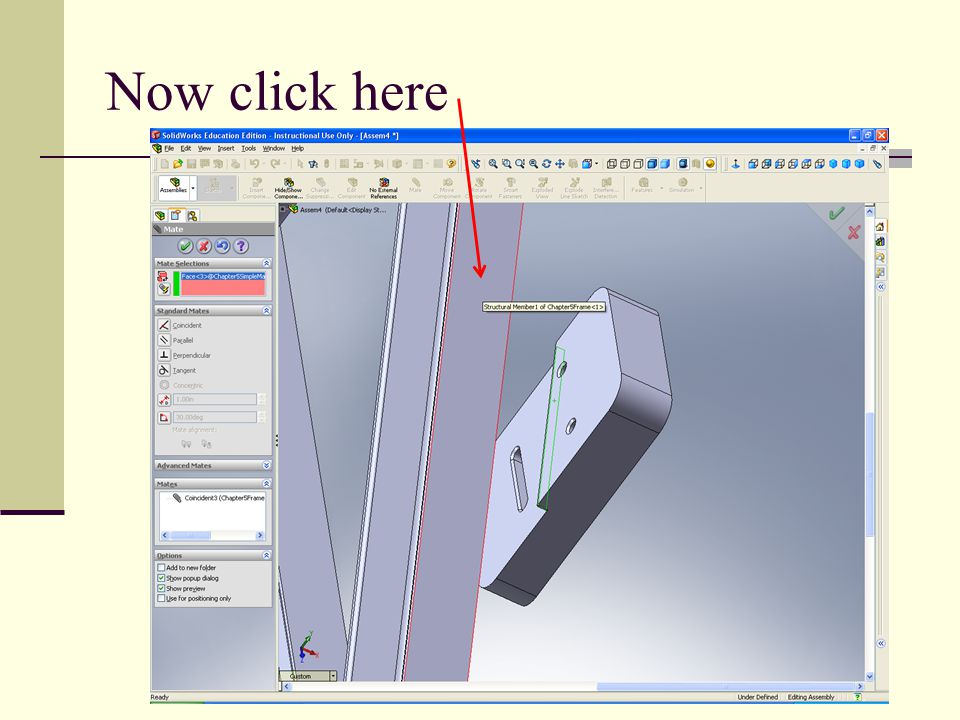

Now click here
You can now R-click UpperRight and slide up and down beam with mouse

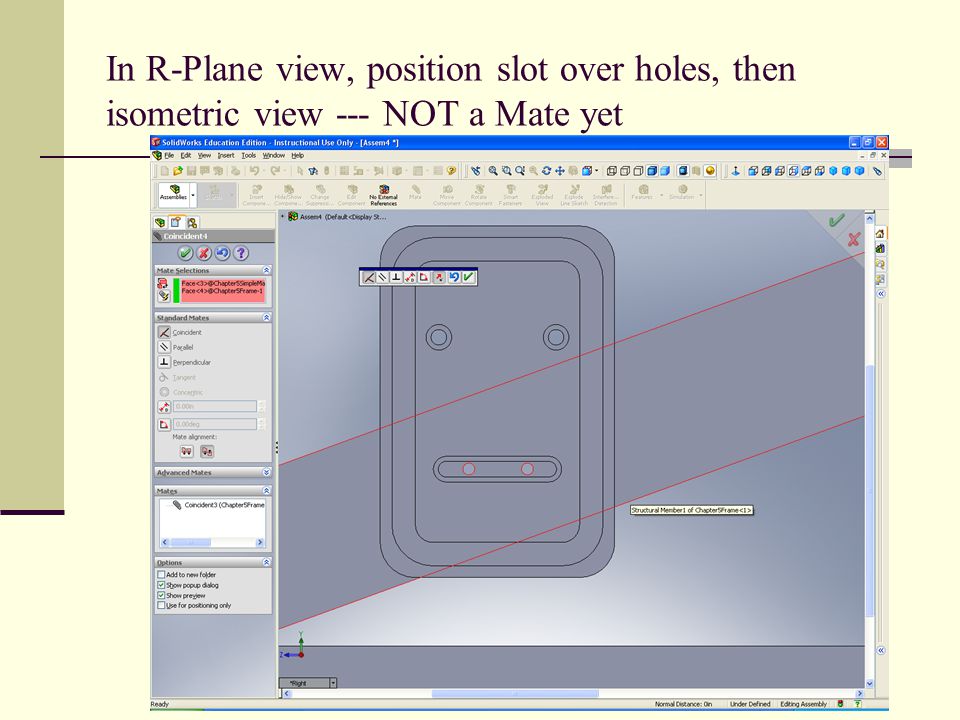

In R-Plane view, position slot over holes, then isometric view --- NOT a Mate yet

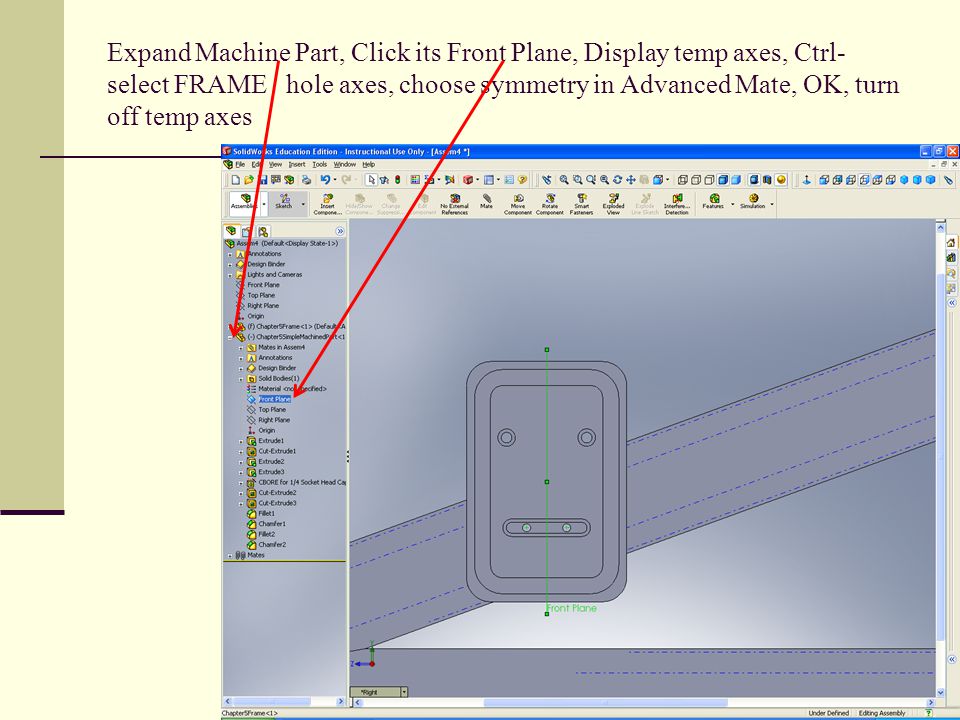

Expand Machine Part, Click its Front Plane, Display temp axes, Ctrl- select FRAME hole axes, choose symmetry in Advanced Mate, OK, turn off temp axes

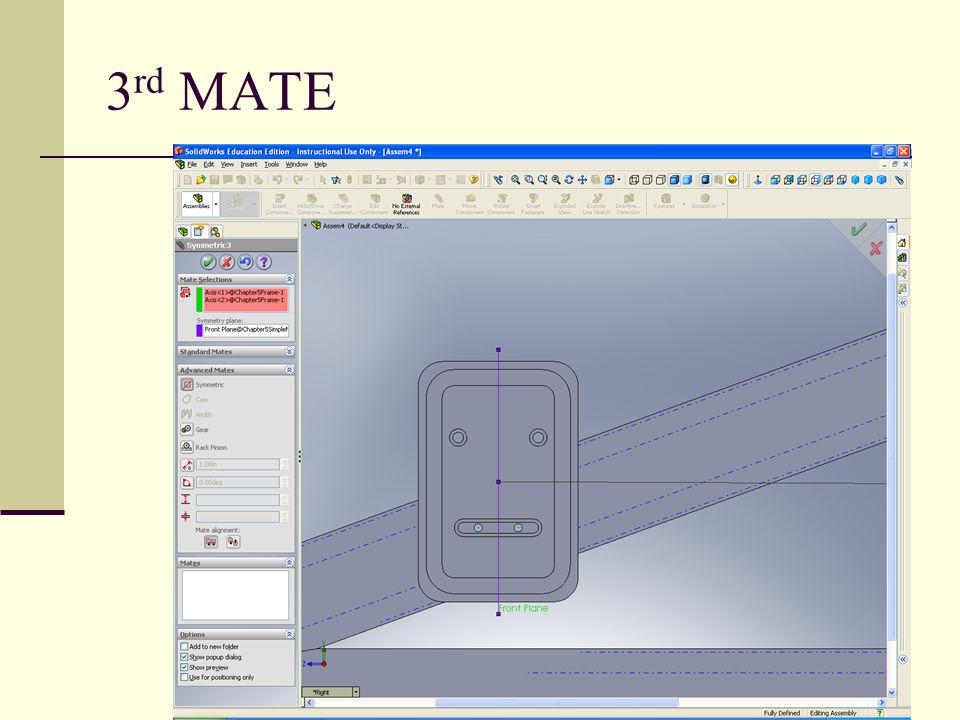

3 rd MATE
Notice machine part now lost the (-)…finished
Assembly Demo 2

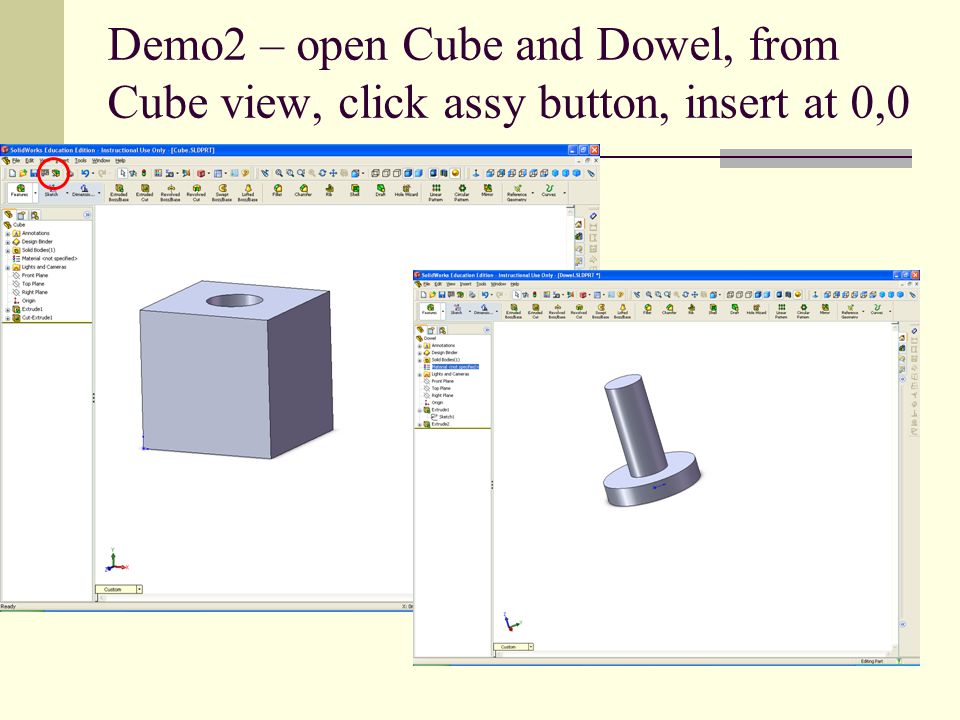

Demo2 – open Cube and Dowel, from Cube view, click assy button, insert at 0,0
Select green face on each object use mouse wheel to rotate, ctrl-click to select, then click MATE to align planes You can then use Left-mouse Drag to align manually
OR, select side of cylinder, edge of cube, and choose TANGENT Still not “fixed” because dowel could translate along edge: One more tangent will help but it could still “rotate”
Add another part, Dowel w/Handle Try rotating part with R-mouse Drage Mate first by aligning surface planes Then cylinders… Done! Turn crank!!
NUT & BOLT

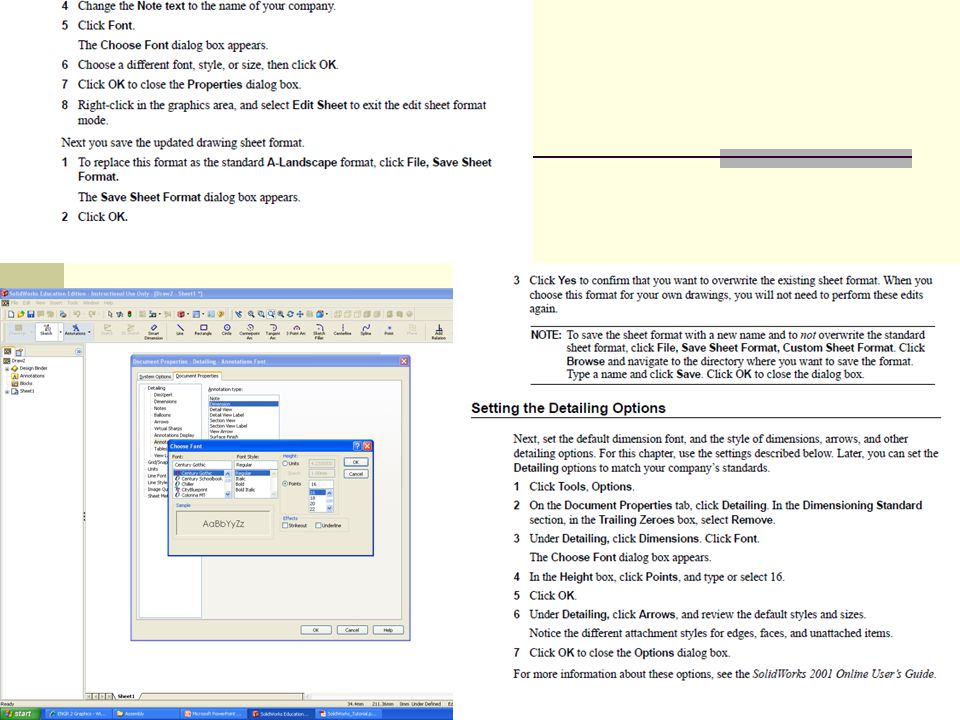

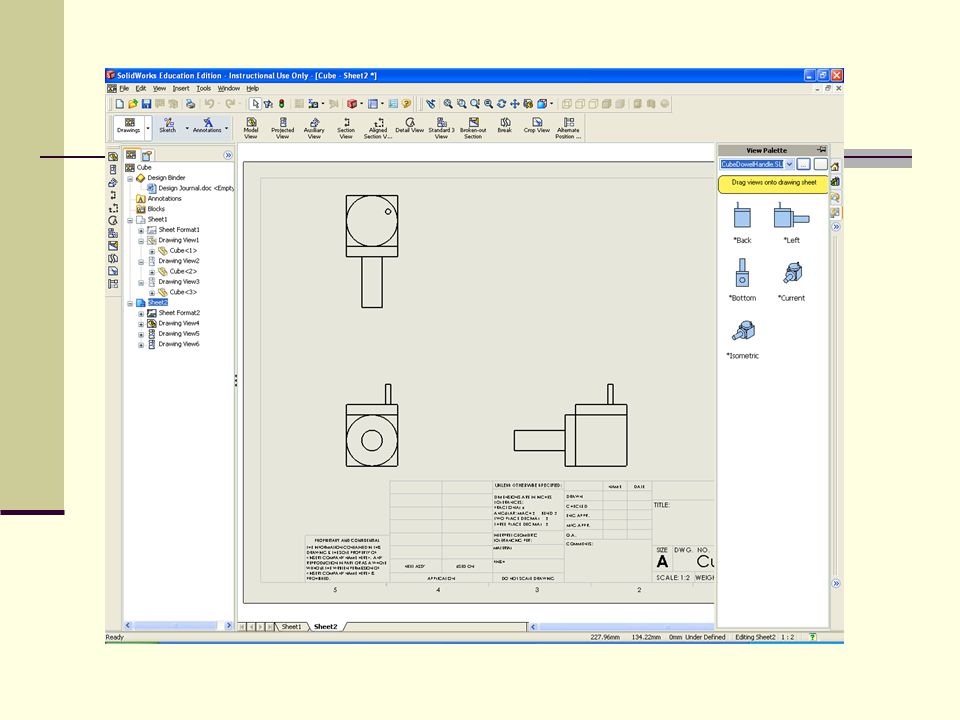

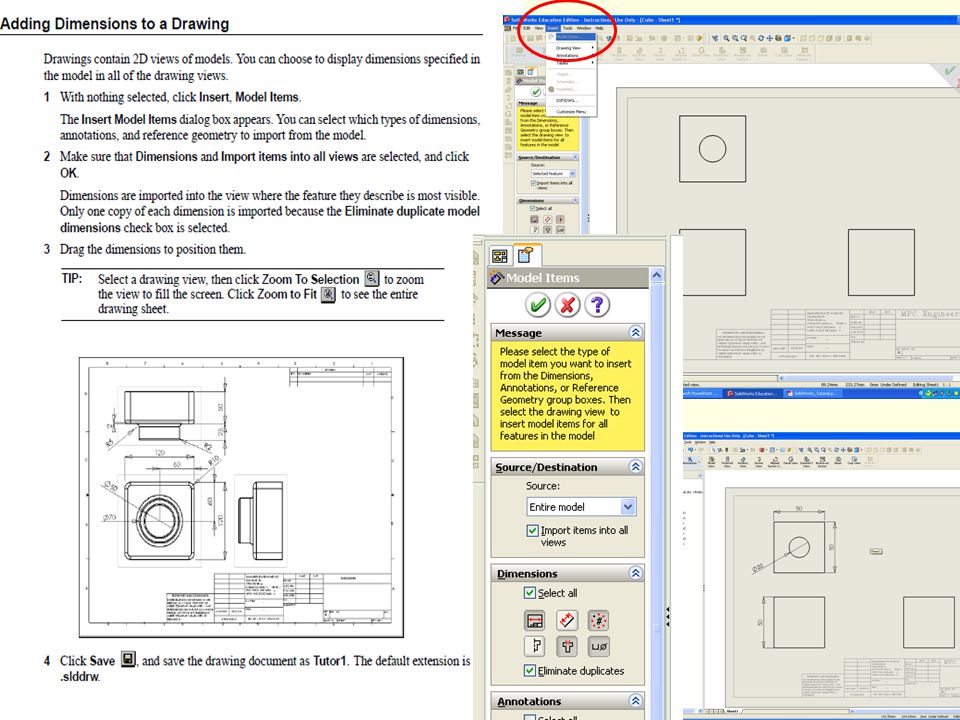

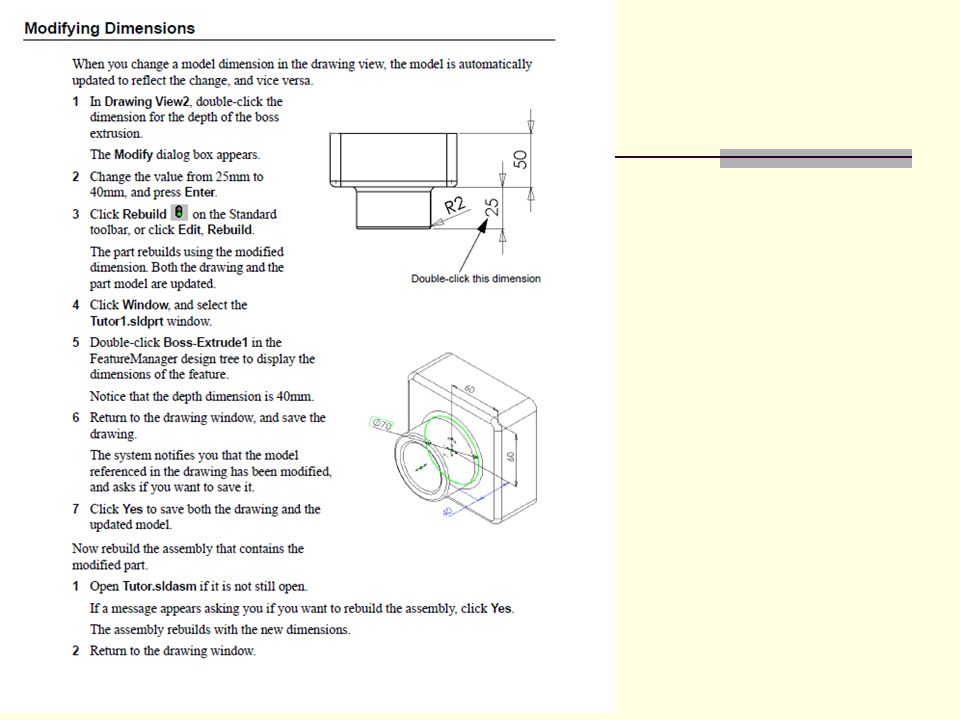

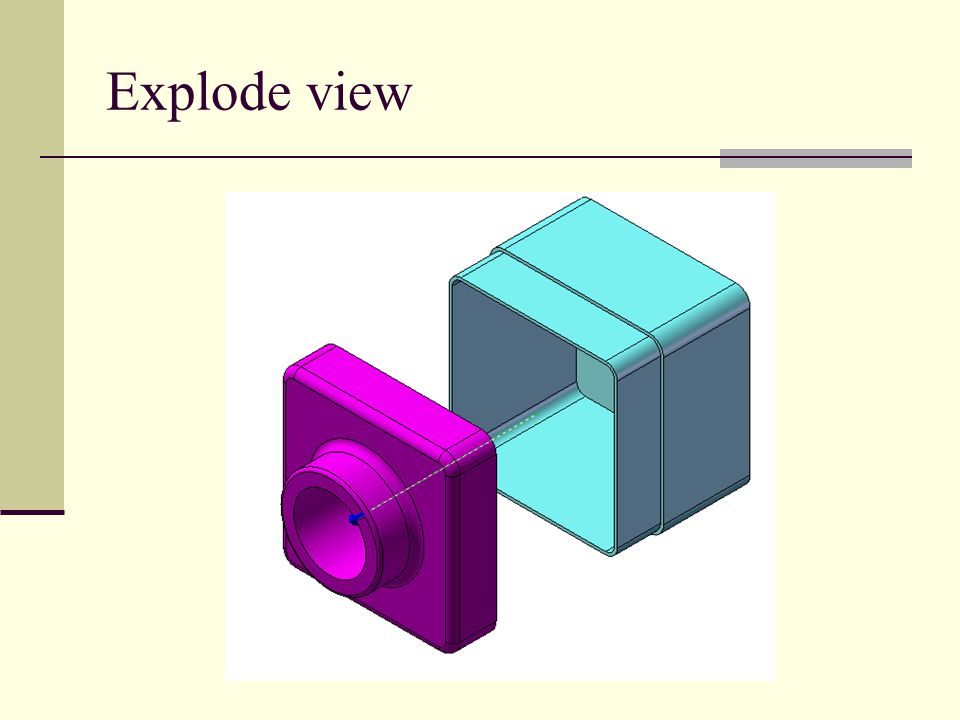

Home works Assembly & explode view Fig
