1 Circle Formulae 2 The area of a circle Tandi Clausen-May Click the mouse
2 Click the mouse only when you see or If you click too soon you will miss the best bits. Click the mouse Click to see Click the mouse

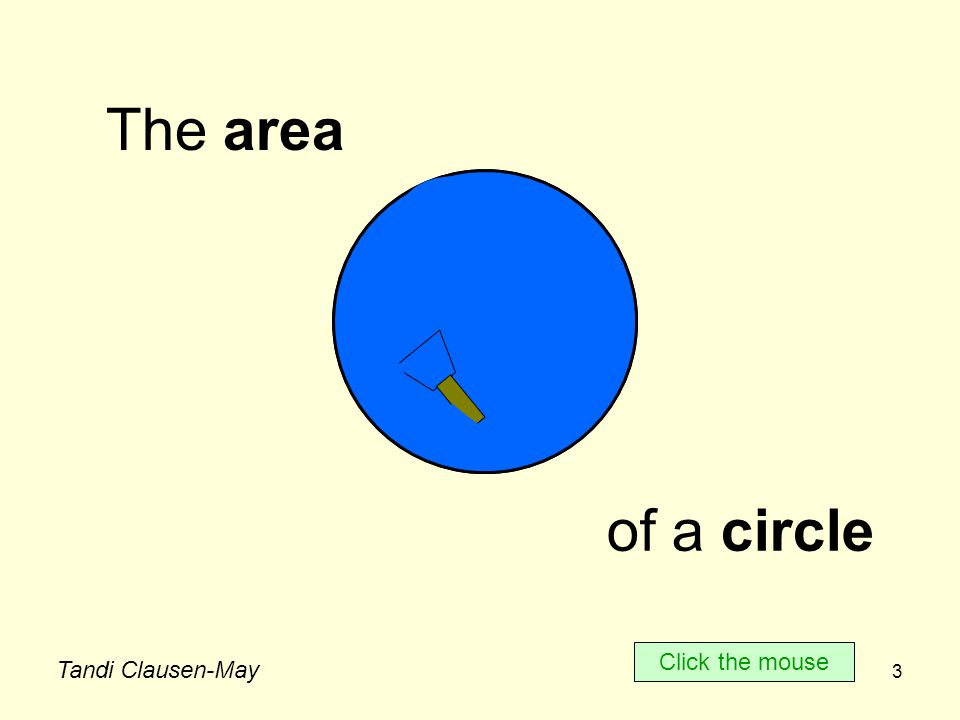

3 The area of a circle Tandi Clausen-May Click the mouse

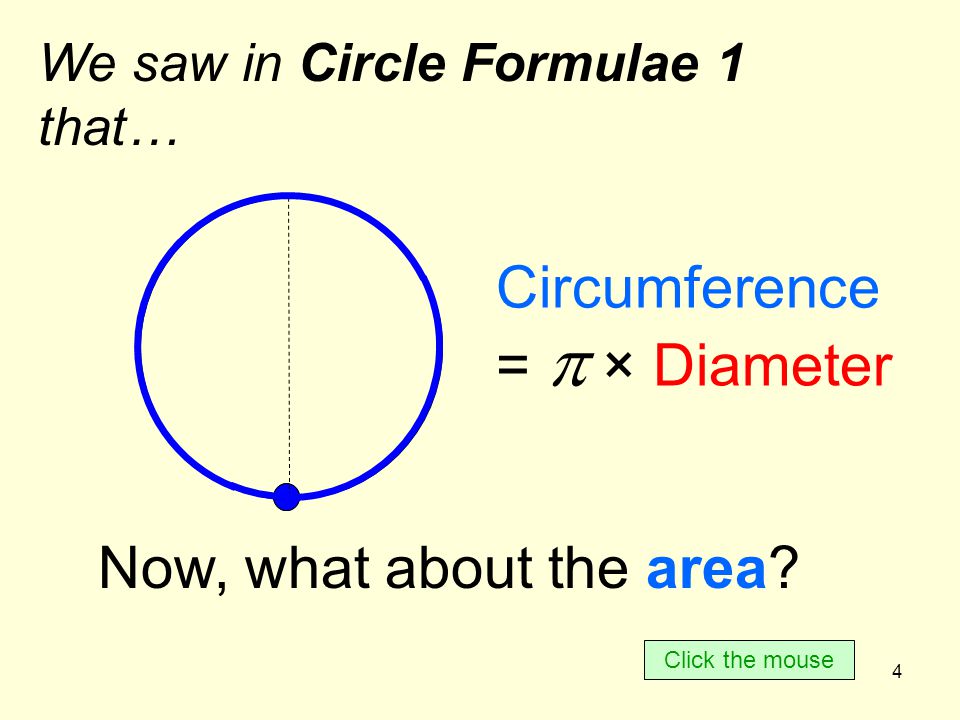

4 We saw in Circle Formulae 1 that… Circumference = × Diameter Now, what about the area?

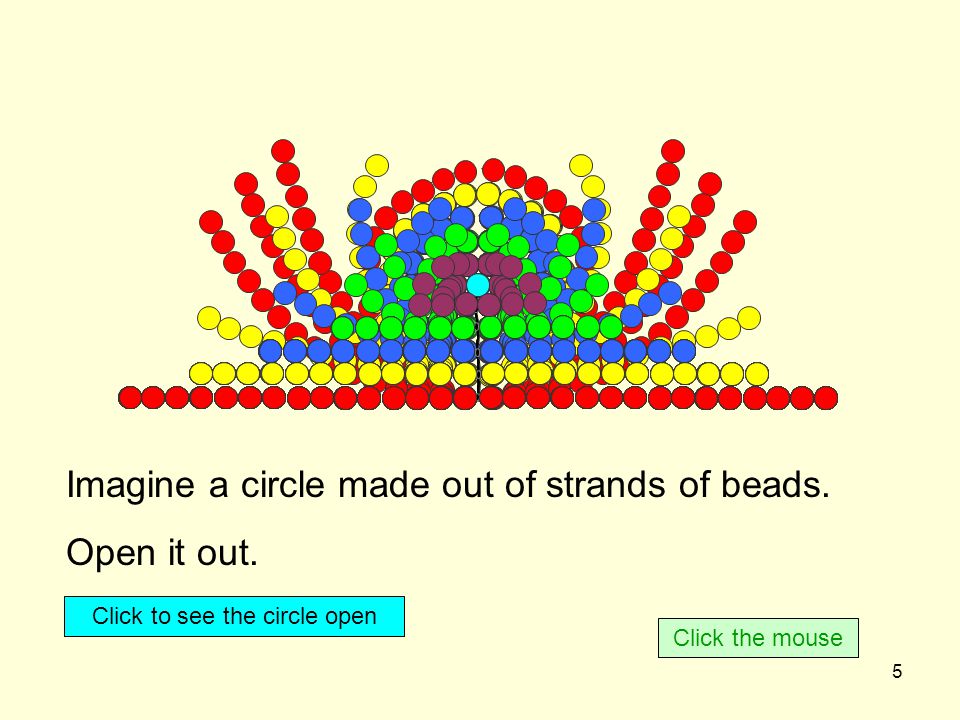

5 Imagine a circle made out of strands of beads. Open it out. Click the mouse Click to see the circle open
6 circumference radius (half the diameter) Let’s watch that again. It’s a triangle! base = circumference Click to see the circle open again height = radius (half the diameter) Click the mouse
7 circumference radius (half the diameter) = Circumference × Radius 2 Area of the triangle circle Area of the triangle We know how to find the area of a triangle. Click the mouse = Base × Height 2

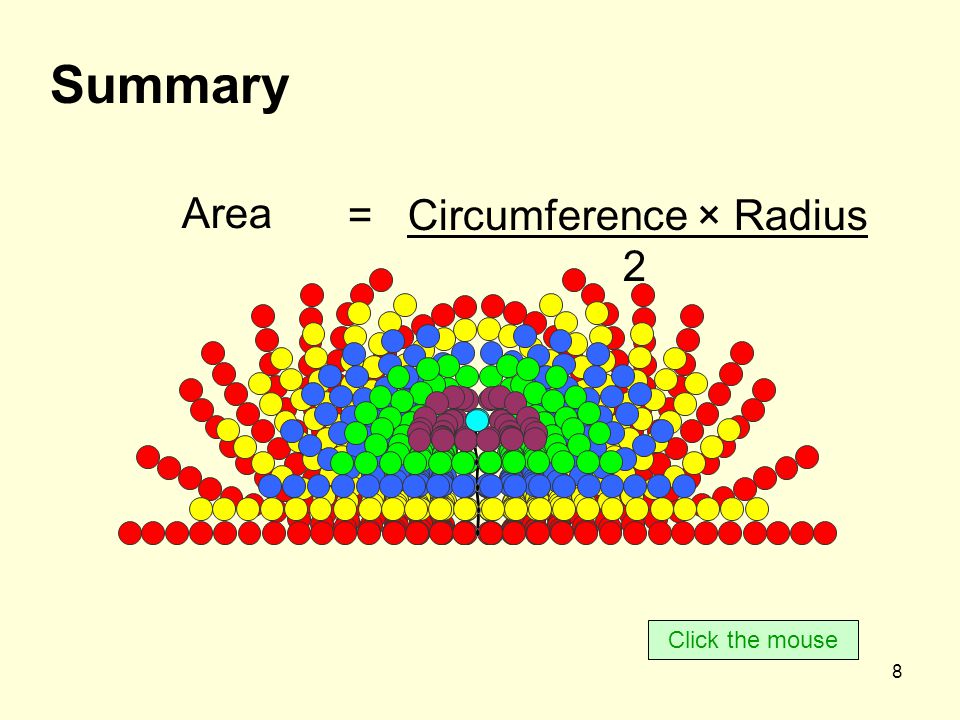

8 = Circumference × Radius 2 Area Summary Click the mouse
9 The End Tandi Clausen-May
