© Siemens AG 2012- Subject to modifications WinCC Competence Center Mannheim 2012-02-06Slide 1 CONTACT PM-OPEN TCP/IP EXPORT IMPORT PI HOST/S PM-QUALITY PM-MAINT PM-CONTROL PM-ANALYZE Process Management System Economical Automation with Standard Software
© Siemens AG 2012- Subject to modifications WinCC Competence Center Mannheim 2012-02-06Slide 2 CONTACT PM-OPEN TCP/IP EXPORT IMPORT PI HOST/S PM-QUALITY PM-MAINT PM-CONTROL PM-ANALYZE PM- CONTROL PM- CONTROL PM- QUALITY PM- QUALITY PM- MAINT PM- MAINT PM- ANALYZE PM- ANALYZE PM- OPEN PM- OPEN Maintenance Diagnostics Production - Quality System integration The intelligent Maintenance Management System Recipe/Product Data Management, Job Control for industrial process and production plants Job/Batch-Oriented Archiving and Reporting for process data, alarms and laboratory data Analysis of Alarm and Process Data (error message statistics, downtime frequency, analysis of weak points) Overview of Process Management System Communication solutions (online computer link, exporting process data, alarms and archive data, connection to PI and SAP R/3)

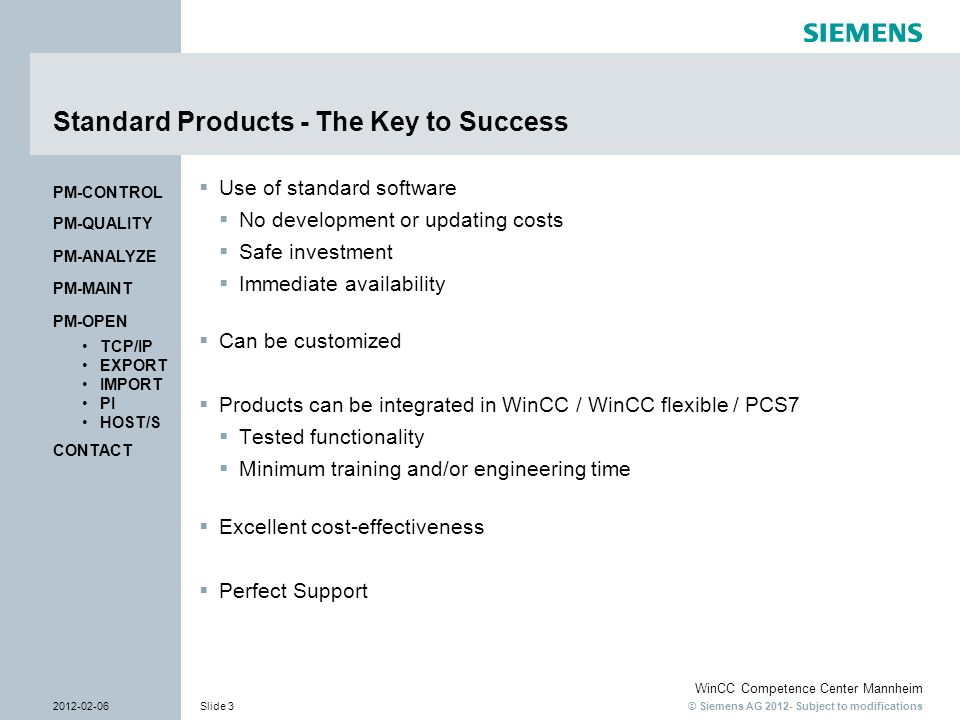

© Siemens AG 2012- Subject to modifications WinCC Competence Center Mannheim 2012-02-06Slide 3 CONTACT PM-OPEN TCP/IP EXPORT IMPORT PI HOST/S PM-QUALITY PM-MAINT PM-CONTROL PM-ANALYZE Standard Products - The Key to Success Use of standard software No development or updating costs Safe investment Immediate availability Can be customized Products can be integrated in WinCC / WinCC flexible / PCS7 Tested functionality Minimum training and/or engineering time Excellent cost-effectiveness Perfect Support
© Siemens AG 2012- Subject to modifications WinCC Competence Center Mannheim 2012-02-06Slide 4 CONTACT PM-OPEN TCP/IP EXPORT IMPORT PI HOST/S PM-QUALITY PM-MAINT PM-CONTROL PM-ANALYZE Tag Logging Tag Logging Alarm Logging Alarm Logging Graphics PM-OPEN TCP/IP Online computer link via TCP/IP Flexible low-cost solution for linking computer systems (MRP, laboratory, logistics and quality management systems, etc.) and Office PCs at an automation and process control level Exchange of tags and alarms between SIMATIC WinCC and one or several computer(s) Integration into the office world with Visual Basic for Applications The integration of PM-OPEN TCP/IP in the SIMATIC WinCC process visualisation system offers integrated communication solutions for consistent industrial automation Applicable for redundant WinCC/PCS7 con figurations PM- OPEN TCP/IP PM- OPEN TCP/IP
© Siemens AG 2012- Subject to modifications WinCC Competence Center Mannheim 2012-02-06Slide 5 CONTACT PM-OPEN TCP/IP EXPORT IMPORT PI HOST/S PM-QUALITY PM-MAINT PM-CONTROL PM-ANALYZE New Features in PM-OPEN TCP/IP V8.3 Released for 64-bit operating systems Windows Server 2008 (R2) – 64 bit Windows 7 – 64 bit Released for WinCC V7 SP3 Released for WinCC V11 Runtime Professional SP2
© Siemens AG 2012- Subject to modifications WinCC Competence Center Mannheim 2012-02-06Slide 6 CONTACT PM-OPEN TCP/IP EXPORT IMPORT PI HOST/S PM-QUALITY PM-MAINT PM-CONTROL PM-ANALYZE Process Management System For further information, please visit us at: Internet: http://www.siemens.com/pm-open-tcp-ip http://www.siemens.com/pm-open-tcp-ip Email: firstname.lastname@example.org Tel:+49 (0) 621 456 -3269 Fax:+49 (0) 621 456 -3334 CONTACT
