# Noadswood Science, 2014.  To understand the flow procedure when writing programs Thursday, January 15, 2015.

## Presentation on theme: "Noadswood Science, 2014.  To understand the flow procedure when writing programs Thursday, January 15, 2015."— Presentation transcript:

 To understand the flow procedure when writing programs Thursday, January 15, 2015

Input > Output  A program takes input (information in), processes it (or changes it) and then gives back the results (output) Input > Processing > Output  Input (input command, keyboard, mouse)  Processing (variables, mathematicise, loops, branches, functions)  Output (print command, screen, graphics)  Take a look at the script for the Ghost game previously written: identify the input, processing and output functions

Ghosts #Ghost Game from random import randint print('Ghost Game') feeling_brave = True score = 0 while feeling_brave: ghost_door = randint(1, 3) print('Three doors ahead...') print('A ghost behind one.') print('Which door do you open?') door = input ('1, 2, or 3?') door_num = int(door) if door_num ==ghost_door: print('GHOST!') feeling_brave = False else: print('No ghost!') print('You enter the next room.') score = score + 1 print('Run away!') print('Game over! You scored', score) input("\n\nPress the enter key to exit.")

Ghosts #Ghost Game from random import randint print('Ghost Game') Output > print is used to display information feeling_brave = True score = 0 Processing > variables keep track of the score while feeling_brave: ghost_door = randint(1, 3) Processing > variables keep track of the score print('Three doors ahead...') print('A ghost behind one.') print('Which door do you open?') door = input ('1, 2, or 3?')Input > taken from the keyboard door_num = int(door) if door_num ==ghost_door: print('GHOST!') feeling_brave = False else: print('No ghost!') print('You enter the next room.') score = score + 1 print('Run away!') print('Game over! You scored', score) input("\n\nPress the enter key to exit.")

Simple Commands  Here are some basic commands that will be useful when using Python… CommandPython Run program“Run” menu Stop program“CTRL-C” in shell Text to screenprint(‘Hello!’) Set variable to numbermagic_number = 123 Set variable to text stringword = ‘Noadswood’ Read text from keyboard into a variable age = input(‘age?’) print(‘I am ‘ + age) CommandPython Add a number to a variable cats = cats + 1 Adda + 2 Subtracta - 2 Multiplya * 2 Dividea / 2 Forever loop while True: jump ()

Simple Commands  Here are some basic commands that will be useful when using Python… CommandPython Loop 10 times for i in range (10): jump () Is equal to?a == 2 Is less than?a < 2 Is more than?a > 2 NOTnot CommandPython ORor ANDand If then if a == 2: print(‘Hello!’) If then else if a == 2: print(‘Hello!’) Else print(‘Goodbye!’)

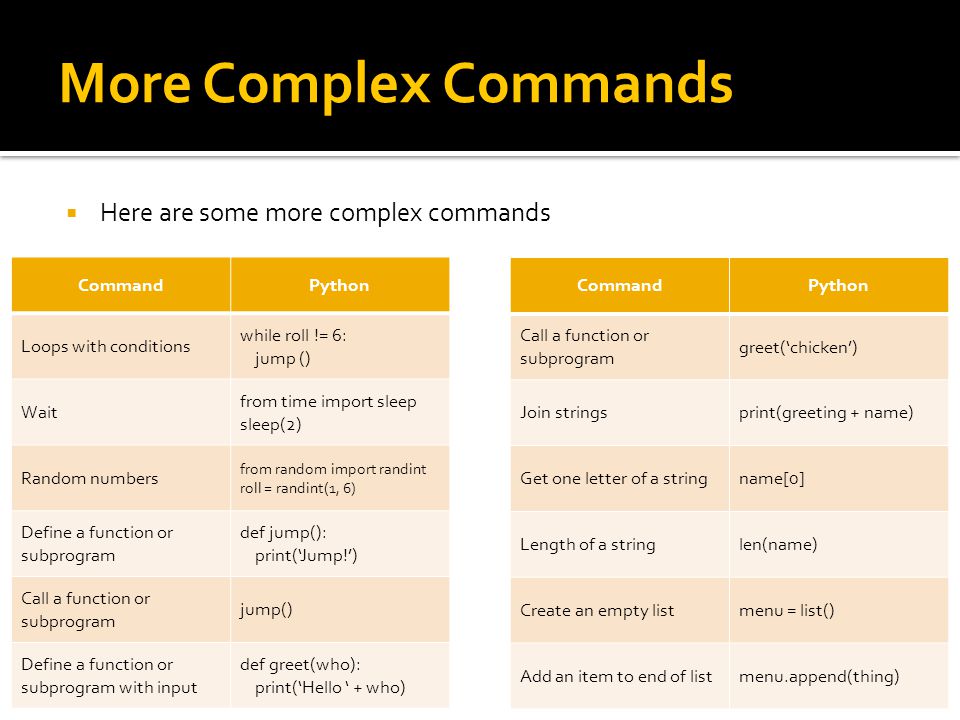

More Complex Commands  Here are some more complex commands CommandPython Loops with conditions while roll != 6: jump () Wait from time import sleep sleep(2) Random numbers from random import randint roll = randint(1, 6) Define a function or subprogram def jump(): print(‘Jump!’) Call a function or subprogram jump() Define a function or subprogram with input def greet(who): print(‘Hello ‘ + who) CommandPython Call a function or subprogram greet(‘chicken’) Join stringsprint(greeting + name) Get one letter of a stringname[0] Length of a stringlen(name) Create an empty listmenu = list() Add an item to end of listmenu.append(thing)

More Complex Commands  Here are some more complex commands CommandPython How many items on list?len(menu) Value of 5 th item on listmenu[4] Delete 2 nd item on listdel menu[1] Is item on a list? if ‘olives’ in menu: print(‘Oh no!’) CommandPython Turtle graphics from turtle import * clear() pendown() forward(100) right(90) penup()

Code & Shell Windows  Within the IDE there are two windows to choose from: the code window (used to write and save programs) and the shell window (run the Python instructions)  *Programs must always be saved before they can be run  Enter a program into the code window, save it and run… #Simple Math a = 10 b = 4 print(a + b) print(a - b)

Simple Maths: Code  In the code window a simple code can be used to add or subtract some numbers

Simple Maths: Shell  In the shell window the code is run, however Python can also understand commands that are typed within the shell window – they run as soon as they are typed  This features allows testing: it gives an immediate response…

More Turtle  Run the turtle square program #Turtle Square from turtle import * forward(100) left(90) forward(100) left(90) forward(100) left(90) forward(100) left(90) done() *add this new line to keep the screen open  Using this basic code see if you can get turtle to draw some other shapes (and with some other pen colours / pen sizes)…  Remember, save each new shape as something specific!

Colour  Colour can be chosen before the line is drawn using the color command…  color(“red”)  color(“blue”)  Etc…  Make a multi-coloured square…

Colour #Turtle Square from turtle import * color("red") forward(100) left(90) color("blue") forward(100) left(90) color("green") forward(100) left(90) color("yellow") forward(100) left(90) done()  This will change the colour of the pen before each forward move…

Pensize #Turtle Square from turtle import * pensize(5) color("red") forward(100) left(90) color("blue") forward(100) left(90) color("green") forward(100) left(90) color("yellow") forward(100) left(90) done()  pensize(3) > this makes the pen thicker

Turtle Triangle  Make turtle produce a triangle...  The turtle square program may help… #Turtle Square from turtle import * forward(100) left(90) forward(100) left(90) forward(100) left(90) forward(100) left(90) done()

Turtle Triangle  For turtle triangle it is important to work out your angles! #Turtle Triangle from turtle import * forward(50) left(120) forward(50) left(120) forward(50) done()

Turtle Friends  Try and have two turtles!  You’ll need to assign them names using the command: name = Turtle()  See if you can have one draw a triangle then go to the side, followed by another starting in the same place drawing a square…

Turtle Friends #Turtle Triangle from turtle import * david = Turtle() david.color("lightgreen") david.pensize(5) steven = Turtle() steven.color("hotpink") steven.pensize(5) david.forward(80) david.left(120) david.forward(80) david.left(120) david.forward(80) david.left(120) david.right(180) david.forward(80) steven.forward(50) steven.left(90) steven.forward(50) steven.left(90) steven.forward(50) steven.left(90) steven.forward(50) steven.left(90) done()

Turtle Shapes  See what other turtle shapes and designs you can make…
