1
Chapter 30 Serway & Beichner

3
Force between two current carrying wires

4
Electric current The Ampere The ampere is that constant current which, if maintained in two straight parallel conductors of infinite length, of negligible circular cross-section, and placed 1 m apart in vacuum, would produce a force between them equal to 2 × 10 -7 Newton per meter of length.

5
Fig 30-8, p.932

6

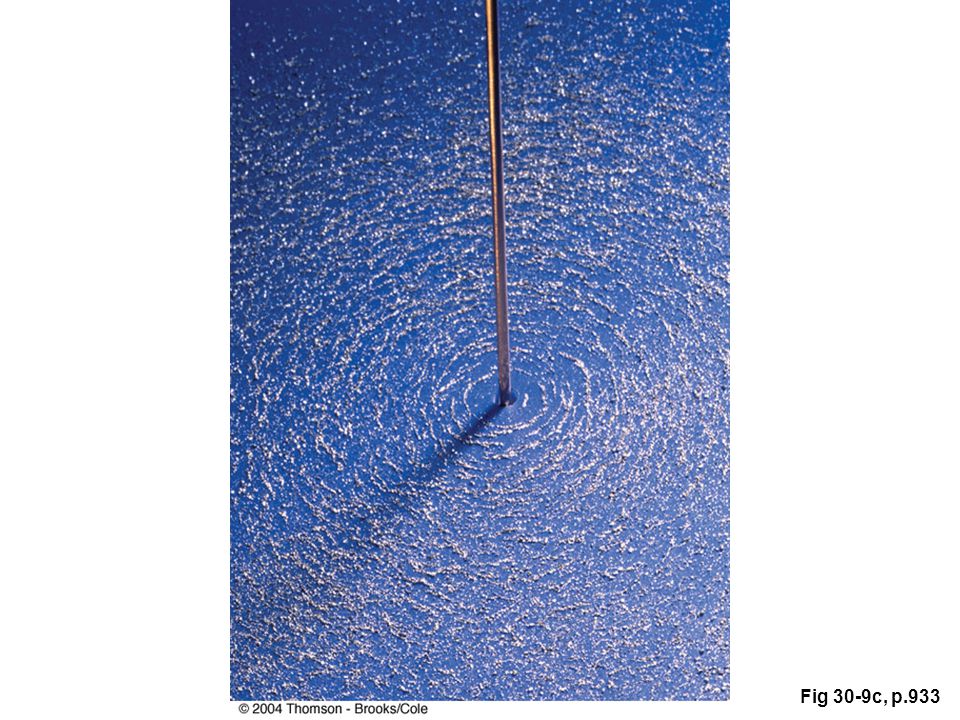

Fig 30-9c, p.933

7

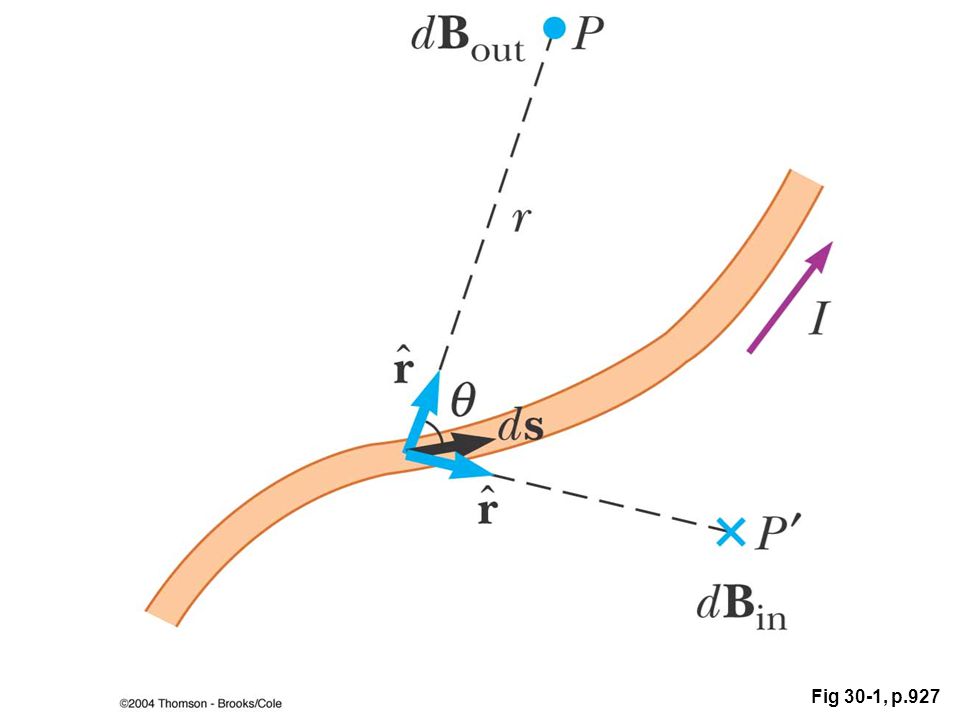

Fig 30-1, p.927

8

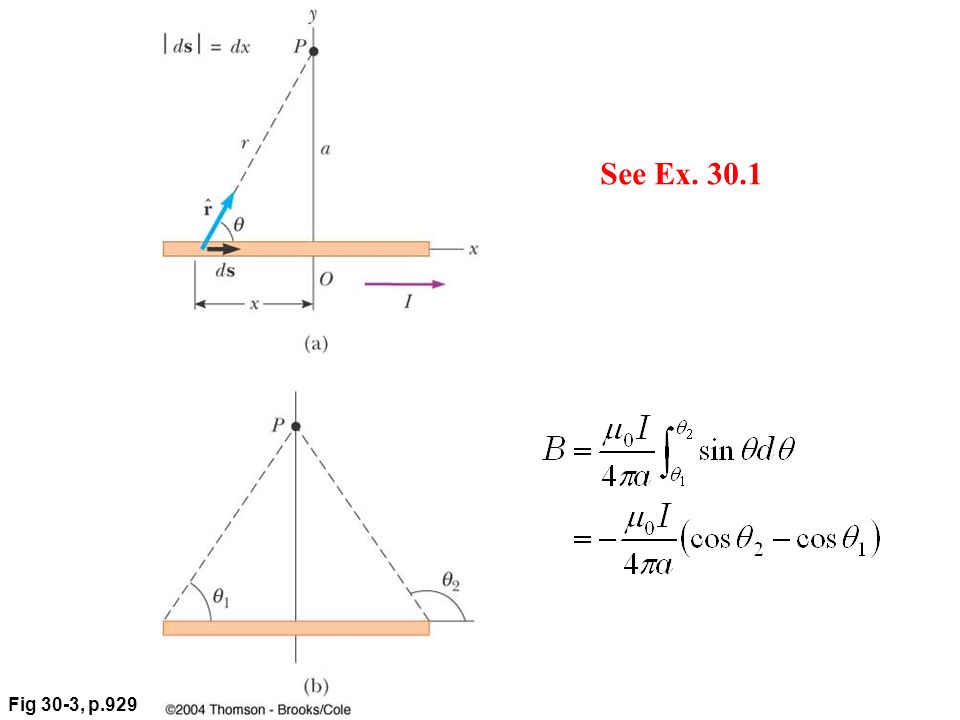

Fig 30-3, p.929 See Ex. 30.1

9
Fig 30-7, p.931 See Ex. 30.3 @ z = 0z >> R

10
Ch. 3010

11

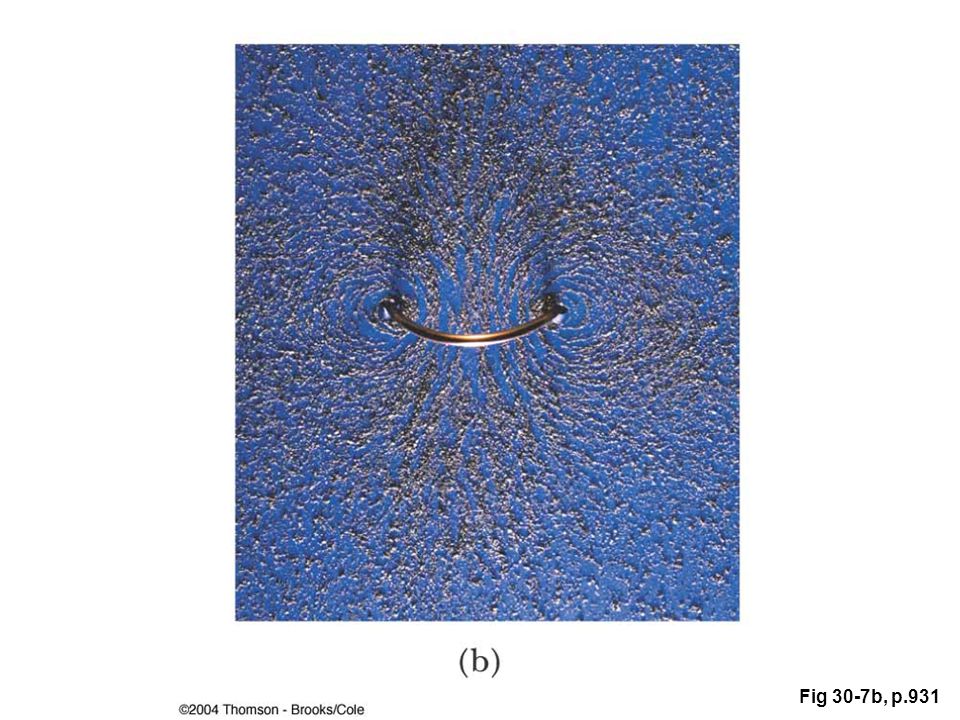

Fig 30-7b, p.931

12
Fig 30-17, p.938

13

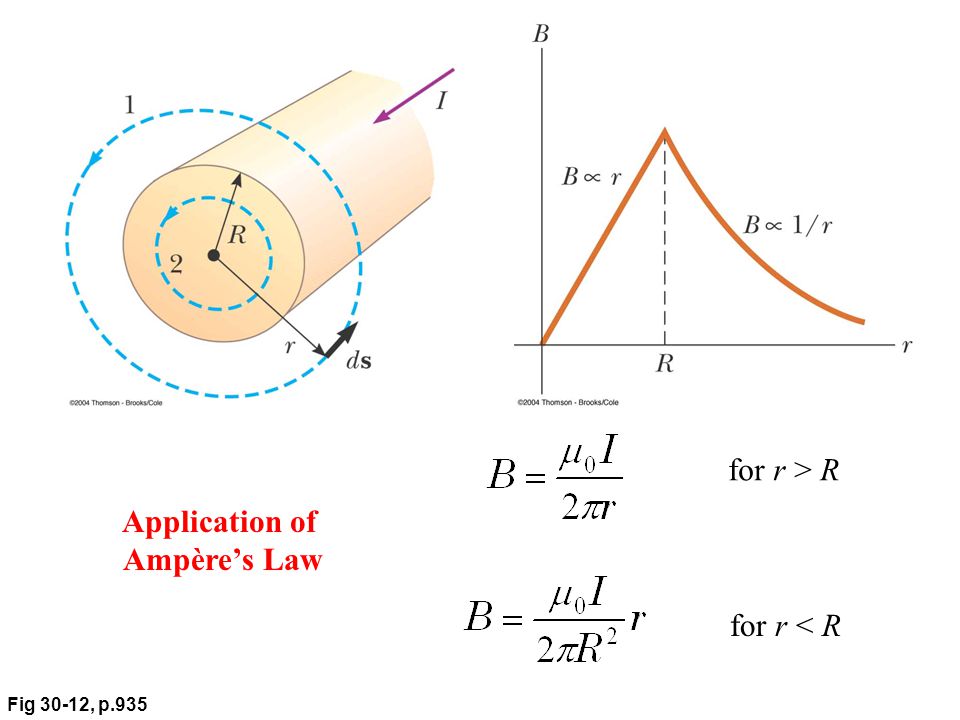

Fig 30-12, p.935 for r > R for r < R Application of Ampère’s Law

14

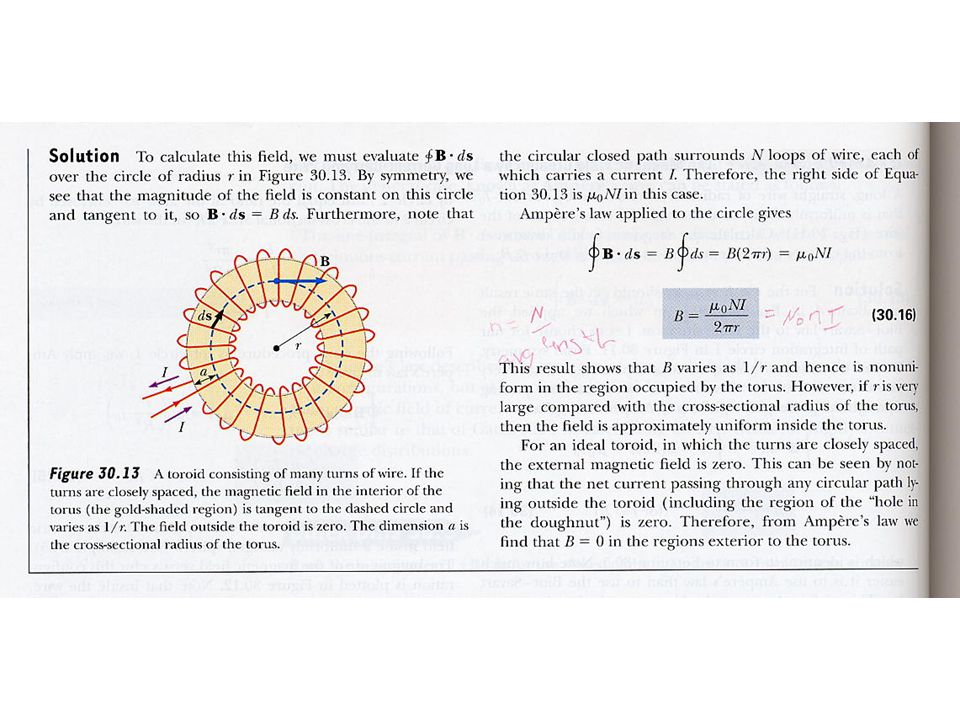

Fig 30-13, p.936

15
Fig 30-19, p.939 Field inside Solenoid

17
start 9/13/04

18
Fig P30-20, p.940 Magnetic Flux B = BdA = BAcos

19
Ampère’s Law One More Time Ampere’s law states that the line integral of B. ds around any closed loop equals o I where I is the total steady current passing through any surface bounded by the closed loop.

20
Apply Ampere’s Law to red loop for a wire with a constant current I Now introduce a capacitor to interrupt the the circuit. What’s wrong? Use a power supply that will keep current constant as the cap is charged: +Q/-Q on left/right plate. Now Apply Ampere’s Law again.

21

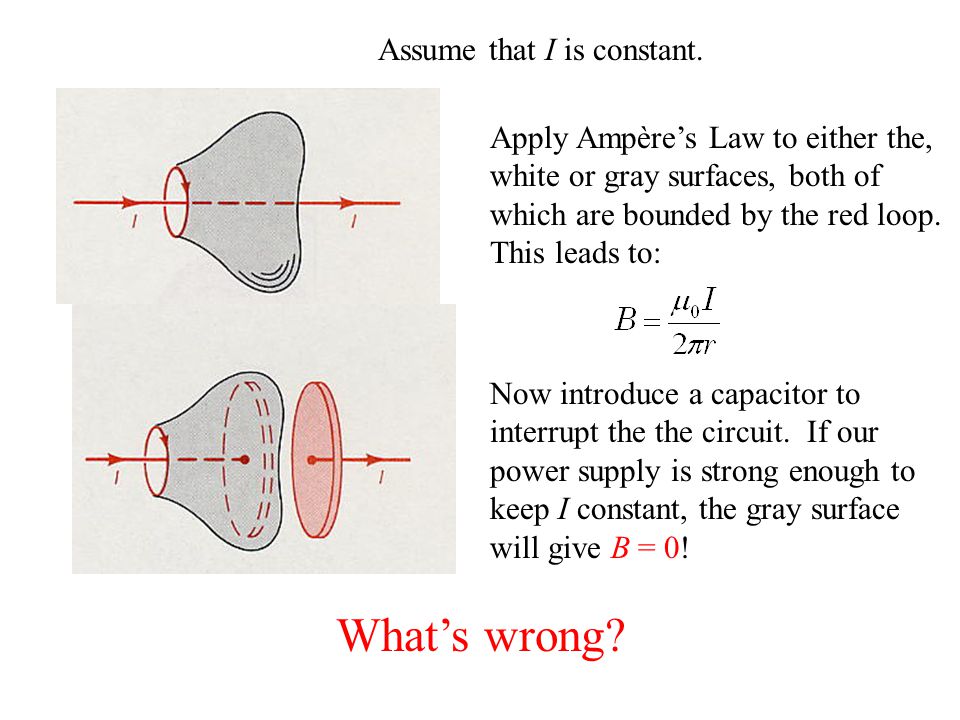

Now introduce a capacitor to interrupt the the circuit. If our power supply is strong enough to keep I constant, the gray surface will give B = 0! What’s wrong? Assume that I is constant. Apply Ampère’s Law to either the, white or gray surfaces, both of which are bounded by the red loop. This leads to:

22
If the power supply can keep the current constant, the cap. will be charged: +Q/-Q on left/right plate. This establishes an E-field between the two plates. E = EdA = Q/ o Electric flux will change in time corresponding to an effective current called the Displacement Current

23
Consider to different surfaces

24
Fig 30-27, p.945 Orbital Motion of the Electron in an Atom

25
Fig 30-28, p.946 Magnetic Moments due to Spin of electron, neutron and proton

26
Table 30-1, p.946 ElectronProtonneutron -9281.41-0.966 Magnetic Moments 10 -26 J/T

27
Polarization Generated Field points in the opposite direction

29
Table 30-2, p.948

30
Paramagnetism Generated field adds to applied field Atomic currents

31
Diamagnetism Generated field opposes applied field

32

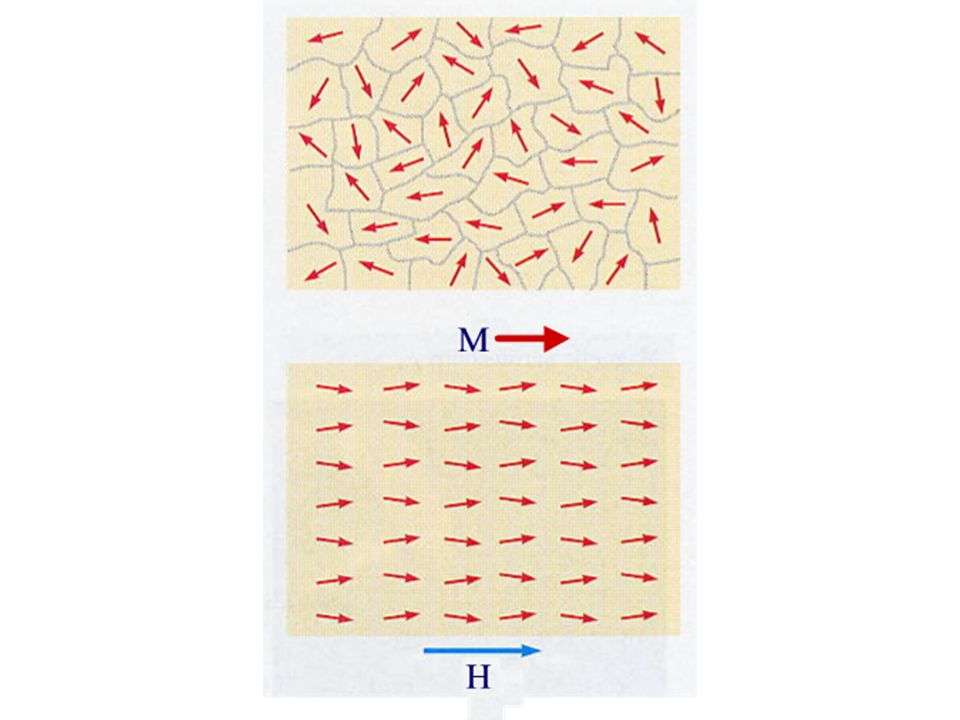

Magnetic Domains

33

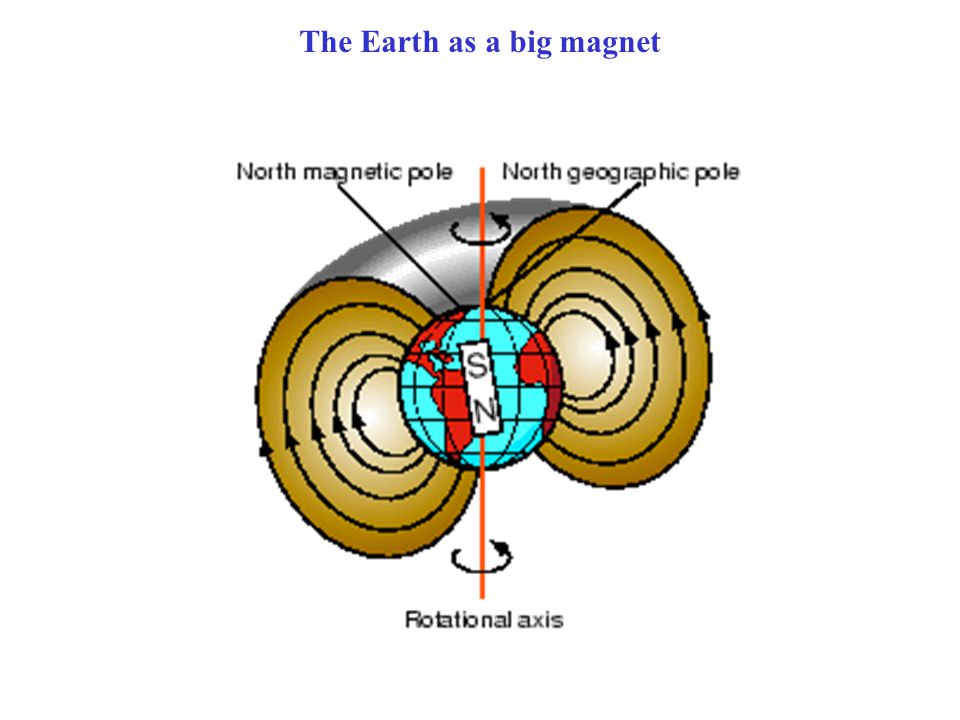

The Earth as a big magnet

35
l =0.4 m i = 10 A

36
Fig P30-6, p.957

37
Ch. 3037

38
Ch. 3038

39

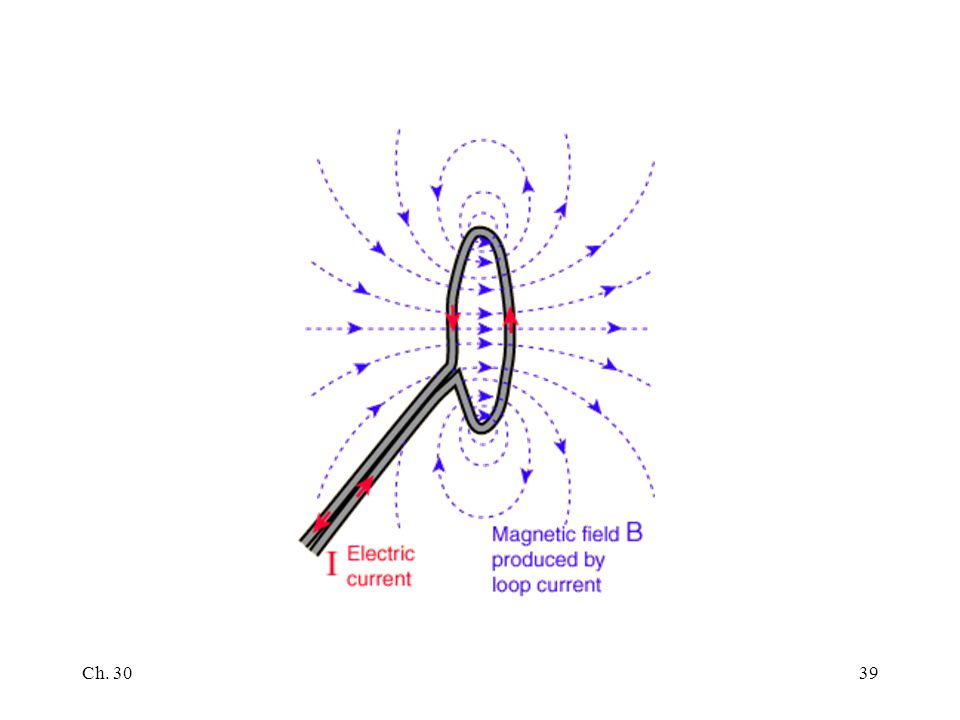

Ch. 3039

40
Ch. 3040
