1 1 Introducing TG20:13

2 2 Official launch - 22 nd November 2013 at the NASC AGM, Bristol ‘A comprehensive guide to good practice for tube and fitting scaffolding’

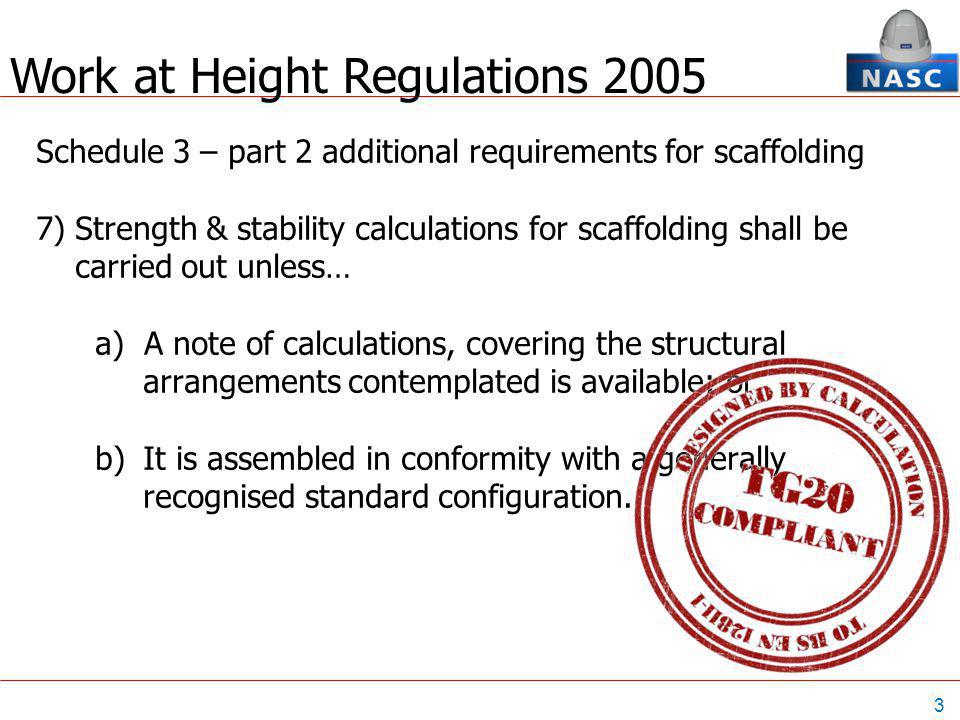

3 3 Schedule 3 – part 2 additional requirements for scaffolding 7)Strength & stability calculations for scaffolding shall be carried out unless… a) A note of calculations, covering the structural arrangements contemplated is available; or, b)It is assembled in conformity with a generally recognised standard configuration. Work at Height Regulations 2005

4 4 HSE Support ‘The Work at Height Regulations 2005 require that strength and stability calculations are carried out for scaffolds unless they conform to a recognised standard… …HSE is pleased to acknowledge that TG20 has been written by NASC to provide such a standard…’ Heather Bryant, Chief Inspector of Construction Health and Safety Executive

5 5 UKCG Support ‘We applaud and support the work of the NASC which will no doubt result in safer scaffolding… The UKCG recommend the adoption and standardised use of TG20:13… both within and outside the construction sector.’ Stephen Ratcliffe, Director UK Contractors Group

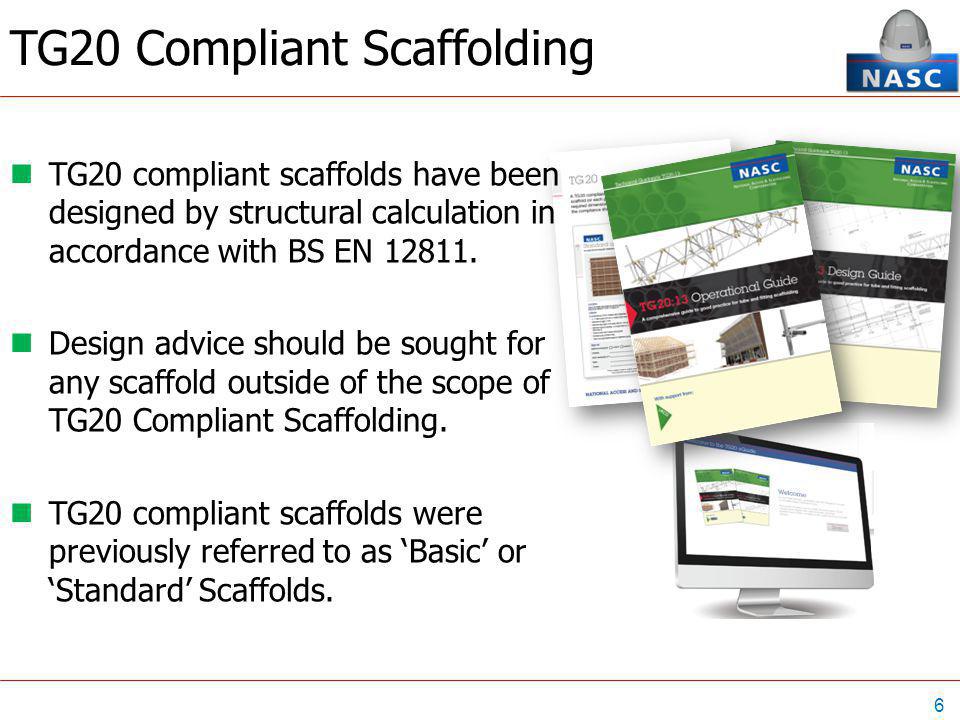

6 6 TG20 Compliant Scaffolding TG20 compliant scaffolds have been designed by structural calculation in accordance with BS EN Design advice should be sought for any scaffold outside of the scope of TG20 Compliant Scaffolding. TG20 compliant scaffolds were previously referred to as ‘Basic’ or ‘Standard’ Scaffolds.

7 7 TG20 Compliance Sheets Demonstrates compliance and that bespoke design is not required. Typical Scaffolds included in TG20:13 Operational Guide (Chapter 03). Wider variations included in the TG20 eGuide. Design advice must be sought for any scaffold outside the scope of a TG20 Compliance Sheet.

8 8 Simplified Wind Classifications Wind exposure affects the maximum height and tie duty, especially when sheeted or netted. A simple wind exposure classification illustrated here is used with the TG20 Compliance Sheets (chapter 3) A more accurate wind analysis is used in the TG20 eGuide, which can result in increased safe heights and reduced tie duties. Further advice is provided for designers in TG20 Design Guide. Wind exposure is classified as ‘moderate’, ‘high’ or ‘extreme’ Other factors to be considered are ‘site topography’, ‘seasonal variations’ and ‘wind shielding in cities’

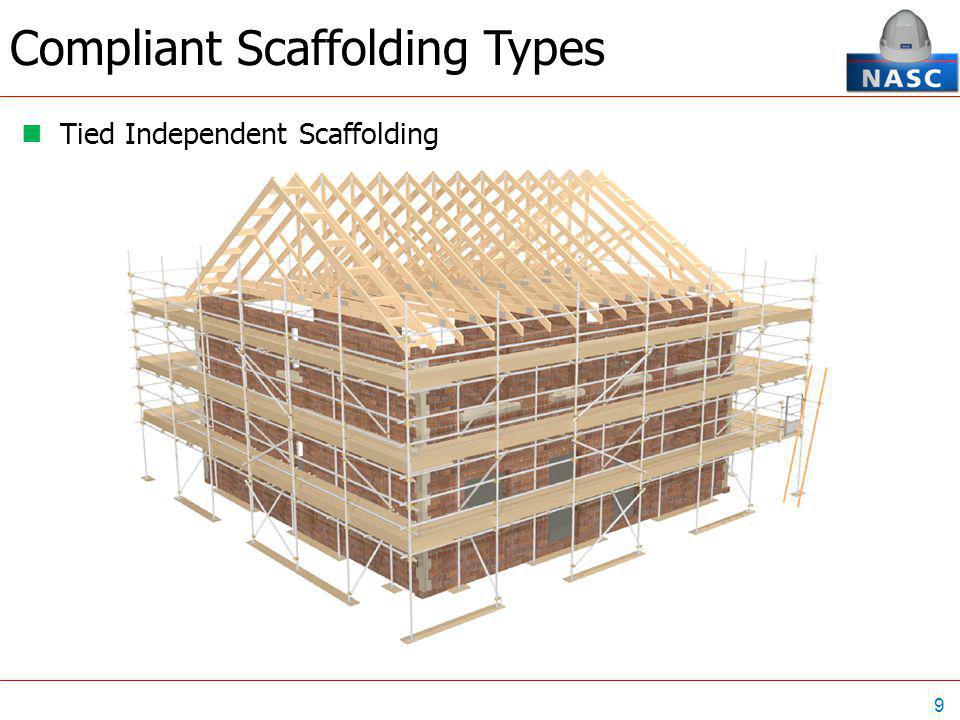

9 9 Compliant Scaffolding Types Tied Independent Scaffolding

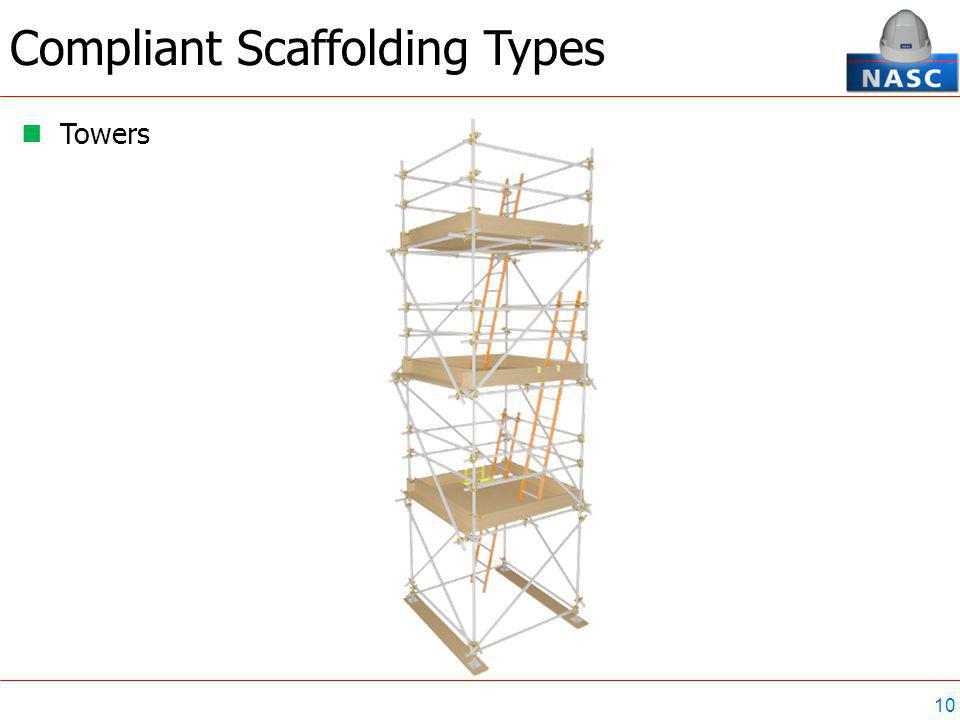

10 10 Compliant Scaffolding Types Towers

11 11 Interior Access Birdcage Scaffolding Compliant Scaffolding Types

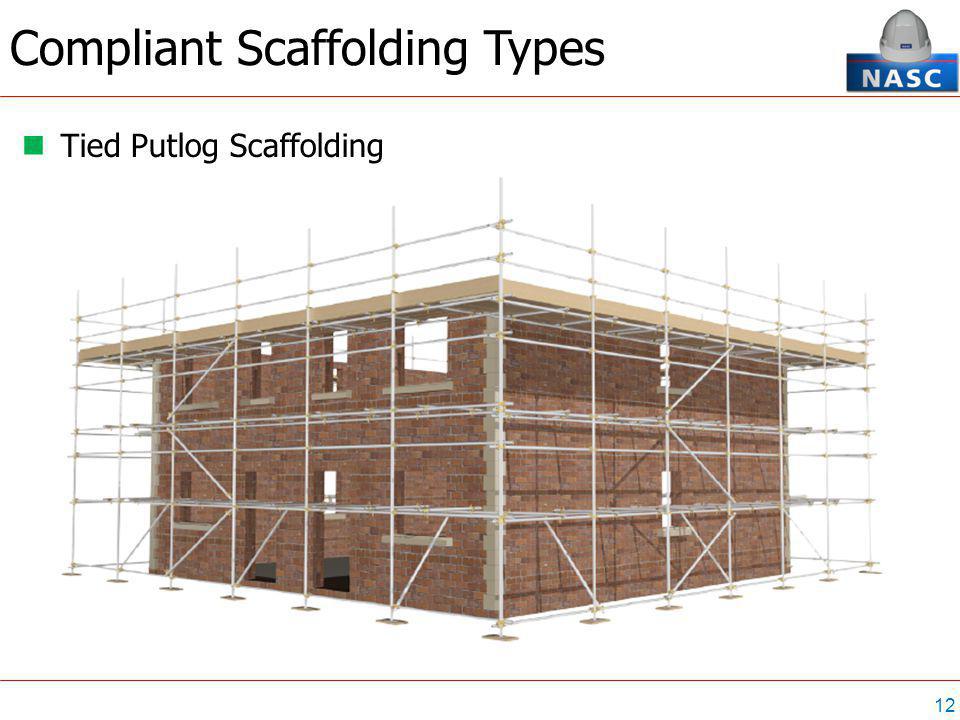

12 12 Tied Putlog Scaffolding Compliant Scaffolding Types

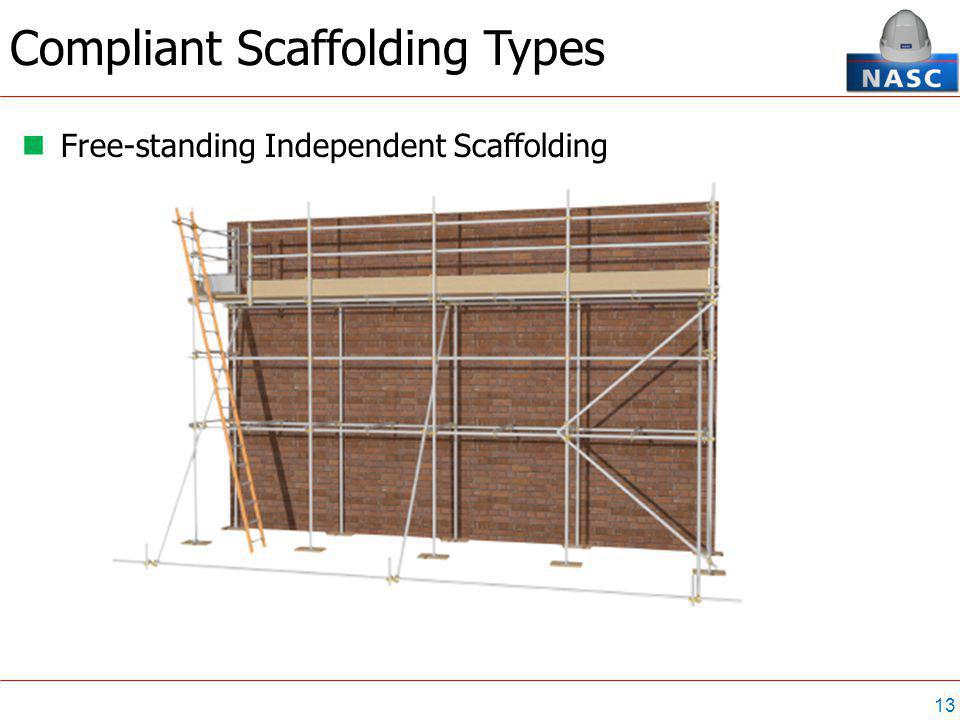

13 13 Free-standing Independent Scaffolding Compliant Scaffolding Types

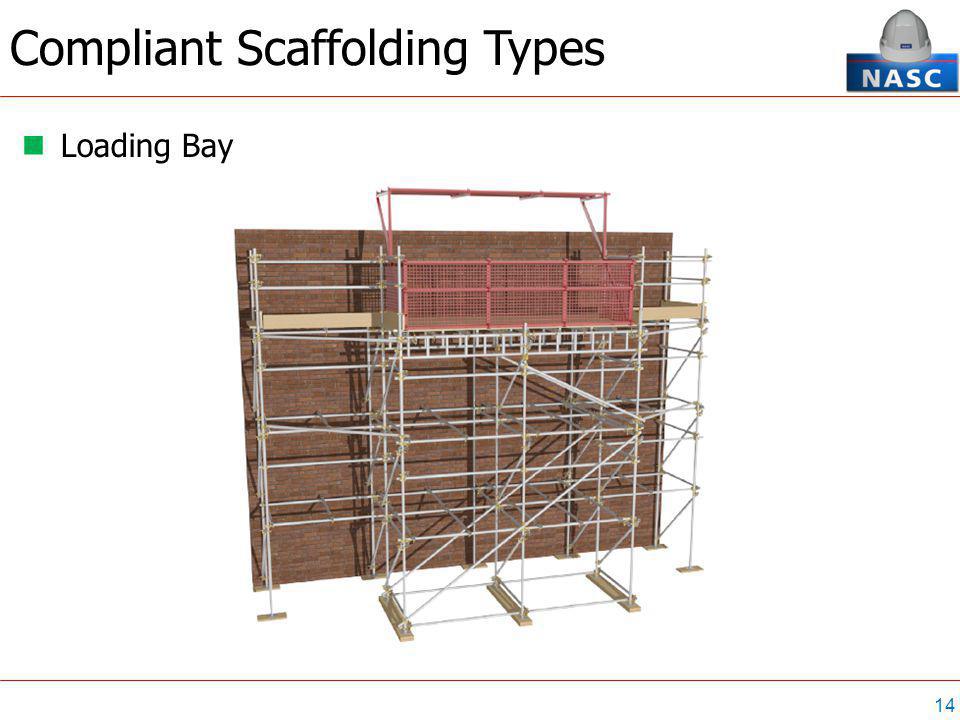

14 14 Loading Bay Compliant Scaffolding Types

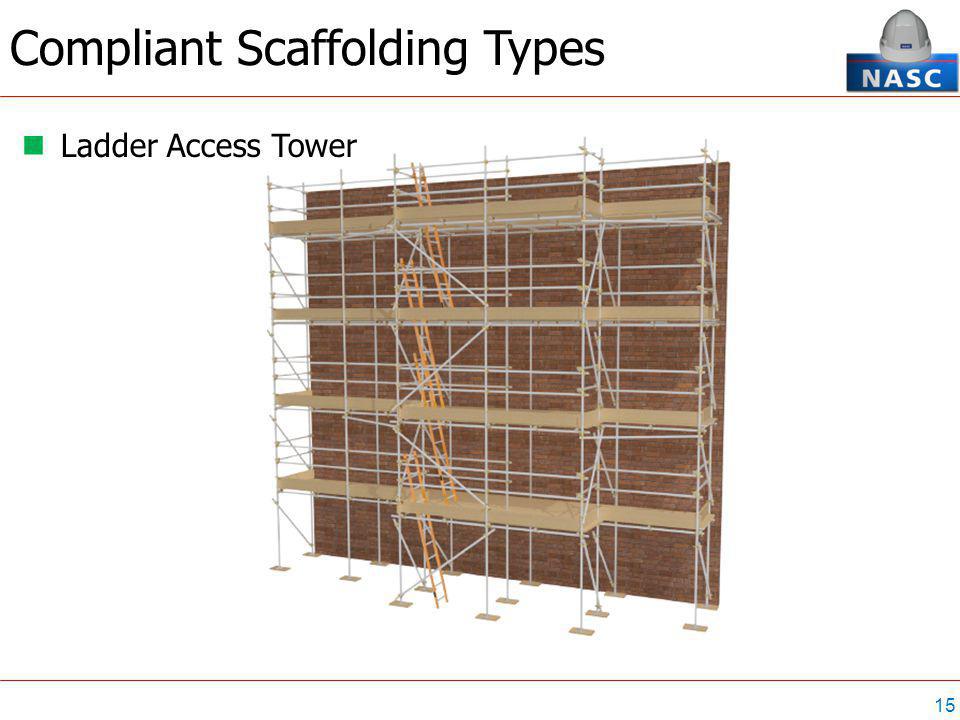

15 15 Ladder Access Tower Compliant Scaffolding Types

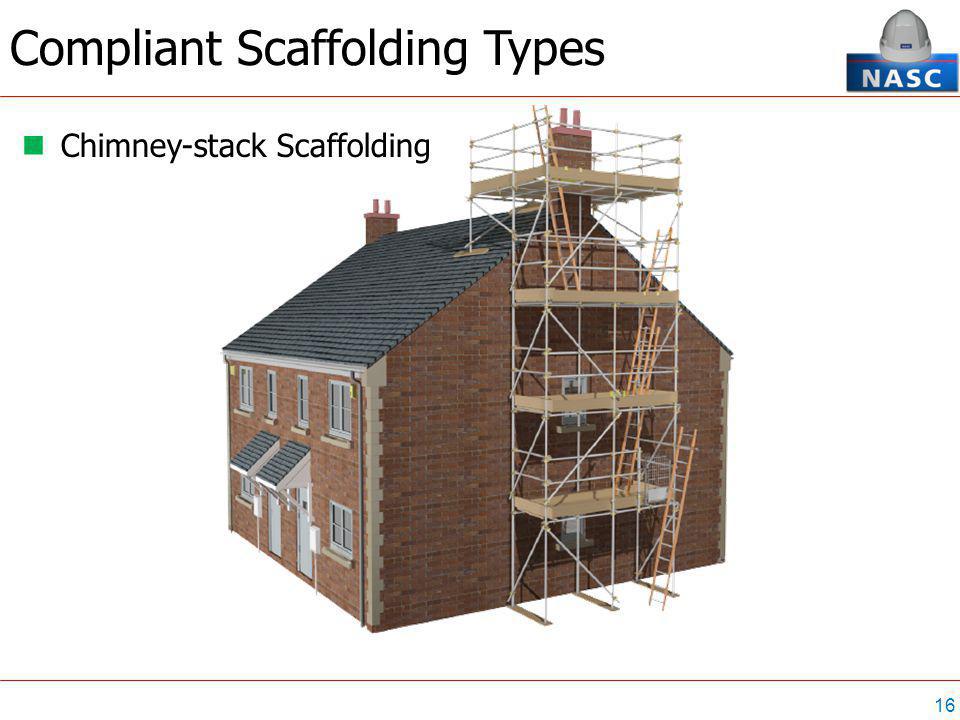

16 16 Chimney-stack Scaffolding Compliant Scaffolding Types

17 17 Compliant Scaffolding Features

18 18 Compliant Scaffolding Features Bridging with Beams

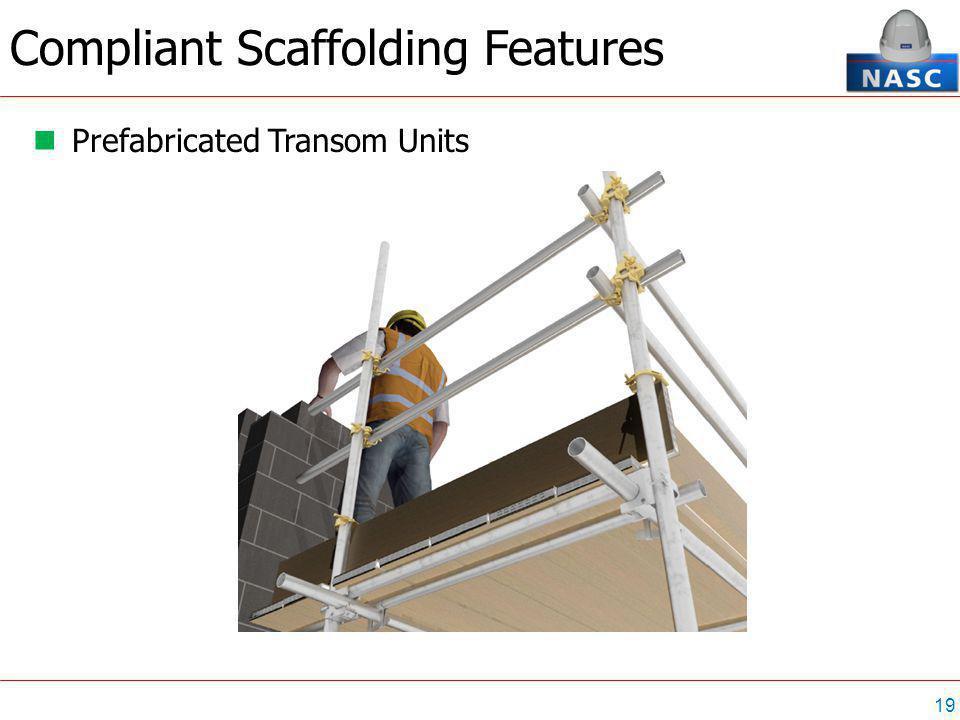

19 19 Compliant Scaffolding Features Prefabricated Transom Units

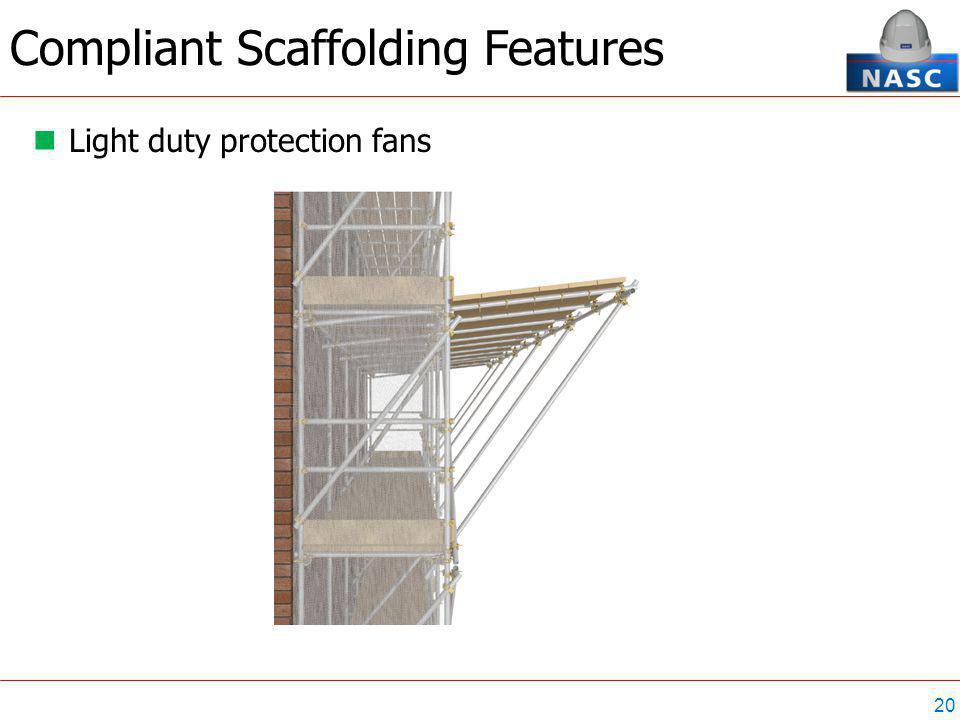

20 20 Compliant Scaffolding Features Light duty protection fans

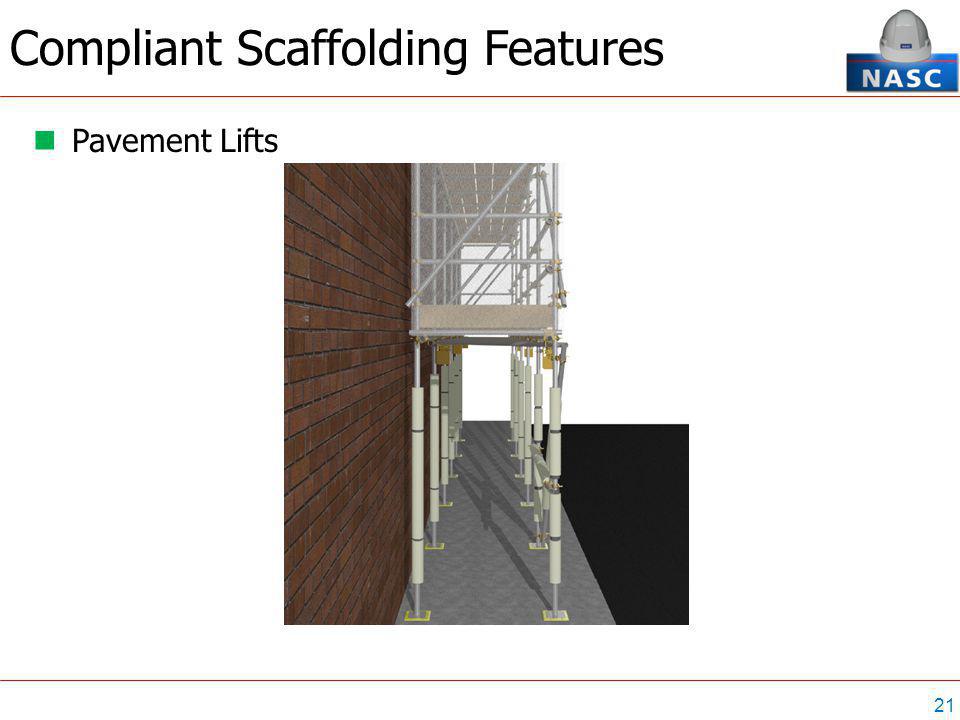

21 21 Compliant Scaffolding Features Pavement Lifts

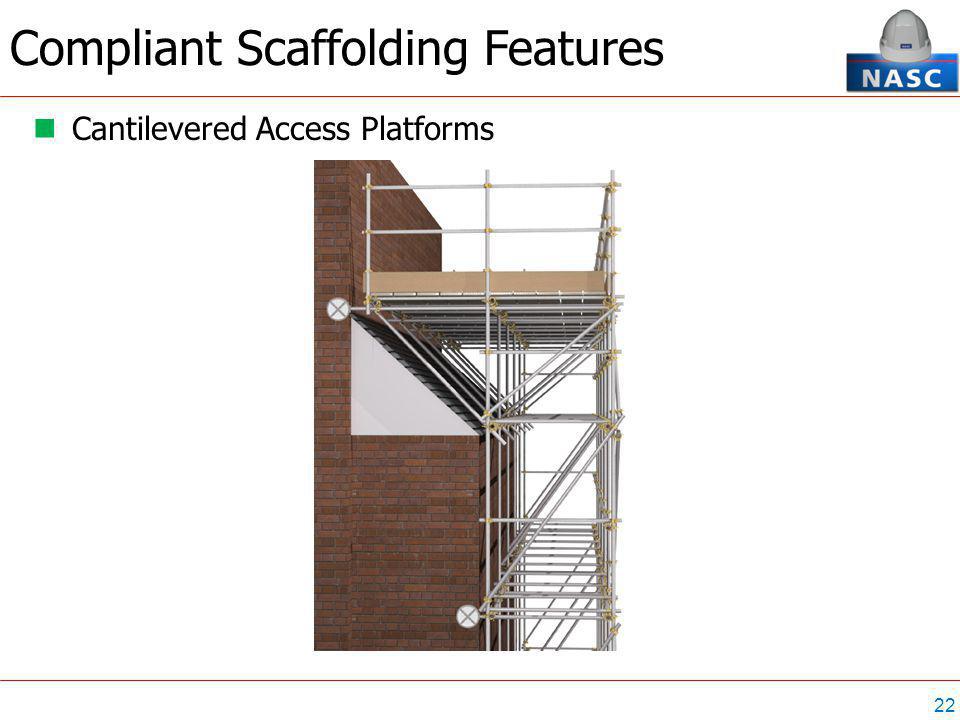

22 22 Compliant Scaffolding Features Cantilevered Access Platforms

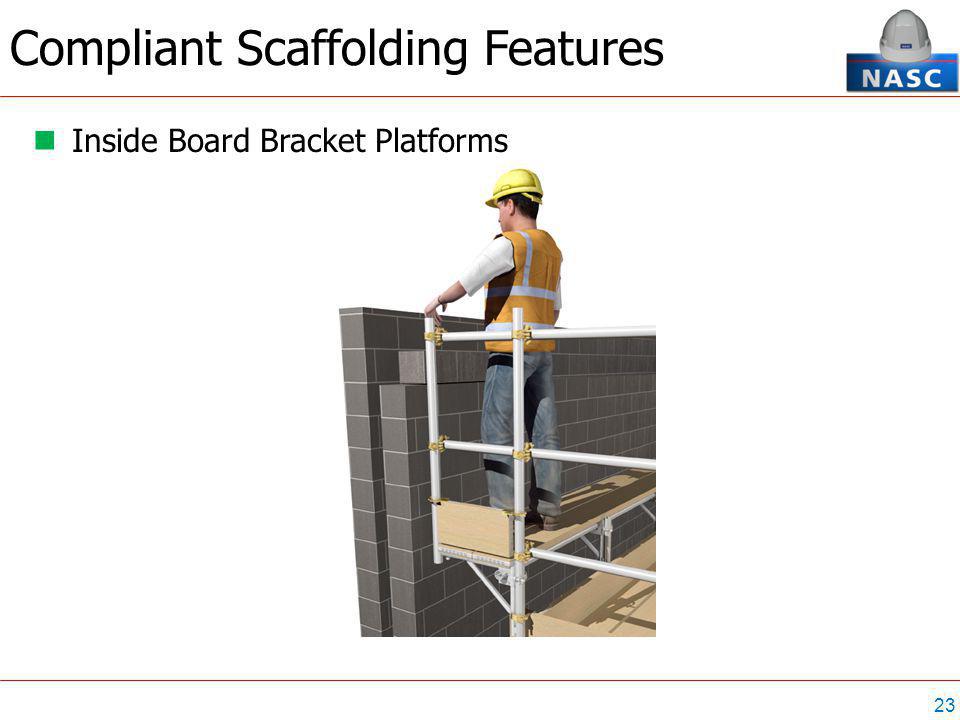

23 23 Compliant Scaffolding Features Inside Board Bracket Platforms

24 24 Tube TG20 Compliant Scaffolds only permits the following types of tube to be used:  BS EN 39 type 4 (4mm) galvanised steel tubes or equivalent  High-tensile galvanised steel tubes with a diameter of 48.3mm, thickness of 3.2mm, in accordance with BS EN The following types may not be used without design:  BS EN 39 type 3 steel tubes  Aluminium tubes  Other dimension, material or grade

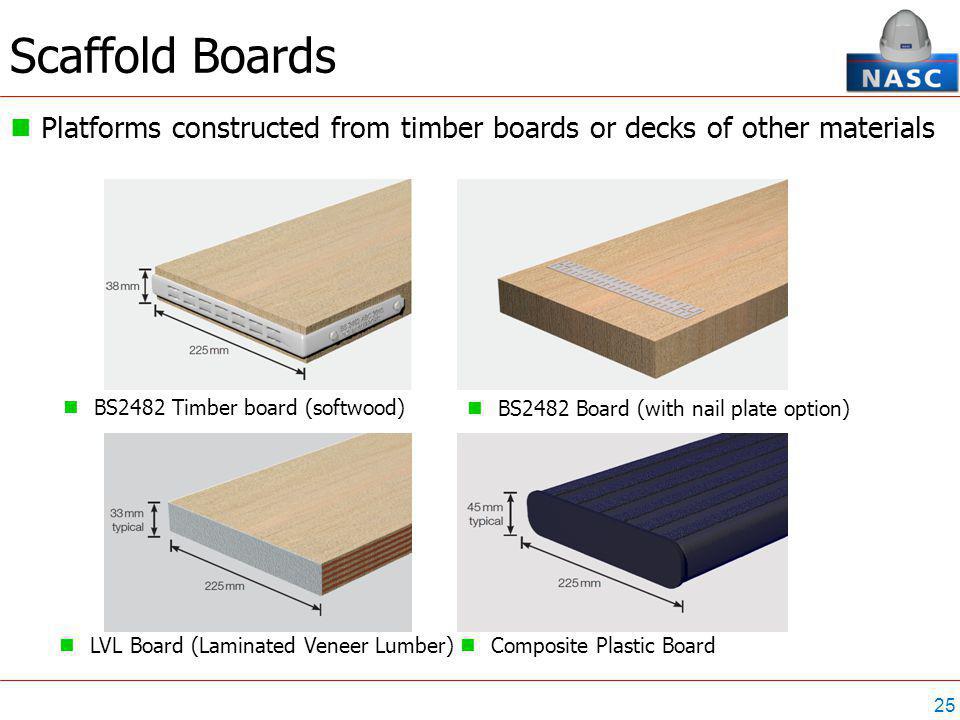

25 25 Scaffold Boards Platforms constructed from timber boards or decks of other materials BS2482 Timber board (softwood) BS2482 Board (with nail plate option) LVL Board (Laminated Veneer Lumber) Composite Plastic Board

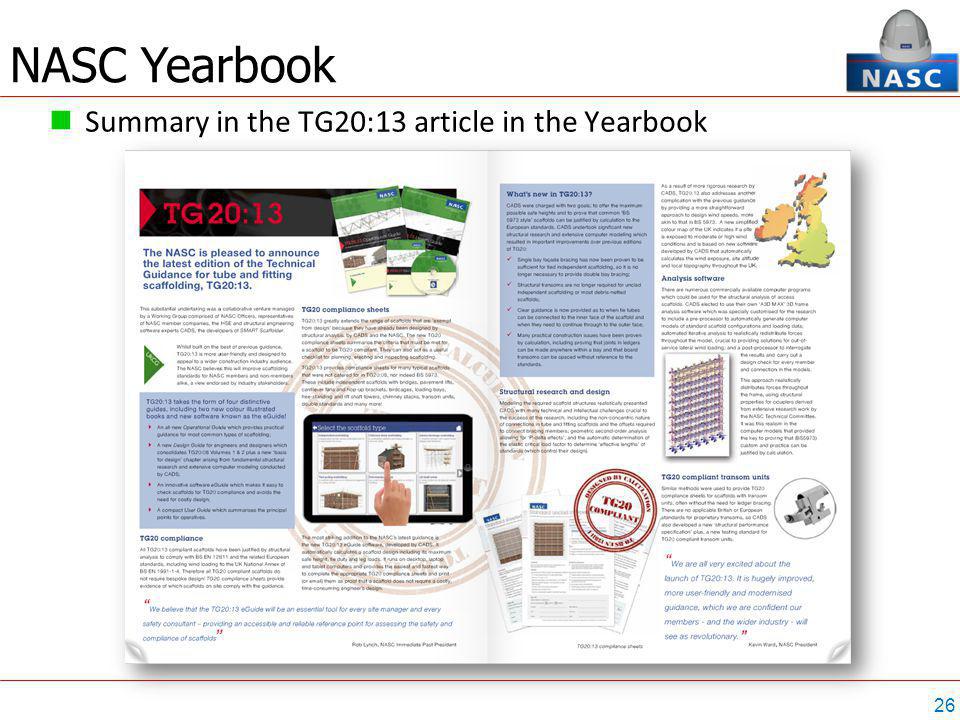

26 26 Summary in the TG20:13 article in the Yearbook NASC Yearbook

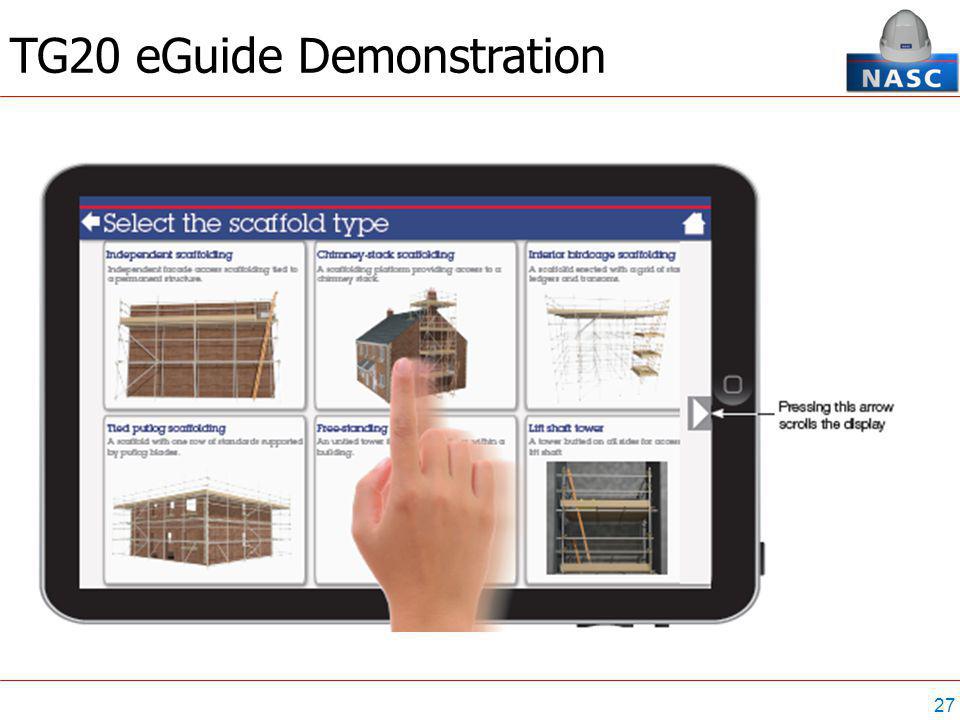

27 27 TG20 eGuide Demonstration

28 28
