Extending SharePoint Online met Windows 8 apps. Voorstellen.

Similar presentations


Presentation on theme: "Extending SharePoint Online met Windows 8 apps. Voorstellen."— Presentation transcript:

1 Extending SharePoint Online met Windows 8 apps

2 Voorstellen

3 OnderwijsZorgGoede doelen

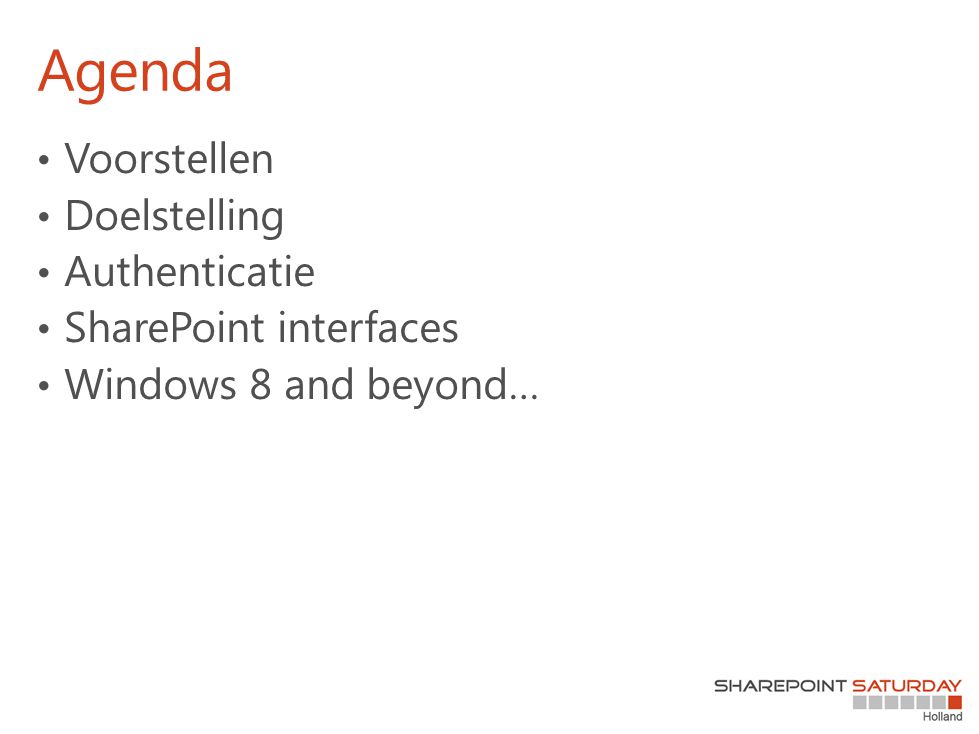

4 Agenda

5 Doelstelling

6

7 Demo

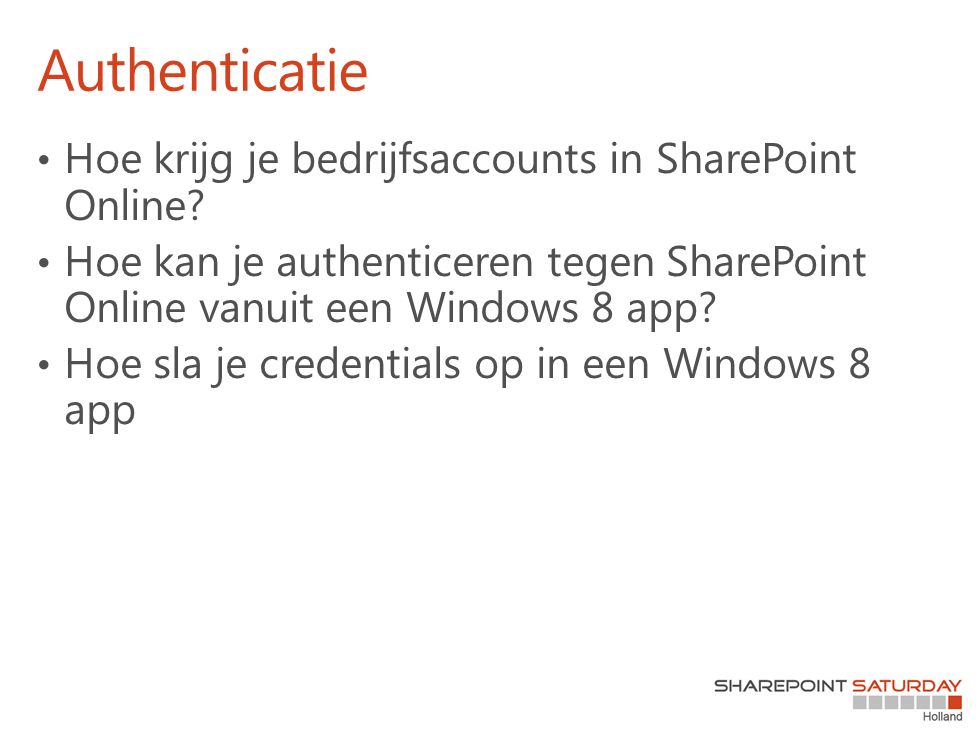

8 Authenticatie

9

10 AD accounts in SharePoint Online

11

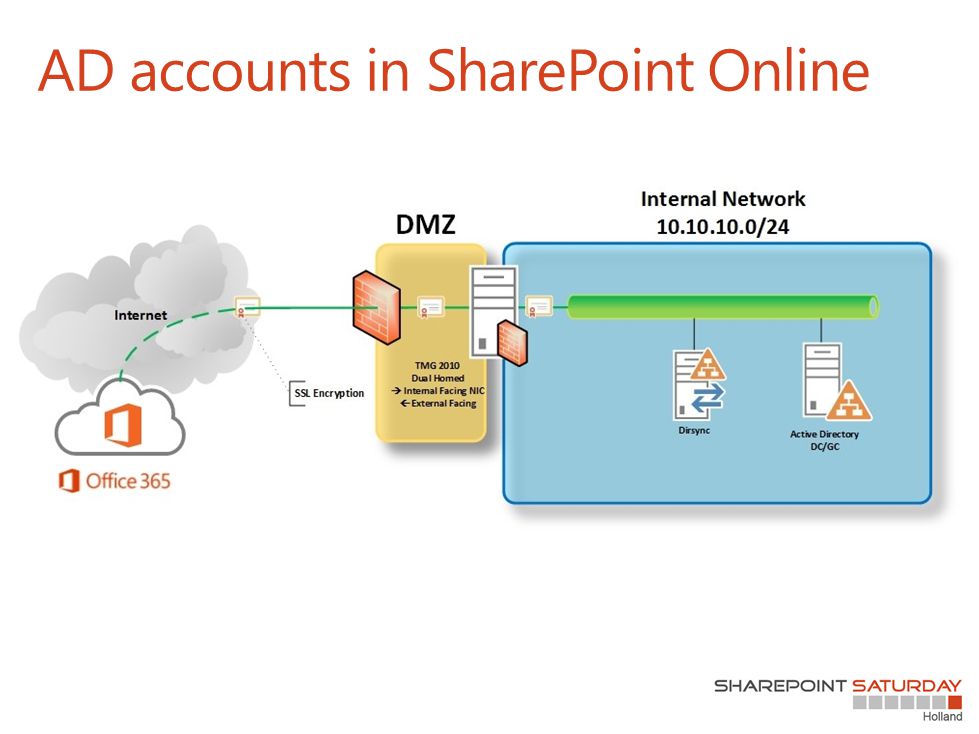

12

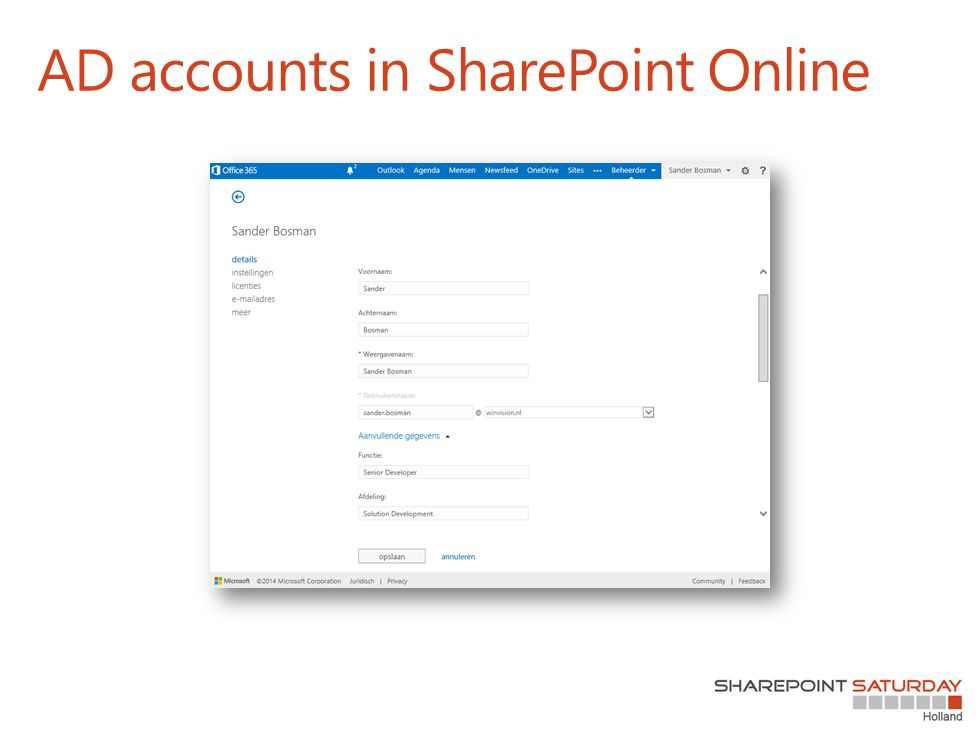

13

14 Authenticatie

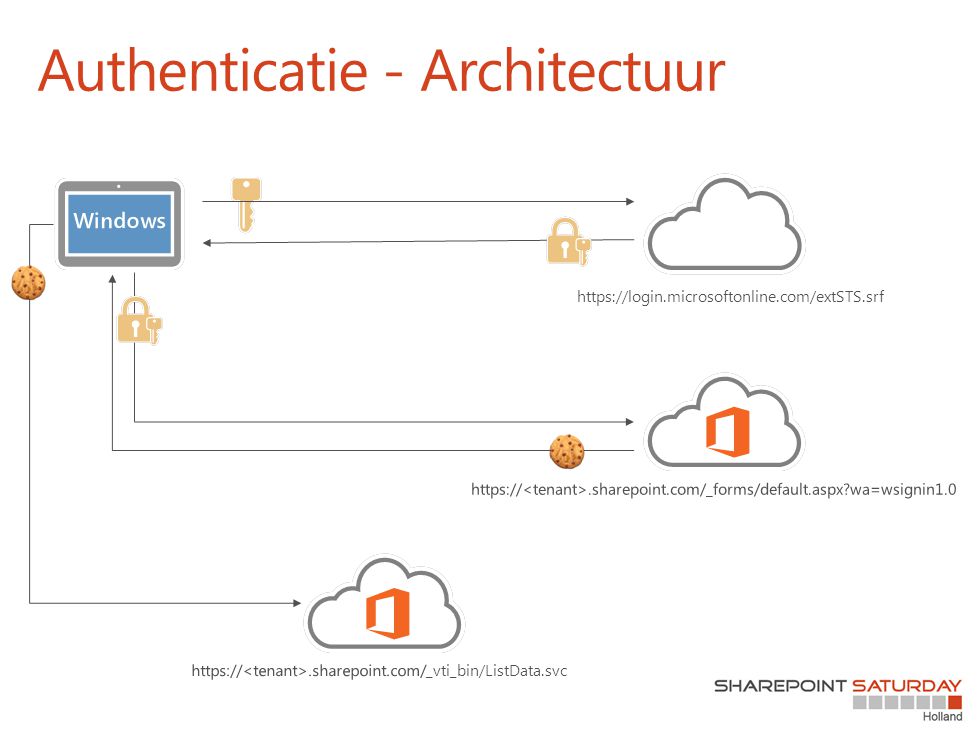

15 Authenticatie - Architectuur https://login.microsoftonline.com/extSTS.srf

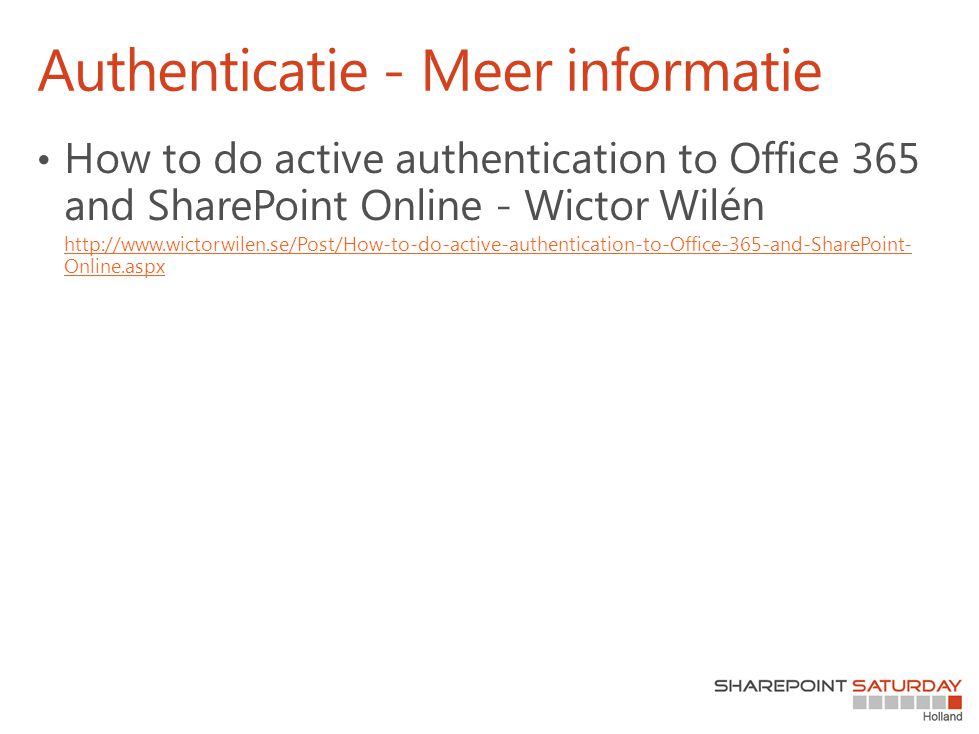

16 Authenticatie - Meer informatie

17

18 Demo

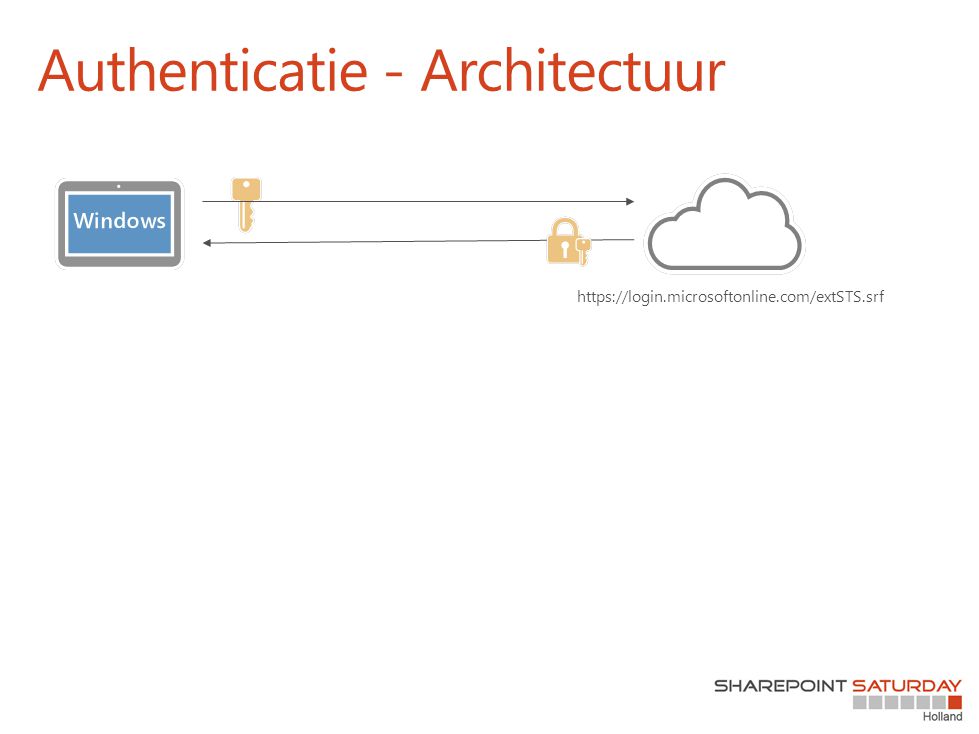

19 Authenticatie - Architectuur https://login.microsoftonline.com/extSTS.srf

20 Authenticatie – Token Request

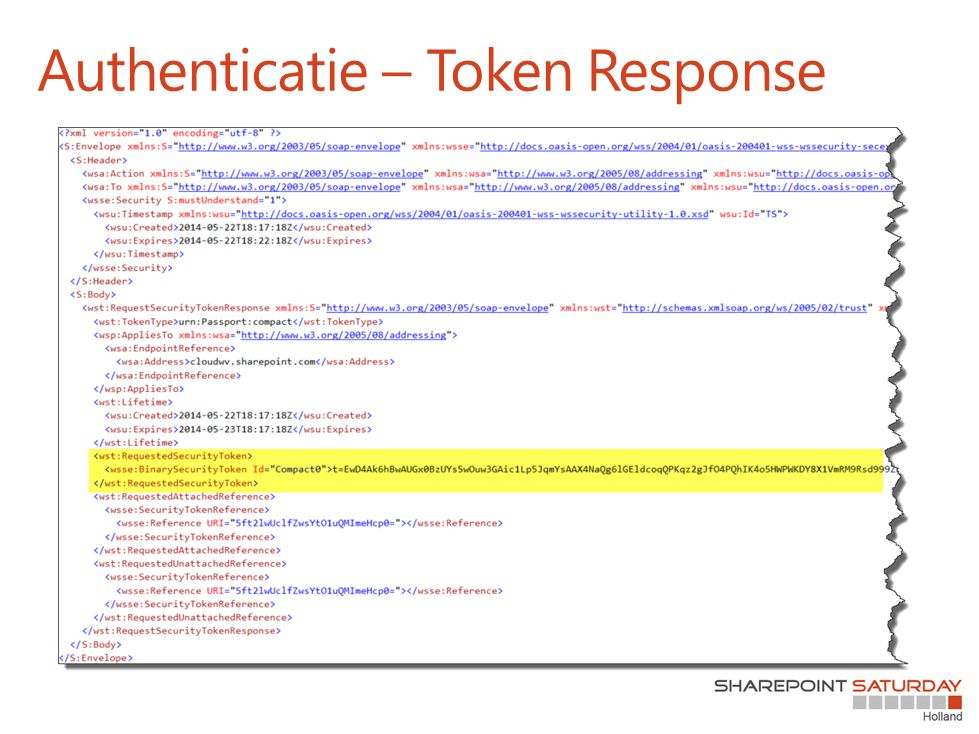

21 Authenticatie – Token Response

22 Authenticatie - Architectuur https://login.microsoftonline.com/extSTS.srf

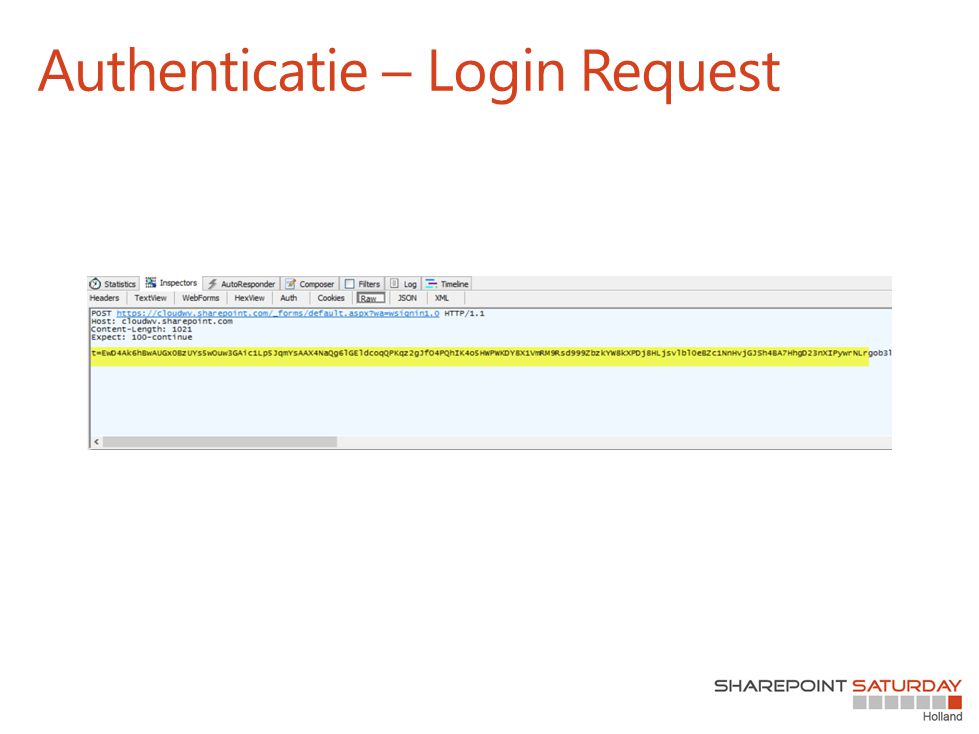

23 Authenticatie – Login Request

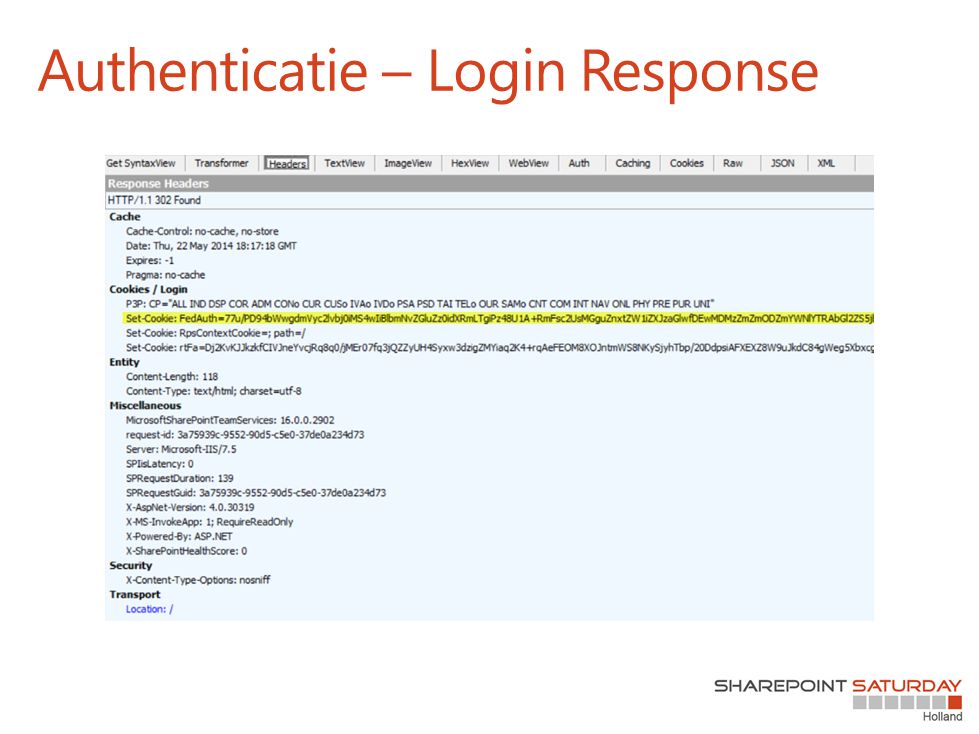

24 Authenticatie – Login Response

25 Authenticatie - Architectuur https://login.microsoftonline.com/extSTS.srf

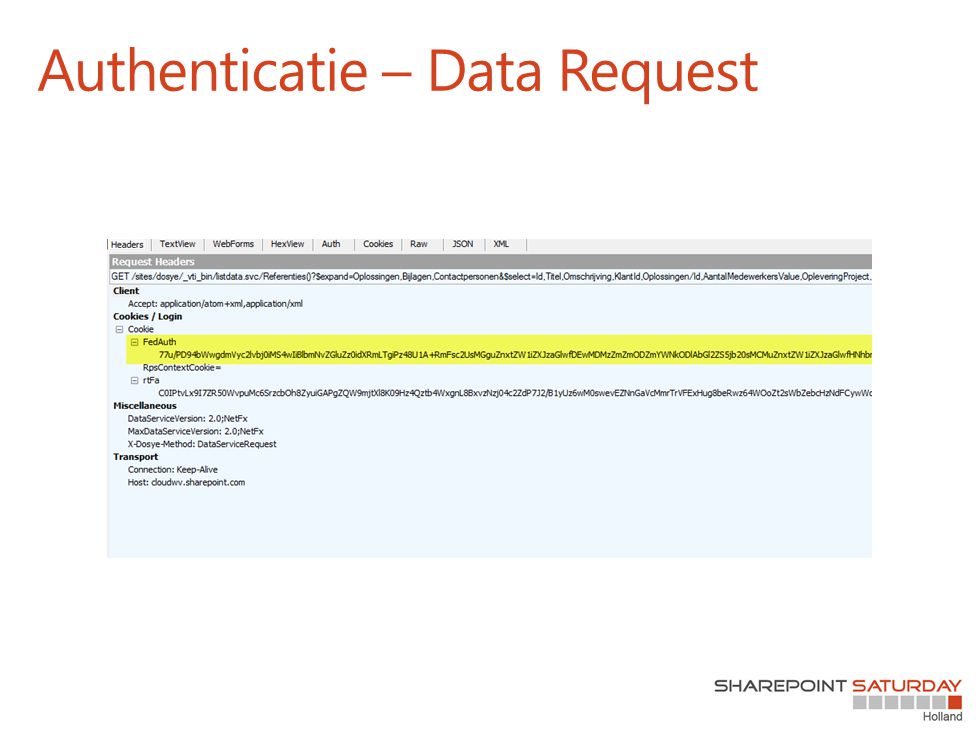

26 Authenticatie – Data Request

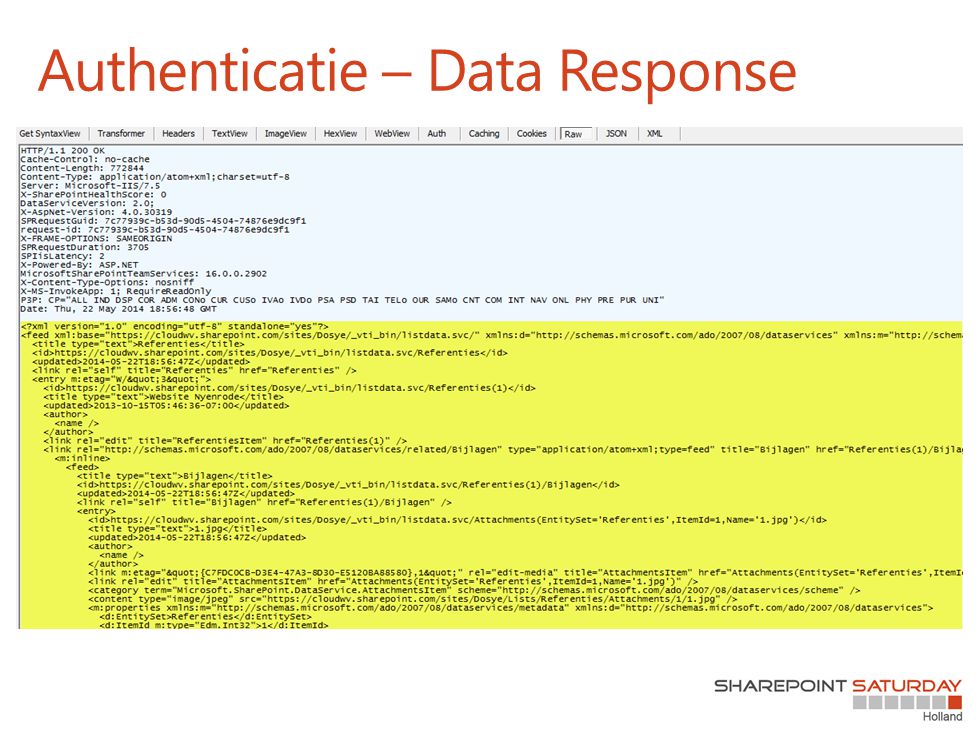

27 Authenticatie – Data Response

28 Credentials opslaan in de app

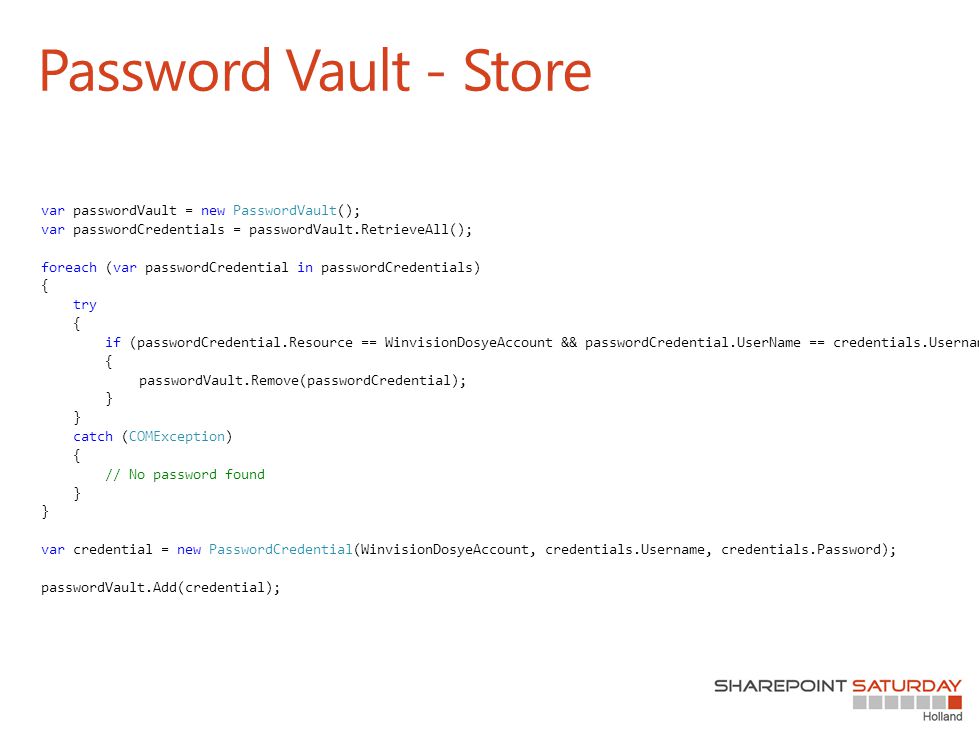

29 Password Vault - Store var passwordVault = new PasswordVault(); var passwordCredentials = passwordVault.RetrieveAll(); foreach (var passwordCredential in passwordCredentials) { try { if (passwordCredential.Resource == WinvisionDosyeAccount && passwordCredential.UserName == credentials.Username) { passwordVault.Remove(passwordCredential); } } catch (COMException) { // No password found } } var credential = new PasswordCredential(WinvisionDosyeAccount, credentials.Username, credentials.Password); passwordVault.Add(credential);

30 Password Vault - Retrieve var passwordVault = new PasswordVault(); var credentials = passwordVault.RetrieveAll(); foreach (var passwordCredential in credentials) { try { if (passwordCredential.Resource != WinvisionDosyeAccount) { continue; } passwordCredential.RetrievePassword(); return new Credentials { Username = passwordCredential.UserName, Password = passwordCredential.Password, }; } catch (COMException) { // No password found } }

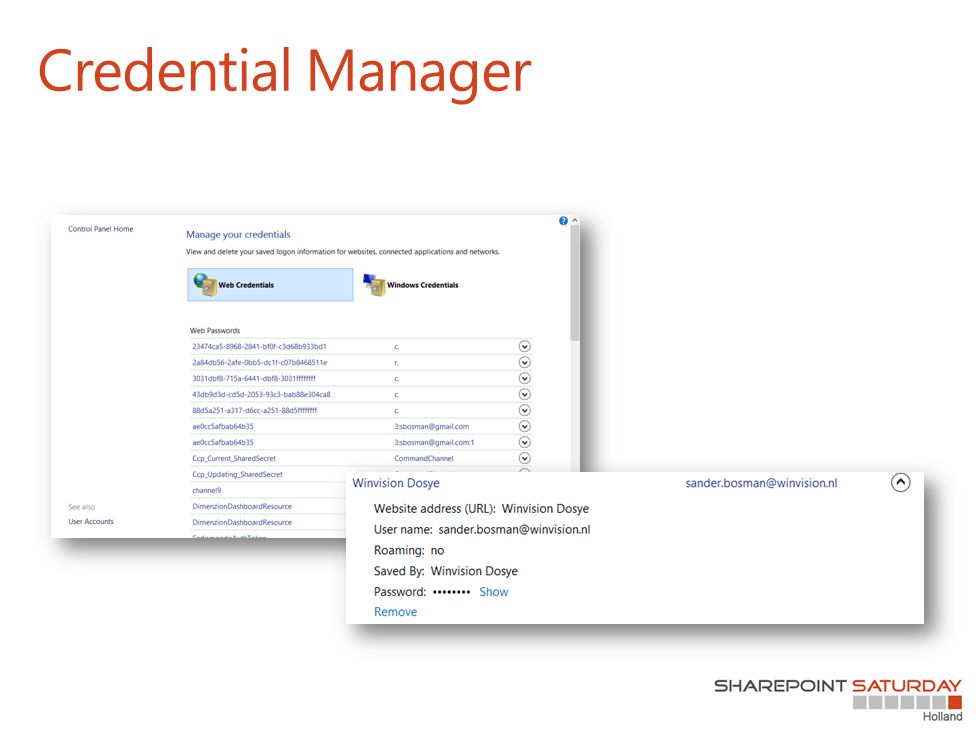

31 Credential Manager

32 SharePoint interfaces

33

34

35 SharePoint lijsten

36

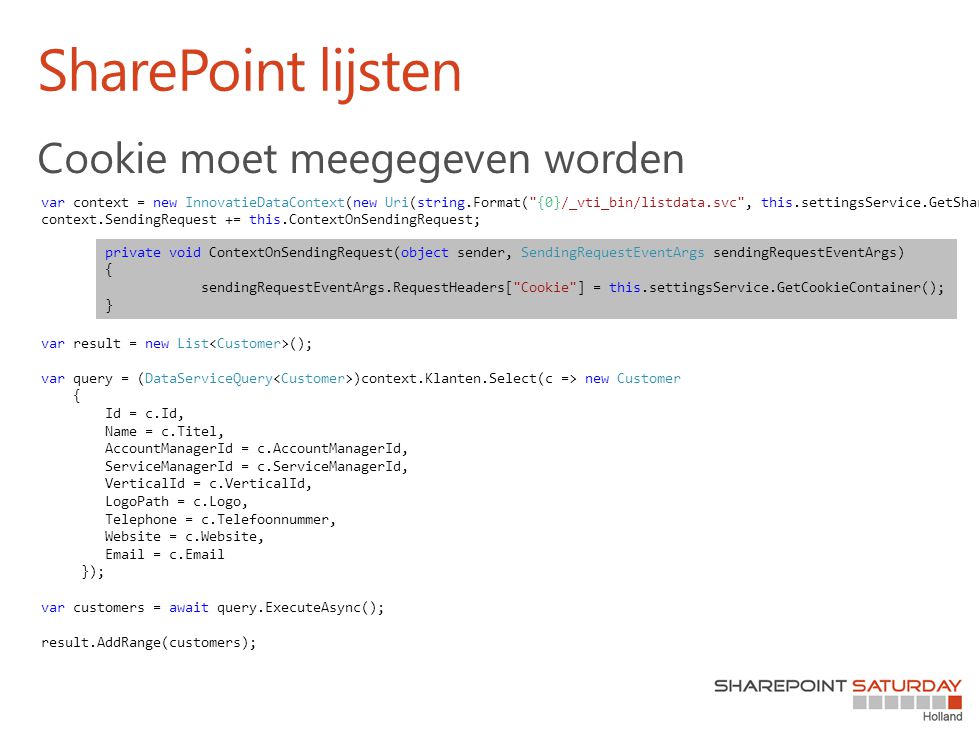

37 var context = new InnovatieDataContext(new Uri(string.Format("{0}/_vti_bin/listdata.svc", this.settingsService.GetSharePointUri()))); context.SendingRequest += this.ContextOnSendingRequest; var result = new List (); var query = (DataServiceQuery )context.Klanten.Select(c => new Customer { Id = c.Id, Name = c.Titel, AccountManagerId = c.AccountManagerId, ServiceManagerId = c.ServiceManagerId, VerticalId = c.VerticalId, LogoPath = c.Logo, Telephone = c.Telefoonnummer, Website = c.Website, = c. }); var customers = await query.ExecuteAsync(); result.AddRange(customers); SharePoint lijsten private void ContextOnSendingRequest(object sender, SendingRequestEventArgs sendingRequestEventArgs) { sendingRequestEventArgs.RequestHeaders["Cookie"] = this.settingsService.GetCookieContainer(); }

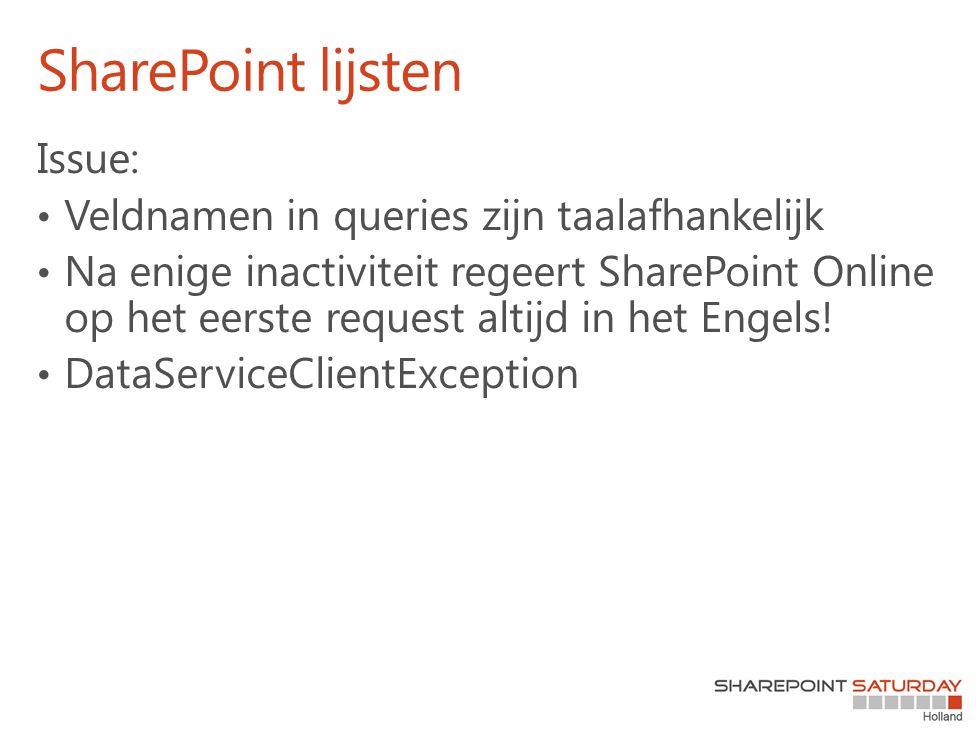

38 SharePoint lijsten

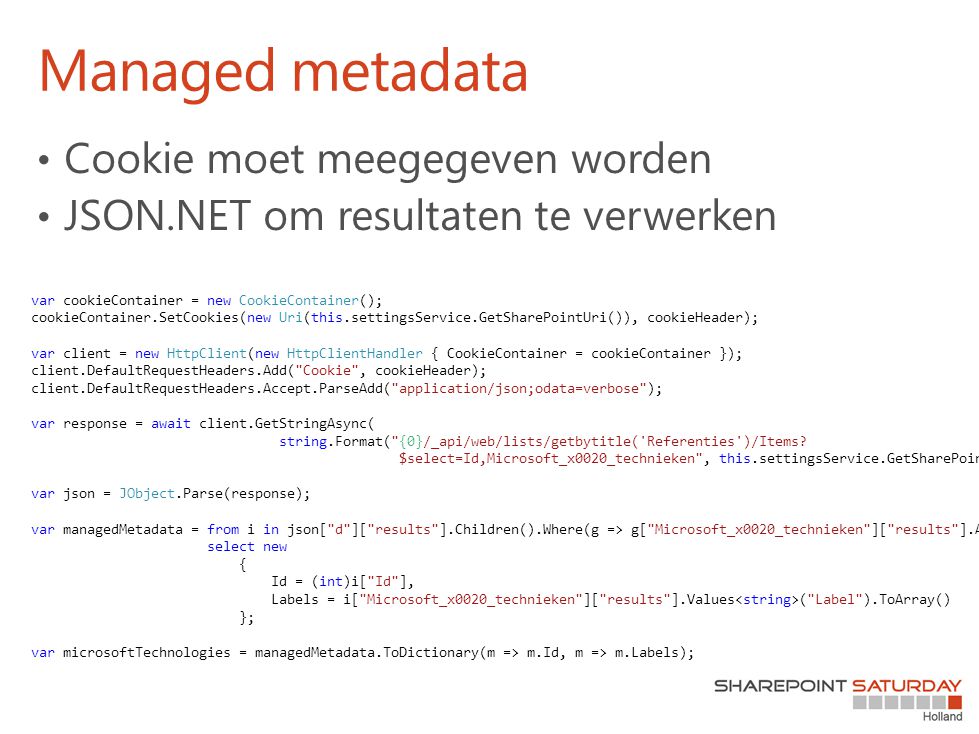

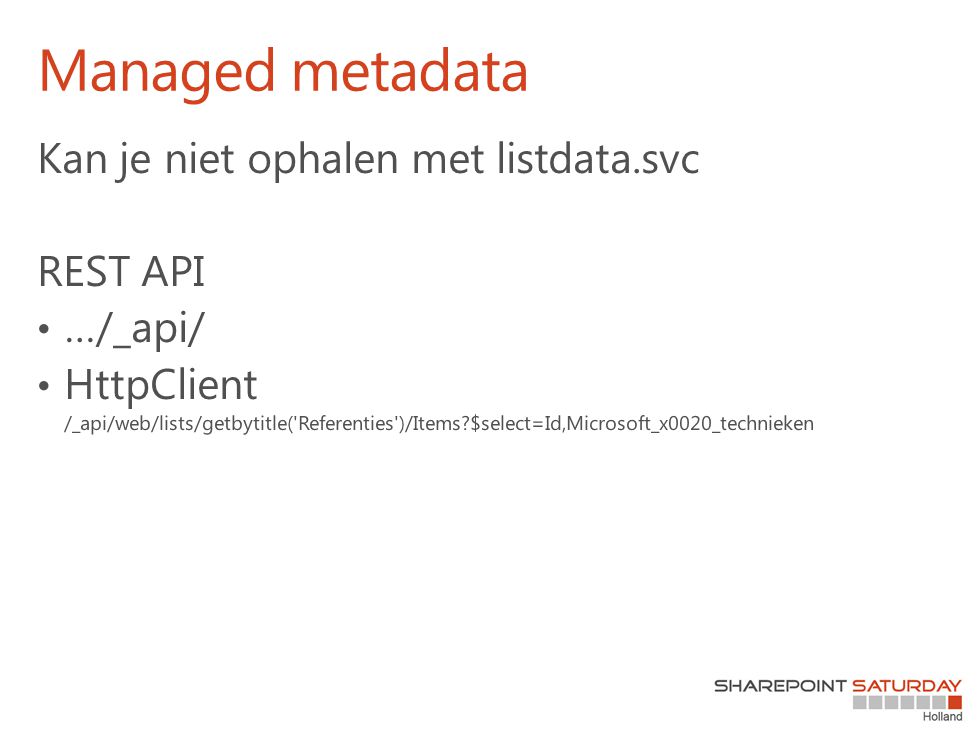

39 Managed metadata

40

41 var cookieContainer = new CookieContainer(); cookieContainer.SetCookies(new Uri(this.settingsService.GetSharePointUri()), cookieHeader); var client = new HttpClient(new HttpClientHandler { CookieContainer = cookieContainer }); client.DefaultRequestHeaders.Add("Cookie", cookieHeader); client.DefaultRequestHeaders.Accept.ParseAdd("application/json;odata=verbose"); var response = await client.GetStringAsync( string.Format("{0}/_api/web/lists/getbytitle('Referenties')/Items? $select=Id,Microsoft_x0020_technieken", this.settingsService.GetSharePointUri())); var json = JObject.Parse(response); var managedMetadata = from i in json["d"]["results"].Children().Where(g => g["Microsoft_x0020_technieken"]["results"].Any()) select new { Id = (int)i["Id"], Labels = i["Microsoft_x0020_technieken"]["results"].Values ("Label").ToArray() }; var microsoftTechnologies = managedMetadata.ToDictionary(m => m.Id, m => m.Labels);

42 Bestanden

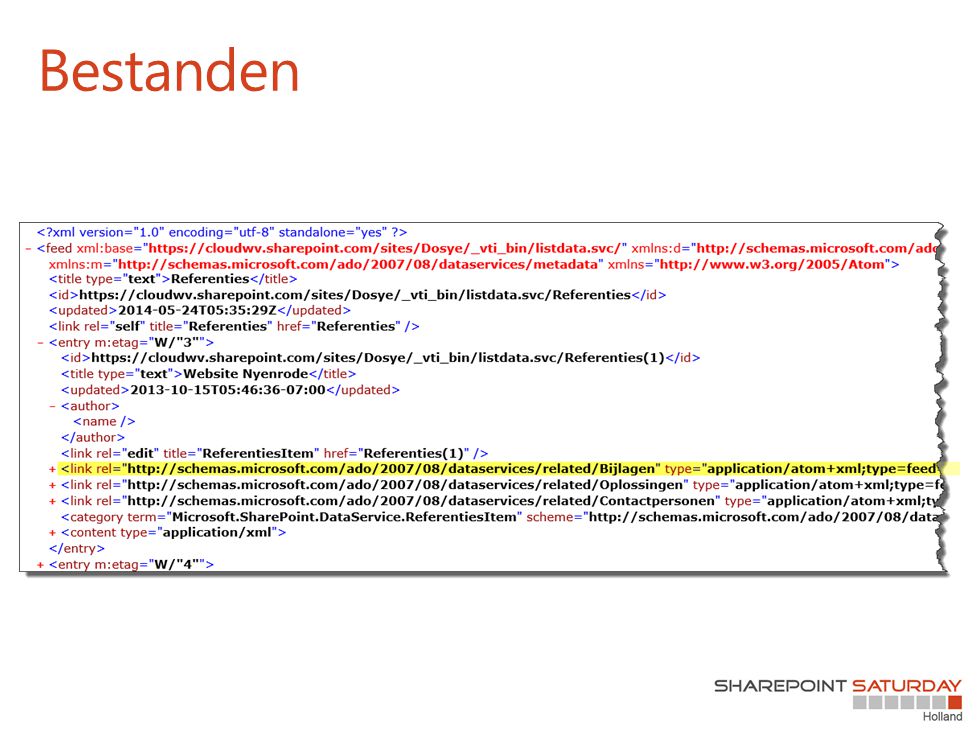

43

44 Attachments = c.Bijlagen.Select(b => new Attachment { Title = b.Name, SharePointPath = string.Format("{0}/Lists/{1}/Attachments/{2}/{3}", this.settingsService.GetSharePointUri(), b.EntitySet, b.ItemId, b.Name) }),

45 Bestanden var cookieContainer = new CookieContainer(); cookieContainer.SetCookies(new Uri(this.settingsService.GetSharePointUri()), cookieHeader); var buffer = new byte[] { } using (var client = new HttpClient(new HttpClientHandler { CookieContainer = cookieContainer })) { buffer = await client.GetByteArrayAsync(uri); } var images = await ApplicationData.Current.LocalFolder.CreateFolderAsync(folder, CreationCollisionOption.OpenIfExists); var file = await images.CreateFileAsync(cacheKey, CreationCollisionOption.ReplaceExisting); await FileIO.WriteBytesAsync(file, buffer);

46 “run-with-cookies”

47 Uitdagingen

48 “run-with-cookies”

49 Windows 8 and beyond

50 Andere devices

51

52 Demo

53 Windows 8.1 app

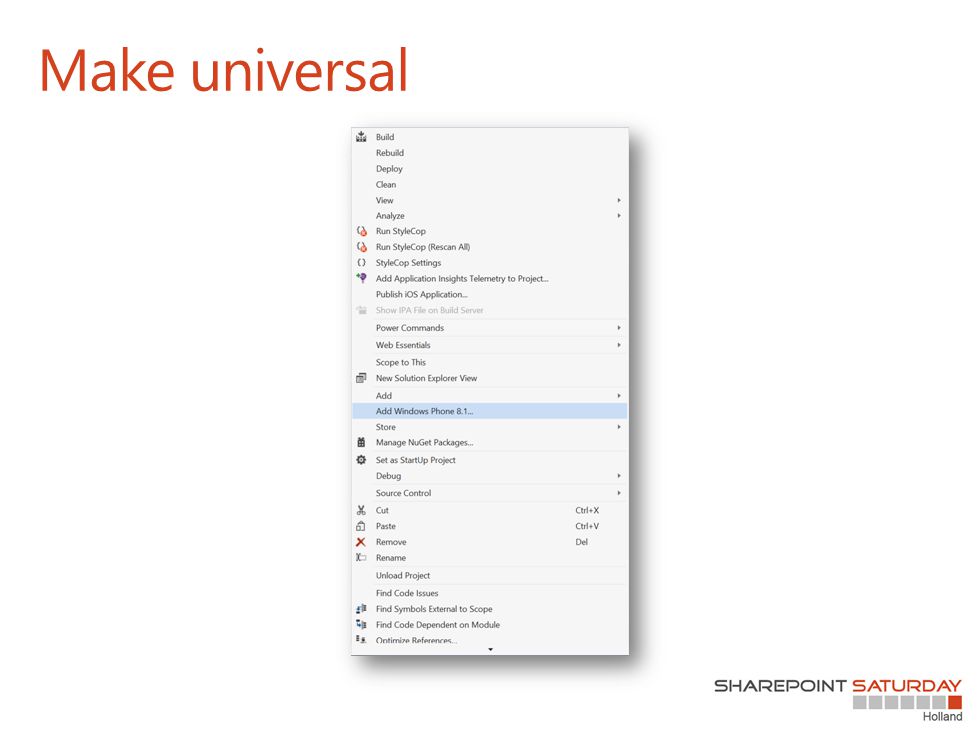

54 Make universal

55 Windows Phone 8.1

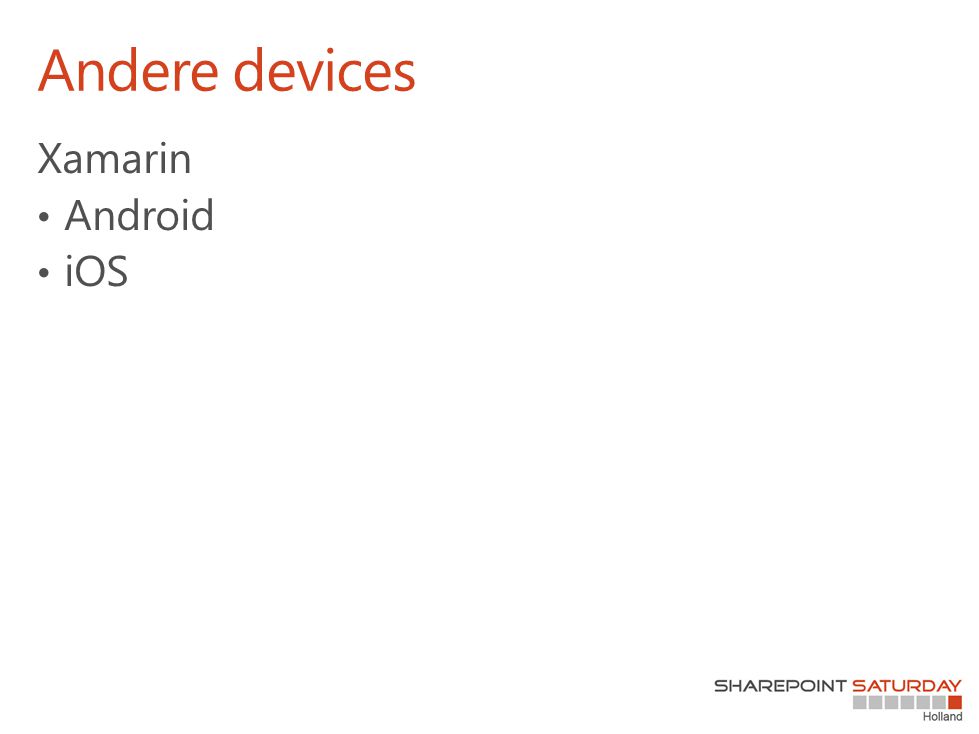

56 Andere devices

57

58 Demo

59 Android

60 Vragen?

61 THANK YOU
