1. New Horizons Session on Skin Diseases Contact Dermatitis Luz Fonacier MD, FACAAI, FAAAAI Section Head of Allergy Program Director, Allergy and Immunology Winthrop University Hospital Professor of Clinical Medicine SUNY at Stony Brook World Allergy Organization December, 2011 Cancun, Mesxico Long Island, New York

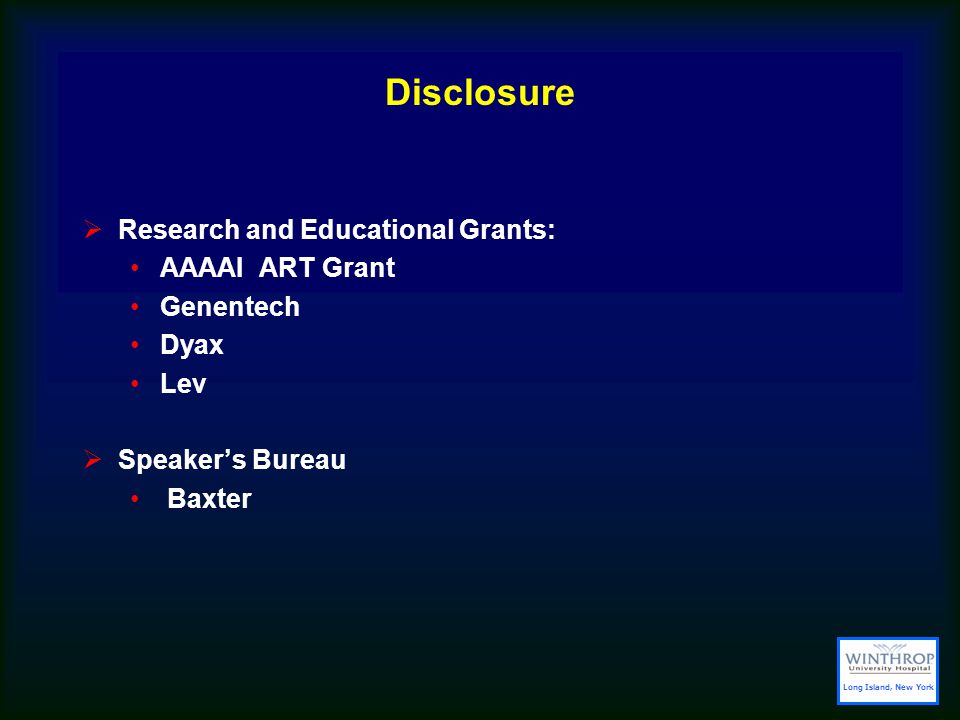

2. Disclosure  Research and Educational Grants: AAAAI ART Grant Genentech Dyax Lev  Speaker’s Bureau Baxter Long Island, New York

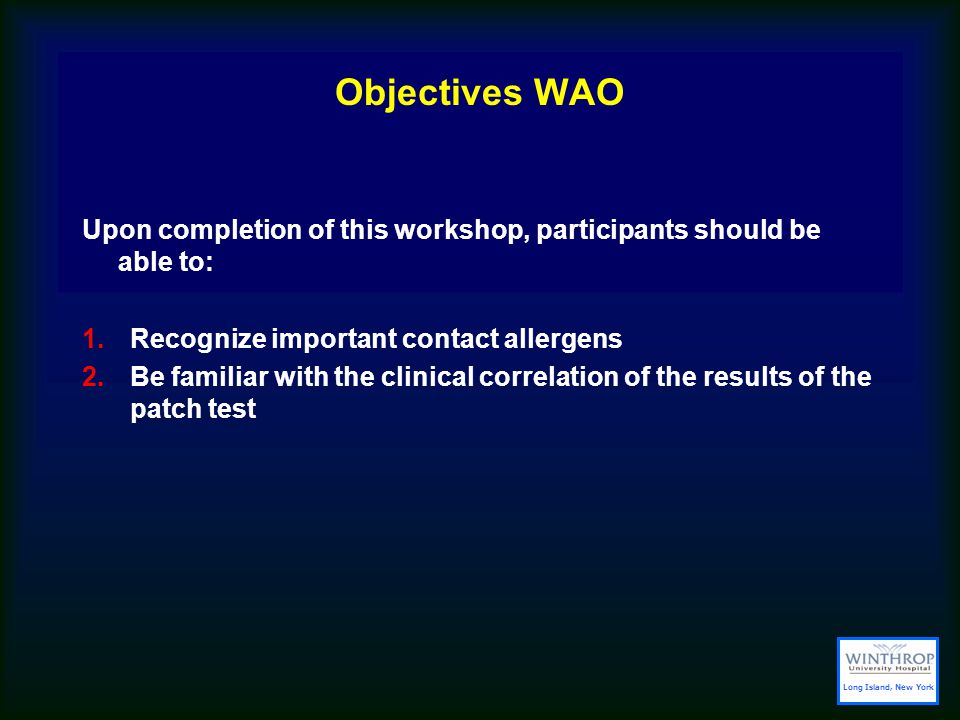

3. Objectives WAO Upon completion of this workshop, participants should be able to: 1.Recognize important contact allergens 2.Be familiar with the clinical correlation of the results of the patch test Long Island, New York

4. Dermatitis Contact Allergens of the Year 2011: Dimethyl Fumarate Bruze M, Zimerson E. Dermatitis 2011,Vol 22,No 1 2010: Neomycin Sasseville D. Dermatitis 2010, Vol. 21, No 1 2009: Mixed Dialkyl Thioureas Anderson B, Dermatitis 2009, Vol. 20, No. 1 2008: Nickel 2008 Komik R. Zug K Dermatitis 2008 Vol. 19, No. 1 2007: Fragrance Storrs F. Dermatitis 2007 Vol.28, No. 1 2006: P-Phenylenediamine DeLeo V. Dermatitis 2006 Vol. 17, No. 2 2005: Corticosteroids Isaksson BM. Dermatitis 2005 Vo. 16, No. 1 2004: Cocoamidopropyl Betaine Fowler J. Dermatitis 2004 Vol 15, No.1 2003: Bacitracin Sood A, Taylor J. Dermatitis 2003 Vol 14, No. 1 2002: Thimerosal Belsito D. Dermatitis 2002 Vol.13, No.1 2001: Gold Fowler J Dermatitis 2001 Vol.12, No.1 2000: Disperse Blue Dyes Storrs F Dermatitis 2000 Vol. 11, No. 1 Long Island, New York

5. Dimethyl Fumarate Contact Allergen of 2011  Furniture-Related Dermatitis Common sites were trunk, limbs, buttocks, face Blistering, lichenoid, contact urticaria  Shoe Related Dermatitis  Textile Related Dermatitis Photo from: Bruze M, Zimerson E. Dermatitis 2011,Vol 22,No 1 Long Island, New York

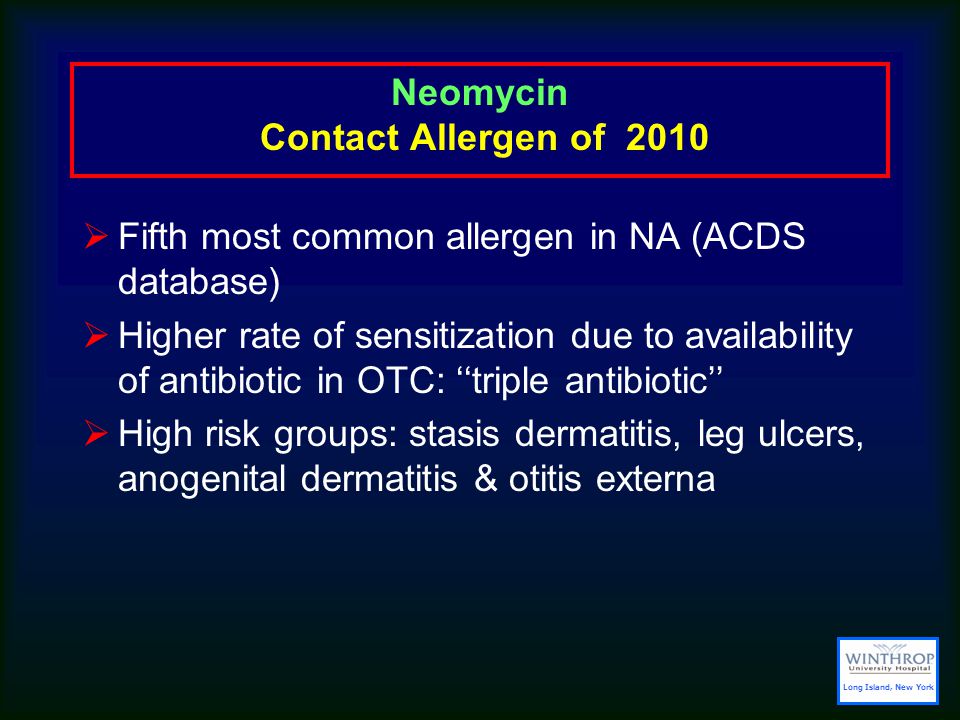

6. Neomycin Contact Allergen of 2010  Fifth most common allergen in NA (ACDS database)  Higher rate of sensitization due to availability of antibiotic in OTC: ‘‘triple antibiotic’’  High risk groups: stasis dermatitis, leg ulcers, anogenital dermatitis & otitis externa Long Island, New York

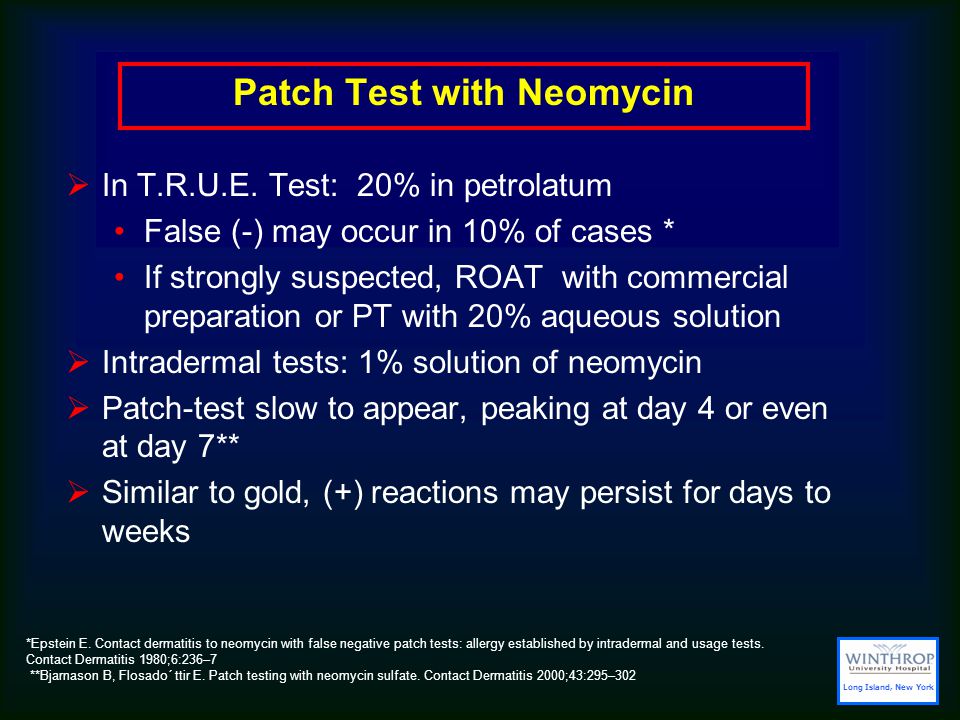

7. Patch Test with Neomycin  In T.R.U.E. Test: 20% in petrolatum False (-) may occur in 10% of cases * If strongly suspected, ROAT with commercial preparation or PT with 20% aqueous solution  Intradermal tests: 1% solution of neomycin  Patch-test slow to appear, peaking at day 4 or even at day 7**  Similar to gold, (+) reactions may persist for days to weeks *Epstein E. Contact dermatitis to neomycin with false negative patch tests: allergy established by intradermal and usage tests. Contact Dermatitis 1980;6:236–7 **Bjarnason B, Flosado´ ttir E. Patch testing with neomycin sulfate. Contact Dermatitis 2000;43:295–302 Long Island, New York

8. Neomycin Cross Reactivity  90% for paromomycin & butirosin  70% for framycetin  60% for tobramycin & kanamycin  50% for gentamicin  4% for streptomycin  Concomitant sensitizations: neomycin and bacitracin Long Island, New York

9. Neomycin in vaccines  Vaccines contain 25  g of neomycin  Reactions are minimal, local or transient  The Committee on Infectious Diseases of the American Academy of Pediatrics no longer considers contact hypersensitivity to neomycin a contraindication to vaccination Kwittken PL, Rosen S, Sweinberg SK. MMR vaccine and neomycin allergy. Am J Dis Child 1993;147:128–9 Long Island, New York

10.  Mixture of diethylthiourea (DETU) & dibutylthiourea (DBTU)  Applications and Uses Adhesive manufacturing Anticorrosive agents Paint & glue removers Pesticides & fungicides Photocopy paper (diazo copy paper) Photography, as an antioxidant Rubber accelerator (especially neoprene) Synthetic resins Textile and dye industry 1.1% + PT reaction rate and of highest relevance rate in NACD Mixed Dialkyl Thioureas Contact Allergen of 2009 Anderson B. Mixed Dialkyl Thioureas. Dermatitis 20:1 pp 3-5. 2009 Long Island, New York

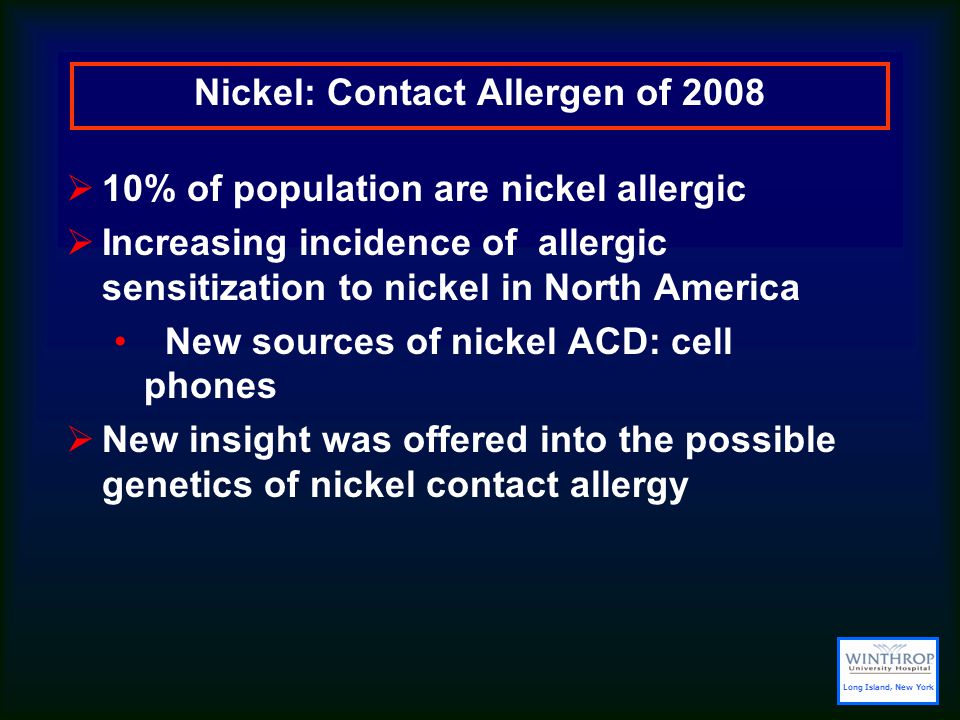

11. Nickel: Contact Allergen of 2008  10% of population are nickel allergic  Increasing incidence of allergic sensitization to nickel in North America New sources of nickel ACD: cell phones  New insight was offered into the possible genetics of nickel contact allergy Long Island, New York

12.  Evidence support the contribution of dietary nickel to dermatitis such as vesicular hand eczema  Meta-analysis of systemic contact dermatitis following oral exposure to nickel estimated that: 1% of nickel allergic patients would have systemic reaction to nickel content of a normal diet 10% would react to 0.55 - 0.89 mg of nickel * Kornik R & Zug K. Dermatitis2008;19(1):3-8 * Jensen CS, Menné T, Johansen JD. Systemic contact dermatitis after oral exposure to nickel: a review with a modified meta- analysis Contact Dermatitis 2006;54:79–86 Dietary Nickel Long Island, New York

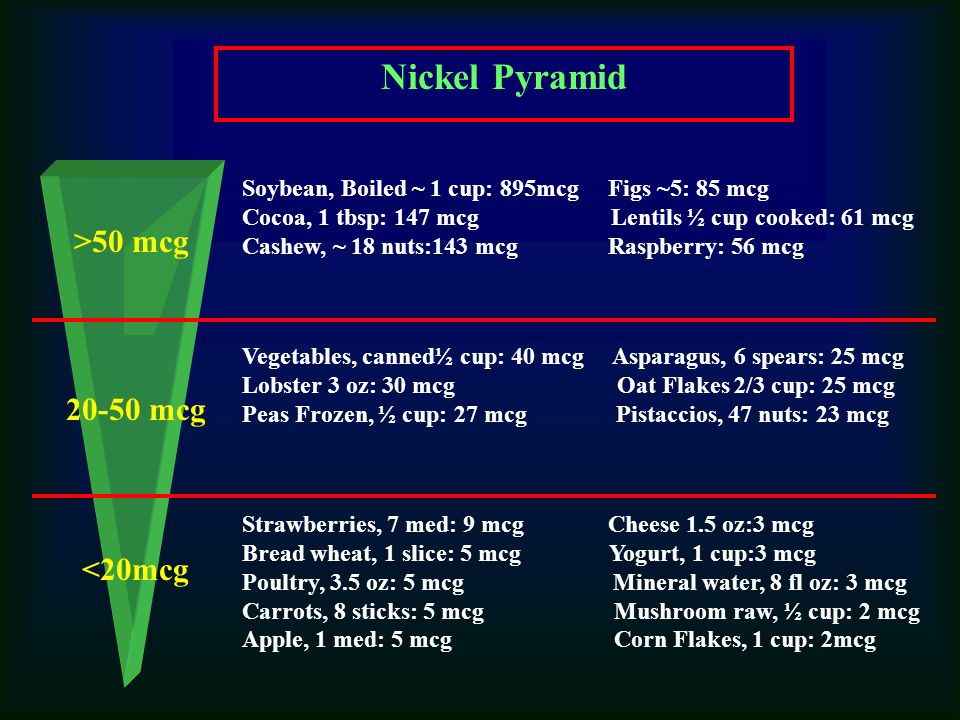

13. Nickel Pyramid Soybean, Boiled ~ 1 cup: 895mcg Figs ~5: 85 mcg Cocoa, 1 tbsp: 147 mcg Lentils ½ cup cooked: 61 mcg Cashew, ~ 18 nuts:143 mcg Raspberry: 56 mcg Vegetables, canned½ cup: 40 mcg Asparagus, 6 spears: 25 mcg Lobster 3 oz: 30 mcg Oat Flakes 2/3 cup: 25 mcg Peas Frozen, ½ cup: 27 mcg Pistaccios, 47 nuts: 23 mcg Strawberries, 7 med: 9 mcg Cheese 1.5 oz:3 mcg Bread wheat, 1 slice: 5 mcg Yogurt, 1 cup:3 mcg Poultry, 3.5 oz: 5 mcg Mineral water, 8 fl oz: 3 mcg Carrots, 8 sticks: 5 mcg Mushroom raw, ½ cup: 2 mcg Apple, 1 med: 5 mcg Corn Flakes, 1 cup: 2mcg >50 mcg 20-50 mcg <20mcg

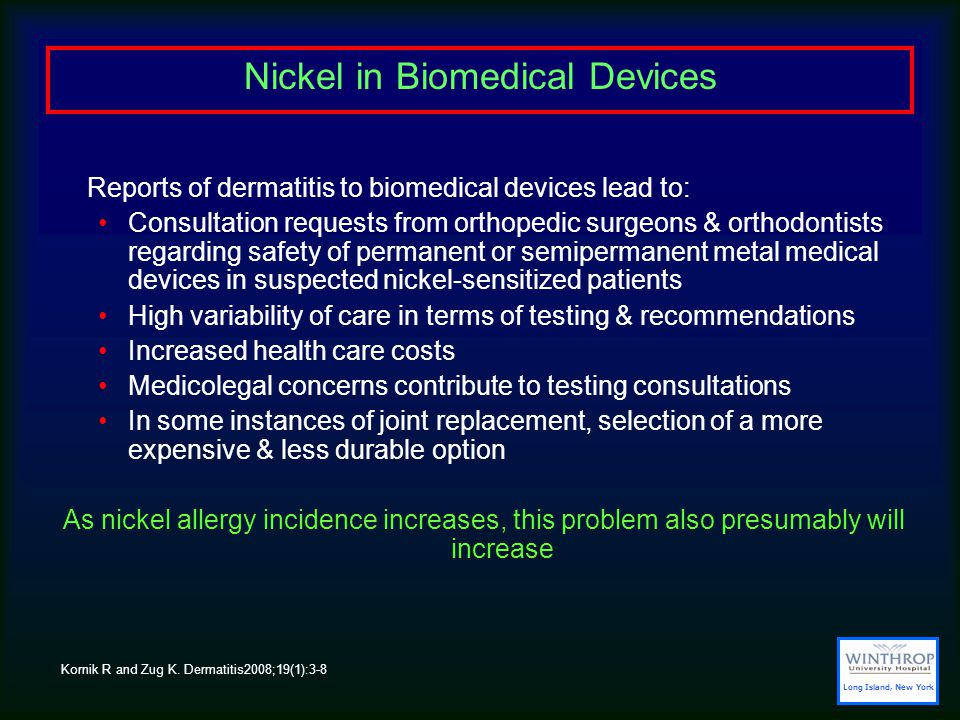

14. Nickel in Biomedical Devices Reports of dermatitis to biomedical devices lead to: Consultation requests from orthopedic surgeons & orthodontists regarding safety of permanent or semipermanent metal medical devices in suspected nickel-sensitized patients High variability of care in terms of testing & recommendations Increased health care costs Medicolegal concerns contribute to testing consultations In some instances of joint replacement, selection of a more expensive & less durable option As nickel allergy incidence increases, this problem also presumably will increase Kornik R and Zug K. Dermatitis2008;19(1):3-8 Long Island, New York

15. METAL IMPLANT “ALLERGY” Often suspected but rarely documented  Nickel: 10% of population are nickel allergic 25% of nickel sensitive patients are also cobalt sensitive  5% of orthopedic implant patients & up to 21% of patients with preoperative metal sensitivity may develop cutaneous allergic reactions upon reexposure to the same metal*  Clinical manifestations Cutaneous – localized – generalized: mostly eczematous (urticaria & vasculitis reported) Implant Failure Basko-Plluska JL, Thyssen, JP & Schalock PC. Cutaneous &Systemic Hypersensitivity Reactions to Metallic Implants. Dermatitis, 2011. 22;2: 65–79 *Niki Y, Matsumoto H, Otani T, et al. Screening for symptomatic metal sensitivity: a prospective study of 92 patients undergoing total knee arthroplasty. Biomaterials 2006;26:1019–26. Long Island, New York

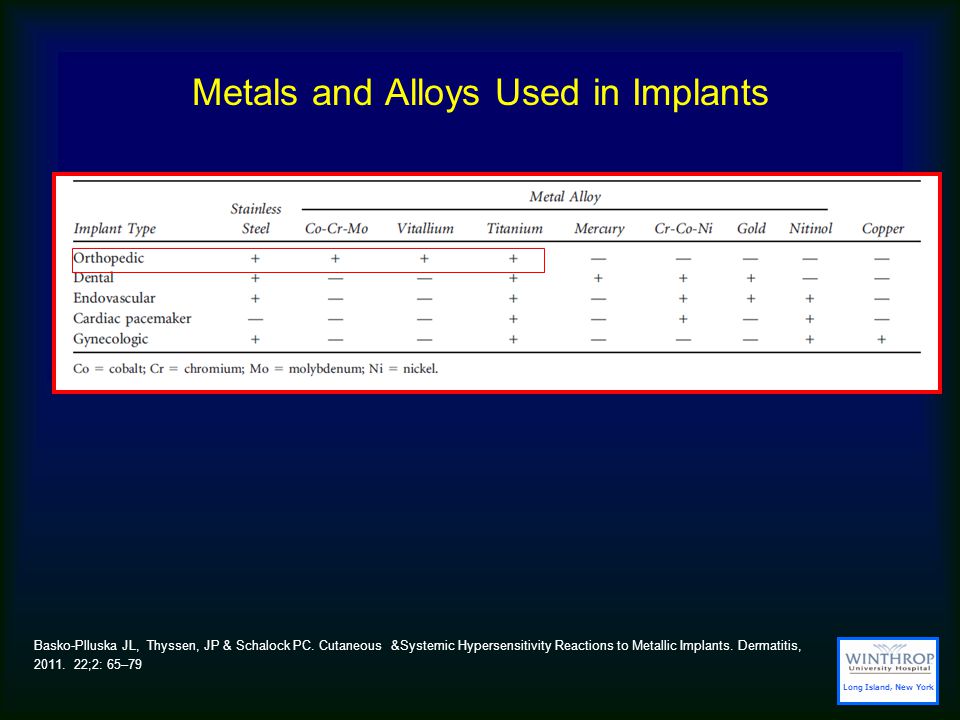

16. Metals and Alloys Used in Implants Basko-Plluska JL, Thyssen, JP & Schalock PC. Cutaneous &Systemic Hypersensitivity Reactions to Metallic Implants. Dermatitis, 2011. 22;2: 65–79 Long Island, New York

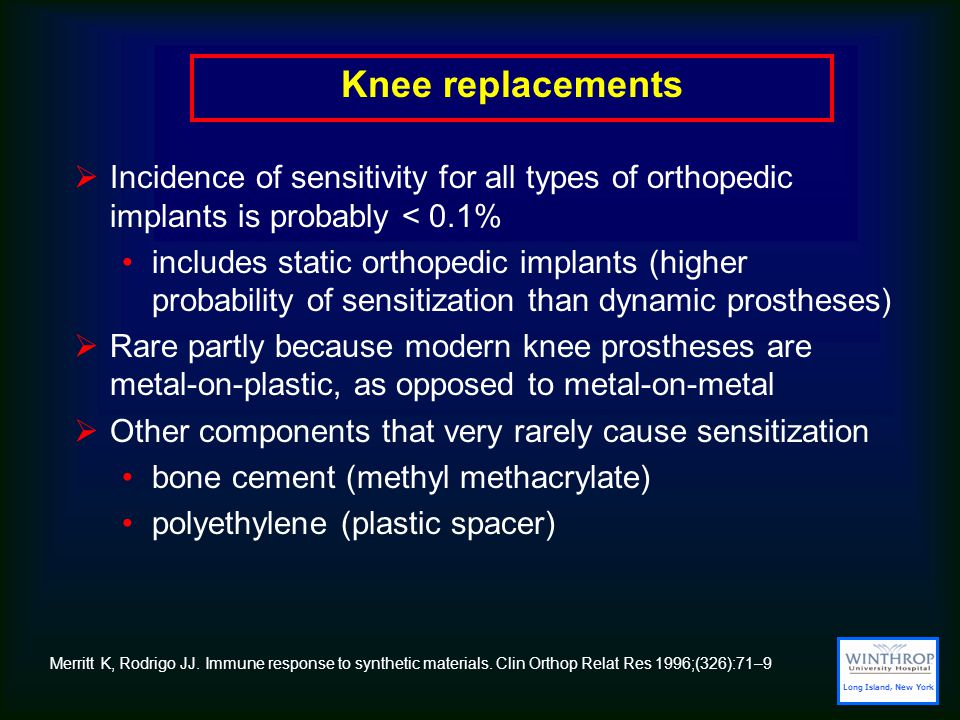

17. Knee replacements  Incidence of sensitivity for all types of orthopedic implants is probably < 0.1% includes static orthopedic implants (higher probability of sensitization than dynamic prostheses)  Rare partly because modern knee prostheses are metal-on-plastic, as opposed to metal-on-metal  Other components that very rarely cause sensitization bone cement (methyl methacrylate) polyethylene (plastic spacer) Merritt K, Rodrigo JJ. Immune response to synthetic materials. Clin Orthop Relat Res 1996;(326):71–9 Long Island, New York

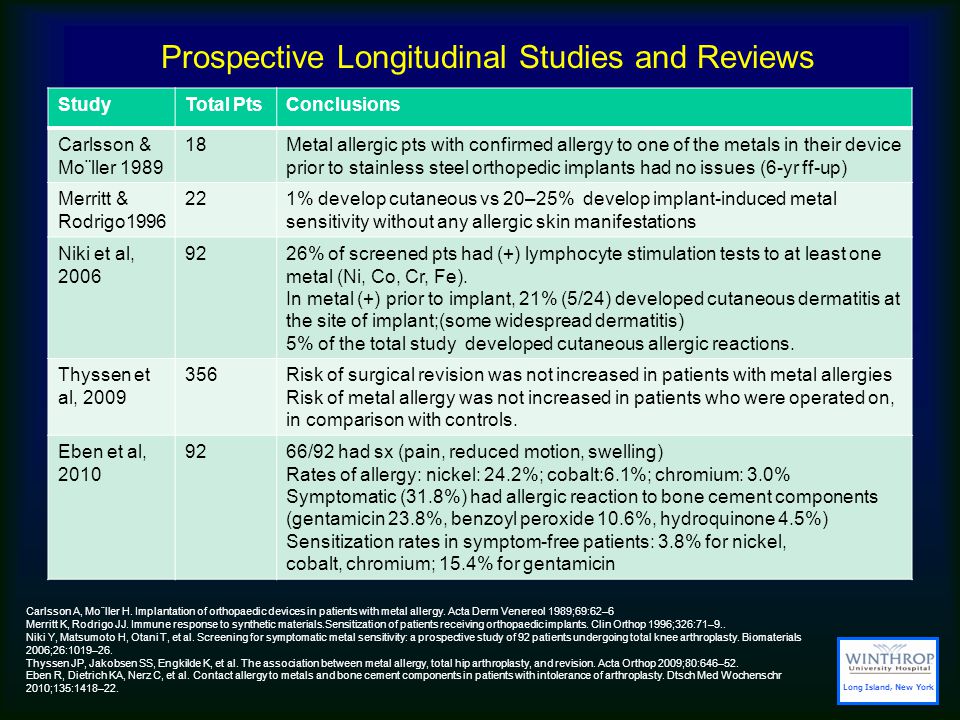

18. Prospective Longitudinal Studies and Reviews StudyTotal PtsConclusions Carlsson & Mo¨ller 1989 18Metal allergic pts with confirmed allergy to one of the metals in their device prior to stainless steel orthopedic implants had no issues (6-yr ff-up) Merritt & Rodrigo1996 221% develop cutaneous vs 20–25% develop implant-induced metal sensitivity without any allergic skin manifestations Niki et al, 2006 9226% of screened pts had (+) lymphocyte stimulation tests to at least one metal (Ni, Co, Cr, Fe). In metal (+) prior to implant, 21% (5/24) developed cutaneous dermatitis at the site of implant;(some widespread dermatitis) 5% of the total study developed cutaneous allergic reactions. Thyssen et al, 2009 356Risk of surgical revision was not increased in patients with metal allergies Risk of metal allergy was not increased in patients who were operated on, in comparison with controls. Eben et al, 2010 9266/92 had sx (pain, reduced motion, swelling) Rates of allergy: nickel: 24.2%; cobalt:6.1%; chromium: 3.0% Symptomatic (31.8%) had allergic reaction to bone cement components (gentamicin 23.8%, benzoyl peroxide 10.6%, hydroquinone 4.5%) Sensitization rates in symptom-free patients: 3.8% for nickel, cobalt, chromium; 15.4% for gentamicin Carlsson A, Mo¨ller H. Implantation of orthopaedic devices in patients with metal allergy. Acta Derm Venereol 1989;69:62–6 Merritt K, Rodrigo JJ. Immune response to synthetic materials.Sensitization of patients receiving orthopaedic implants. Clin Orthop 1996;326:71–9.. Niki Y, Matsumoto H, Otani T, et al. Screening for symptomatic metal sensitivity: a prospective study of 92 patients undergoing total knee arthroplasty. Biomaterials 2006;26:1019–26. Thyssen JP, Jakobsen SS, Engkilde K, et al. The association between metal allergy, total hip arthroplasty, and revision. Acta Orthop 2009;80:646–52. Eben R, Dietrich KA, Nerz C, et al. Contact allergy to metals and bone cement components in patients with intolerance of arthroplasty. Dtsch Med Wochenschr 2010;135:1418–22. Long Island, New York

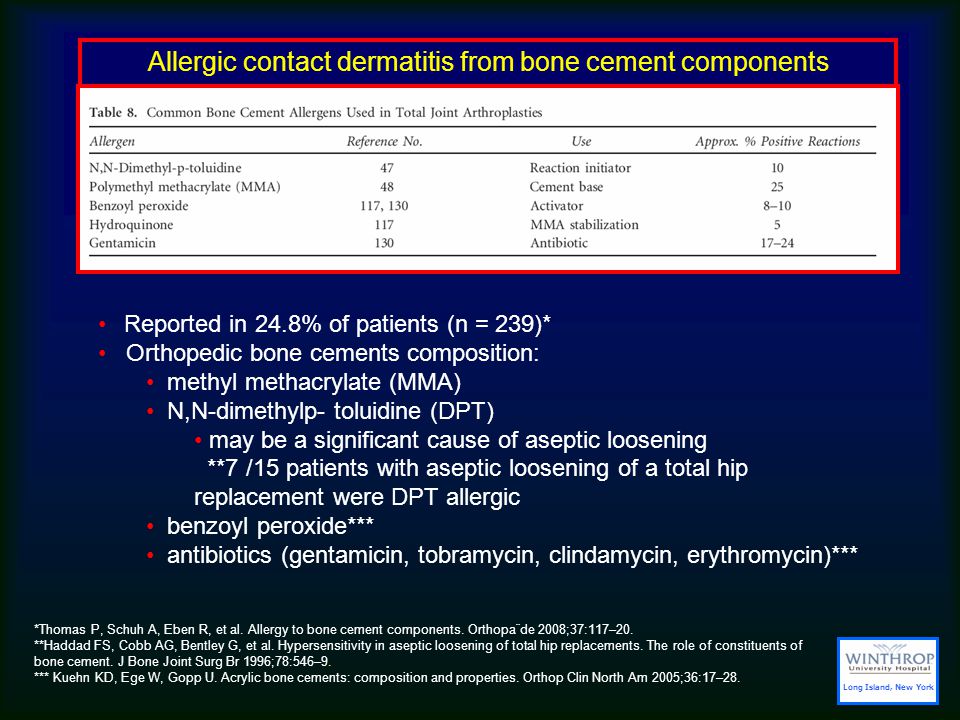

19. Allergic contact dermatitis from bone cement components Reported in 24.8% of patients (n = 239)* Orthopedic bone cements composition: methyl methacrylate (MMA) N,N-dimethylp- toluidine (DPT) may be a significant cause of aseptic loosening **7 /15 patients with aseptic loosening of a total hip replacement were DPT allergic benzoyl peroxide*** antibiotics (gentamicin, tobramycin, clindamycin, erythromycin)*** *Thomas P, Schuh A, Eben R, et al. Allergy to bone cement components. Orthopa¨de 2008;37:117–20. **Haddad FS, Cobb AG, Bentley G, et al. Hypersensitivity in aseptic loosening of total hip replacements. The role of constituents of bone cement. J Bone Joint Surg Br 1996;78:546–9. *** Kuehn KD, Ege W, Gopp U. Acrylic bone cements: composition and properties. Orthop Clin North Am 2005;36:17–28. Long Island, New York

20. Implant Failure  16 patients with failed metal-on-metal arthroplastic implants; 81% had metal sensitivity (PT &/or lymphocyte transformation test)*  Accumulated reports in total hip arthroplasty : prevalence of metal allergy –~ 25% in patients with a well-functioning hip arthroplastic implant –~ 60% among patients with a failed or poorly functioning implant** * Thomas P, Braathen LR, Dorig M, et al. Increased metal allergy in patients with failed metal-on-metal hip arthroplasty and periimplant T-lymphocytic inflammation. Allergy 2009;64:1157–65. ** Hallab N, Merritt K, Jacobs JJ. Metal sensitivity in patients with orthopaedic implants. J Bone Joint Surg Am 2001;83:428–36. Basko-Plluska JL, Thyssen, JP & Schalock PC. Cutaneous &Systemic Hypersensitivity Reactions to Metallic Implants. Dermatitis, 2011. 22;2: 65–79 Long Island, New York

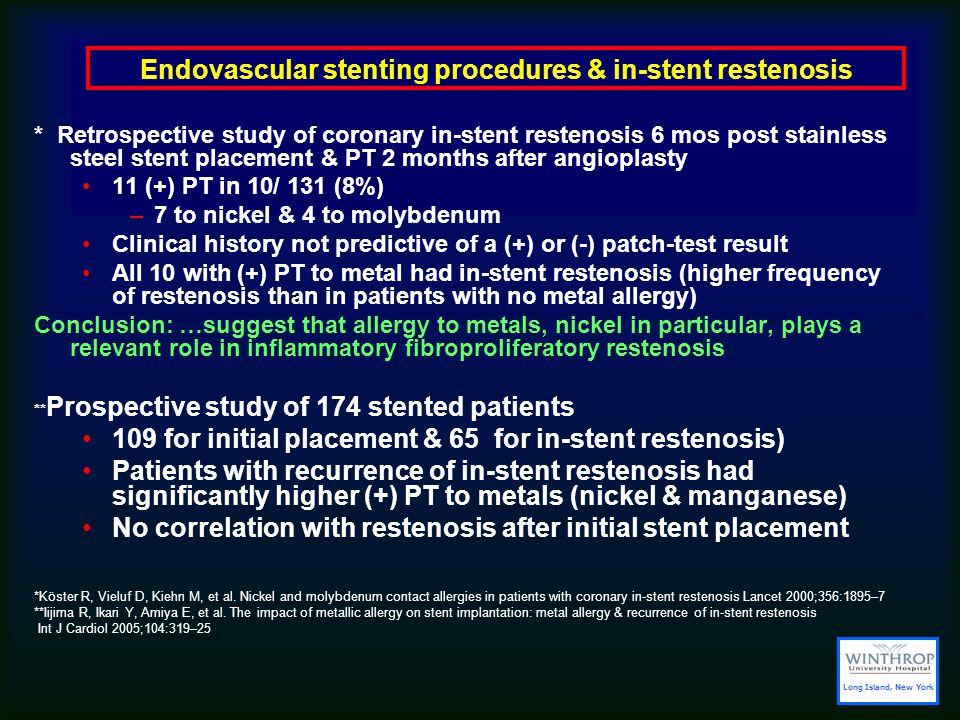

21. Endovascular stenting procedures & in-stent restenosis * Retrospective study of coronary in-stent restenosis 6 mos post stainless steel stent placement & PT 2 months after angioplasty 11 (+) PT in 10/ 131 (8%) –7 to nickel & 4 to molybdenum Clinical history not predictive of a (+) or (-) patch-test result All 10 with (+) PT to metal had in-stent restenosis (higher frequency of restenosis than in patients with no metal allergy) Conclusion: …suggest that allergy to metals, nickel in particular, plays a relevant role in inflammatory fibroproliferatory restenosis ** Prospective study of 174 stented patients 109 for initial placement & 65 for in-stent restenosis) Patients with recurrence of in-stent restenosis had significantly higher (+) PT to metals (nickel & manganese) No correlation with restenosis after initial stent placement *Köster R, Vieluf D, Kiehn M, et al. Nickel and molybdenum contact allergies in patients with coronary in-stent restenosis Lancet 2000;356:1895–7 **Iijima R, Ikari Y, Amiya E, et al. The impact of metallic allergy on stent implantation: metal allergy & recurrence of in-stent restenosis Int J Cardiol 2005;104:319–25 Long Island, New York

22. Diagnostic Criteria for Metal-Induced Cutaneous Allergic Reactions 1. Chronic eczema beginning weeks or months after the implant 2. Eczema most severe around the implant site 3. Absence of other contact allergens or systemic cause 4. Patch tests positive or strongly positive for one of the metals in the alloy 5. Complete & rapid recovery after total removal of foreign metal implant Merle C, Vigan M, Devred D, et al. Generalized eczema from Vitallium osteosynthesis material. Contact Dermatitis 1992;27:257–8. Long Island, New York

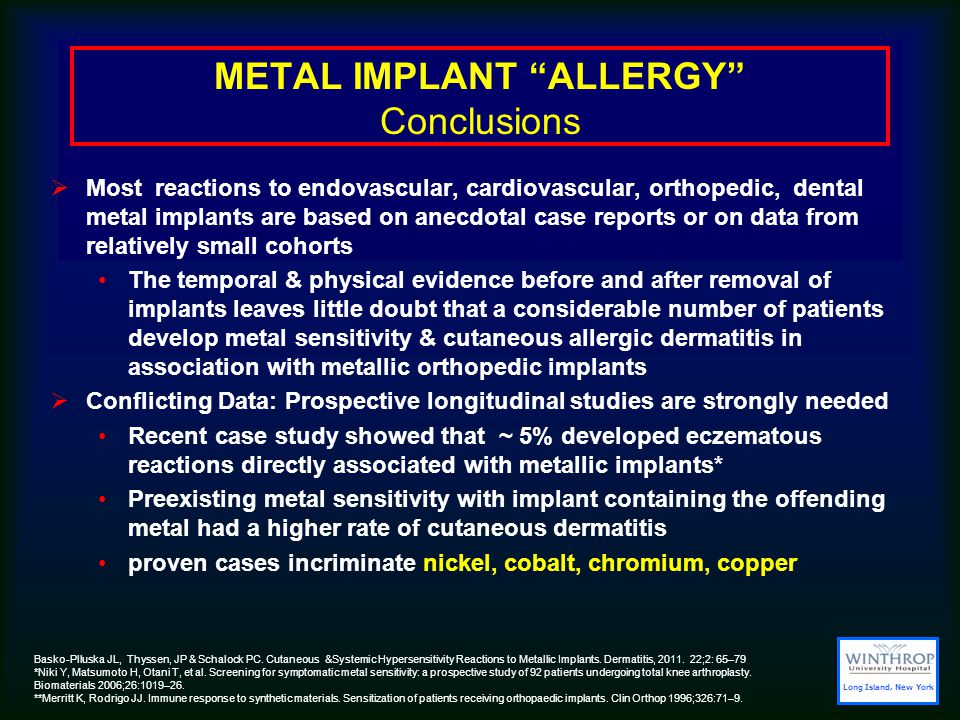

23. METAL IMPLANT “ALLERGY” Conclusions  Most reactions to endovascular, cardiovascular, orthopedic, dental metal implants are based on anecdotal case reports or on data from relatively small cohorts The temporal & physical evidence before and after removal of implants leaves little doubt that a considerable number of patients develop metal sensitivity & cutaneous allergic dermatitis in association with metallic orthopedic implants  Conflicting Data: Prospective longitudinal studies are strongly needed Recent case study showed that ~ 5% developed eczematous reactions directly associated with metallic implants* Preexisting metal sensitivity with implant containing the offending metal had a higher rate of cutaneous dermatitis proven cases incriminate nickel, cobalt, chromium, copper Basko-Plluska JL, Thyssen, JP & Schalock PC. Cutaneous &Systemic Hypersensitivity Reactions to Metallic Implants. Dermatitis, 2011. 22;2: 65–79 *Niki Y, Matsumoto H, Otani T, et al. Screening for symptomatic metal sensitivity: a prospective study of 92 patients undergoing total knee arthroplasty. Biomaterials 2006;26:1019–26. **Merritt K, Rodrigo JJ. Immune response to synthetic materials. Sensitization of patients receiving orthopaedic implants. Clin Orthop 1996;326:71–9. Long Island, New York

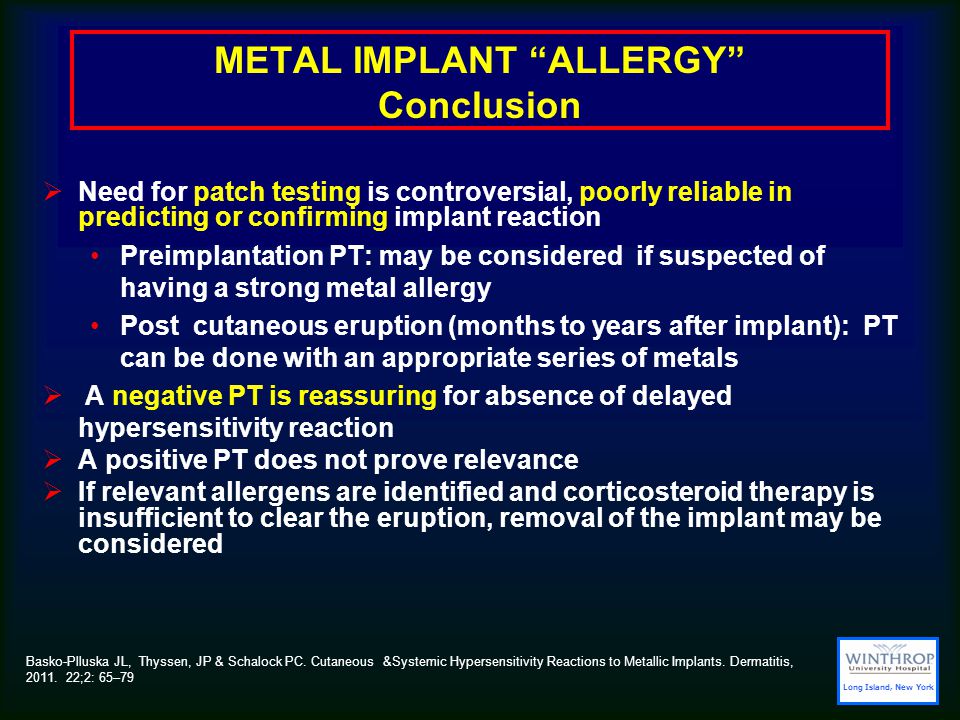

24. METAL IMPLANT “ALLERGY” Conclusion  Need for patch testing is controversial, poorly reliable in predicting or confirming implant reaction Preimplantation PT: may be considered if suspected of having a strong metal allergy Post cutaneous eruption (months to years after implant): PT can be done with an appropriate series of metals  A negative PT is reassuring for absence of delayed hypersensitivity reaction  A positive PT does not prove relevance  If relevant allergens are identified and corticosteroid therapy is insufficient to clear the eruption, removal of the implant may be considered Long Island, New York Basko-Plluska JL, Thyssen, JP & Schalock PC. Cutaneous &Systemic Hypersensitivity Reactions to Metallic Implants. Dermatitis, 2011. 22;2: 65–79

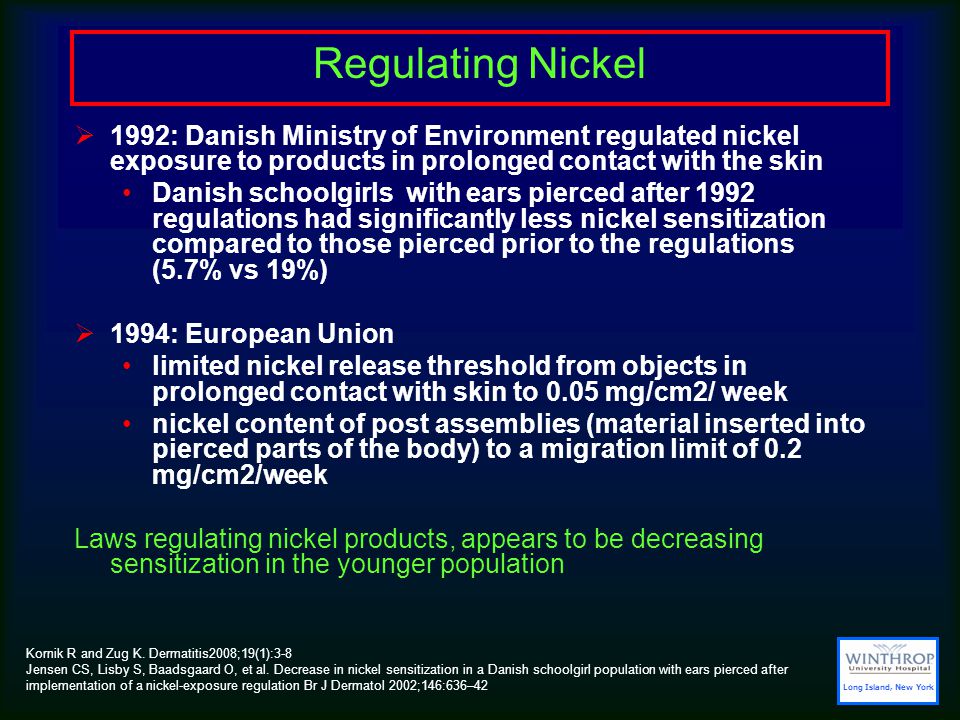

25. Regulating Nickel  1992: Danish Ministry of Environment regulated nickel exposure to products in prolonged contact with the skin Danish schoolgirls with ears pierced after 1992 regulations had significantly less nickel sensitization compared to those pierced prior to the regulations (5.7% vs 19%)  1994: European Union limited nickel release threshold from objects in prolonged contact with skin to 0.05 mg/cm2/ week nickel content of post assemblies (material inserted into pierced parts of the body) to a migration limit of 0.2 mg/cm2/week Laws regulating nickel products, appears to be decreasing sensitization in the younger population Kornik R and Zug K. Dermatitis2008;19(1):3-8 Jensen CS, Lisby S, Baadsgaard O, et al. Decrease in nickel sensitization in a Danish schoolgirl population with ears pierced after implementation of a nickel-exposure regulation Br J Dermatol 2002;146:636–42 Long Island, New York

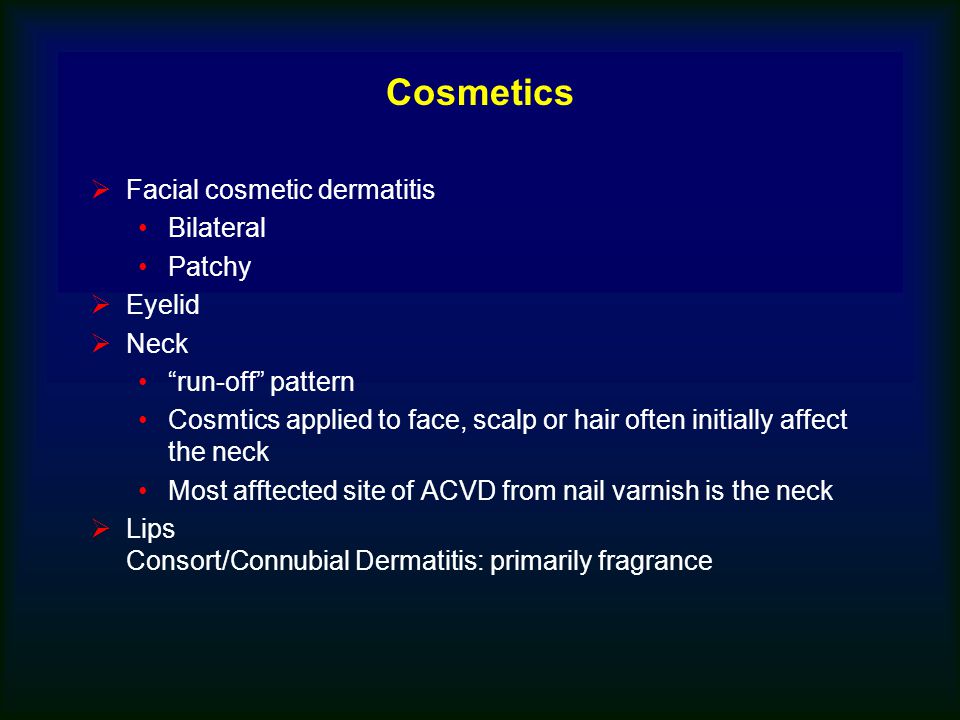

26. Cosmetics  Facial cosmetic dermatitis Bilateral Patchy  Eyelid  Neck “run-off” pattern Cosmtics applied to face, scalp or hair often initially affect the neck Most afftected site of ACVD from nail varnish is the neck  Lips Consort/Connubial Dermatitis: primarily fragrance

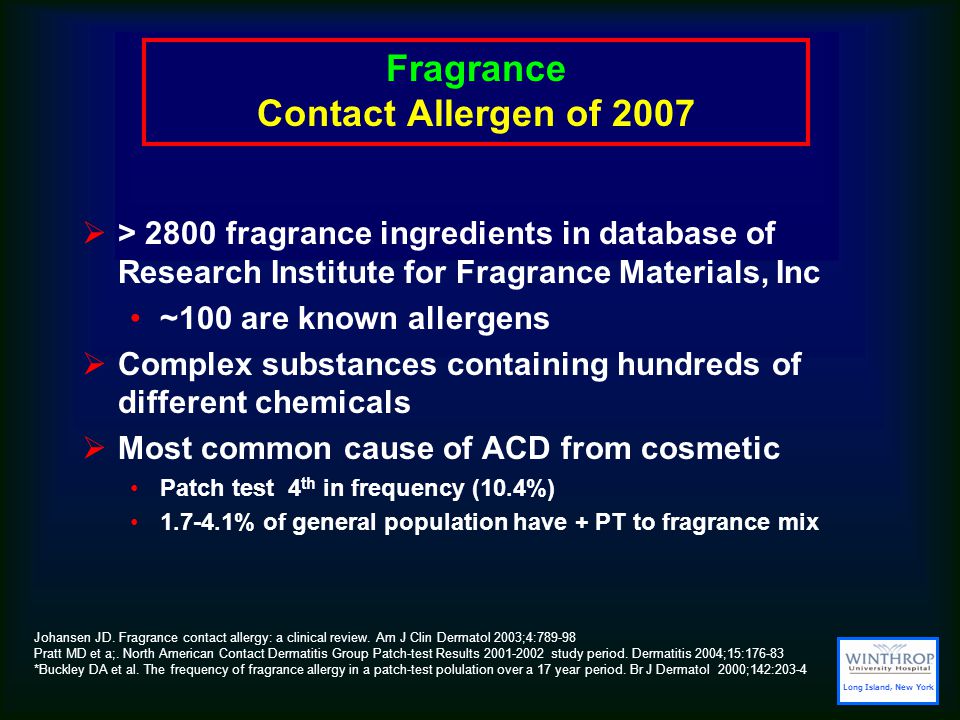

27. Fragrance Contact Allergen of 2007  > 2800 fragrance ingredients in database of Research Institute for Fragrance Materials, Inc ~100 are known allergens  Complex substances containing hundreds of different chemicals  Most common cause of ACD from cosmetic Patch test 4 th in frequency (10.4%) 1.7-4.1% of general population have + PT to fragrance mix Johansen JD. Fragrance contact allergy: a clinical review. Am J Clin Dermatol 2003;4:789-98 Pratt MD et a;. North American Contact Dermatitis Group Patch-test Results 2001-2002 study period. Dermatitis 2004;15:176-83 *Buckley DA et al. The frequency of fragrance allergy in a patch-test polulation over a 17 year period. Br J Dermatol 2000;142:203-4 Long Island, New York

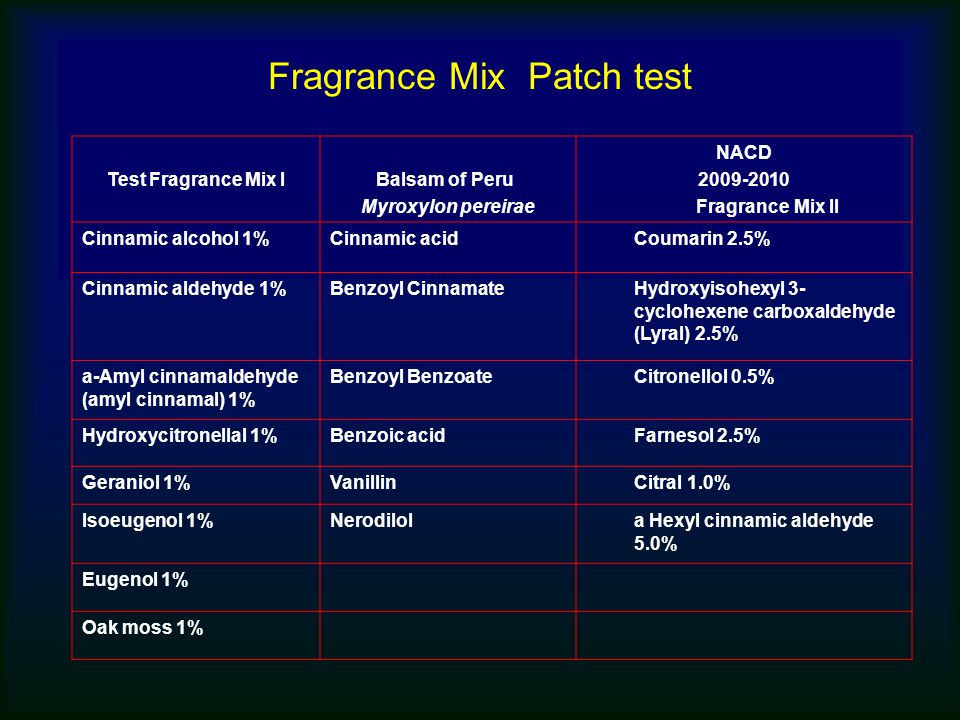

28. Fragrance Mix Patch test Test Fragrance Mix I Balsam of Peru Myroxylon pereirae NACD 2009-2010 Fragrance Mix II Cinnamic alcohol 1%Cinnamic acidCoumarin 2.5% Cinnamic aldehyde 1%Benzoyl CinnamateHydroxyisohexyl 3- cyclohexene carboxaldehyde (Lyral) 2.5% a-Amyl cinnamaldehyde (amyl cinnamal) 1% Benzoyl BenzoateCitronellol 0.5% Hydroxycitronellal 1%Benzoic acidFarnesol 2.5% Geraniol 1%VanillinCitral 1.0% Isoeugenol 1%Nerodilola Hexyl cinnamic aldehyde 5.0% Eugenol 1% Oak moss 1%

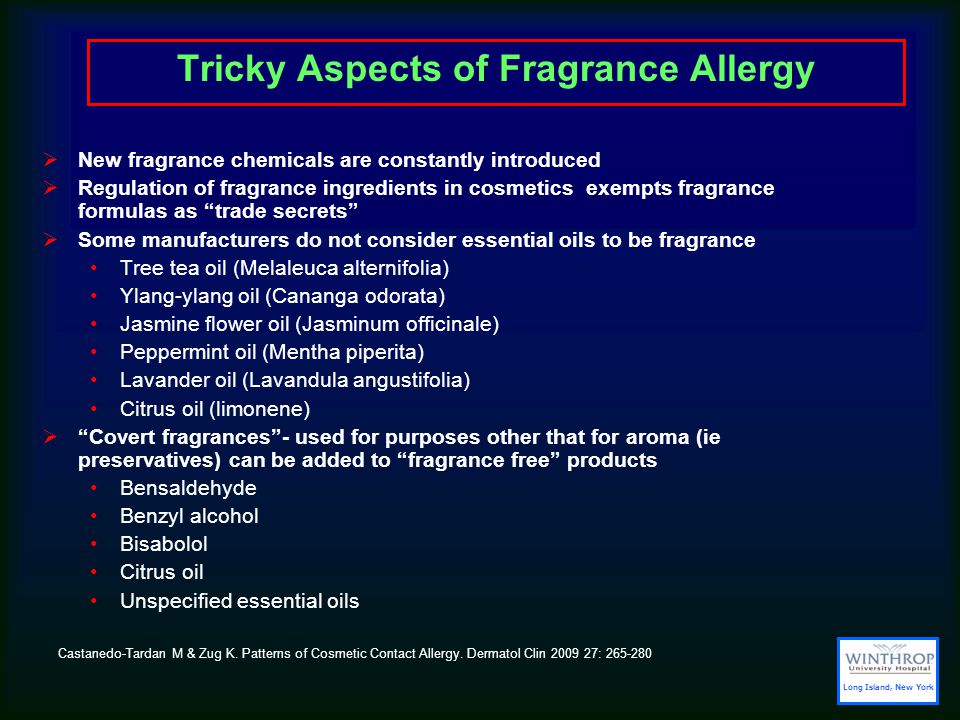

29. Tricky Aspects of Fragrance Allergy  New fragrance chemicals are constantly introduced  Regulation of fragrance ingredients in cosmetics exempts fragrance formulas as “trade secrets”  Some manufacturers do not consider essential oils to be fragrance Tree tea oil (Melaleuca alternifolia) Ylang-ylang oil (Cananga odorata) Jasmine flower oil (Jasminum officinale) Peppermint oil (Mentha piperita) Lavander oil (Lavandula angustifolia) Citrus oil (limonene)  “Covert fragrances”- used for purposes other that for aroma (ie preservatives) can be added to “fragrance free” products Bensaldehyde Benzyl alcohol Bisabolol Citrus oil Unspecified essential oils Castanedo-Tardan M & Zug K. Patterns of Cosmetic Contact Allergy. Dermatol Clin 2009 27: 265-280 Long Island, New York

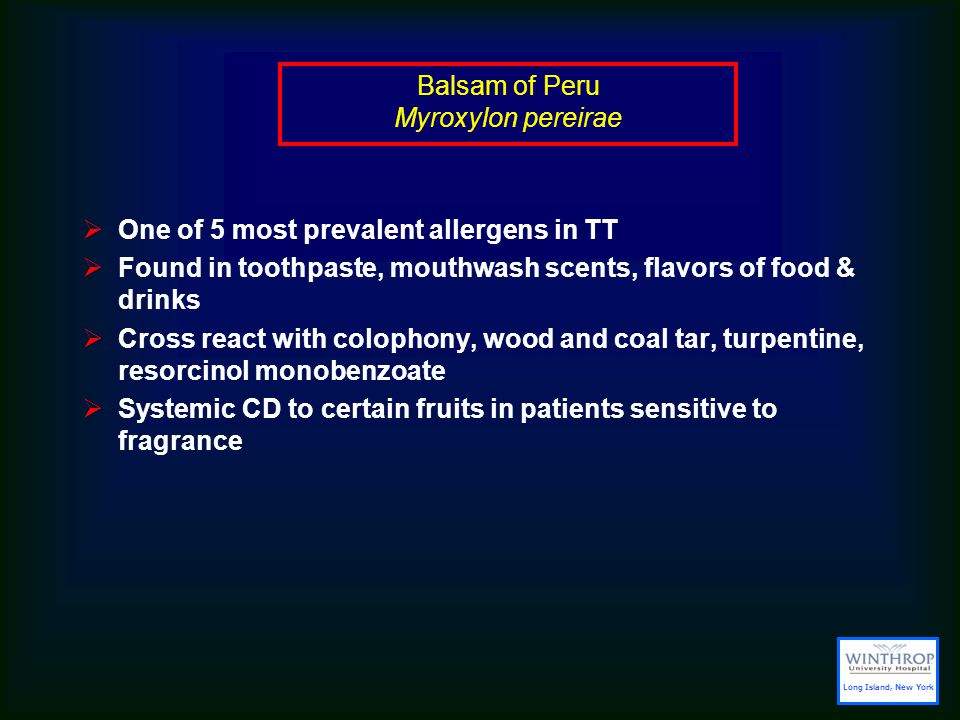

30. Balsam of Peru Myroxylon pereirae  One of 5 most prevalent allergens in TT  Found in toothpaste, mouthwash scents, flavors of food & drinks  Cross react with colophony, wood and coal tar, turpentine, resorcinol monobenzoate  Systemic CD to certain fruits in patients sensitive to fragrance Long Island, New York

31. Fragrance  Leave on fragrances: induce dermatitis at normally utilized concentrations  Wash on/wash off products: ? Relevance of brief exposure Concentration of fragrance left on fabric by laundering was very low & threshold were below induction levels -Contact Dermatitis. 2003 Jun;48(6):310-6. -Contact Dermatitis. 2003 Jun;48(6):324-30. -Contact Dermatitis 2002 Dec;47(6):345-52 -Am J Contact Dermat 1996 Jun;7(2):77-83

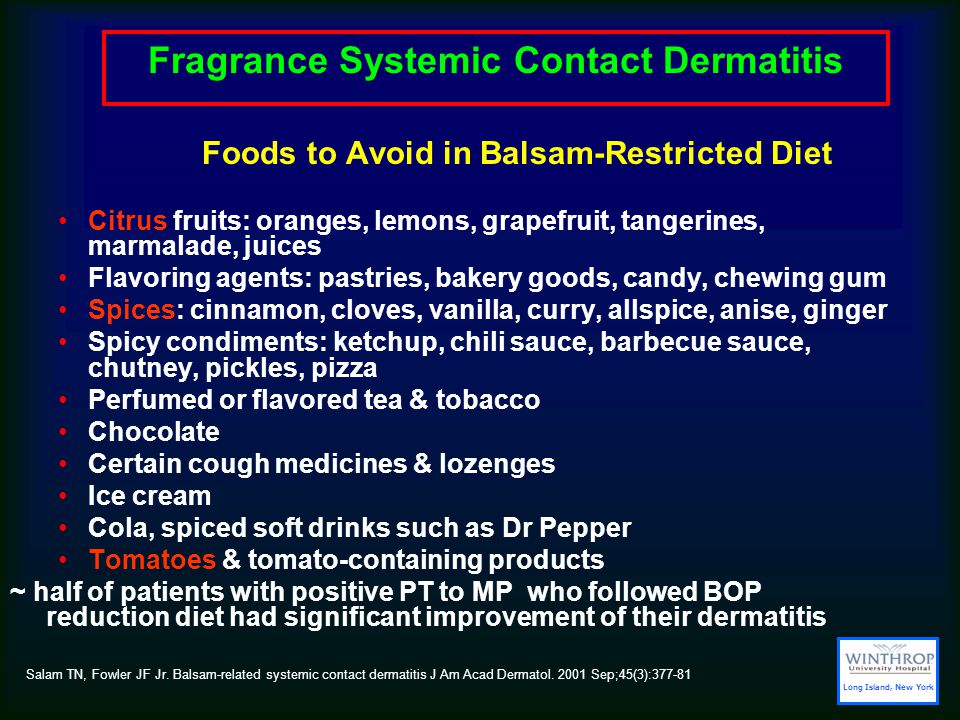

32. Fragrance Systemic Contact Dermatitis Foods to Avoid in Balsam-Restricted Diet Citrus fruits: oranges, lemons, grapefruit, tangerines, marmalade, juices Flavoring agents: pastries, bakery goods, candy, chewing gum Spices: cinnamon, cloves, vanilla, curry, allspice, anise, ginger Spicy condiments: ketchup, chili sauce, barbecue sauce, chutney, pickles, pizza Perfumed or flavored tea & tobacco Chocolate Certain cough medicines & lozenges Ice cream Cola, spiced soft drinks such as Dr Pepper Tomatoes & tomato-containing products ~ half of patients with positive PT to MP who followed BOP reduction diet had significant improvement of their dermatitis Salam TN, Fowler JF Jr. Balsam-related systemic contact dermatitis J Am Acad Dermatol. 2001 Sep;45(3):377-81 Long Island, New York

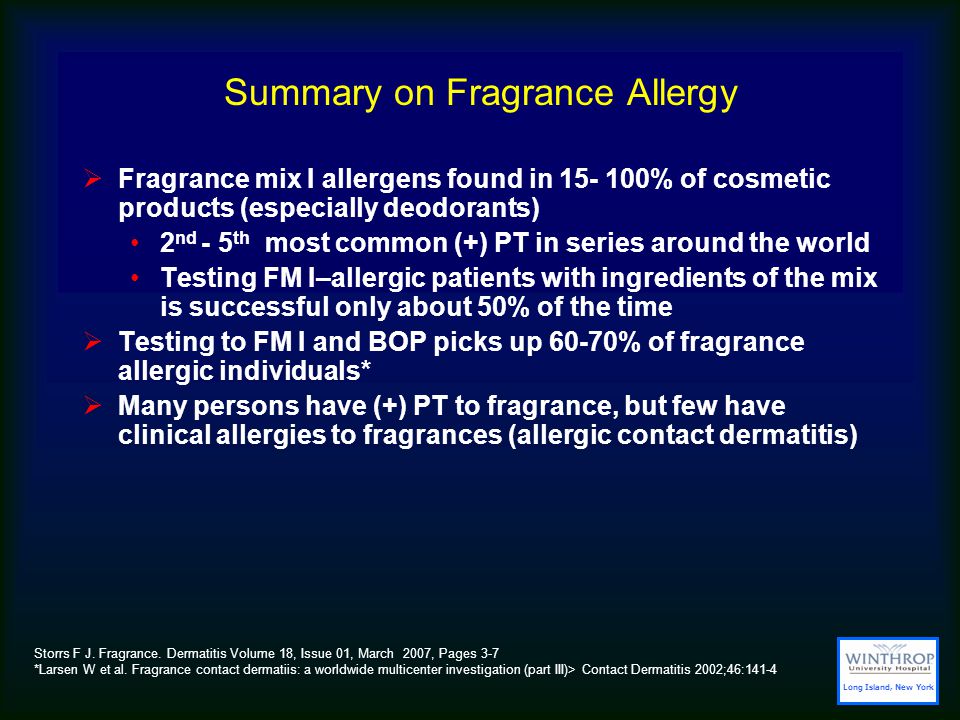

33. Summary on Fragrance Allergy  Fragrance mix I allergens found in 15- 100% of cosmetic products (especially deodorants) 2 nd - 5 th most common (+) PT in series around the world Testing FM I–allergic patients with ingredients of the mix is successful only about 50% of the time  Testing to FM I and BOP picks up 60-70% of fragrance allergic individuals*  Many persons have (+) PT to fragrance, but few have clinical allergies to fragrances (allergic contact dermatitis) Storrs F J. Fragrance. Dermatitis Volume 18, Issue 01, March 2007, Pages 3-7 *Larsen W et al. Fragrance contact dermatiis: a worldwide multicenter investigation (part III)> Contact Dermatitis 2002;46:141-4 Long Island, New York

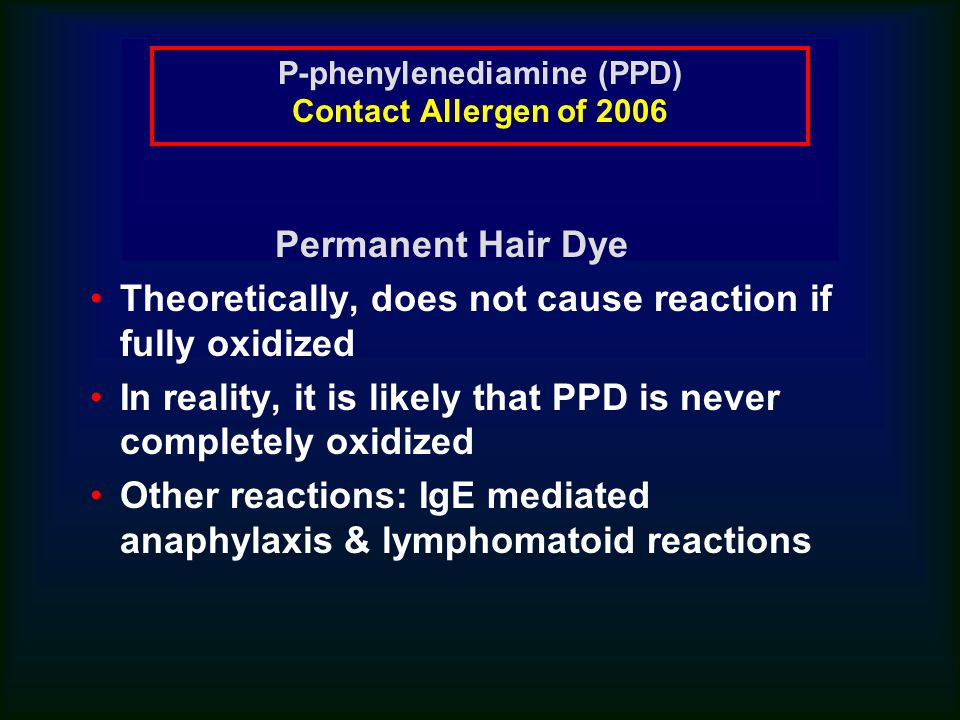

34. Permanent Hair Dye Theoretically, does not cause reaction if fully oxidized In reality, it is likely that PPD is never completely oxidized Other reactions: IgE mediated anaphylaxis & lymphomatoid reactions P-phenylenediamine (PPD) Contact Allergen of 2006

35. Risk Factors & Ethnic Differences  Aging Population 40% of women in America & Europe color their hair (70% are over 35 y.o.)  Black men have higher incidence –use darker shades of dye with higher concentration of PPD  Occupational: Currently the most common cause of contact dermatitis in hairdressers Hesse et al. Contact Dermatitis to hair dyes in a Danish Adult population: an interview based study. Br J of Dermatol 2005; 153:132-5 Dickel H et al. Comparison of patch test with standard series among white and black racial groups. Am J Contact Dermat 2001;12:77-82 Long Island, New York

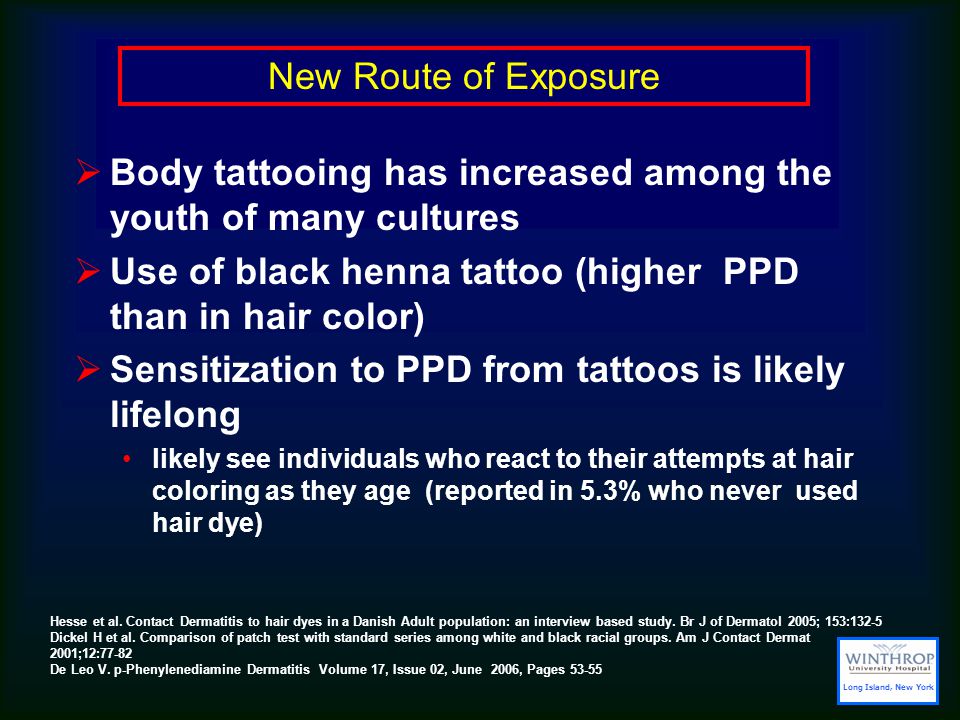

36. New Route of Exposure  Body tattooing has increased among the youth of many cultures  Use of black henna tattoo (higher PPD than in hair color)  Sensitization to PPD from tattoos is likely lifelong likely see individuals who react to their attempts at hair coloring as they age (reported in 5.3% who never used hair dye) Hesse et al. Contact Dermatitis to hair dyes in a Danish Adult population: an interview based study. Br J of Dermatol 2005; 153:132-5 Dickel H et al. Comparison of patch test with standard series among white and black racial groups. Am J Contact Dermat 2001;12:77-82 De Leo V. p-Phenylenediamine Dermatitis Volume 17, Issue 02, June 2006, Pages 53-55 Long Island, New York

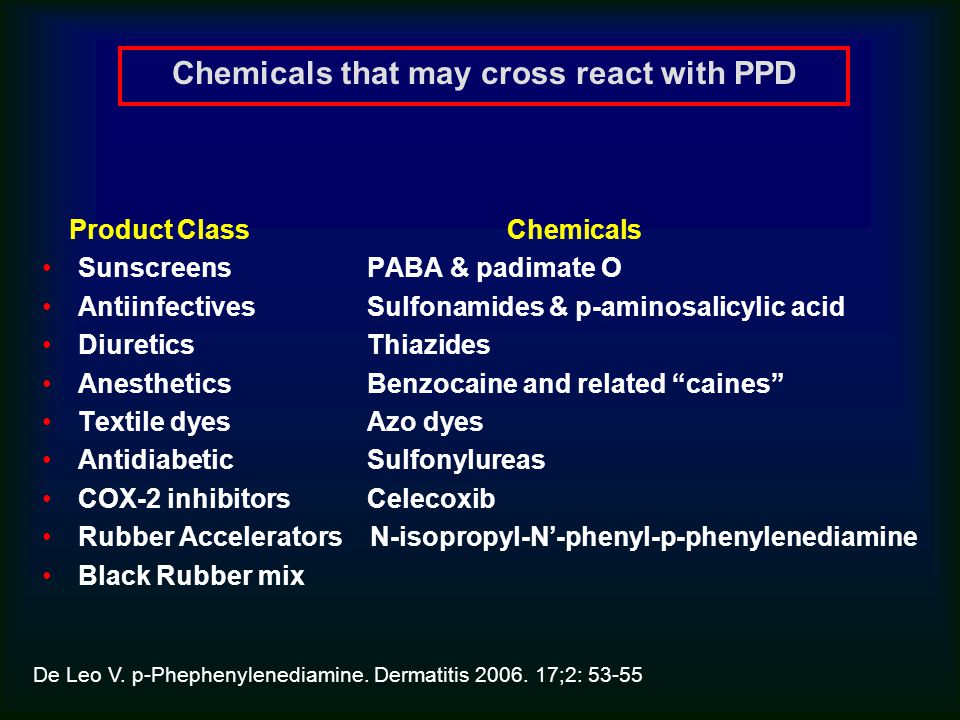

37. Chemicals that may cross react with PPD Product Class Chemicals Sunscreens PABA & padimate O Antiinfectives Sulfonamides & p-aminosalicylic acid Diuretics Thiazides Anesthetics Benzocaine and related “caines” Textile dyes Azo dyes Antidiabetic Sulfonylureas COX-2 inhibitors Celecoxib Rubber Accelerators N-isopropyl-N’-phenyl-p-phenylenediamine Black Rubber mix De Leo V. p-Phephenylenediamine. Dermatitis 2006. 17;2: 53-55

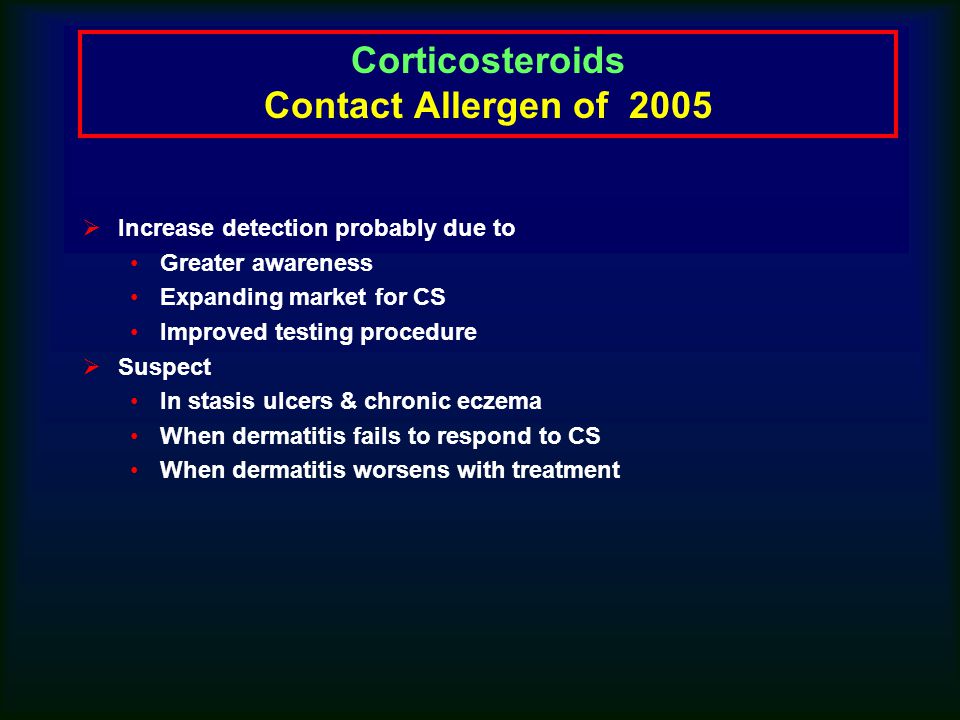

38. Corticosteroids Contact Allergen of 2005  Increase detection probably due to Greater awareness Expanding market for CS Improved testing procedure  Suspect In stasis ulcers & chronic eczema When dermatitis fails to respond to CS When dermatitis worsens with treatment

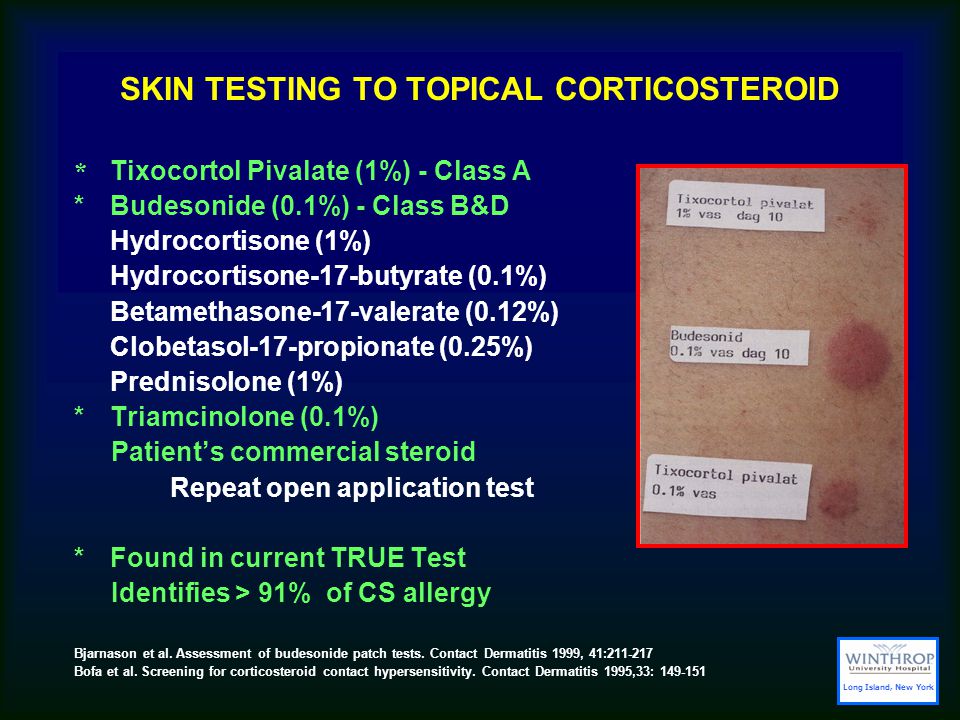

39. SKIN TESTING TO TOPICAL CORTICOSTEROID * Tixocortol Pivalate (1%) - Class A *Budesonide (0.1%) - Class B&D Hydrocortisone (1%) Hydrocortisone-17-butyrate (0.1%) Betamethasone-17-valerate (0.12%) Clobetasol-17-propionate (0.25%) Prednisolone (1%) *Triamcinolone (0.1%) Patient’s commercial steroid Repeat open application test *Found in current TRUE Test Identifies > 91% of CS allergy Bjarnason et al. Assessment of budesonide patch tests. Contact Dermatitis 1999, 41:211-217 Bofa et al. Screening for corticosteroid contact hypersensitivity. Contact Dermatitis 1995,33: 149-151 Long Island, New York

40. STRUCTURAL GROUPS OF CORTICOSTEROIDS Cross reactivity based on 2 immune recognition sites- C 6/9 & C16/17 substitutions Class A (Hydrocortisone & Tixocortol pivalate: has C17 or C21 short chain ester) Hydrocortisone, -acetate, Tixocortol, Prednisone, Prednisolone, -acetate, Cloprednol, Cortisone, -acetate, Fludrocortisone, Methylprednisolone-acetate Class B (Acetonides: has C16 C17 cis-ketal or –diol additions) Triamcinolone acetonide, -alcohol, Budesonide, Desonide, Fluocinonide, Fluocinolone acetonide, Amcinonide, Halcinonide Class C (non-esterified Betamethasone; C16 methyl group) Betamethasone sodium phosphate, Dexamethasone, Dexamethasone sodium phosphate, Fluocortolone Class D1 (C16 methyl group & halogenated B ring) Clobetasone 17-butyrate, -17-propionate Betamethasone-valerate, - dipropionate, Aclometasone dipropionate, Fluocortone caproate, -pivalate, mometasone furoate Class D2 (labile esters w/o C16 methyl nor B ring halogen substitution) Hydrocortisone 17-butyrate,-17-valerate,-17-aceponate,-17-buteprate, methylprednisolone aceponate Wilkinson SM Corticosteroid cross reactions: an alternative view. Contact dermatitis 2000;42:59-63 Long Island, New York

41. Cocoamidopropyl betaine Contract Allergen of 2004  Second most common allergen in shampoo  Amphoteric surfactant often found in shampoos, bath products, eye & facial cleaners  Less irritating than are older polar surfactants such as sodium lauryl sulfate but more capable of allergic sensitization.  Positive reactions to this allergen are often clinically relevant

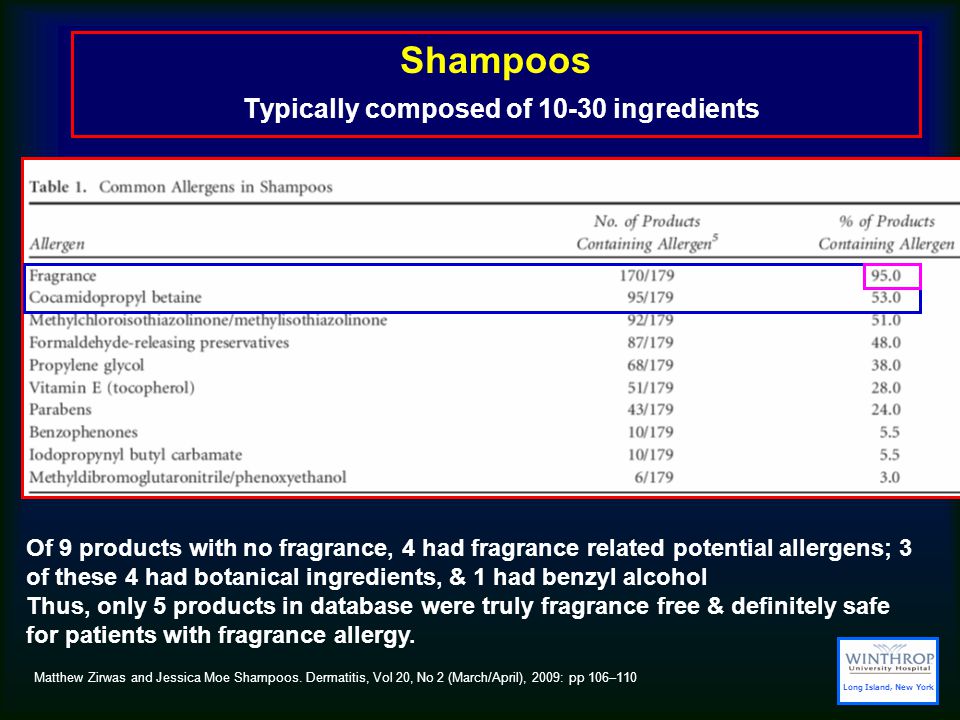

42. Shampoos Typically composed of 10-30 ingredients  eyelid dermatitis, facial dermatitis, neck dermatitis, scalp  dermatitis, dermatitis of the upper back, or dermatitis in  more than one of these areas, often leading to difficulty in  clinical diagnosis. Matthew Zirwas and Jessica Moe Shampoos. Dermatitis, Vol 20, No 2 (March/April), 2009: pp 106–110 Of 9 products with no fragrance, 4 had fragrance related potential allergens; 3 of these 4 had botanical ingredients, & 1 had benzyl alcohol Thus, only 5 products in database were truly fragrance free & definitely safe for patients with fragrance allergy. Long Island, New York

43. Cocoamidopropyl betaine  Typically presents as eyelid, facial, scalp, and/or neck dermatitis frequent exposure to personal cleansing products enhanced ability of “sensitive skin” in these areas to develop ACD  3.3% of 975 patients had a + reaction to CAPB (NACDG 2001)  Found in >600 personal care products (FDA data voluntarily reported by industry)  Commercial bulk production of CAPB may result in contamination of the final product with two chemicals used in the synthesis of CAPB, namely, amidoamine (AA) and dimethylaminopropylamine (DMAPA) Fowler JF. Cocamidopropyl Betaine. Dermatitis 2004;15:3-4

44. Cosmetic Preservatives Formaldehyde Formaldehyde* (8.4) Quarternium 15* (9.3) Diazolidinyl urea* (3.2) (Germall II) Imidazolidinyl urea* (3.0) (Germall) Bromonitropropane (3.3) (Bronopol) DMDM Hydantoin (2.6) (Glydant) Non Formaldehyde Methyldibromoglutaronitrile (5.8) (Euxyl K400) MCI/MI (2.3) Parabens* (0.5) Chloroxylenol (0.8) Iodopropynylbutylcarbamate (0.4) (% Prevalence PT reaction based on NACDG or TT) *Antigen present in the T.R.U.E. Test ***Albert MR et al. Concomitant positive reactions to allergens in the patch testing standard from 1988-1997. Am J Contact Dermat 1999. 10:219-223 Paraben, quarternium-15 & formaldehyde preservatives are frequently combined & cosensitize *** Long Island, New York

45. Formaldehyde Most common potential source of exposure  Cosmetics rarely listed on ingredient label, direct use forbidden in some countries Contain formaldehyde releasers  Permanent press textiles Increase strength, prevent shrinking, resist wrinkling (permanent press) of cellulose and rayon fibers *Agner et al.Formaldehyde allergy: a follow up study. Am J Contact Dermatitis 1999;10:12-17 Long Island, New York

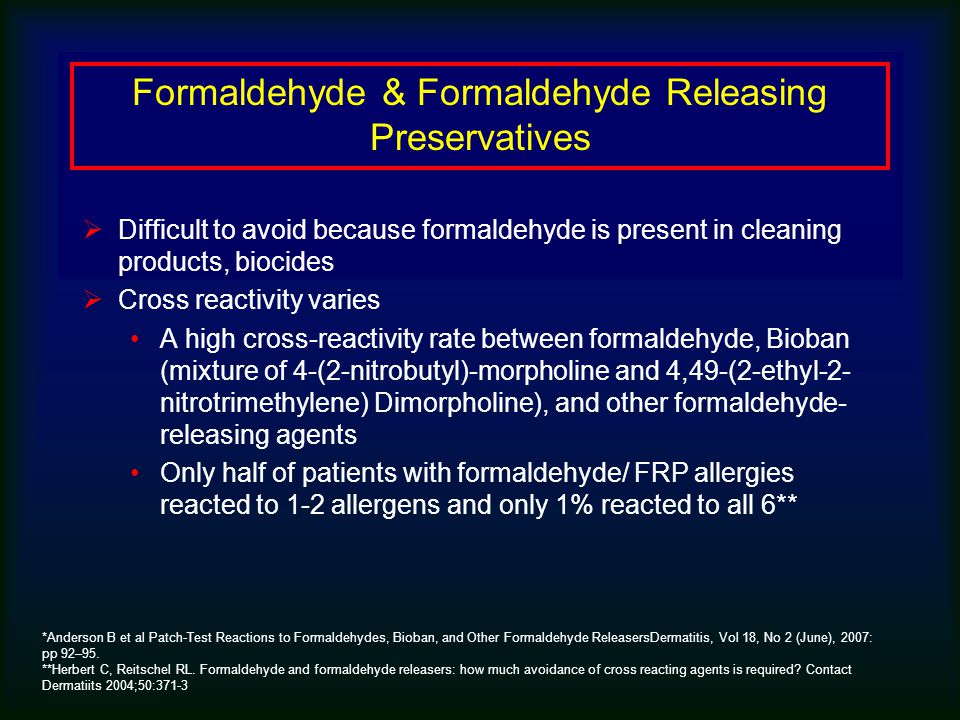

46. Formaldehyde & Formaldehyde Releasing Preservatives  Difficult to avoid because formaldehyde is present in cleaning products, biocides  Cross reactivity varies A high cross-reactivity rate between formaldehyde, Bioban (mixture of 4-(2-nitrobutyl)-morpholine and 4,49-(2-ethyl-2- nitrotrimethylene) Dimorpholine), and other formaldehyde- releasing agents Only half of patients with formaldehyde/ FRP allergies reacted to 1-2 allergens and only 1% reacted to all 6** *Anderson B et al Patch-Test Reactions to Formaldehydes, Bioban, and Other Formaldehyde ReleasersDermatitis, Vol 18, No 2 (June), 2007: pp 92–95. **Herbert C, Reitschel RL. Formaldehyde and formaldehyde releasers: how much avoidance of cross reacting agents is required? Contact Dermatiits 2004;50:371-3

47.  Reactions: irritant & ACD, exacerbation of AD, urticaria, phototoxic eruptions* more subacute and chronic dermatitis  Testing with formaldehyde alone identifies only ~70% of patients who are allergic to the formaldehyde resins PT with resins as well  Slow resolution of dermatitis even with careful avoidance As much as 50% still had constant dermatitis * *Hatch KL, Maibach HI. Textile chemical finish dermatitis. Contact Dermatitis 1986;14:1–13. Allergic Contact Dermatitis from Formaldehyde Textile Resins Fowler JF Jr, Skinner SM, Belsito DV. Allergic contact dermatitisfrom formaldehyde resins in permanent press clothing: an underdiagnosed cause of generalized dermatitis. J Am Acad Dermatol.1992;27:962–8. Hilary C. Reich and Erin M. Warshaw Allergic Contact Dermatitis from Formaldehyde Textile Resins. Dermatitis, Vol 21, No 2 (March/April), 2010: pp 65–76 Formaldehyde in Textile Resin Long Island, New York

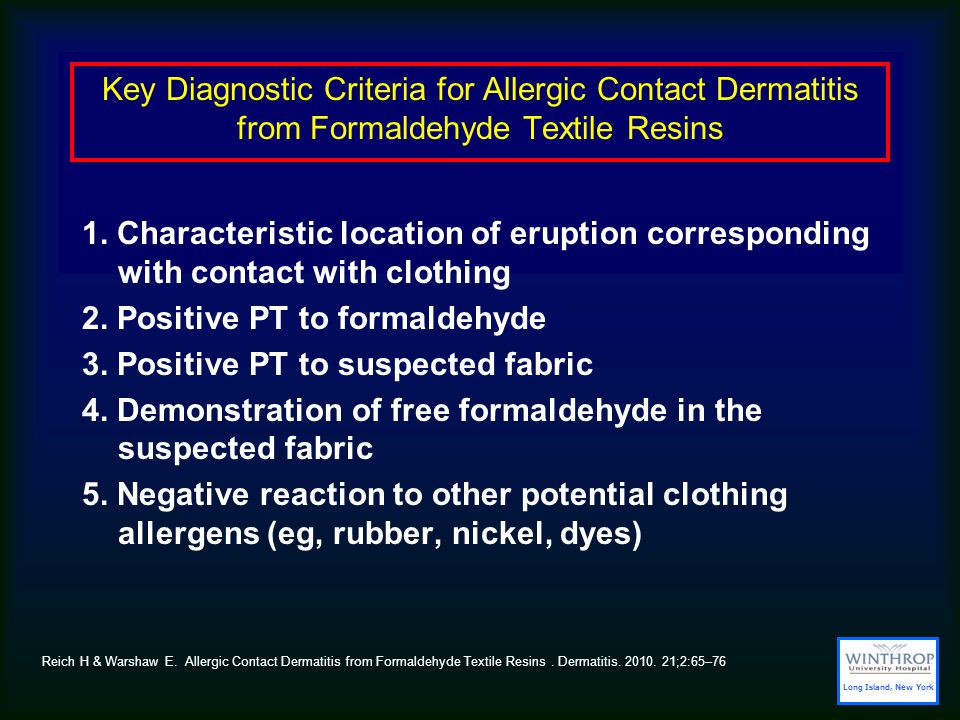

48. Key Diagnostic Criteria for Allergic Contact Dermatitis from Formaldehyde Textile Resins 1. Characteristic location of eruption corresponding with contact with clothing 2. Positive PT to formaldehyde 3. Positive PT to suspected fabric 4. Demonstration of free formaldehyde in the suspected fabric 5. Negative reaction to other potential clothing allergens (eg, rubber, nickel, dyes) Reich H & Warshaw E. Allergic Contact Dermatitis from Formaldehyde Textile Resins. Dermatitis. 2010. 21;2:65–76 Long Island, New York

49. Treatment for Textile Finish/ Formaldehyde Resin Allergic Contact Dermatitis  Use 100% silk, polyester, acrylic, nylon Linen & denim are acceptable if soft & wrinkle easily  Avoid ‘‘easy care,’’ ‘‘permanent press,’’ or ‘‘wrinkle free’’  Some experts also recommend avoidance of formaldehyde- releasing preservatives in personal products*  AVOID FORMALDEHYDE RESINS AT ALL TIMES. Even exposure once a month (‘‘Dress clothes’’ only worn on weekends) is enough to maintain your dermatitis Reich H & Warshaw E. Allergic Contact Dermatitis from Formaldehyde Textile Resins. Dermatitis. 2010. 21;2:65–76 *Scheman A, Jacob S, Zirwas M, et al. Contact allergy: alternatives for the 2007 North American Contact Dermatitis Group (NACDG) standard screening tray. Dis Mon 2008;54:7–156. Long Island, New York

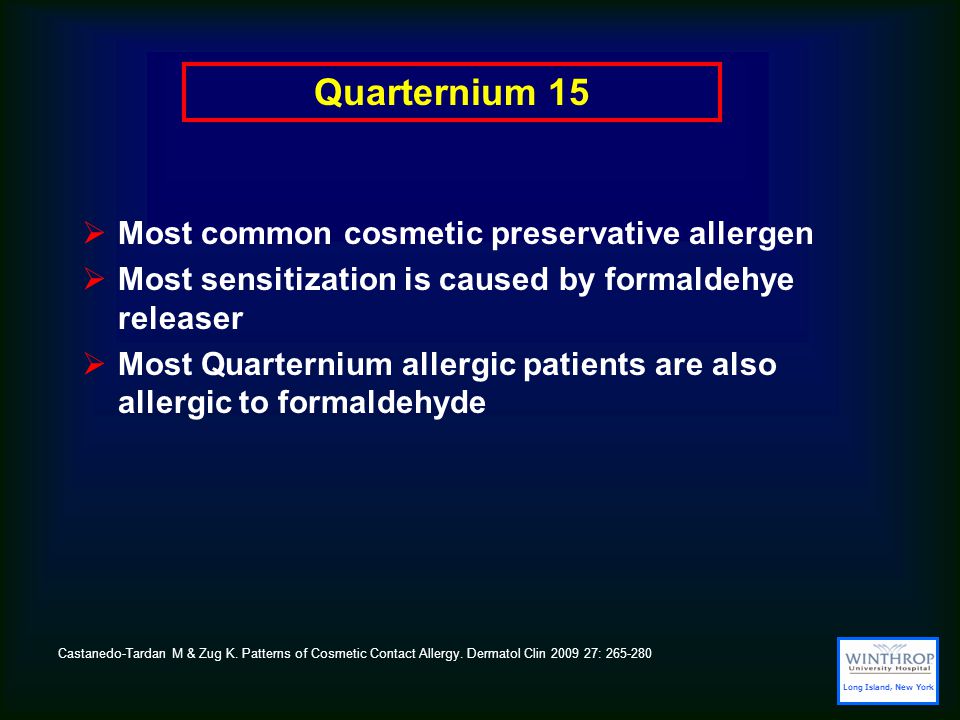

50. Quarternium 15  Most common cosmetic preservative allergen  Most sensitization is caused by formaldehye releaser  Most Quarternium allergic patients are also allergic to formaldehyde Castanedo-Tardan M & Zug K. Patterns of Cosmetic Contact Allergy. Dermatol Clin 2009 27: 265-280 Long Island, New York

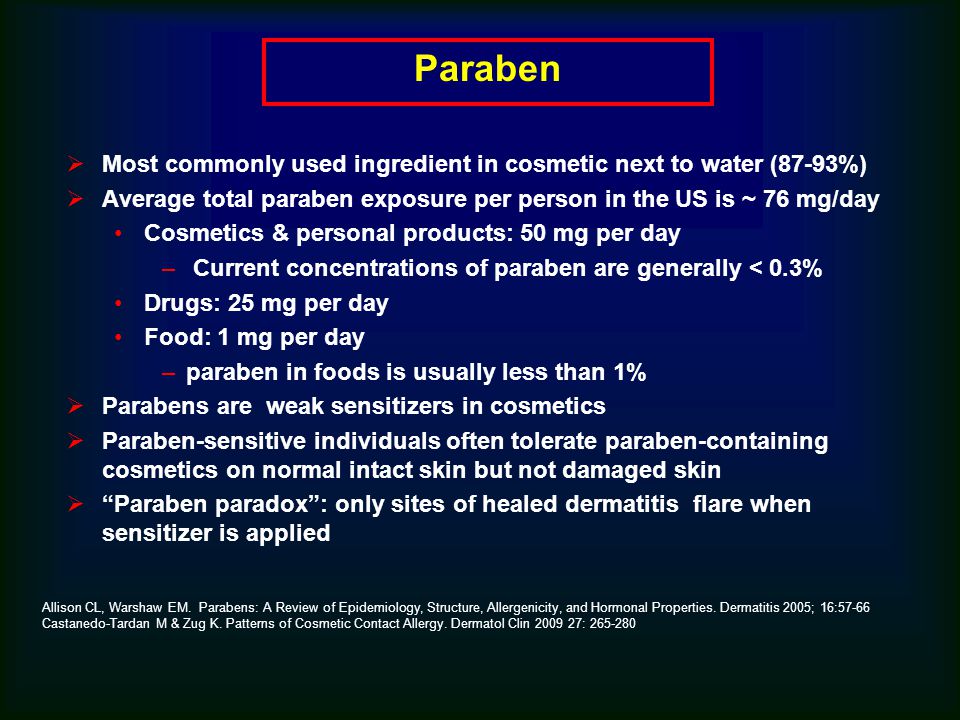

51. Paraben  Most commonly used ingredient in cosmetic next to water (87-93%)  Average total paraben exposure per person in the US is ~ 76 mg/day Cosmetics & personal products: 50 mg per day – Current concentrations of paraben are generally < 0.3% Drugs: 25 mg per day Food: 1 mg per day –paraben in foods is usually less than 1%  Parabens are weak sensitizers in cosmetics  Paraben-sensitive individuals often tolerate paraben-containing cosmetics on normal intact skin but not damaged skin  “Paraben paradox”: only sites of healed dermatitis flare when sensitizer is applied Allison CL, Warshaw EM. Parabens: A Review of Epidemiology, Structure, Allergenicity, and Hormonal Properties. Dermatitis 2005; 16:57-66 Castanedo-Tardan M & Zug K. Patterns of Cosmetic Contact Allergy. Dermatol Clin 2009 27: 265-280

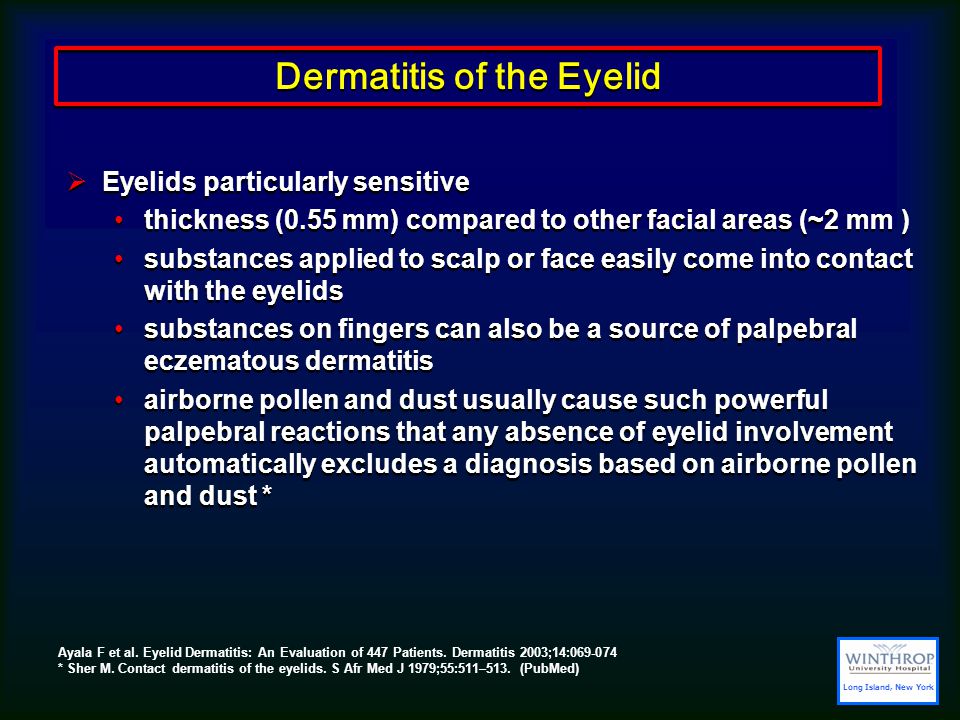

52. Dermatitis of the Eyelid  Eyelids particularly sensitive thickness (0.55 mm) compared to other facial areas (~2 mm ) substances applied to scalp or face easily come into contact with the eyelids substances on fingers can also be a source of palpebral eczematous dermatitis airborne pollen and dust usually cause such powerful palpebral reactions that any absence of eyelid involvement automatically excludes a diagnosis based on airborne pollen and dust *  Eyelids particularly sensitive thickness (0.55 mm) compared to other facial areas (~2 mm ) substances applied to scalp or face easily come into contact with the eyelids substances on fingers can also be a source of palpebral eczematous dermatitis airborne pollen and dust usually cause such powerful palpebral reactions that any absence of eyelid involvement automatically excludes a diagnosis based on airborne pollen and dust * Ayala F et al. Eyelid Dermatitis: An Evaluation of 447 Patients. Dermatitis 2003;14:069-074 * Sher M. Contact dermatitis of the eyelids. S Afr Med J 1979;55:511–513. (PubMed) Long Island, New York

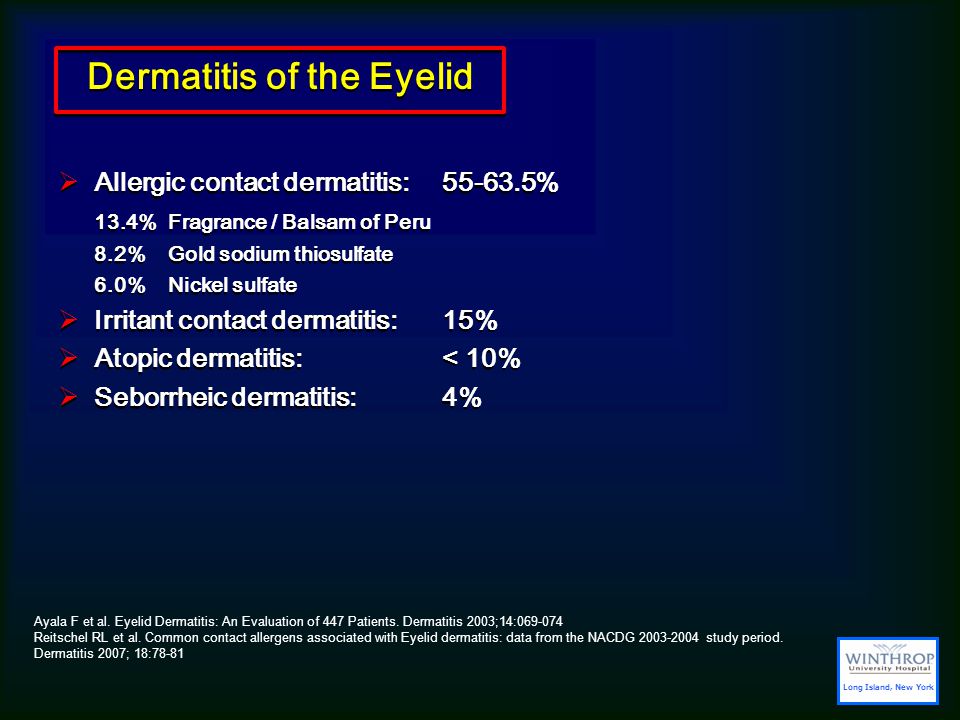

53. Dermatitis of the Eyelid  Allergic contact dermatitis: 55-63.5% 13.4% Fragrance / Balsam of Peru 8.2% Gold sodium thiosulfate 6.0% Nickel sulfate  Irritant contact dermatitis: 15%  Atopic dermatitis: < 10%  Seborrheic dermatitis:4%  Allergic contact dermatitis: 55-63.5% 13.4% Fragrance / Balsam of Peru 8.2% Gold sodium thiosulfate 6.0% Nickel sulfate  Irritant contact dermatitis: 15%  Atopic dermatitis: < 10%  Seborrheic dermatitis:4% Ayala F et al. Eyelid Dermatitis: An Evaluation of 447 Patients. Dermatitis 2003;14:069-074 Reitschel RL et al. Common contact allergens associated with Eyelid dermatitis: data from the NACDG 2003-2004 study period. Dermatitis 2007; 18:78-81 Long Island, New York

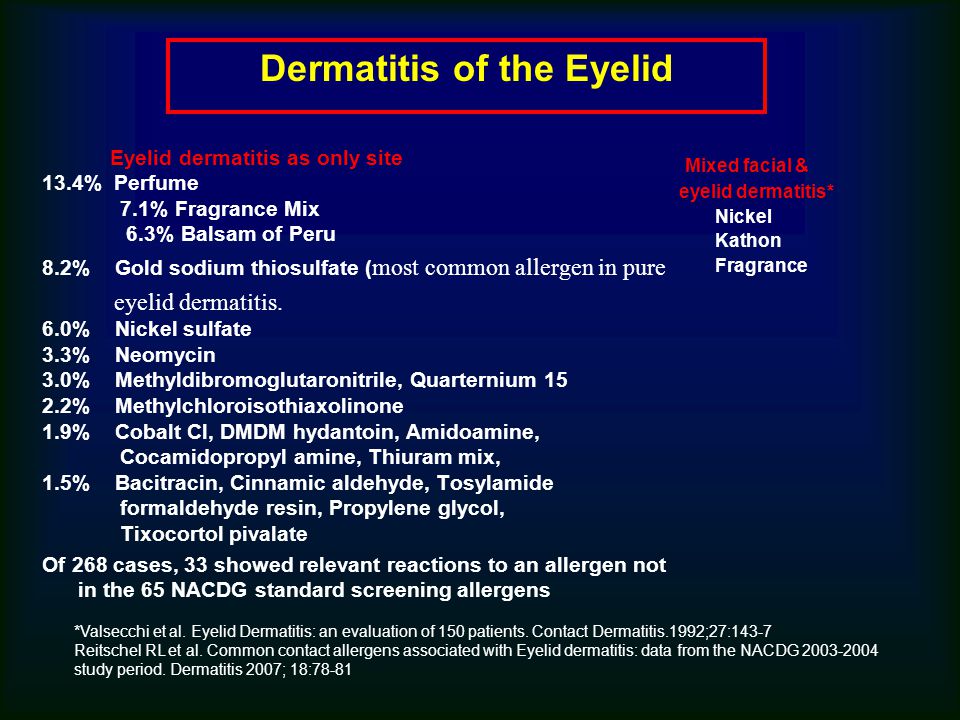

54. Dermatitis of the Eyelid Eyelid dermatitis as only site 13.4% Perfume 7.1% Fragrance Mix 6.3% Balsam of Peru 8.2% Gold sodium thiosulfate ( most common allergen in pure eyelid dermatitis. 6.0% Nickel sulfate 3.3% Neomycin 3.0% Methyldibromoglutaronitrile, Quarternium 15 2.2% Methylchloroisothiaxolinone 1.9% Cobalt Cl, DMDM hydantoin, Amidoamine, Cocamidopropyl amine, Thiuram mix, 1.5% Bacitracin, Cinnamic aldehyde, Tosylamide formaldehyde resin, Propylene glycol, Tixocortol pivalate Of 268 cases, 33 showed relevant reactions to an allergen not in the 65 NACDG standard screening allergens Mixed facial & eyelid dermatitis* Nickel Kathon Fragrance *Valsecchi et al. Eyelid Dermatitis: an evaluation of 150 patients. Contact Dermatitis.1992;27:143-7 Reitschel RL et al. Common contact allergens associated with Eyelid dermatitis: data from the NACDG 2003-2004 study period. Dermatitis 2007; 18:78-81

55. Gold Contact Allergen of 2001  9.5% of 4,101 patch-test were (+) to gold  Most common sites: Hands29.6% Face19.3% –Common in head & neck with seborrheic distribution Eyelids7.5%  Most common uses: Wear it: Fashion appeal Drink it: Anti-inflammatory medication Smile with it: Dental appliance Eat it: Dessert contain 5 g of 24-carat gold)  9.5% of 4,101 patch-test were (+) to gold  Most common sites: Hands29.6% Face19.3% –Common in head & neck with seborrheic distribution Eyelids7.5%  Most common uses: Wear it: Fashion appeal Drink it: Anti-inflammatory medication Smile with it: Dental appliance Eat it: Dessert contain 5 g of 24-carat gold) Fonacier L, Dreskin S, Leung DL. “Allergic Skin Diseases”. 2010 Primer on Allergic and Immunologic Diseases, 6th Edition. The Journal of Allergy and Clinical Immunology. Volume 125, Issue 2, Supplement 2 (February 2010) S 138-149 Ehrlich A, Belsito DV. Allergic contact dermatitis to Gold. Cutis 2000;65:323-6 Fowler et al. Gold allergy in North America. Am J Contact dermat 2001;12:3-5 McKenna KE et al. Contact allergy to gold sodium thiosulfate. Contact Dermatitis 1995;32:143-6 Long Island, New York

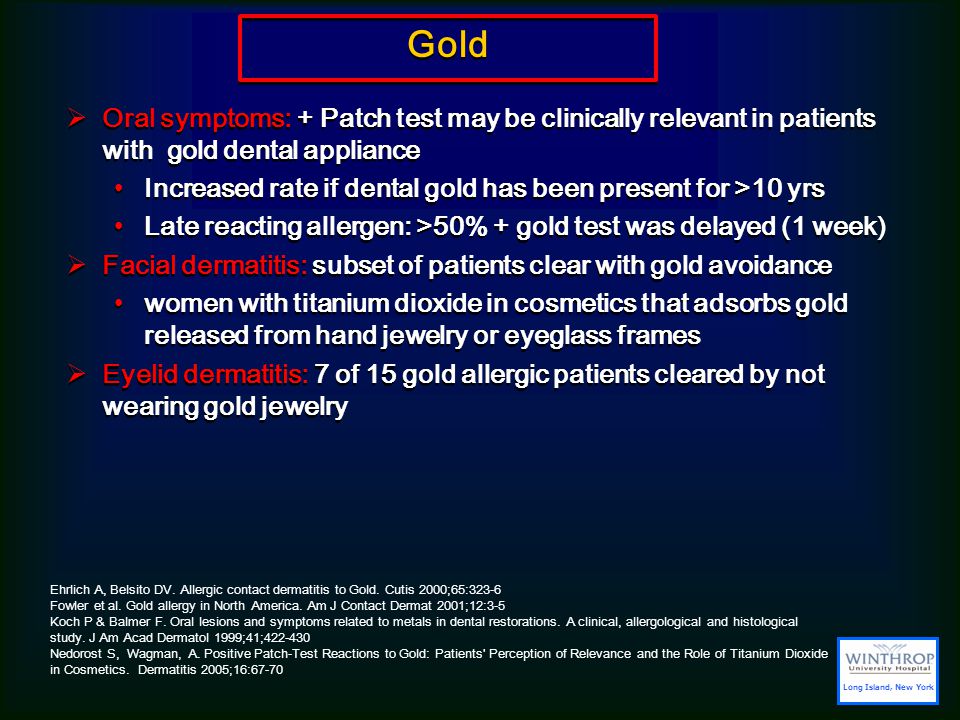

56. Gold  Oral symptoms: + Patch test may be clinically relevant in patients with gold dental appliance Increased rate if dental gold has been present for >10 yrs Late reacting allergen: >50% + gold test was delayed (1 week)  Facial dermatitis: subset of patients clear with gold avoidance women with titanium dioxide in cosmetics that adsorbs gold released from hand jewelry or eyeglass frames  Eyelid dermatitis: 7 of 15 gold allergic patients cleared by not wearing gold jewelry  Oral symptoms: + Patch test may be clinically relevant in patients with gold dental appliance Increased rate if dental gold has been present for >10 yrs Late reacting allergen: >50% + gold test was delayed (1 week)  Facial dermatitis: subset of patients clear with gold avoidance women with titanium dioxide in cosmetics that adsorbs gold released from hand jewelry or eyeglass frames  Eyelid dermatitis: 7 of 15 gold allergic patients cleared by not wearing gold jewelry Ehrlich A, Belsito DV. Allergic contact dermatitis to Gold. Cutis 2000;65:323-6 Fowler et al. Gold allergy in North America. Am J Contact Dermat 2001;12:3-5 Koch P & Balmer F. Oral lesions and symptoms related to metals in dental restorations. A clinical, allergological and histological study. J Am Acad Dermatol 1999;41;422-430 Nedorost S, Wagman, A. Positive Patch-Test Reactions to Gold: Patients' Perception of Relevance and the Role of Titanium Dioxide in Cosmetics. Dermatitis 2005;16:67-70 Long Island, New York

57. Gold Trial of gold avoidance may be warranted if with + PT to gold Avoidance period required for benefit is long and may only be partial Avoidance of gold earrings did not benefit patients with earlobe dermatitis ie no correlation between gold earring use and earlobe dermatitis Subset of gold-allergic patients with facial dermatitis who wore powder, eye shadow, or foundation on affected areas did clear with total avoidance of gold jewelry on the hands and wrists Trial of gold avoidance may be warranted if with + PT to gold Avoidance period required for benefit is long and may only be partial Avoidance of gold earrings did not benefit patients with earlobe dermatitis ie no correlation between gold earring use and earlobe dermatitis Subset of gold-allergic patients with facial dermatitis who wore powder, eye shadow, or foundation on affected areas did clear with total avoidance of gold jewelry on the hands and wrists Ehrlich A, Belsito DV. Allergic contact dermatitis to Gold. Cutis 2000;65:323-6 Fowler et al. Gold allergy in North America. Am J Contact Dermat 2001;12:3-5 Koch P & Balmer F. Oral lesions and symptoms related to metals in dental restorations. A clinical, allergological and histological study. J Am Acad Dermatol 1999;41;422-430 Nedorost S, Wagman, A. Positive Patch-Test Reactions to Gold: Patients' Perception of Relevance and the Role of Titanium Dioxide in Cosmetics. Dermatitis 2005;16:67-70 Long Island, New York

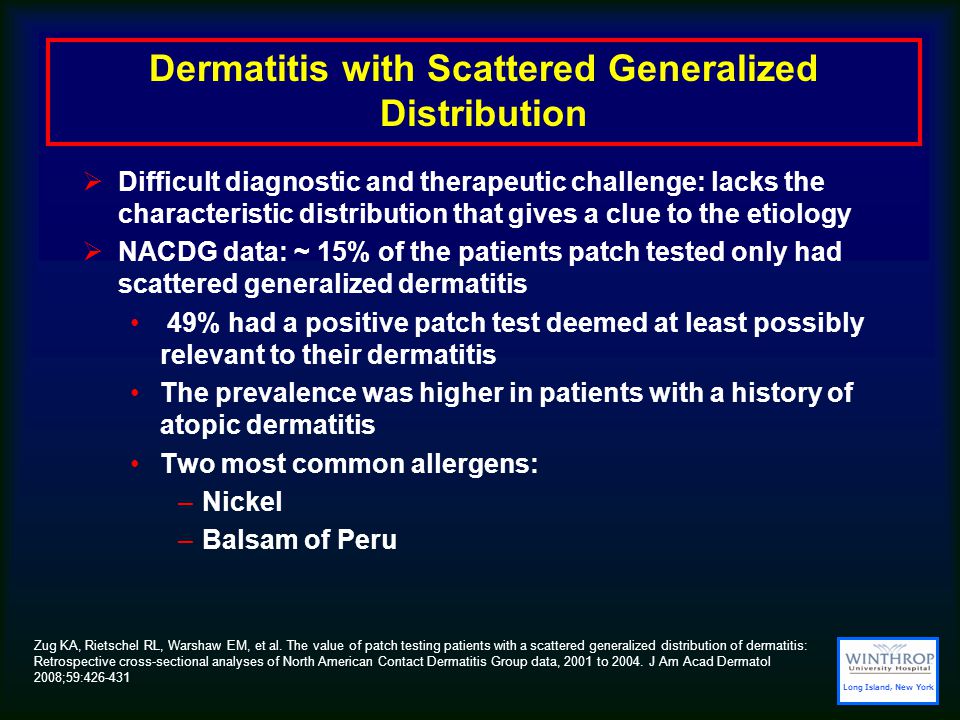

58. Dermatitis with Scattered Generalized Distribution  Difficult diagnostic and therapeutic challenge: lacks the characteristic distribution that gives a clue to the etiology  NACDG data: ~ 15% of the patients patch tested only had scattered generalized dermatitis 49% had a positive patch test deemed at least possibly relevant to their dermatitis The prevalence was higher in patients with a history of atopic dermatitis Two most common allergens: –Nickel –Balsam of Peru Zug KA, Rietschel RL, Warshaw EM, et al. The value of patch testing patients with a scattered generalized distribution of dermatitis: Retrospective cross-sectional analyses of North American Contact Dermatitis Group data, 2001 to 2004. J Am Acad Dermatol 2008;59:426-431 Long Island, New York

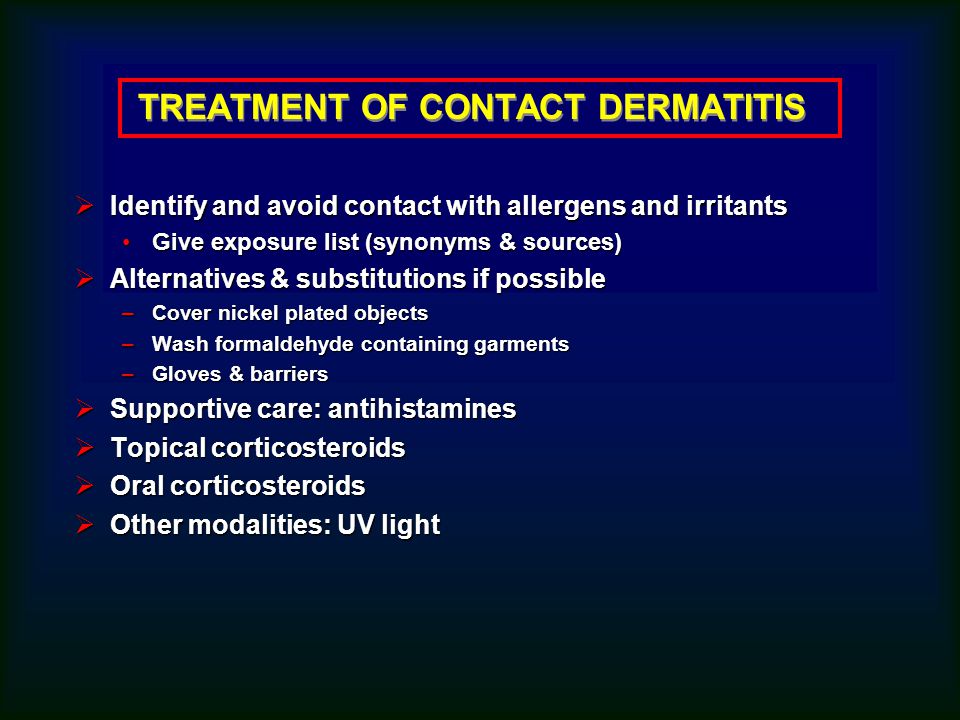

59.  Identify and avoid contact with allergens and irritants Give exposure list (synonyms & sources)Give exposure list (synonyms & sources)  Alternatives & substitutions if possible –Cover nickel plated objects –Wash formaldehyde containing garments –Gloves & barriers  Supportive care: antihistamines  Topical corticosteroids  Oral corticosteroids  Other modalities: UV light TREATMENT OF CONTACT DERMATITIS

60.  Prior to PT, may provide patient with “Lo.C.A.L. (Low contact allergen) Skin Diet (Zug KA); eliminates most common allergens  Products devoid of FragranceFragrance Formaldehyde Releasing PreservativesFormaldehyde Releasing Preservatives MCI/MIMCI/MI MDG/PEMDG/PE LanolinLanolin CAPBCAPB Benzophenone-3Benzophenone-3 TREATMENT OF CONTACT DERMATITIS Long Island, New York

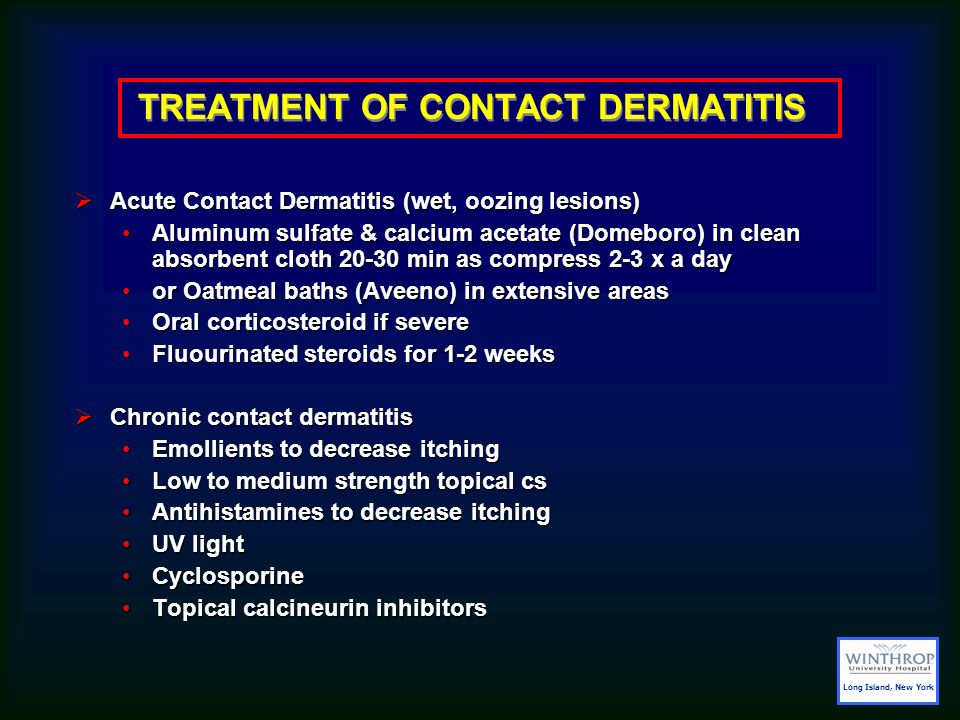

61.  Acute Contact Dermatitis (wet, oozing lesions) Aluminum sulfate & calcium acetate (Domeboro) in clean absorbent cloth 20-30 min as compress 2-3 x a dayAluminum sulfate & calcium acetate (Domeboro) in clean absorbent cloth 20-30 min as compress 2-3 x a day or Oatmeal baths (Aveeno) in extensive areasor Oatmeal baths (Aveeno) in extensive areas Oral corticosteroid if severeOral corticosteroid if severe Fluourinated steroids for 1-2 weeksFluourinated steroids for 1-2 weeks  Chronic contact dermatitis Emollients to decrease itchingEmollients to decrease itching Low to medium strength topical csLow to medium strength topical cs Antihistamines to decrease itchingAntihistamines to decrease itching UV lightUV light CyclosporineCyclosporine Topical calcineurin inhibitorsTopical calcineurin inhibitors TREATMENT OF CONTACT DERMATITIS Long Island, New York
