Presentation on theme: "For internal use only / © Siemens AG 2012. All rights reserved. SIMATIC HMI Panels – Migration."— Presentation transcript:

1 For internal use only / © Siemens AG All rights reserved. SIMATIC HMI Panels – Migration

2 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector SIMATIC HMI Panels Positioning

3 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector Standard phase-out process Deliverable Product Discontinued product only available as Spare Part Deliverable Product in Phase-out (1year) Totally discontinued product Passive product (10 years for HMI Panels) ActivePhase-outCancellation Totally discontinued  PRODIS Update announces the planned phase-out  Moved to the phase-out list ST9  No longer listed in standard catalogue  Not actively marketed any longer  Start of the 10-year spare parts obligation  Fully available as new part  New price group, new GA factor  Upon the cancellation, a notice is given that the products will from now on only be available as spare parts (replacement of defective components)  Moved to the catalog ST9E  Spare parts are generated mainly through the repair of defective components/devices  PRODIS Update announces that the product has been totally discontinued  Removed from the catalog  Production ceases  End of the technical support and consultation  Deleted from the FDB (product database) Totally discontinued productActive product

4 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector Phase-out SIMATIC HMI Panels October, 1st 2012 Optimized timeline & pricing 2 year prolonged phase-out with full availability as a new part. Keep current pricing for Comfort predecessors in the 1st year to reduce short term impacts on customers. Deliverable Product in Phase-out (2 years) OP/TP/MP 77/177/277 activePhase-outCancellation Totally discontinued  PRODIS Update announces the planned phase-out  Moved to the phase-out list ST9  No longer listed in standard catalogue  Not actively marketed any longer  Start of the 10-year spare parts obligation  Fully available as new part  No price change for the 1 st year for predecessors of Comfort Panels  Upon the cancellation, a notice is given that the products will from now on only be available as spare parts (replacement of defective components)  Moved to the catalog ST9E  Spare parts are generated mainly through the repair of defective components/devices  PRODIS Update announces that the product has been totally discontinued  Removed from the catalog  Production ceases  End of the technical support and consultation  Deleted from the FDB (product database) Passive product (10 years for HMI Panels)Totally discontinued productActive product

5 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector SIMATIC HMI Panel Migration Roadmap Push Button Panel: PP7, PP17 Multi Panel: MP 177, MP 277, MP 377 Panel 277: TP 277, OP 277 Panel A-Serie: OP 73, OP 77A, TP 177A TDs: TD200, TD400C Panel B-Serie: OP 77B, TP 177B, OP 177B Micro Panel: OP 73micro, TP 177micro Successor **Predecessor Phase-outActiveCancellation Basic Panel Comfort Panel Key Panel No phase-out related price change! ** Preferred migration 10 year phase out process needs to start ‘quickly’ due to long-term availability of critical components! No phase-out related price change!

6 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector SIMATIC HMI Panels Specials Panel B-Serie: TP 177B INOX Multi Panel: MP 277 INOX, MP 377 INOX Multi Panel: MP 377 PRO / daylight Customer-specific INOX version Phase-outActiveCancellation No phase-out related price change!

7 For internal use only / © Siemens AG All rights reserved.  Migration - Specials Migration - Specials  Migration - SIMATIC C7 / WinAC MP Migration - SIMATIC C7 / WinAC MP  Migration - Comfort Panels Migration - Comfort Panels  Migration - Basic Panels Migration - Basic Panels  Migration - Key Panels Migration - Key Panels  Migration - General Migration - General SIMATIC HMI Panels - MigrationSIMATIC HMI Panels - Migration SIMATIC HMI Panels - Migration

8 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector Migration SIMATIC HMI Panels Framework Conditions / Legend Phase-out product Phase-out date Dark blue = main predecessor Light blue = alternatives Comparison categories "+" available or better than predecessor "-" not available compared to predecessor Please find a detailed product comparison in the excel file attached Price: "+" price identical or lower than predecessor "-" price higher than predecessor (>15%)

9 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector SIMATIC HMI Panels Migration from 4:3 to Wide-Screen Display Formats The display area of wide-screen displays with the same display diagonal as with 4:3 is smaller  migration to the larger display diagonal is recommended 22"w The TIA Portal offers various setting options which support display format conversion, e.g. adjust to full screen, adjustment by height, width, free factor The TIA Portal supports migration from 4:3 to wide-screen 19"w 15"w 12"w 9"w 7"w 4"w 8“ 10“ 6“ 4“ 12“ 15“ 19“

10 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector Phase-out SIMATIC HMI panels All new Panels are engineered only with WinCC TIA Portal  All current HMI-devices can be engineered with WinCC TIA Portal.  Some migration barriers for STEP 7 TIA Portal do exist. If customer stays with STEP 7 V5.5, a Tag converter is offered to allow synchronization of tags in the project.  Very little migration barriers to WinCC TIA Portal:  SIMOTION channel will be supported with WinCC V12.5 and SIMOTION V4.4 -> For details see slides  only minor topics such as Change Control, ProAgent, Rewiring and Dictionaries remain as an open issue  Comfort Panels as well as Basic, Key and Mobile Panels are designed for all current PLCs and therefore perfectly interact with S7-300, S7-400, WinAC and S In the future also S will be supported. The great majority of customers can already migrate to WinCC TIA Portal. Comfort Panels may be used in combination with all current PLCs.

11 For internal use only / © Siemens AG All rights reserved.  Migration - Specials Migration - Specials  Migration - SIMATIC C7 / WinAC MP Migration - SIMATIC C7 / WinAC MP  Migration - Comfort Panels Migration - Comfort Panels  Migration - Basic Panels Migration - Basic Panels  Migration - Key Panels Migration - Key Panels  Migration - General Migration - General SIMATIC HMI Panels - MigrationSIMATIC HMI Panels - Migration SIMATIC HMI Panels - Migration

12 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector SIMATIC HMI Panels Key Panels

13 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector Migration SIMATIC HMI Panels – Pushbutton Panels SIMATIC PP7 1 2 Function compatibility New features InterfacesNumber of keys / lamps Cut-out compatibility Engineering tool Price DPPN STEP 7WinCC V Identical basic function, dimmable 5-color LEDs, empty panel available PN and voltage can be looped through, MRP, shared device Only Profinet support8 keys, 8 lamps, 8 I/Os No, more compact with larger keys GSDML (PN) instead of GSD (DP) Identical basic function, dimmable 5-color LEDs, empty panel available 2 additional fail-safe inputs SIL 2/3, e.g. for E-STOP Only Profinet support8 keys, 8 lamps, 8 I/Os + 2 I/O safety SIL 2/3 No, more compact with larger keys GSDML (PN) instead of GSD (DP) SIMATIC HMI KP8 PN SIMATIC HMI KP8F PN Phase-out date: 10/01/2012 Migration details See migration table

14 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector Migration SIMATIC HMI Panels – Pushbutton Panels SIMATIC PP17-I SIMATIC HMI KP32F PN 2x SIMATIC HMI KP8 PN 2x SIMATIC HMI KP8F PN Function compatibility New features InterfacesNumber of keys / lamps Cut-out compatibility Engineering tool Price DPPN STEP 7WinCC V Identical basic function, dimmable 5-color LEDs, empty panel available PN and voltage can be looped through, MRP, shared device, fail-safe inputs Only Profinet support32 keys, 32 lamps, 16 I/Os No, more compact with larger keys GSDML (PN) instead of GSD (DP) Enhanced mechanical flexibility Like without fail-safe inputs Only Profinet support16 keys, 16 lamps, 16 I/Os No, reduced space requirements GSDML (PN) instead of GSD (DP) Enhanced mechanical flexibility LikeOnly Profinet support16 keys, 16 lamps, 16 I/Os, 2 I/Os safety No, reduced space requirements GSDML (PN) instead of GSD (DP) Phase-out date: 10/01/ Migration details See migration table

15 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector Migration SIMATIC HMI Panels – Pushbutton Panels SIMATIC PP17-II 1 SIMATIC HMI KP32F PN Function compatibility New features InterfacesNumber of keys / lamps Cut-out compatibility Engineering tool Price DPPN STEP 7WinCC V Identical basic functions, dimmable 5-color LEDs PN and voltage can be looped through, MRP, shared device, fail-safe inputs Only Profinet support32 keys, 32 lamps, 16 I/Os, 4 SIL pins No, more compact with larger keys GSDML (PN) instead of GSD (DP) Enhanced mechanical flexibility Like without fail-safe inputs Only Profinet support32 I/OsNo, reduced space requirements GSDML (PN) instead of GSD (DP) Enhanced mechanical flexibility LikeOnly Profinet support32 I/Os, 4 SIL pins No, reduced space requirements GSDML (PN) instead of GSD (DP) Phase-out date: 10/01/ x SIMATIC HMI KP8 PN 4x SIMATIC HMI KP8F PN 1 1 Migration details See migration table

16 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector Migration SIMATIC HMI Panels - PushButtonPanel SIMATIC PP7 / PP17-I with additionally operating controls Increase the flexibility with Key Panel Design – blank front  aluminum front with perforation for 22,5 mm standard operating controls  command element mounting without metal-cutting tools  hole free modular mounting, also directly beside a Key Panels =>minimum mechanical and electrical effort  Free configurable SIMATIC IO‘s are already included in Key Panels to connect e.g. : - key switch, toggle switch, illuminated push-button - signal lamps - actors and sensors - emergency- stop key Sil2/3 (potential-free) only with F Variants  easy labeling from separate control unit with IP65 1 Design blank front For modular mounting Phase out date: 01/10/2012

17 For internal use only / © Siemens AG All rights reserved.  Migration - Specials Migration - Specials  Migration - SIMATIC C7 / WinAC MP Migration - SIMATIC C7 / WinAC MP  Migration - Comfort Panels Migration - Comfort Panels  Migration - Basic Panels Migration - Basic Panels  Migration - Key Panels Migration - Key Panels  Migration - General Migration - General SIMATIC HMI Panels - MigrationSIMATIC HMI Panels - Migration SIMATIC HMI Panels - Migration

18 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector SIMATIC HMI Panels Basic Panels

19 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector Migration SIMATIC HMI Panels SIMATIC TD100C Phase-out date: 10/01/2009 KP300 Basic mono PN 1 Function compatibility New features InterfacesDisplay size Cut-out compatibility Engineering tool Price DPPN STEP7 Micro/WIN WinCC V Full HMI functional scope 10-digit number pad, retentive message buffer 3.6“ with colored LED background illumination Engineering efficiency with WinCC V11 Migration details See migration table

20 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector Migration SIMATIC HMI Panels SIMATIC TD200 Phase-out date: 10/01/2012 KP300 Basic mono PN 1 Function compatibility New features InterfacesDisplay size Cut-out compatibility Engineering tool Price DPPN STEP7 Micro/WIN WinCC V Full HMI functional scope 10-digit number pad, retentive message buffer 3.6“ with colored LED background illumination Engineering efficiency with WinCC V11 Migration details See migration table

21 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector Migration SIMATIC HMI Panels SIMATIC TD200C Phase-out date: 10/01/2009 KP300 Basic mono PN 1 Function compatibility New features InterfacesDisplay size Cut-out compatibility Engineering tool Price DPPN STEP7 Micro/WIN WinCC V Full HMI functional scope 10-digit number pad, retentive message buffer 3.6“ with colored LED background illumination Engineering efficiency with WinCC V11 Migration details See migration table

22 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector Migration SIMATIC HMI Panels SIMATIC TD400C Phase-out date: 10/01/2012 KP300 Basic mono PN 1 Function compatibility New features InterfacesDisplay size Cut-out compatibility Engineering tool Price DPPN STEP7 Micro/WIN WinCC V Full HMI functional scope 10-digit number pad, retentive message buffer 3.6“ with colored LED background illumination Engineering efficiency with WinCC V11 Migration details See migration table

23 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector Migration SIMATIC HMI Panels SIMATIC OP 73micro Phase-out date: 10/01/2012 KP300 Basic mono PN 1 Function compatibility New features InterfacesDisplay size Cut-out compatibility Engineering tool Price DPPN WinCC flexibleWinCC V Observe system limits * Retentive message buffer 3.6“ with colored LED background illumination Engineering efficiency with WinCC V11 * With Basic Panels, only the number of tags represents a fixed limit, all other values are determined by the memory Migration details See migration table

24 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector Migration SIMATIC HMI Panels SIMATIC OP 73 Phase-out date: 10/01/2012 KP300 Basic mono PN 1 Function compatibility New features InterfacesDisplay size Cut-out compatibility Engineering tool Price DPPN WinCC flexibleWinCC V Observe system limits * Retentive message buffer 3.6“ with colored LED background illumination Engineering efficiency with WinCC V11 * With Basic Panels, only the number of tags represents a fixed limit, all other values are determined by the memory Migration details See migration table

25 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector Migration SIMATIC HMI Panels SIMATIC OP 77A Phase-out date: 10/01/2012 KP400 Basic color PN 1 Function compatibility New features InterfacesDisplay size Cut-out compatibility Engineering tool Price DPPN WinCC flexibleWinCC V Observe system limits * Retentive message buffer 4“ wide- screen Engineering efficiency with WinCC V11 * With Basic Panels, only the number of tags represents a fixed limit, all other values are determined by the memory Migration details See migration table

26 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector Migration SIMATIC HMI Panels SIMATIC TP 177 Micro Phase-out date: 10/01/2012 KTP600 Basic mono PN KTP600 Basic color DP 1 2 Function compatibility New features InterfacesDisplay size Cut-out compatibility Engineering tool Price DPPN WinCC flexibleWinCC V Observe system limits * Retentive message buffer Engineering efficiency with WinCC V Observe system limits * Retentive message buffer Engineering efficiency with WinCC V11 * With Basic Panels, only the number of tags represents a fixed limit, all other values are determined by the memory Migration details See migration table

27 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector Migration SIMATIC HMI Panels SIMATIC TP 177A Phase-out date: 10/01/2012 KTP600 Basic mono PN KTP600 Basic color DP Function compatibility New features InterfacesDisplay size Cut-out compatibility Engineering tool Price DPPN WinCC flexibleWinCC V Observe system limits * Retentive message buffer Engineering efficiency with WinCC V Observe system limits * Retentive message buffer Engineering efficiency with WinCC V Full HMI functional scope Service concept, 16 million colors, archives, scripts, viewers 4“ wide- screen, dimmable LED backlight Engineering efficiency with WinCC V11 KTP400 Comfort * With Basic Panels, only the number of tags represents a fixed limit, all other values are determined by the memory Migration details See migration table

28 For internal use only / © Siemens AG All rights reserved.  Migration - Specials Migration - Specials  Migration - SIMATIC C7 / WinAC MP Migration - SIMATIC C7 / WinAC MP  Migration - Comfort Panels Migration - Comfort Panels  Migration - Basic Panels Migration - Basic Panels  Migration - Key Panels Migration - Key Panels  Migration - General Migration - General SIMATIC HMI Panels - MigrationSIMATIC HMI Panels - Migration SIMATIC HMI Panels - Migration

29 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector SIMATIC HMI Panels Comfort Panels

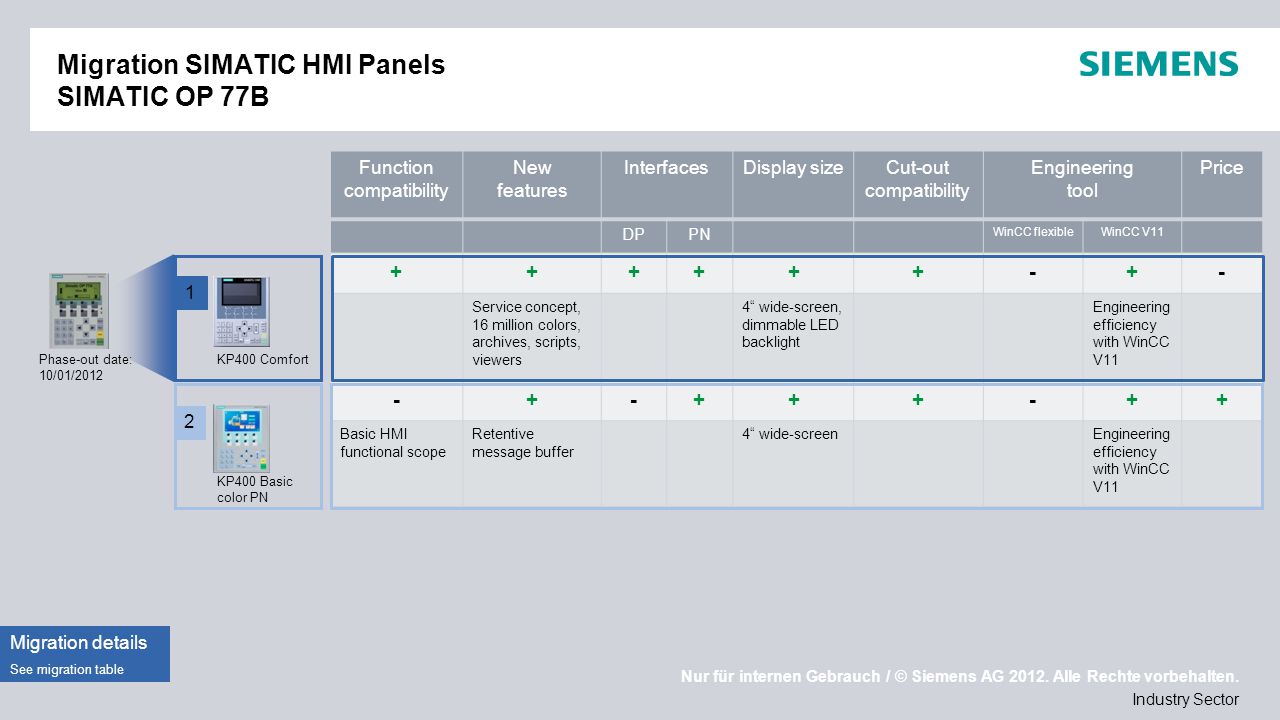

30 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector Migration SIMATIC HMI Panels SIMATIC OP 77B Phase-out date: 10/01/2012 KP400 Comfort KP400 Basic color PN 1 2 Function compatibility New features InterfacesDisplay sizeCut-out compatibility Engineering tool Price DPPN WinCC flexibleWinCC V Service concept, 16 million colors, archives, scripts, viewers 4“ wide-screen, dimmable LED backlight Engineering efficiency with WinCC V Basic HMI functional scope Retentive message buffer 4“ wide-screenEngineering efficiency with WinCC V11 Migration details See migration table

31 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector Migration SIMATIC HMI Panels SIMATIC TP 177B 4“ Phase-out date: 10/01/ Function compatibility New features InterfacesDisplay sizeCut-out compatibility Engineering tool Price DPPN WinCC flexible WinCC V Service concept, 16 million colors, archives, scripts, viewers 4“ wide-screen, dimmable LED backlight Engineering efficiency with WinCC V11 KTP400 Comfort Migration details See migration table

32 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector Migration SIMATIC HMI Panels SIMATIC TP 177B 6“ DP Mono Phase-out date: 10/01/2012 TP700 Comfort KTP400 Comfort Function compatibility New features InterfacesDisplay sizeCut-out compatibility Engineering tool Price DPPN WinCC flexibleWinCC V Service concept, 16 million colors, archives, scripts, viewers, aluminum die-cast front 7“ wide-screen, dimmable LED backlight Engineering efficiency with WinCC V Service concept, 16 million colors, archives, scripts, viewers 4“ wide-screen, dimmable LED backlight Engineering efficiency with WinCC V Basic HMI functional scope Color displayEngineering efficiency with WinCC V11 KTP600 Basic color DP Migration details See migration table

33 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector Migration SIMATIC HMI Panels SIMATIC TP 177B 6“ DP/PN Color Phase-out date: 10/01/2012 TP700 Comfort KTP400 Comfort Function compatibility New features InterfacesDisplay size Cut-out compatibility Engineering tool Price DPPN WinCC flexibleWinCC V Service concept, 16 million colors, archives, scripts, viewers, aluminum die-cast front 7“ wide- screen, dimmable LED backlight Engineering efficiency with WinCC V Service concept, 16 million colors, archives, scripts, viewers 4“ wide- screen, dimmable LED backlight Engineering efficiency with WinCC V Basic HMI functional scope Engineering efficiency with WinCC V11 KTP600 Basic color DP Migration details See migration table

34 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector Migration SIMATIC HMI Panels SIMATIC OP 177B Mono Phase-out date: 10/01/2012 KP700 Comfort KP400 Comfort Function compatibility New features InterfacesDisplay size Cut-out compatibility Engineering tool Price DPPN WinCC flexibleWinCC V Service concept, 16 million colors, archives, scripts, viewers, aluminum die-cast front 7“ wide- screen, dimmable LED backlight Engineering efficiency with WinCC V Service concept, 16 million colors, archives, scripts, viewers 4“ wide- screen, dimmable LED backlight Engineering efficiency with WinCC V Basic HMI functional scope Color displayEngineering efficiency with WinCC V11 KTP600 Basic color DP Migration details See migration table

35 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector Migration SIMATIC HMI Panels SIMATIC OP 177B Color Phase-out date: 10/01/2012 KP700 Comfort KP400 Comfort Function compatibility New features InterfacesDisplay size Cut-out compatibility Engineering tool Price DPPN WinCC flexibleWinCC V Service concept, 16 million colors, archives, scripts, viewers, aluminum die-cast front 7“ wide- screen, dimmable LED backlight Engineering efficiency with WinCC V Service concept, 16 million colors, archives, scripts, viewers 4“ wide- screen, dimmable LED backlight Engineering efficiency with WinCC V Basic HMI functional scope Engineering efficiency with WinCC V11 KTP600 Basic color PN Migration details See migration table

36 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector Migration SIMATIC HMI Panels SIMATIC OP 177B Key Touch combination - alternatives migration to a touch panel touch functionality Change from 4:3 resolution to widescreen implicate a bigger touch area. Keys can be replaced by touch buttons. migration to a touch panel in combination with a KP8 tangible hardware key next to the panel touch and key operation possible migration to a key operated panel key functionality glass surface, no touch foil needed Phase-out date 10/01/2012 KP700 Comfort TP700 Comfort + KP8 4 migration to a Basic Panel Basic HMI functional scope touch and key operation possible KTP600 Basic color PN

37 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector Migration SIMATIC HMI Panels SIMATIC MP 177 6“ Touch Phase-out date: 10/01/2012 TP700 Comfort 1 Function compatibility New features InterfacesDisplay size Cut-out compatibility Engineering tool Price DPPN WinCC flexibleWinCC V WinAC MP: See migration slide WinAC MP Service concept, 16 million colors, archives, scripts, viewers, aluminum die-cast front 7“ wide- screen, dimmable LED backlight Engineering efficiency with WinCC V11 Migration details See migration table

38 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector Migration SIMATIC HMI Panels SIMATIC TP 277 6“ Phase-out date: 10/01/2012 TP700 Comfort 1 Function compatibility New features InterfacesDisplay size Cut-out compatibility Engineering tool Price DPPN WinCC flexibleWinCC V Service concept, 16 million colors, viewers, aluminum die-cast front 7“ wide- screen, dimmable LED backlight Engineering efficiency with WinCC V11 Migration details See migration table

39 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector Migration SIMATIC HMI Panels SIMATIC OP 277 6“ Phase-out date: 10/01/2012 KP700 Comfort 1 Function compatibility New features InterfacesDisplay size Cut-out compatibility Engineering tool Price DPPN WinCC flexibleWinCC V Service concept, 16 million colors, viewers, aluminum die-cast front 7“ wide- screen, dimmable LED backlight Engineering efficiency with WinCC V11 Migration details See migration table

40 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector Migration SIMATIC HMI Panels SIMATIC MP 277 8“ Touch Phase-out date: 10/01/2012 TP900 Comfort 1 Function compatibility New features InterfacesDisplay size Cut-out compatibility Engineering tool Price DPPN WinCC flexibleWinCC V WinAC MP: See migration slide WinAC MP Service concept, 16 million colors, viewers, aluminum die-cast front 9“ wide- screen, dimmable LED backlight Engineering efficiency with WinCC V11 Migration details See migration table

41 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector Migration SIMATIC HMI Panels SIMATIC MP 277 8“ Key Phase-out date: 10/01/2012 KP900 Comfort 1 Function compatibility New features InterfacesDisplay size Cut-out compatibility Engineering tool Price DPPN WinCC flexibleWinCC V WinAC MP: See migration slide WinAC MP Service concept, 16 million colors, viewers, aluminum die-cast front 9“ wide- screen, dimmable LED backlight Engineering efficiency with WinCC V11 Migration details See migration table

42 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector Migration SIMATIC HMI Panels SIMATIC MP “ Touch Phase-out date: 10/01/2012 TP1200 Comfort 1 Function compatibility New features InterfacesDisplay size Cut-out compatibility Engineering tool Price DPPN WinCC flexibleWinCC V WinAC MP: See migration slide WinAC MP Service concept, 16 million colors, viewers, aluminum die-cast front 12“ wide- screen, dimmable LED backlight Engineering efficiency with WinCC V11 Migration details See migration table

43 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector Migration SIMATIC HMI Panels SIMATIC MP “ Key Phase-out date: 10/01/2012 KP1200 Comfort 1 Function compatibility New features InterfacesDisplay size Cut-out compatibility Engineering tool Price DPPN WinCC flexibleWinCC V WinAC MP: See migration slide WinAC MP Service concept, 16 million colors, viewers, aluminum die-cast front 12“ wide- screen, dimmable LED backlight Engineering efficiency with WinCC V11 Migration details See migration table

44 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector Migration SIMATIC HMI Panels SIMATIC MP “ Touch Phase-out date: 10/01/2012 TP1500 Comfort 1 Function compatibility New features InterfacesDisplay size Cut-out compatibility Engineering tool Price DPPN WinCC flexibleWinCC V WinAC MP: See migration slide WinAC MP Service concept, 16 million colors, viewers, aluminum die-cast front 15“ wide- screen, dimmable LED backlight Engineering efficiency with WinCC V11 SP2 Migration details See migration table

45 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector Migration SIMATIC HMI Panels SIMATIC MP “ Key Phase-out date: 10/01/2012 KP1500 Comfort 1 Function compatibility New features InterfacesDisplay size Cut-out compatibility Engineering tool Price DPPN WinCC flexibleWinCC V WinAC MP: See migration slide WinAC MP Service concept, 16 million colors, viewers, aluminum die-cast front 15“ wide- screen, dimmable LED backlight Engineering efficiency with WinCC V11 SP2 Migration details See migration table

46 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector Migration SIMATIC HMI Panels SIMATIC MP “ Touch Phase-out date: 10/01/2012 TP1900 Comfort 1 Function compatibility New features InterfacesDisplay size Cut-out compatibility Engineering tool Price DPPN WinCC flexibleWinCC V WinAC MP: See migration slide WinAC MP Service concept, 16 million colors, viewers, aluminum die-cast front 19“ wide- screen, dimmable LED backlight Engineering efficiency with WinCC V11 SP2 Migration details See migration table

47 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector Migration SIMATIC HMI Panels SIMATIC MP “ Touch Phase-out date: 10/01/2012 TP2200 Comfort 1 Function compatibility New features InterfacesDisplay size Cut-out compatibility Engineering tool Price DPPN WinCC flexibleWinCC V WinAC MP: See migration slide WinAC MP Service concept, 16 million colors, viewers, aluminum die-cast front 22“ wide- screen, dimmable LED backlight Engineering efficiency with WinCC V11 SP2 Migration details See migration table

48 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten.  Migration - Specials Migration - Specials  Migration - SIMATIC C7 / WinAC MP Migration - SIMATIC C7 / WinAC MP  Migration - Comfort Panels Migration - Comfort Panels  Migration - Basic Panels Migration - Basic Panels  Migration - Key Panels Migration - Key Panels  Migration - General Migration - General SIMATIC HMI Panels - MigrationSIMATIC HMI Panels - Migration SIMATIC HMI Panels - Migration

49 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector General Migration - Information General Information for WINAC MP Migration HMIPLCPeripherie Engineering Change to TIA-Portal required with Windows 7 32/64Bit support Screens Easy migration with change device function Rearrangement from 4:3 to Widescreen WinAC MP Standard Screens must adapt Functions To use new Functions' is it necessary to adapted the current project Hardware installation compatibility with some Comfort Panels Engineering Change to TIA-Portal required with Windows 7 32/64Bit support Hardware Config New project required PLC-Code S7 Code is compatible with copy and paste System functions CPU dependent Hardware The HW-PLC take up room additional cable necessary Types Continue current Peripherie or migrate to the new ET200SP with an attractive price Functions Depending on the HW-PLC Hardware modification only with chancing to ET200SP necessary Service concept: The migration to IPC (with WinCC RT + WinAC RTX ) offers the possibility to store all data to one memory medium

50 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector Migration SIMATIC HMI Panels Pre-Predecessors We recommend customers still employing "pre-predecessors" to skip one innovation level and directly migrate to the new complete solution Pre-predecessorsSkip direct successorSuccessor C7 613MP177 & WinAC MP177 Comfort Panel & S7-300 or Basic Panel & S C7 635 Touch / KeyMP177 & WinAC MP177 Comfort Panel & S7-300 or Basic Panel & S C7 636 Touch / KeyMP277 & WinAC MP277 Comfort Panel & S7-300 or IPC277D & WinCC RT & RTX MP370 / WinAC MP V3.1MP377 & WinAC MP377 Comfort Panel & S7-300 or IPC277D & WinCC RT & RTX Migration recommendation HMI panels: See respective migration slide

51 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector Migration SIMATIC HMI Panels SIMATIC WinAC MP 177 Function compatibility New features PerformanceUser Know- How PeripheryEngineering Tool Price HMIPLCHMIPLC WinCC flexible & STEP 7 - Classic WinCC V11 & STEP7 V HMI 4:3  Widescreen PLC adoption necessary HMI Comfort – Panel 7“ – 22“ PLC CPU Failsafe possible Basic HMI PLC ET 200SP More details see ET200SP Only with V11 possible HMI Migration possible PLC adoption necessary HMI Basic-Panel 6“ – 15“ PLC CPU dependent from PLC Basic HMI PLC ET 200SP More details see ET200SP Only with V11 possible MP 177 incl. WinAC MP 177 Phase-out date: 10/01/2012 Basic – Panel KTP600 + S CPU Comfort – Panel TP700 + S7-300 CPU 2 1

52 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector Migration SIMATIC HMI Panels SIMATIC WinAC MP 277 MP 277 incl. WinAC MP 277 Phase-out date: 10/01/ Function compatibility New features PerformanceUser Know- How PeripheryEngineering Tool Price HMIPLCHMIPLC WinCC felxible & STEP 7 - Classic WinCC V11 & STEP7 V HMI 4:3  Widescreen PLC adoption necessary separate data memory HMI Comfort – Panel 7“ – 22“ PLC CPU Failsafe possible Basic HMI PLC ET 200SP More details see ET200SP Only with V11 possible HMI 4:3  Widescreen PLC adoption necessary HMI IPC 7“ – 19“ PLC RTX F-CPU possible PC- openness Basic HMI PLC PC ET 200SP More details see ET200SP IP277D + WinCC RT + WinAC RTX Comfort – Panel TP900 + S7-300 CPU 1

53 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector Migration SIMATIC HMI Panels SIMATIC WinAC MP 377 Function compatibility New features PerformanceUser Know- How PeripheryEngineering Tool Price HMIPLCHMIPLC WinCC felxible & STEP 7 - Classic WinCC V11 & STEP7 V HMI 4:3  Widescreen PLC adoption necessary separate data memory HMI Comfort – Panel 7“ – 22“ PLC CPU Failsafe possible Basic HMI PLC ET 200SP More details see ET200SP Only with V11 possible HMI 4:3  Widescreen PLC adoption necessary HMI IPC 7“ – 19“ PLC - RTX F-CPU possible - PC- openness Basic HMI PLC PC ET 200SP More details see ET200SP MP 377 incl. WinAC MP 377 Phase-out date: 10/01/2012 Comfort – Panel TP S7-300 CPU 2 IP277D + WinCC RT + WinAC RTX 1

54 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten.  Migration - Specials Migration - Specials  Migration - SIMATIC C7 / WinAC MP Migration - SIMATIC C7 / WinAC MP  Migration - Comfort Panels Migration - Comfort Panels  Migration - Basic Panels Migration - Basic Panels  Migration - Key Panels Migration - Key Panels  Migration - General Migration - General SIMATIC HMI Panels - MigrationSIMATIC HMI Panels - Migration SIMATIC HMI Panels - Migration

55 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector Migration SIMATIC HMI Panels SIMATIC INOX Phase-out date: See xP x77 Customized solution 1 SIMATIC HMI panels can be requested as customer-specific INOX version

56 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector Migration SIMATIC HMI Panels SIMATIC MP 377 Specials Phase-out date: 10/01/2014 In process of planning… MP 377 PRO Phase-out date: 10/01/2014 In process of planning… MP 377 daylight

57 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector Migration SIMATIC HMI Panels Pre-Predecessors We recommend customers still employing "pre-predecessors" to skip one innovation level and directly migrate to the new Basic and Comfort Panels. Pre-predecessorsSkip direct successorSuccessor OP3OP 73KP300 Basic OP7OP 77A OP 77B KP400 Basic KP400 Comfort OP17OP 177BKP700 Comfort TP 170A TP/OP 170 TP 177A TP/OP 177B KTP600 Basic TP/KP700 Comfort TP/OP/MP 270TP/OP/MP 277TP/KP700 Comfort to TP/KP1200 Comfort MP 370MP 377TP/KP1500 Comfort to TP2200 Comfort C7WinAC MPPanel + control  see WinAC MP Migration recommendation HMI panels: See respective migration slide

58 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector  If the control panel type is supported in WinCC V11, the project is imported without changes upon migration.  If the control panel type is no longer supported in WinCC V11, the suitable predecessor device is automatically shown. Migration SIMATIC HMI Panels Migration of Existing HMI Projects MP 277 WinCC V11 WinCC flexible 2008 SP2 MP 277 WinCC V11 WinCC flexible 2008 SP2 MP 270 Note: The migration of WinCC flexible projects to the TIA Portal is only possible with version 2008 SP2. ProTool projects first have to be migrated to WinCC flexible 2008 SP2. Import of existing projects in WinCC V11

59 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector SIMATIC HMI Panel Engineering Migration from ProTool via WinCC flexibe to WinCC V1x 2008 SP3 V12V11 SP2 V6.0 SP32008 SP2 Released:2004 Phase out:2007 Mature product:2009 Discontinuation:2010 … Released: May 2010 … Released: Dec 2011 Released: Jan 2012 … ProToolWinCC flexibleWinCC V11WinCC flexibleWinCC V12 save as open Migration The migration of WinCC flexible projects to WinCC VC11 is only possible with version 2008 SP2. ProTool projects first have to be migrated to WinCC flexible 2008 SP2.

60 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector Migration SIMATIC HMI Panels One Integrated HMI Engineering for all Panels – WinCC V11 Engineering edition SCADA WinCC Basic WinCC Comfort WinCC Professional WinCC Advanced Panel PCs Devices SIMATIC HMI Comfort Panels KTP400 Comfort, KP400 Comfort, TP700Comfort, KP700 Comfort, TP900Comfort, KP900 Comfort TP1200Comfort, KP1200Comfort SIMATIC HMI Basic Panels KP300 Basic KTP400 Basic, KTP600 Basic, KTP1000 Basic, TP1500 Basic SIMATIC HMI Panels / Multi Panels OP 73, OP 77, TP 177, OP 177, TP 277, OP 277 MP 177, MP 277, MP 377 SIMATIC HMI Mobile Panels Mobile Panel 177, Mobile Panel 277 *Only Micro Panels OP 73micro and TP 177micro cannot be configured with WinCC V11

61 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector Migration SIMATIC HMI Panels SIMATIC WinCC V11 in Connection with Step7 V5 Integrated classic project available Conversion to STEP 7 and WinCC V11 WinCC (TIA Portal) STEP 7 (TIA Portal) Migration of the integrated project Device switchover Utilization of TIA Portal benefits Integrated classic project available Conversion to WinCC V11 WinCC (TIA Portal) Deintegration Migration of the WinCC flexible project Device switchover STEP 7 classic New project Application of STEP 7 and WinCC V11 WinCC (TIA Portal) STEP 7 (TIA Portal) Utilization of TIA Portal benefits New project / numerous variable changes Application of STEP 7 classic and WinCC V11 WinCC (TIA Portal) Export of STEP 7 variables with TagConverter Import in WinCC V11 STEP 7 classic WinCC flexible STEP 7 classic Link: TagConverter for WinCC (TIA Portal)

62 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector Migration SIMATIC HMI Panels SIMATIC WinCC V11 in Connection with Step7 V5 - Converts the export files of SIMATIC Manager (or of comparable solutions by Rockwell or Schneider) to the tag import format of WinCC (TIA Portal) - For communication with an S7 PLC, which is configured in STEP 7 classic, HMI tags with absolute addresses can be used - Use of Comfort Panels in combination with an S7 PLC, which is configured in STEP 7 classic HMI TagConverter Export file from PLC programming tool Converted file ready for import in WinCC SIMATIC HMI TagConverter

63 Nur für internen Gebrauch / © Siemens AG Alle Rechte vorbehalten. Industry Sector Migration guide for Comfort Panels SIMATIC HMI Comfort Panels Migration Tools and Support Detailed help to support conversion to the new Comfort Panels. Step-by-step instructions explain all changes required on the software and hardware side in detail. TagConverter Supports the application of STEP7 V5 in connection with WinCC V11. The TagConverter imports STEP7 variables in the TIA Portal.
