1 Load Balancing Hybrid Programming Models for SMP Clusters and Fully Permutable Loops Nikolaos Drosinos and Nectarios Koziris National Technical University of Athens Computing Systems Laboratory

2 Oslo, June 15, 2005ICPP-HPSEC Motivation  fully permutable loops always a computational challenge for HPC  hybrid parallelization attractive for DSM architectures  currently, popular free message passing libraries provide limited multi-threading support  SPMD hybrid parallelization suffers from intrinsic load imbalance

3 Oslo, June 15, 2005ICPP-HPSEC Contribution  two static thread load balancing schemes (constant-variable) for coarse-grain funneled hybrid parallelization of fully permutable loops generic simple to implement  experimental evaluation against micro-kernel benchmarks of different programming models message passing fine-grain hybrid coarse-grain hybrid (unbalanced, balanced)

4 Oslo, June 15, 2005ICPP-HPSEC Algorithmic model foracross tile 1 do … foracross tile N do for tile n-1 do Receive(tile); Compute(A,tile); Send(tile); Restrictions:  fully permutable loops  unitary inter-process dependencies

5 Oslo, June 15, 2005ICPP-HPSEC Message passing parallelization  tiling transformation  (overlapped?) computation and communication phases  pipelined execution portable scalable highly optimized

6 Oslo, June 15, 2005ICPP-HPSEC Hybrid parallelization So… why bother?

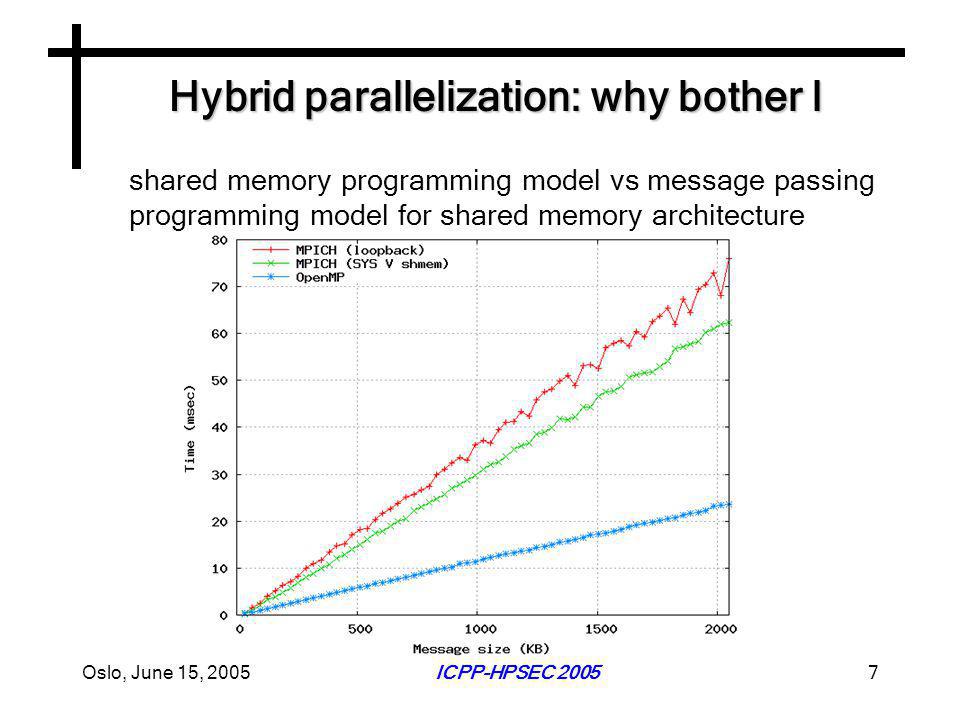

7 Oslo, June 15, 2005ICPP-HPSEC Hybrid parallelization: why bother I shared memory programming model vs message passing programming model for shared memory architecture

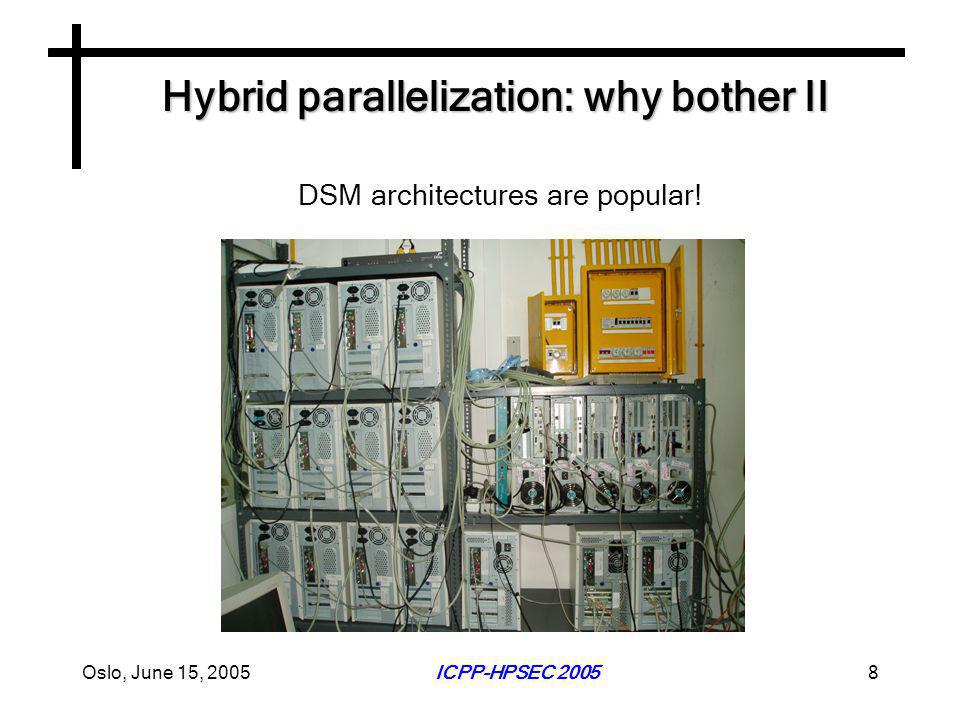

8 Oslo, June 15, 2005ICPP-HPSEC Hybrid parallelization: why bother II DSM architectures are popular!

9 Oslo, June 15, 2005ICPP-HPSEC Fine-grain hybrid parallelization  incremental parallelization of loops  relatively easy to implement  popular  Amdahl’s law restricts parallel efficiency  overhead of thread structures re-initialization  restrictive programming model for many applications

10 Oslo, June 15, 2005ICPP-HPSEC Coarse-grain hybrid parallelization  generic SPMD programming style  good parallelization efficiency  no thread re-initialization overhead  more difficult to implement  intrinsic load imbalance assuming common funneled thread support level

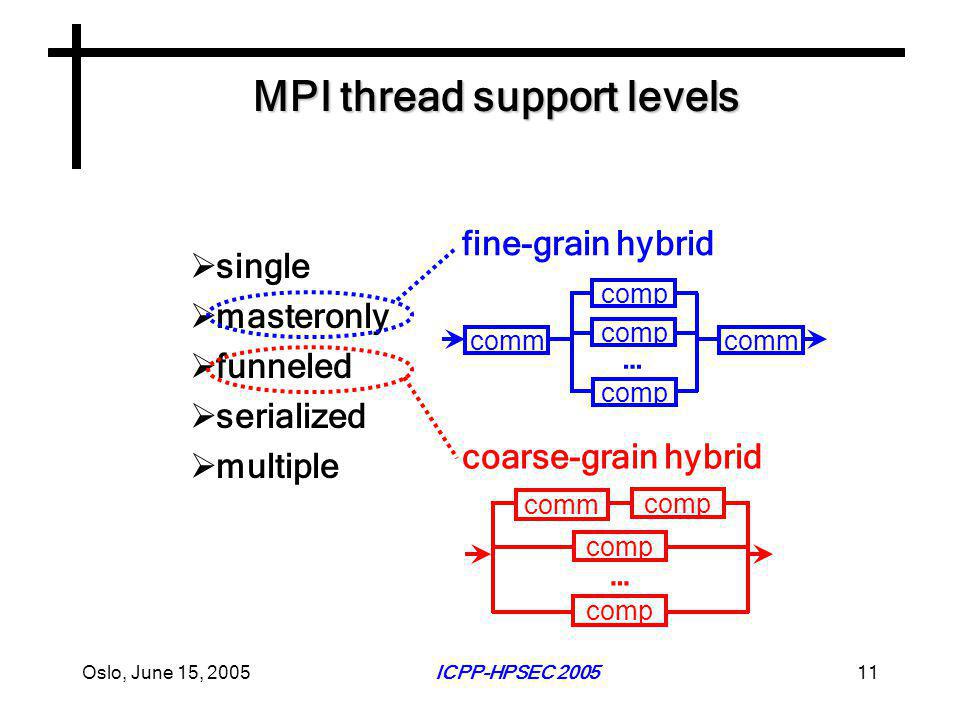

11 Oslo, June 15, 2005ICPP-HPSEC MPI thread support levels  single  masteronly  funneled  serialized  multiple fine-grain hybrid coarse-grain hybrid comm comp comm … comp …

12 Oslo, June 15, 2005ICPP-HPSEC Load balancing Idea Consequence master thread assumes a smaller fraction of the process tile computational load compared to other threads

13 Oslo, June 15, 2005ICPP-HPSEC Load balancing (2) T………total number of threads p………current process id Assuming It follows

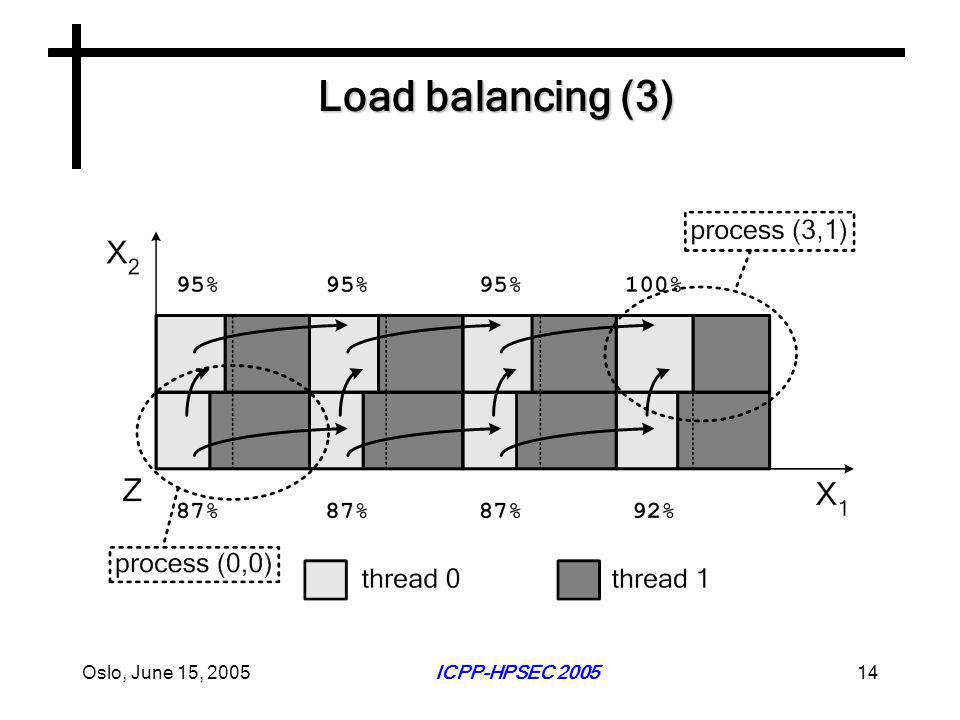

14 Oslo, June 15, 2005ICPP-HPSEC Load balancing (3)

15 Oslo, June 15, 2005ICPP-HPSEC Experimental Results  8-node dual SMP Linux Cluster (800 MHz PIII, 256 MB RAM, kernel )  MPICH v ( --with-device=ch_p4, --with-comm=shared, P4_SOCKBUFSIZE=104KB )  Intel C++ compiler 8.1 ( -O3 -static -mcpu=pentiumpro )  FastEthernet interconnection network

16 Oslo, June 15, 2005ICPP-HPSEC Alternating Direction Implicit (ADI)  Stencil computation used for solving partial differential equations  Unitary data dependencies  3D iteration space (X x Y x Z)

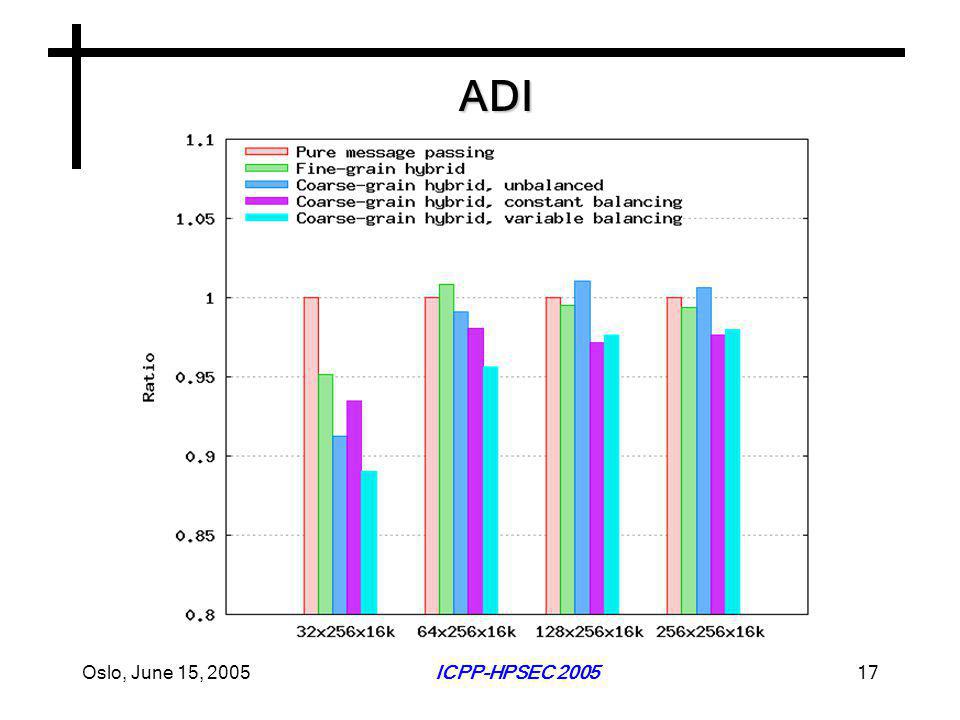

17 Oslo, June 15, 2005ICPP-HPSEC ADI

18 Oslo, June 15, 2005ICPP-HPSEC Synthetic benchmark

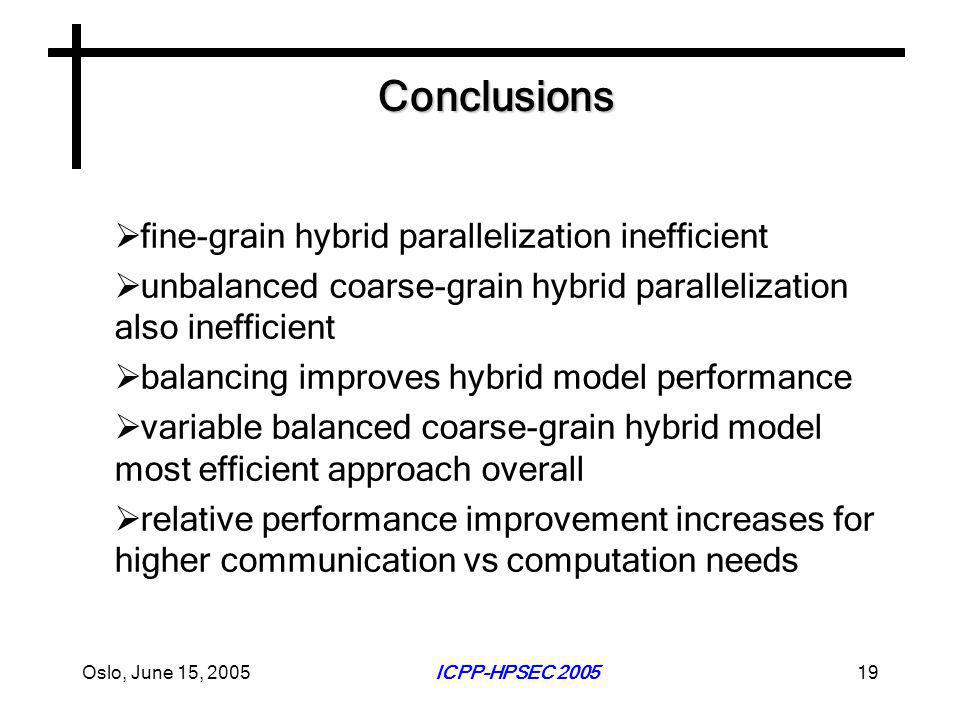

19 Oslo, June 15, 2005ICPP-HPSEC Conclusions  fine-grain hybrid parallelization inefficient  unbalanced coarse-grain hybrid parallelization also inefficient  balancing improves hybrid model performance  variable balanced coarse-grain hybrid model most efficient approach overall  relative performance improvement increases for higher communication vs computation needs

20 Oslo, June 15, 2005ICPP-HPSEC Thank You! Questions?

21 Oslo, June 15, 2005ICPP-HPSEC ADI

22 Oslo, June 15, 2005ICPP-HPSEC Synthetic benchmark
