1
Simple Is Beautiful – Refreshing thinking in engineering modeling and beyond Liming Chang Professor Penn State University Guest Professor National Chung Cheng University

2

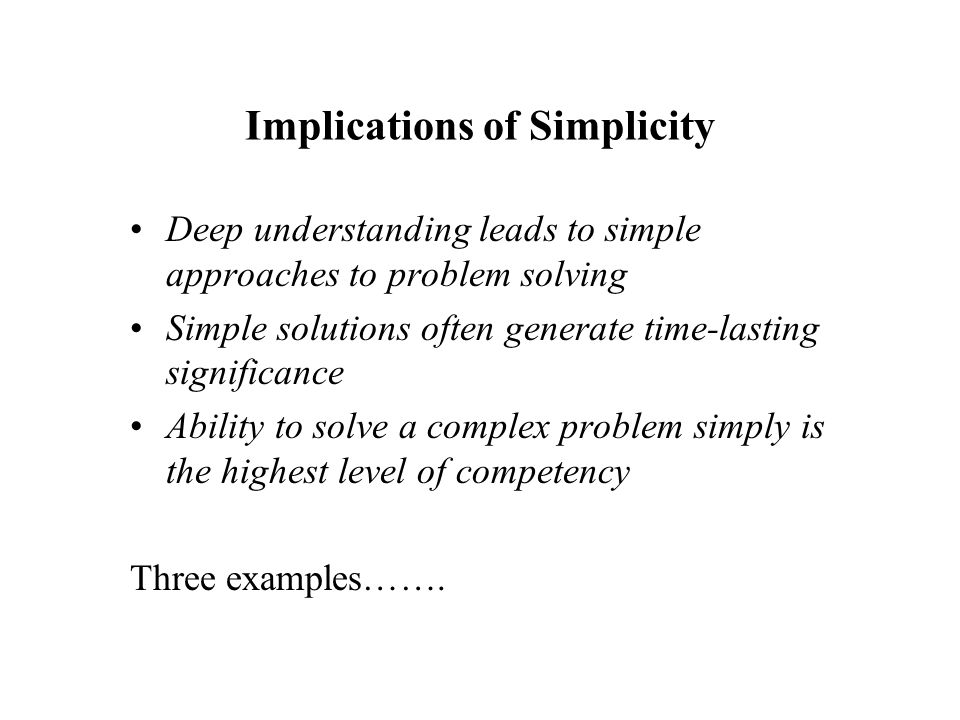

Implications of Simplicity Deep understanding leads to simple approaches to problem solving Simple solutions often generate time-lasting significance Ability to solve a complex problem simply is the highest level of competency Three examples…….

3
I. An Analytical Model for the Basic Design Calculations of Journal Bearings R. K. Naffin and L. Chang http://www.mne.psu.edu/chang/me462/finite-journal.pdf

4
A basic journal bearing

5

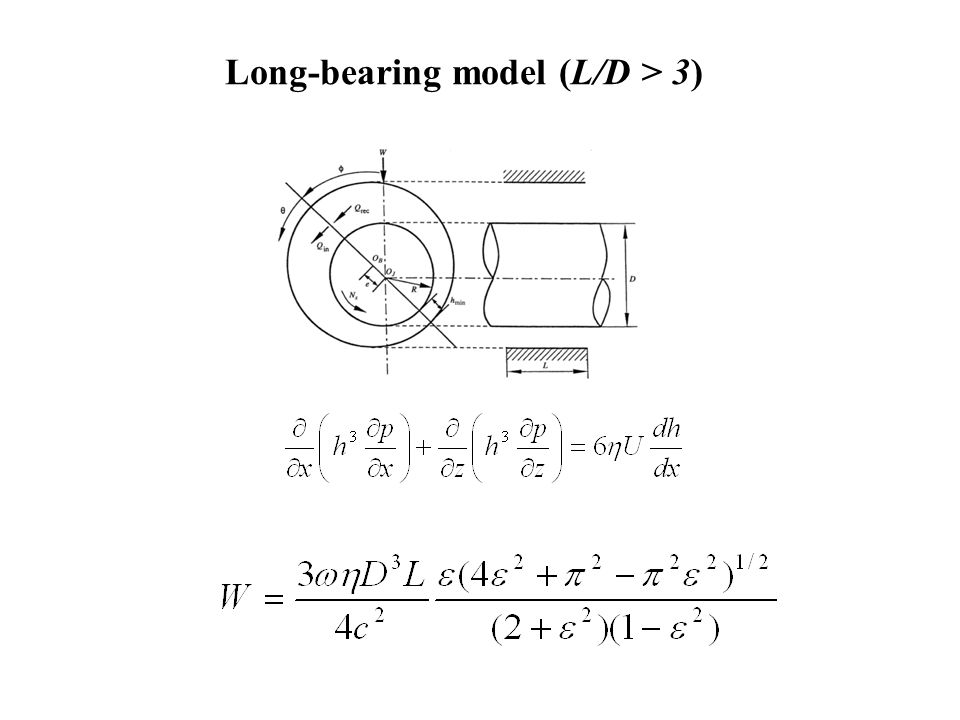

Long-bearing model (L/D > 3)

6
Short-bearing model (L/D < 1/4)

7

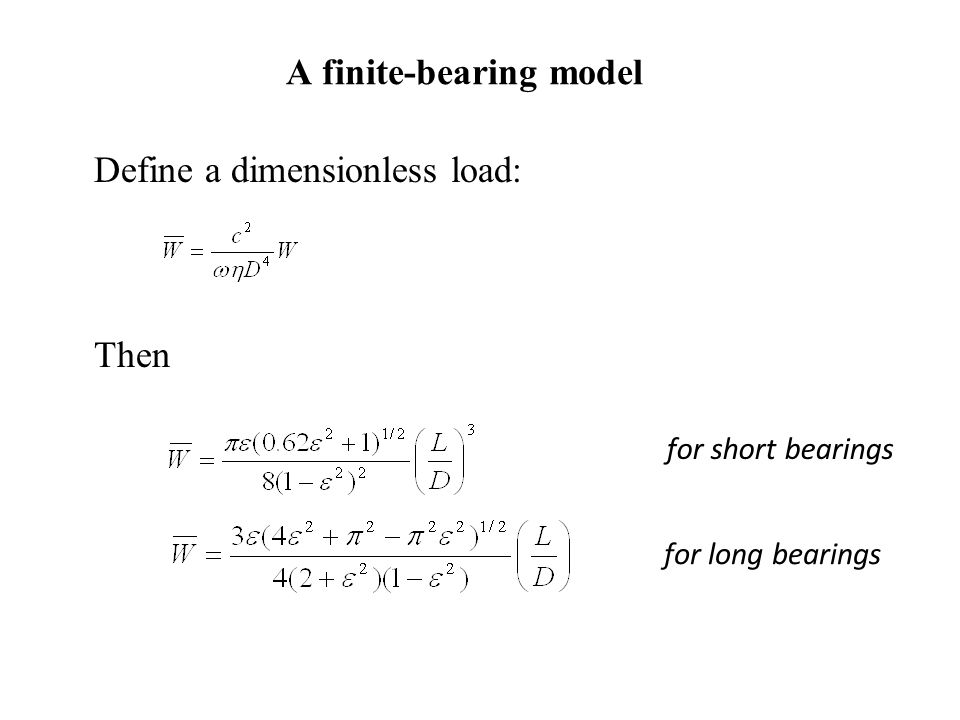

A finite-bearing model Define a dimensionless load: Then for short bearings for long bearings

8
Take log: Or, short bearings long bearings

9
Approximate finite bearings by:

10

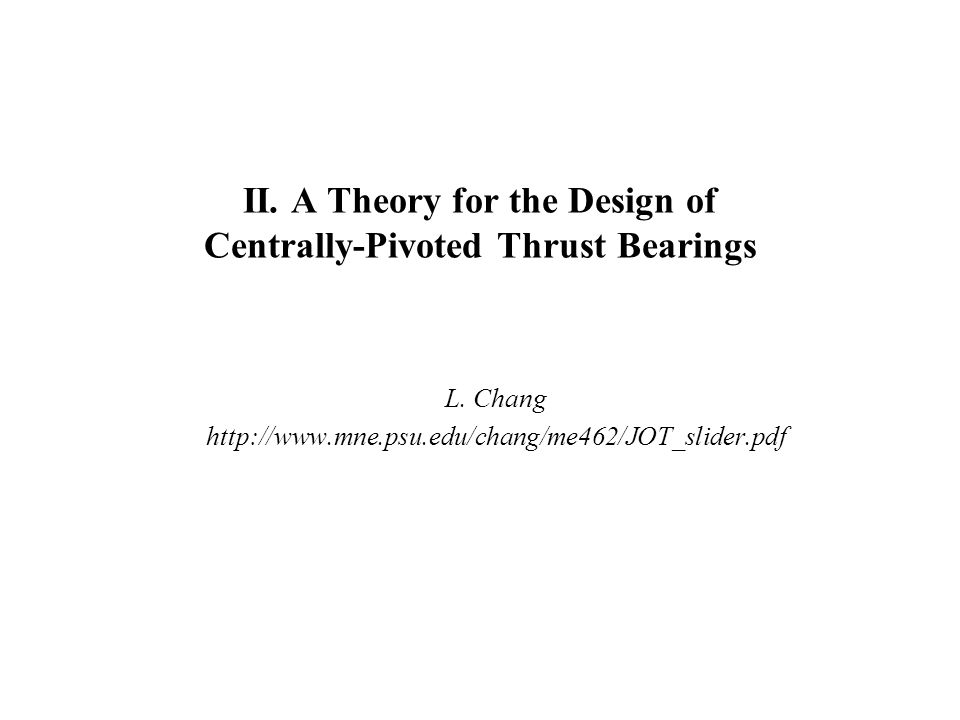

II. A Theory for the Design of Centrally-Pivoted Thrust Bearings L. Chang http://www.mne.psu.edu/chang/me462/JOT_slider.pdf

11

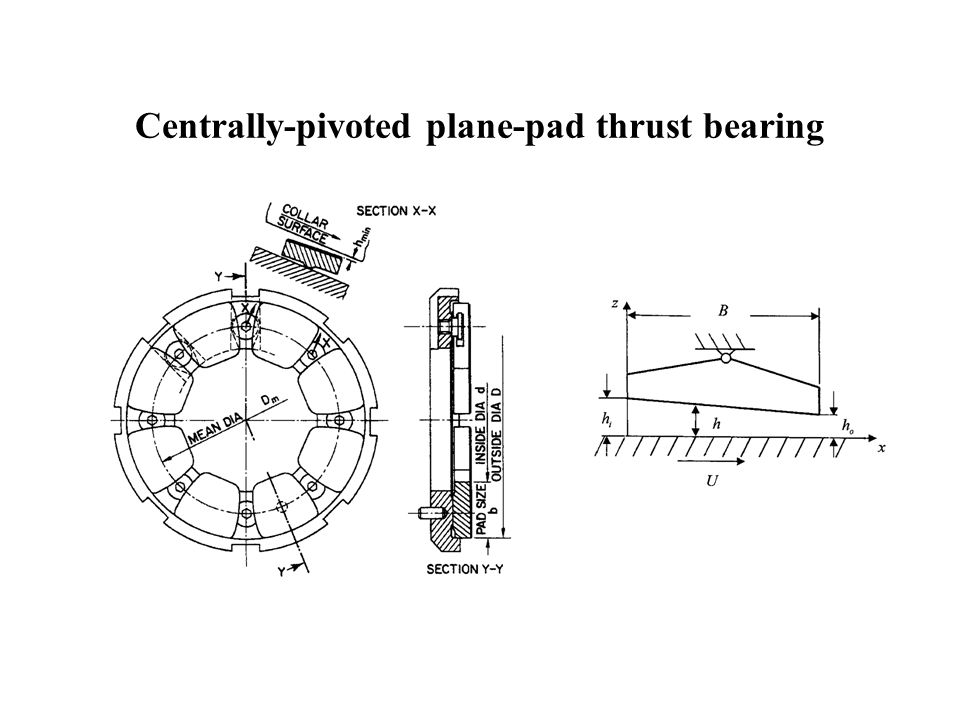

Centrally-pivoted plane-pad thrust bearing

12

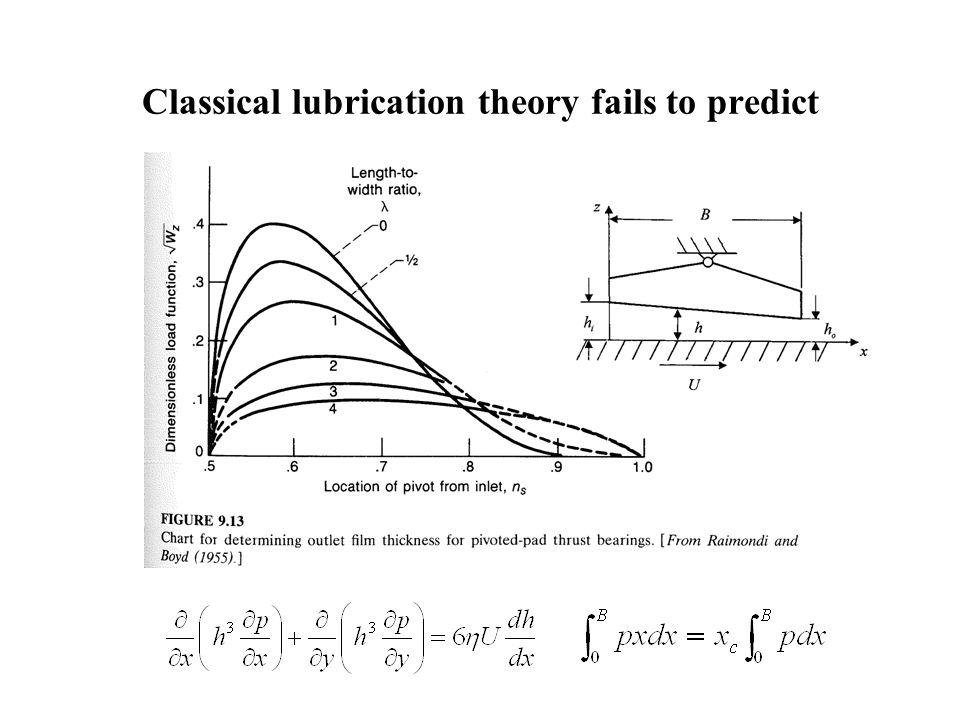

Classical lubrication theory fails to predict

13

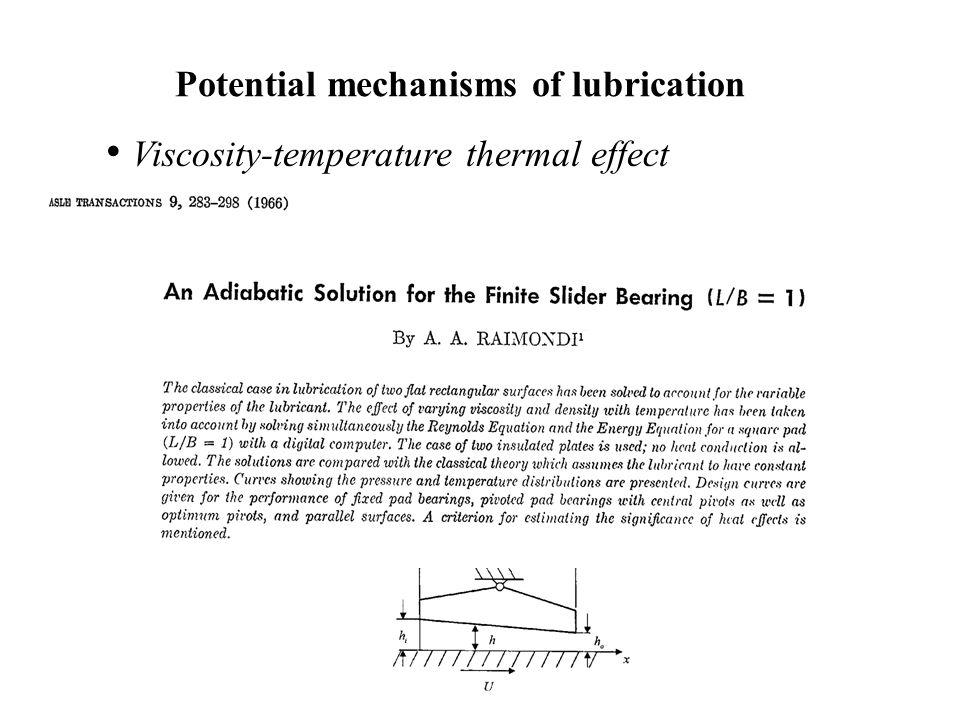

Potential mechanisms of lubrication Viscosity-temperature thermal effect

14

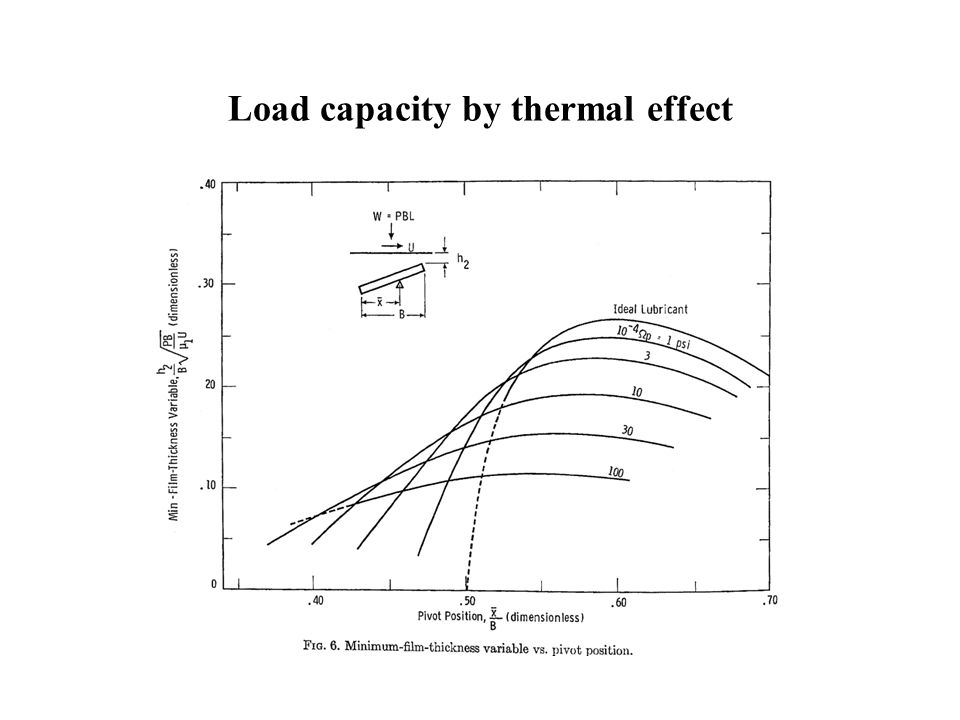

Load capacity by thermal effect

15

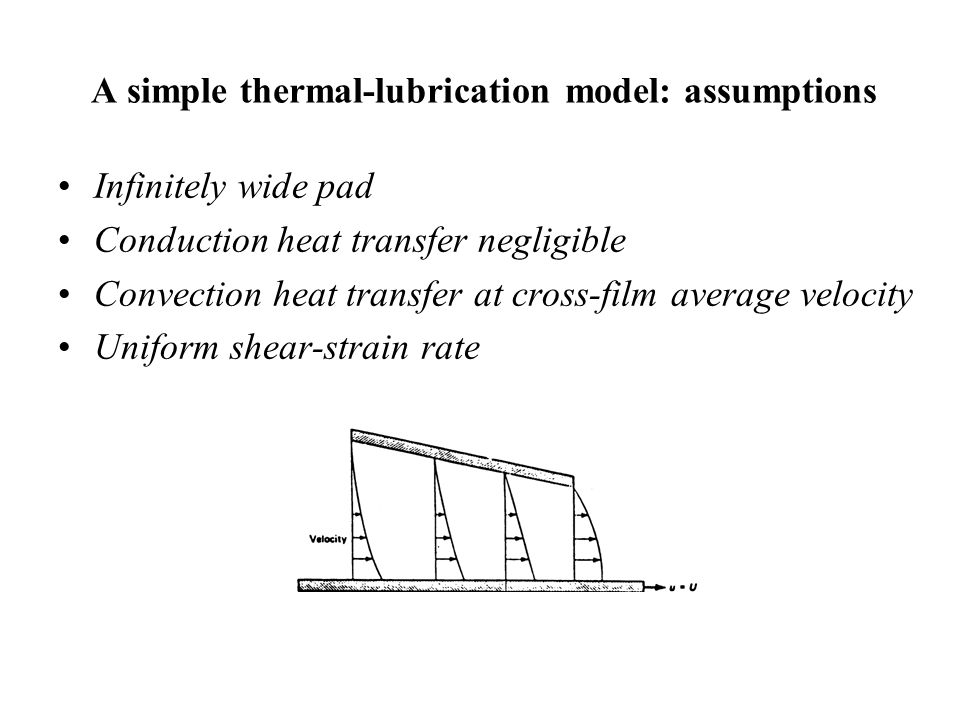

A simple thermal-lubrication model: assumptions Infinitely wide pad Conduction heat transfer negligible Convection heat transfer at cross-film average velocity Uniform shear-strain rate

16
A simple thermal-lubrication model: equations Reynolds equation: Pad equilibrium: Temperature equation: Oil ~ T relation:

17

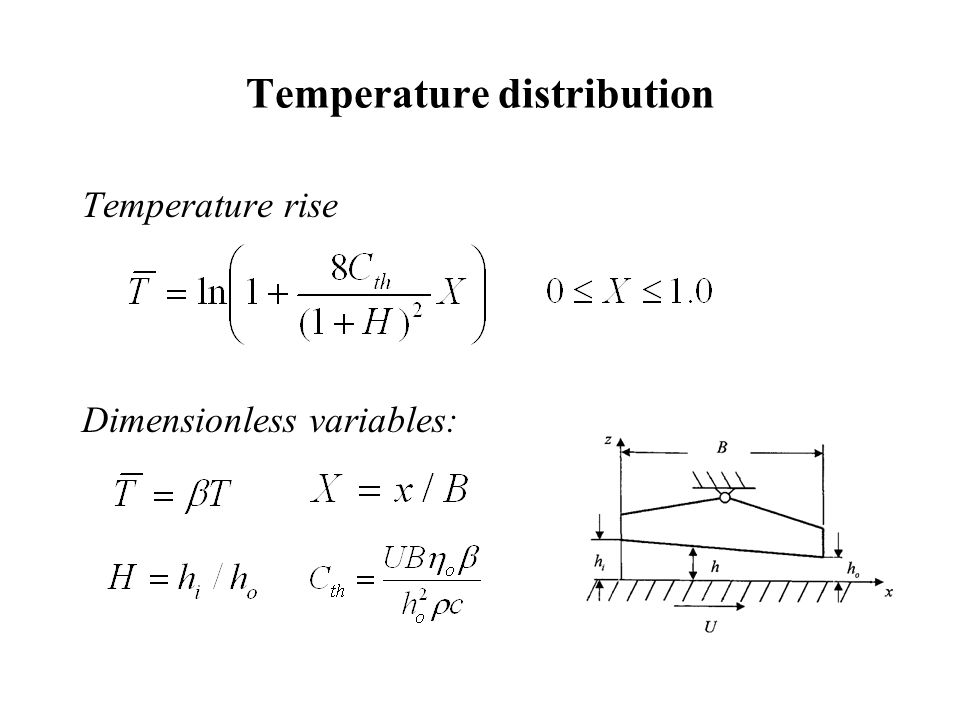

Temperature distribution Temperature rise Dimensionless variables:

18
Pressure distribution Pressure Pad equilibrium Given solve for and

19

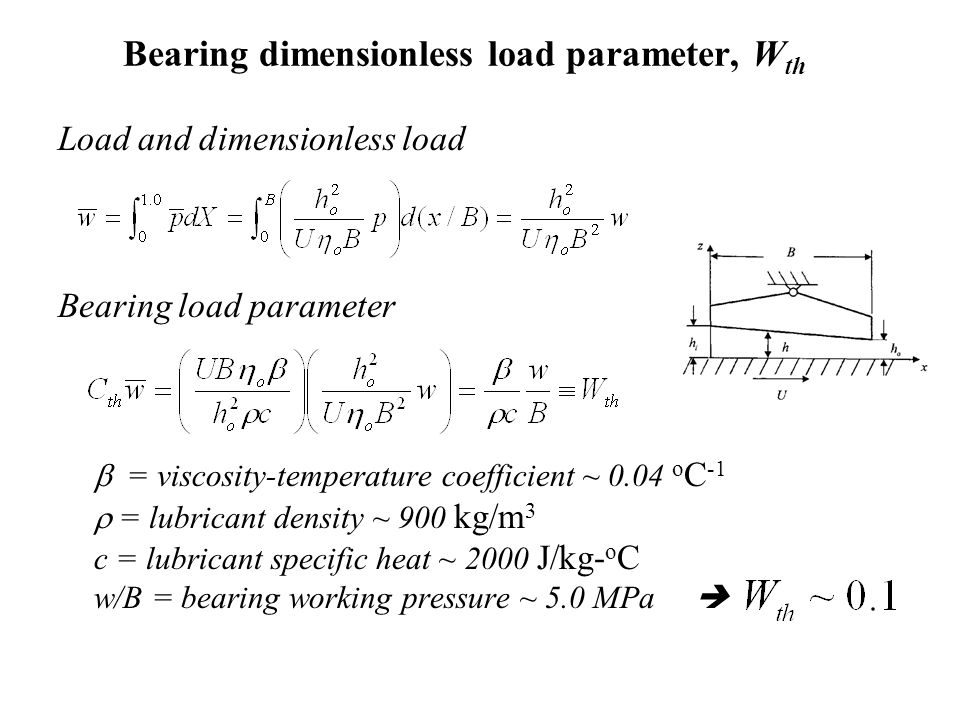

Bearing dimensionless load parameter, W th Load and dimensionless load Bearing load parameter = viscosity-temperature coefficient ~ 0.04 o C -1 = lubricant density ~ 900 kg/m 3 c = lubricant specific heat ~ 2000 J/kg- o C w/B = bearing working pressure ~ 5.0 MPa

20

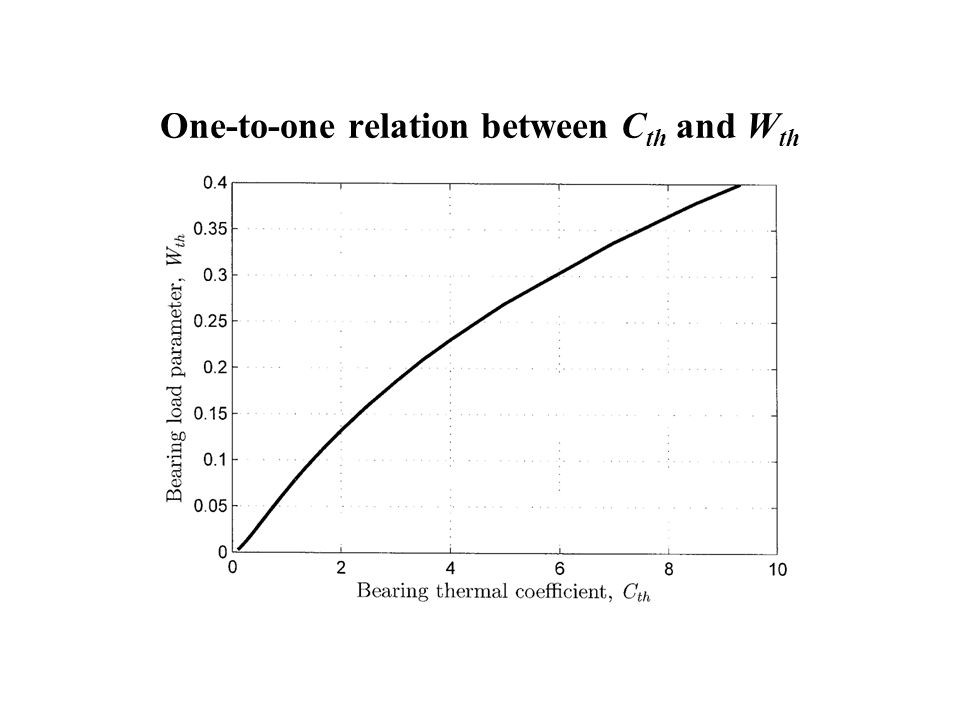

One-to-one relation between C th and W th

21

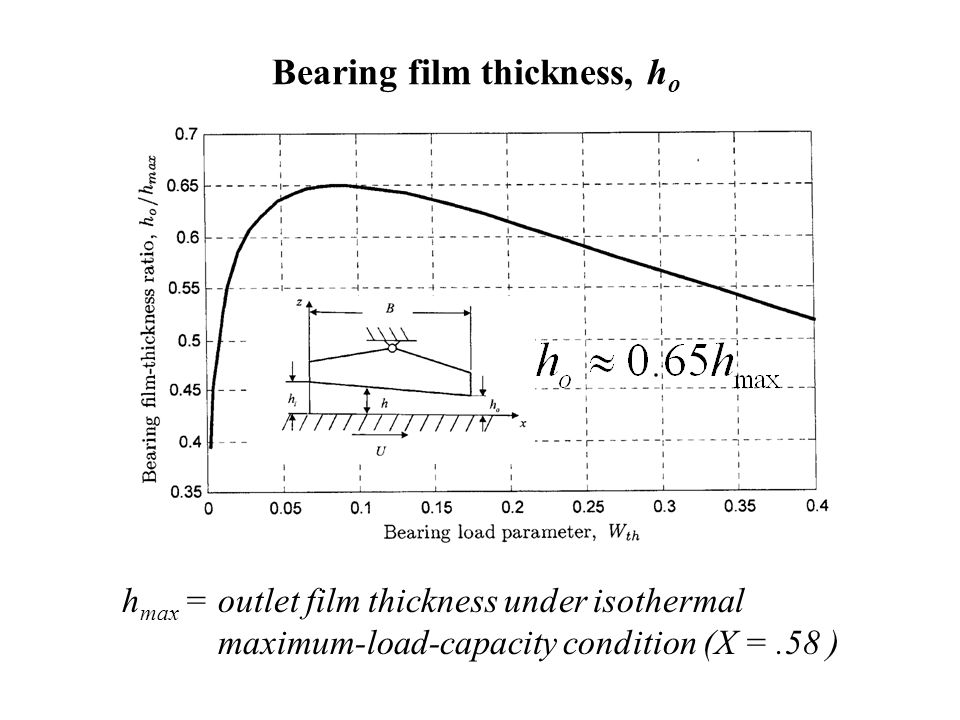

Bearing film thickness, h o h max = outlet film thickness under isothermal maximum-load-capacity condition (X =.58 )

22

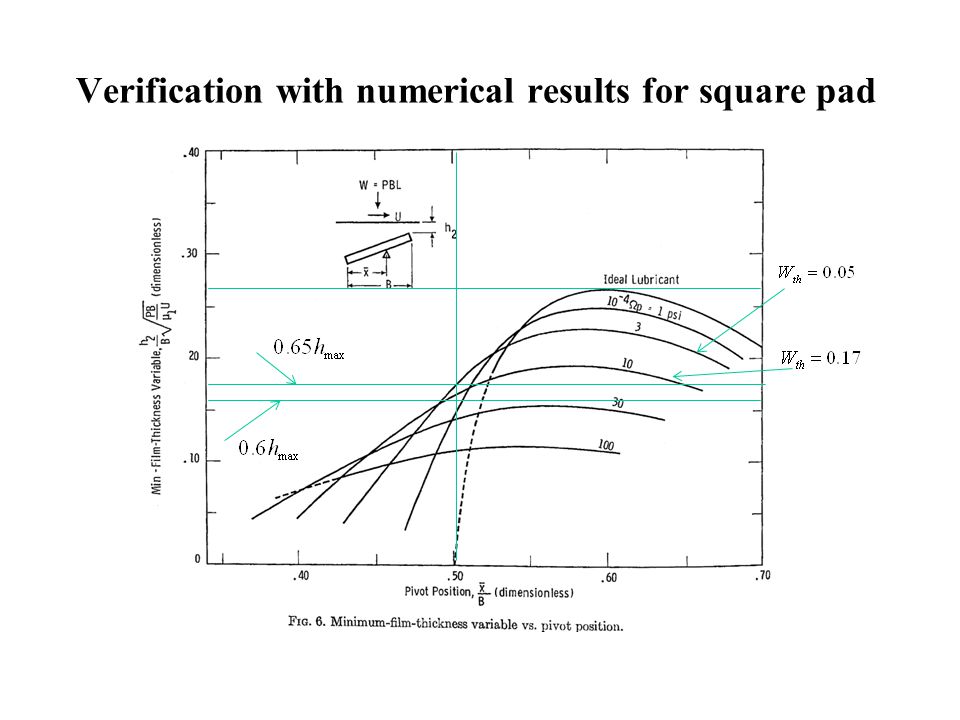

Verification with numerical results for square pad

23

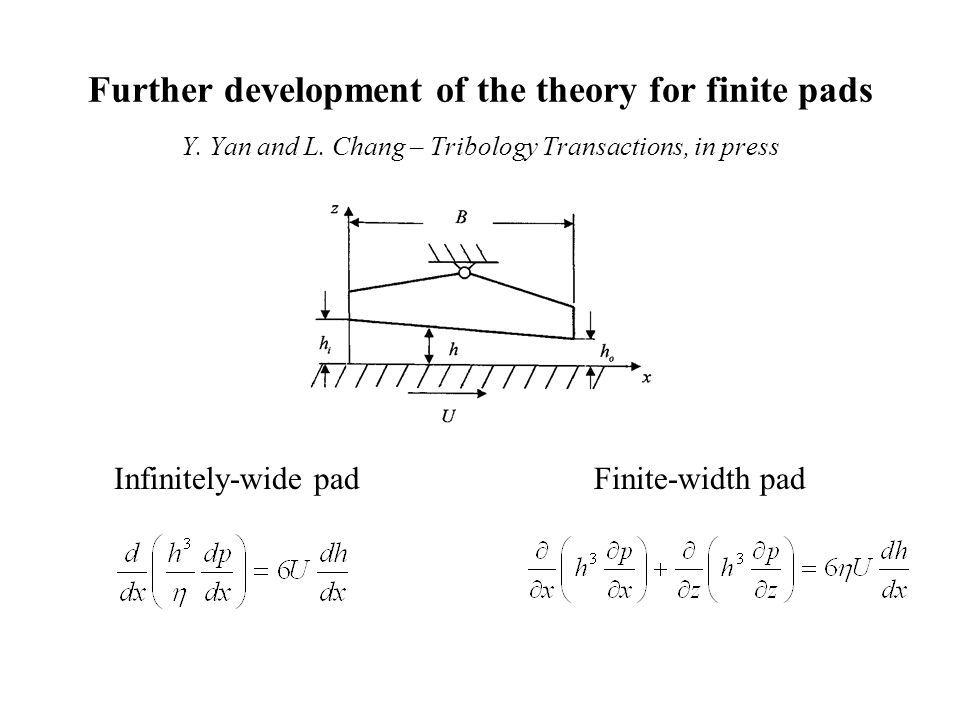

Further development of the theory for finite pads Y. Yan and L. Chang – Tribology Transactions, in press Infinitely-wide padFinite-width pad

24

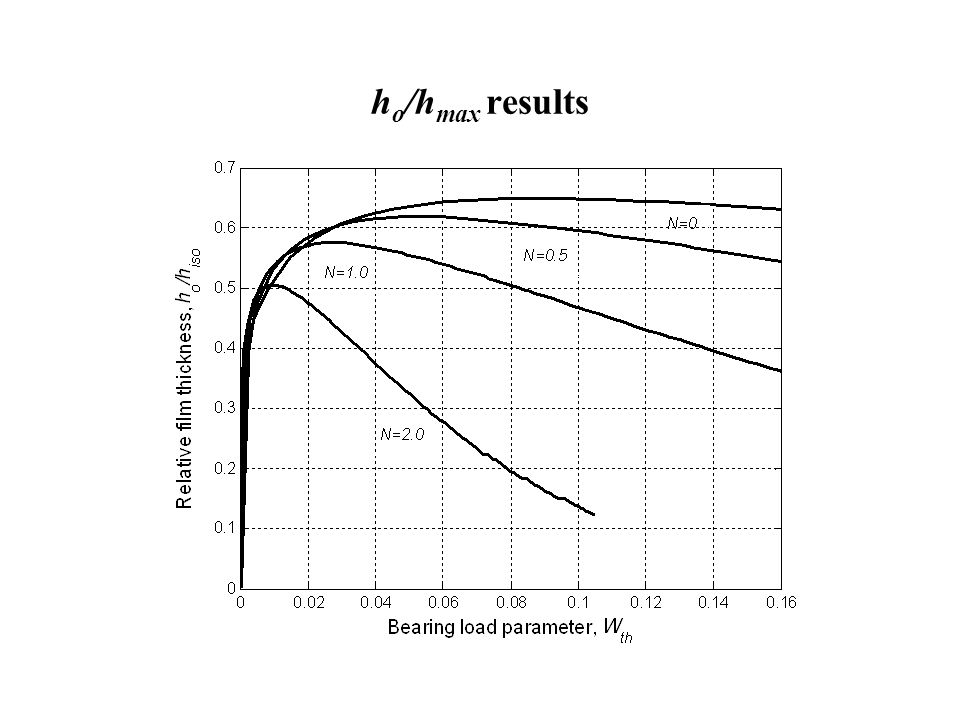

h o /h max results

25
III. Research on gear meshing efficiency L. Chang and Y. R. Jeng Manuscript in review

26
Meshing of a spur gear pair Meshing loss can be less than 0.5% of input power

27

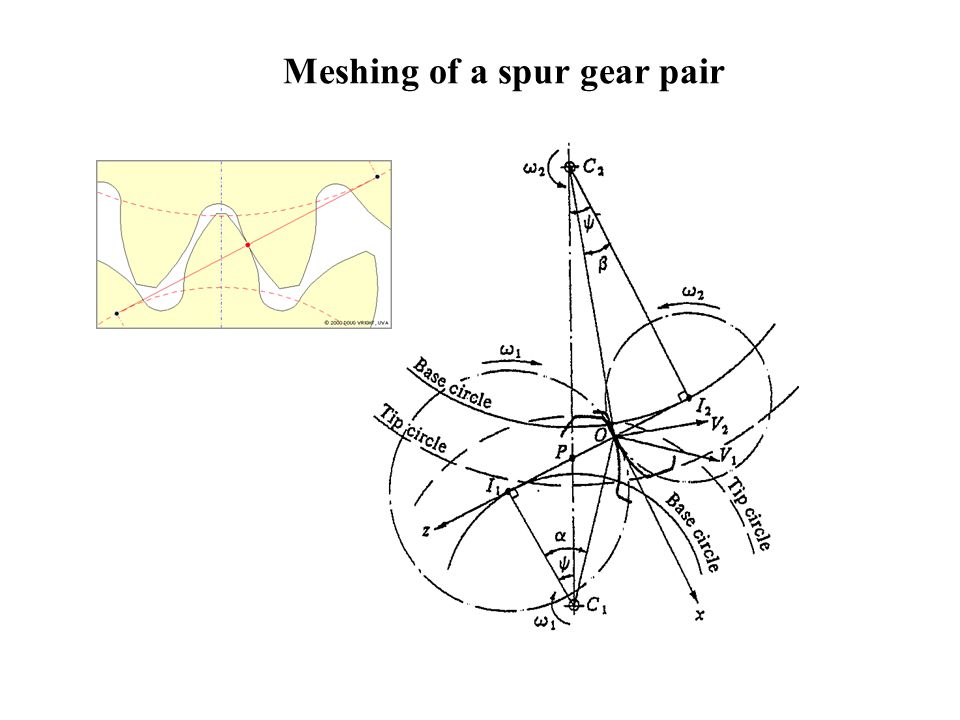

Meshing of a spur gear pair

28
Governing equations Reynolds equation Load equation Film-thickness equation Temperature equation Friction calculated by

29

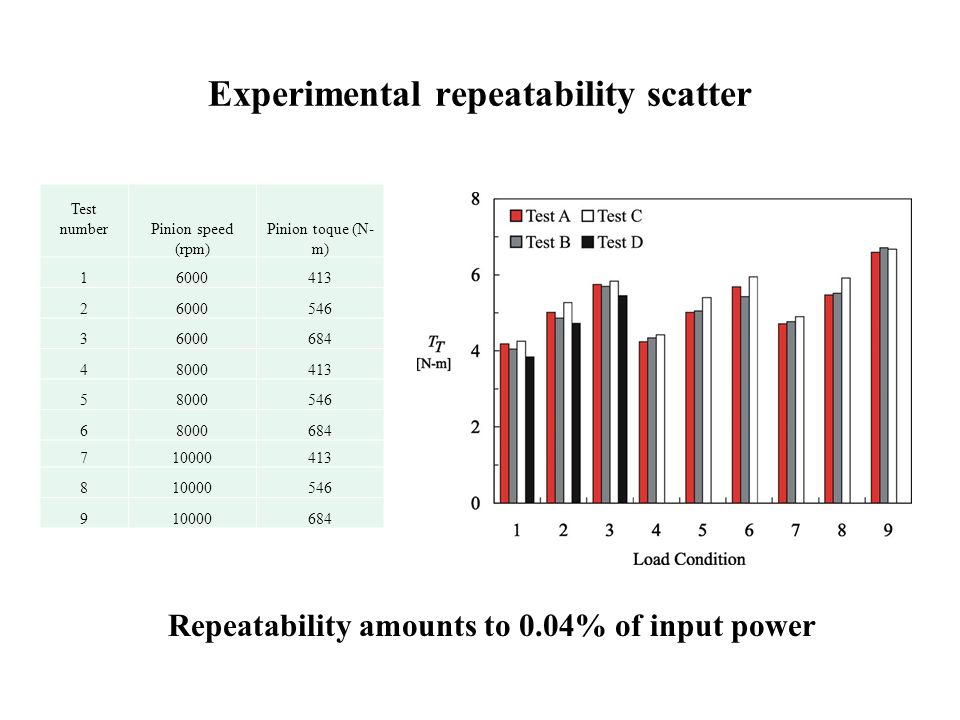

Experimental repeatability scatter Test number Pinion speed (rpm) Pinion toque (N- m) 16000413 26000546 36000684 48000413 58000546 68000684 710000413 810000546 910000684 Repeatability amounts to 0.04% of input power

30

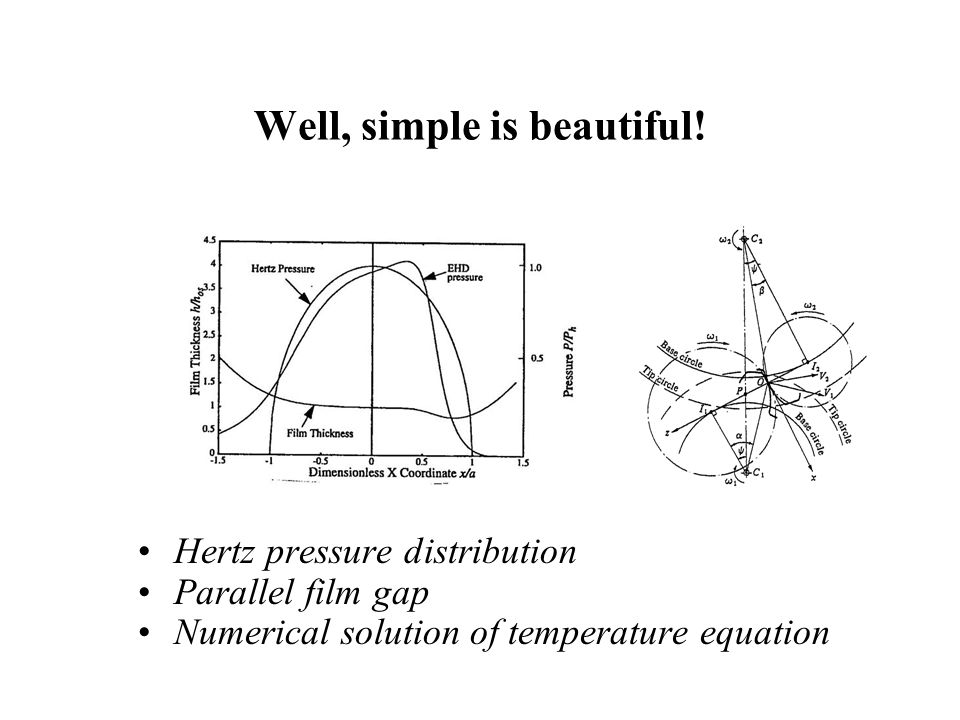

Well, simple is beautiful! Hertz pressure distribution Parallel film gap Numerical solution of temperature equation

31
Thermal shear localization Cross-film velocity No localization With localization Upper surface Lower surface w

32

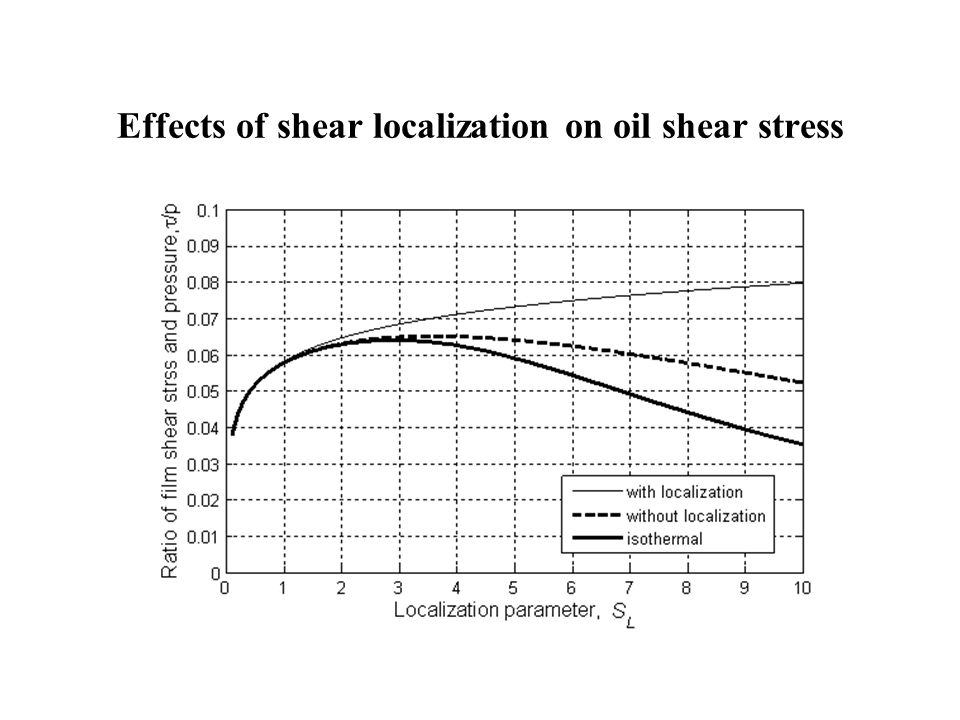

Effects of shear localization on oil shear stress

33
Effect of load on gear meshing loss

34

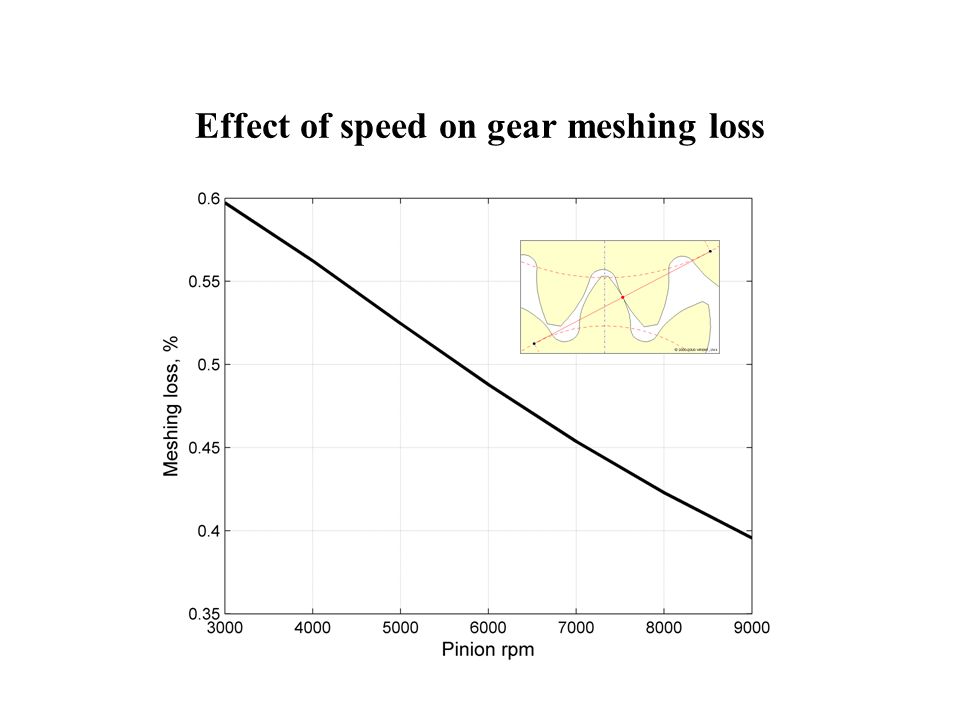

Effect of speed on gear meshing loss

35
Effect of gear geometry – module

36

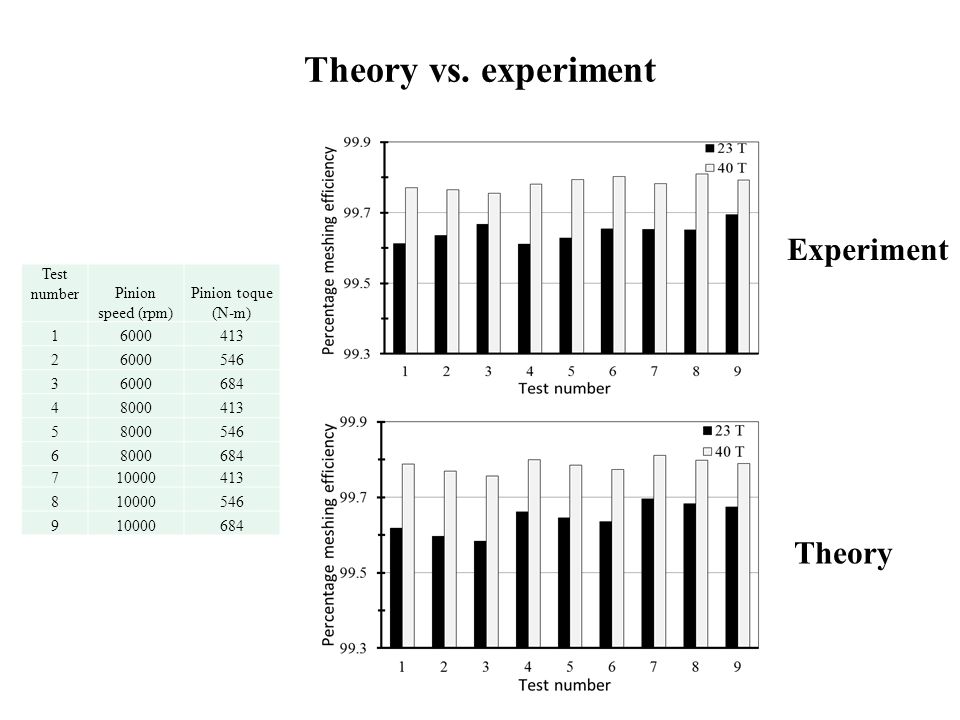

Theory vs. experiment Theory Experiment Test number Pinion speed (rpm) Pinion toque (N-m) 16000413 26000546 36000684 48000413 58000546 68000684 710000413 810000546 910000684

37

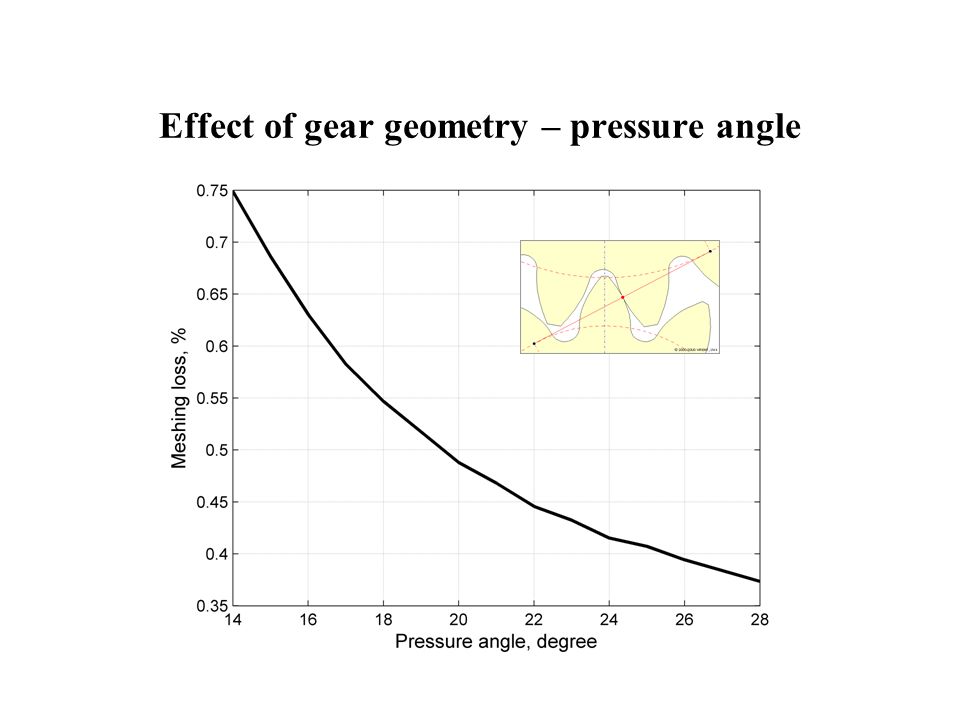

Effect of gear geometry – pressure angle

38

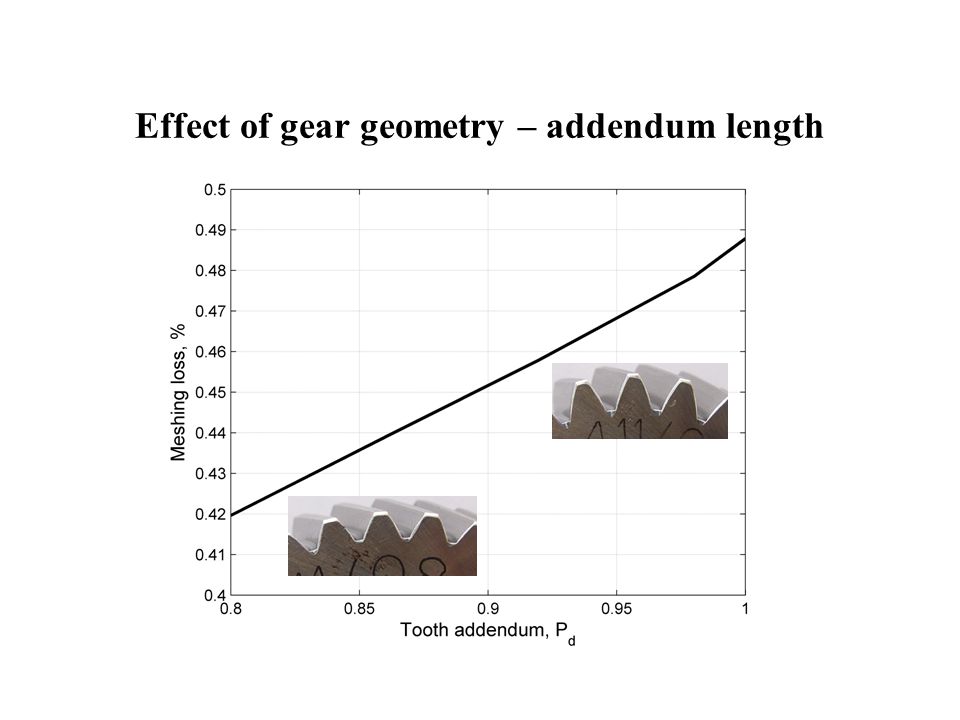

Effect of gear geometry – addendum length

39

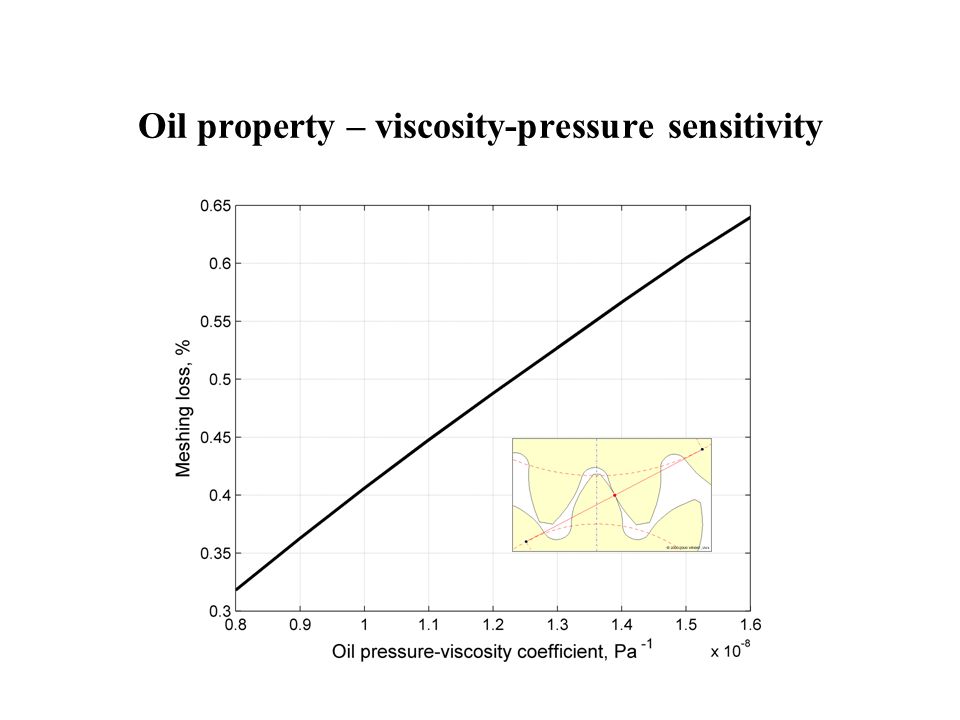

Oil property – viscosity-pressure sensitivity

40

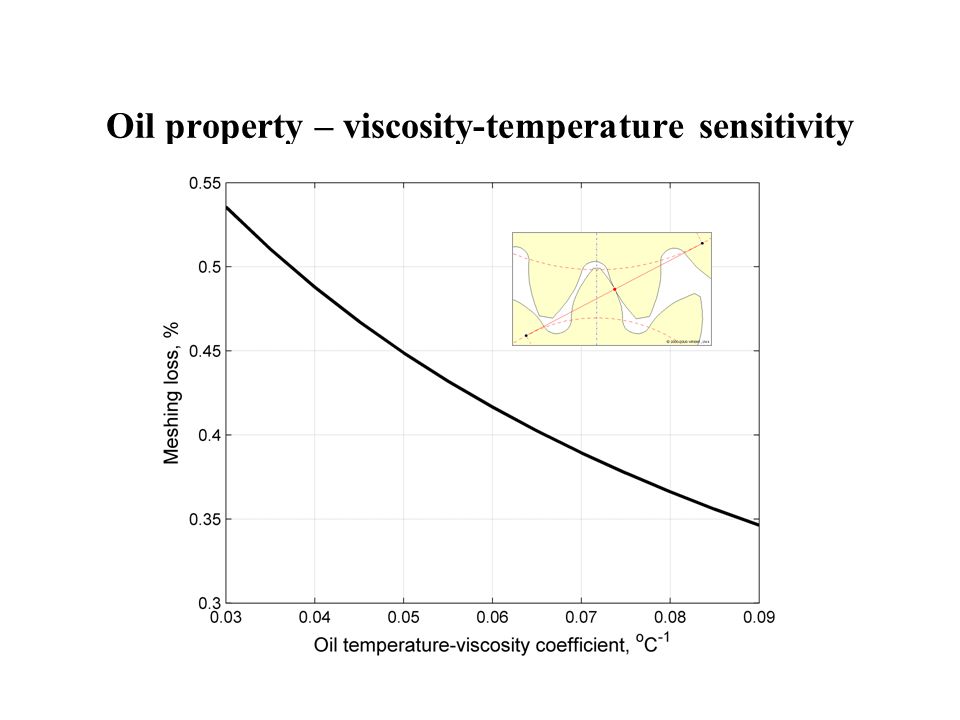

Oil property – viscosity-temperature sensitivity

41

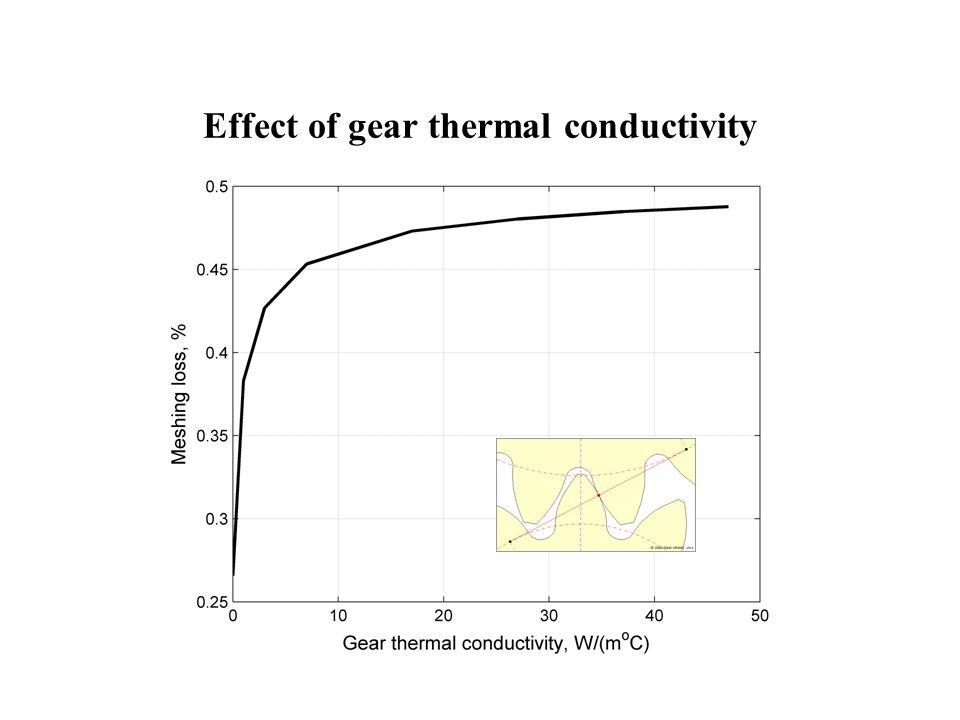

Effect of gear thermal conductivity

42

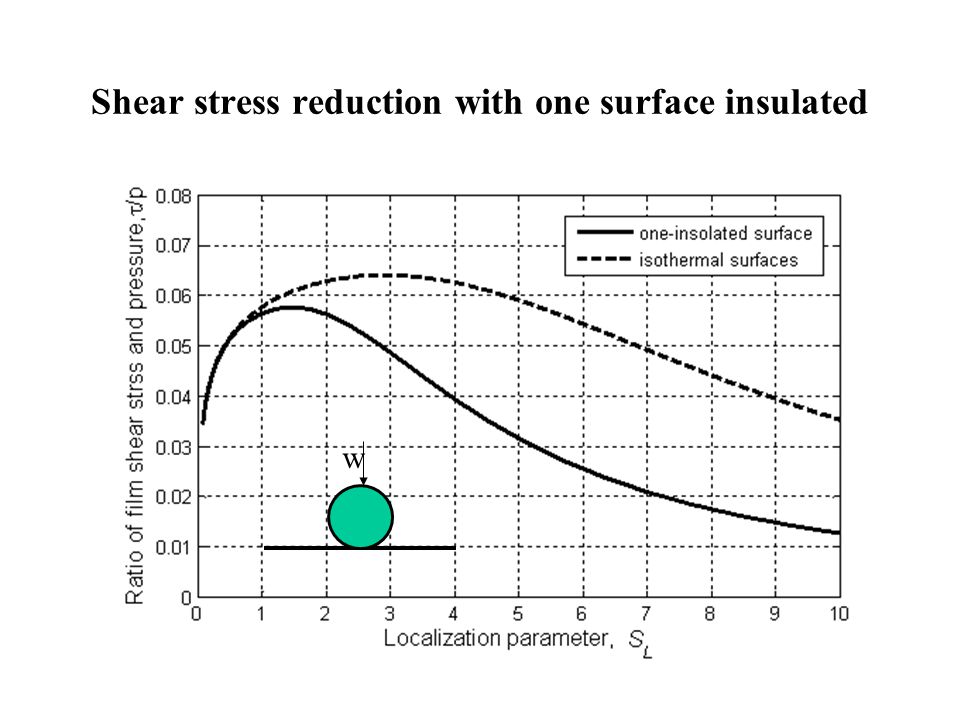

w Shear stress reduction with one surface insulated

43

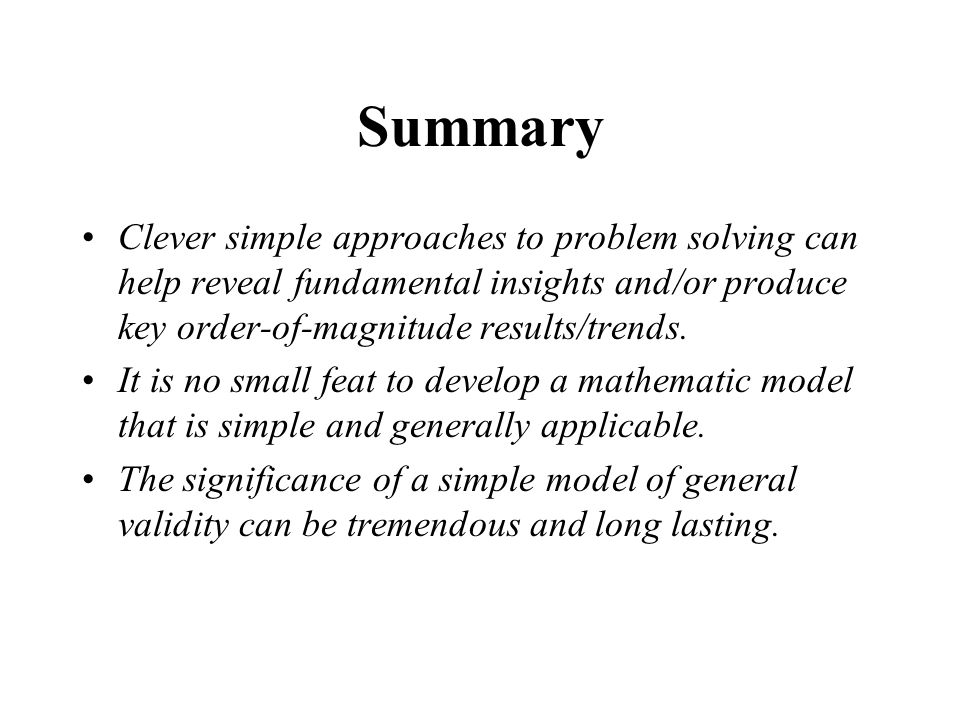

Summary Clever simple approaches to problem solving can help reveal fundamental insights and/or produce key order-of-magnitude results/trends. It is no small feat to develop a mathematic model that is simple and generally applicable. The significance of a simple model of general validity can be tremendous and long lasting.
