1 Chapter 13 Acids and Bases

2 Some Properties of Acids þ Produce H + (as H 3 O + ) ions in water (the hydronium ion is a hydrogen ion attached to a water molecule) þ Taste sour þ Corrode metals þ Electrolytes þ React with bases to form a salt and water þ pH is less than 7 þ Turns blue litmus paper to red Blue to Red A-CID

3 Some Properties of Bases Produce OH - ions in water Produce OH - ions in water Taste bitter, chalky Taste bitter, chalky Are electrolytes Are electrolytes Feel soapy, slippery Feel soapy, slippery React with acids to form salts and water React with acids to form salts and water pH greater than 7 pH greater than 7 Turns red litmus paper to blue Basic Blue Turns red litmus paper to blue Basic Blue

4 Acid Nomenclature Review No Oxygen No Oxygen w/Oxygen An easy way to remember which goes with which… In the cafeteria, you ATE something ICky

5 Arrhenius acid is a substance that produces H + (H 3 O + ) in water Arrhenius base is a substance that produces OH - in water Acid/Base definitions Definition 1: Arrhenius

6 Acid/Base Definitions Definition #2: Brønsted – LowryDefinition #2: Brønsted – Lowry Acids – proton donor Bases – proton acceptor A proton is really just a hydrogen atom that has lost its electron!

7 A Brønsted-Lowry acid is a proton donor A Brønsted-Lowry base is a proton acceptor acid conjugate base base conjugate acid

8 ACID-BASE THEORIES The Brønsted definition means NH 3 is a BASE in water and water is itself an ACID

9 Conjugate Pairs

10 Learning Check! Label the acid, base, conjugate acid, and conjugate base in each reaction: HCl + OH - Cl - + H 2 O H 2 O + H 2 SO 4 HSO 4 - + H 3 O + AcidAcid AcidAcid BaseBase BaseBase Conj. Base Conj. Acid

11 Acids & Base Definitions Lewis acid - a substance that accepts an electron pair Lewis base - a substance that donates an electron pair Definition #3 – Lewis

12 Formation of hydronium ion is also an excellent example. Lewis Acids & Bases Electron pair of the new O-H bond originates on the Lewis base.Electron pair of the new O-H bond originates on the Lewis base.

13 Lewis Acid/Base Reaction

14 The pH scale is a way of expressing the strength of acids and bases. Instead of using very small numbers, we just use the NEGATIVE power of 10 on the Molarity of the H + (or OH - ) ion. Under 7 = acid 7 = neutral Over 7 = base

15 Calculating the pH pH = - log [H+] (Remember that the [ ] mean Molarity) Example: If [H + ] = 1 X 10 -10 pH = - log 1 X 10 -10 pH = - (- 10) pH = 10 Example: If [H + ] = 1.8 X 10 -5 pH = - log 1.8 X 10 -5 pH = - (- 4.74) pH = 4.74

16 Try These! Find the pH of these: 1)A 0.15 M solution of Hydrochloric acid 2) A 3.00 X 10 -7 M solution of Nitric acid pH = - log [H+] pH = - log 0.15 pH = - (- 0.82) pH = 0.82 pH = - log 3 X 10-7 pH = - (- 6.52) pH = 6.52

17 pH calculations – Solving for H+ If the pH of Coke is 3.12, [H + ] = ??? Because pH = - log [H + ] then - pH = log [H + ] - pH = log [H + ] Take antilog (10 x ) of both sides and get 10 -pH = [H + ] [H + ] = 10 -3.12 = 7.6 x 10 -4 M *** to find antilog on your calculator, look for Shift or 2 nd function and then the log button *** to find antilog on your calculator, look for Shift or 2 nd function and then the log button

18 More About Water H 2 O can function as both an ACID and a BASE. In pure water there can be AUTOIONIZATION Equilibrium constant for water = K w K w = [H 3 O + ] [OH - ] = 1.00 x 10 -14 at 25 o C

19 More About Water K w = [H 3 O + ] [OH - ] = 1.00 x 10 -14 at 25 o C In a neutral solution [H 3 O + ] = [OH - ] and so [H 3 O + ] = [OH - ] = 1.00 x 10 -7 M Autoionization

20 pOH Since acids and bases are opposites, pH and pOH are opposites!Since acids and bases are opposites, pH and pOH are opposites! pOH does not really exist, but it is useful for changing bases to pH.pOH does not really exist, but it is useful for changing bases to pH. pOH looks at the perspective of a basepOH looks at the perspective of a base pOH = - log [OH - ] Since pH and pOH are on opposite ends, pH + pOH = 14

21 pH [H + ] [OH - ] pOH

22 [H 3 O + ], [OH - ] and pH What is the pH of the 0.0010 M NaOH solution? [OH - ] = 0.0010 (or 1.0 X 10 -3 M) pOH = - log 0.0010 pOH = - log 0.0010 pOH = 3 pOH = 3 pH = 14 – 3 = 11 OR K w = [H 3 O + ] [OH - ] [HO + ] = 1.0 x 10 -11 M [H 3 O + ] = 1.0 x 10 -11 M pH = - log (1.0 x 10 -11 ) = 11.00

23 What is the pH of a 2 x 10 -3 M HNO 3 solution? HNO 3 is a strong acid – 100% dissociation. HNO 3 (aq) + H 2 O (l) H 3 O + (aq) + NO 3 - (aq) pH = -log [H + ] = -log [H 3 O + ] = -log(0.002) = 2.7 Start End 0.002 M 0.0 M What is the pH of a 1.8 x 10 -2 M Ba(OH) 2 solution? Ba(OH) 2 is a strong base – 100% dissociation. Ba(OH) 2 (s) Ba 2+ (aq) + 2OH - (aq) Start End 0.018 M 0.036 M0.0 M pH = 14.00 – pOH = 14.00 + log(0.036) = 12.56

24 HNO 3, HCl, HBr, HI, H 2 SO 4 and HClO 4 are the strong acids. Strong and Weak Acids/Bases The strength of an acid (or base) is determined by the amount of IONIZATION.

25 Generally divide acids and bases into STRONG or WEAK ones.Generally divide acids and bases into STRONG or WEAK ones. STRONG ACID: HNO 3 (aq) + H 2 O (l) H 3 O + (aq) + NO 3 - (aq) HNO 3 is about 100% dissociated in water. Strong and Weak Acids/Bases

26 Weak acids are much less than 100% ionized in water.Weak acids are much less than 100% ionized in water. *One of the best known is acetic acid = CH 3 CO 2 H *One of the best known is acetic acid = CH 3 CO 2 H Strong and Weak Acids/Bases

27 Strong Base: 100% dissociated in water.Strong Base: 100% dissociated in water. NaOH (aq) Na + (aq) + OH - (aq) NaOH (aq) Na + (aq) + OH - (aq) Other common strong bases include KOH and Ca(OH) 2. CaO (lime) + H 2 O --> Ca(OH) 2 (slaked lime) Ca(OH) 2 (slaked lime) CaO Strong and Weak Acids/Bases Strong bases are the group I hydroxides Calcium, strontium, and barium hydroxides are strong, but only soluble in water to 0.01 M

28 Weak base: less than 100% ionized in waterWeak base: less than 100% ionized in water One of the best known weak bases is ammonia NH 3 (aq) + H 2 O (l) NH 4 + (aq) + OH - (aq) Strong and Weak Acids/Bases

29 Weak Bases

30 Equilibria Involving Weak Acids and Bases Consider acetic acid, HC 2 H 3 O 2 (HOAc) HC 2 H 3 O 2 + H 2 O H 3 O + + C 2 H 3 O 2 - Acid Conj. base Acid Conj. base (K is designated K a for ACID) K gives the ratio of ions (split up) to molecules (dont split up)

31 Ionization Constants for Acids/Bases Acids ConjugateBases Increase strength

32 Equilibrium Constants for Weak Acids Weak acid has K a < 1 Leads to small [H 3 O + ] and a pH of 2 - 7

33 Equilibria Involving A Weak Acid You have 1.00 M HOAc. Calc. the equilibrium concs. of HOAc, H 3 O +, OAc -, and the pH. Step 1. Define equilibrium concs. in ICE table. [HOAc][H 3 O + ][OAc - ] [HOAc][H 3 O + ][OAc - ]initialchangeequilib 1.0000 -x+x+x 1.00-xxx

34 Step 2. Write K a expression You have 1.00 M HOAc. Calc. the equilibrium concs. of HOAc, H 3 O +, OAc -, and the pH. This is a quadratic. Solve using quadratic formula. or you can make an approximation if x is very small! (Rule of thumb: 10 -5 or smaller is ok) Equilibria Involving A Weak Acid

35 Step 3. Solve K a expression You have 1.00 M HOAc. Calc. the equilibrium concs. of HOAc, H 3 O +, OAc -, and the pH. First assume x is very small because K a is so small. Now we can more easily solve this approximate expression.

36 Step 3. Solve K a approximate expression You have 1.00 M HOAc. Calc. the equilibrium concs. of HOAc, H 3 O +, OAc -, and the pH. x = [ H 3 O + ] = [ OAc - ] = 4.2 x 10 -3 M pH = - log [ H 3 O + ] = -log (4.2 x 10 -3 ) = 2.37 Equilibria Involving A Weak Acid

37 Calculate the pH of a 0.0010 M solution of formic acid, HCO 2 H. HCO 2 H + H 2 O HCO 2 - + H 3 O + HCO 2 H + H 2 O HCO 2 - + H 3 O + K a = 1.8 x 10 -4 Approximate solution [H 3 O + ] = 4.2 x 10 -4 M, pH = 3.37 [H 3 O + ] = 4.2 x 10 -4 M, pH = 3.37 Exact Solution [H 3 O + ] = [HCO 2 - ] = 3.4 x 10 -4 M [H 3 O + ] = [HCO 2 - ] = 3.4 x 10 -4 M [HCO 2 H] = 0.0010 - 3.4 x 10 -4 = 0.0007 M [HCO 2 H] = 0.0010 - 3.4 x 10 -4 = 0.0007 M pH = 3.47 pH = 3.47

38 Equilibrium Constants for Weak Bases Weak base has K b < 1 Leads to small [OH - ] and a pH of 12 - 7

39 Relation of K a, K b, [H 3 O + ] and pH

40 Equilibria Involving A Weak Base You have 0.010 M NH 3. Calc. the pH. NH 3 + H 2 O NH 4 + + OH - NH 3 + H 2 O NH 4 + + OH - K b = 1.8 x 10 -5 Step 1. Define equilibrium concs. in ICE table [NH 3 ][NH 4 + ][OH - ] [NH 3 ][NH 4 + ][OH - ]initialchangeequilib 0.01000 -x+x+x 0.010 - xx x

41 Equilibria Involving A Weak Base You have 0.010 M NH 3. Calc. the pH. NH 3 + H 2 O NH 4 + + OH - NH 3 + H 2 O NH 4 + + OH - K b = 1.8 x 10 -5 Step 2. Solve the equilibrium expression Assume x is small, so x = [OH - ] = [NH 4 + ] = 4.2 x 10 -4 M x = [OH - ] = [NH 4 + ] = 4.2 x 10 -4 M and [NH 3 ] = 0.010 - 4.2 x 10 -4 0.010 M The approximation is valid!

42 Equilibria Involving A Weak Base You have 0.010 M NH 3. Calc. the pH. NH 3 + H 2 O NH 4 + + OH - NH 3 + H 2 O NH 4 + + OH - K b = 1.8 x 10 -5 Step 3. Calculate pH [OH - ] = 4.2 x 10 -4 M so pOH = - log [OH - ] = 3.37 Because pH + pOH = 14, pH = 10.63

43 Types of Acid/Base Reactions: Summary

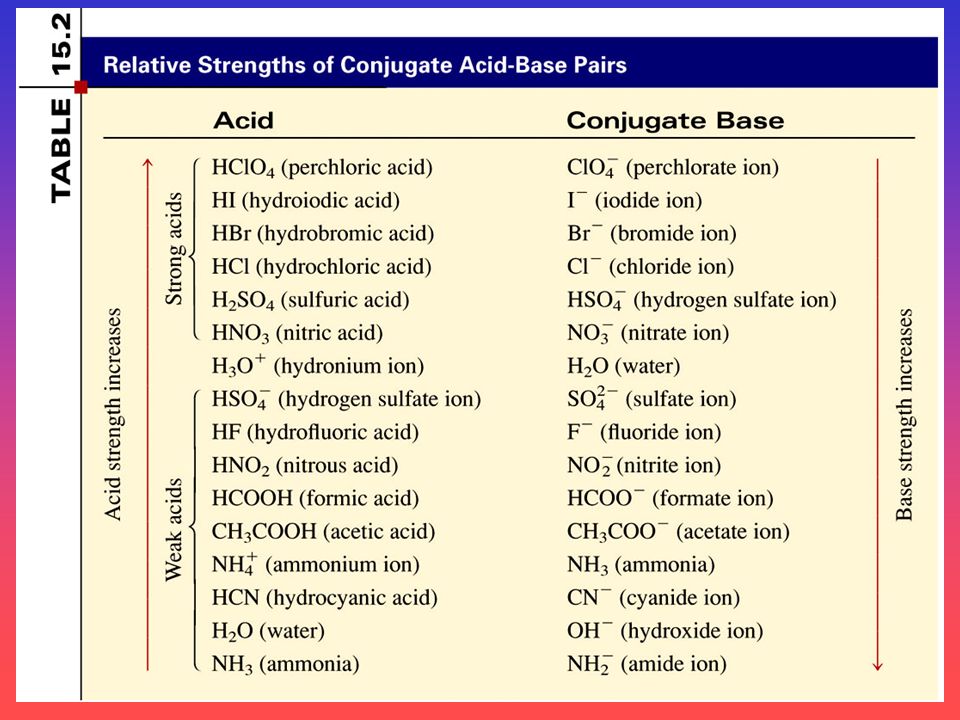

44 F - (aq) + H 2 O (l) OH - (aq) + HF (aq) Weak Bases are weak electrolytes NO 2 - (aq) + H 2 O (l) OH - (aq) + HNO 2 (aq) Conjugate acid-base pairs: The conjugate base of a strong acid has no measurable strength. strongest acidH 3 O + is the strongest acid that can exist in aqueous solution. strongest baseThe OH - ion is the strongest base that can exist in aqueous solution.

45

46 Strong AcidWeak Acid

47 percent ionization = Ionized acid concentration at equilibrium Initial concentration of acid x 100% For a monoprotic acid HA Percent ionization = [H + ] [HA] 0 x 100% [HA] 0 = initial concentration

48 Ionization Constants of Conjugate Acid-Base Pairs HA (aq) H + (aq) + A - (aq) A - (aq) + H 2 O (l) OH - (aq) + HA (aq) KaKa KbKb H 2 O (l) H + (aq) + OH - (aq) KwKw K a K b = K w Weak Acid and Its Conjugate Base Ka =Ka = KwKw KbKb Kb =Kb = KwKw KaKa

49 Molecular Structure and Acid Strength H X H + + X - The stronger the bond The weaker the acid HF << HCl < HBr < HI Bond strength Polarity

50 Molecular Structure and Acid Strength Z O HZ O-O- + H + - + The O-H bond will be more polar and easier to break if: Z is very electronegative or Z is in a high oxidation state

51 Molecular Structure and Acid Strength 1. Oxoacids having different central atoms (Z) that are from the same group and that have the same oxidation number. Acid strength increases with increasing electronegativity of Z H O Cl O O H O Br O O Cl is more electronegative than Br HClO 3 > HBrO 3 15.9

52 Molecular Structure and Acid Strength 2. Oxoacids having the same central atom (Z) but different numbers of attached groups. Acid strength increases as the oxidation number of Z increases. HClO 4 > HClO 3 > HClO 2 > HClO

53 Acid-Base Properties of Salts Neutral Solutions: Salts containing an alkali metal or alkaline earth metal ion (except Be 2+ ) and the conjugate base of a strong acid (e.g. Cl -, Br -, and NO 3 - ). NaCl (s) Na + (aq) + Cl - (aq) H2OH2O Basic Solutions: Salts derived from a strong base and a weak acid. NaCH 3 COO (s) Na + (aq) + CH 3 COO - (aq) H2OH2O CH 3 COO - (aq) + H 2 O (l) CH 3 COOH (aq) + OH - (aq)

54 Acid-Base Properties of Salts Acid Solutions: Salts derived from a strong acid and a weak base. NH 4 Cl (s) NH 4 + (aq) + Cl - (aq) H2OH2O NH 4 + (aq) NH 3 (aq) + H + (aq) Salts with small, highly charged metal cations (e.g. Al 3+, Cr 3+, and Be 2+ ) and the conjugate base of a strong acid. Al(H 2 O) 6 (aq) Al(OH)(H 2 O) 5 (aq) + H + (aq) 3+2+

55 Acid-Base Properties of Salts Solutions in which both the cation and the anion hydrolyze: K b for the anion > K a for the cation, solution will be basic K b for the anion < K a for the cation, solution will be acidic K b for the anion K a for the cation, solution will be neutral
