**Oscillations and Simple Harmonic Motion:**

AP Physics C: Mechanics

2
**Oscillatory Motion is repetitive back and forth motion about an equilibrium position**

Oscillatory Motion is periodic. Swinging motion and vibrations are forms of Oscillatory Motion. Objects that undergo Oscillatory Motion are called Oscillators. Oscillatory Motion

3
**Simple Harmonic Motion**

The time to complete one full cycle of oscillation is a Period. The amount of oscillations per second is called frequency and is measured in Hertz. Simple Harmonic Motion

4
**Heinrich Hertz produced the first artificial radio waves back in 1887!**

What is the oscillation period for the broadcast of a 100MHz FM radio station? Heinrich Hertz produced the first artificial radio waves back in 1887!

5
**Simple Harmonic Motion**

The most basic of all types of oscillation is depicted on the bottom sinusoidal graph. Motion that follows this pattern is called simple harmonic motion or SHM. Simple Harmonic Motion

6
**Simple Harmonic Motion**

An objects maximum displacement from its equilibrium position is called the Amplitude (A) of the motion. Simple Harmonic Motion

7

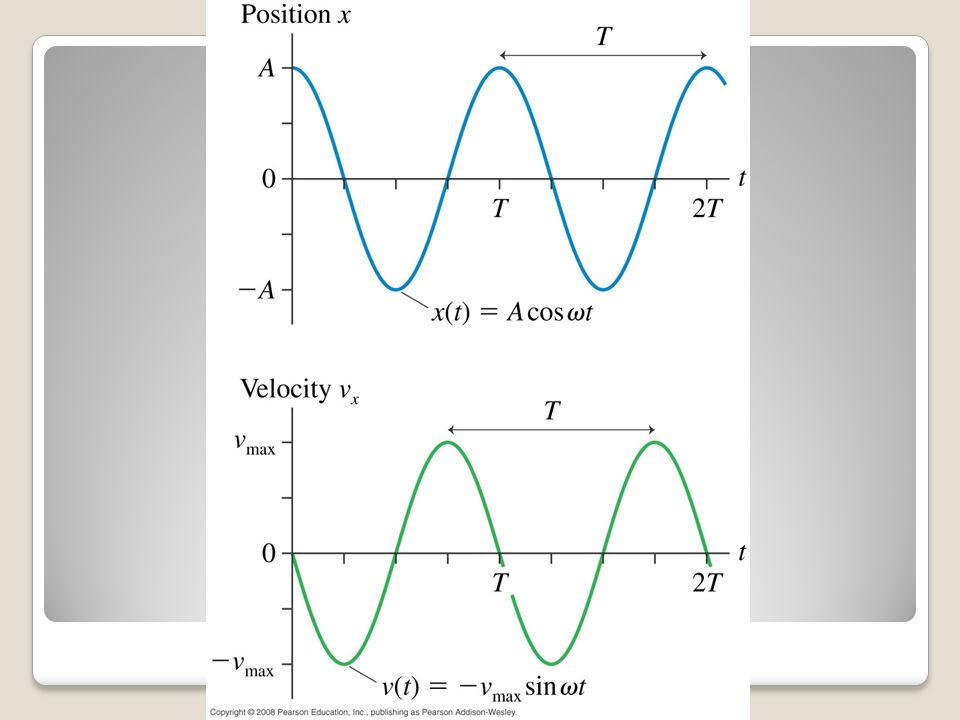

**What shape will a velocity-time graph have for SHM?**

Everywhere the slope (first derivative) of the position graph is zero, the velocity graph crosses through zero. What shape will a velocity-time graph have for SHM?

8
**We need a position function to describe the motion above.**

9
**Mathematical Models of SHM**

x(t) to symbolize position as a function of time A=xmax=xmin When t=T, cos(2π)=cos(0) x(t)=A Mathematical Models of SHM

10
**Mathematical Models of SHM**

In this context we will call omega Angular Frequency What is the physical meaning of the product (Aω)? The maximum speed of an oscillation! Mathematical Models of SHM

12
**What is the period of oscillation?**

An airtrack glider is attached to a spring, pulled 20cm to the right, and released at t=0s. It makes 15 oscillations in 10 seconds. What is the period of oscillation? Example:

13
**What is the object’s maximum speed?**

An airtrack glider is attached to a spring, pulled 20cm to the right, and released at t=0s. It makes 15 oscillations in 10 seconds. What is the object’s maximum speed? Example:

14
**What are the position and velocity at t=0.8s?**

An airtrack glider is attached to a spring, pulled 20cm to the right, and released at t=0s. It makes 15 oscillations in 10 seconds. What are the position and velocity at t=0.8s? Example:

15
**A mass oscillating in SHM starts at x=A and has period T**

A mass oscillating in SHM starts at x=A and has period T. At what time, as a fraction of T, does the object first pass through 0.5A? Example:

16
**When collecting and modeling data of SHM your mathematical model had a value as shown below:**

What if your clock didn’t start at x=A or x=-A? This value represents our initial conditions. We call it the phase angle: Model of SHM

17
**SHM and Circular Motion**

Uniform circular motion projected onto one dimension is simple harmonic motion. SHM and Circular Motion

18
**SHM and Circular Motion**

Start with the x-component of position of the particle in UCM Notice it started at angle zero End with the same result as the spring in SHM! SHM and Circular Motion

19
**We will not always start our clocks at one amplitude.**

Initial conditions:

20
**Phi is called the phase of the oscillation**

Phi naught is called the phase constant or phase shift. This value specifies the initial conditions. Different values of the phase constant correspond to different starting points on the circle and thus to different initial conditions The Phase Constant:

21
Phase Shifts:

22
**An object on a spring oscillates with a period of 0**

An object on a spring oscillates with a period of 0.8s and an amplitude of 10cm. At t=0s, it is 5cm to the left of equilibrium and moving to the left. What are its position and direction of motion at t=2s? Initial conditions: From the period we get:

23
**An object on a spring oscillates with a period of 0**

An object on a spring oscillates with a period of 0.8s and an amplitude of 10cm. At t=0s, it is 5cm to the left of equilibrium and moving to the left. What are its position and direction of motion at t=2s?

24
**We have modeled SHM mathematically. Now comes the physics.**

Total mechanical energy is conserved for our SHM example of a spring with constant k, mass m, and on a frictionless surface. The particle has all potential energy at x=A and x=–A, and the particle has purely kinetic energy at x=0. We have modeled SHM mathematically. Now comes the physics.

25
**Maximum speed as related to amplitude:**

At turning points: At x=0: From conservation: Maximum speed as related to amplitude:

26
**From energy considerations:**

From kinematics: Combine these:

27
**The motion is SHM and energy is conserved.**

a 500g block on a spring is pulled a distance of 20cm and released. The subsequent oscillations are measured to have a period of 0.8s. at what position or positions is the block’s speed 1.0m/s? The motion is SHM and energy is conserved.

28
**Acceleration is at a maximum when the particle is at maximum and minimum displacement from x=0.**

Dynamics of SHM

29
**Acceleration is proportional to the negative of the displacement.**

Dynamics of SHM

30
**Dynamics of SHM Acceleration is not constant:**

According to Newton’s 2nd Law: As we found with energy considerations: This is the equation of motion for a mass on a spring. It is of a general form called a second order differential equation. Dynamics of SHM

31
**2nd-Order Differential Equations:**

Unlike algebraic equations, their solutions are not numbers, but functions. In SHM we are only interested in one form so we can use our solution for many objects undergoing SHM. Solutions to these diff. eqns. are unique (there is only one). One common method of solving is guessing the solution that the equation should have… From evidence, we expect the solution: 2nd-Order Differential Equations:

32
**2nd-Order Differential Equations:**

Let’s put this possible solution into our equation and see if we guessed right! IT WORKS. Sinusoidal oscillation of SHM is a result of Newton’s laws! 2nd-Order Differential Equations:

33
**What about vertical oscillations of a spring-mass system??**

Hanging at rest: this is the equilibrium position of the system. What about vertical oscillations of a spring-mass system??

34
**Now we let the system oscillate. At maximum:**

But: So: Everything that we have learned about horizontal oscillations is equally valid for vertical oscillations!

35
**Equation of motion for a pendulum**

The Pendulum Equation of motion for a pendulum

36
**Small Angle Approximation:**

When θ is about 0.1rad or less, h and s are about the same. Small Angle Approximation:

37
**Equation of motion for a pendulum**

The Pendulum

38
**What length pendulum will have a period of exactly 1s?**

A Pendulum Clock

39
**Notice that all objects that we look at are described the same mathematically.**

Any system with a linear restoring force will undergo simple harmonic motion around the equilibrium position. Conditions for SHM

40
**when there is mass in the entire pendulum, not just the bob.**

Small Angle Approx. when there is mass in the entire pendulum, not just the bob. A Physical Pendulum

41
**All real oscillators are damped oscillators**

All real oscillators are damped oscillators. these are any that slow down and eventually stop. a model of drag force for slow objects: b is the damping constant (sort of like a coefficient of friction). Damped Oscillations

42
**Damped Oscillations Solution to 2nd-order diff eq:**

Another 2nd-order diff eq. Damped Oscillations

43
A slowly changing line that provides a border to a rapid oscillation is called the envelope of the oscillations. Damped Oscillations

45
**Some objects may be subjected to a periodic external force.**

Not all oscillating objects are disturbed from rest then allowed to move undisturbed. Some objects may be subjected to a periodic external force. Driven Oscillations

46
**All objects have a natural frequency at which they tend to vibrate when disturbed.**

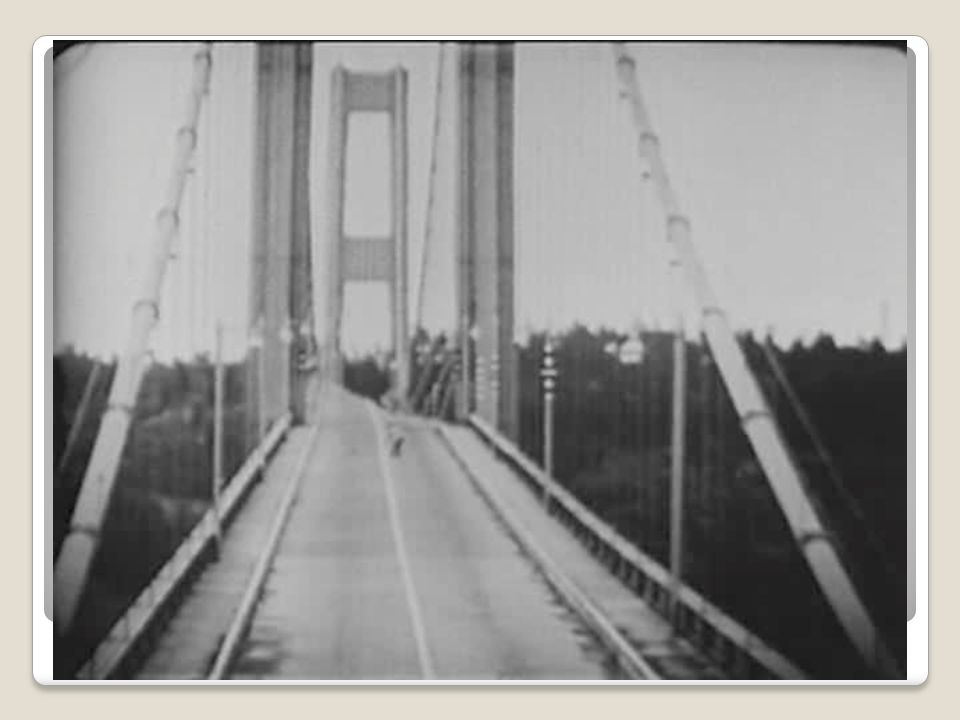

Objects may be exposed to a periodic force with a particular driving frequency. If the driven frequency matches the natural frequency of an object, RESONANCE occurs Driven Oscillations

47
THE END
