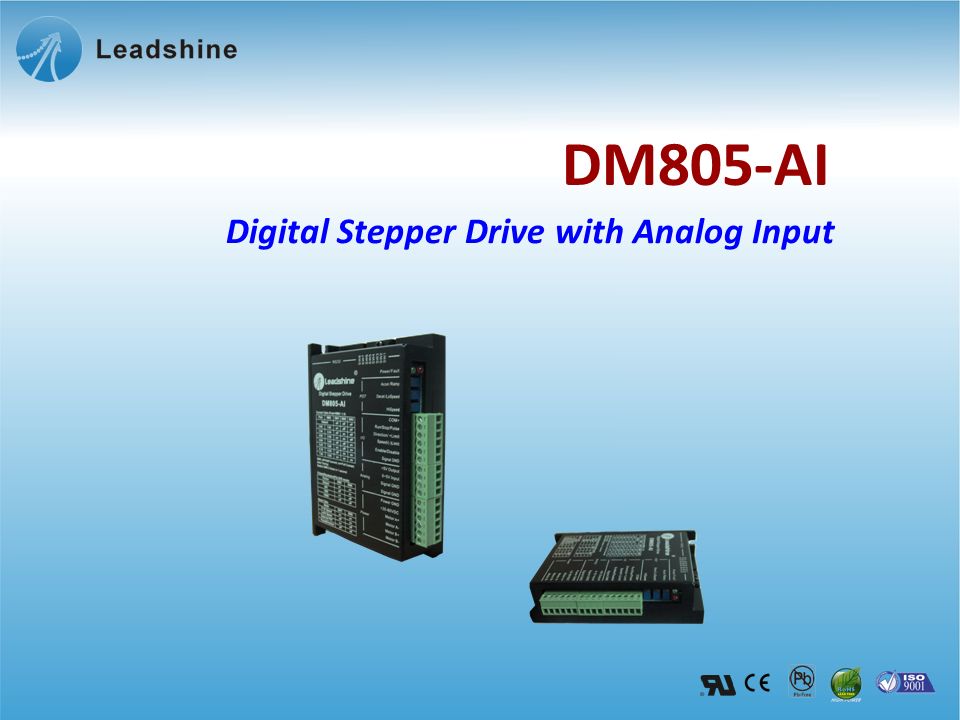

Digital Stepper Drive with Analog Input DM805-AI
System Configuration DIP Switch 8Bits Mode/Current/Microstep Setting Auto Configuration RS232 Communication Port RJ11 Power Connectors Analog Signals Connectors Digital I/O Signals Connectors Potentiometers Indicators
0-5V Analog Input Signal Built-in +5V Output for a Analog Control and Testing Built-in Potentiometers for Accel, Decel and Speed Adjusting Limit Signals Input for Safe Operation Analog Input
NO Motion Controller NO PLC Built-in Pulse Generator for a No-Controller System Built-in Potentiometers for Accel, Decel and Speed Adjusting Input Signals for Start/Stop, CCW/CW and High/Low Speed Control Internal Oscillator

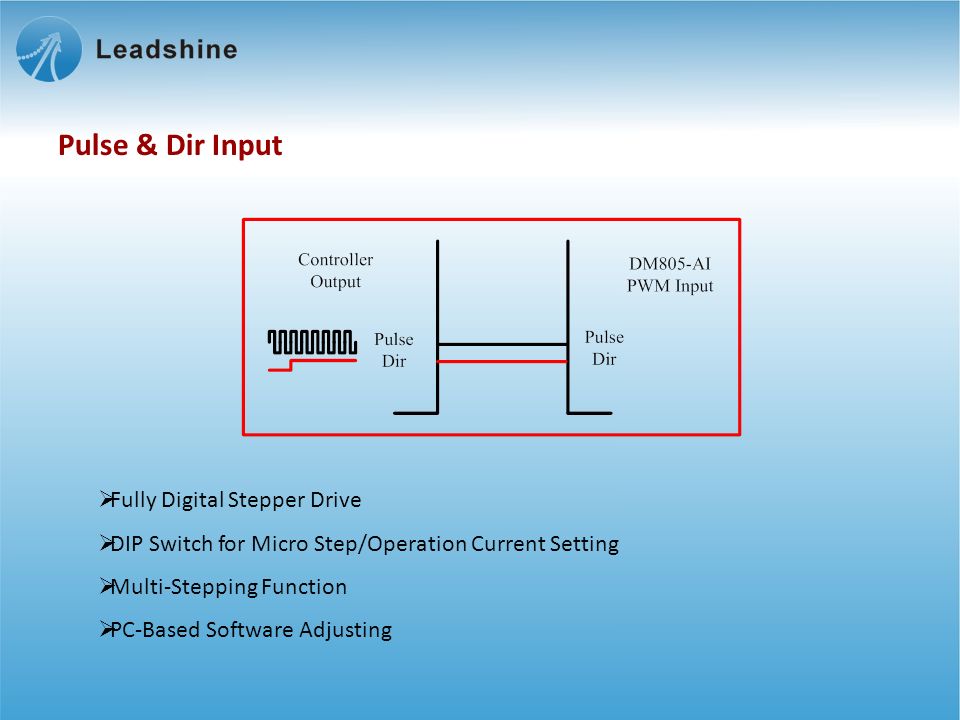

Fully Digital Stepper Drive DIP Switch for Micro Step/Operation Current Setting Multi-Stepping Function PC-Based Software Adjusting Pulse & Dir Input
It can work with the NEMA17/23/34 stepper motor to replace the brushless motor with gearbox due to its high torque and less motor noise at low speed. Application Velocity Adjusting This drive is suitable for the application which needs to adjust the velocity via the potentiometer or analog 0-5V command. High Torque and Less Noise at Low Speed If necessary, it can be used in various kinds of machines, such as rotary heat exchange, conveyor belts, transport vehicle, laser cutters, laser markers, high precision X-Y tables, labeling machines, and so on.

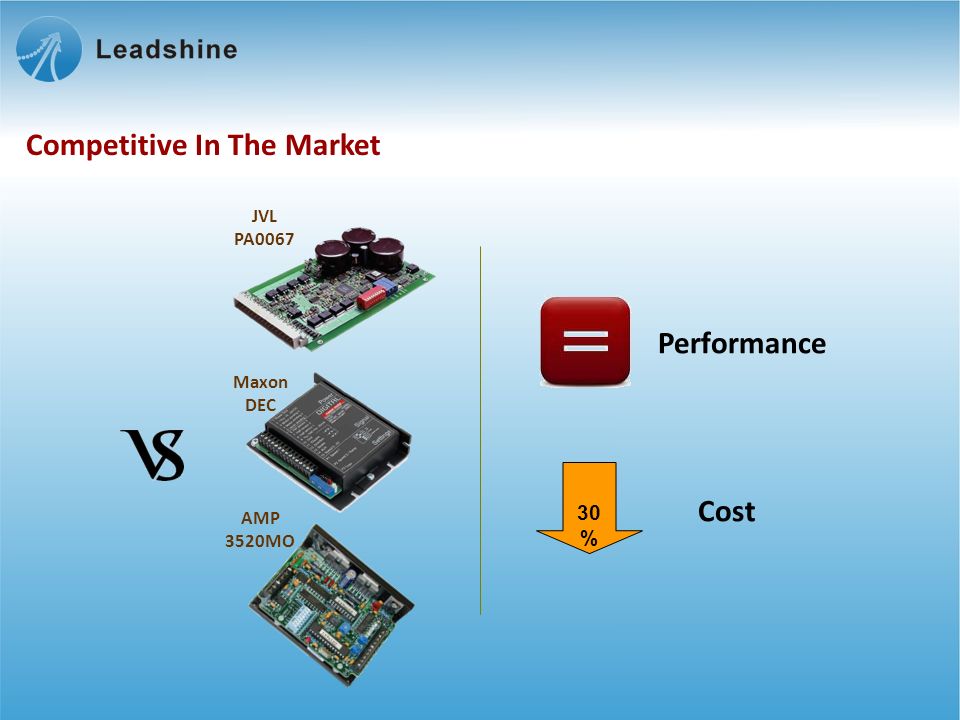

JVL PA0067 Maxon DEC AMP 3520MO Competitive In The Market Performance Cost 30 %
