Presentation on theme: "Temple of Bacchus at Baalbek Workbook p.80 - E Paul Artus p. 91 A Paul Artus p. c. AD 150."— Presentation transcript:

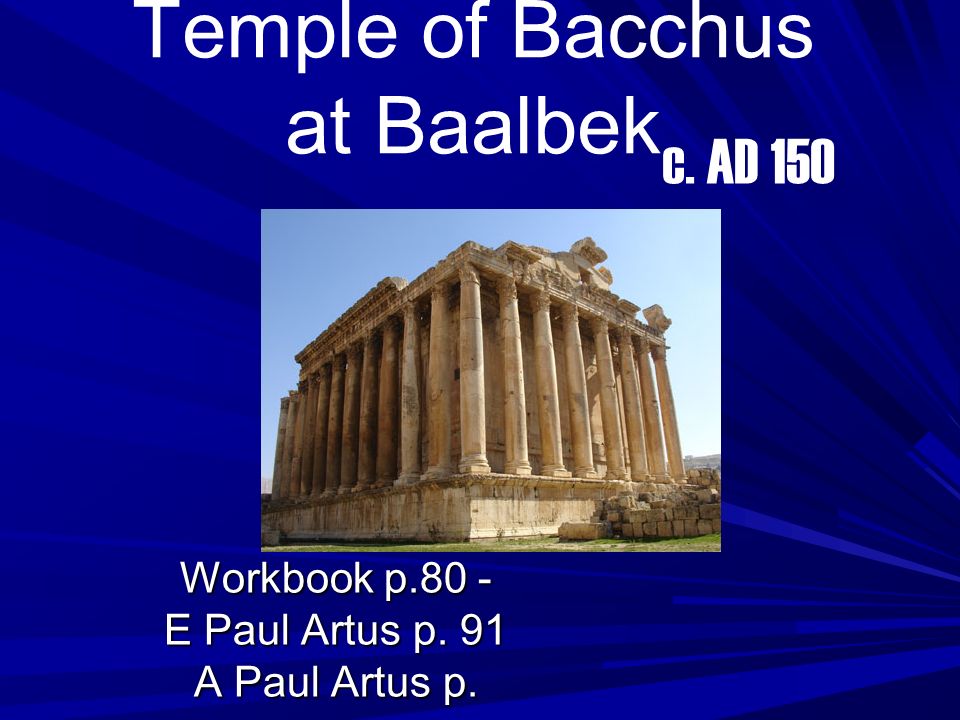

Temple of Bacchus at Baalbek Workbook p.80 - E Paul Artus p. 91 A Paul Artus p. c. AD 150
..\..\..\..\..\MY VIDEOS\youtube videos for teaching\art\BAALBECK (Lebanon).flv..\..\..\..\..\MY VIDEOS\youtube videos for teaching\art\BAALBECK (Lebanon).flv

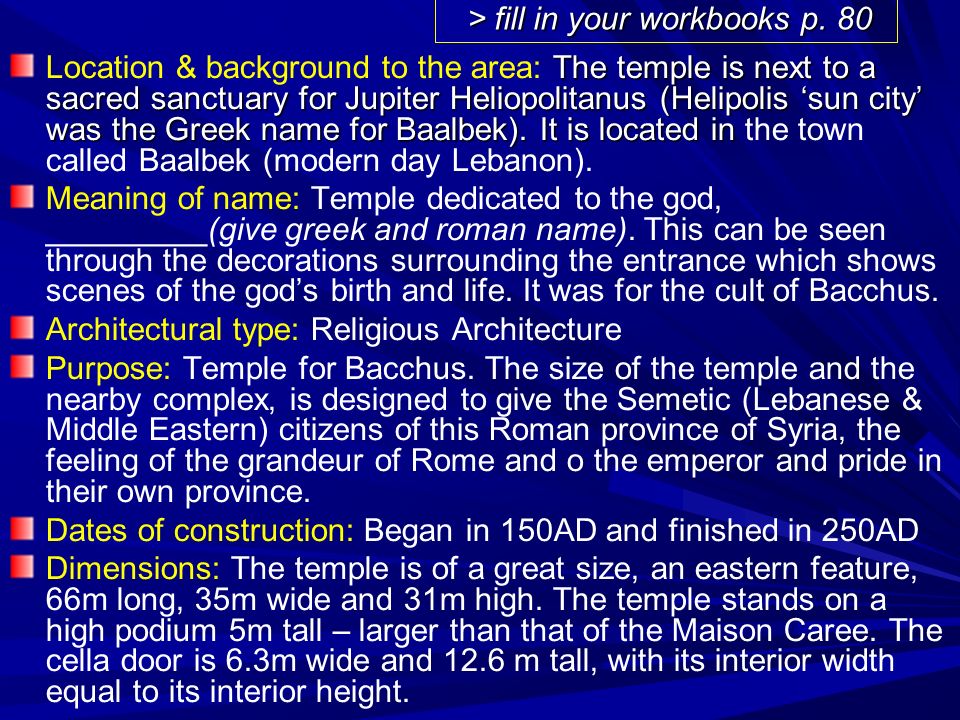

> fill in your workbooks p. 80 > fill in your workbooks p. 80 The temple is next to a sacred sanctuary for Jupiter Heliopolitanus (Helipolis sun city was the Greek name for Baalbek). It is located in Location & background to the area: The temple is next to a sacred sanctuary for Jupiter Heliopolitanus (Helipolis sun city was the Greek name for Baalbek). It is located in the town called Baalbek (modern day Lebanon). Meaning of name: Temple dedicated to the god, _________(give greek and roman name). This can be seen through the decorations surrounding the entrance which shows scenes of the gods birth and life. It was for the cult of Bacchus. Architectural type: Religious Architecture Purpose: Temple for Bacchus. The size of the temple and the nearby complex, is designed to give the Semetic (Lebanese & Middle Eastern) citizens of this Roman province of Syria, the feeling of the grandeur of Rome and o the emperor and pride in their own province. Dates of construction: Began in 150AD and finished in 250AD Dimensions: The temple is of a great size, an eastern feature, 66m long, 35m wide and 31m high. The temple stands on a high podium 5m tall – larger than that of the Maison Caree. The cella door is 6.3m wide and 12.6 m tall, with its interior width equal to its interior height.

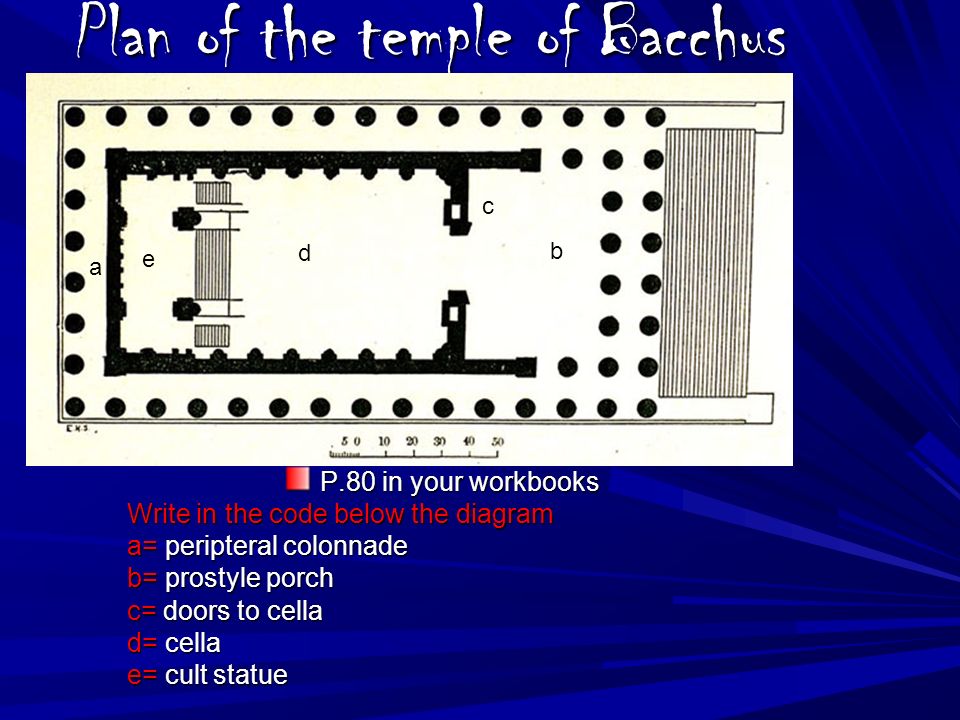

Plan of the temple of Bacchus P.80 in your workbooks Write in the code below the diagram a= peripteral colonnade b= prostyle porch c= doors to cella d= cella e= cult statue d e c b a
What type of columns?
How many columns along the Front? What is a word we use For that number?

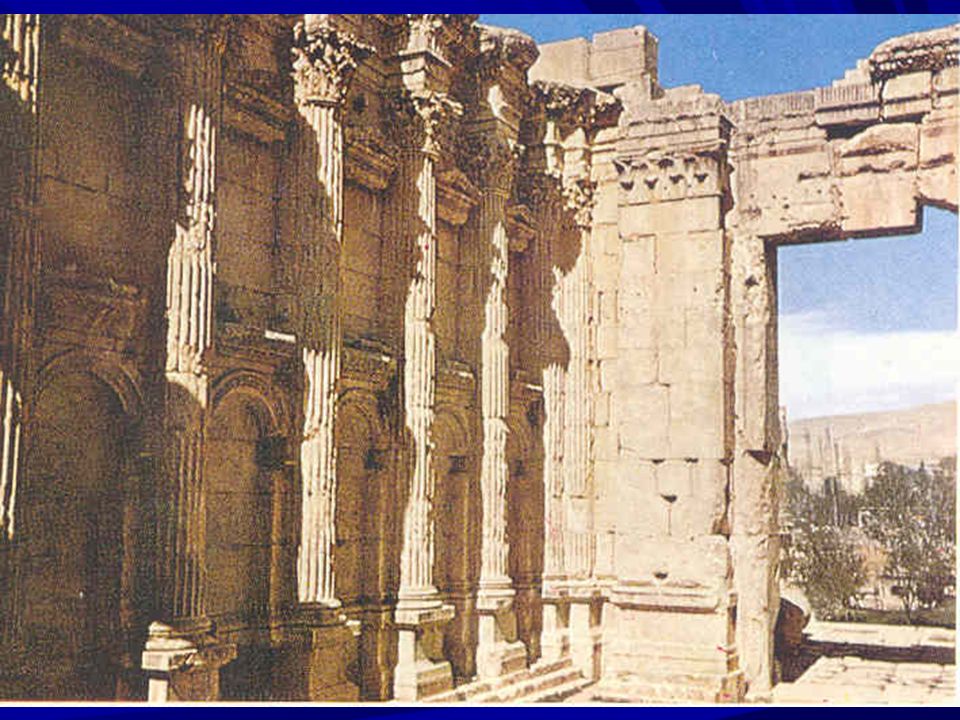

Side walls of the cella project out to form antae in the front and there is a deep prostyle porch where the porch columns are in front of the projecting ends of the cella. Unfluted Corinthian columns are used for the colonnade and the front row of the porch, while the interior columns of the porch are fluted and smaller than the exterior columns.
It has a colonnade on all 4 sides (peripteral). This is made up of 8 free-standing, columns (octastyle) at the front & back 15 on each long side. The statue was not in the cella like most temples, but within another structure called an adyton (an eastern feature), a very elaborate canopy in marble.
Has a vaulted ceiling & 2 towers with steps (an Eastern feature) on either side of the doorway The western end opposite the doorway had a stairway of 9 nine steps, the full width of the cella. The Inner raised podium had a central set of steps flanked by piers with 2 engaged corinthian columns. This central set of 6 steps lead to another podium where the statue of the god was in its shrine. On the exterior, Surrounding entrance to the cella is 2 bands of elaborate patterning – a vine motif (grape or ivy) represents Dionysus. - Acanthus leaves that sprout ears of wheat representing fertility and rebirth - Acanthus leaves that sprout ears of wheat representing fertility and rebirth Structural features
Decorative features The portico ceiling is elaborately carved with busts of Mars, Ceres, Vulcan, Ganymede and the doorway is surrounded by elaborate carving.

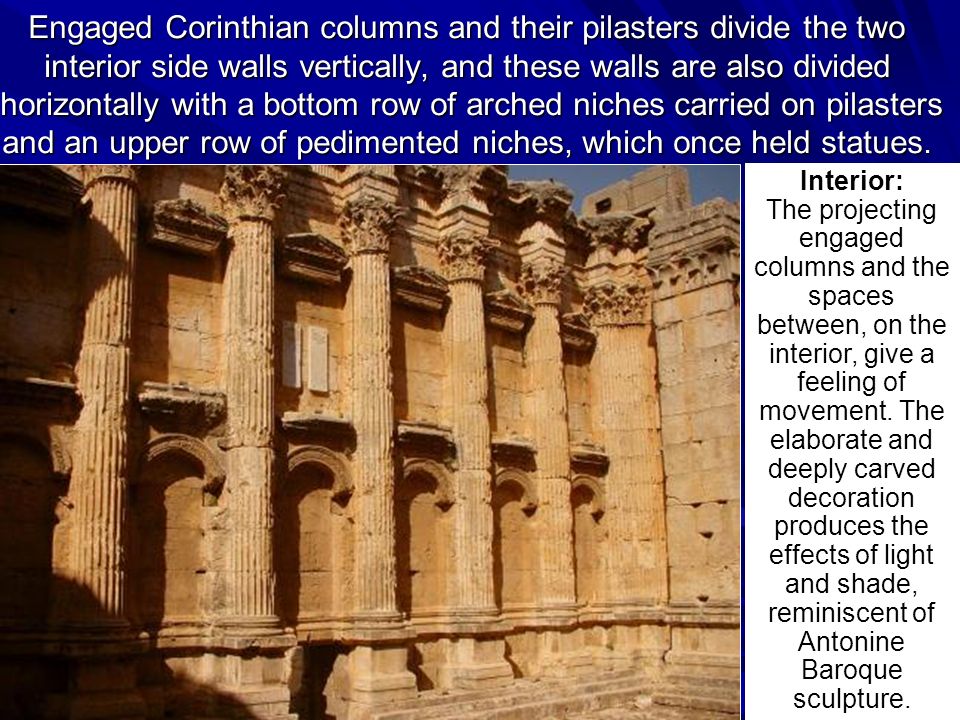

Engaged Corinthian columns and their pilasters divide the two interior side walls vertically, and these walls are also divided horizontally with a bottom row of arched niches carried on pilasters and an upper row of pedimented niches, which once held statues. Decorative features Interior: The projecting engaged columns and the spaces between, on the interior, give a feeling of movement. The elaborate and deeply carved decoration produces the effects of light and shade, reminiscent of Antonine Baroque sculpture.
The temple of Bacchus had a coffered ceiling
Comparing two temples, Maison Caree and Temple of Bacchus Similarities between Bacchus & Maison Carree Differences between Bacchus & Maison Caree Both have a rectangular shape Both focus on frontal entrance Both have a podium Both are in a sanctuary (Maison Caree had a 3-sided p_____, Bacchus next to temple of J_____) Both have Corinthian capitals Both have e______ columns Both use local limestone as building material Height of podium is bigger on Bacchus (5m) 3 flights of steps, not one, on Bacchus Free-standing exterior columns, not engaged, 2 interior towers, interior raised podium, & adyton, baroque style & interior decoration on Bacchus Maison Caree is half the size of Bacchus

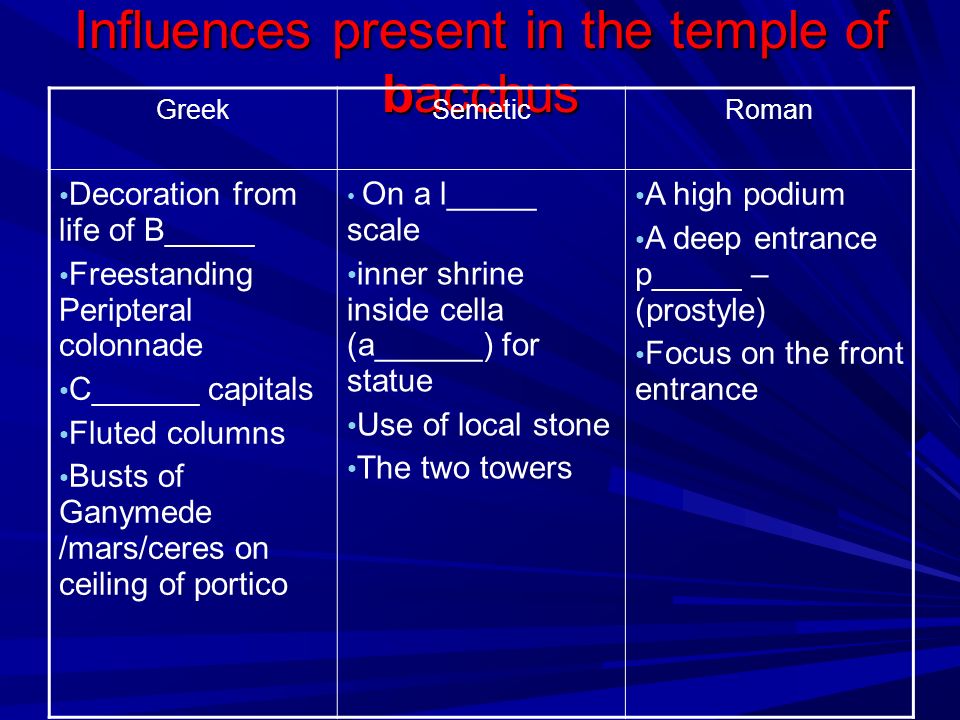

Influences present in the temple of bacchus GreekSemeticRoman Decoration from life of B_____ Freestanding Peripteral colonnade C______ capitals Fluted columns Busts of Ganymede /mars/ceres on ceiling of portico On a l_____ scale inner shrine inside cella (a______) for statue Use of local stone The two towers A high podium A deep entrance p_____ – (prostyle) Focus on the front entrance
