1 Active galactic nuclei in low surface brightness galaxies Weimin Yuan Yunnan Observatory Based on Master thesis work of Lin Mei In collaboration with X.B. Dong (USTC) astro-ph/

2 Questions to address What is the fraction of LSBG that host an AGN? How the AGN fraction depends on the properties of LSBG?

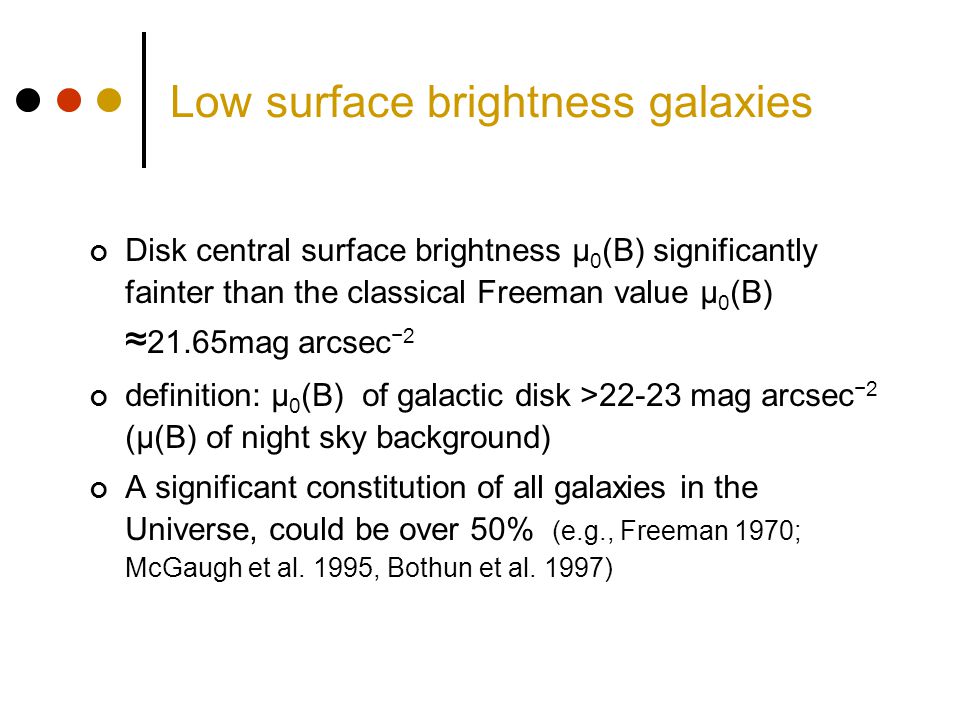

3 Low surface brightness galaxies Disk central surface brightness μ 0 (B) significantly fainter than the classical Freeman value μ 0 (B) ≈ 21.65mag arcsec −2 definition: μ 0 (B) of galactic disk >22-23 mag arcsec −2 (μ(B) of night sky background) A significant constitution of all galaxies in the Universe, could be over 50% (e.g., Freeman 1970; McGaugh et al. 1995, Bothun et al. 1997)

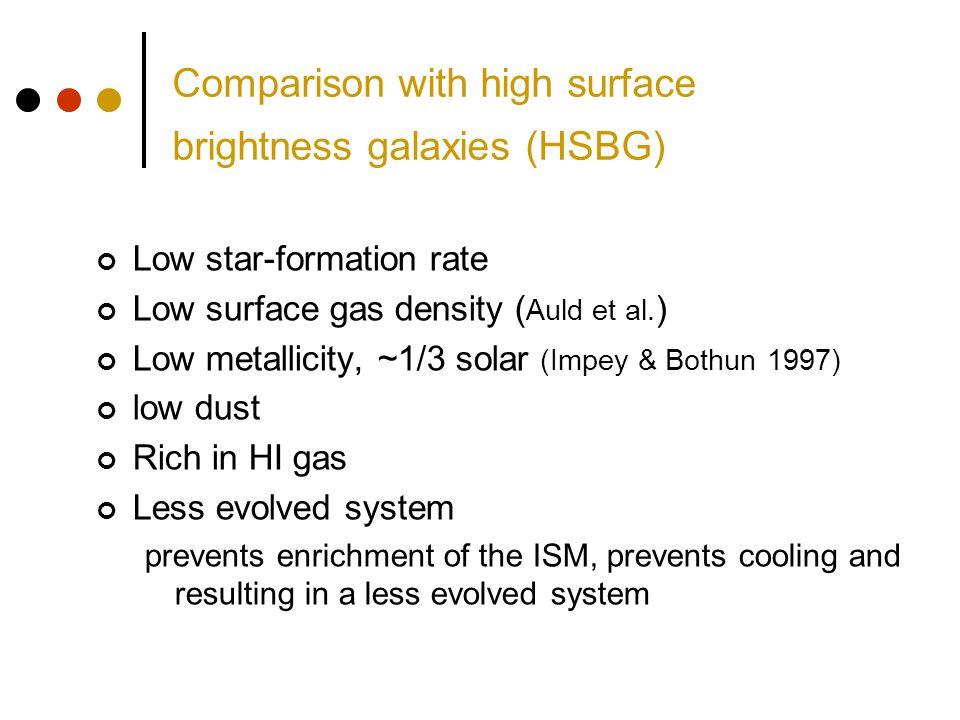

4 Comparison with high surface brightness galaxies (HSBG) Low star-formation rate Low surface gas density ( Auld et al. ) Low metallicity, ~1/3 solar (Impey & Bothun 1997) low dust Rich in HI gas Less evolved system prevents enrichment of the ISM, prevents cooling and resulting in a less evolved system

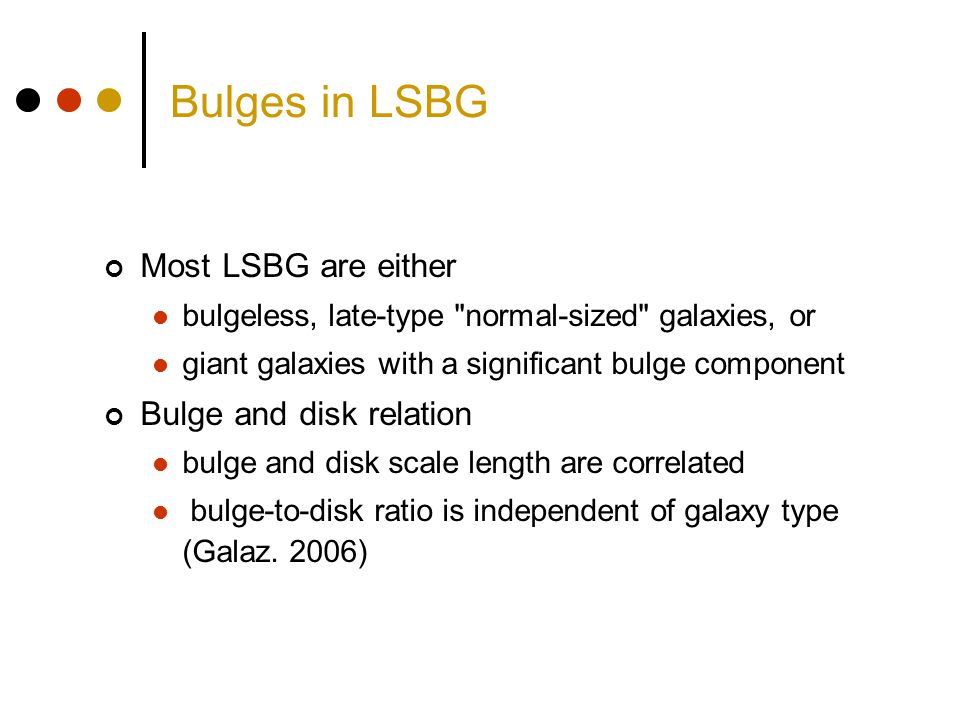

5 Bulges in LSBG Most LSBG are either bulgeless, late-type "normal-sized" galaxies, or giant galaxies with a significant bulge component Bulge and disk relation bulge and disk scale length are correlated bulge-to-disk ratio is independent of galaxy type (Galaz. 2006)‏

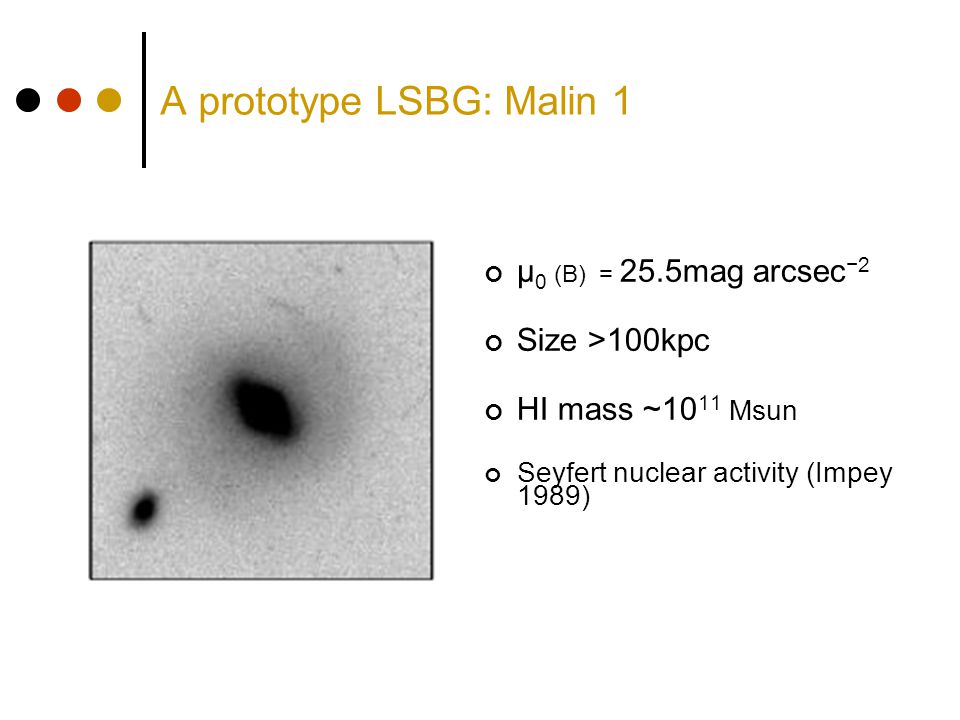

6 A prototype LSBG: Malin 1 μ 0 (B) = 25.5mag arcsec −2 Size >100kpc HI mass ~10 11 Msun Seyfert nuclear activity (Impey 1989)

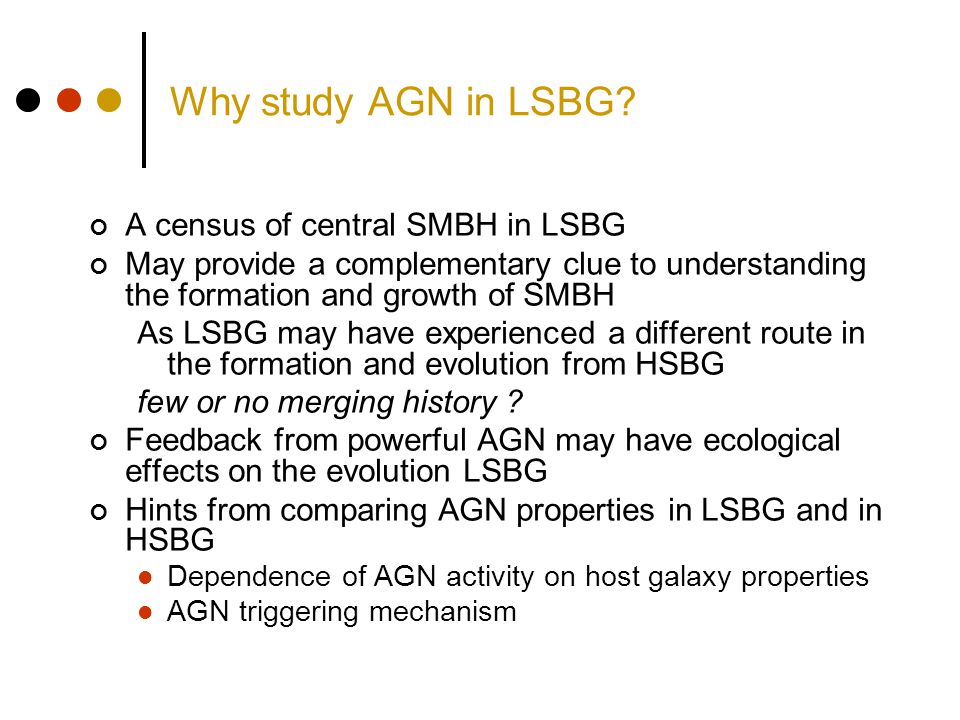

7 Why study AGN in LSBG? A census of central SMBH in LSBG May provide a complementary clue to understanding the formation and growth of SMBH As LSBG may have experienced a different route in the formation and evolution from HSBG few or no merging history ? Feedback from powerful AGN may have ecological effects on the evolution LSBG Hints from comparing AGN properties in LSBG and in HSBG Dependence of AGN activity on host galaxy properties AGN triggering mechanism

8 studies of AGN in LSBG --- rare and controversial Not well studied: only a few cases of secured AGN detections A high AGN detection rate was ever suggested for LSBG Sprayberry et al. (1993) found 5 AGN (4 Seyfert1 + 1 Seyfert 2) in 10 giant LSBG Schombert (1998) claimed ~50% of large, HI-rich LSBG have signatures of low-L AGN (based on [NII] and [SII], plus [OI])‏ But cannot be confirmed by Impey et al. (2001), who found AGN in only <~ 5% LSBG previous work suffered from problems of: sample: small size, strong biases, etc. low quality data: low R and S/N spectra data analysis: e.g. no proper subtraction of host galaxy light

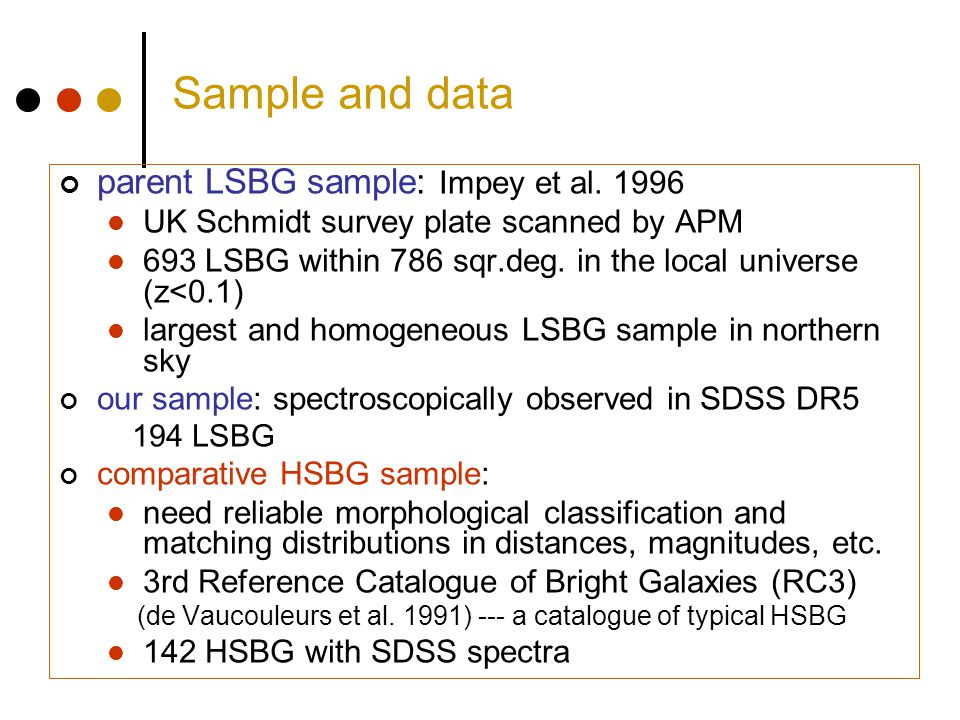

9 Sample and data parent LSBG sample: Impey et al UK Schmidt survey plate scanned by APM 693 LSBG within 786 sqr.deg. in the local universe (z<0.1) largest and homogeneous LSBG sample in northern sky our sample: spectroscopically observed in SDSS DR5 194 LSBG comparative HSBG sample: need reliable morphological classification and matching distributions in distances, magnitudes, etc. 3rd Reference Catalogue of Bright Galaxies (RC3) (de Vaucouleurs et al. 1991) --- a catalogue of typical HSBG 142 HSBG with SDSS spectra

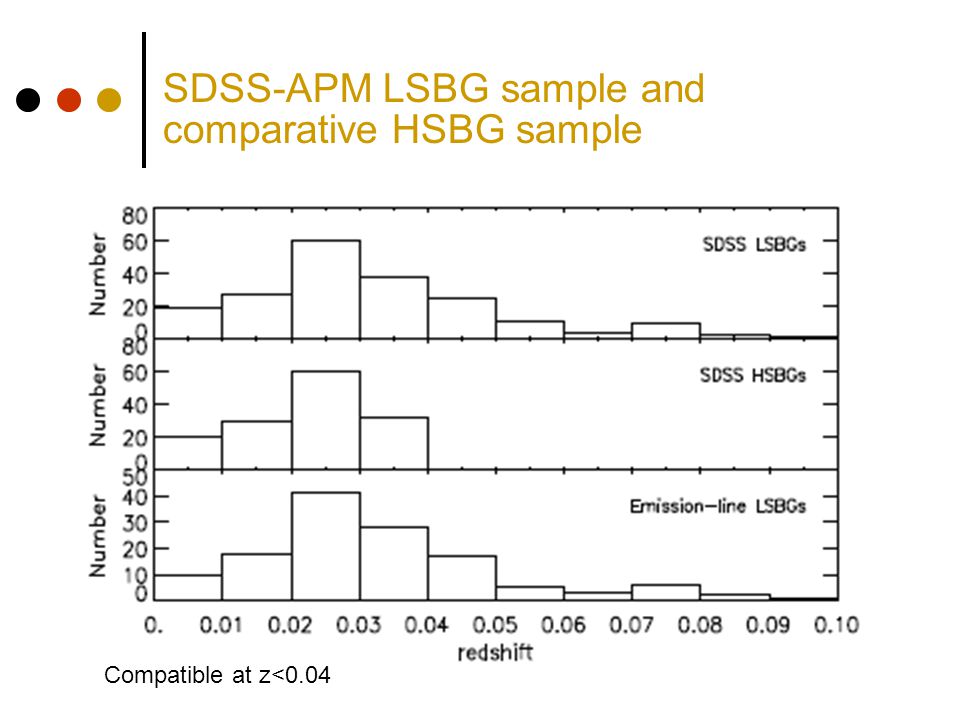

10 SDSS-APM LSBG sample and comparative HSBG sample Compatible at z<0.04

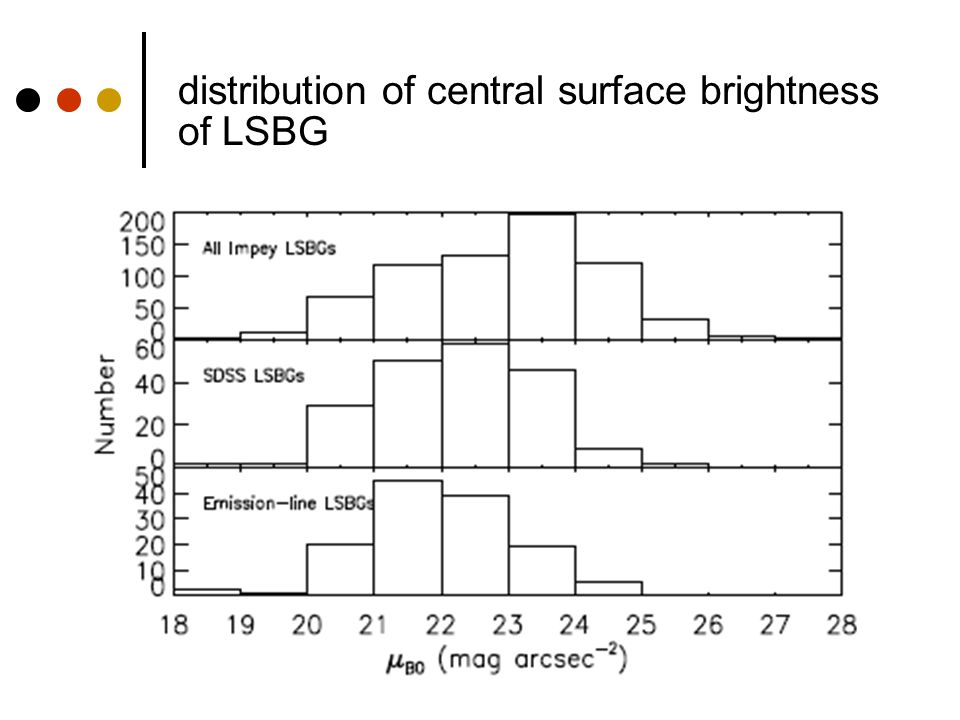

11 distribution of central surface brightness of LSBG

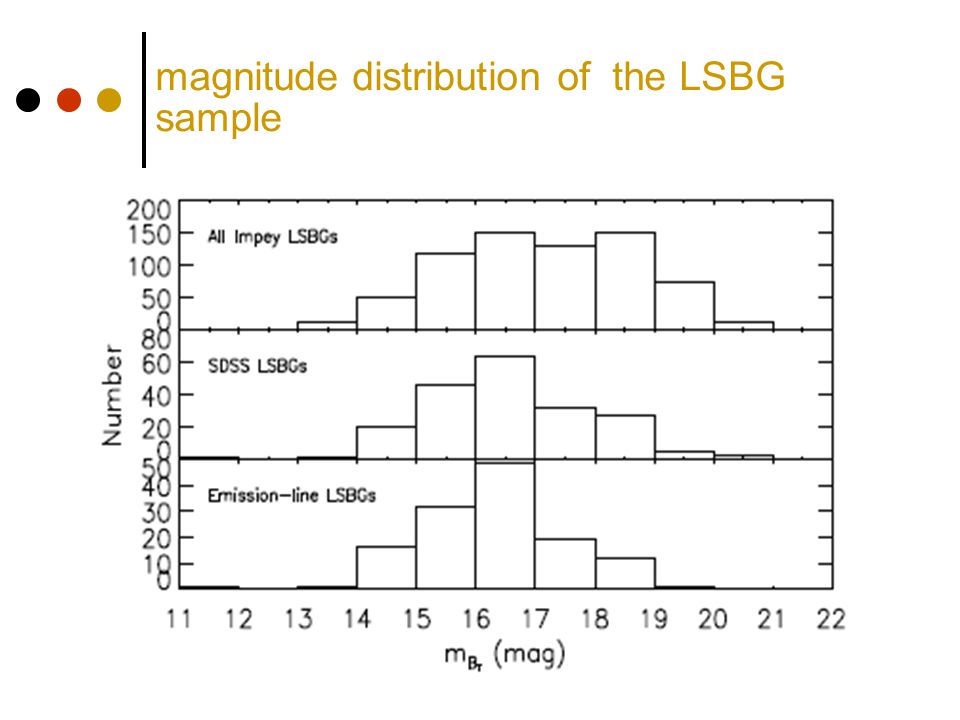

12 magnitude distribution of the LSBG sample

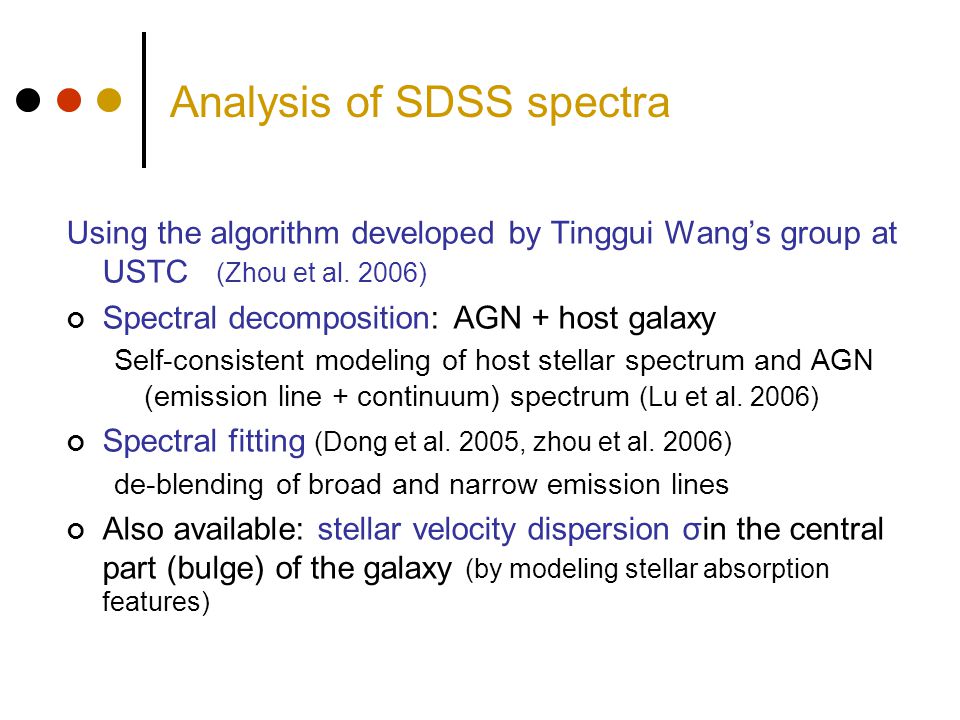

13 Analysis of SDSS spectra Using the algorithm developed by Tinggui Wang’s group at USTC (Zhou et al. 2006) Spectral decomposition: AGN + host galaxy Self-consistent modeling of host stellar spectrum and AGN (emission line + continuum) spectrum (Lu et al. 2006) Spectral fitting (Dong et al. 2005, zhou et al. 2006) de-blending of broad and narrow emission lines Also available: stellar velocity dispersion σin the central part (bulge) of the galaxy (by modeling stellar absorption features)

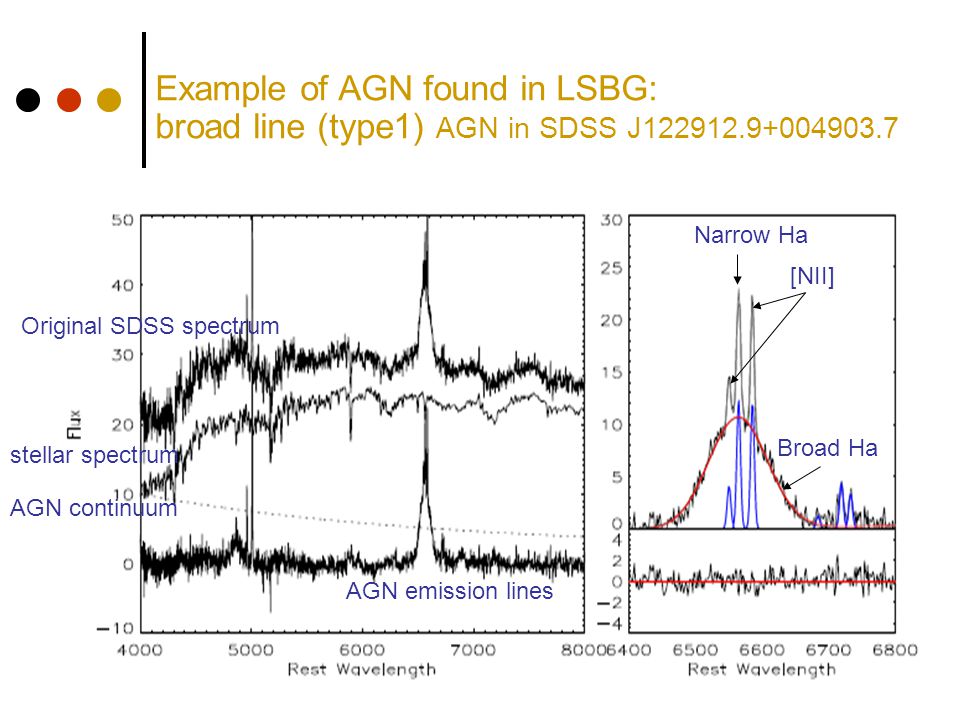

14 Example of AGN found in LSBG: broad line (type1) AGN in SDSS J Original SDSS spectrum stellar spectrum AGN continuum AGN emission lines Broad Ha Narrow Ha [NII]

15 Example of AGN found in LSBG: narrow line (type 2) AGN

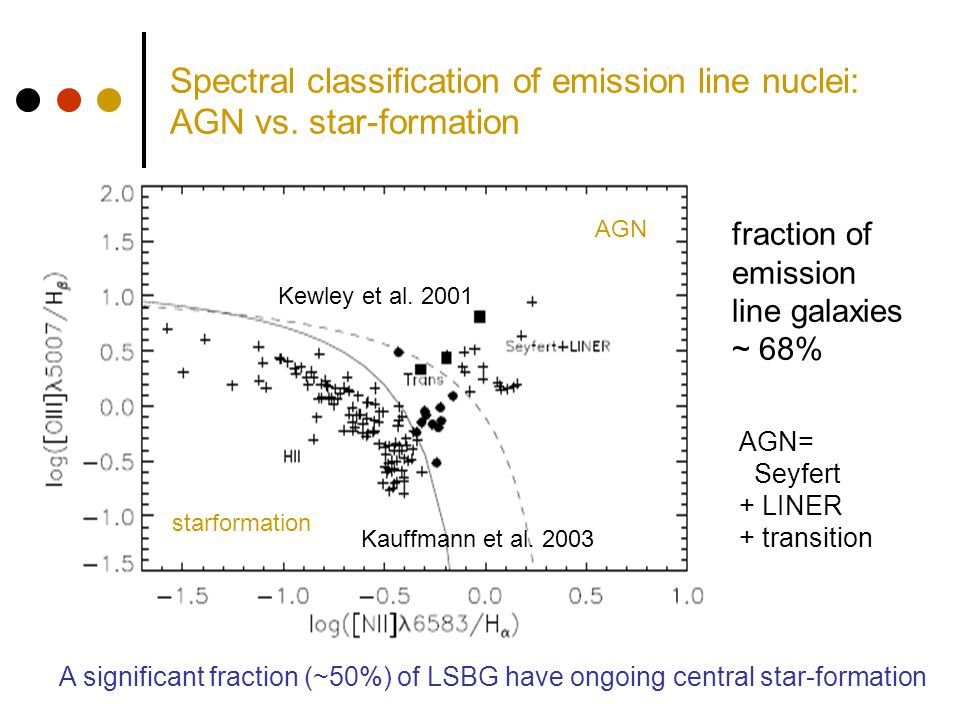

16 Spectral classification of emission line nuclei: AGN vs. star-formation A significant fraction (~50%) of LSBG have ongoing central star-formation fraction of emission line galaxies ~ 68% AGN starformation Kewley et al Kauffmann et al AGN= Seyfert + LINER + transition

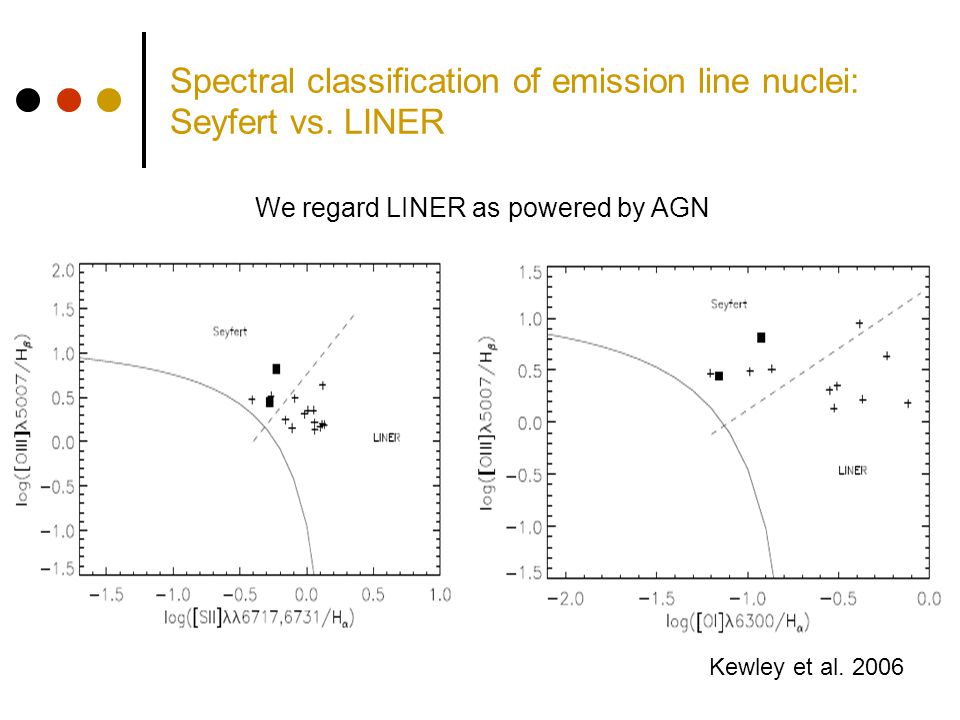

17 Spectral classification of emission line nuclei: Seyfert vs. LINER We regard LINER as powered by AGN Kewley et al. 2006

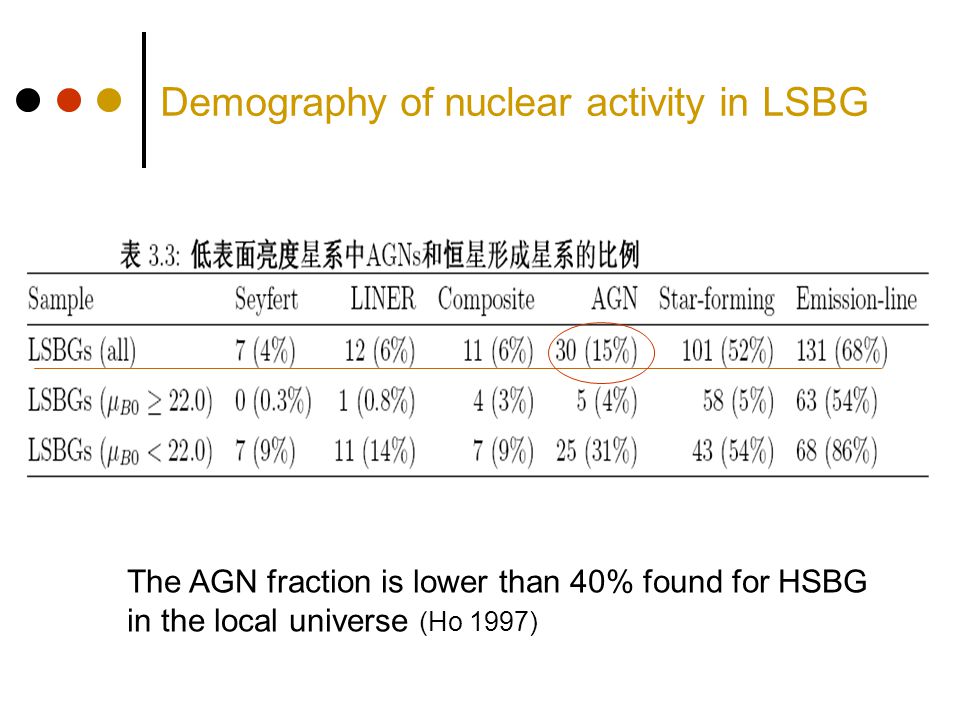

18 Demography of nuclear activity in LSBG The AGN fraction is lower than 40% found for HSBG in the local universe (Ho 1997)

19 AGN found across morphological types for LSBG AGN fraction Lower for later types of galaxies but significantly higher for interacting galaxies the same as HSBG All emission line LSBG Star-formation nuclei AGN

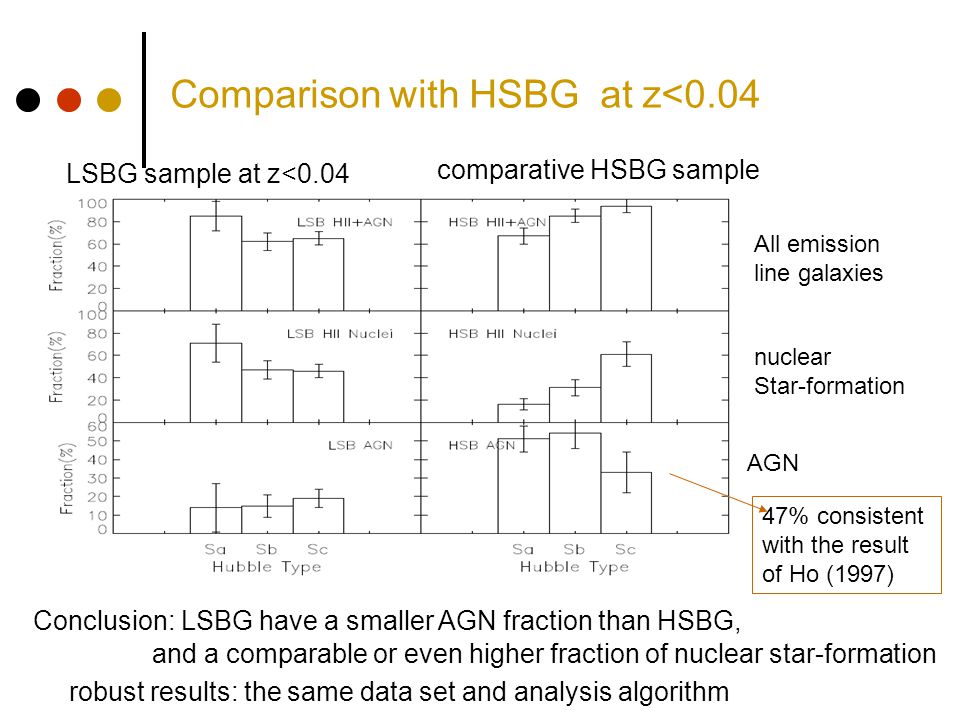

20 Comparison with HSBG at z<0.04 comparative HSBG sample LSBG sample at z<0.04 All emission line galaxies nuclear Star-formation AGN Conclusion: LSBG have a smaller AGN fraction than HSBG, and a comparable or even higher fraction of nuclear star-formation robust results: the same data set and analysis algorithm 47% consistent with the result of Ho (1997)

21 Dependence of AGN fraction on size of galaxy physical size of galaxies (kpc) AGN tend to reside in galaxies of larger size AGN fraction

22 Dependence of AGN fraction on central stellar velocity dispersion Central stellar velocity dispersion AGN tend to reside in galaxies with larger central σ  For both LSBG and HSBG LSBG HSBG

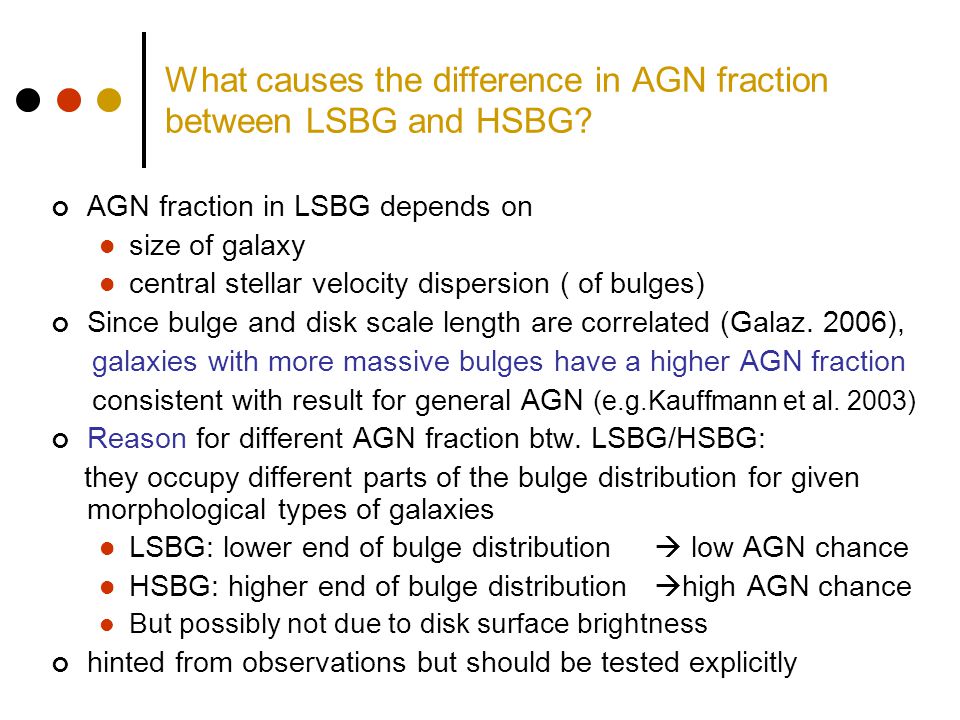

23 AGN fraction in LSBG depends on size of galaxy central stellar velocity dispersion ( of bulges) Since bulge and disk scale length are correlated (Galaz. 2006), galaxies with more massive bulges have a higher AGN fraction consistent with result for general AGN (e.g.Kauffmann et al. 2003) Reason for different AGN fraction btw. LSBG/HSBG: they occupy different parts of the bulge distribution for given morphological types of galaxies LSBG: lower end of bulge distribution  low AGN chance HSBG: higher end of bulge distribution  high AGN chance But possibly not due to disk surface brightness hinted from observations but should be tested explicitly What causes the difference in AGN fraction between LSBG and HSBG?

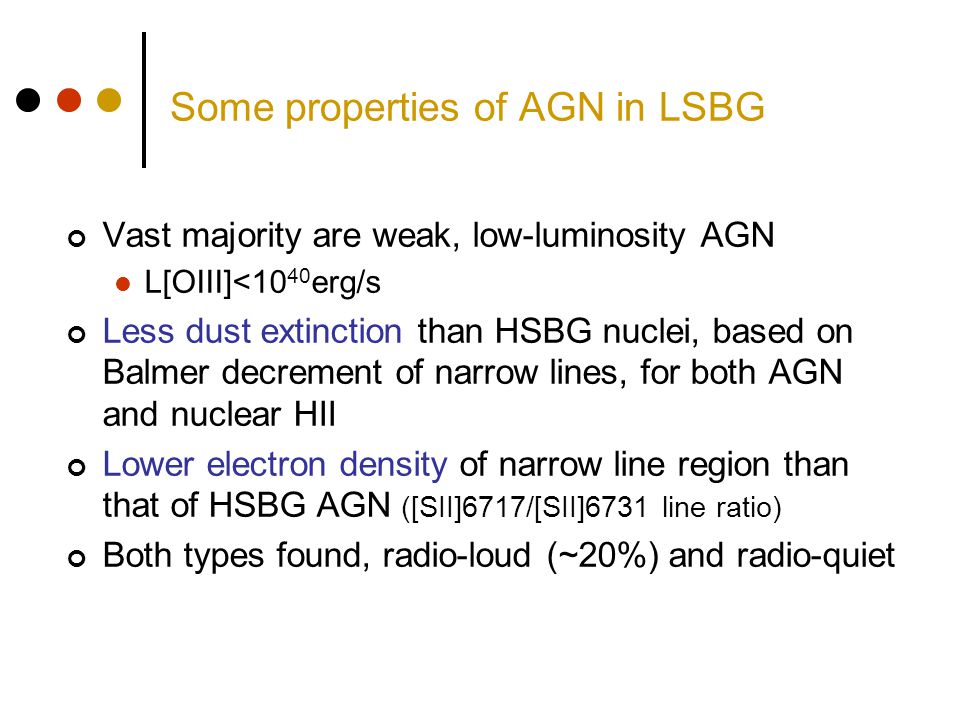

24 Some properties of AGN in LSBG Vast majority are weak, low-luminosity AGN L[OIII]<10 40 erg/s Less dust extinction than HSBG nuclei, based on Balmer decrement of narrow lines, for both AGN and nuclear HII Lower electron density of narrow line region than that of HSBG AGN ([SII]6717/[SII]6731 line ratio) Both types found, radio-loud (~20%) and radio-quiet

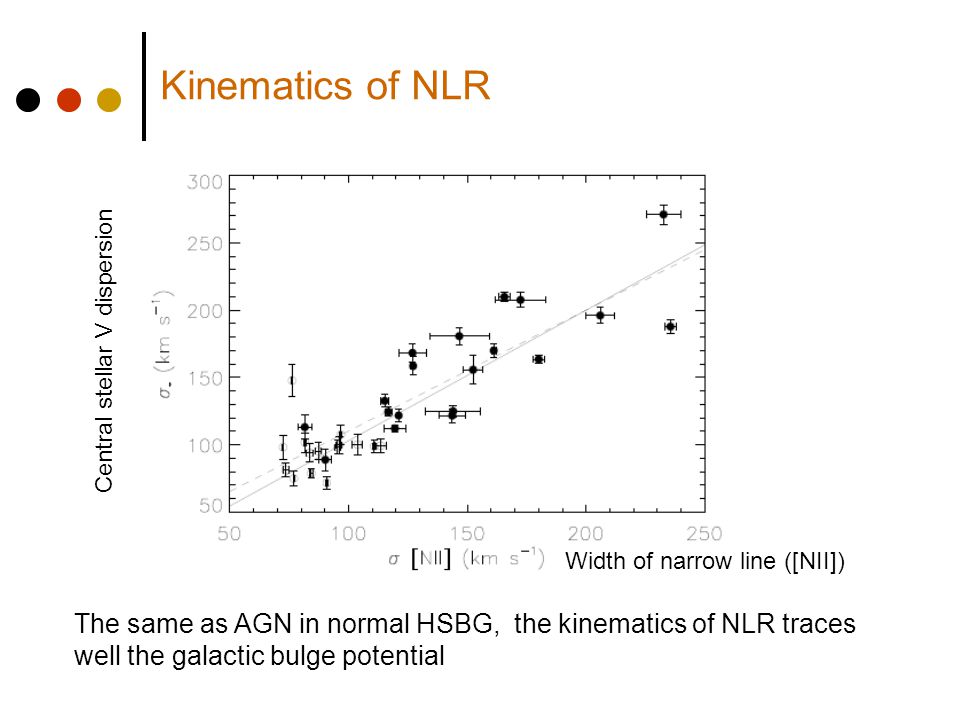

25 Kinematics of NLR The same as AGN in normal HSBG, the kinematics of NLR traces well the galactic bulge potential Central stellar V dispersion Width of narrow line ([NII])

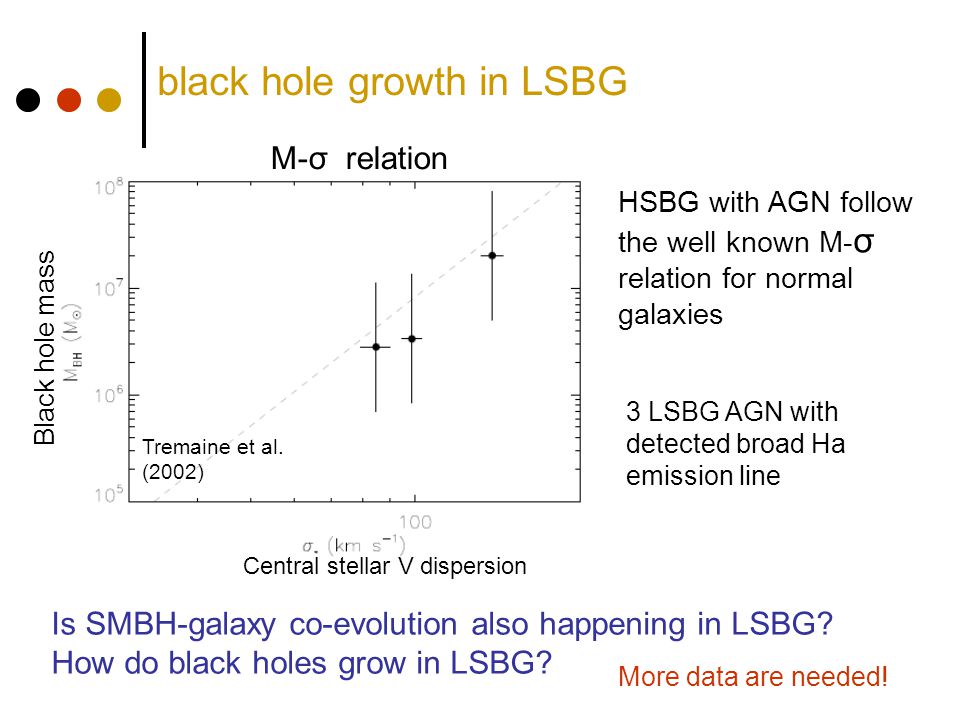

26 black hole growth in LSBG 3 LSBG AGN with detected broad Ha emission line Black hole mass Central stellar V dispersion Tremaine et al. (2002) HSBG with AGN follow the well known M- σ relation for normal galaxies Is SMBH-galaxy co-evolution also happening in LSBG? How do black holes grow in LSBG? More data are needed! M-σ relation

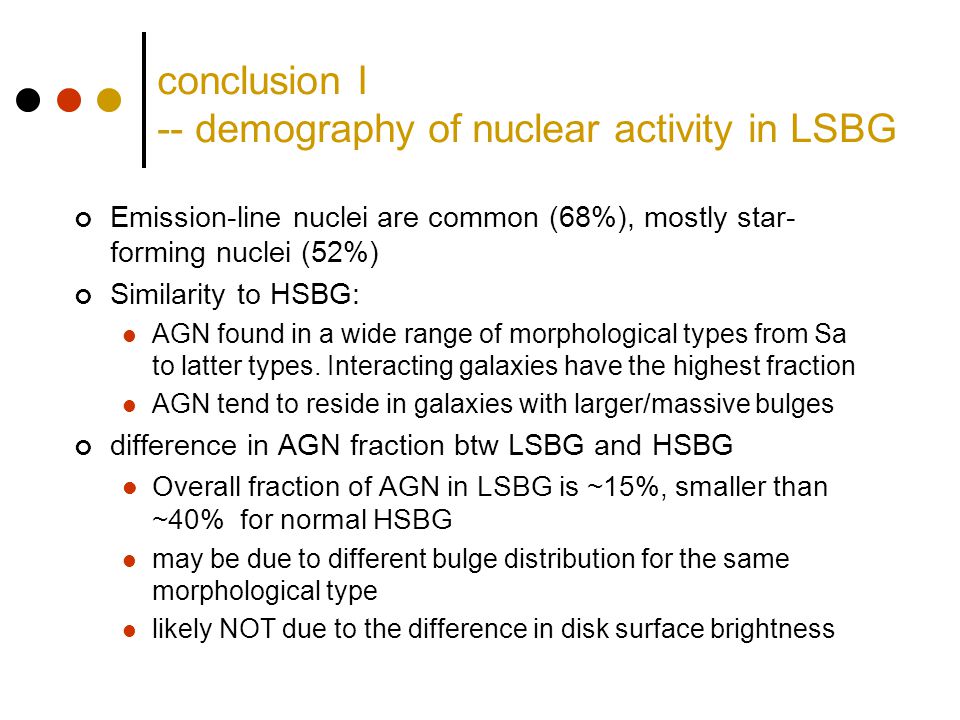

27 conclusion I -- demography of nuclear activity in LSBG Emission-line nuclei are common (68%), mostly star- forming nuclei (52%) Similarity to HSBG: AGN found in a wide range of morphological types from Sa to latter types. Interacting galaxies have the highest fraction AGN tend to reside in galaxies with larger/massive bulges difference in AGN fraction btw LSBG and HSBG Overall fraction of AGN in LSBG is ~15%, smaller than ~40% for normal HSBG may be due to different bulge distribution for the same morphological type likely NOT due to the difference in disk surface brightness

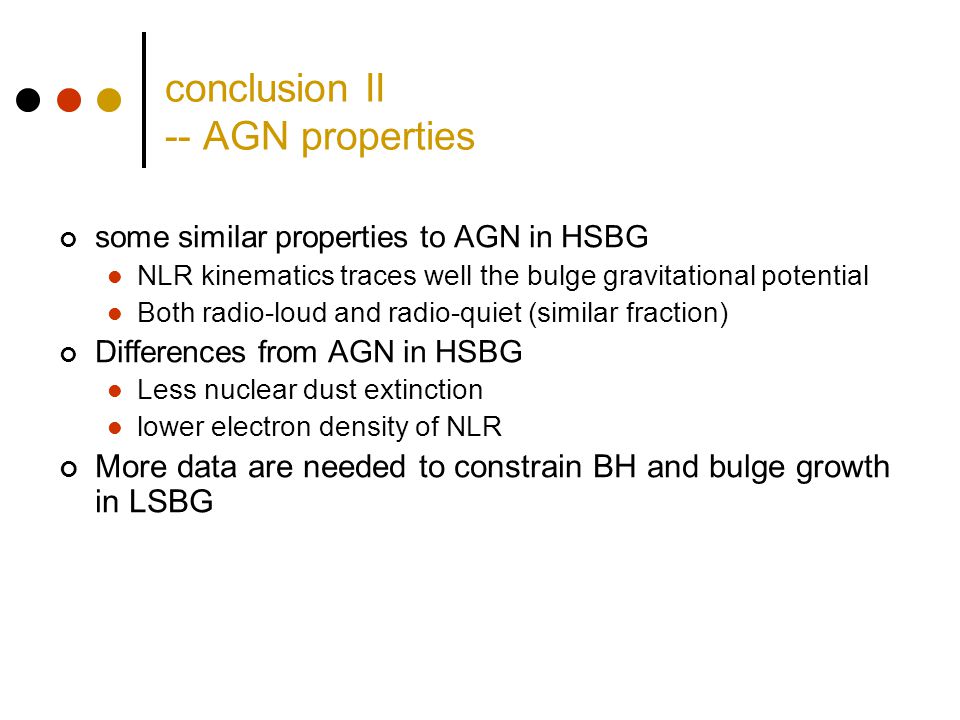

28 conclusion II -- AGN properties some similar properties to AGN in HSBG NLR kinematics traces well the bulge gravitational potential Both radio-loud and radio-quiet (similar fraction) Differences from AGN in HSBG Less nuclear dust extinction lower electron density of NLR More data are needed to constrain BH and bulge growth in LSBG

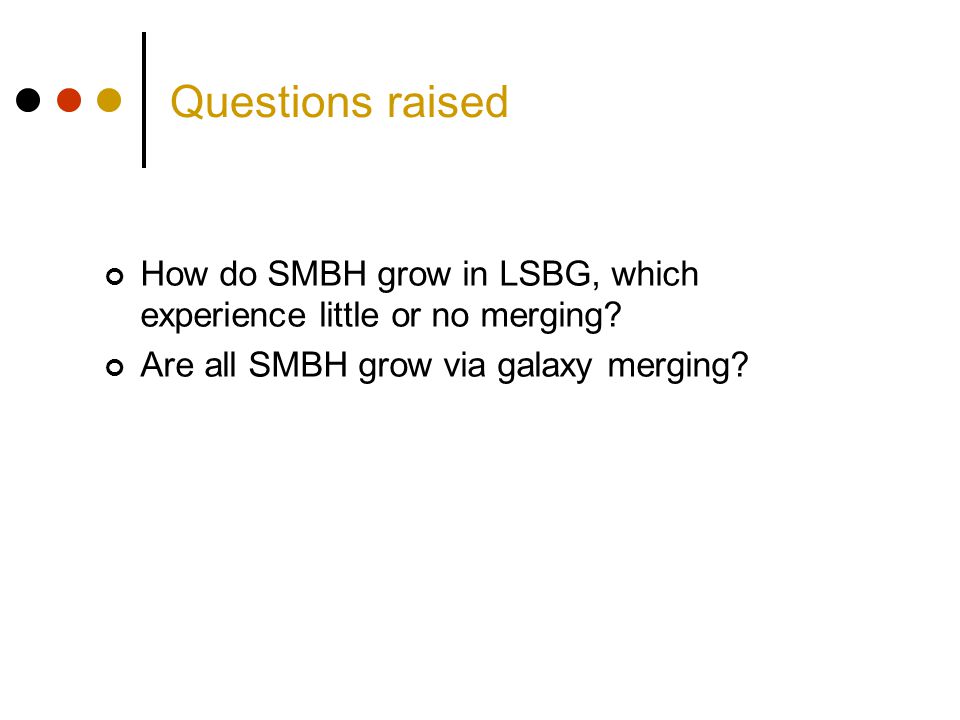

29 Questions raised How do SMBH grow in LSBG, which experience little or no merging? Are all SMBH grow via galaxy merging?

30 Next step Deep imaging of LSBG for bulge/disk decomposition (using the YNAO Lijiang 2.4m) Distribution of black hole mass and Eddington ratio Better constraint to the BH growth and M-σrelation for LSBG Select new LSBG samples from SDSS and other imaging survey data

31 Thank you for your attention
