1 P R O F E S S I O N A L N E T W O R K T E S T I N G & P R O T O C O L A N A L Y S I S Physical Infrastructure Trends and Certification Budapest, March 2014 Alfred Huber Technical Manager Lise-Meitner-Straße 3 D Krailling Tel: +49 (0) 89/ Fax: +49 (0) 89/

2 P R O F E S S I O N A L N E T W O R K T E S T I N G & P R O T O C O L A N A L Y S I S 2014 © Psiber Data GmbH (a company) Psiber‘s Global Village Munich Milano London San Diego Singapore Paris Boston Sales Offices Hubs providing R&D, Infrastructure and Service

3 P R O F E S S I O N A L N E T W O R K T E S T I N G & P R O T O C O L A N A L Y S I S 2014 © Psiber Data GmbH (a company) Psiber Data – Portfolio

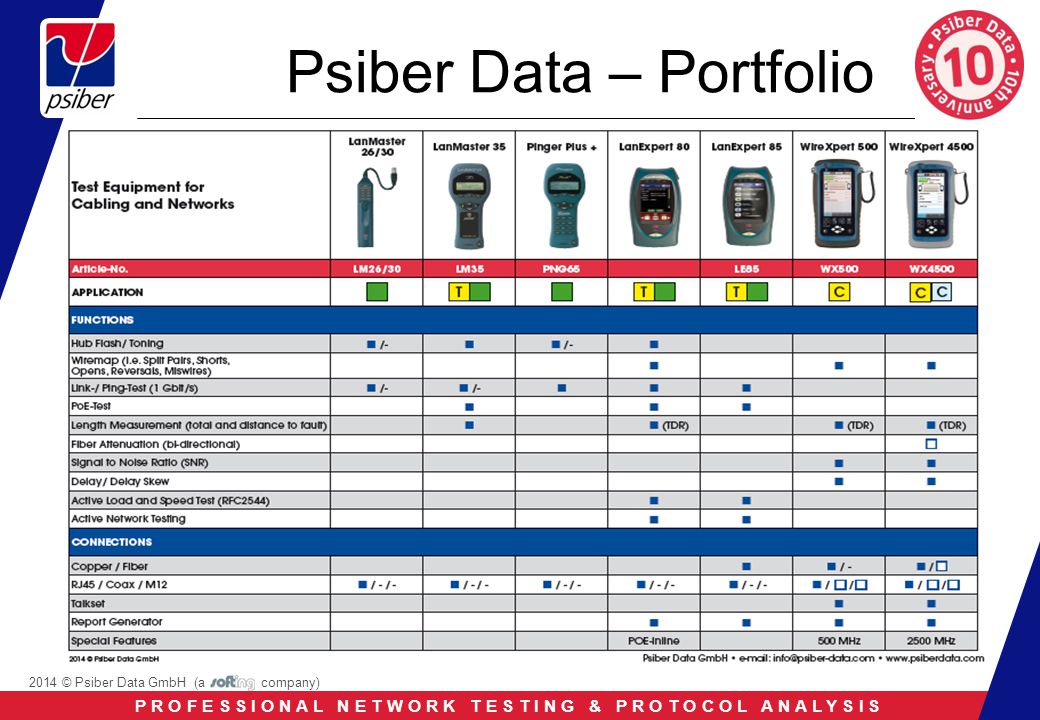

4 P R O F E S S I O N A L N E T W O R K T E S T I N G & P R O T O C O L A N A L Y S I S 2014 © Psiber Data GmbH (a company) Psiber Data – Portfolio

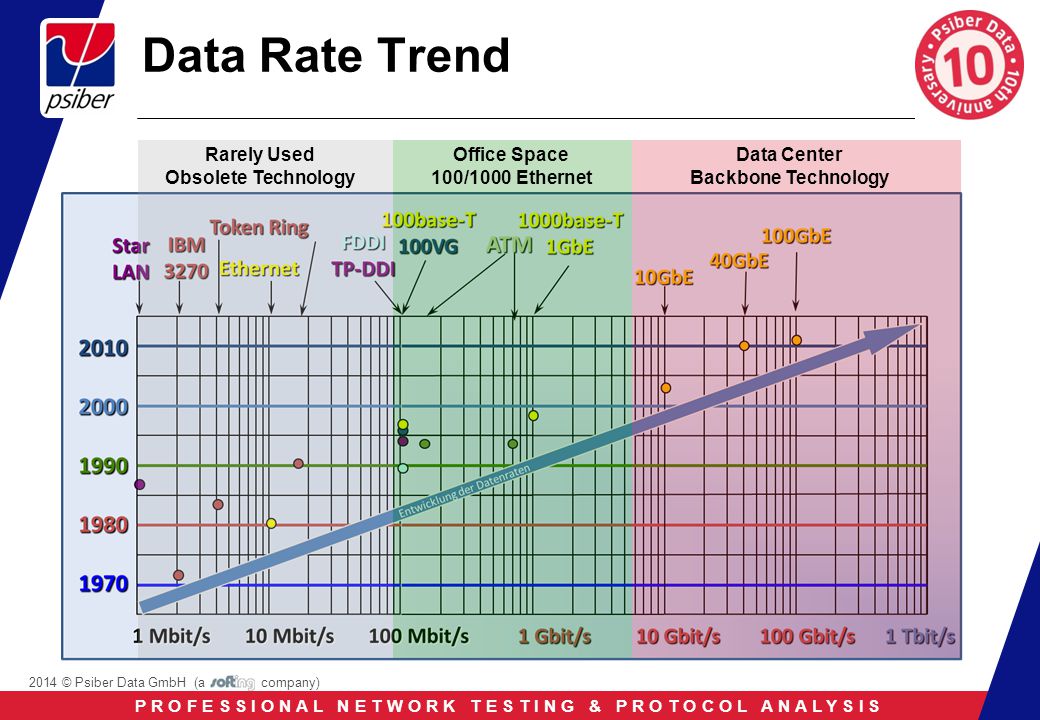

5 P R O F E S S I O N A L N E T W O R K T E S T I N G & P R O T O C O L A N A L Y S I S 2014 © Psiber Data GmbH (a company) Data Rate Trend Rarely Used Obsolete Technology Office Space 100/1000 Ethernet Data Center Backbone Technology

6 P R O F E S S I O N A L N E T W O R K T E S T I N G & P R O T O C O L A N A L Y S I S 2014 © Psiber Data GmbH (a company) Standards – Existing and Future Certify – What’s that? Permanent Link & Channel Link Agenda Measurement Parameters – DC & RF & Calculations Wirexpert – The Universal Genius Test Adapters – What is available? Summary Manufacturer Approvals eXport – Data Management Software

7 P R O F E S S I O N A L N E T W O R K T E S T I N G & P R O T O C O L A N A L Y S I S 2014 © Psiber Data GmbH (a company) Cabling Standards (Cu) USA Drafts Europa International 250 MHz 600 MHz TIA/EIA 568-C Category 6 TIA/EIA 568-C Category 6 ISO/IEC nd Edition Class E ISO/IEC nd Edition Class E ISO/IEC nd Edition Class F ISO/IEC nd Edition Class F Deutschland CENELEC EN Class E CENELEC EN Class E CENELEC EN Class F CENELEC EN Class F DKE DIN EN Klasse E DKE DIN EN Klasse E 100 MHz ISO/IEC nd Edition Class D ISO/IEC nd Edition Class D CENELEC EN Class D CENELEC EN Class D DKE DIN EN Klasse D DKE DIN EN Klasse D DKE DIN EN Klasse F DKE DIN EN Klasse F TIA/EIA 568-C Category 5e TIA/EIA 568-C Category 5e 500 MHz TIA/EIA 568-C Category6A TIA/EIA 568-C Category6A 1000 MHz ISO/IEC nd Edition A1/2 Class E A ISO/IEC nd Edition A1/2 Class E A ISO/IEC nd Edition A1/2 Class F A ISO/IEC nd Edition A1/2 Class F A CENELEC EN Class E A CENELEC EN Class E A DKE DIN-EN Klasse E A DKE DIN-EN Klasse E A CENELEC EN Class F A CENELEC EN Class F A DKE DIN EN Klasse F A DKE DIN EN Klasse F A 1600/2000 MHz TIA/EIA Category 8 TIA/EIA Category 8 ISO/IEC Class I & II ISO/IEC Class I & II Bandwidth/ Region Bandwidth/ Region Identical Limits

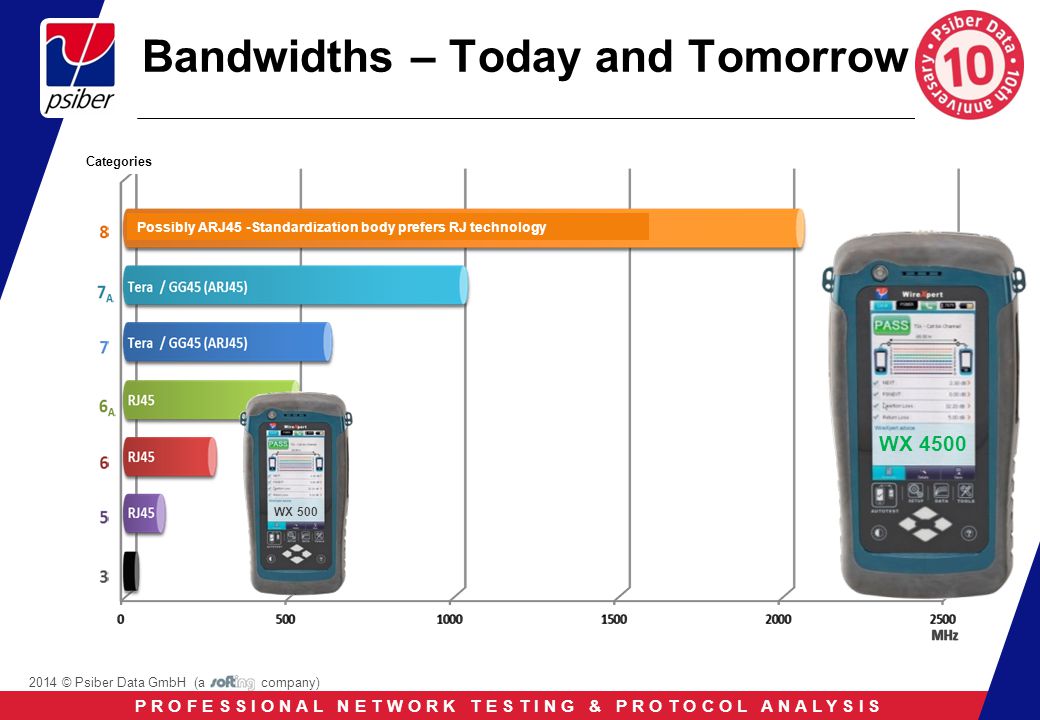

8 P R O F E S S I O N A L N E T W O R K T E S T I N G & P R O T O C O L A N A L Y S I S 2014 © Psiber Data GmbH (a company) Bandwidths – Today and Tomorrow WX 4500 WX 500 Possibly ARJ45 -Standardization body prefers RJ technology Categories

9 P R O F E S S I O N A L N E T W O R K T E S T I N G & P R O T O C O L A N A L Y S I S 2014 © Psiber Data GmbH (a company) Categorie 8, Class I & Class II Why Cat 8, Class I & II with 2,000MHz over copper? The demand for higher bandwidths such as 40Gb/s in data centers is rising and is currently implemented over multi-fiber links However, this is expensive over short distances as in a ToR (Top of Rack / Top of Row) topology for the high costs of active electronics involved, i.e. transmission over copper cabling for short distances would save costs It is highly probable that copper cabling in support of these bandwidths will be installed within the next two to three years The Cat 8 / Class I & II discussion leaves still question marks

10 P R O F E S S I O N A L N E T W O R K T E S T I N G & P R O T O C O L A N A L Y S I S Certify - What‘s that?

11 P R O F E S S I O N A L N E T W O R K T E S T I N G & P R O T O C O L A N A L Y S I S 2014 © Psiber Data GmbH (a company) Certify – What‘s that? Certification refers to the verification of the compliance of products/services and their manufacturing processes with relevant standards. In contrast to accreditation, general certification is attested by the issuance of a certificate In network technology, this certification has to be performed compliant with EN50173 (topology/limits), EN50174 (quality plan), EN50436 (tester specs) or ISO/IEC11801 and typically requires the use of devices priced at around 8000 € and higher Testers as for instance … Psiber Data WireXpert Series

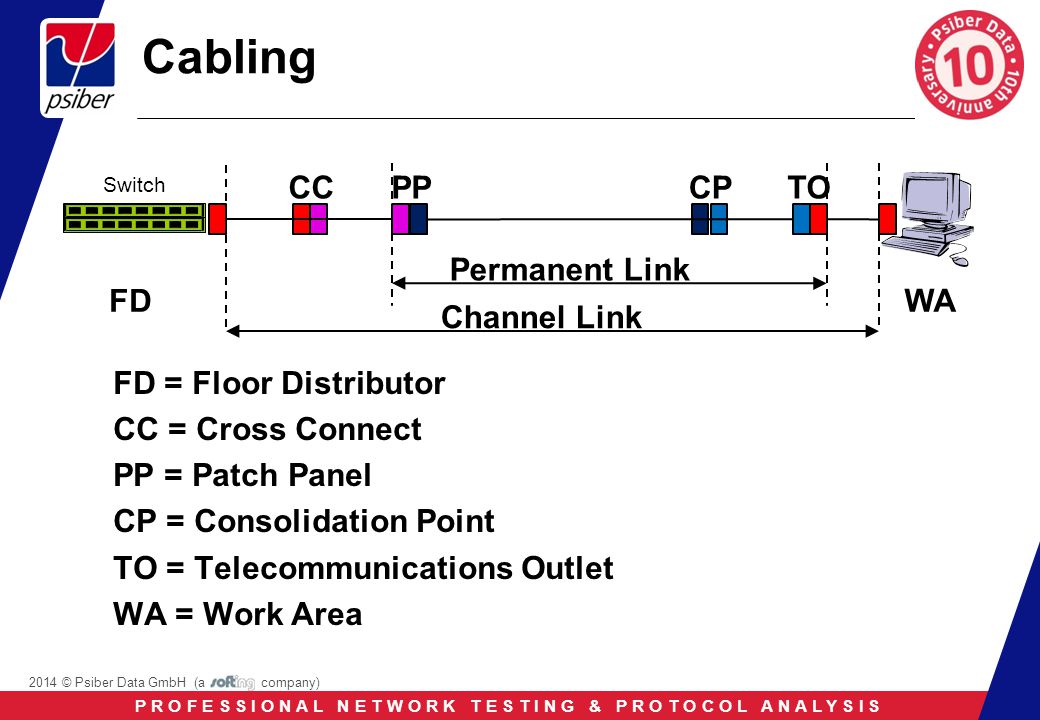

12 P R O F E S S I O N A L N E T W O R K T E S T I N G & P R O T O C O L A N A L Y S I S 2014 © Psiber Data GmbH (a company) Cabling FD = Floor Distributor CC = Cross Connect PP = Patch Panel CP = Consolidation Point TO = Telecommunications Outlet WA = Work Area CPCCPP WA Permanent Link Channel Link TO FD Switch

13 P R O F E S S I O N A L N E T W O R K T E S T I N G & P R O T O C O L A N A L Y S I S 2014 © Psiber Data GmbH (a company) Permanent Link & Channel Link CP CC PP WA Permanent Link TO FD Permanent Link Test Cord Permanent Link Test Cord Permanent Link Adapter Permanent Link Adapter 90m calc. max. CP PP WA Channel Link TO FD Channel Link Adapter Channel Link Adapter Patch Cords in the Channel 100m calcp. max.

14 P R O F E S S I O N A L N E T W O R K T E S T I N G & P R O T O C O L A N A L Y S I S Measurement Parameters DC – RF – Calculations

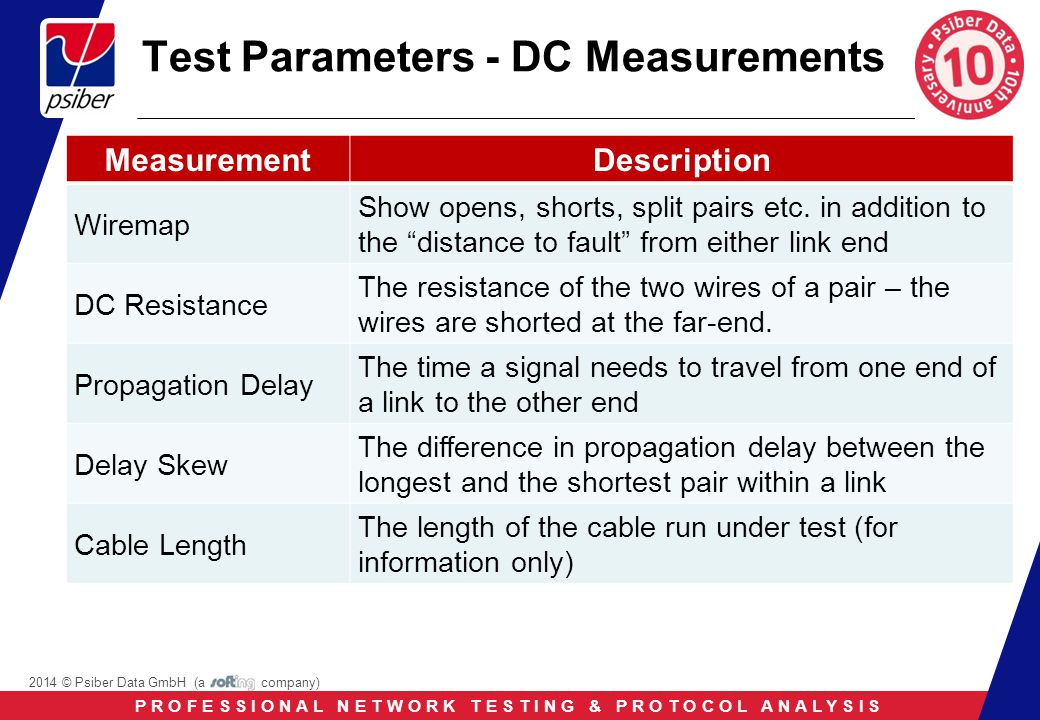

15 P R O F E S S I O N A L N E T W O R K T E S T I N G & P R O T O C O L A N A L Y S I S 2014 © Psiber Data GmbH (a company) Test Parameters - DC Measurements MeasurementDescription Wiremap Show opens, shorts, split pairs etc. in addition to the “distance to fault” from either link end DC Resistance The resistance of the two wires of a pair – the wires are shorted at the far-end. Propagation Delay The time a signal needs to travel from one end of a link to the other end Delay Skew The difference in propagation delay between the longest and the shortest pair within a link Cable Length The length of the cable run under test (for information only)

16 P R O F E S S I O N A L N E T W O R K T E S T I N G & P R O T O C O L A N A L Y S I S 2014 © Psiber Data GmbH (a company) Test Parameters - RF Measurements MeasurementDescription Insertion Loss (IL) The signal attenuation from point of insertion to the end of the cable run Near End Crosstalk (NEXT) The undesired coupling of a signal from one pair of wires to another in the same cable at the near-end Return Loss (RL) Ratio of the input voltage to the voltage of the reflected signal. Reflection is caused by physical defects in the component or the cable run. Far End Crosstalk (FEXT) Signal coupling from one pair of wires into another pair in the same cable at the far-end. This measurement is not reported, but needed for calculation of ACR-F

17 P R O F E S S I O N A L N E T W O R K T E S T I N G & P R O T O C O L A N A L Y S I S 2014 © Psiber Data GmbH (a company) Test Parameters - Calculations MeasurementDescription Attenuation-to- Near-end (ACR-N) The difference between NEXT and attenuation (insertion loss) Attenuation-to- Far-end (ACR-F) The difference between FEXT and attenuation (insertion loss) Power Sum Near End Crosstalk (PS NEXT) A computation of the signal coupling from the three pairs into the other neighboring pair at the near-end Power Sum of ACR-N (PS ACR-N) A computation of individual pair ACR-N from the other three wire pairs Power Sum ACR-F (PS ACR-F) A computation of individual pair ACR-F from the other three wire pairs

18 P R O F E S S I O N A L N E T W O R K T E S T I N G & P R O T O C O L A N A L Y S I S WireXpert The Universal Genius

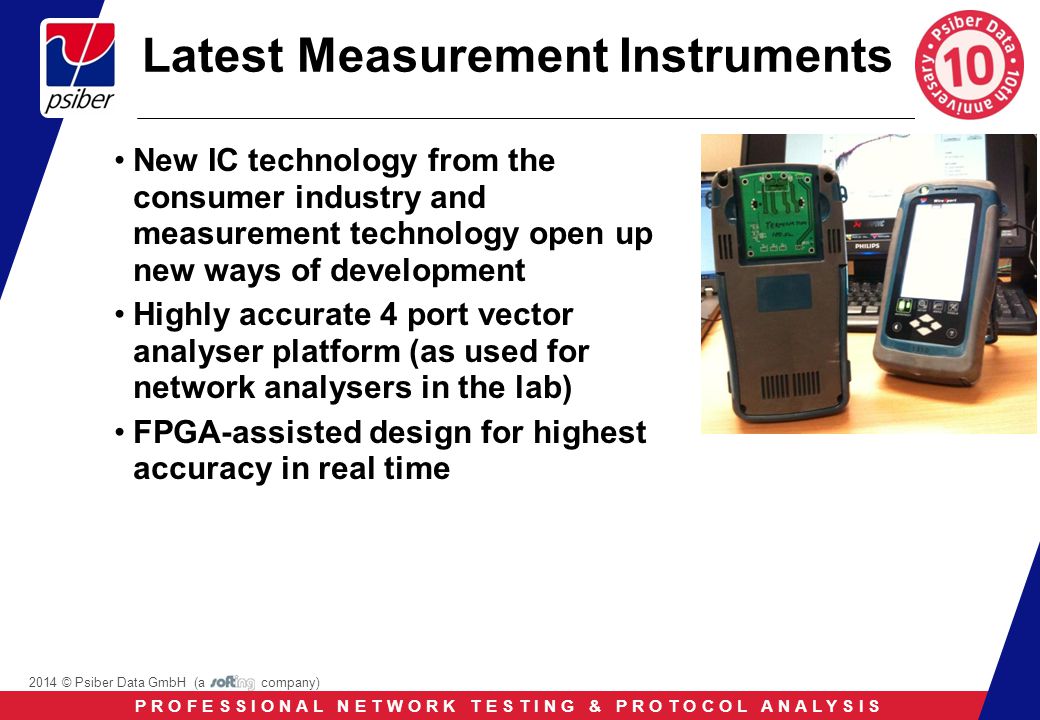

19 P R O F E S S I O N A L N E T W O R K T E S T I N G & P R O T O C O L A N A L Y S I S 2014 © Psiber Data GmbH (a company) Latest Measurement Instruments New IC technology from the consumer industry and measurement technology open up new ways of development Highly accurate 4 port vector analyser platform (as used for network analysers in the lab) FPGA-assisted design for highest accuracy in real time

20 P R O F E S S I O N A L N E T W O R K T E S T I N G & P R O T O C O L A N A L Y S I S 2014 © Psiber Data GmbH (a company) RF Signal Source LF Signal Source DSP Measurement Engine Rx1 Rx2 Rx5 Test Interface - Signal source- Receivers - Measurement Engine Speed is (no) Magic How to achieve high measurement speeds? Latest developments in chip technology enable new approaches. (What is feasible today, was unthinkable just 5 years ago) By the use of the latest IC technology and by parallel processing of measurement signals. Using fast parallel DSPs for filtering can dramatically reduce the time needed for testing At the same time measurement frequencies can be significantly raised or expanded (e.g. 2.5 GHz) Block Diagram: Modern Tester Enabling Parallel Signal Processing

21 P R O F E S S I O N A L N E T W O R K T E S T I N G & P R O T O C O L A N A L Y S I S 2014 © Psiber Data GmbH (a company) Added Value of WireXpert Future-proof Widest frequency range in the industry (2,500MHz) The only tester available that complies with all new measurement requirements Software upgrades in the field Reliable and robust Accuracy higher than Level V (proposal Level 2G) No mechanical buttons except for On-Off button Compact design, no protruding parts

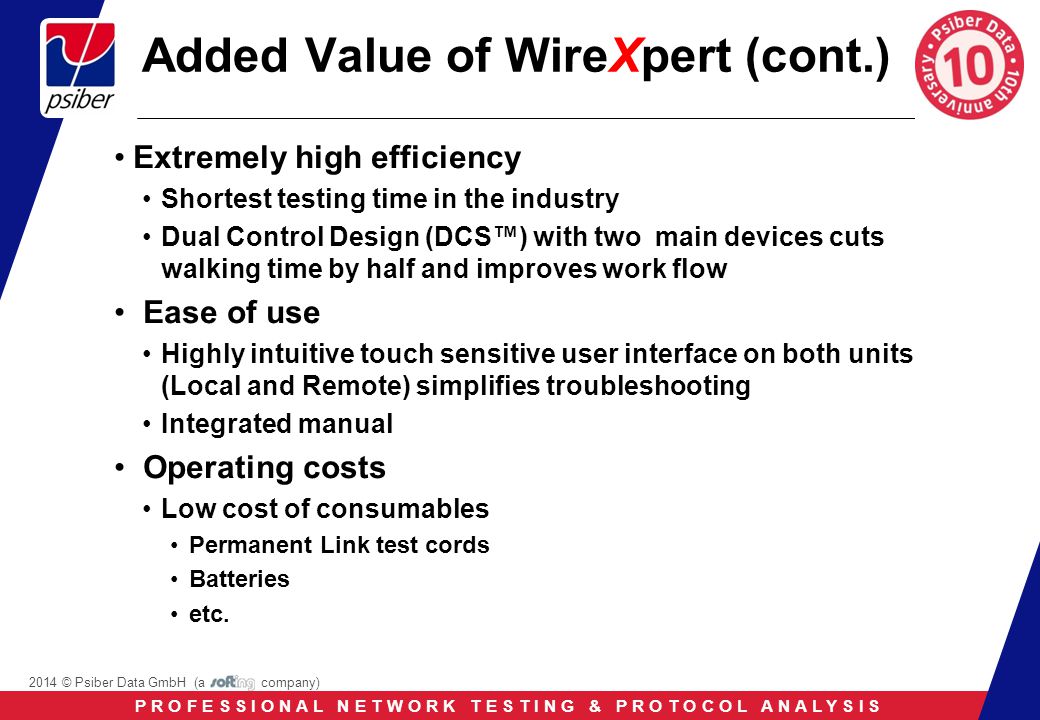

22 P R O F E S S I O N A L N E T W O R K T E S T I N G & P R O T O C O L A N A L Y S I S 2014 © Psiber Data GmbH (a company) Added Value of WireXpert (cont.) Extremely high efficiency Shortest testing time in the industry Dual Control Design (DCS™) with two main devices cuts walking time by half and improves work flow Ease of use Highly intuitive touch sensitive user interface on both units (Local and Remote) simplifies troubleshooting Integrated manual Operating costs Low cost of consumables Permanent Link test cords Batteries etc.

23 P R O F E S S I O N A L N E T W O R K T E S T I N G & P R O T O C O L A N A L Y S I S 2014 © Psiber Data GmbH (a company) Productivity + Operation New Dual Control System (DCS TM ) – Two identical devices (Local and Remote) facilitate operation and autotests Tests can be performed by two or just one technician Operation from either cabling ends 2 sets of devices can be configured as one Local and 3 Remote units Total results transparency at both ends In the unlikely case of a defective device it is sufficient to replace one device

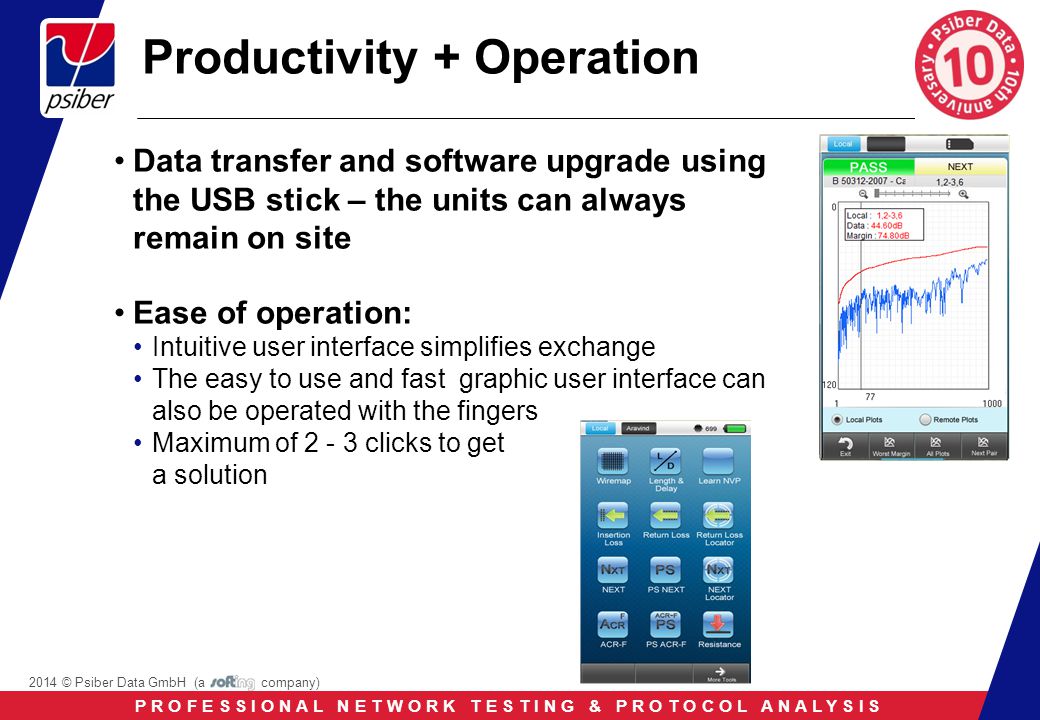

24 P R O F E S S I O N A L N E T W O R K T E S T I N G & P R O T O C O L A N A L Y S I S 2014 © Psiber Data GmbH (a company) Productivity + Operation Data transfer and software upgrade using the USB stick – the units can always remain on site Ease of operation: Intuitive user interface simplifies exchange The easy to use and fast graphic user interface can also be operated with the fingers Maximum of clicks to get a solution

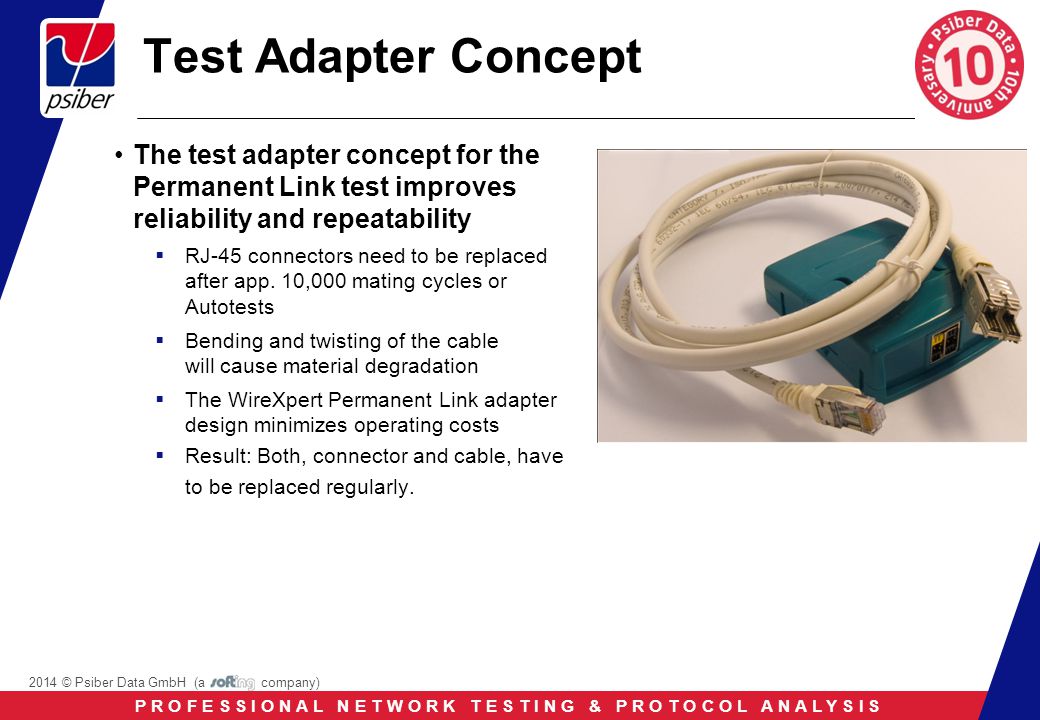

25 P R O F E S S I O N A L N E T W O R K T E S T I N G & P R O T O C O L A N A L Y S I S 2014 © Psiber Data GmbH (a company) Test Adapter Concept The test adapter concept for the Permanent Link test improves reliability and repeatability  RJ-45 connectors need to be replaced after app. 10,000 mating cycles or Autotests  Bending and twisting of the cable will cause material degradation  The WireXpert Permanent Link adapter design minimizes operating costs  Result: Both, connector and cable, have to be replaced regularly.

26 P R O F E S S I O N A L N E T W O R K T E S T I N G & P R O T O C O L A N A L Y S I S Test Adapters - What is available?

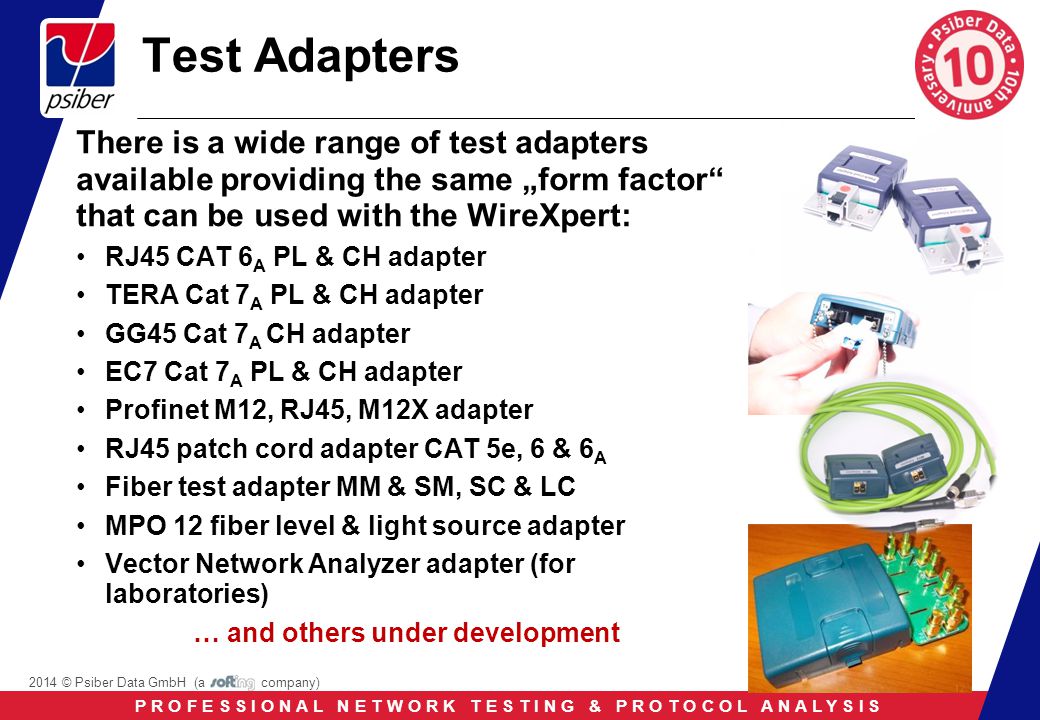

27 P R O F E S S I O N A L N E T W O R K T E S T I N G & P R O T O C O L A N A L Y S I S 2014 © Psiber Data GmbH (a company) Test Adapters There is a wide range of test adapters available providing the same „form factor“ that can be used with the WireXpert: RJ45 CAT 6 A PL & CH adapter TERA Cat 7 A PL & CH adapter GG45 Cat 7 A CH adapter EC7 Cat 7 A PL & CH adapter Profinet M12, RJ45, M12X adapter RJ45 patch cord adapter CAT 5e, 6 & 6 A Fiber test adapter MM & SM, SC & LC MPO 12 fiber level & light source adapter Vector Network Analyzer adapter (for laboratories) … and others under development

28 P R O F E S S I O N A L N E T W O R K T E S T I N G & P R O T O C O L A N A L Y S I S eXport Data Management Software

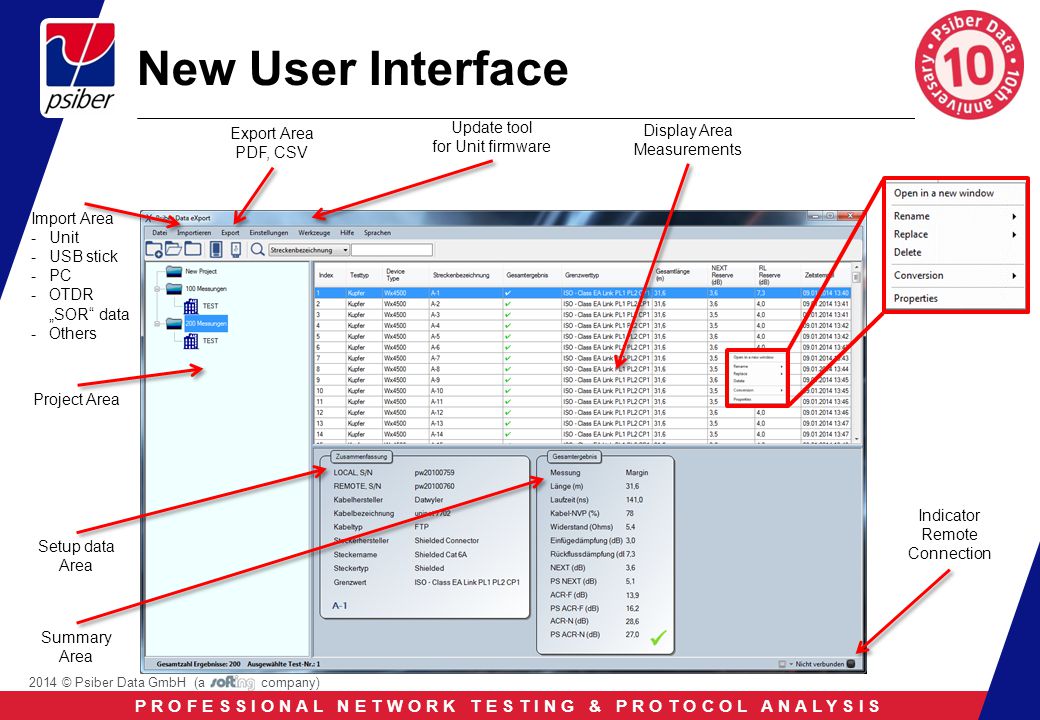

29 P R O F E S S I O N A L N E T W O R K T E S T I N G & P R O T O C O L A N A L Y S I S 2014 © Psiber Data GmbH (a company) Import Area -Unit -USB stick -PC -OTDR „SOR“ data -Others New User Interface Display Area Measurements Project Area Indicator Remote Connection Export Area PDF, CSV Update tool for Unit firmware Setup data Area Summary Area

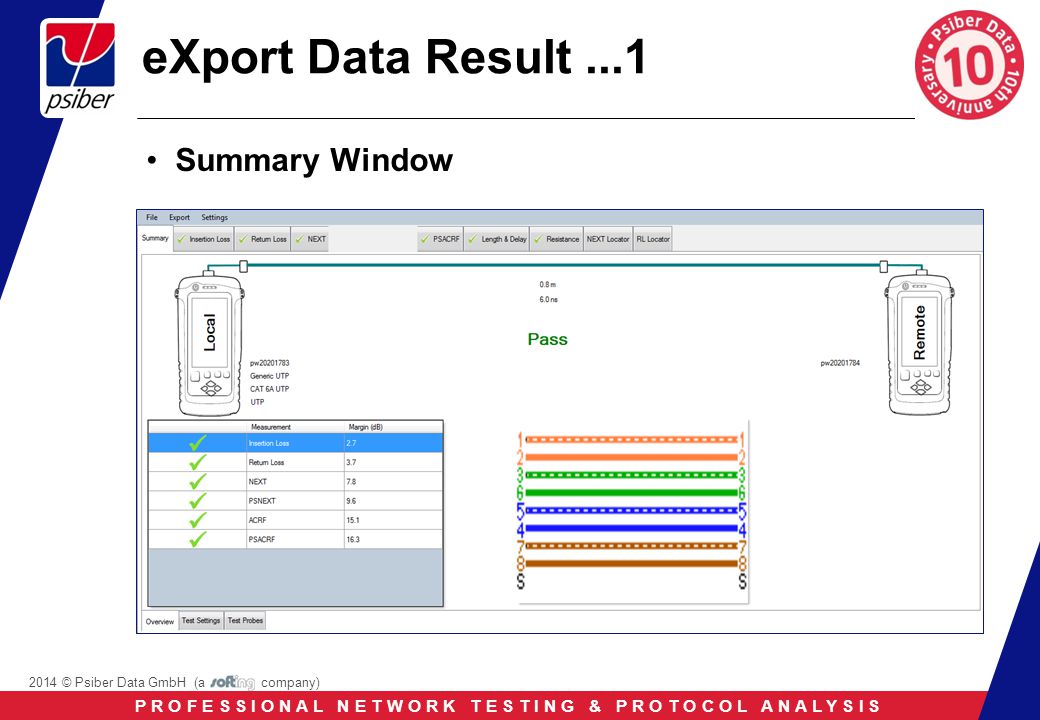

30 P R O F E S S I O N A L N E T W O R K T E S T I N G & P R O T O C O L A N A L Y S I S 2014 © Psiber Data GmbH (a company) eXport Data Result...1 Summary Window

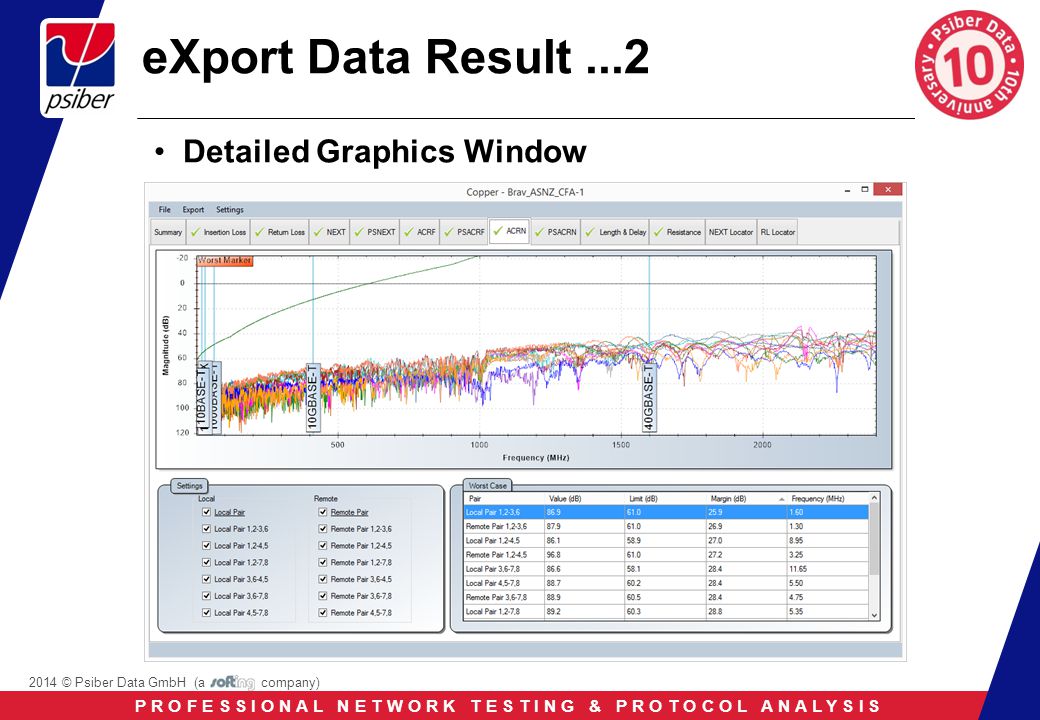

31 P R O F E S S I O N A L N E T W O R K T E S T I N G & P R O T O C O L A N A L Y S I S 2014 © Psiber Data GmbH (a company) eXport Data Result...2 Detailed Graphics Window

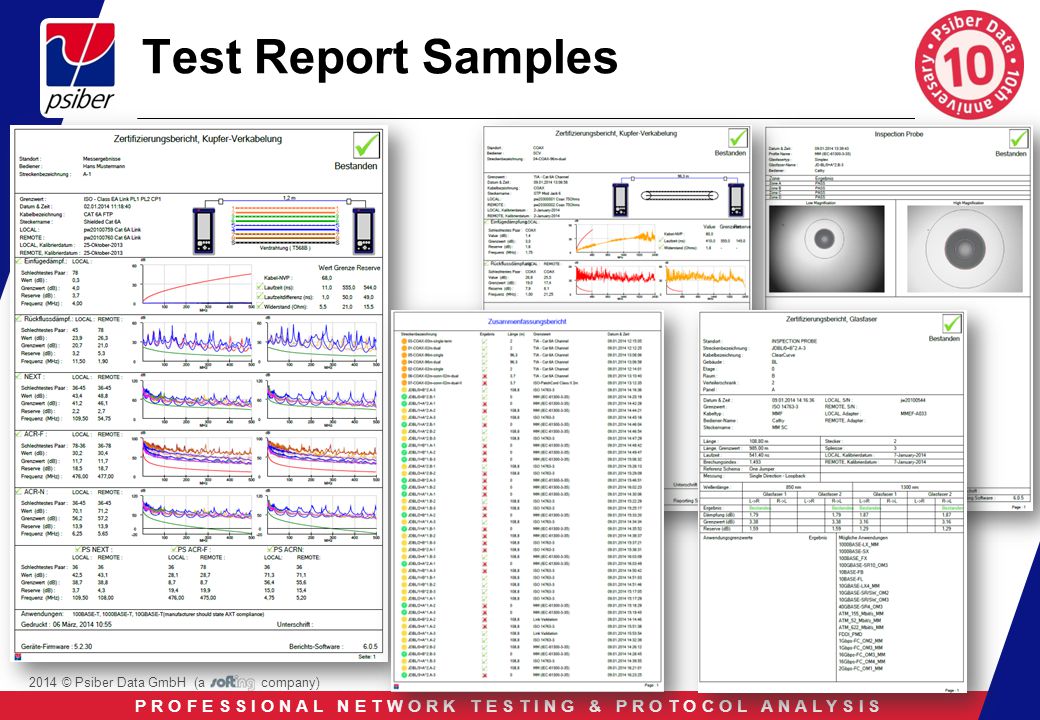

32 P R O F E S S I O N A L N E T W O R K T E S T I N G & P R O T O C O L A N A L Y S I S 2014 © Psiber Data GmbH (a company) Test Report Samples

33 P R O F E S S I O N A L N E T W O R K T E S T I N G & P R O T O C O L A N A L Y S I S Manufacturer Approvals

34 P R O F E S S I O N A L N E T W O R K T E S T I N G & P R O T O C O L A N A L Y S I S 2014 © Psiber Data GmbH (a company) Manufacturer Approvals – to date…

35 P R O F E S S I O N A L N E T W O R K T E S T I N G & P R O T O C O L A N A L Y S I S 2014 © Psiber Data GmbH (a company) Thank you for your attention! Do you have any questions?
