Presentation on theme: "IB Photosynthesis With Standards. 3.8.1 State that photosynthesis involves the conversion of light energy into chemical energy. State means to give a."— Presentation transcript:

1 IB Photosynthesis With Standards

2 3.8.1 State that photosynthesis involves the conversion of light energy into chemical energy. State means to give a specific name, value or other brief answer without explanation or calculation.

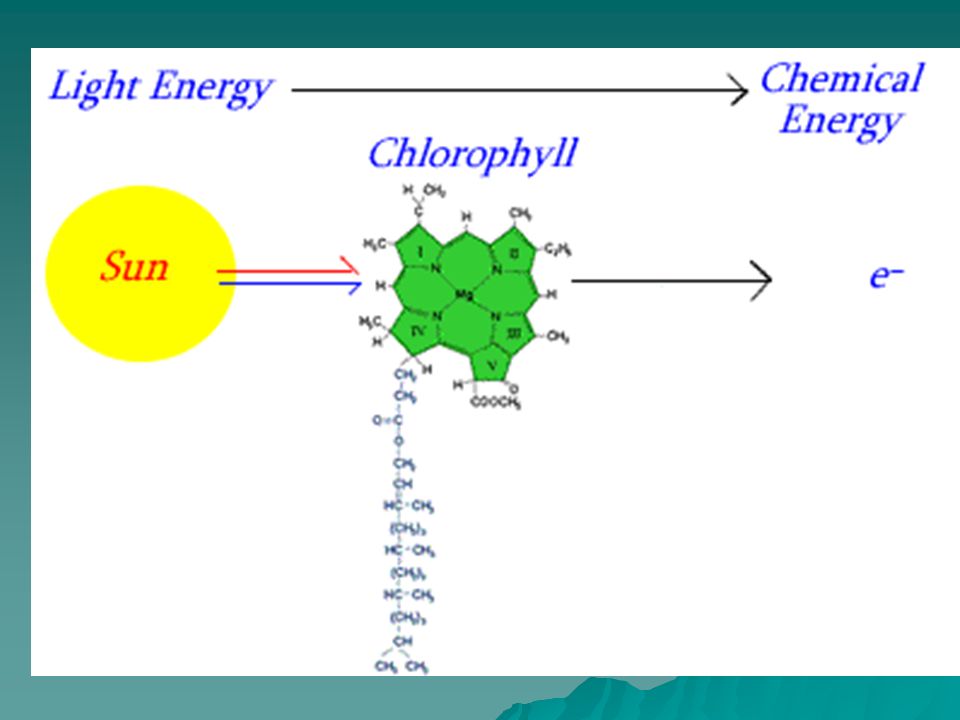

3

4 Location: chloroplast or prokaryotic equivalent. Location: chloroplast or prokaryotic equivalent. Reaction: Traps light energy (photons) and converts it into chemical energy. Reaction: Traps light energy (photons) and converts it into chemical energy. Organisms: Prokaryotic and Eukaryotic Organisms: Prokaryotic and Eukaryotic Substrate: Inorganic CO2 and H2O Substrate: Inorganic CO2 and H2O Products: Organic compounds (sugars) and O2 Products: Organic compounds (sugars) and O2

5 Environments: Aquatic environments with light Aquatic environments with light Terrestrial environments with light Terrestrial environments with light Extremophiles can do photosynthesis at some extreme latitudes and altitudes. At extreme high temperatures we see photosynthesis in geothermal active regions. Extremophiles can do photosynthesis at some extreme latitudes and altitudes. At extreme high temperatures we see photosynthesis in geothermal active regions.

6 3.8.2 State that light from the Sun is composed of a range of wavelengths (colours). State means to give a specific name, value or other brief answer without explanation or calculation.

7 Light from the sun is composed of a range of wavelengths (colours). Light from the sun is composed of a range of wavelengths (colours). The visible spectrum illustrates the wavelengths and associated colour of light. The visible spectrum illustrates the wavelengths and associated colour of light. Combined together these wavelengths give the 'white' light we associate with full sunlight. Combined together these wavelengths give the 'white' light we associate with full sunlight. The shortest wavelengths are the 'blues' which have more energy. The shortest wavelengths are the 'blues' which have more energy. The longer wavelengths are the 'reds' which have less energy. The longer wavelengths are the 'reds' which have less energy.

8 3.8.3 State that chlorophyll is the main photosynthetic pigment. State means to give a specific name, value or other brief answer without explanation or calculation.

9 Chlorophyll is the main photosynthetic pigment. This is where light energy is trapped and turned into chemical energy. Chlorophyll is the main photosynthetic pigment. This is where light energy is trapped and turned into chemical energy. The head of the molecule is polar and composed of a ring structure. At the heart of this ring structure is the inorganic ion magnesium. This is the light trapping region of the chlorophyll molecule. The head of the molecule is polar and composed of a ring structure. At the heart of this ring structure is the inorganic ion magnesium. This is the light trapping region of the chlorophyll molecule. The tail of the molecule is non polar and embeds itself in membranes in the chloroplast. The tail of the molecule is non polar and embeds itself in membranes in the chloroplast. There are other pigments, reds, yellows and browns but these are only usually seen in the experimental chromatography or the autumnal colours of deciduous trees in a temperate climate. There are other pigments, reds, yellows and browns but these are only usually seen in the experimental chromatography or the autumnal colours of deciduous trees in a temperate climate.

10 3.8.4 Outline the differences in absorption of red, blue and green light by chlorophyll. Outline means to give a brief account or summary

11 The 'peaks' show which wavelength of light are being absorbed. The 'peaks' show which wavelength of light are being absorbed. Look at the x-axis for colours of light absorbed at the 'peaks'. Look at the x-axis for colours of light absorbed at the 'peaks'. The main colour of light absorbed by chlorophyll is red and blue. The main colour of light absorbed by chlorophyll is red and blue. The main colour reflected (not absorbed) is green. The main colour reflected (not absorbed) is green. Hence why so many plants are seen as green, the light is reflected from the chlorophyll to your eye. Hence why so many plants are seen as green, the light is reflected from the chlorophyll to your eye.

12

13 3.8.5 State that light energy is used to produce ATP, and to split water molecules (photolysis) to form oxygen and hydrogen. State means to give a specific name, value or other brief answer without explanation or calculation.

14 (a) Light is absorbed by chlorophyll molecules (green) on membranes inside the chloroplast. (a) Light is absorbed by chlorophyll molecules (green) on membranes inside the chloroplast. This is the light trapping stage in which photons of light are absorbed by the chlorophyll and turned into chemical energy (electrons). This is the light trapping stage in which photons of light are absorbed by the chlorophyll and turned into chemical energy (electrons). (b) The chemical energy (electrons) is trapped in making ATP. (b) The chemical energy (electrons) is trapped in making ATP. Photolysis(c): Photolysis(c): Water used in photosynthesis is split which provides: Water used in photosynthesis is split which provides: Hydrogen for the formation of organic molecules. (C 6 H 12 O 6 ) Hydrogen for the formation of organic molecules. (C 6 H 12 O 6 ) Oxygen gas is given off. Oxygen gas is given off.

15 3.8.6 State that ATP and hydrogen (derived from the photolysis of water) are used to fix carbon dioxide to make organic molecules. State means to give a specific name, value or other brief answer without explanation or calculation.

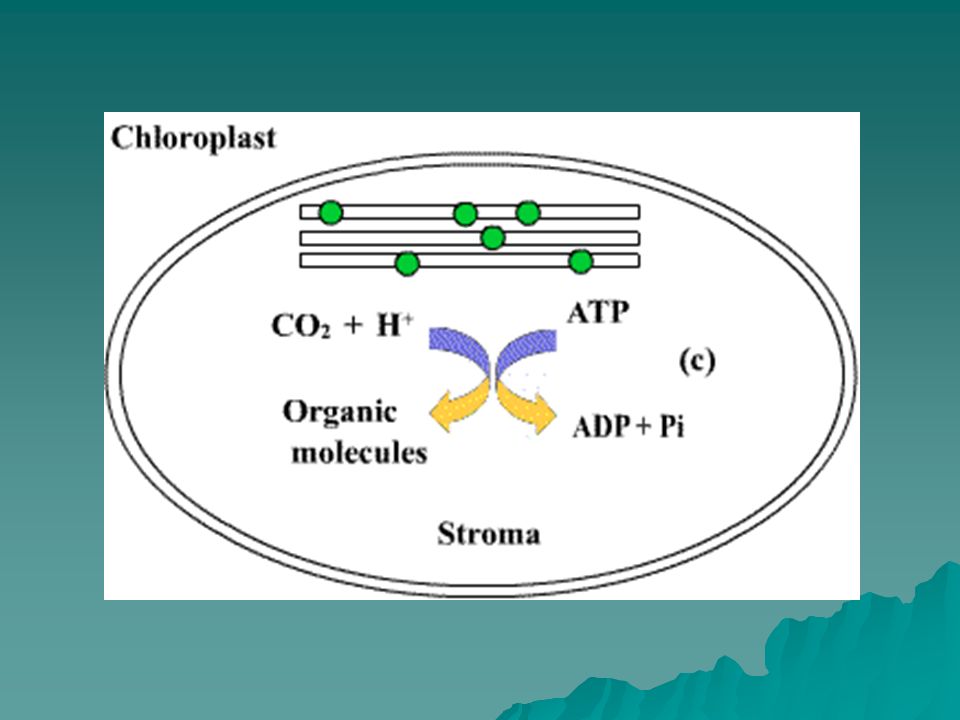

16 H+ from the splitting of water are combined with carbon dioxide to form organic compounds like sugar. H+ from the splitting of water are combined with carbon dioxide to form organic compounds like sugar. Bonds are formed between the carbon, hydrogen and oxygen using the energy from ATP (which came form the sun). Bonds are formed between the carbon, hydrogen and oxygen using the energy from ATP (which came form the sun). C, H, O are enough to form lipids and carbohydrates. C, H, O are enough to form lipids and carbohydrates. With a Nitrogen source amino acids and therefore proteins can be made. With a Nitrogen source amino acids and therefore proteins can be made. Plants have this remarkable ability to manufactory all their own organic molecules and by definition all the basic organic molecules required by all life forms. Plants have this remarkable ability to manufactory all their own organic molecules and by definition all the basic organic molecules required by all life forms.

17

18 3.8.7 Explain that the rate of photosynthesis can be measured directly by the production of oxygen or the uptake of carbon dioxide, or indirectly by an increase in biomass. Explain means to give a detailed account of causes, reasons or mechanisms.

19 Processes like photosynthesis and respiration can be measured by either: Depletion of substrate. Depletion of substrate. Accumulation of products Accumulation of products Investigation: Photosynthesis: Investigation: Photosynthesis: Carbon dioxide + water ---> Organic molecule + Oxygen The rate of photosynthesis can therefore be measured by: The rate of photosynthesis can therefore be measured by: Depletion of substrate which includes measuring how much carbon dioxide has been used or how much water is used. Depletion of substrate which includes measuring how much carbon dioxide has been used or how much water is used. Accumulation of product which might include measuring how much oxygen is produced or organic molecules (biomass) produced. Accumulation of product which might include measuring how much oxygen is produced or organic molecules (biomass) produced.

20 In this simple experiment the accumulation of oxygen is measure of rate of reaction. In this simple experiment the accumulation of oxygen is measure of rate of reaction. Independent variable: Light Intensity or wavelength of light. Independent variable: Light Intensity or wavelength of light. Dependent variable O2 vol. against time Dependent variable O2 vol. against time Method the collection of gas over water. Method the collection of gas over water. Specimen: Pond weed Elodea Specimen: Pond weed Elodea

21 3.8.8 Outline the effects of temperature, light intensity and carbon dioxide concentration on the rate of photosynthesis Outline means to give a brief account or summary.

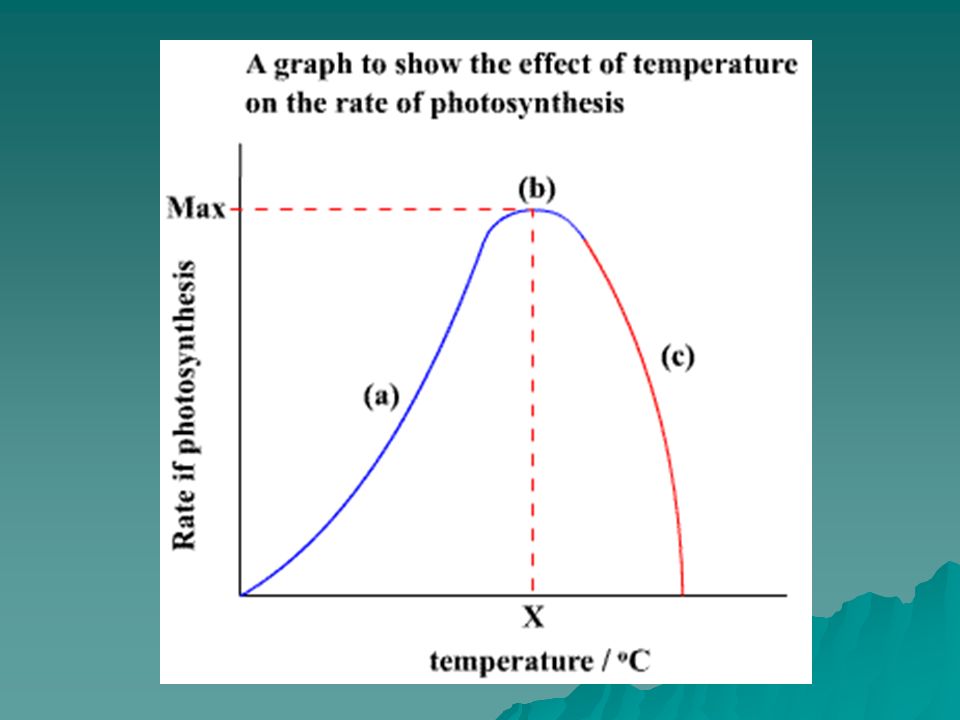

22 The effect of temperature on the rate of photosynthesis: Photosynthesis is a biological reaction and like all other such reactions there are steps that require the presence of enzymes. Photosynthesis is a biological reaction and like all other such reactions there are steps that require the presence of enzymes. Temperature as we have already met is a change in the average kinetic energy of the particle. Temperature as we have already met is a change in the average kinetic energy of the particle. The graph the left should look familiar as this is the same one covered in the section on the effect of temperature on the rate of an enzyme catalysed reaction. The graph the left should look familiar as this is the same one covered in the section on the effect of temperature on the rate of an enzyme catalysed reaction. (a) Increasing rate of photosynthesis as the kinetic energy of reactants increases. (a) Increasing rate of photosynthesis as the kinetic energy of reactants increases. (b) Maximum rate of reaction of photosynthesis at the 'optimal' temperature. (b) Maximum rate of reaction of photosynthesis at the 'optimal' temperature. (c) Decrease in rate of photosynthesis as the enzymes become unstable and denature. (c) Decrease in rate of photosynthesis as the enzymes become unstable and denature.

23

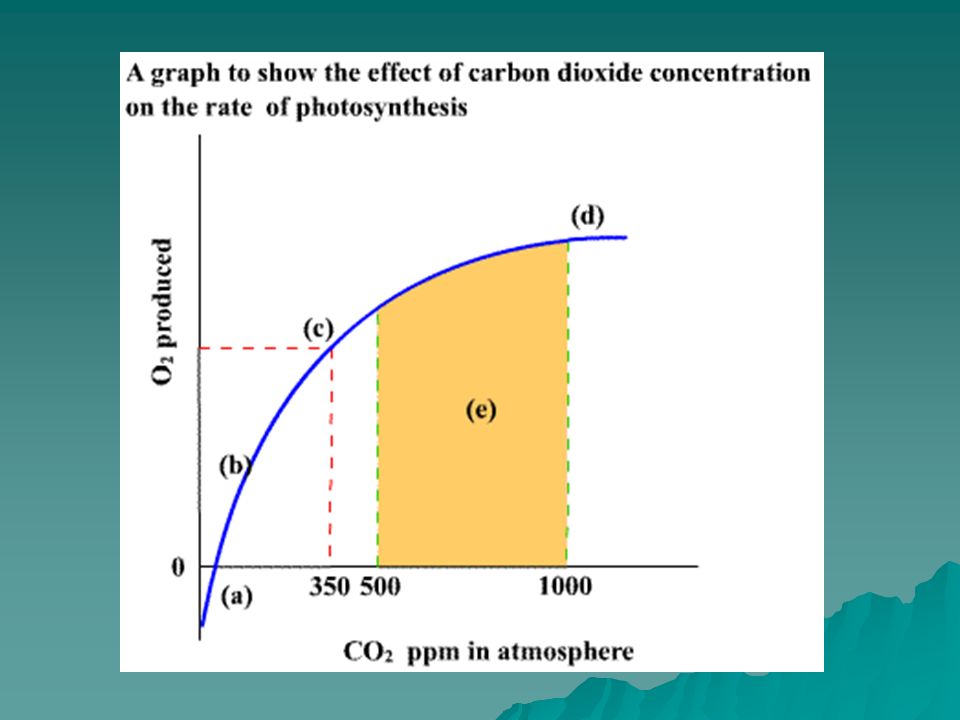

24 The effect of carbon dioxide concentration on the rate of photosynthesis Carbon dioxide is one of the reactants of the reaction so this graph is very much like the effect of substrate on the rate of reaction. Carbon dioxide is one of the reactants of the reaction so this graph is very much like the effect of substrate on the rate of reaction. (a) O2 is used up as the plant is not photosynthesizing but only respiring. (a) O2 is used up as the plant is not photosynthesizing but only respiring. (b) As the concentration of the carbon dioxide (substrate) increases the rate of reaction increases. (b) As the concentration of the carbon dioxide (substrate) increases the rate of reaction increases. (c) The atmospheric levels of carbon dioxide and the associate rate photosynthesis. (c) The atmospheric levels of carbon dioxide and the associate rate photosynthesis. (d) Maximum rate of photosynthesis (see section e). (d) Maximum rate of photosynthesis (see section e). (e) The is a range of values for different plants reaching their saturation level with carbon dioxide. One the saturation level has been reached there is no further increase in the rate of photosynthesis (e) The is a range of values for different plants reaching their saturation level with carbon dioxide. One the saturation level has been reached there is no further increase in the rate of photosynthesis

25

26 The effect of light concentration on the rate of photosynthesis The effect of light intensity on the rate of reaction. The effect of light intensity on the rate of reaction. Light energy absorbed by chlorophyll is converted to ATP and H+ see section Light energy absorbed by chlorophyll is converted to ATP and H+ see section At very low light levels (a) the plant will be respiring only not photosynthesizing. At very low light levels (a) the plant will be respiring only not photosynthesizing. As the light intensity increases then the rate of photosynthesis increases. As the light intensity increases then the rate of photosynthesis increases. At high light intensities the rate becomes constant, even with further increases in light intensity there are no increases in the rate. At high light intensities the rate becomes constant, even with further increases in light intensity there are no increases in the rate. The plant is unable to harvest the light at these high intensities and indeed the chlorophyll system can be damaged by very intense light levels. The plant is unable to harvest the light at these high intensities and indeed the chlorophyll system can be damaged by very intense light levels.

27

28 8.2.1 Draw and label a diagram showing the structure of a chloroplast as seen in electron micrographs. Draw means to represent by means of pencil lines

29 (a) Cell wall (a) Cell wall (b) Double membrane (b) Double membrane (c) Starch grain (c) Starch grain (d) Grana (d) Grana (e) Thylakoid (e) Thylakoid (f) Stroma (f) Stroma

30 Internal membranes called thylakoids which is the location of the light dependent reaction Internal membranes called thylakoids which is the location of the light dependent reaction Stroma surrounding the thylakoids and inside the double membrane. This is the location of the light independent reaction that includes the Calvin cycle. Stroma surrounding the thylakoids and inside the double membrane. This is the location of the light independent reaction that includes the Calvin cycle. The stroma often contains starch grains and oil droplets both products of photosynthesis The stroma often contains starch grains and oil droplets both products of photosynthesis

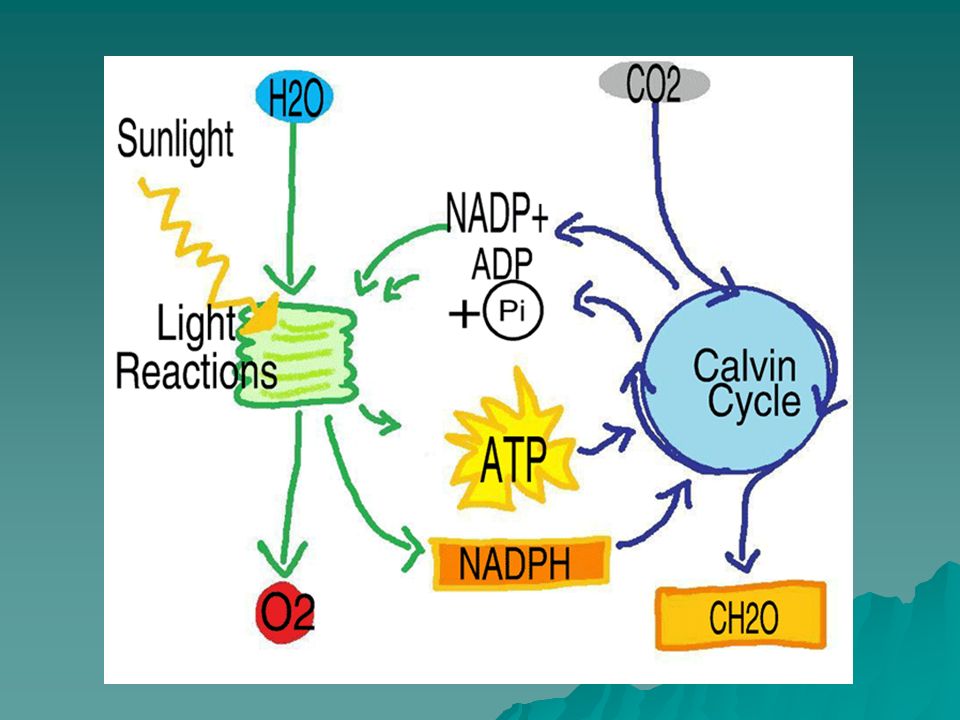

31 8.2.2 State that photosynthesis consists of light-dependent and light-independent reactions. State means to give a specific name, value or other brief answer without explanation or calculation.

32

33

34 Light Dependent Reaction Energy of sun is trapped by chlorophyll molecules (oxidation) Energy of sun is trapped by chlorophyll molecules (oxidation) Photon energy is used to raise the energy of electrons which escape the chlorophyll (oxidation) Photon energy is used to raise the energy of electrons which escape the chlorophyll (oxidation) This energy is coupled to the reduction of ADP to ATP and the coenzyme NADP+ is reduced to NADPH + H+. This energy is coupled to the reduction of ADP to ATP and the coenzyme NADP+ is reduced to NADPH + H+. The reaction must have light to take place. The reaction must have light to take place. This reaction takes place on the thylakoid membranes. This reaction takes place on the thylakoid membranes.

35 Light Independent Reaction Uses the chemical energy from the LDR to fix atmospheric carbon into organic molecules such as glucose. Uses the chemical energy from the LDR to fix atmospheric carbon into organic molecules such as glucose. The process does not require light and can occur in both the light and dark periods. The process does not require light and can occur in both the light and dark periods. This reaction takes place in the stroma This reaction takes place in the stroma

36 8.2.3 Explain the light- dependent reactions. Explain means give a detailed account of causes, reasons or mechanisms.

37 Light energy is converted into chemical energy. Light energy is converted into chemical energy. Chlorophyll molecules are attached to the thylakoid membranes. Chlorophyll molecules are attached to the thylakoid membranes. They are often associated with accessory pigments and other proteins to form Photosystem. They are often associated with accessory pigments and other proteins to form Photosystem. At the centre of all photosystem are forms of chlorophyll a each of which is specialised to absorb a particular wavelength of light. At the centre of all photosystem are forms of chlorophyll a each of which is specialised to absorb a particular wavelength of light. Electrons within the chlorophyll absorb the energy from photons and this raises them to higher 'excited' states. Electrons within the chlorophyll absorb the energy from photons and this raises them to higher 'excited' states. Excited electrons are more easily lost from the chlorophyll which is a form of oxidation Excited electrons are more easily lost from the chlorophyll which is a form of oxidation

38 Summary of Non-Cyclic Photophosphorylation: 1. Light energy is trapped in two Photosystem. 1. Light energy is trapped in two Photosystem. 2. ATP is produced. 2. ATP is produced. 3. The co-enzyme NADP+is reduced 3. The co-enzyme NADP+is reduced

39 1) PS II absorbs light at a peak of 680 nm 1) PS II absorbs light at a peak of 680 nm 2) Electrons in chlorophyll are 'excited' and raised to the next energy level. 2) Electrons in chlorophyll are 'excited' and raised to the next energy level. 3) Electrons are lost (oxidation) from PS II and picked up by acceptors like cytochrome 3) Electrons are lost (oxidation) from PS II and picked up by acceptors like cytochrome 4) The electrons transfer to other membrane proteins releases free energy in pumping H+into the thylakoid space which in turn birng about the synthesis of ATP 4) The electrons transfer to other membrane proteins releases free energy in pumping H+into the thylakoid space which in turn birng about the synthesis of ATP 5) The electron is taken up by PS I reducing this back to ground state. 5) The electron is taken up by PS I reducing this back to ground state. 6) PS I has already absorbed lower energy electrons 700nm and released electrons at the more 'excited' higher energy level. 6) PS I has already absorbed lower energy electrons 700nm and released electrons at the more 'excited' higher energy level. 7) The electron is passed in a series of redox reactions along membrane proteins. 7) The electron is passed in a series of redox reactions along membrane proteins. 8) Free energy released is coupled to the reduction of co-enzyme NADP+ 8) Free energy released is coupled to the reduction of co-enzyme NADP+ Cyclic Photophosphorylation

40 When the ratio of NADPH + H+: NADP+ is high then only ATP is produced in a cyclic process. When the ratio of NADPH + H+: NADP+ is high then only ATP is produced in a cyclic process. PS I does not generate NADPH + H+ but sends its 'excited' electron to a proton pump. PS I does not generate NADPH + H+ but sends its 'excited' electron to a proton pump.

41 1. PS I is oxidised releasing an 'excited' electron. 1. PS I is oxidised releasing an 'excited' electron. 2. The electron reduces the membrane proton pump. Protons are pumped into the thylakoid space. This generates ATP. 2. The electron reduces the membrane proton pump. Protons are pumped into the thylakoid space. This generates ATP. 3. The electrons are cycled back to PS I for its own reduction. 3. The electrons are cycled back to PS I for its own reduction.

42 8.2.4 Explain photophosphorylation in terms of chemiosmosis State that photosynthesis involves the conversion of light energy into chemical energy. State means to give a specific name, value or other brief answer without explanation or calculation.

43 Chemiosmosis theory is based on: Accumulation of a high concentration of H+ which is due to proton pumping. Accumulation of a high concentration of H+ which is due to proton pumping. There being a concentration difference between two places which is the high concentration of H+in the thylakoid space and a lower concentration in the stroma. There being a concentration difference between two places which is the high concentration of H+in the thylakoid space and a lower concentration in the stroma. The protons diffuse through the core of the ATP synthetase. The protons diffuse through the core of the ATP synthetase. This drives the motor mechanism of the structure resulting the in the reduction of ADP to ATP. This drives the motor mechanism of the structure resulting the in the reduction of ADP to ATP. Note how the same mechanism was seen on the cristae membranes in respiration. Note how the same mechanism was seen on the cristae membranes in respiration.

44 3.8.1 State that photosynthesis involves the conversion of light energy into chemical energy. State means to give a specific name, value or other brief answer without explanation or calculation.

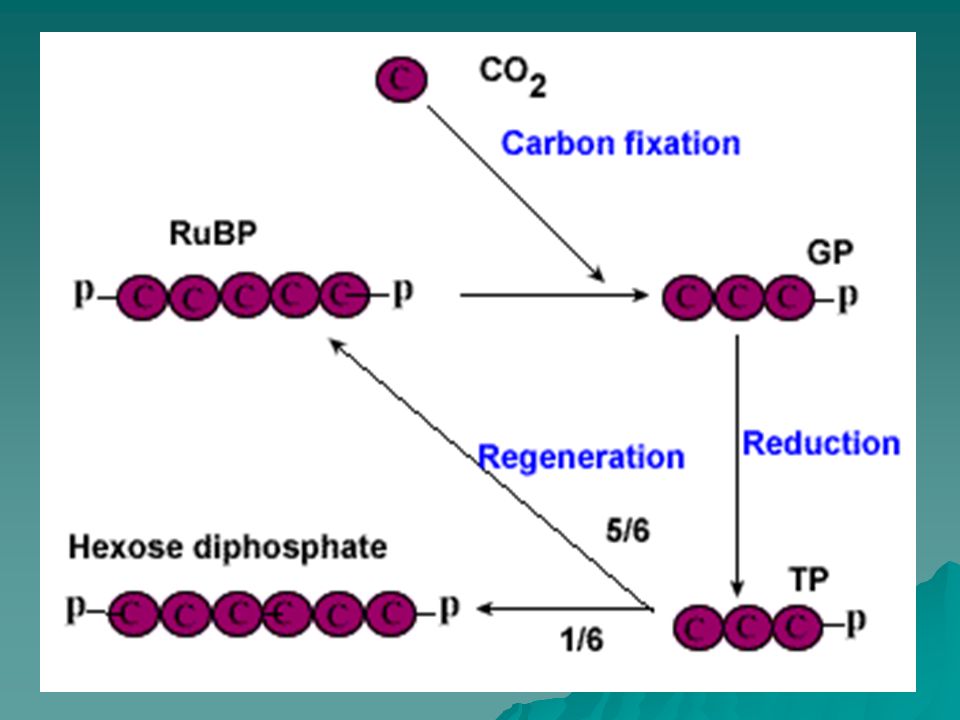

45 8.2.5 Light-Independent Reaction The energy trapped from sunlight in the light dependent reaction (ATP and NADPH) is used to fix carbon from carbon dioxide into organic molecules. The energy trapped from sunlight in the light dependent reaction (ATP and NADPH) is used to fix carbon from carbon dioxide into organic molecules. The reaction called the Calvin Cycle takes place in the stroma and is controlled by enzymes. The reaction called the Calvin Cycle takes place in the stroma and is controlled by enzymes. Ribulose Bisphosphate Carboxylase (Rubisco) allows carbon (carbon dioxide) to be fixed into an initial organic molecule Ribulose Bisphosphate Carboxylase (Rubisco) allows carbon (carbon dioxide) to be fixed into an initial organic molecule

46

47 Carbon Fixation The single carbon in carbon dioxide is first trapped by Ribulose bisphosphate (5C) to form a 2 molecules of Glycerate-3- phosphate (GP). The single carbon in carbon dioxide is first trapped by Ribulose bisphosphate (5C) to form a 2 molecules of Glycerate-3- phosphate (GP).

48 Reduction GP is reduced to a Triose-phosphate(TP) in the process NADPH and ATP are oxidised to provide the energy GP is reduced to a Triose-phosphate(TP) in the process NADPH and ATP are oxidised to provide the energy TP is used to manufacture a variety of organic molecules including Glucose- phosphate

49 Regeneration Some of the TP is used to regenerate Ribulose Bisphosphate. This will allow more carbon dioxide to be fixed from the atmosphere. Some of the TP is used to regenerate Ribulose Bisphosphate. This will allow more carbon dioxide to be fixed from the atmosphere.

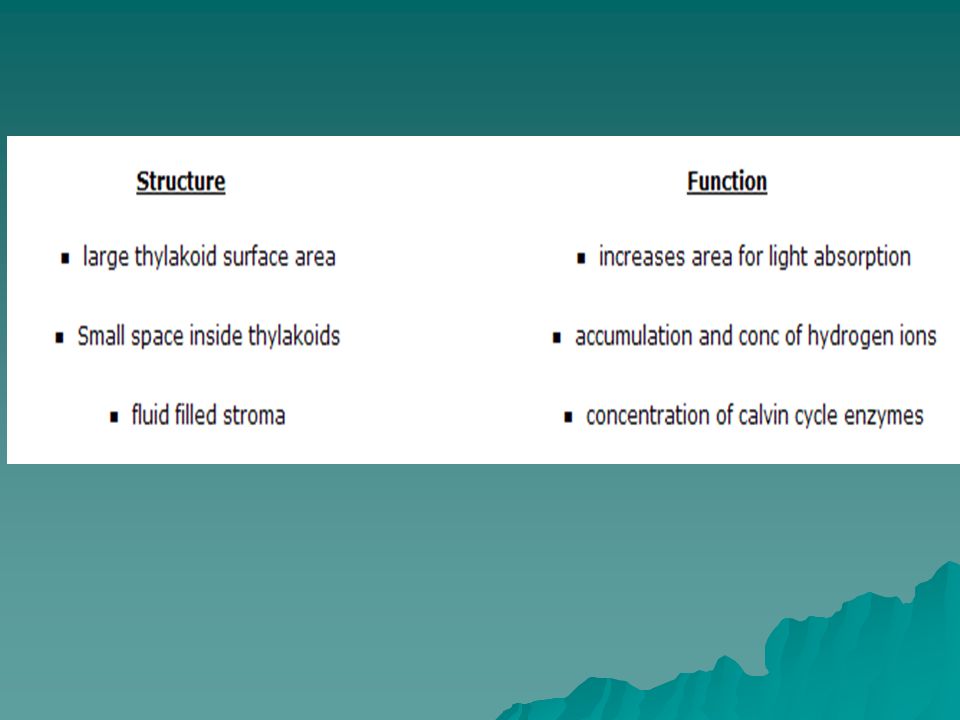

50 8.2.6 Explain the relationship between the structure of the chloroplast and its function Explain means to give a detailed account of causes, reasons or mechanisms.

51

52 3.8.1 State that photosynthesis involves the conversion of light energy into chemical energy. State means to give a specific name, value or other brief answer without explanation or calculation.

53 3.8.1 State that photosynthesis involves the conversion of light energy into chemical energy. State means to give a specific name, value or other brief answer without explanation or calculation.
