Desk Checking

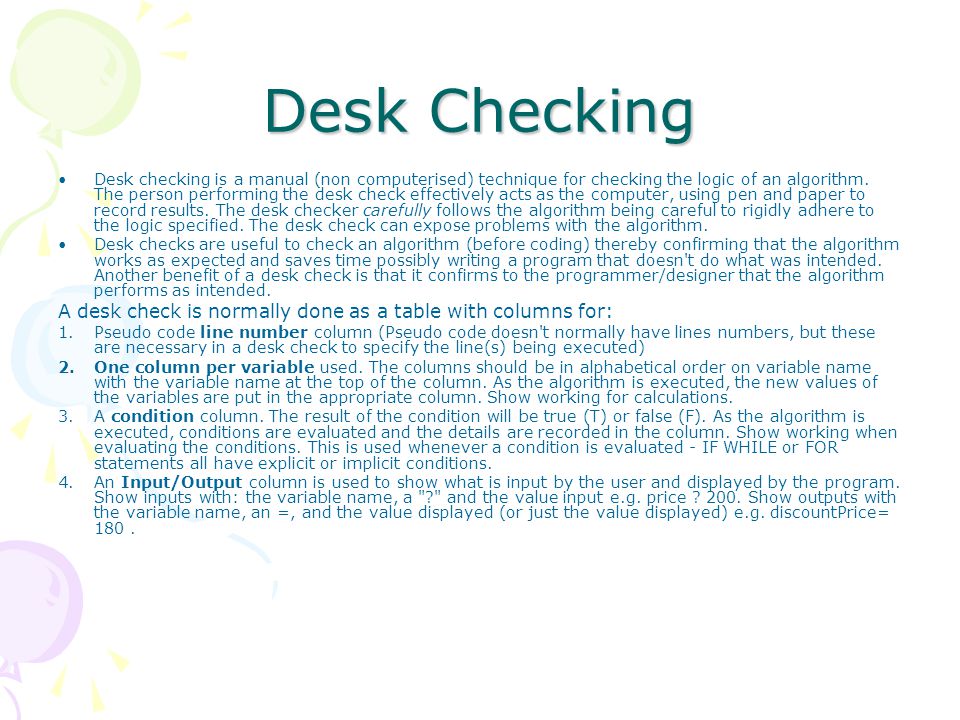

Desk checking is a manual (non computerised) technique for checking the logic of an algorithm. The person performing the desk check effectively acts as the computer, using pen and paper to record results. The desk checker carefully follows the algorithm being careful to rigidly adhere to the logic specified. The desk check can expose problems with the algorithm. Desk checks are useful to check an algorithm (before coding) thereby confirming that the algorithm works as expected and saves time possibly writing a program that doesn't do what was intended. Another benefit of a desk check is that it confirms to the programmer/designer that the algorithm performs as intended. A desk check is normally done as a table with columns for: 1.Pseudo code line number column (Pseudo code doesn't normally have lines numbers, but these are necessary in a desk check to specify the line(s) being executed) 2.One column per variable used. The columns should be in alphabetical order on variable name with the variable name at the top of the column. As the algorithm is executed, the new values of the variables are put in the appropriate column. Show working for calculations. 3.A condition column. The result of the condition will be true (T) or false (F). As the algorithm is executed, conditions are evaluated and the details are recorded in the column. Show working when evaluating the conditions. This is used whenever a condition is evaluated - IF WHILE or FOR statements all have explicit or implicit conditions. 4.An Input/Output column is used to show what is input by the user and displayed by the program. Show inputs with: the variable name, a "?" and the value input e.g. price ? 200. Show outputs with the variable name, an =, and the value displayed (or just the value displayed) e.g. discountPrice= 180.

Desk Checks vs Test Plans A Desk Check concentrates on the value of variables and the logic i.e. what is the value of variable x after statement n; what is the next statement to be executed? A Test Plan focuses on the values of inputs and outputs required to test a program without concern for the internal workings i.e. are the results (outputs) correct for the inputs?.

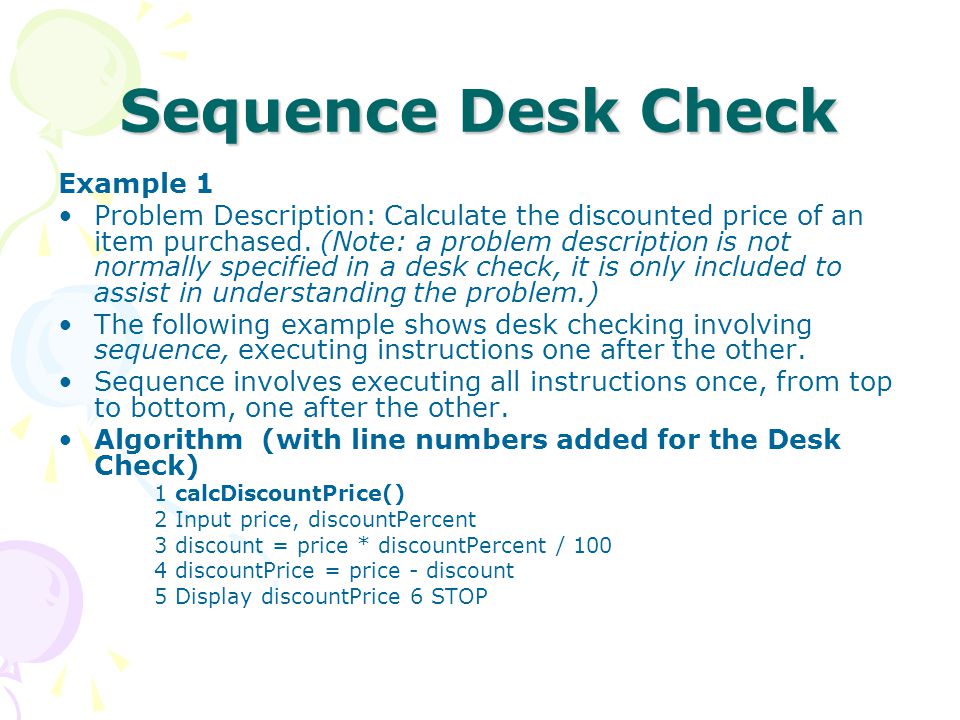

Sequence Desk Check Example 1 Problem Description: Calculate the discounted price of an item purchased. (Note: a problem description is not normally specified in a desk check, it is only included to assist in understanding the problem.) The following example shows desk checking involving sequence, executing instructions one after the other. Sequence involves executing all instructions once, from top to bottom, one after the other. Algorithm (with line numbers added for the Desk Check) 1 calcDiscountPrice() 2 Input price, discountPercent 3 discount = price * discountPercent / 100 4 discountPrice = price - discount 5 Display discountPrice 6 STOP

Sequence Desk Check Test Data Inputs: price = \$200, discountPercent = 10%. Correct results: discount = \$20, discountPrice = \$180. Line Number discount Discount Percent Discount Price priceInput/Output 1 2 10 200 price ? 200; discountPercent ? 10 3 200 * 10 / 100 = 20 4 200 - 20 = 180 5 discountPrice = 180 6

Selection Desk Check Example 2 Problem Description: Calculate the discounted price of an item purchased. Customers receive a discount of 15% on an item if the purchase price of the item is over \$100. The following example shows desk checking involving selection using an IF. For an IF without an ELSE, if the condition evaluates to True then execution continues to the next line and the lines between the IF and ENDIF are executed (inclusive), otherwise (the condition is False) execution jumps from the IF to the ENDIF. Algorithm (with line numbers added for the Desk Check) 1 calcPrice() 2 Input price 3 IF price > 100 THEN 4 discount = price * 15 / 100 5 price = price - discount 6 ENDIF 7 Display price 8 STOP

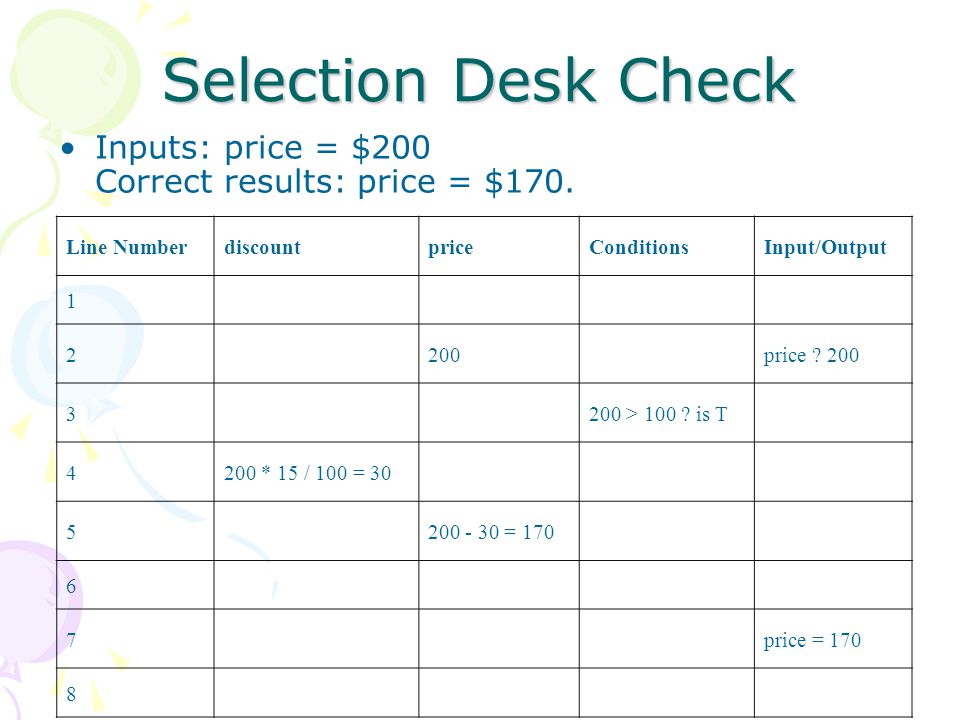

Selection Desk Check Inputs: price = \$200 Correct results: price = \$170. Line NumberdiscountpriceConditionsInput/Output 1 2 200 price ? 200 3 200 > 100 ? is T 4200 * 15 / 100 = 30 5 200 - 30 = 170 6 7 price = 170 8

Selection Desk Check cont. Line NumberdiscountpriceConditionsInput/Output 1 2 50 price ? 50 3 50 > 100 ? is F 6 7 price = 50 8 Inputs: price = \$50 Correct results: price = \$50.

Iteration Desk Check Problem Description: Display a table of values of x and x squared. X is to start at 1 and increase by 1 up to 3. The following example shows desk checking involving iteration (repetition) using a FOR loop. The counter variable is initialized once at the top of the loop, the first time through the loop. The implied condition is evaluated at the top of the loop, with execution going to the next line if the condition is True and going to the line after the ENDFOR if the condition is False. In this case the implied condition is x <= 3 ?. On the ENDFOR line the counter variable is incremented by 1, then program execution loops from the ENDFOR line, back to the FOR line. Algorithm (with line numbers added for the Desk Check) 1 calcSquares() 2 Display "X", "X Squared" 3 FOR x = 1 TO 3 DO 4 xSquared = x * x 5 Display x, xSquared 6 ENDFOR 7 Display "-----------" 8 STOP

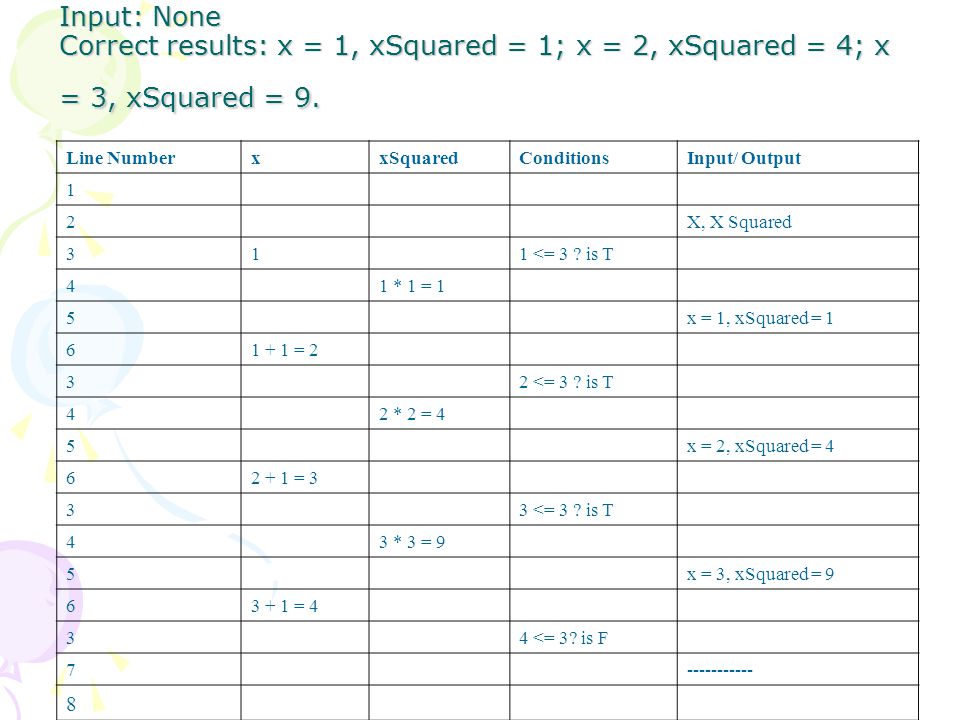

Input: None Correct results: x = 1, xSquared = 1; x = 2, xSquared = 4; x = 3, xSquared = 9. Line NumberxxSquaredConditionsInput/ Output 1 2 X, X Squared 31 1 <= 3 ? is T 4 1 * 1 = 1 5 x = 1, xSquared = 1 61 + 1 = 2 3 2 <= 3 ? is T 4 2 * 2 = 4 5 x = 2, xSquared = 4 62 + 1 = 3 3 3 <= 3 ? is T 4 3 * 3 = 9 5 x = 3, xSquared = 9 63 + 1 = 4 3 4 <= 3? is F 7 ----------- 8

Example from Case Study 1. Dim CashPaid, Change, GrandTotal As Currency 2. GrandTotal = txtnettotal.Text 3. CashPaid = txtcashtendered.Text 4. If GrandTotal > CashPaid Then 5. txtcashtendered.Text = "" 6. Else 7. Change = CashPaid - GrandTotal 8. End If

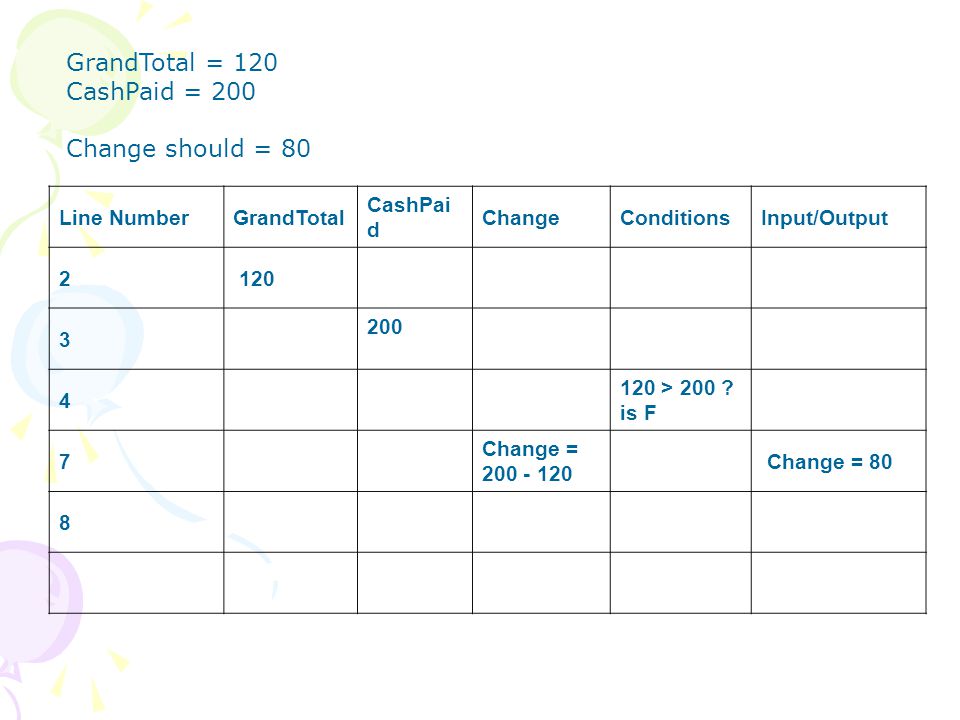

Line NumberGrandTotal CashPai d ChangeConditionsInput/Output 2 120 3 200 4 120 > 200 ? is F 7 Change = 200 - 120 Change = 80 8 GrandTotal = 120 CashPaid = 200 Change should = 80

Try this one… Dim Count As Integer Adodc1.Recordset.MoveFirst Do While Not Adodc1.Recordset.EOF Count = Count + 1 Adodc1.Recordset.MoveNext Loop txtNo_Records.Text = Count Adodc1.Recordset.MoveFirst End Sub *5 records in database
