1 Partition, Compress, Archive and Purge Keep Your System on the Road David Kurtz Go-Faster Consultancy Ltd.

2 Who Am I? Oracle Database Specialist –Independent consultant Performance tuning –PeopleSoft ERP –Oracle RDBMS Book –www.psftdba.comwww.psftdba.com OakTable UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

3 It depends… The answer to all questions should be deemed to be implicitly prefixed ‘it depends’ if they are not already explicitly so prefixed. The reasons for this include, but are not limited to: –There may be exceptions where the answer is either false or not completely true –There may be exceptions to the exceptions and so on ad infinitum. –The question may not explicitly scope all the conditions upon which the answer depends © UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge

4 This happens to be a story about... An ERP System –But it could be about any on-line transaction processing system. A PeopleSoft system –But it could be about any ERP PeopleSoft HR/Time & Labor/Payroll –But it could be about any product UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

5 PeopleSoft HR, T&L, Morrisons 130,000 employees –100,000 in stores Scheduled hours –Clock in/out –T&L matches reported hours with schedules to determine payable time –Legacy T&L feed from Manufacturing and Distribution. –Payable time passed to Global Payroll. UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

6 Two Challenges Performance –Big Tables (for OLTP) Eg payroll accumulator table 2.4 billion rows! –Poor/Variable Performance Various processes and reports suffering Critical Processes Database Size –>4TB –Growth ≈ 1TB/year –Backup Size/Contention –Cloning Dev/Test environments UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

7 UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge © Tb/yr

8 Throw Away When we say the ‘database is slow’, often: –It is fetching data from disk, reading it, and deciding it isn’t something it wants and throwing it away. –It would be better if we had not spent time and resource fetching it in the first place The fastest way to do anything is not to do it at all. –Cary Millsap UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

9 4 Techniques Partition –Breaking tables and indexes into manageable pieces Compress –Squeezing more data into the same space Archive –Get the data out of the live application tables and put it somewhere else. Purge –Expunge the data from the database UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

10 PARTITIONING UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

11 Partitioning UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

12 Can I Partition Application tables? Support implication? We could only use partitioning because the application and the business data was suitable. –You need to understand the application the data (which reflects the business) partitioning UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

13 Partitioning decisions driven by Application Global Payroll –‘streamed’ processing RANGE on EMPLID to match concurrent processing - no good for archiving –‘Calendar Group ID’ (effectively a payroll period ID) corresponds to a period of time LIST sub-partition on payroll period - archive by partition Scheduling, Time & Labor –Weekly range partitions on ‘Date under reporting’ UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

14 Partitioning in Other PeopleSoft Financials Modules? General Ledger –FISCAL_YEAR & ACCOUNTING_PERIOD –Monthly/Quarterly/Annual partitions. Many tables keyed by –Set ID (legal entity/legislature) –Business Unit No use for archiving, but good for separating concurrent processes. I have another customer with 99% of the business in one BUSINESS_UNIT. –Partitioning is not an option for them. UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

15 Partitioning helps archiving Links logical data value to physical location of data in the database. Time-based partitioning –Future / Current / Historical Partition-wise operations –Compress historical partitions –Archive by partition exchange –Purge by dropping whole partitions. –Less Redo. Faster. –Better chance of reclaiming free space UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

16 Delete rows –v- Drop Partition? Free space is left in data block. High Water Mark unchanged –Data block remain part of table/index –Still scanned by queries. Still backed up by RMAN No longer in a database object. So not referenced. Free space is available in tablespace. –Still backed up If the space is at end of the datafile it can be trimmed off by resize. –No longer backed up UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

17 Partitioning PeopleSoft at Morrisons Global Payroll –46 tables range on EMPLID, matching 32 streams –List sub-partition largest tables by pay period (CAL_RUN_ID). –24 archive tables, range partitioned on pay period into tax-year partitions. –2 custom GP reporting tables Schedules & Time and Labor –10 tables in weekly range partitions –of which Reported Time table hash sub-partitioned Audit Tables –28 monthly range partitions on audit timestamp Security Tables –Separate partitions for different business units UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

18 Managing Partitioning and Partition DDL How are you going to generate partition DDL? –Manual scripting? –Who is going to write them? –On going maintenance? Add new partitions over time? UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

19 Managing Partitioning in PeopleSoft Partitioning strategies –Described own meta-data tables PL/SQL Utility package –generate DDL scripts. –Driven by PeopleTools tables and our own meta-data Application Designer from PT8.51 will preserve some existing partitioning –See Managing Oracle Table Partitioning in PeopleSoft Applications with GFC_PSPART Package UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

20 Partitioning Trick Timezone Table –Small, but accessed VERY frequently by T&L –1 partition for GMT only Only 1 row –1 partition for CET only Only 1 row –1 partition for the rest –Less CPU to read first row in block than second etc. UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

21 Licencing of Partitioning Oracle RDBMS Enterprise Edition only –And then separately licenced Application Support Policies Vary –Partitioning does not invalidate any aspect of PeopleSoft support. –My understanding is that the policy for E- Business suite is not the same. UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

22 Licencing of Partitioning Oracle RDBMS Enterprise Edition only –And then separately licenced Also a cost option on other database platforms. No licence implication for PeopleSoft. –Partitioning does not invalidate any aspect of your support. UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

23 COMPRESSION UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

24 Oracle RDBMS Compression Basic Compression –Not separately licenced –Only option in 10g Advanced Compression Out of scope of this presentation –Licenced option –Available in 11g Hybrid Columnar Compression (HCC) Also out of scope of this presentation. –Exadata and ZFS filesystem only. UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

25 Simple Compression Block Dictionary Encoding –Data values stored only stored once in array in data block. –Pointer from row of data to array of values. Shorter Rows, more rows per block, fewer Blocks, less I/O More CPU to read row. UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

26 Simple Table Compression Specified at table or partition level with DDL –Sub-partition level inherits from partition level Compression only occurs –On creation of the object ALTER TABLE … COMPRESS –Direct path insert into object –CPU overhead during compression and read Row decompressed on update –Likely to be migrated UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

27 Advanced Table Compression 11g Licenced Option –Same Compression Algorithm –Same Performance Benefits/Overheads –Data compressed after DML –Tables remain on-line during compress operations. UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

28 When can I compress my data? When it is no longer updated by application. –Because DML uncompresses rows –But that may be well before you can archive/purge. –Needs knowledge of business/application. UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

29 What tables do I compress? Depends on application, business, and partitioning strategy. –Audit data partitions: as soon as month ends –Payroll result data: when pay period is closed for 1 month –T&L: after 6 months UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

30 Compression Gotcha! During –ALTER TABLE PARTITION … MOVE … COMPRESS. Local index partitions momentarily become unusable before they go back to being usable. This can cause application errors –Choose carefully when to compress, –or ignore unusable indexes, –or do it in an outage –or use on-line reredefinition UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

31 Custom PL/SQL Utility Package DBA run management utility Meta-data rules to determine when partition no longer updated. –Moves partitions to correct tablespace –Incrementally compress static partitions. –Dynamically generates DDL statements and executes them. –Added some logging which appears trace files and alert log. UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

32 Custom PL/SQL Utility Package GFC_ARCH_MGMT –DBA run management utility –Moves partitions to correct tablespace –Compresses/Decompresses partitions per specification in meta-data. Dynamically generates DDL statements and executes them. Added some logging which appears trace files and alert log. UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

33 How much table compression? It depends on your data! We have see a factor 2x – 5x on tables –(50%-80% reduction in size) Indexes are less compressible –Up to 50% reduction UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

34 Index Compression Applies to whole of index –Can choose to enable/disable for each partition Useful for DEFAULT or MAXVALUE partition Index remains compressed –DML does not decompress –CPU Performance overhead Table compression does not affect index size. –But can affect clustering factor and hence cost UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

35 Index Compression Prefix Length Choose how many columns of index to compress –Too much compression can be worse than no compression at all UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

36 UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

37 ANALYZE INDEX VALIDATE Examines physical index segments –OPT_CMPR_COUNT = optimal compression –OPT_CMPR_PCTSAVE = size saving relative to current index size –1 result row in INDEX_STATS Result is for last partition if partitioned index MAXVALUE / DEFAULT partition may produce unusual results. UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

38 Index Compression Not limited to static data Increased CPU overhead on DML –Offset by lower I/O overhead We found that it has been worth compressing largest indexes on live tables. –Space Saving –Net performance gain UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

39 ARCHIVE & PURGE UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

40 Archive & Purge Archive: –Move data from live application table to another table. –In this case another to table in the same database. –Read-only access provided to archive tables. Purge: –Expunge data from the database. UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

41 Archive/Purge For each table or set of tables –Define a policy that specifies when data is archived or purged. Compression too, but that has no functional impact. Discuss with business –Check legal requirements PAYE 3 years, Company Accounts 6 years UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

42 ‘But my data will disappear’ That may be a good thing –If you keep data you have to look after it responsibly. –Pay for the disk to store it/back it up. Read-only access via PS/Query tool to archive data. –No access via SQL Developer A very few components and reports access archive tables –Development cost of customisation UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

43 Example Archive/Purge Policies –GP: archive 2 rolling years, purge after 8 tax years –Schedules, purge at 56 weeks –T&L, purge at 108 weeks –Audit: various: Archive after 3 months, 1, 3 year Purge 6 months, 1 year, 2 years, never UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

44 Archive Method Partition Management –Exchange/Drop whole Partitions Time based partitioning –Faster Avoid rewriting data Avoid redo –Global Indexes maintenance overhead Don’t build on archive table –Compression must match Archive table indexes not compressed. Row-by-Row –Non-time based partitioning Some GP tables –Can be done on-line –Can compress data during rewrite –Different partitioning strategy in archive and live. –Move archive to lower storage tier. UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

45 PeopleTools Archive Utility Row-by-Row processing only –Slow and can’t reclaim space –Can’t compress data during copy Additional key columns in archive table –Enlarges archive tables –Causes performance problems with index access Still need to drop empty partitions. Generic –Meta-data driven Sets of tables to archive Corresponding archive tables GP set delivered UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

46 PL/SQL Archive/Purge Utility Custom PL/SQL Package –Driven by same meta-data as partitioning utility –Archive by partition exchange –Purge by dropping partition. –Called from custom Application Engine So archiving can be done via application. –Writes To PeopleSoft Message Log UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

47 ‘No-Archive’ Rules UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

48 Custom Archive Utility Based on delivered PeopleSoft Archive Utility We only use it for GP archiving Copies data in direct path –Faster –Can compress during copy Calls PL/SQL utility to drop partitions to save deleting data. UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

49 ‘PSARCH’ Schema Design 2 nd schema to hold archive tables –Only tables archived by partition exchange –Same name as live tables –Same local indexes as live Benefits –Application cannot update/delete from these tables. Drawbacks –Views to make them accessible to PS/Query. –Can’t manage indexes with Application Designer. –Only Owner can alter index UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

50 Tablespace Design No impact on performance –Because all on same tier of disk Do not keep objects with dissimilar purge policies in same tablespaces –You can drop empty tablespaces and recover space. Periodic tablespaces make sense without purge policy With a purge policy might just have one tablespace. –Unless you have tiered storage available. UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

51 Wrong Tablespace Design Before archive policy –Weekly T&L and Schedule partitions in same monthly tablespaces Archive Policy –T&L: 108 weeks –Schedules: 56 weeks Schedules populated first, T&L later. –Schedules tend to be nearer start of tablespace –Schedules purged first leaving holes than cannot be trimmed off. UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

52 Free Space Fragmentation Free Space left in middle of tablespace –Dropping objects –Compressing objects can leave holes Less Severe since Oracle 9i –Uniform extent sizes –Bitmap space map UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

53 UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

54 Oracle RMAN Backup Backs up block with SCN –If an object is dropped, blocks still have SCN –These empty blocks are still backed up. Can only reduce full backup size by trimming free space from end of data files. UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

55 Defragmentation of Free Space PL/SQL utility to rebuild objects nearest end of data file into spaces in the middle of the tables –Needs to be done during an application outage. Frees space at end of data file that can be trimmed off. –Thus reducing size of database and backup. UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

56 Oracle Flashback Database SQL Rollback –We are used to the idea of rolling back transaction that have not been committed. Flashback database –Generates additional flashback logging –Rollback committed transaction and DDL but not through a drop/resize data file (smaller) –Whole database option Highly effective in testing archive/purge UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

57 Future: Oracle >= 11g Automatic Partition Creation Range-Range partitioning Advanced Compression –Licenced Option –Supports DML Possible row-migration threats. Active Data-Guard –Off-load query activity to standby database UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

58 PROGRESS UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

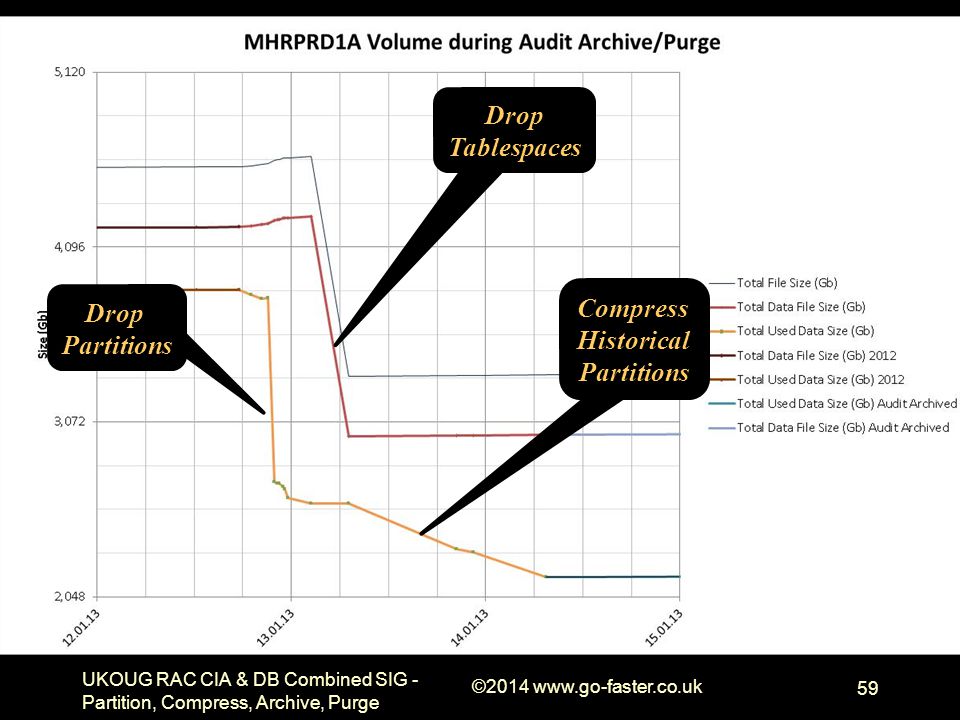

59 UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge © Drop Partitions Drop Tablespaces Compress Historical Partitions

60 UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge © Copy & Compress Data Drop Partitions & Rebuild Tables Drop Tablespaces Compress Historical Partitions

61 UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge © Tb/yr 0.56Tb/yr

62 UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

63 Achievements Database Size –4.5TB => <2TB –No Growth (apart from GP archive tablespace) Performance Improvements –GP calculation and other processing –T&L processing –Financial Reports UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

64 Caveat I/O has reduced, but not as much as the size of the database IOPs/Gb of data file has gone up! –Cheaper to use SSD rather than stripe over more spindles but leaving empty disk space to supply more IOPs? UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

65 Conclusion It depends… UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

66 QUESTIONS? Nullius in verba UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

67 You know my methods, apply them. A Study in Scarlet, Arthur Conan-Doyle UKOUG RAC CIA & DB Combined SIG - Partition, Compress, Archive, Purge ©

68 Partition, Compress, Archive and Purge Keep Your System on the Road David Kurtz Go-Faster Consultancy Ltd.
