2 The Goal of the CV system is To meet the increased demands needed to perform exerciseTo meet such demands the following come into play:Heart rate (HR)- beats per minutesStroke volume (SV) – Amount of blood pumped from the ventricles in one beatCardiac output (Q) - The amount of blood that is pumped by the heart per unit time, measured in litres per minute (l/min).Blood pressure (BP) - is the pressure exerted by circulating blood upon the walls of blood vesselsBlood flow
3 Resting Heart Rate (RHR) Typically RHR = bpm (beats per minute)Pre-exercise HR usually increases above normal resting valuesThis is an anticipatory rise and is not a reliable estimate of RHR - RHR must be taken sometime before exerciseIncreases in HR are due to the sympathetic nervous system (SNS) releasing adrenaline.Once exercise has started the increase in carbon dioxide (CO) and lactic acid in the body is detected by the chemoreceptors; signals are then sent back to the SNS and more adrenaline is released this further increases HRheart rate increases linearly from about 60 bpm to a maximum of about 200 bpm
4 Optimal HR for meeting the circulatory demands at that rate of work Steady-State HRHR increases until it reaches a plateau, when rate of work is held constant at sub-maximal intensityOptimal HR for meeting the circulatory demands at that rate of workThe lower the steady-state HR at each exercise intensity, the greater the cardiorespiratory fitness
5 Maximum HR (MHR)Highest HR value achieved in an all-out effort to the point of exhaustionRemains constant from day to day but decreases with ageApproximated by: HRmax= 220-age or HRmax = 208- (0.7 x age)
6 The fitter you are the greater your SV generally! Stroke Volume (SV)SV is the amount of blood pumped from the ventricles in one beat (specifically the left one)SV is a major determinant of cardiorespiratory endurance capacity at near-maximal and maximal exercise intensitiesThe fitter you are the greater your SV generally!Resting SV is normally around 70-90ml( L)In general males have a bigger SV than femalesSV values are determined by:Volume of venous blood returned to the heartVentricular dispensabilityVentricular contractilityAortic or pulmonary artery pressure
7 Stroke Volume (SV)stroke volume rises during the initial stages of work and then levels off until near maximal levels where it slightly declines due to decreased ventricular filling timein early exercise the increase is related to increases in both HR and SV. Later increases are due to HR only assuming that SV levels out
8 Stroke Volume Trained Vs Untrained Trained individuals have a larger SV then untrained as you can see from the graph!
9 Increased venous return (preload) (the muscle pump and respiratory pump help with venous return during exercise):extent to which ventricle fills with blood and stretches and subsequently contracts more forcefully: Frank-Starling mechanismBlood is returned through the veins to the heart and enters the atria2. Blood then moves from the atria to the ventricles causing the myocardium (cardiac muscle) in the ventricles to stretch3. The greater the venous return the more blood that enters the ventricles, the greater the myocardium is stretched. The further it is stretched the stronger and more forceful the contract will beYou can mimic preload by stretching an elastic band, the further the stretch the elastic band the greater the distance it will travel when you release it!!!
10 The Muscle thoracic Pump Helps Venous Return During exercise the muscle pump functions to return blood to the heart, or increase venous return; the muscles contract and squeeze the veins to push blood back up to the heartthe thoracic or respiratory pump serves the same function, i.e, as you breath in and out this compresses veins in the chest and abdomen to increase venous return to the heart
11 What causes SV to increase during exercise? SV values can also increase due to increased ventricular contractility from neural stimulation from the sympathetic nerve (from the Central Nervous System CNS)SV values can increase also due to decreased total peripheral resistance in the blood vessels due to vasodilation of blood vessels in exercising skeletal muscle
12 Cardiac Output (Q)Q is the amount of blood pumped from the heart every minute (litres per minute) and is the product of: HR x SVAs HR and SV increase therefore so does Q during exercise, to a maximum!Resting Q is about 5.0 L/min, but does vary with size of person .There is a linear relationship between Q and exercise intensity up to L/minWhen level of exercise exceeds 40% to60% of maximal exercise capacity,SV either plateaus or increases at amuch slower rateFurther increases in Q at this point aredue to increases in HR
13 Changes in Q (Cardiac Output) and SV As you can see in a trained and untrained individual their SV starts to plateau at a HR of around 120bpm, but Q still increases this is due to increases in HR. However an Elite individuals SV capacity is greater than untrained individuals!
14 Cardiac Output and Intensity Here you can see the linear relationship between exercise intensity and QThis individuals Qmax is around 24L/Min
15 Changes in HR, SV, and Q with Changes in Posture and Exercise SV changes are due to changes in venous return, ventricular contractility and peripheral resistanceHR and activity/exercise intensity have a linear relationshipQ and activity/exercise intensity have a linear relationship
16 Cardiovascular Endurance Exercise: Blood PressureCardiovascular Endurance Exercise:Systolic Blood Pressure (SBP) increases in direct proportion to increase in exercise intensityAs exercise begins the baroreceptors found in the aortic and carotid arteries detect a decrease in blood pressure specifically SBPThe central nervous system (CNS) responds by constricting (vasoconstriction – narrowing of the blood vessel lumen) blood vessels and increasing SBP and further increases HREventually the CNS detects that SBP needs to be reduced and is reduced via the vasodilation of the vessels. The CNS will continue to attempt to regulate BP throughout exercise until maximal levels are reachedDiastolic Blood Pressure (DBP) does not change significantly (may even decrease)Therefore little change in Mean Arterial Pressure (MAP) which is a product of both SBP and DBPResistance Exercise:Can exaggerate BP as high as 480/350 bpmSome BP increases can be attributed to the Valsalva maneuver (performed by attempting to forcibly exhale while keeping the mouth and nose closed)
17 Blood Pressure Response to Exercise Systolic- Maximum pressureDiastolic- Minimum pressure
18 Blood Pressure Response to Exercise Continued McArdle et al., Exercise Physiology, Lippincott, 2001
19 Blood Pressure Responses As exercise intensity increases SBP in both arms and legs increases in a linear fashionSmall or little changes in DAP
20 Blood FlowAcute changes in Q and BP during exercise allow for increased total blood flow to the body.Blood flow patterns change in transition from rest to exercise – blood must be redistributed to other areas such as muscle this is often called a vascular shuntThrough Sympathetic Nervous System (SNS), blood is redirected to active areas during exerciseSNS activity cause the vasoconstriction (narrowing of vessels) and vasodilatation (widening of vessels) of blood vessels. Also pre capillary sphincters open and close to allow for blood to either travel in or away from a certain area of the body.This causes blood to be redirected to other areas of the body during exercise.

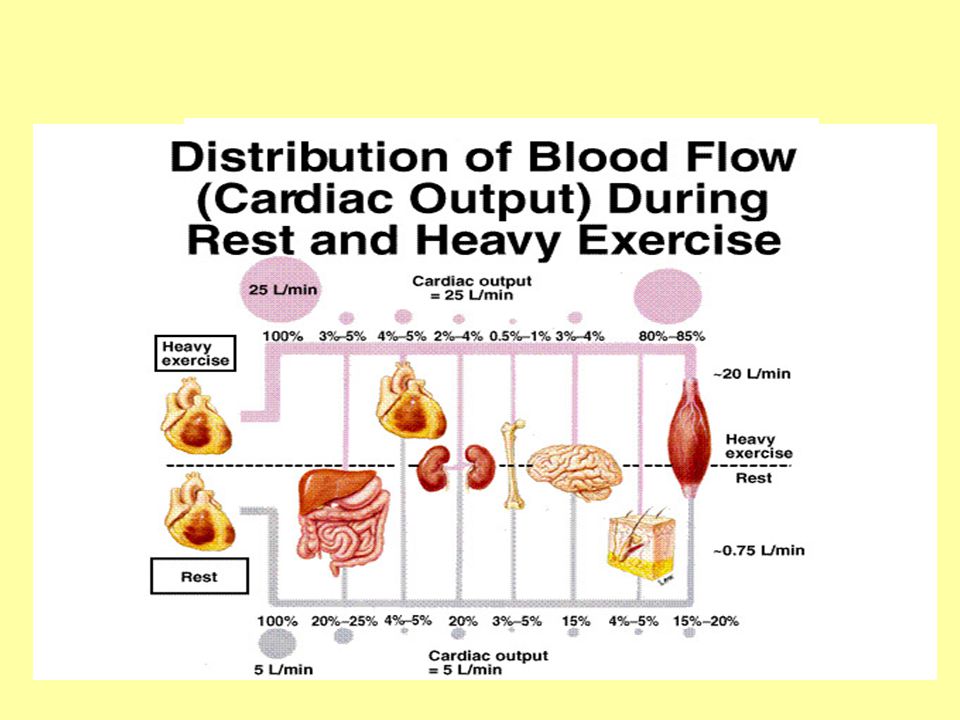

21 SYSTEMIC BLOOD DISTRIBUTION Blood Flow ContSYSTEMIC BLOOD DISTRIBUTIONVASCULAR SHUNTblood is redistributed towards active skeletal muscle during exerciseand away from inactive organsas body heat builds up some blood flow is shifted to the skinto help maintain internal temperatures within acceptable limitsVASOMOTOR CONTROLVASODILATIONdilation of arterioles and opening of precapillary sphincters increases blood flow to active muscleVASOCONSTRICTIONconstriction of arterioles and closure of precapillary sphincters reduces blood flow to inactive organs
22 Vascular ShuntBelow is a diagram showing how pre capillary sphincters along with vasoconstriction and vasodilation help shunt the blood to active areas of the body.
