1 Preparing for the Emerald Ash Borer Community Street Tree Inventory David Cappaert, Michigan State University, bugwood.org

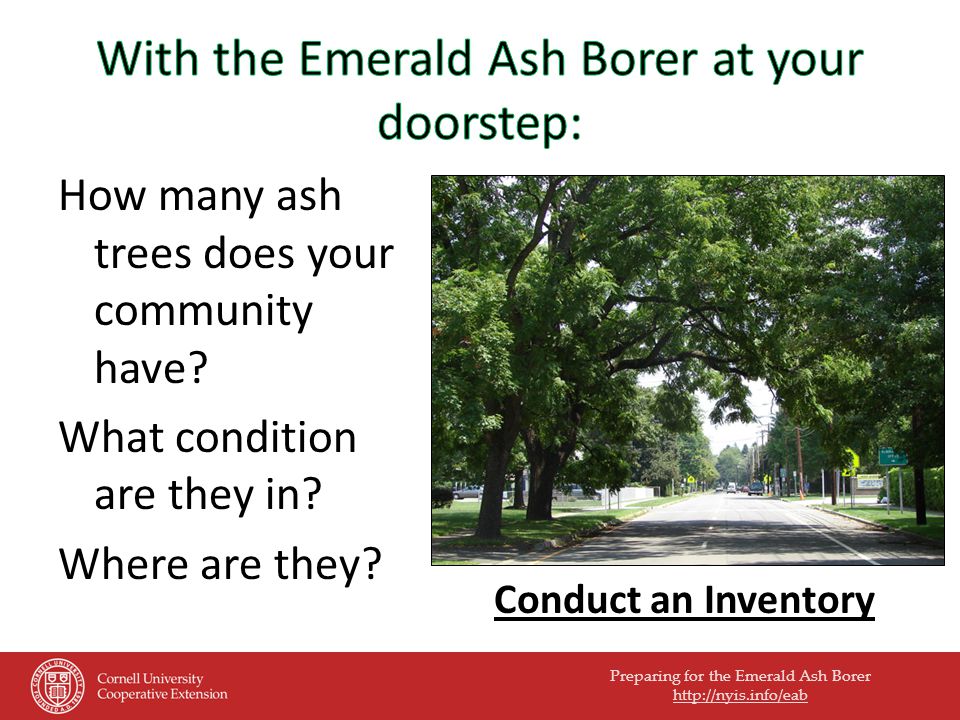

2 Preparing for the Emerald Ash Borer How many ash trees does your community have? What condition are they in? Where are they? Conduct an Inventory

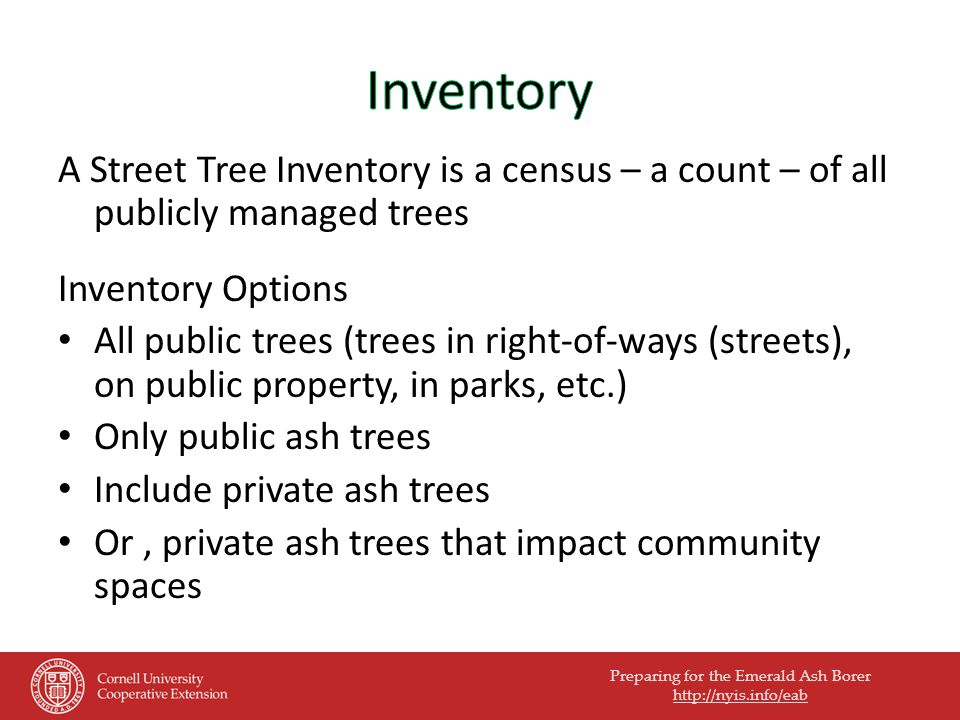

3 Preparing for the Emerald Ash Borer A Street Tree Inventory is a census – a count – of all publicly managed trees Inventory Options All public trees (trees in right-of-ways (streets), on public property, in parks, etc.) Only public ash trees Include private ash trees Or, private ash trees that impact community spaces

4 Preparing for the Emerald Ash Borer To know current state of publicly managed community trees Identify where to focus limited resources Improve long term management and health to maximize forest benefits Quantify the economic and environmental benefits of the urban forest resource To beautify the community and contribute to community identity

5 Preparing for the Emerald Ash Borer 1)Tree specific data: species, location, and condition This can be used to develop management priorities, such as: Determine which trees need to be removed immediately Determine if some ash trees are suitable to be treated with insecticides Identify if some neighborhoods/streets will be affected more by EAB.

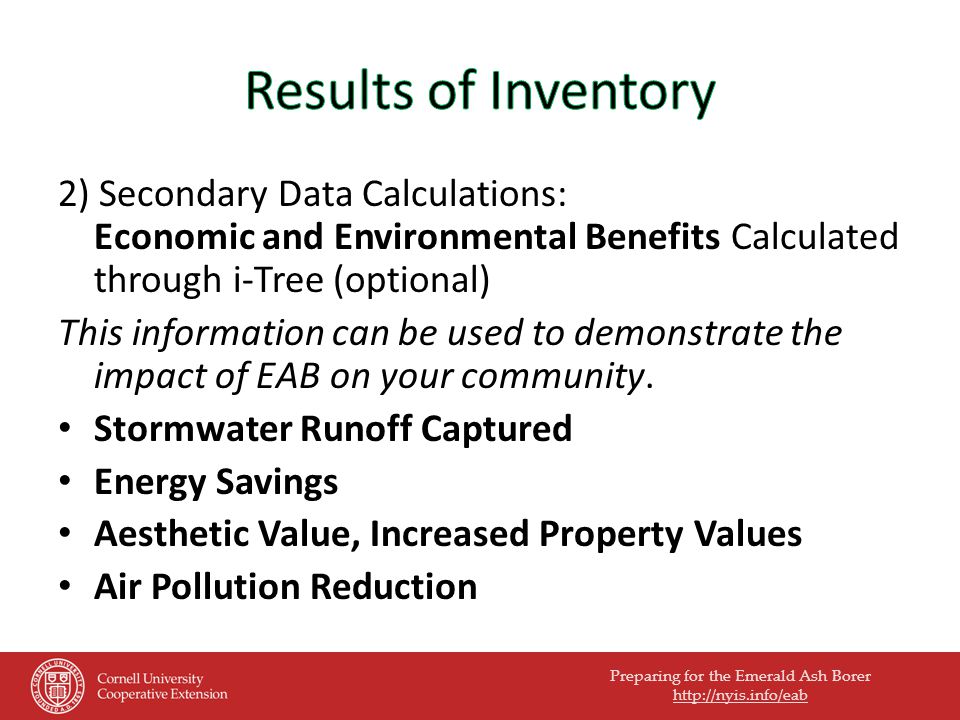

6 Preparing for the Emerald Ash Borer 2) Secondary Data Calculations: Economic and Environmental Benefits Calculated through i-Tree (optional) This information can be used to demonstrate the impact of EAB on your community. Stormwater Runoff Captured Energy Savings Aesthetic Value, Increased Property Values Air Pollution Reduction

7 Preparing for the Emerald Ash Borer Species Diameter Condition* Location Available planting spaces Management recommendation for each tree* * If using volunteers to conduct the inventory, risk evaluation and management recommendations should be made by professionals.

8 Preparing for the Emerald Ash Borer

9 Preparing for the Emerald Ash Borer Free software is available: – i-Tree Suite – Developed by the USDA Forest Service and many partners. – Use paper inventory sheets – i-Tree data fields – Create your own

10 Preparing for the Emerald Ash Borer Two Levels: Walking survey: collect complete details on each tree Windshield/Driving survey: collect only basic data. Recommendation: walking survey. When prompt management action is needed, complete data is crucial.

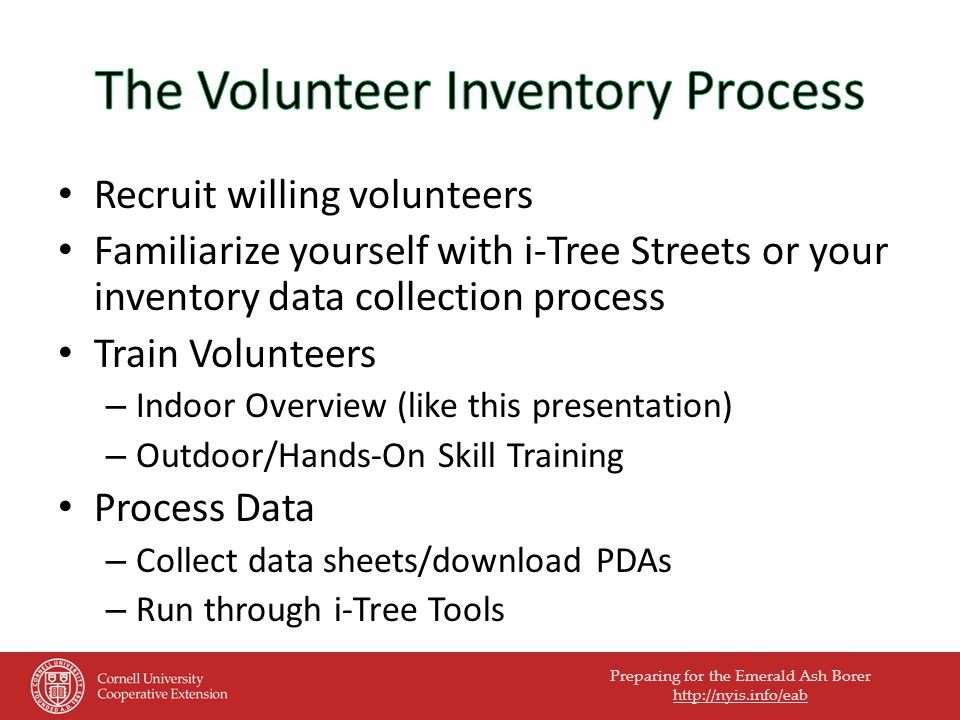

11 Preparing for the Emerald Ash Borer Recruit willing volunteers Familiarize yourself with i-Tree Streets or your inventory data collection process Train Volunteers – Indoor Overview (like this presentation) – Outdoor/Hands-On Skill Training Process Data – Collect data sheets/download PDAs – Run through i-Tree Tools

12 Preparing for the Emerald Ash Borer For each two person crew: Hand held computer or data sheets Diameter tape GPS* Map of community with right-of-way marked Identifying clothes* Brochures for dissemination* *optional

13 Preparing for the Emerald Ash Borer Each tree is visited and data is entered into PDAs or on Paper

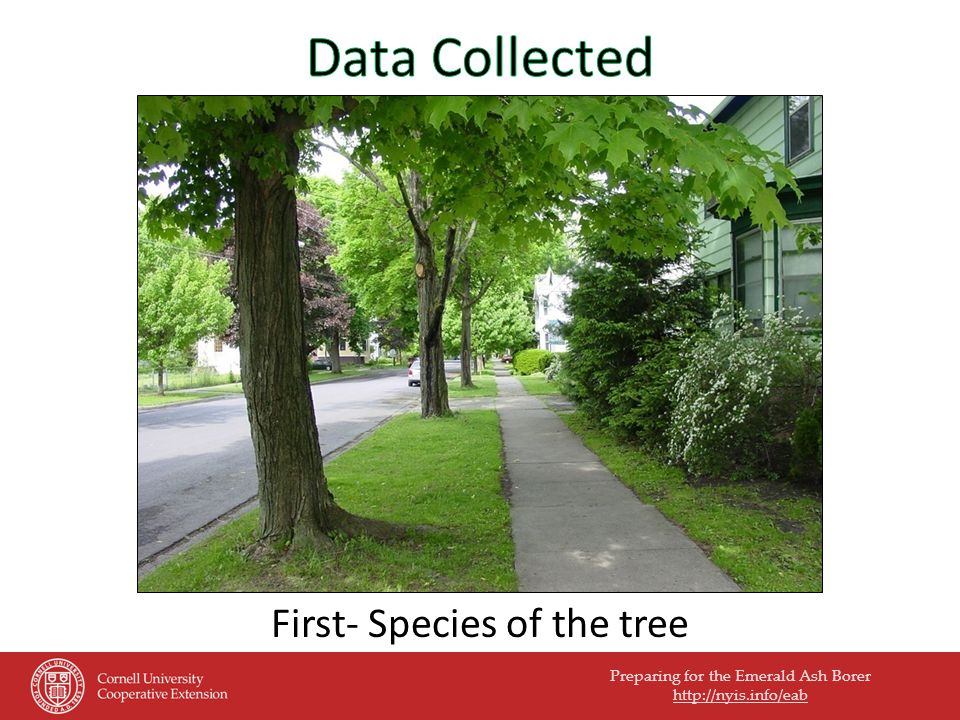

14 Preparing for the Emerald Ash Borer First- Species of the tree

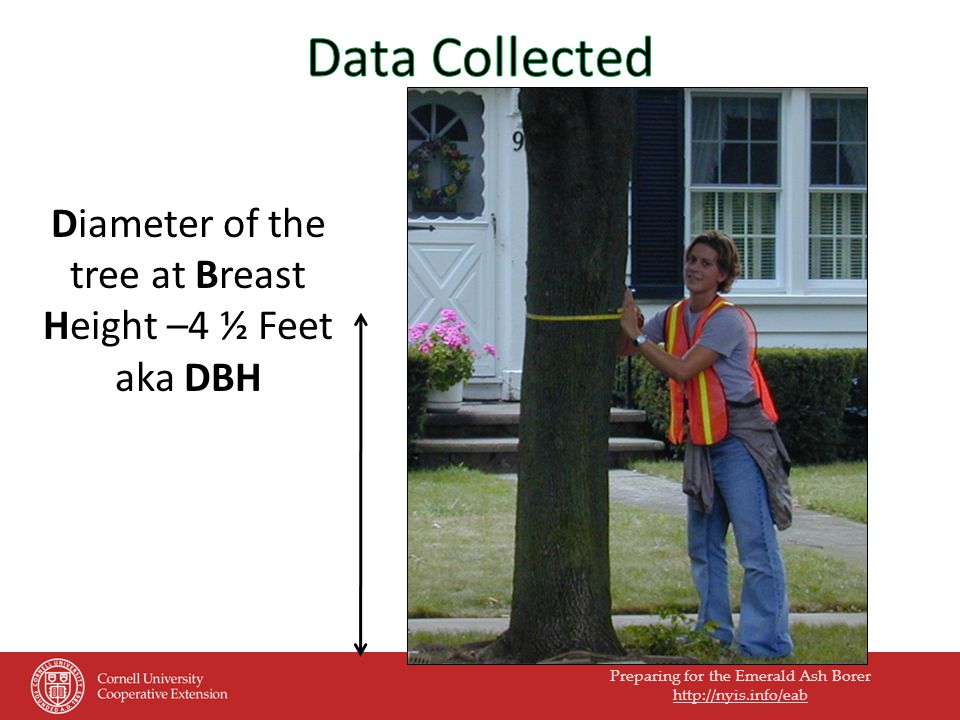

15 Preparing for the Emerald Ash Borer Diameter of the tree at Breast Height –4 ½ Feet aka DBH

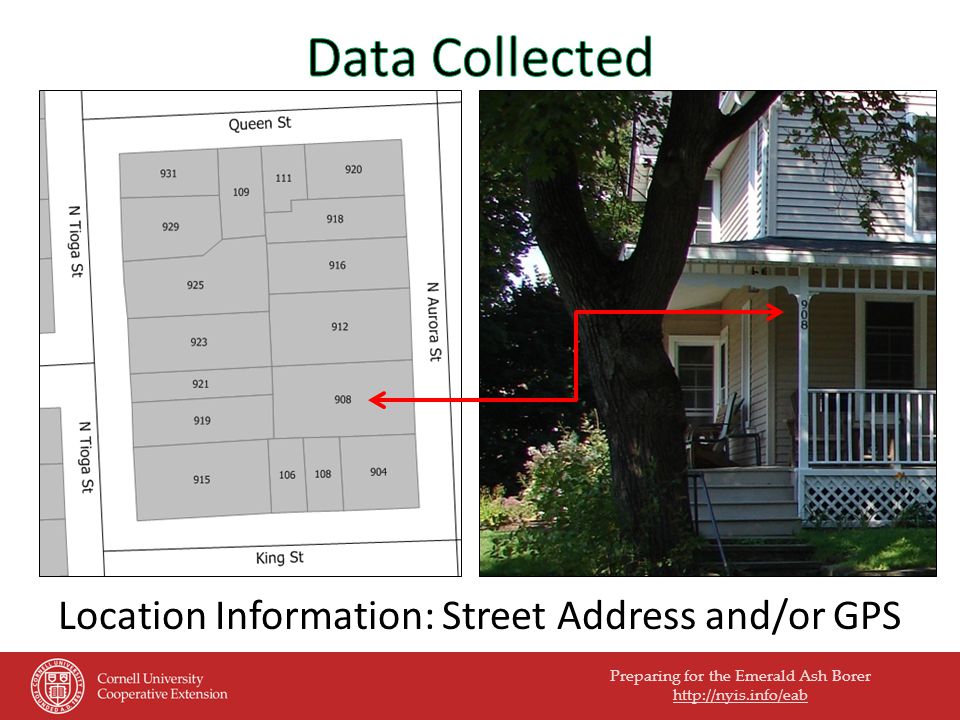

16 Preparing for the Emerald Ash Borer Location Information: Street Address and/or GPS

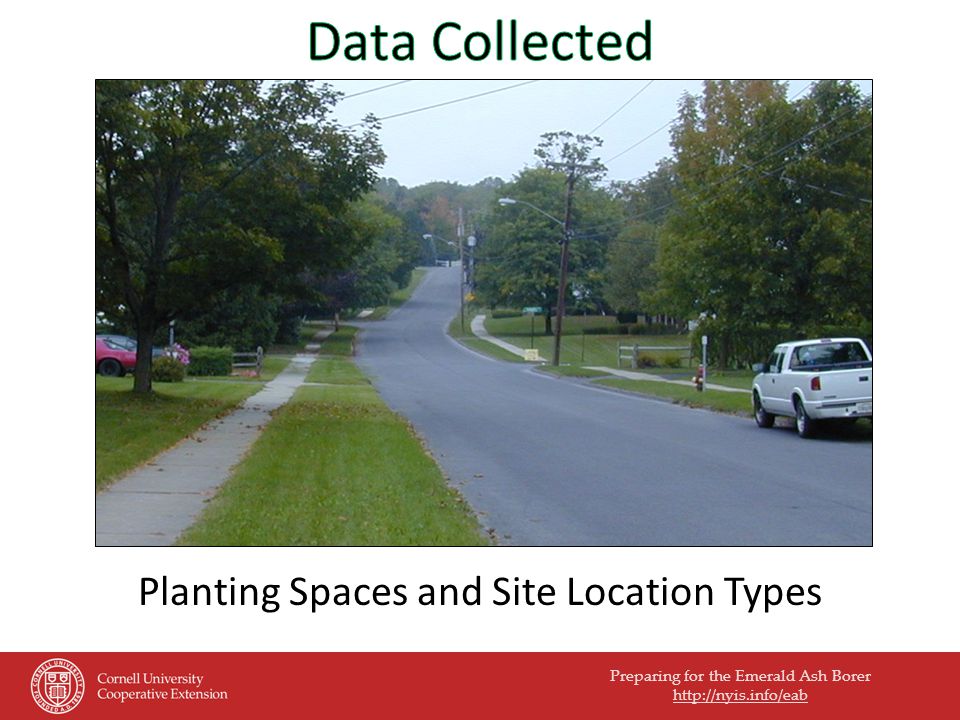

17 Preparing for the Emerald Ash Borer Planting Spaces and Site Location Types

18 Preparing for the Emerald Ash Borer Utility Wire Conflicts (Single and Triple Phase)

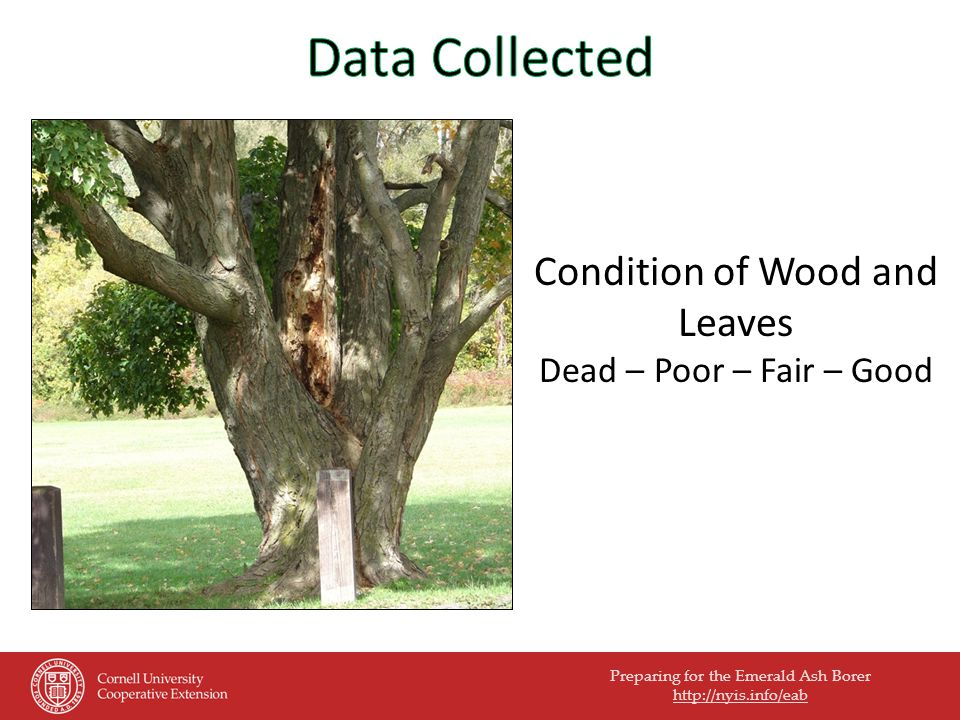

19 Preparing for the Emerald Ash Borer Condition of Wood and Leaves Dead – Poor – Fair – Good

20 Preparing for the Emerald Ash Borer Maintenance Recommendations None – Train – Routine Prune – High Priority Prune

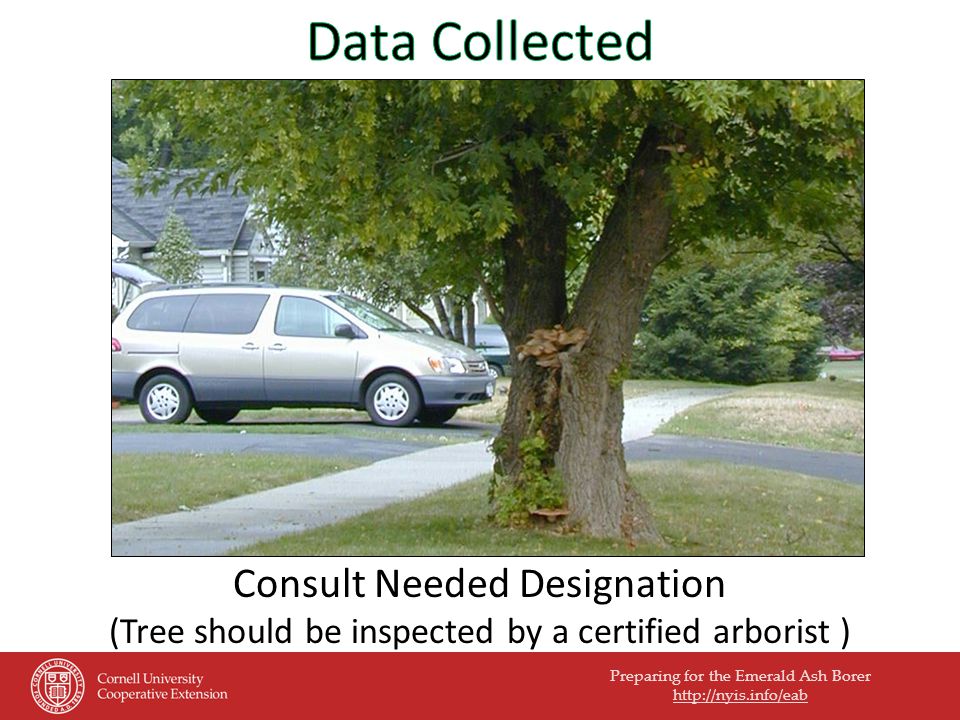

21 Preparing for the Emerald Ash Borer Consult Needed Designation (Tree should be inspected by a certified arborist )

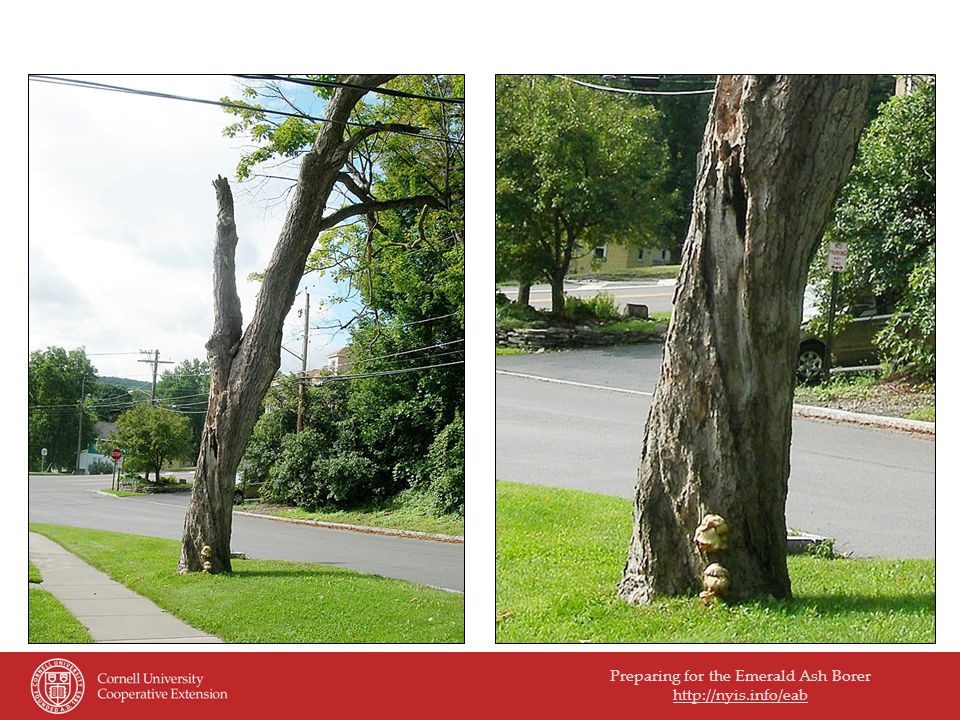

22 Preparing for the Emerald Ash Borer You can’t manage what you don’t know!

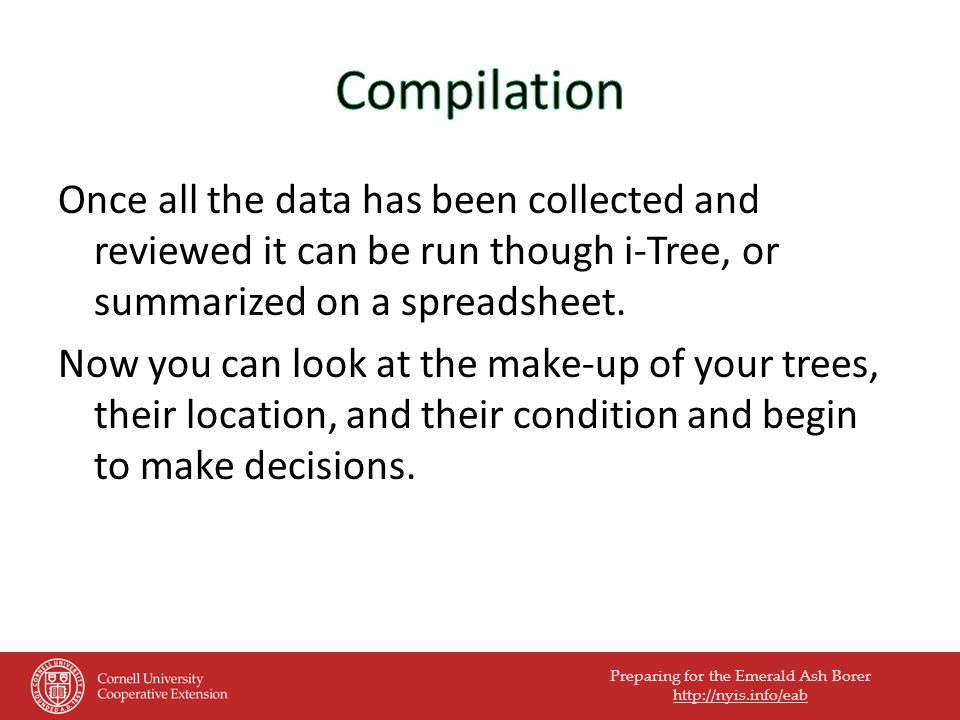

23 Preparing for the Emerald Ash Borer Once all the data has been collected and reviewed it can be run though i-Tree, or summarized on a spreadsheet. Now you can look at the make-up of your trees, their location, and their condition and begin to make decisions.

24 Preparing for the Emerald Ash Borer Species and Genus Distribution Is there sufficient diversity to provide resilience to an invasive pest or disease? rule No more than: 30% from one Family 20% from one Genus 10% from one Species

25 Preparing for the Emerald Ash Borer Sufficient young trees Not enough young trees Diameter Profile Are enough young trees being planted to compensate for the loss of older trees?

26 Preparing for the Emerald Ash Borer Tree Condition What is the general condition of the street tree population?

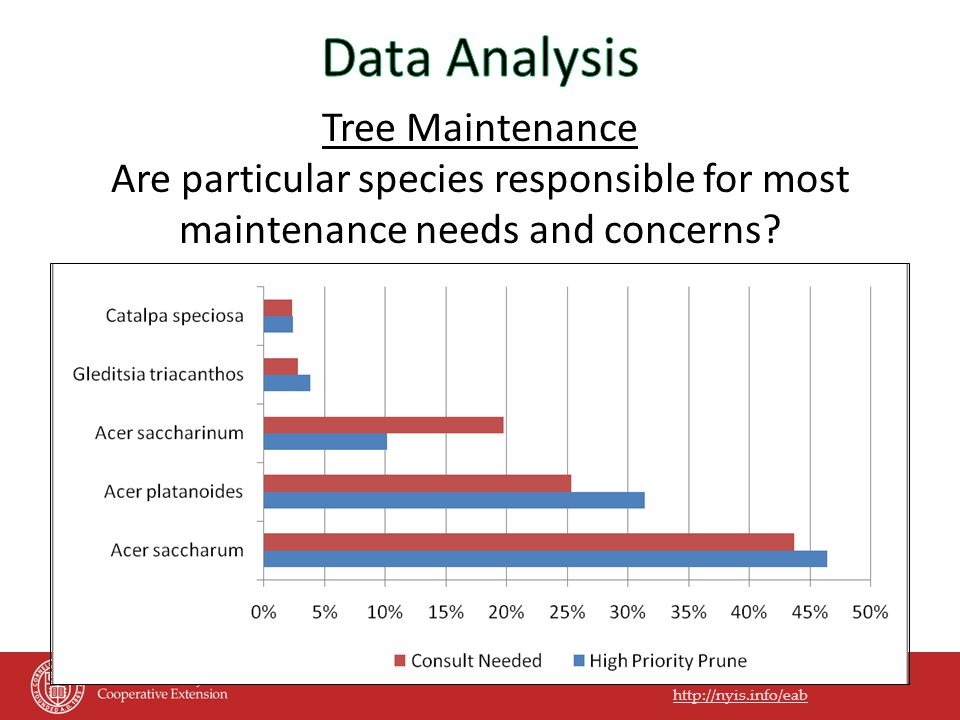

27 Preparing for the Emerald Ash Borer Tree Maintenance Are particular species responsible for most maintenance needs and concerns?

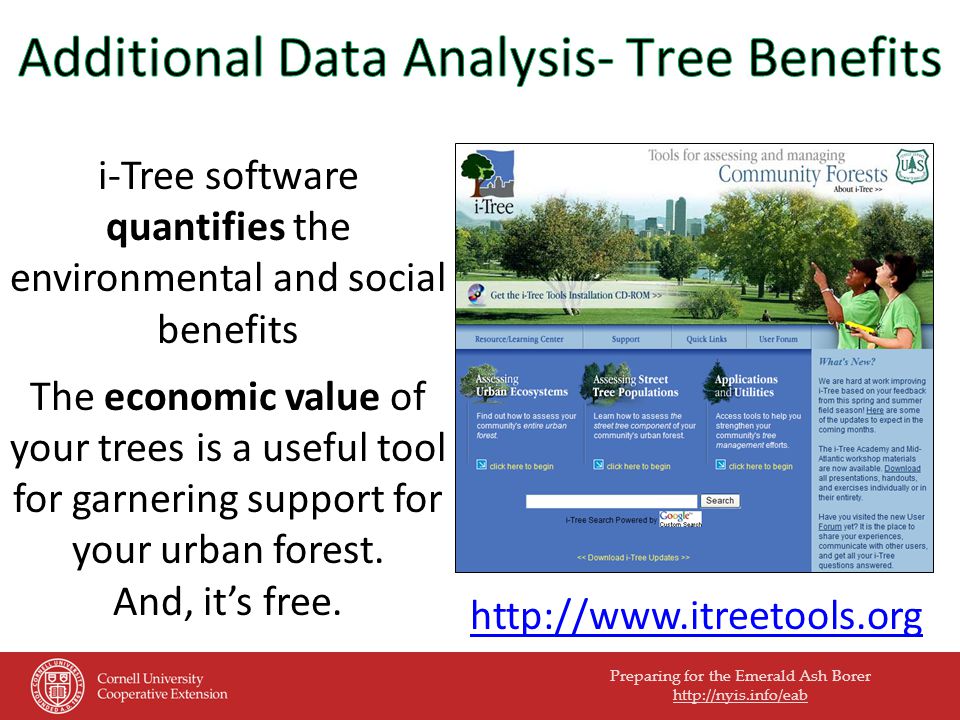

28 Preparing for the Emerald Ash Borer i-Tree software quantifies the environmental and social benefits The economic value of your trees is a useful tool for garnering support for your urban forest. And, it’s free.

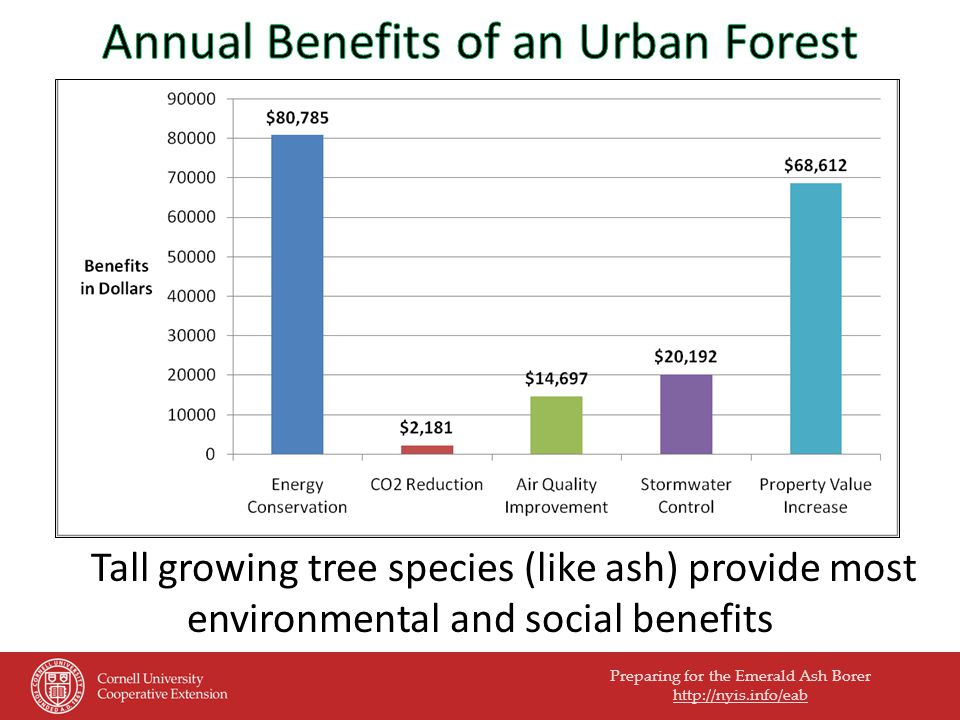

29 Preparing for the Emerald Ash Borer Tall growing tree species (like ash) provide most environmental and social benefits

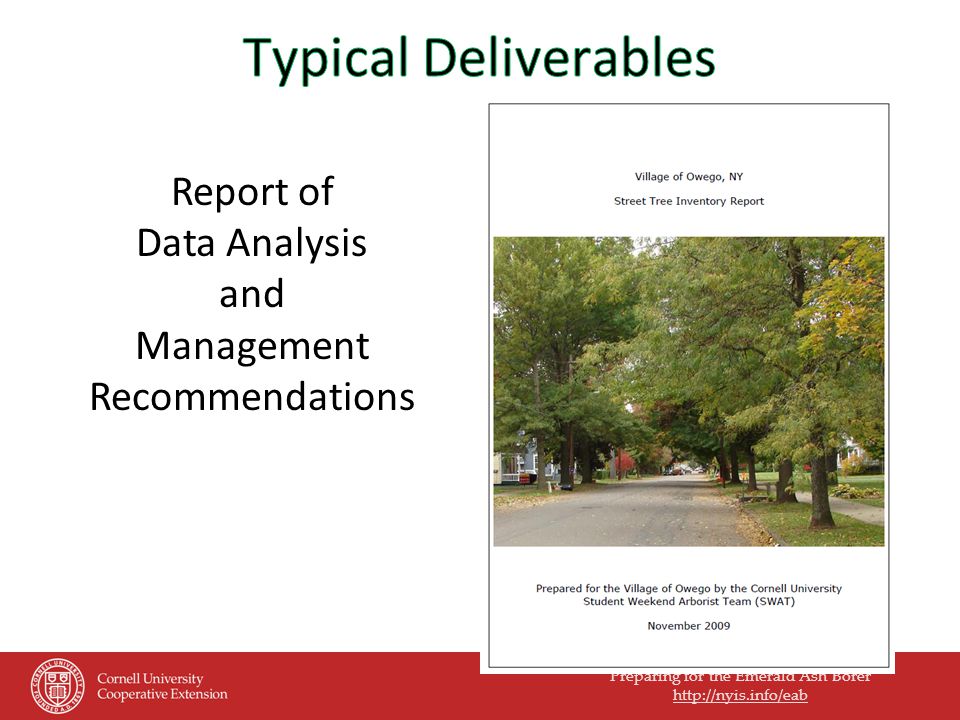

30 Preparing for the Emerald Ash Borer Inventory Report Report of Data Analysis and Management Recommendations

31 Preparing for the Emerald Ash Borer Excel file of inventory data

32 Preparing for the Emerald Ash Borer GIS shapefiles of tree locations …

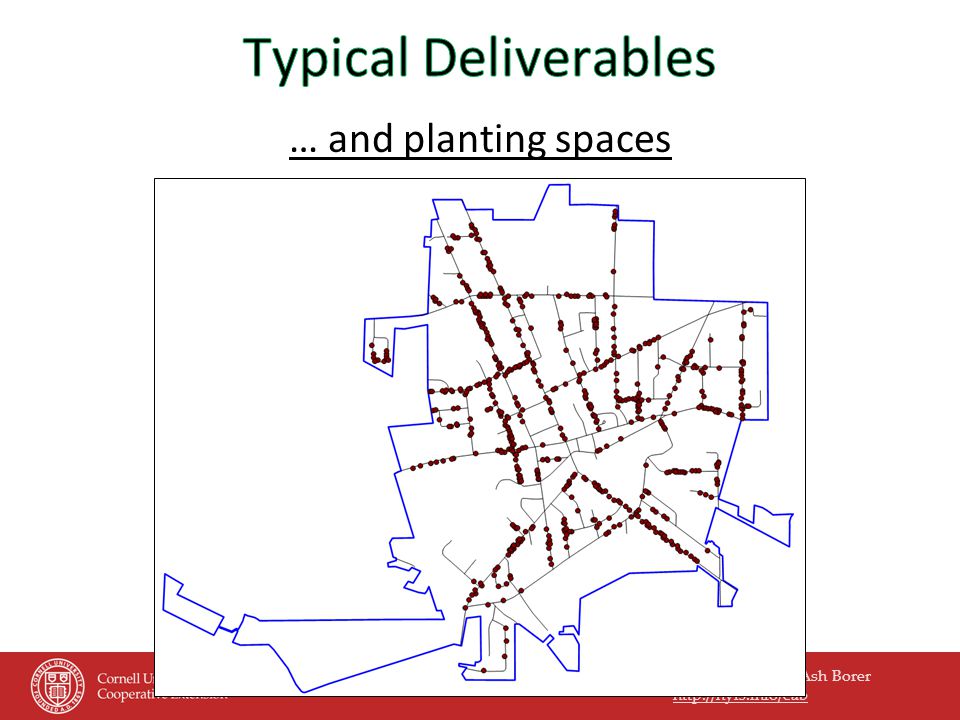

33 Preparing for the Emerald Ash Borer … and planting spaces

34 Preparing for the Emerald Ash Borer GIS Maps can be customized to show ash tree locations, locations of high risk trees, or other features. Ash trees are highlighted on this map

35 Preparing for the Emerald Ash Borer

36 Preparing for the Emerald Ash Borer Collecting and processing inventory data can be daunting, but there are people who can help with training and data analysis. CCE Staff Consulting Arborists/ Municipal Foresters Foresters (public and private) NRCS or Soil and Water Conservation District Staff, Emerald Ash Borer Task Forces and their Members

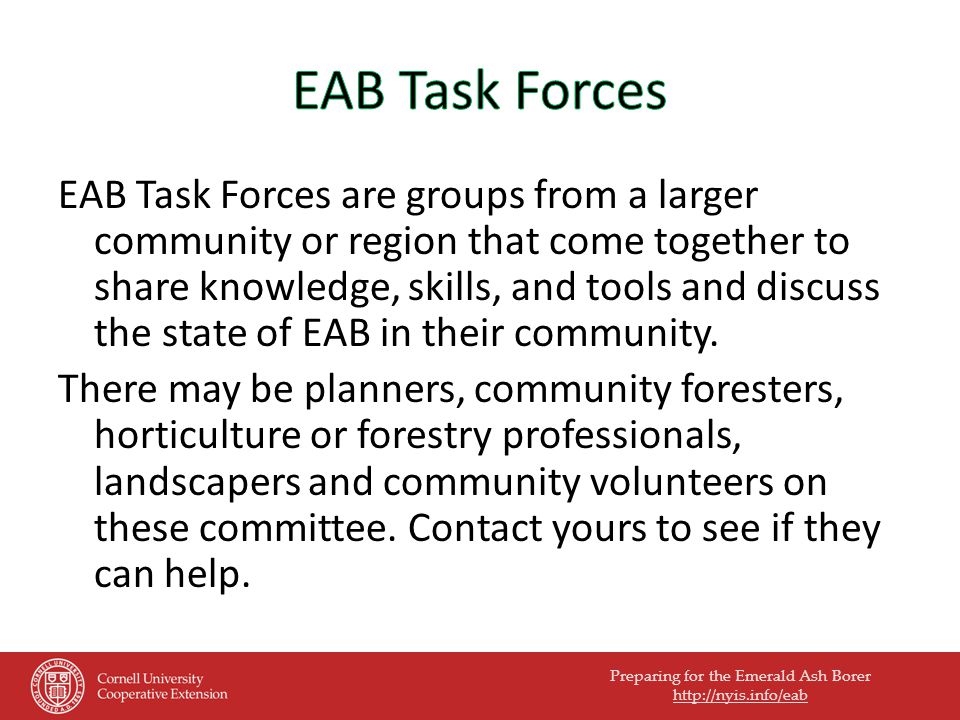

37 Preparing for the Emerald Ash Borer EAB Task Forces are groups from a larger community or region that come together to share knowledge, skills, and tools and discuss the state of EAB in their community. There may be planners, community foresters, horticulture or forestry professionals, landscapers and community volunteers on these committee. Contact yours to see if they can help.

38 Preparing for the Emerald Ash Borer

39 Preparing for the Emerald Ash Borer

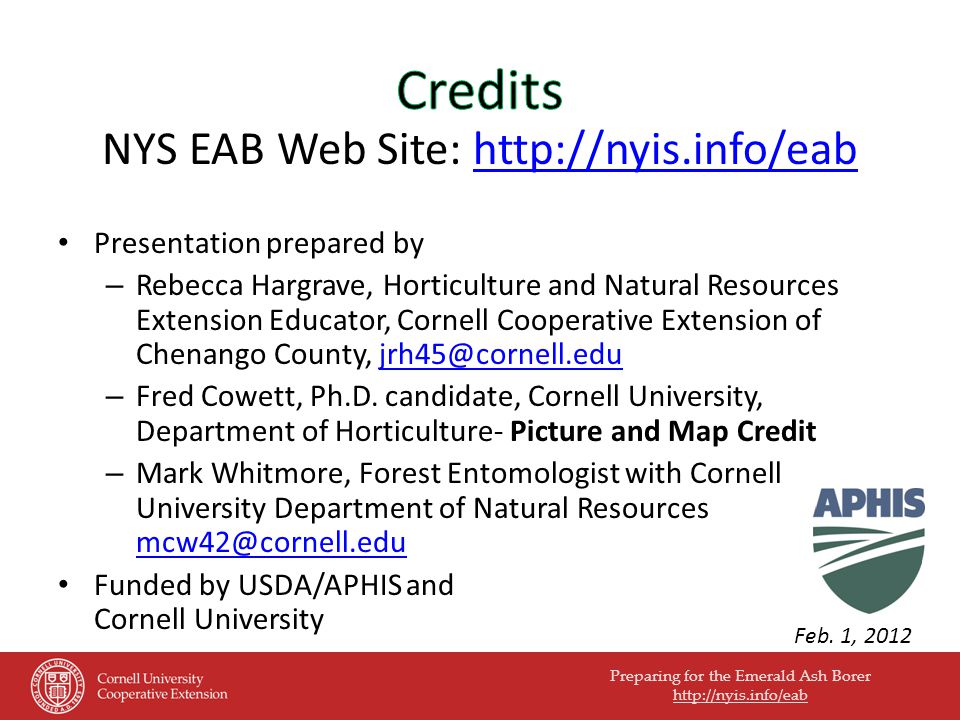

40 Preparing for the Emerald Ash Borer NYS EAB Web Site: Presentation prepared by – Rebecca Hargrave, Horticulture and Natural Resources Extension Educator, Cornell Cooperative Extension of Chenango County, – Fred Cowett, Ph.D. candidate, Cornell University, Department of Horticulture- Picture and Map Credit – Mark Whitmore, Forest Entomologist with Cornell University Department of Natural Resources Funded by USDA/APHIS and Cornell University Feb. 1, 2012
